Portable-Airborne-Particle-Counter-LPPC-B11

labtron Portable Airborne Particle Counter is an eight-channel unit with high flow rates for real-time monitoring in eight size ranges. It features user-defined limits and a built-in printer for convenient on-screen viewing, data downloading, and printing, ensuring cleanroom compliance.<br>

millyyates
Download Presentation

Portable-Airborne-Particle-Counter-LPPC-B11

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

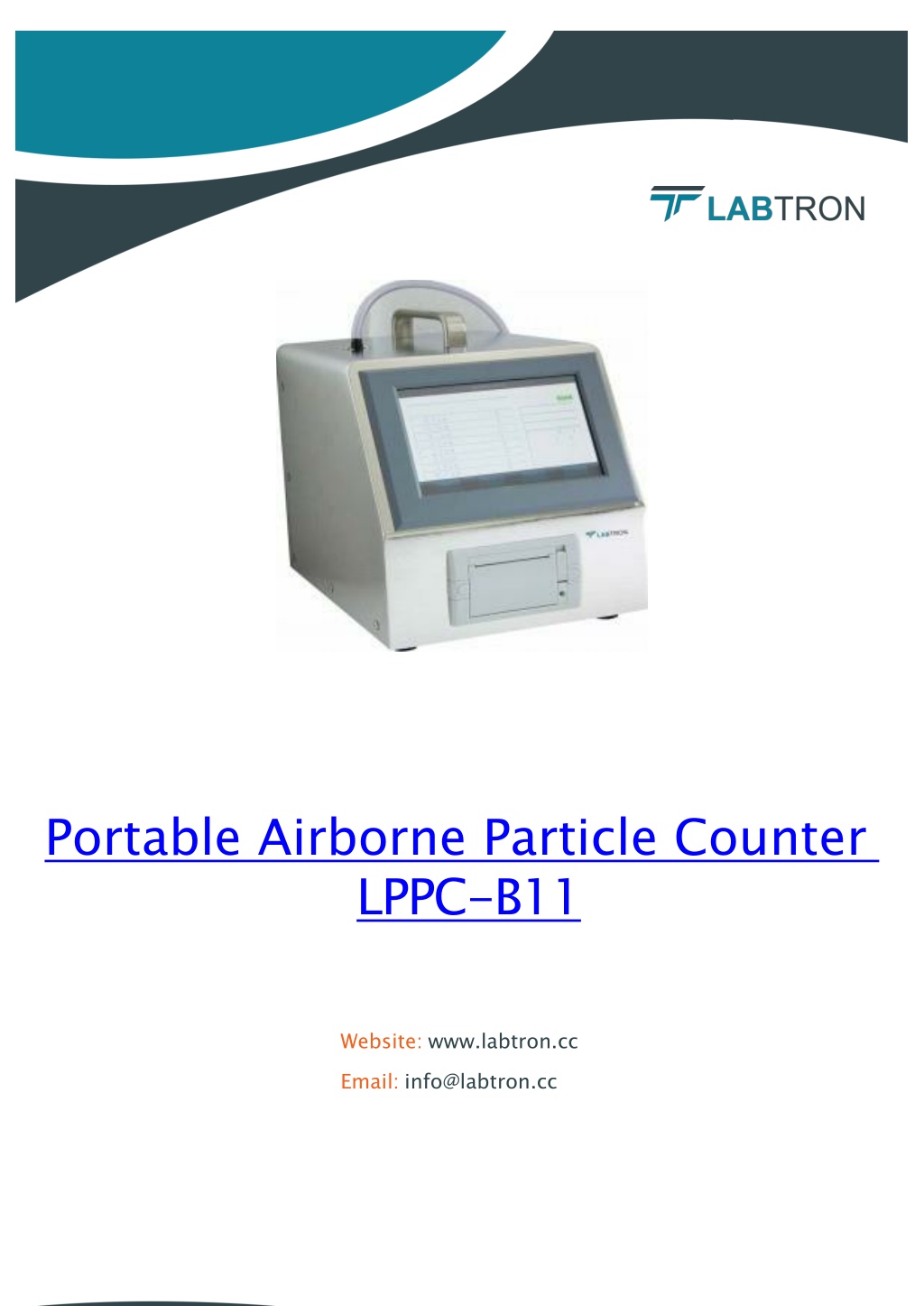

  1. Portable Airborne Particle Counter LPPC-B11 Website: www.labtron.cc Email: info@labtron.cc

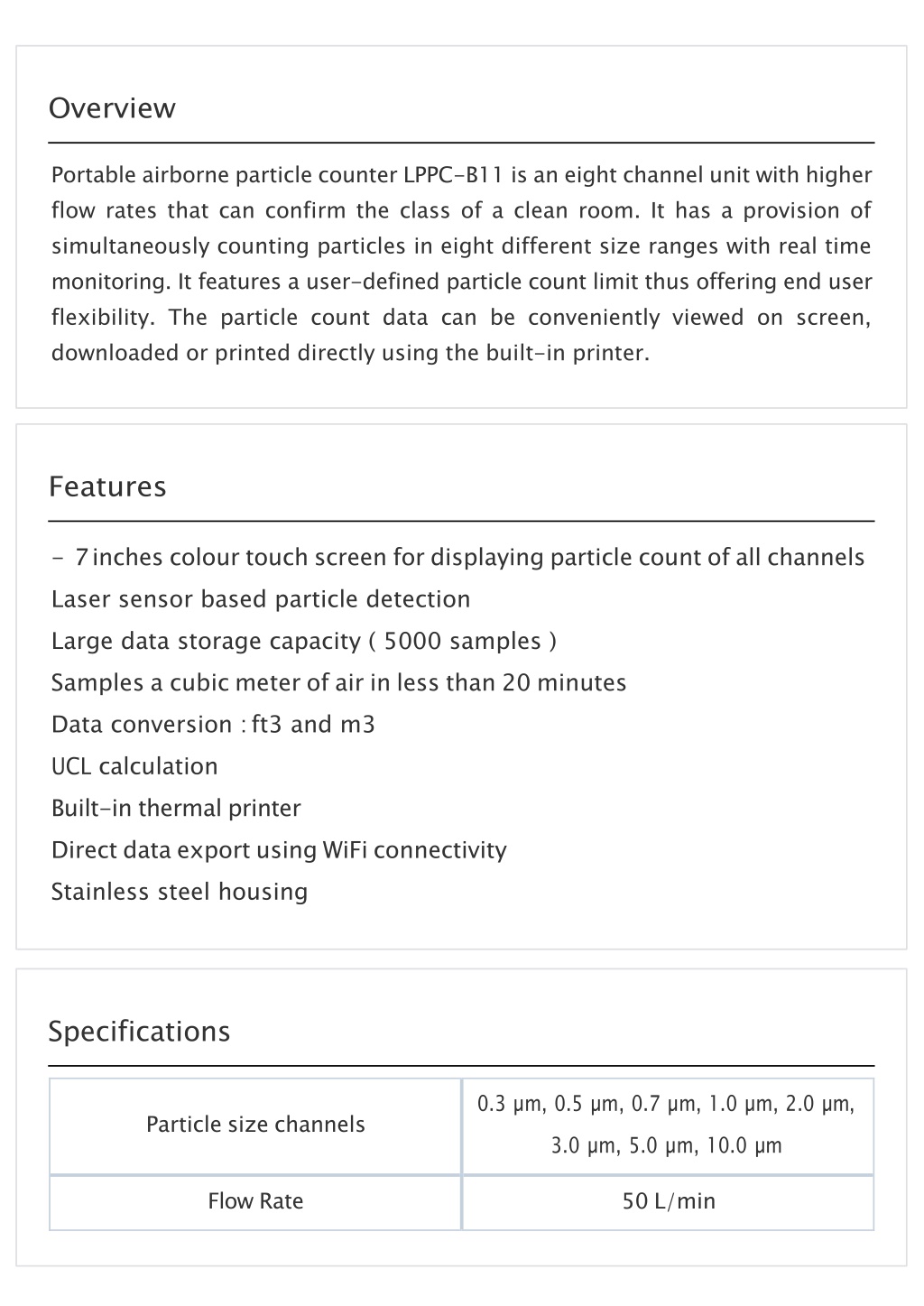

  2. Portable airborne particle counter LPPC-B11 is an eight channel unit with higher flow rates that can confirm the class of a clean room. It has a provision of simultaneously counting particles in eight different size ranges with real time monitoring. It features a user-defined particle count limit thus offering end user flexibility. The particle count data can be conveniently viewed on screen, downloaded or printed directly using the built-in printer. - 7 inches colour touch screen for displaying particle count of all channels Laser sensor based particle detection Large data storage capacity ( 5000 samples ) Samples a cubic meter of air in less than 20 minutes Data conversion : ft3 and m3 calculation Built-in thermal printer Direct data export using WiFi connectivity Stainless steel housing Specifications 0.3µm,0.5µm,0.7µm,1.0µm,2.0µm, 3.0µm,5.0µm,10.0µm Particle size channels Flow Rate 50 L/min

  3. Sensitivity 0.3 µm Test period 1 sec ∼3599 sec( 5 L∼ 3000L ) Max. permissible sampling concentration 35,000 pcs/L Light source and life Laser diode Self-clean time ≤10min Operating temperature range 10°Cto35°C Operational humidity ≤ 75 % RH Batteries Lithium-ion ( optional ) Battery life ˃ 4 hours continuous usage Communication interface RS485 Power 220 V ± 10 %, 50 Hz ± 2 Hz Power dissipation 145 W Dimensions (W x L x H) 220 x 285 x 260 mm Weight 9 kgs Standard Accessories : Accessory No Accessory Quantity 1. Carrying case 1

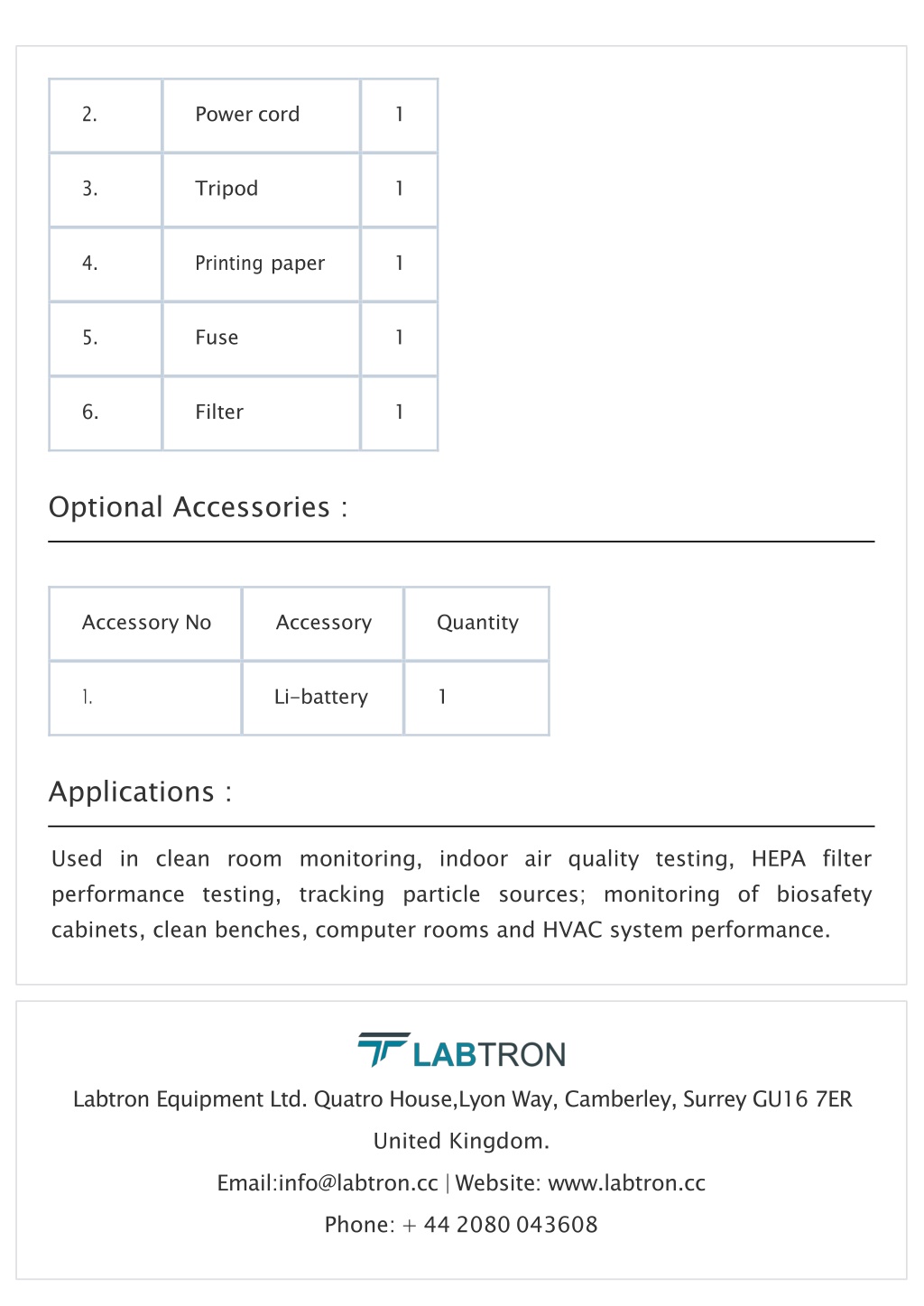

  4. 2. Power cord 1 3. Tripod 1 4. Printing paper 1 5. Fuse 1 6. Filter 1 Optional Accessories : Accessory No Accessory Quantity 1. Li-battery 1 Applications : Used in clean room monitoring, indoor air quality testing, HEPA filter performance testing, tracking particle sources; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER United Kingdom. Email:info@labtron.cc | Website: www.labtron.cc Phone: + 44 2080 043608
