Portable-Airborne-Particle-Counter-LPPC-A30 (2)Portable Airborne Particle Counte

labtron Portable Airborne Particle Counter is a six-channel microcomputer-controlled unit for real-time particle monitoring in six size ranges. It features a built-in thermal printer, large LCD screen, and multiple print modes for easy data viewing, downloading, and printing.<br>

millyyates
Download Presentation

Portable-Airborne-Particle-Counter-LPPC-A30 (2)Portable Airborne Particle Counte

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

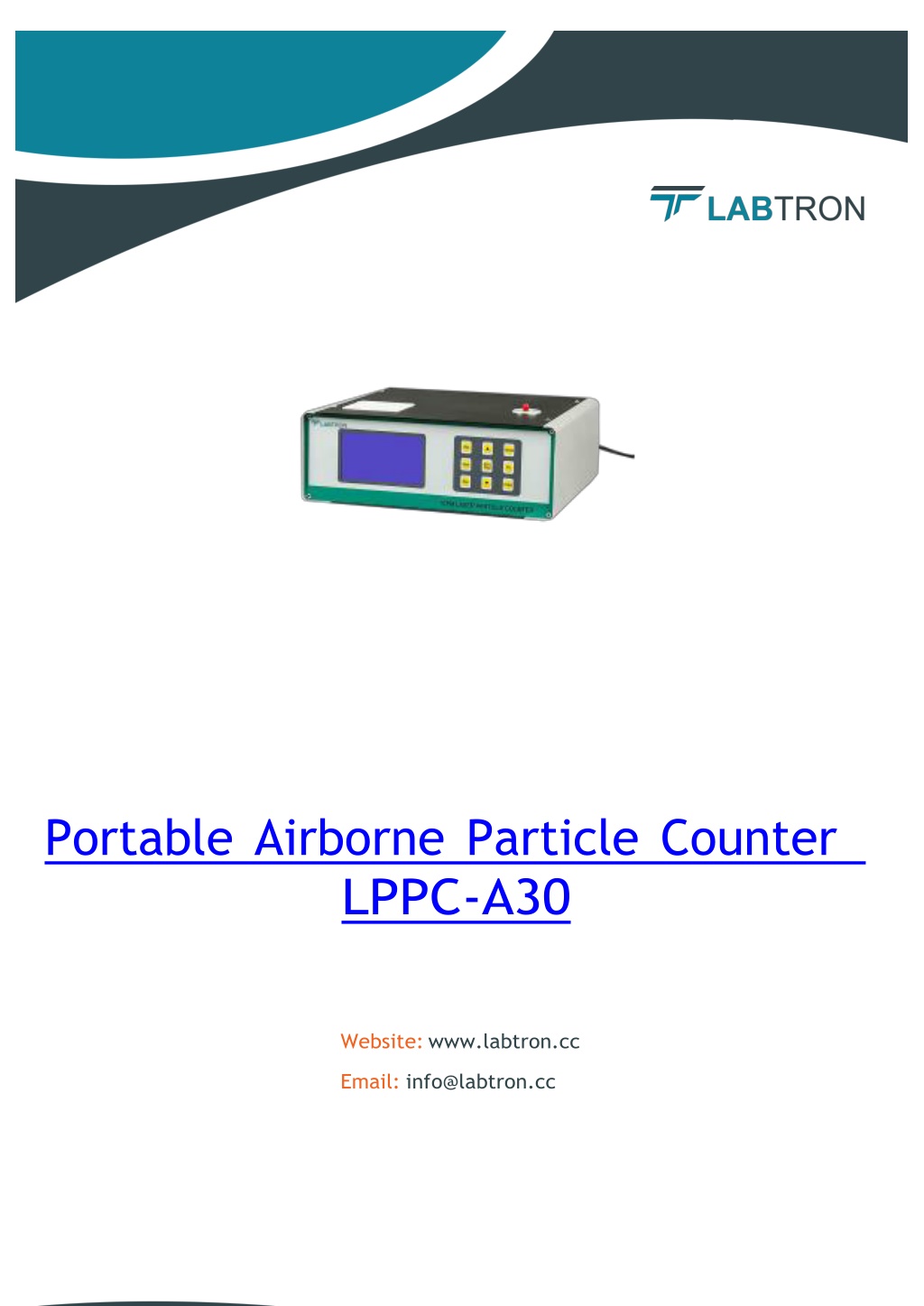

  1. Portable Airborne Particle Counter LPPC-A30 Website: www.labtron.cc Email: info@labtron.cc

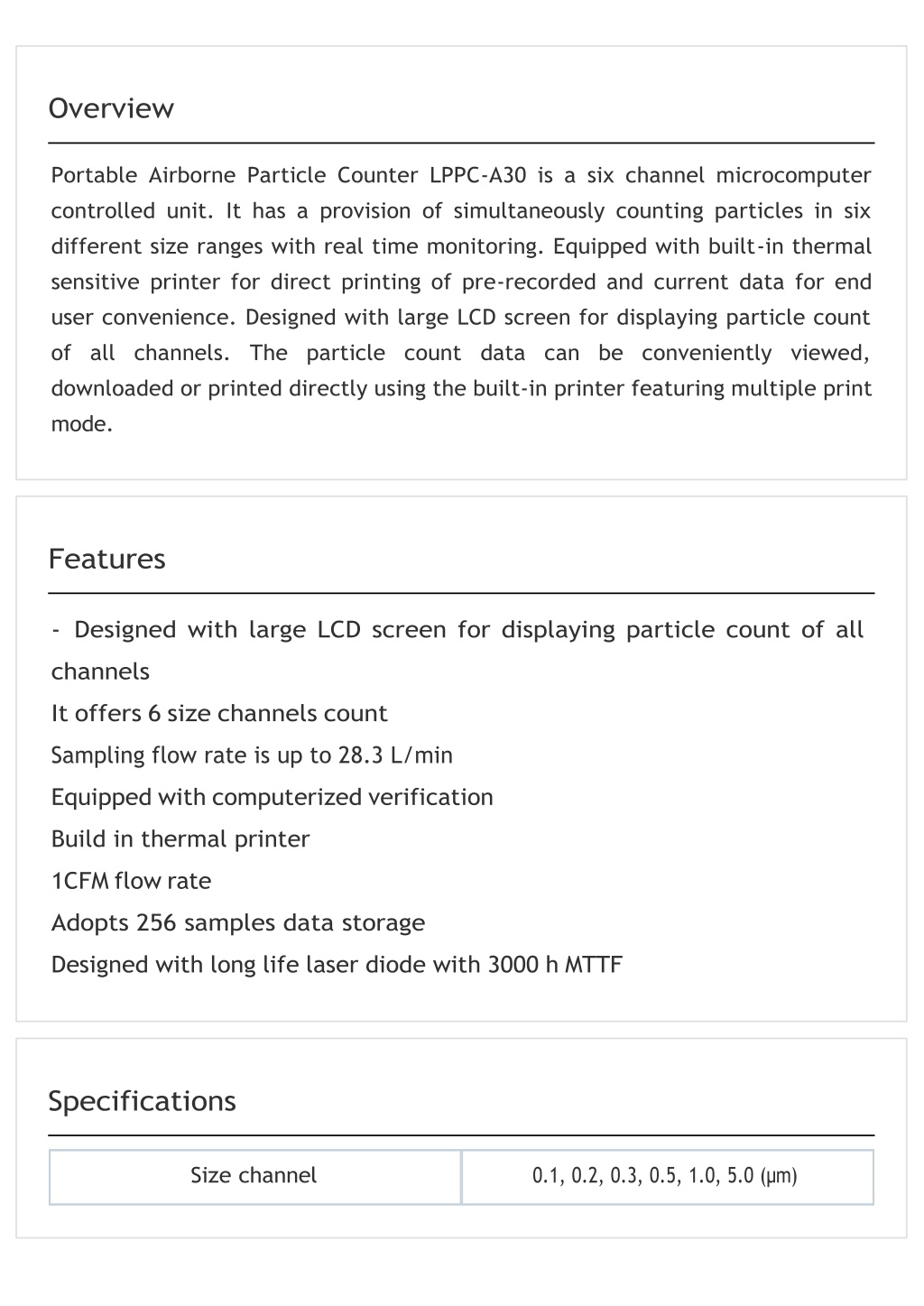

  2. Overview Portable Airborne Particle Counter LPPC-A30 is a six channel microcomputer controlled unit. It has a provision of simultaneously counting particles in six different size ranges with real time monitoring. Equipped with built-in thermal sensitive printer for direct printing of pre-recorded and current data for end user convenience. Designed with large LCD screen for displaying particle count of all channels. The particle count data can be conveniently viewed, downloaded or printed directly using the built-in printer featuring multiple print mode. Sampling flow rate is up to 28.3 L/min

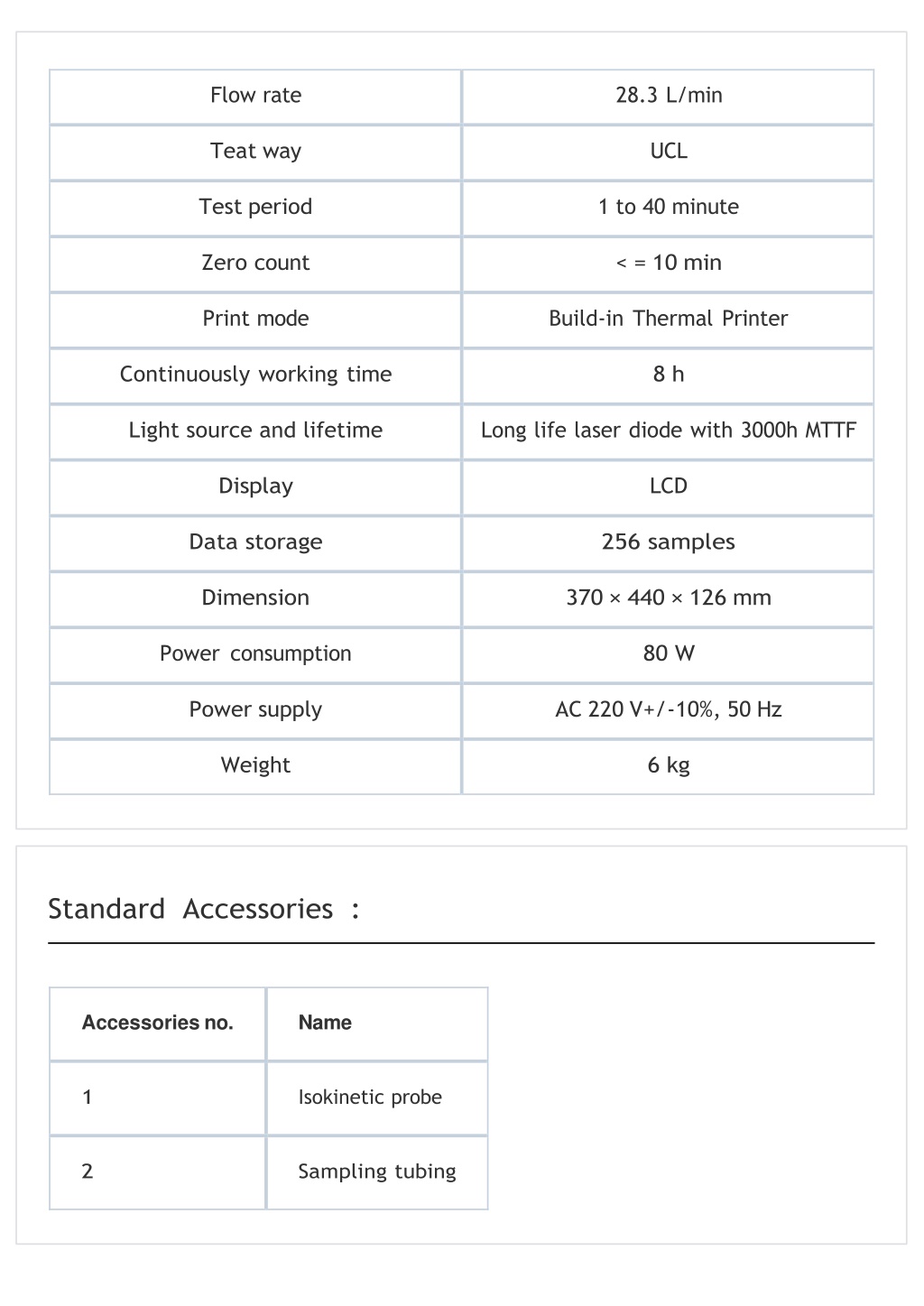

  3. Flow rate 28.3 L/min Teat way UCL Test period 1 to 40 minute Zero count < = 10 min Print mode Build-in Thermal Printer Continuously working time 8 h Light source and lifetime Long life laser diode with 3000h MTTF Display LCD Data storage 256 samples Dimension 370 × 440 × 126 mm Power consumption 80 W Power supply AC 220 V+/-10%, 50 Hz Weight 6 kg Accessories no. Name 1 Isokinetic probe 2 Sampling tubing

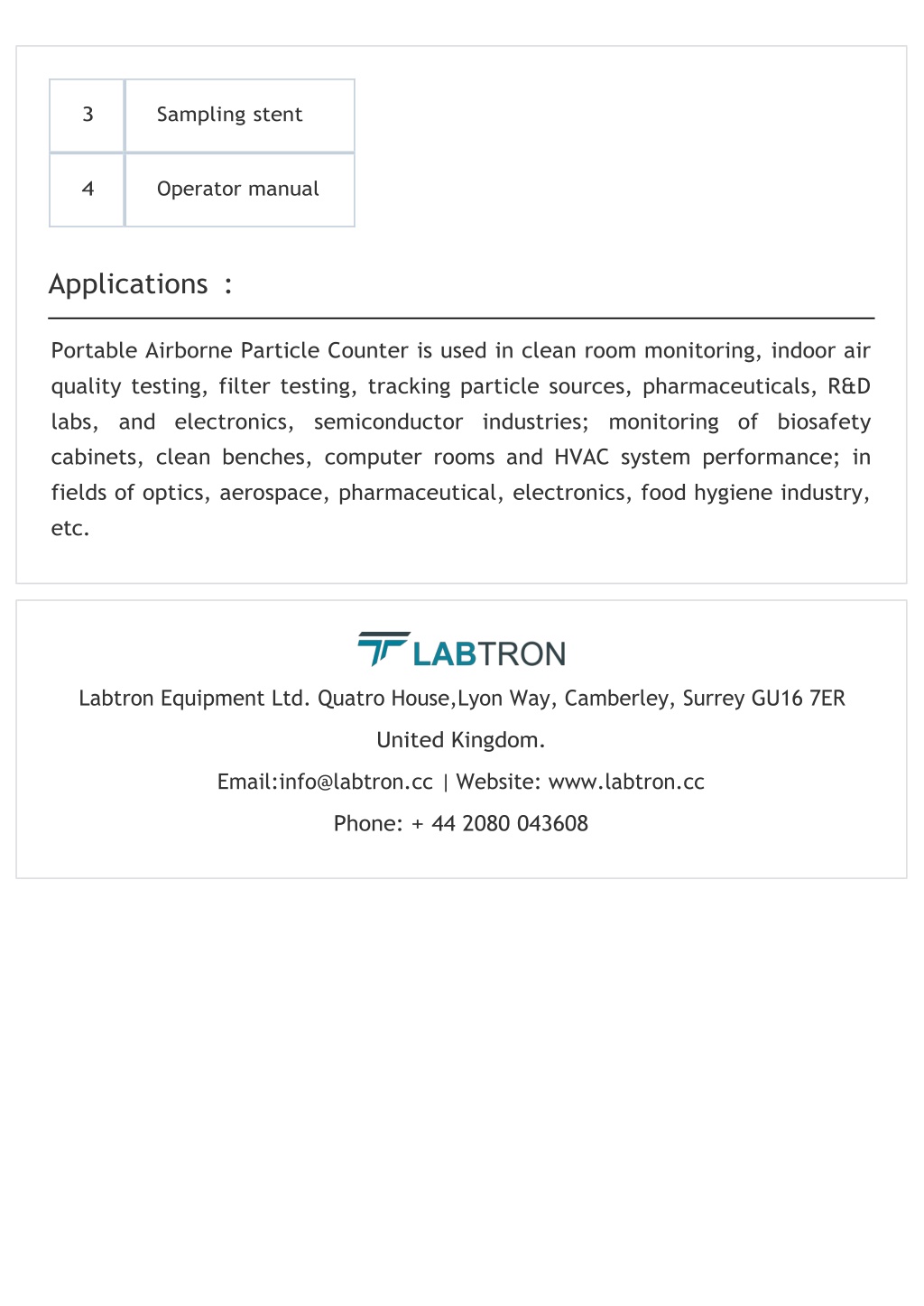

  4. 3 Sampling stent 4 Operator manual Applications : Portable Airborne Particle Counter is used in clean room monitoring, indoor air quality testing, filter testing, tracking particle sources, pharmaceuticals, R&D labs, and electronics, semiconductor industries; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance; in fields of optics, aerospace, pharmaceutical, electronics, food hygiene industry, etc. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER Email:info@labtron.cc | Website: www.labtron.cc
