Handheld-Dust-Meter-LDMH-A10

Laptron Handheld Dust Meter is a compact air quality analyzer using light scattering for fast particle detection. It measures and displays particle concentrations across three channels, offering precise, real-time results in a lightweight, portable design.<br>

millyyates
Download Presentation

Handheld-Dust-Meter-LDMH-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

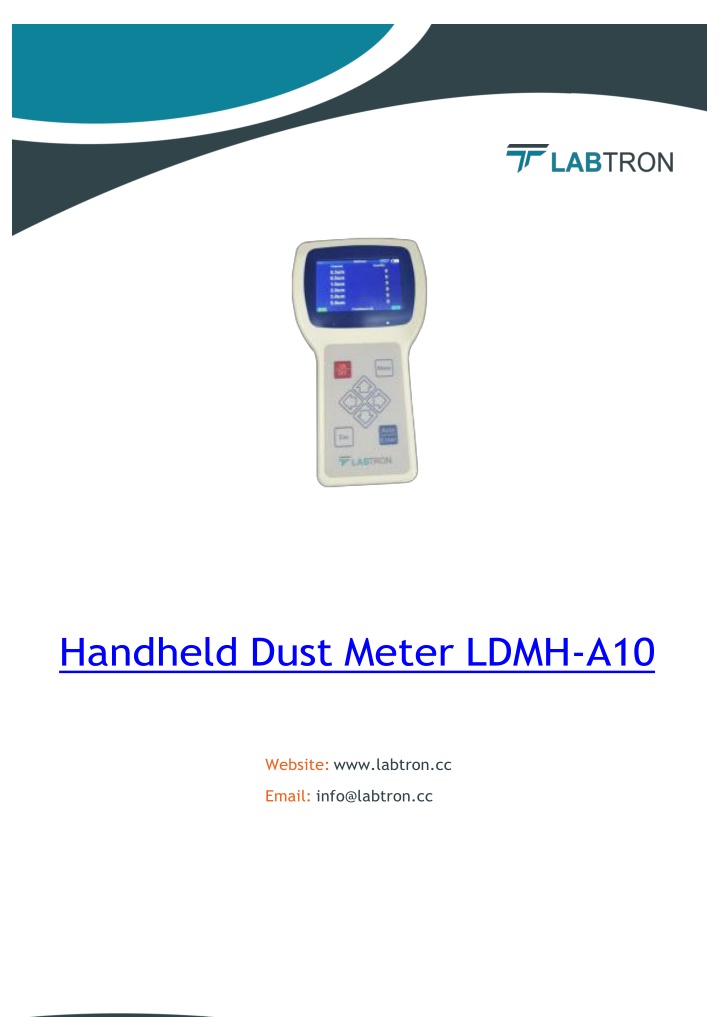

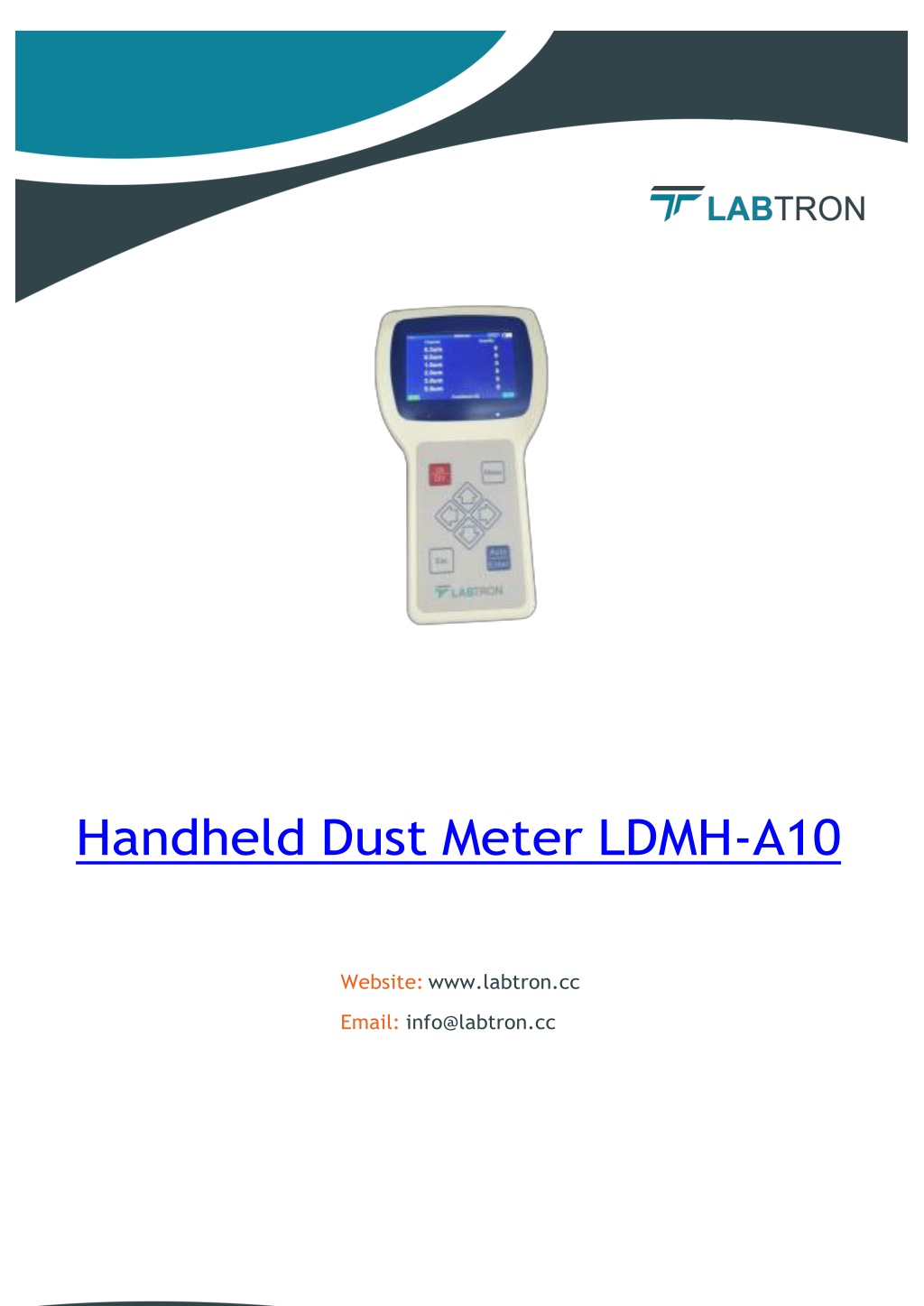

  1. Handheld Dust Meter LDMH-A10 Website: www.labtron.cc Email: info@labtron.cc

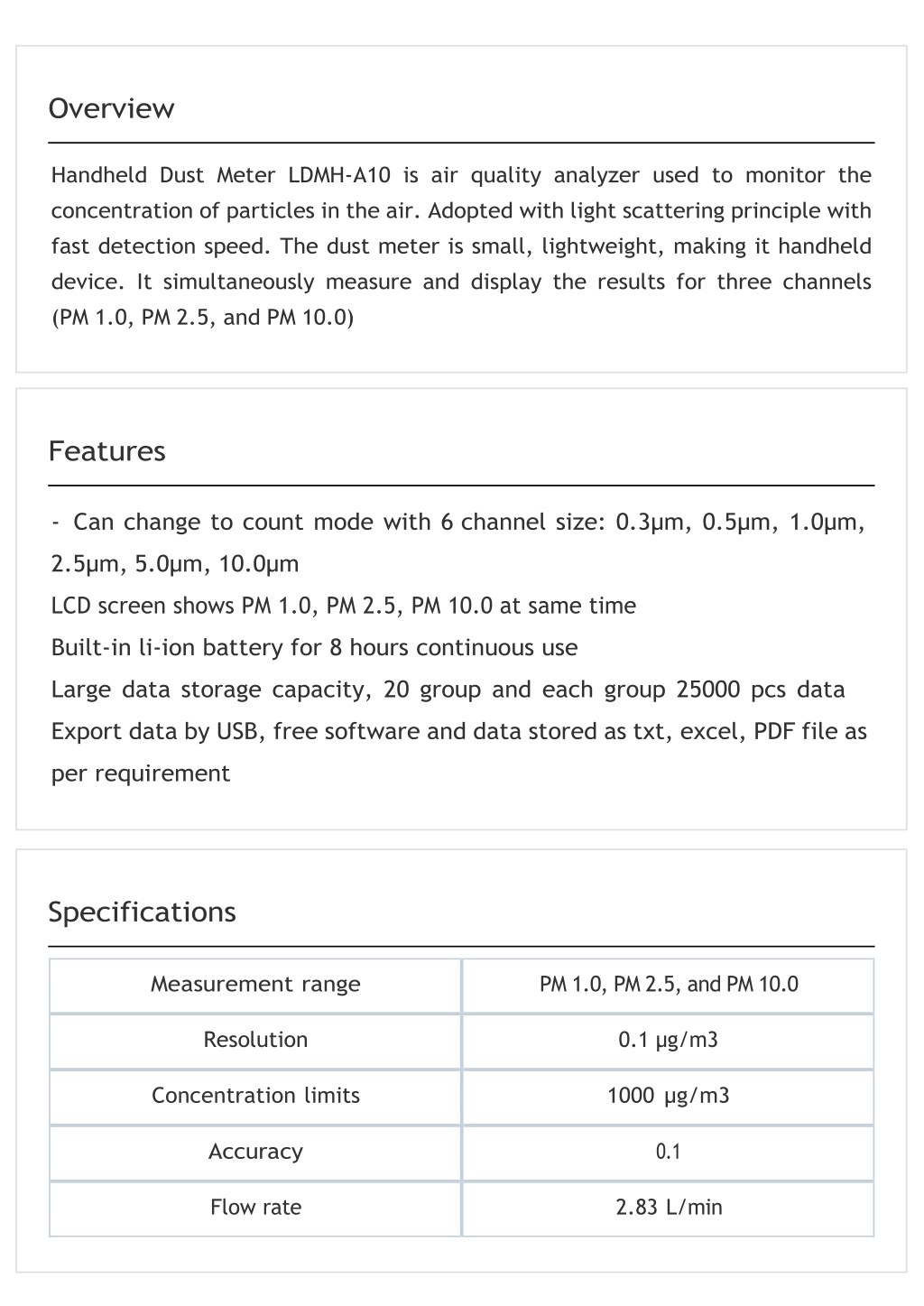

  2. LCD screen shows PM 1.0, PM 2.5, PM 10.0 at same time Measurement range PM 1.0, PM 2.5, and PM 10.0 Resolution 0.1 µg/m3 Concentration limits 1000 µg/m3 Accuracy 0.1 Flow rate 2.83 L/min

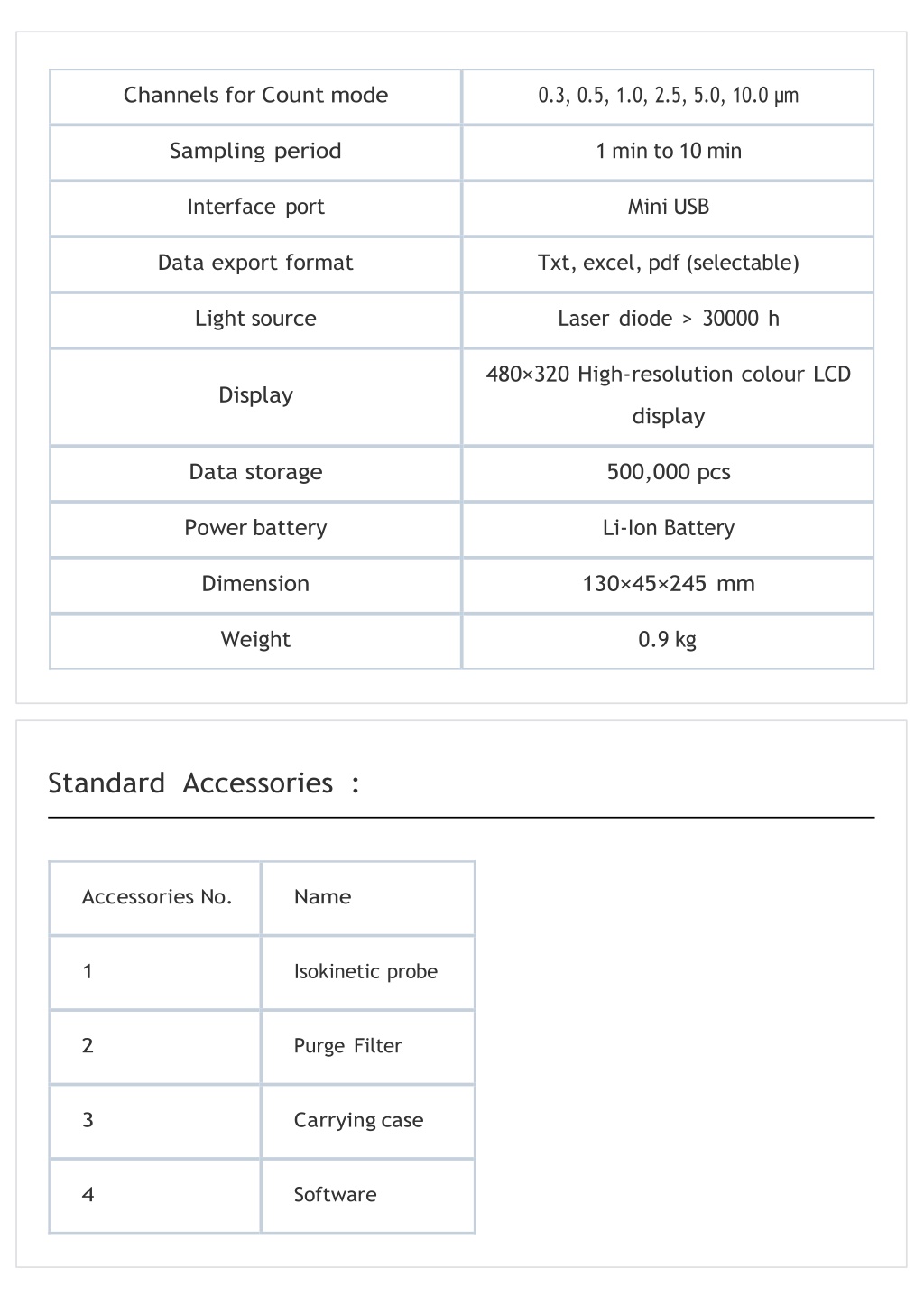

  3. Channels for Count mode 0.3,0.5,1.0,2.5,5.0,10.0µm Sampling period 1 min to 10 min Interface port Mini USB Data export format Txt, excel, pdf (selectable) Light source Laser diode > 30000 h 480×320 High-resolution colour LCD Display display Data storage 500,000 pcs Power battery Li-Ion Battery Dimension 130×45×245 mm Weight 0.9 kg Accessories No. Name 1 Isokinetic probe 2 Purge Filter 3 Carrying case 4 Software

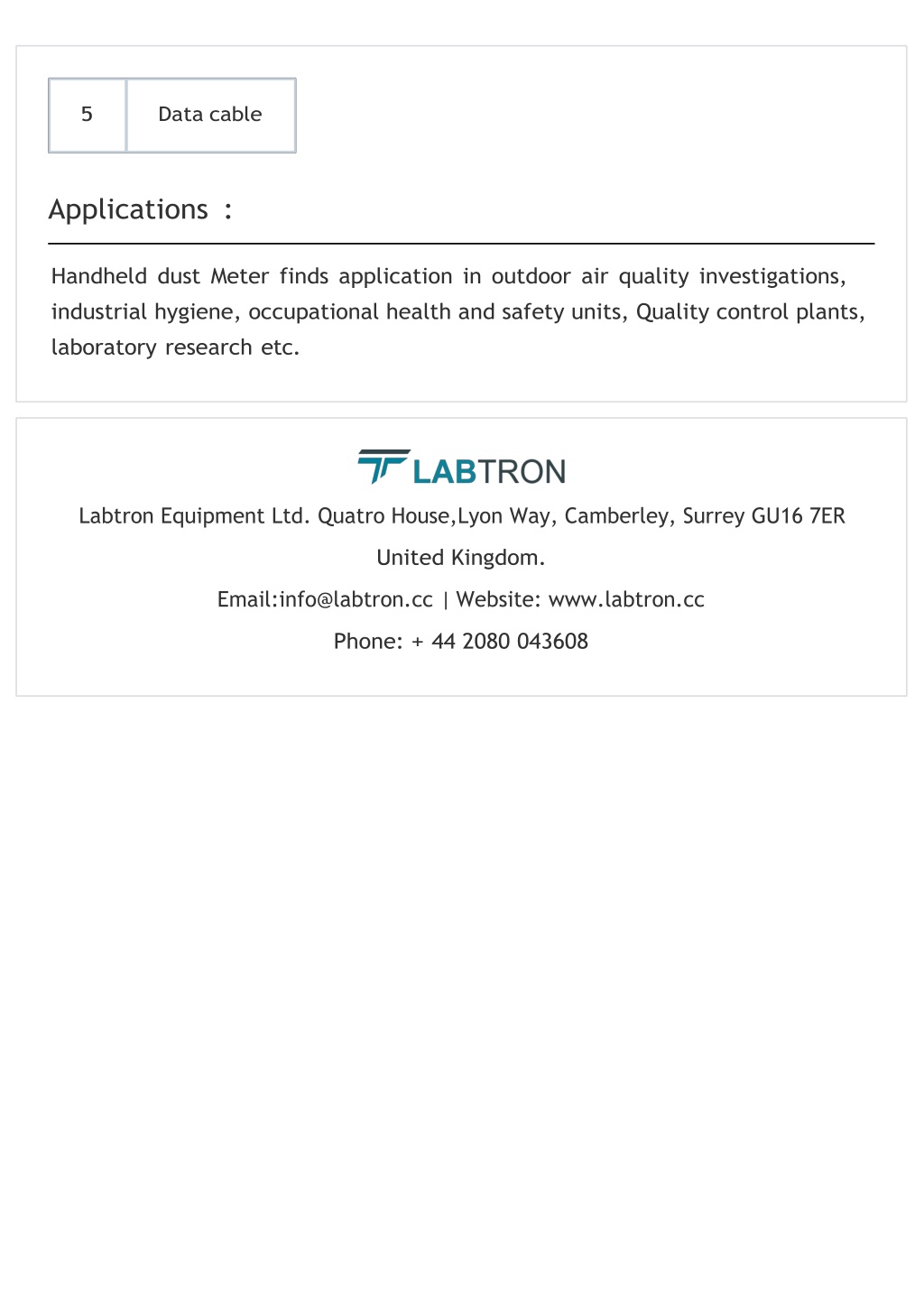

  4. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER Email:info@labtron.cc | Website: www.labtron.cc
