Air-Shower-LAS-A11

Labtron Air Shower antechamber effectively removes dust particles using 12 adjustable air nozzles and a HEPA filtration system. It includes a certified glass door, automatic door locks, and energy-efficient fluorescent lamps, making it ideal for cleaning personnel before entering cleanroom areas.<br>

millyyates
Download Presentation

Air-Shower-LAS-A11

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

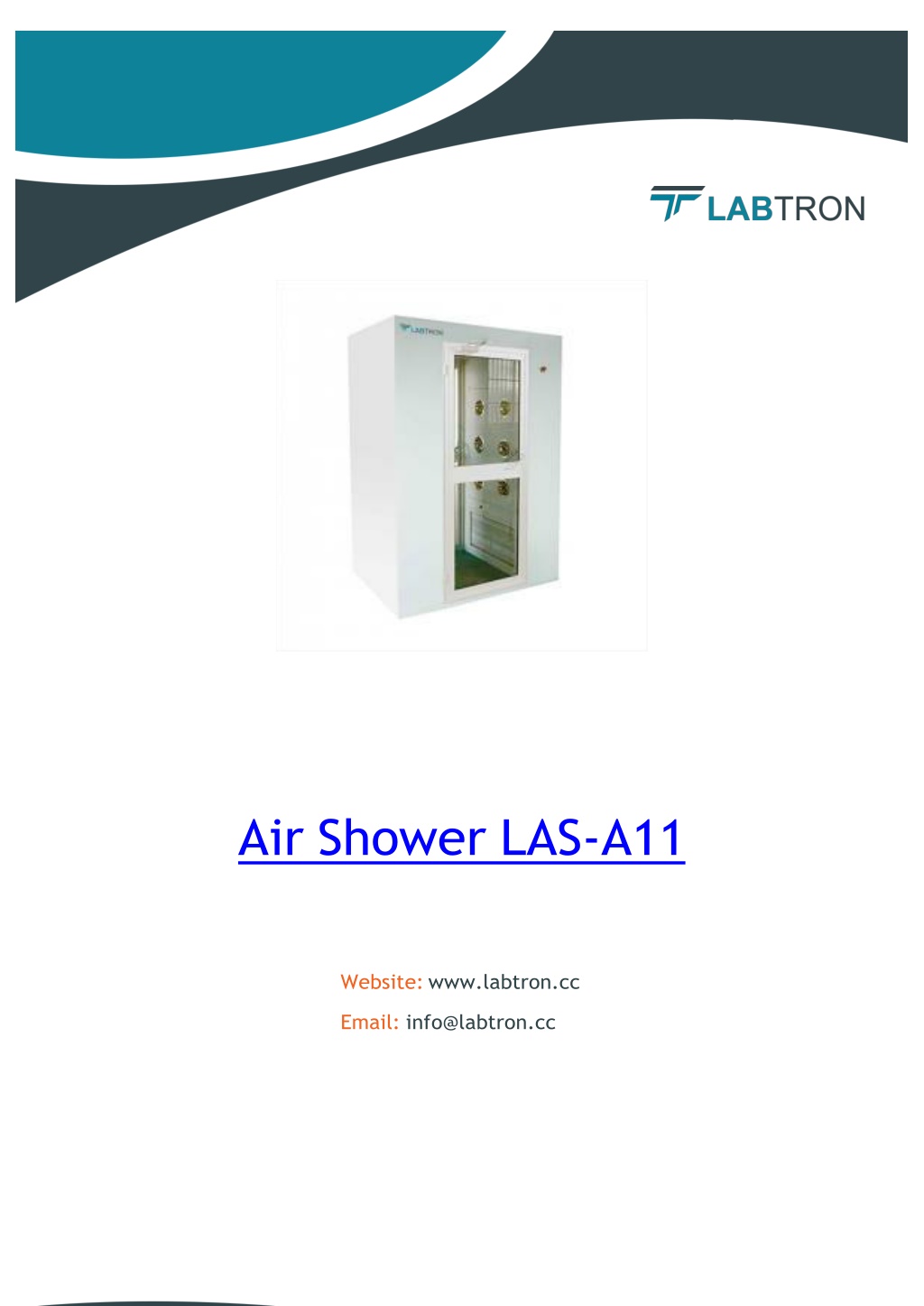

  1. Air Shower LAS-A11 Website: www.labtron.cc Email: info@labtron.cc

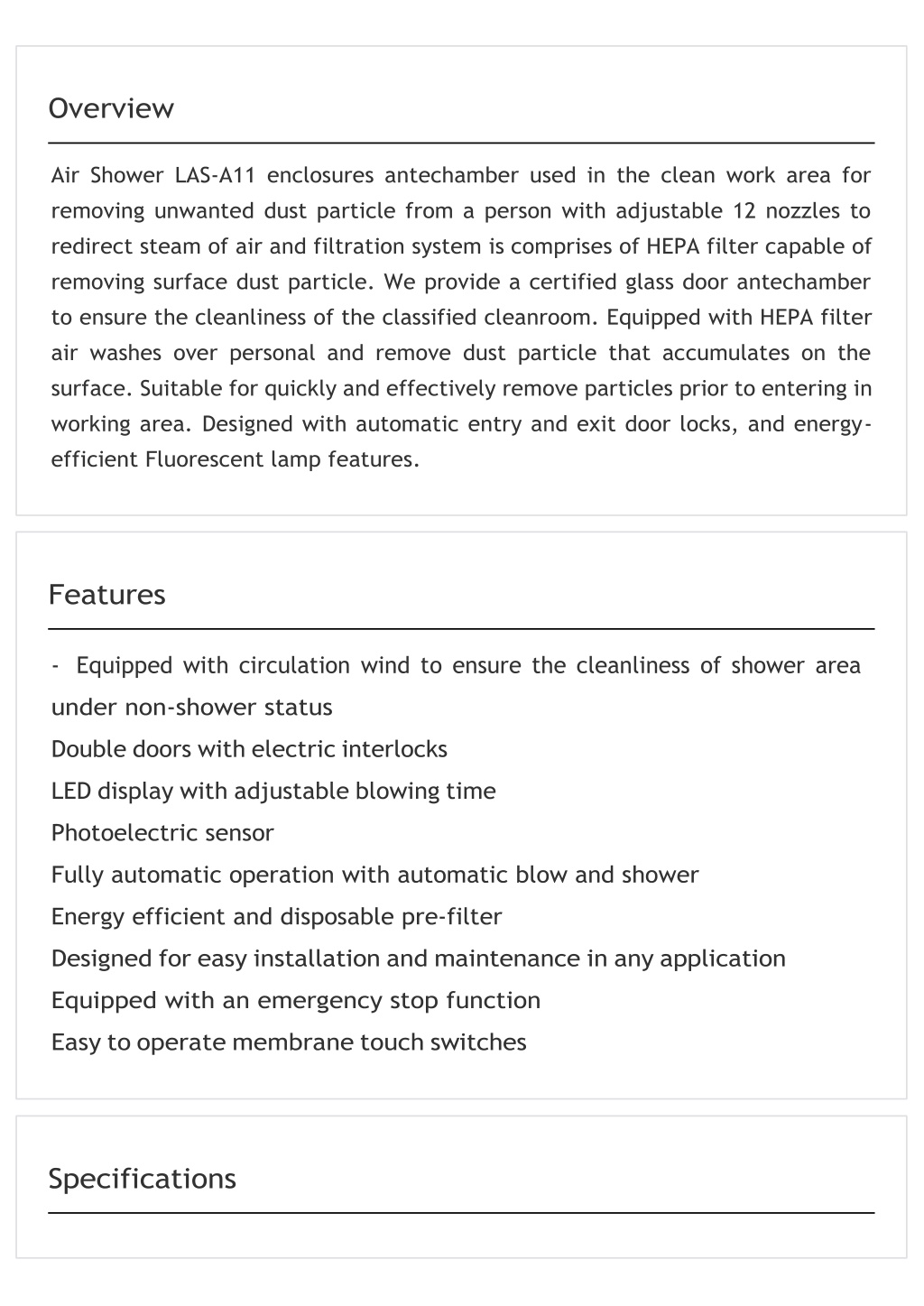

  2. Overview Air Shower LAS-A11 enclosures antechamber used in the clean work area for removing unwanted dust particle from a person with adjustable 12 nozzles to redirect steam of air and filtration system is comprises of HEPA filter capable of removing surface dust particle. We provide a certified glass door antechamber to ensure the cleanliness of the classified cleanroom. Equipped with HEPA filter air washes over personal and remove dust particle that accumulates on the surface. Suitable for quickly and effectively remove particles prior to entering in working area. Designed with automatic entry and exit door locks, and energy- efficient Fluorescent lamp features. - Equipped with circulation wind to ensure the cleanliness of shower area

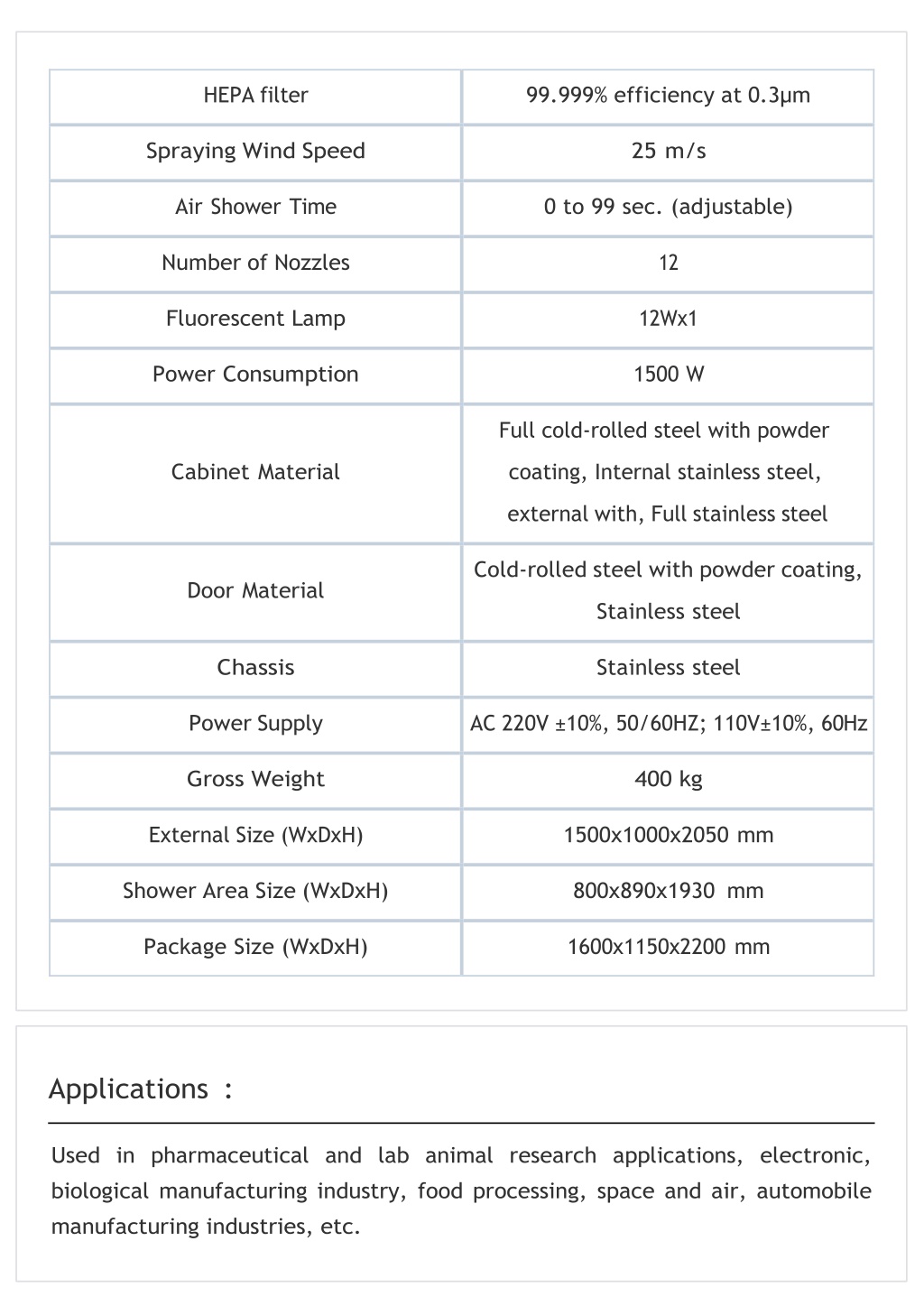

  3. HEPA filter 99.999% efficiency at 0.3µm Spraying Wind Speed 25 m/s Air Shower Time 0 to 99 sec. (adjustable) Number of Nozzles 12 Fluorescent Lamp 12Wx1 Power Consumption 1500 W Full cold-rolled steel with powder Cabinet Material coating, Internal stainless steel, external with, Full stainless steel Cold-rolled steel with powder coating, Door Material Stainless steel Chassis Stainless steel Power Supply AC 220V ±10%, 50/60HZ; 110V±10%, 60Hz Gross Weight 400 kg External Size (WxDxH) 1500x1000x2050 mm Shower Area Size (WxDxH) 800x890x1930 mm Package Size (WxDxH) 1600x1150x2200 mm

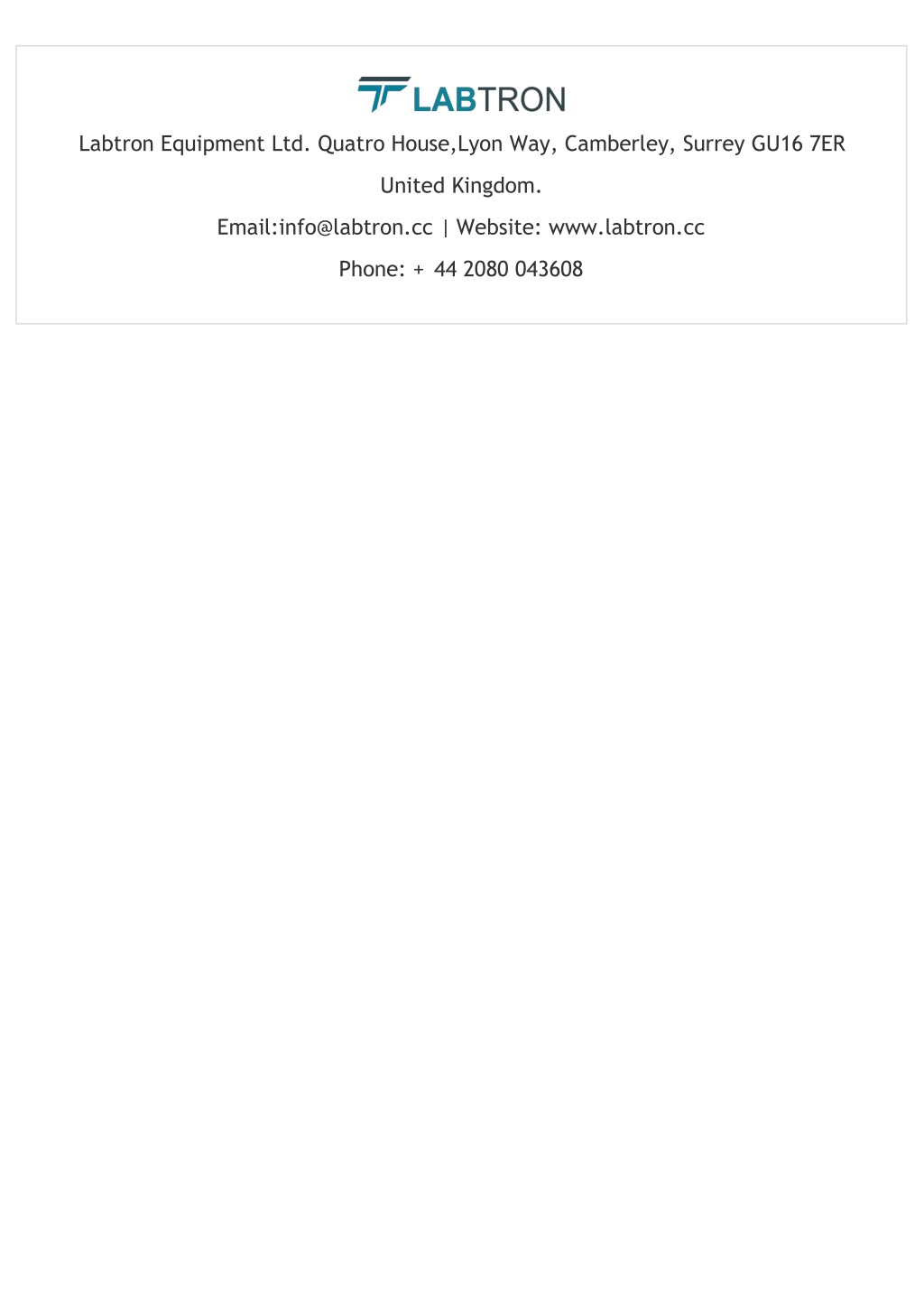

  4. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER United Kingdom. Email:info@labtron.cc | Website: www.labtron.cc Phone: + 44 2080 043608
