Comprehensive Guide to Small Engine Breakdown: Top End and Lower End Techniques

This detailed guide provides step-by-step instructions for breaking down small engines, covering both the top end and lower end. Start with the top end breakdown by carefully removing the intake plenum and cylinder heads, exposing the pistons and camshaft. Remember to replace the heads correctly, ensuring lifters are positioned properly—this task requires teamwork. For the lower end, remove the oil pan, disconnect brackets, and separate the crankshaft from the block. Finally, reassemble each section methodically for effective engine maintenance and repair.

milly
Download Presentation

Comprehensive Guide to Small Engine Breakdown: Top End and Lower End Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Top end, lower end, and small engine breakdown

  2. Top End Breakdown • Remove intake plenum • Remove cylinder heads • Exposed pistons and cam shaft

  3. Top End Breakdown • Put heads back on CAREFULLY! Make sure lifters are placed correctly when putting on cylinder head • This job requires more than one person • Reassemble the rest

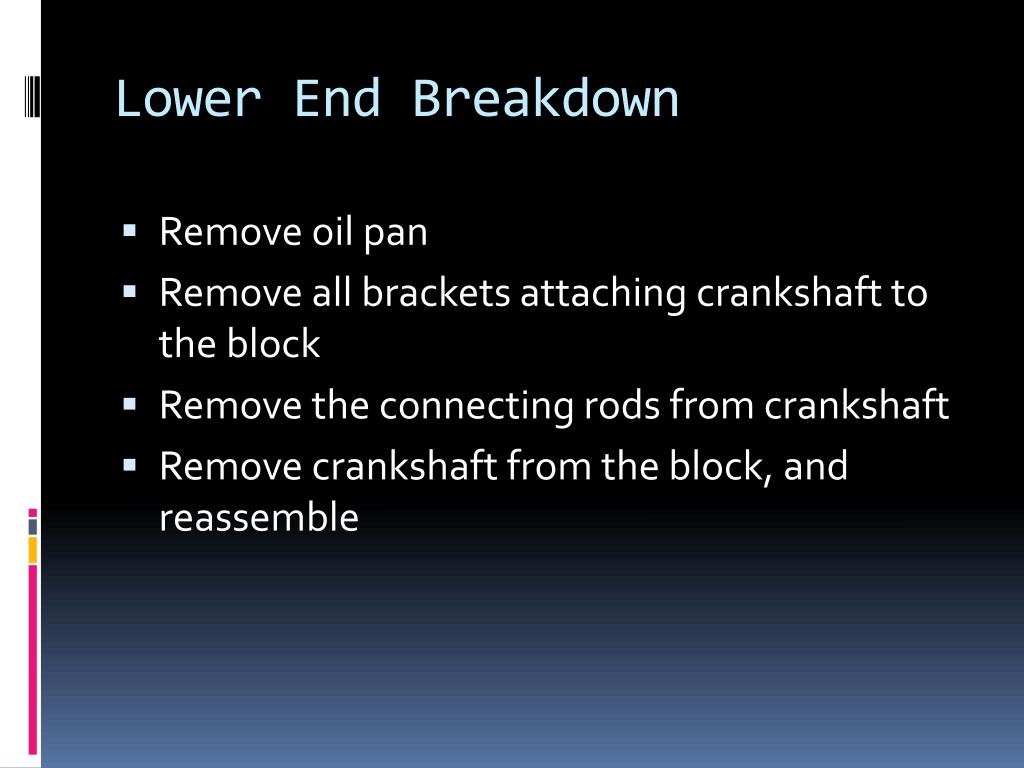

  4. Lower End Breakdown • Remove oil pan • Remove all brackets attaching crankshaft to the block • Remove the connecting rods from crankshaft • Remove crankshaft from the block, and reassemble

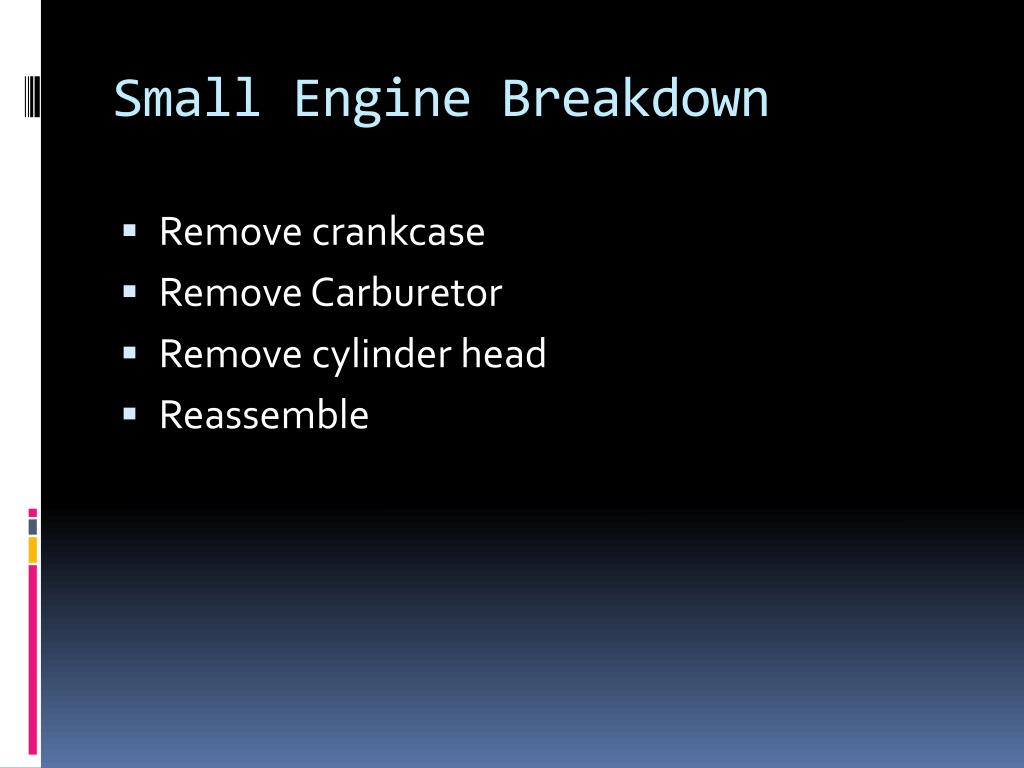

  5. Small Engine Breakdown • Remove crankcase • Remove Carburetor • Remove cylinder head • Reassemble
