Presentation Transcript
mptcp threat analysis an update

MPTCP threat analysis:an update

marcelo bagnulo

IETF77 – MPTCP WG

scope types of attackers
Scope: Types of attackers
  • On-path vs. Off-path
  • On-path attackers
    • Full time on the path
    • Passive (man on the side)
    • Active:
      • Blocking packets
      • Changing packets
scenario

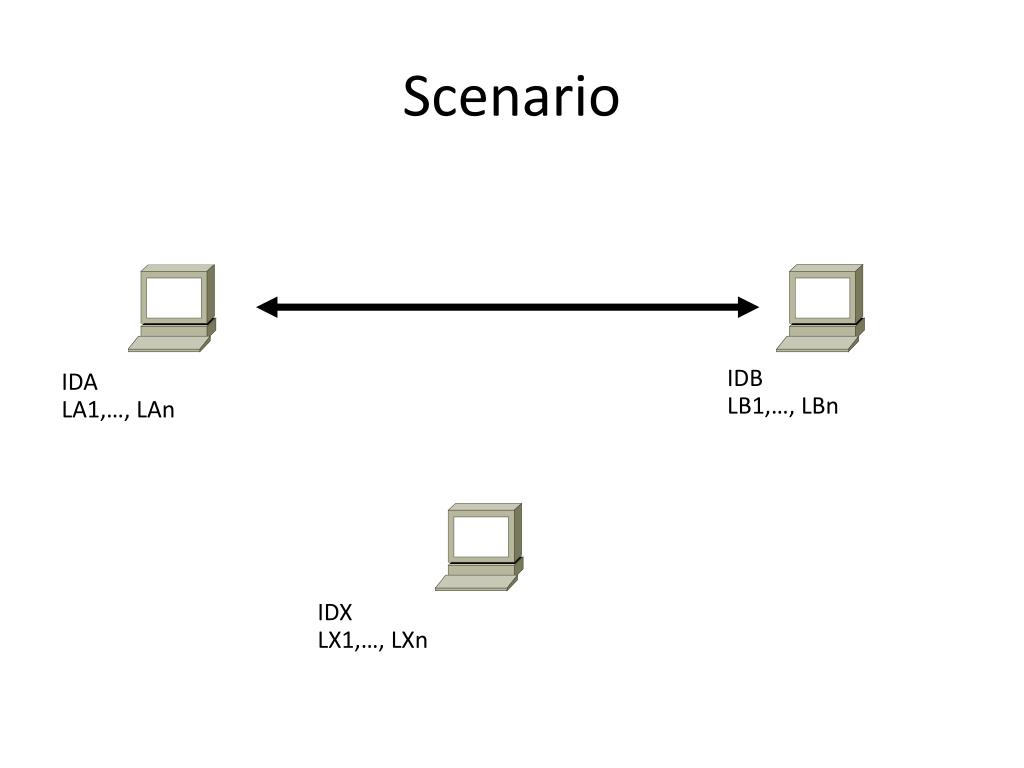

Scenario

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDX

LX1,…, LXn

scenario1

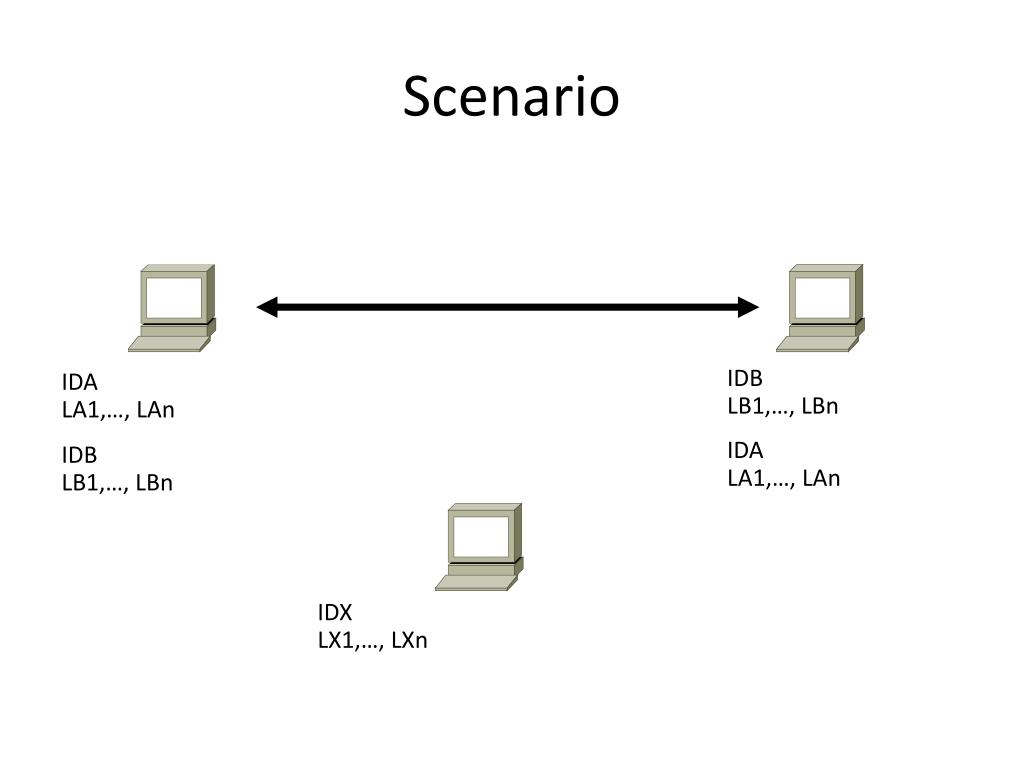

Scenario

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…, LAn

IDB

LB1,…, LBn

IDX

LX1,…, LXn

redirection attacks
Redirection attacks

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…, LAn

IDB

LB1,…, LBn

IDX

LX1,…, LXn

flooding
Flooding

IDX

LX1,…, LXn

IDA

LA1,…, LAn

IDX

LX1,…, LXn

flooding1

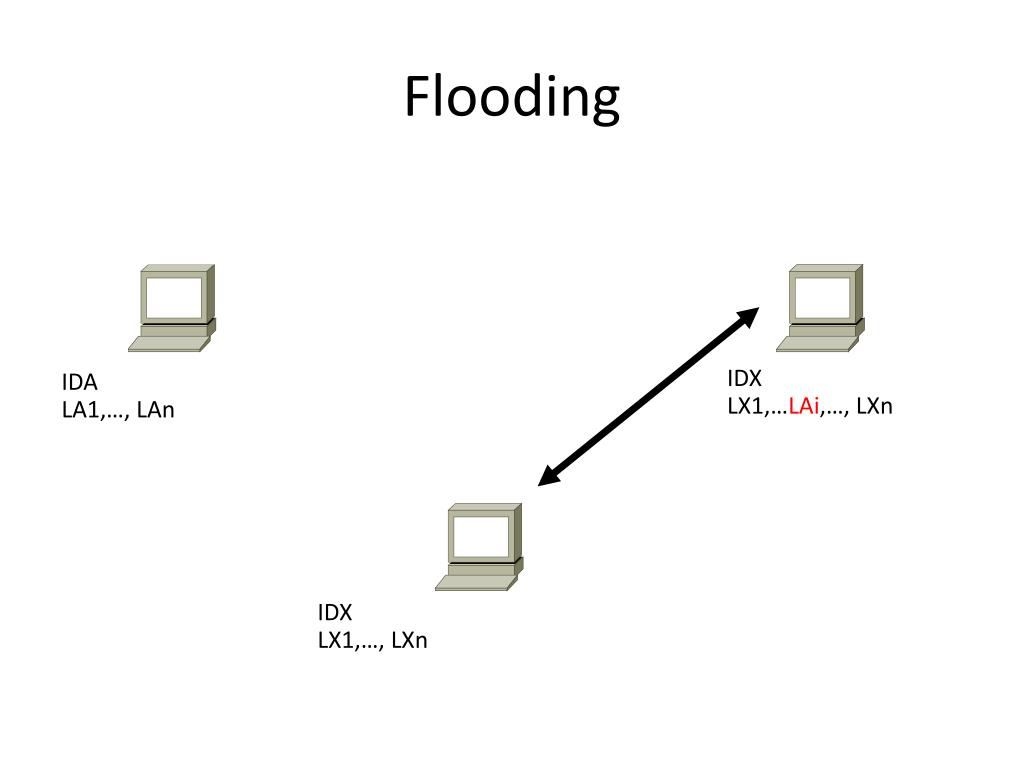

Flooding

IDX

LX1,…LAi,…, LXn

IDA

LA1,…, LAn

IDX

LX1,…, LXn

flooding2
Flooding

IDX

LX1,…LAi,…, LXn

IDA

LA1,…, LAn

IDX

LX1,…, LXn

flooding and mptcp

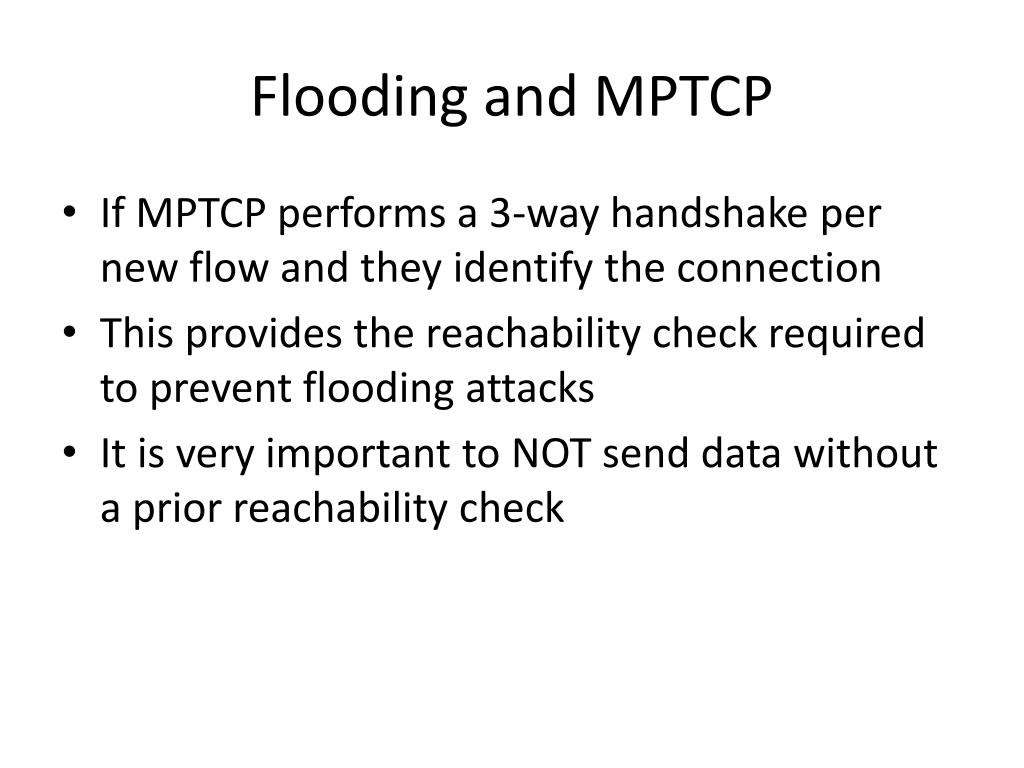

Flooding and MPTCP
  • If MPTCP performs a 3-wayhandshakepernewflowandtheyidentifytheconnection
  • Thisprovidesthereachability check requiredtopreventfloodingattacks
  • Itisveryimportantto NOT send data without a prior reachability check
connection hijacking

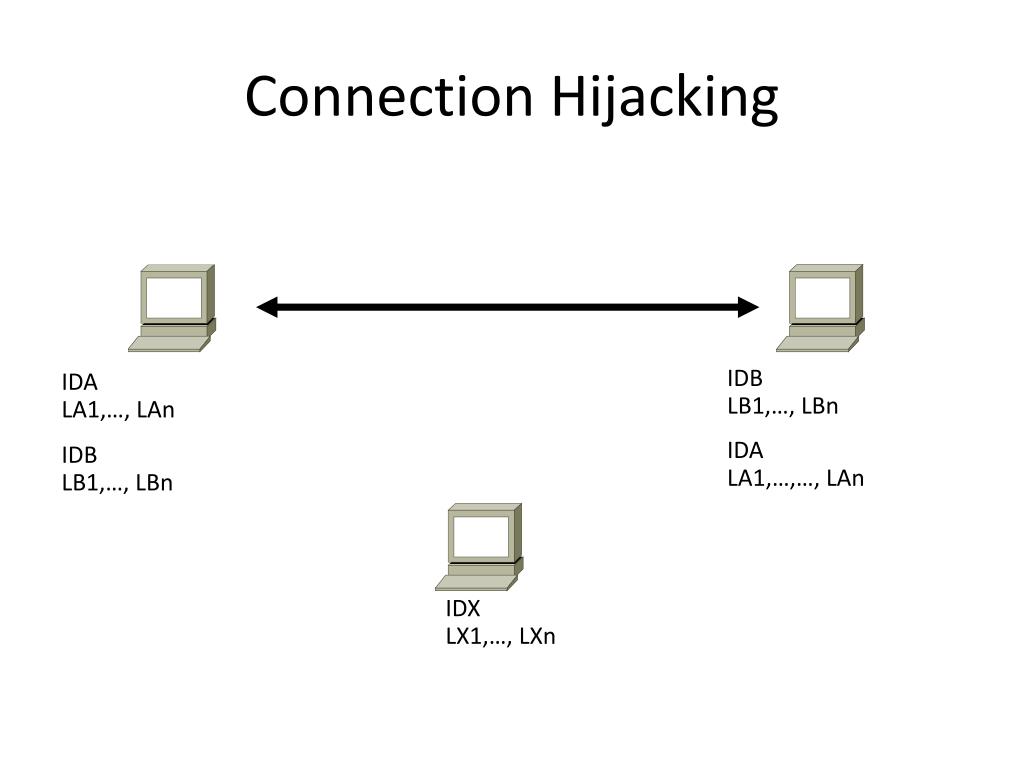

Connection Hijacking

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…,…, LAn

IDB

LB1,…, LBn

IDX

LX1,…, LXn

connection hijacking1

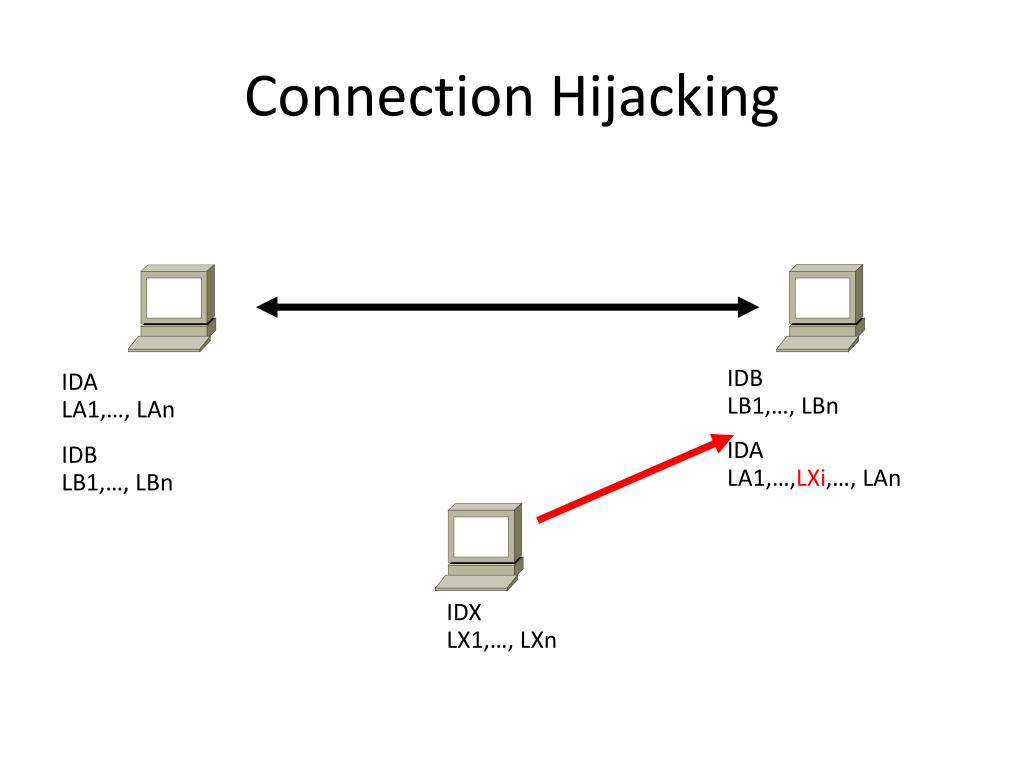

Connection Hijacking

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…,LXi,…, LAn

IDB

LB1,…, LBn

IDX

LX1,…, LXn

connection hijacking2

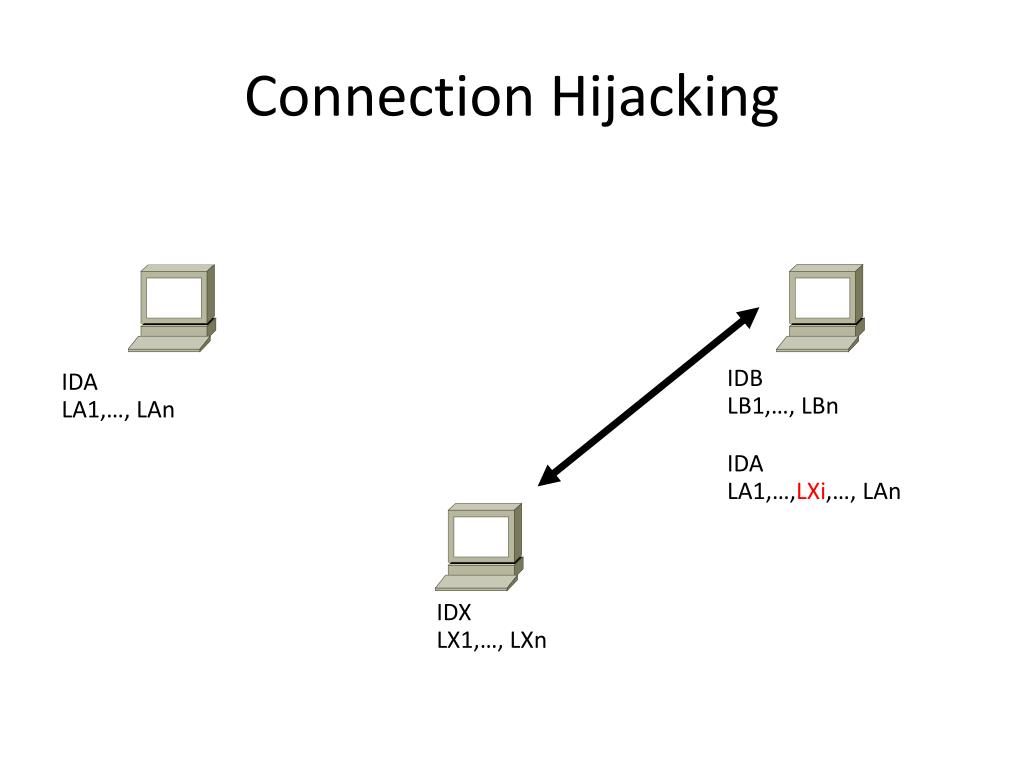

Connection Hijacking

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…,LXi,…, LAn

IDX

LX1,…, LXn

additional threat

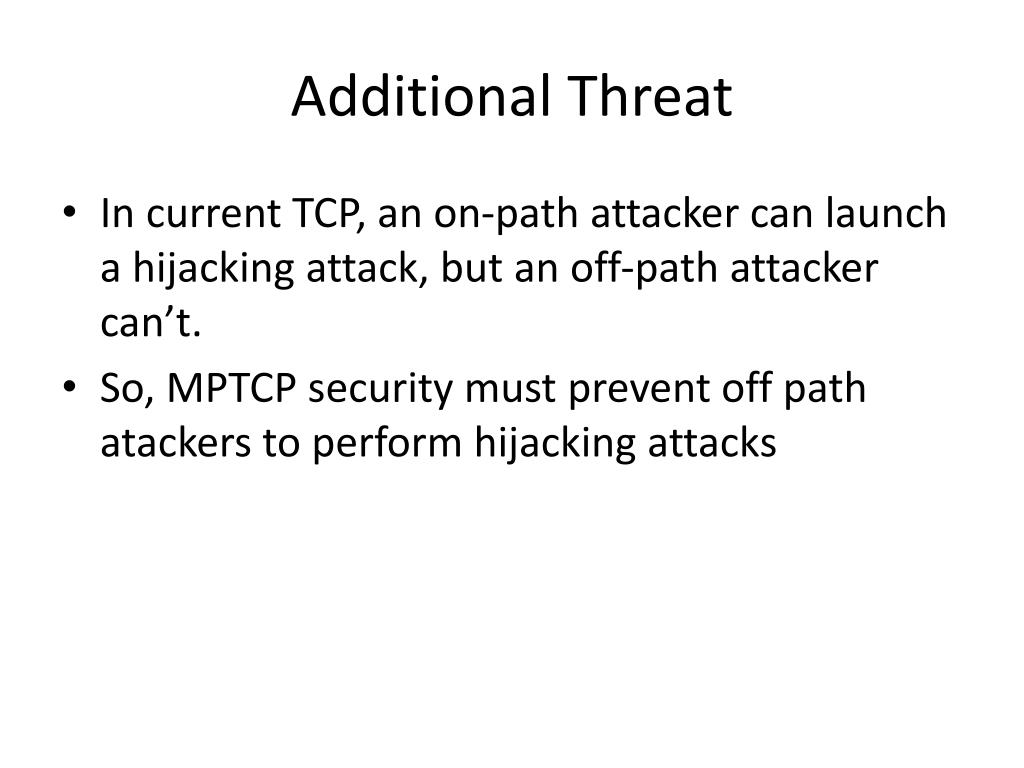

Additional Threat
  • In current TCP, an on-path attacker can launch a hijacking attack, but an off-path attacker can’t.
  • So, MPTCP security must prevent off path atackers to perform hijacking attacks
hijacking and mptcp with cookie based security
Hijacking and MPTCP with cookie based security
  • MPTCP can use a combination of seq# and cookie for security. (as in draft-ford-mptcp-multiaddressed)
    • By Seq# i refer to the data seq# (not the one per flow, but the one of the data)
    • They are both exchanged in the first 3 way exchange, when the ULID pair is defined for the connection.
  • So what residual hijacking attacks can be performed with this protection?
time shifted future attacks
Time-shifted/future attacks
  • A time-shiftedattackisanattackwhere:
    • Theattackerison-pathduring a periodof time andobtainsinformation (e.g. The cookie andtheseq#) or even installsstateifneeded.
    • Thentheattackerleavestheonpathlocation
    • Theattakcscontinues even aftertheattackerlefttheonpathposition
  • Current TCP isnot vulnerable to time-shiftedattacks
    • i.e. Whentheattackerleavestheposition, it no longerreceivesthepacketsofthe TCP connection
time shifted attack in mptcp

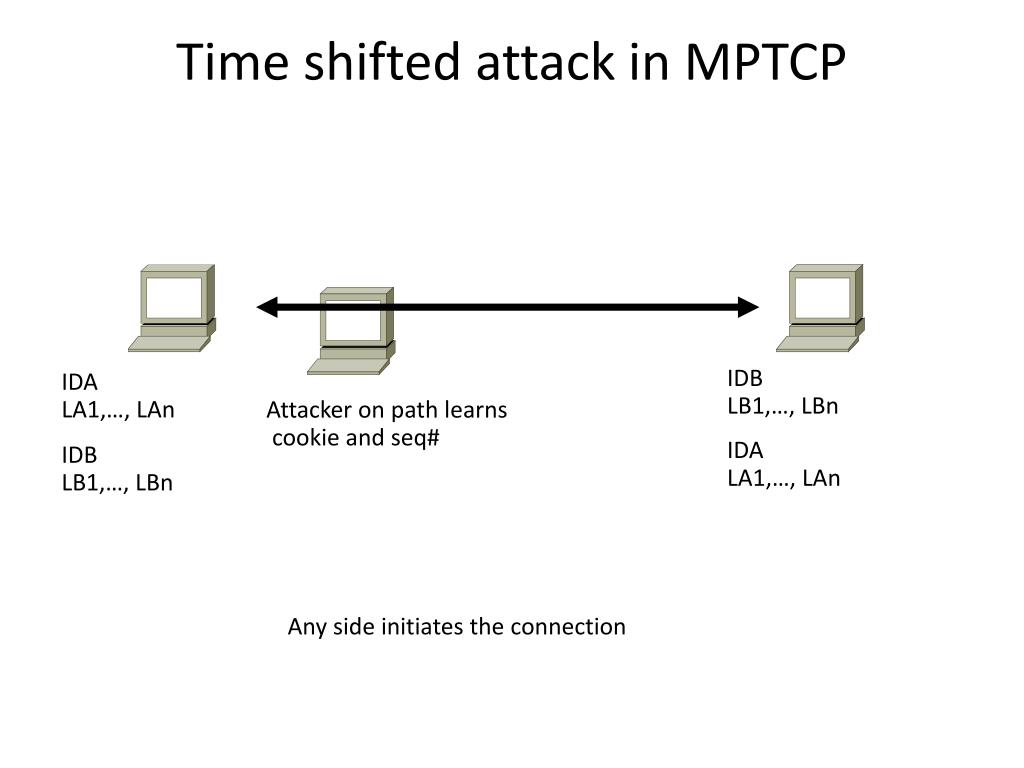

Time shifted attack in MPTCP

IDB

LB1,…, LBn

IDA

LA1,…, LAn

Attacker on path learns

cookie and seq#

IDA

LA1,…, LAn

IDB

LB1,…, LBn

Any side initiates the connection

time shifted attack in mptcp1

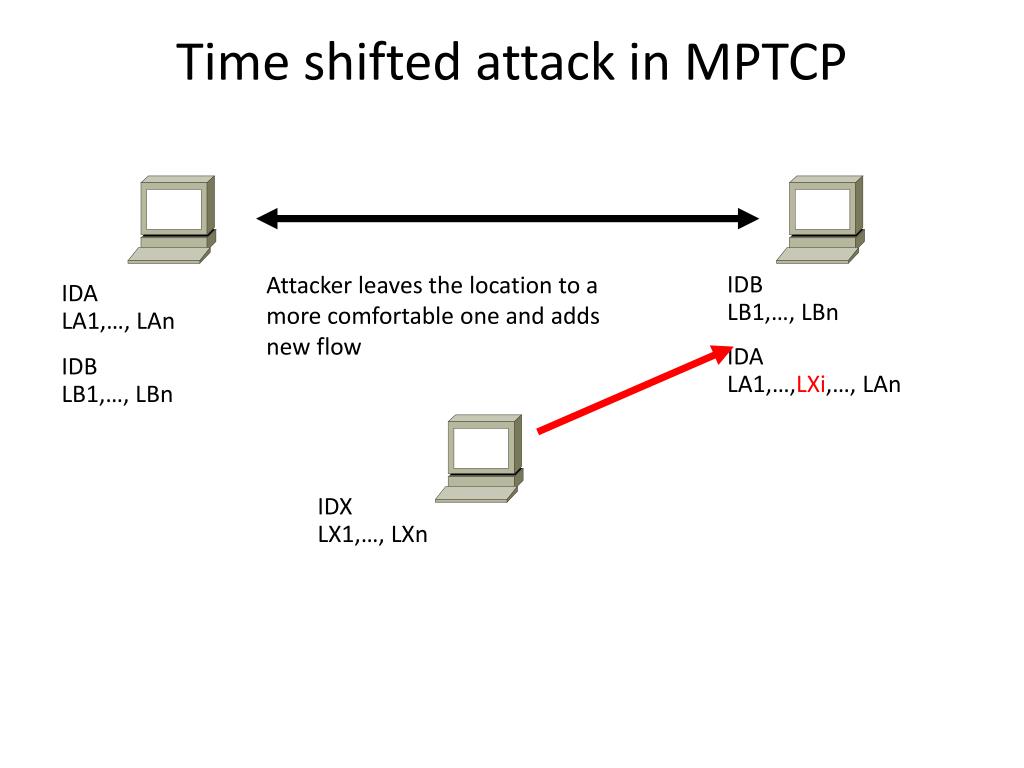

Time shifted attack in MPTCP

Attacker leaves the location to a more comfortable one and adds new flow

IDB

LB1,…, LBn

IDA

LA1,…, LAn

IDA

LA1,…,LXi,…, LAn

IDB

LB1,…, LBn

IDX

LX1,…, LXn

taxonomy of time shofted attacks

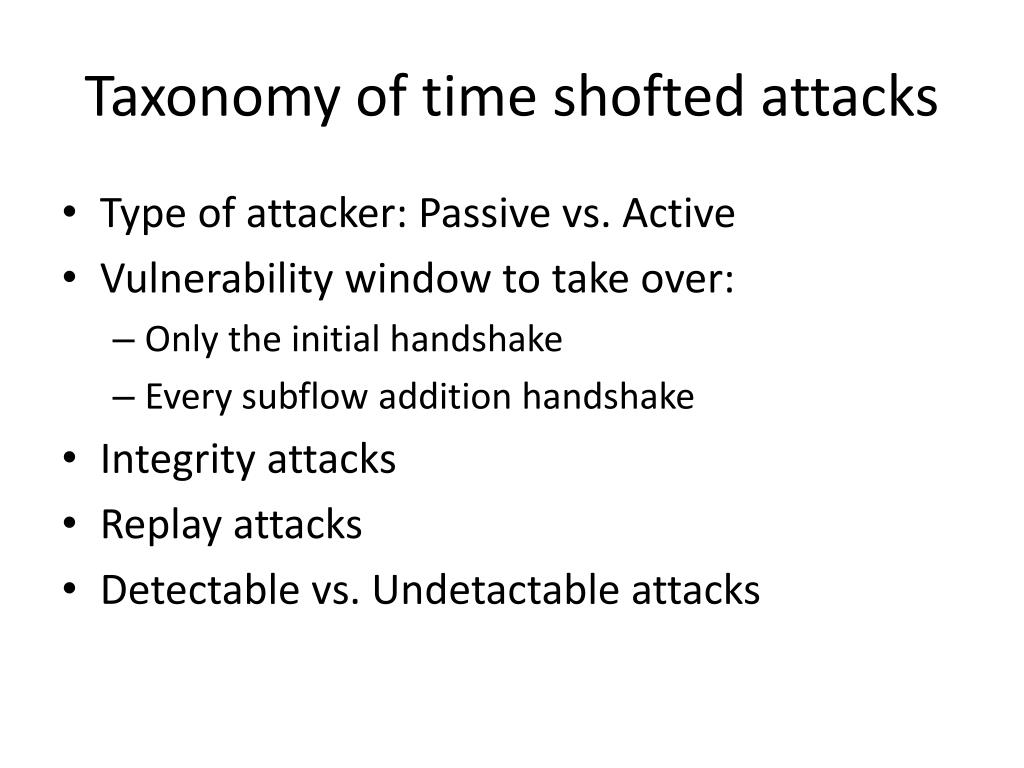

Taxonomy of time shofted attacks
  • Type of attacker: Passive vs. Active
  • Vulnerability window to take over:
    • Only the initial handshake
    • Every subflow addition handshake
  • Integrity attacks
  • Replay attacks
  • Detectable vs. Undetactable attacks
cookie based solution

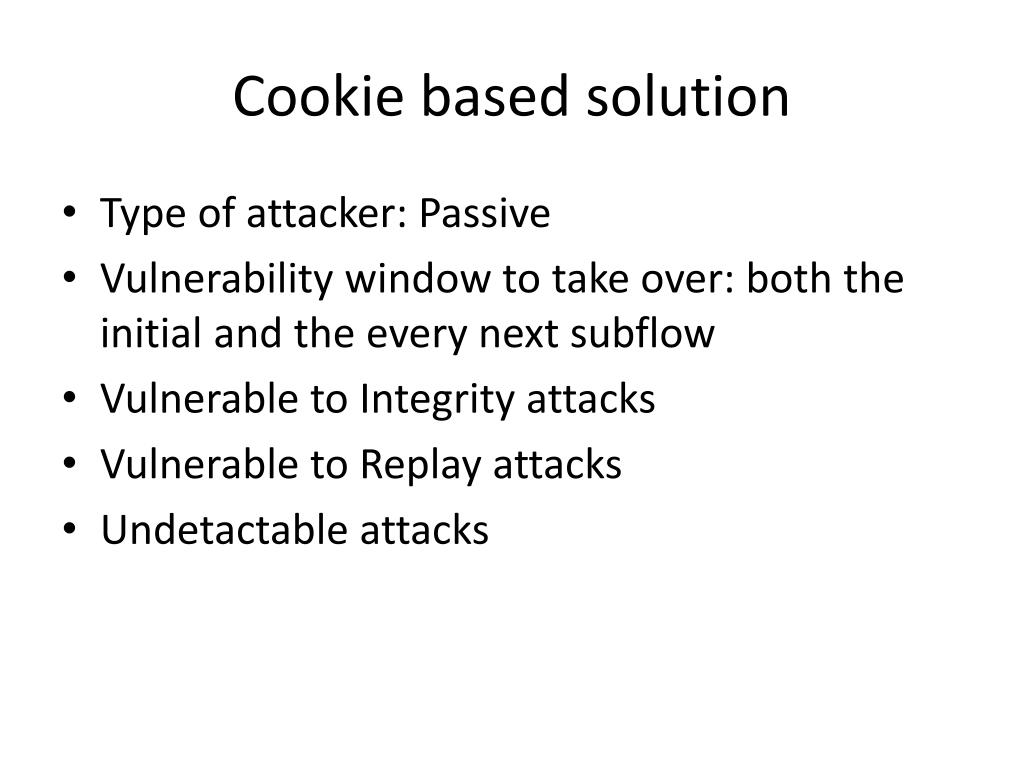

Cookie based solution
  • Type of attacker: Passive
  • Vulnerability window to take over: both the initial and the every next subflow
  • Vulnerable to Integrity attacks
  • Vulnerable to Replay attacks
  • Undetactable attacks
plain text key exchange keyed hmac

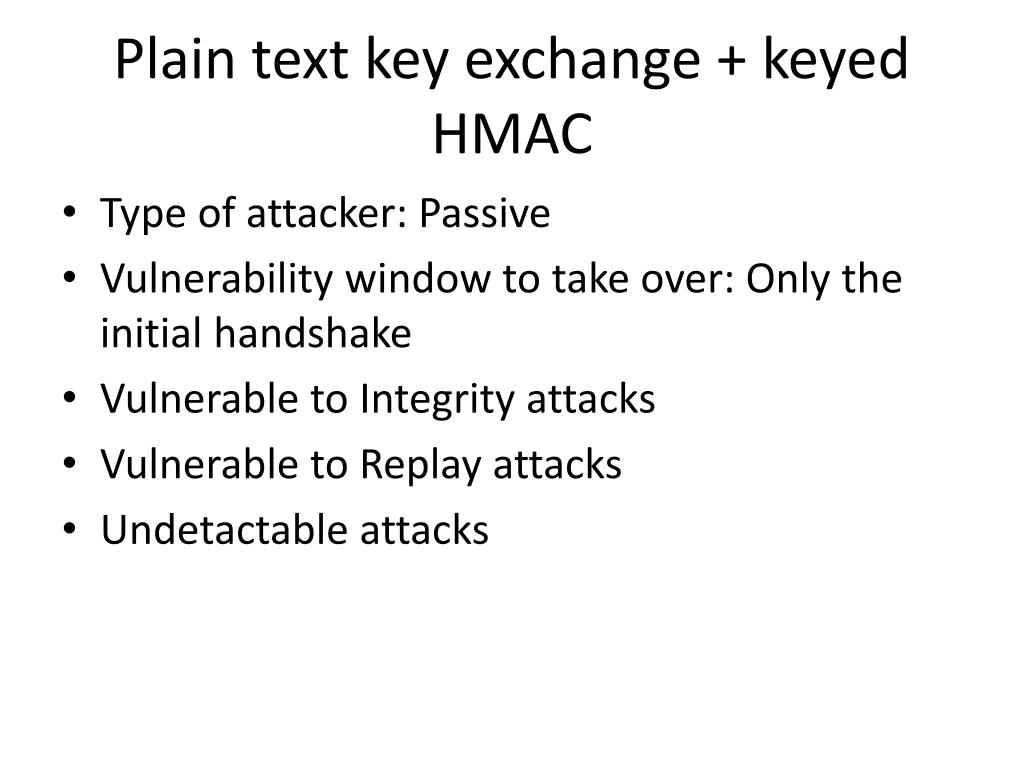

Plain text key exchange + keyed HMAC
  • Type of attacker: Passive
  • Vulnerability window to take over: Only the initial handshake
  • Vulnerable to Integrity attacks
  • Vulnerable to Replay attacks
  • Undetactable attacks
leap of faith ssh type of security
Leap of faith/ssh type of security
  • Type of attacker: Active
  • Vulnerability window to take over: Only the initial handshake
  • Vulnerable to Integrity attacks
  • Replay attacks: possible to protect
  • Detectable attacks
nat considerations

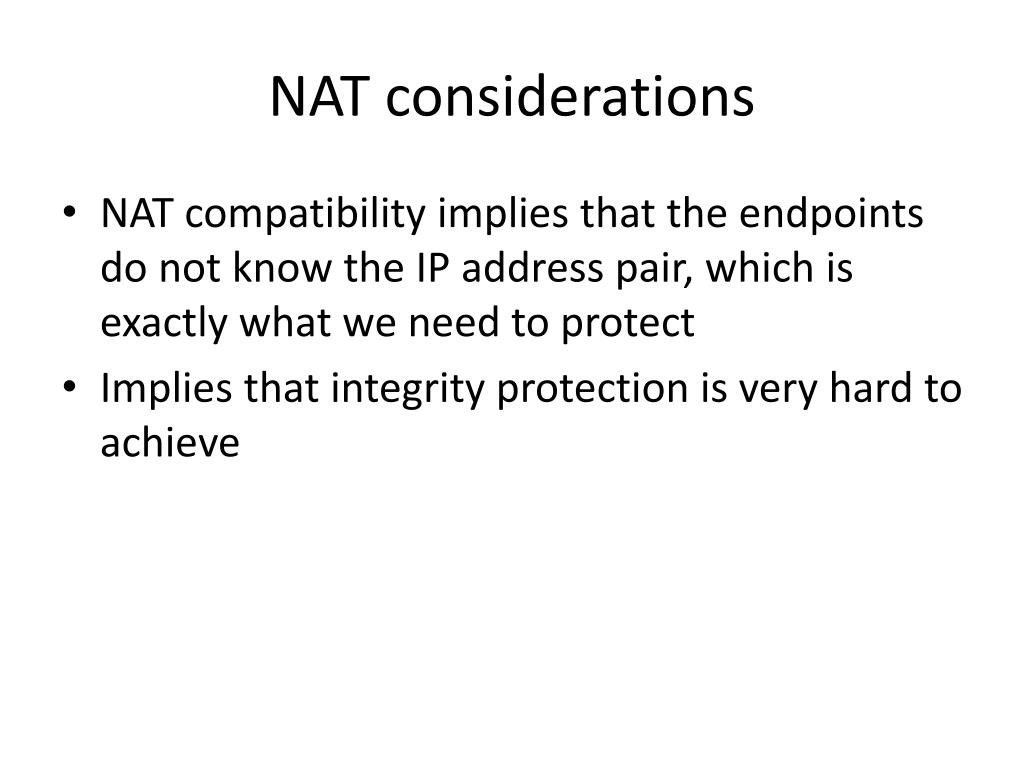

NAT considerations
  • NAT compatibility implies that the endpoints do not know the IP address pair, which is exactly what we need to protect
  • Implies that integrity protection is very hard to achieve
next steps
Next steps
  • It would be possible to craft a solution with different pieces that mitigates most of the threats?
