Presentation Transcript
Slide1 l.jpg

2001 EMS Users Group

April 3, 2001

Washington, DC


Slide2 l.jpg

PEPCO EMS Migration

Manley Higgins

PEPCO

Project Manager

Mark Bruen

KEMA Consulting

Principal Consultant


Ems migration l.jpg
EMS Migration

  • Migration Philosophy

  • Overview of EMS

  • Migration Phases

  • Related Enhancement Efforts

  • Future Phases

  • Long Range Plan & Update Process

  • Challenges for the Future


Ems migration4 l.jpg
EMS Migration

  • Migration Philosophy

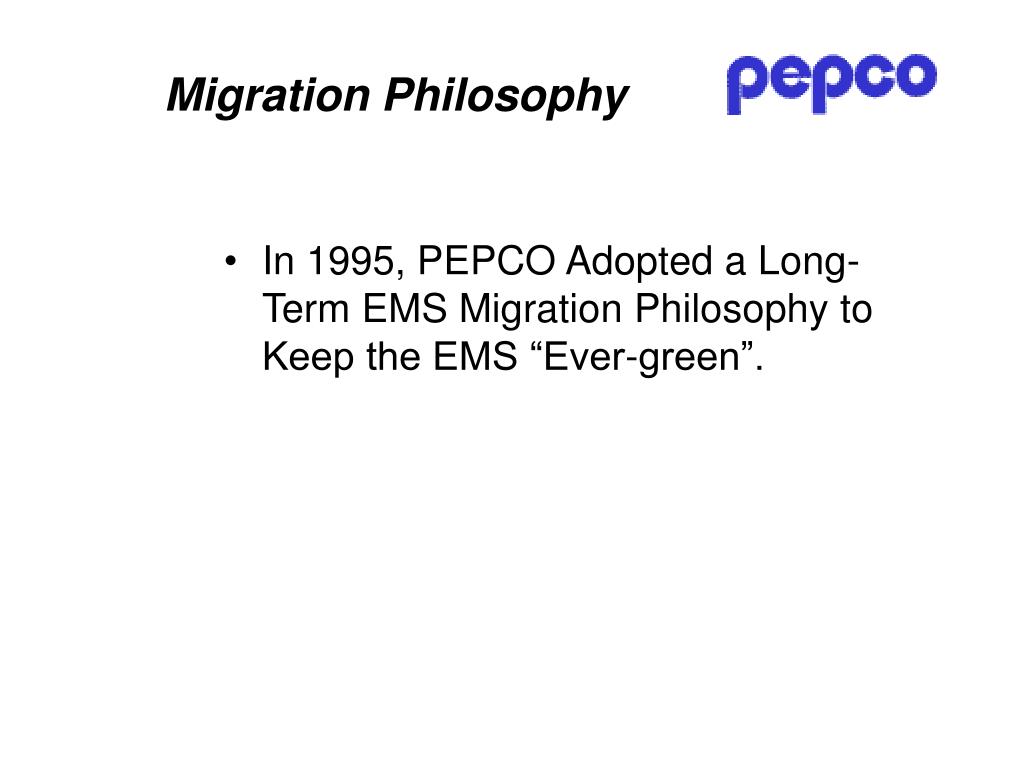

Migration philosophy l.jpg
Migration Philosophy

  • In 1995, PEPCO Adopted a Long-Term EMS Migration Philosophy to Keep the EMS “Ever-green”.


Migration philosophy6 l.jpg
Migration Philosophy

  • Migration Rationale:

    • Keep the system technologically current to meet the terms of the financial lease

    • To protect the investment in the operational procedures, EMS software, system design, & database.

    • To avoid obsolescence of hardware

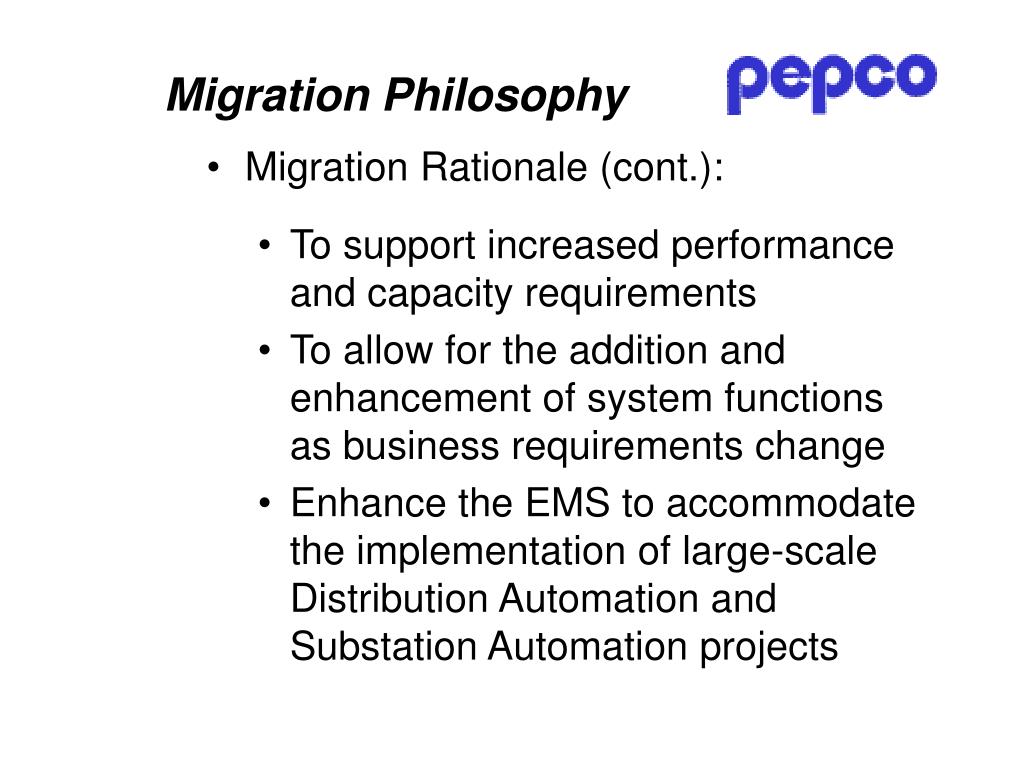

Migration philosophy7 l.jpg
Migration Philosophy

  • Migration Rationale (cont.):

    • To support increased performance and capacity requirements

    • To allow for the addition and enhancement of system functions as business requirements change

    • Enhance the EMS to accommodate the implementation of large-scale Distribution Automation and Substation Automation projects


Migration philosophy8 l.jpg
Migration Philosophy

  • Migration Rationale (cont.)

    • And, to avoid the extreme and expensive effort of another EMS “forklift” replacement, including:

      • Procurement costs

      • System Testing

      • Cutover

      • Software Quality Control

      • Staff time commitment


Ems migration9 l.jpg
EMS Migration

  • Overview of the PEPCO EMS


Overview of the original pepco ems l.jpg
Overview of the Original PEPCO EMS

  • EMS is “Consolidated Control System”

    • Designed to support Transmission, Distribution, and Generation Operations

      • (Generation sold December 2000)


Overview of the original pepco ems11 l.jpg
Overview of the Original PEPCO EMS

  • Interfaces with other critical PEPCO and external systems including:

    • New Outage Management System

    • Corporate Systems

    • PJM


Overview of the original pepco ems12 l.jpg
Overview of the Original PEPCO EMS

  • Procured from ABB Network Management (formerly NMTI)

  • Delivered in 1993

  • Initially commissioned in 1994


Overview of the original pepco ems13 l.jpg
Overview of the Original PEPCO EMS

  • Full featured EMS including:

    • SCADA

    • Graphical User Interface (not workstation based Full Graphics)

    • Distributed System w/ Proprietary Hardware Front-ends

    • Full Advanced Applications Suite

      • Real-time and Study

    • PEPCO Specific Applications


Overview of the original pepco ems14 l.jpg
Overview of the Original PEPCO EMS

  • Dispatcher Consoles

    • Transmission Dispatchers

    • Load Dispatchers

    • Transmission Shift Supervisors

    • Distribution Shift Supervisors

  • System Support Consoles

  • Development and Testing Facility

  • Dispatcher Training Simulator


Ems migration15 l.jpg
EMS Migration

  • PEPCO Migration Phases


Migration phases l.jpg
Migration Phases

  • PEPCO established a multi-year migration program:

    • To fully migrate the EMS every seven years.

  • PEPCO’s management committed to to fund the effort to avoid the high costs of another procurement.


Migration phases17 l.jpg
Migration Phases

  • Migration Phase I – 1995 – 1996

    • Open Systems Platform Enhancements including:

    • Introduction of Dec Alpha Hardware Platform

    • Operating System Upgrades

      • VAX VMX to UNIX

      • Intel RMX to UNIX


Migration phases18 l.jpg
Migration Phases

  • Migration Phase I (cont.)

    • Conversion of Code to C

      • (from less common/difficult languages – PLM, Assembly)

      • FORTRAN not converted


Migration phases19 l.jpg
Migration Phases

  • Migration Phase II – 1997-1998

    • ICCP for standards-based communications with:

      • PJM

      • PEPCO to BGE (planned merger)

    • Ranger Data Acquisition Server

      • Compaq Alpha hardware and Unix operating system

      • Bow Software Protocol Emulations


Migration phases20 l.jpg
Migration Phases

  • Migration Phase II – (cont.)

    • Addition of PI Historian Data Repositories

    • Upgraded DTS

    • Increased Database Sizing

      • Via System Master Parameters


Migration phases21 l.jpg
Migration Phases

  • Migration Phase III – 1999 – 2000

    • Workstation Based Graphical User Interface

    • ODBC Interface Into EMS

    • NT Based Historian

    • Study Mode State Estimator – Uses Historian Data for Studies

    • DNP Protocol


Migration phases22 l.jpg
Migration Phases

  • Migration Phase III (cont.)

    • Event Storage and Retrieval

    • Updated Software Tools to Improve Maintenance and Support Environment


Migration phases23 l.jpg
Migration Phases

  • Migration Phase IV – 2001-2002

    • (currently in progress)

  • Increase DB Sizing (1.5 x current)

  • Naming size increases

  • DNP Protocol Converter (Rockwell 5020 to DNP)

  • Transfer Existing RTU to RDAS

  • Graphical Data Engineering Tool

    • CIM Based


  • Migration phases24 l.jpg
    Migration Phases

    • Migration Phase IV – (cont.)

    • Facilities and Support Systems

      • Console Voice Equipment (integrates PEPCO’s radio and telephone requirements)

      • Upgrade/Life Extension for Critical Power (UPS) and HVAC


    Migration phases25 l.jpg
    Migration Phases

    • More to Come?

      • Phase V – Commercial Display Generation Software

      • Phase VI – Upgrade EMS Application Processors, storage devices, printers, Bow-Tie Equipment, LAN I/F

      • Phase VII – SCADA System

      • Phase VIII – Advanced Apps.

    • These phases are currently under review


    Ems migration26 l.jpg
    EMS Migration

    • Related EMS Enhancement Efforts

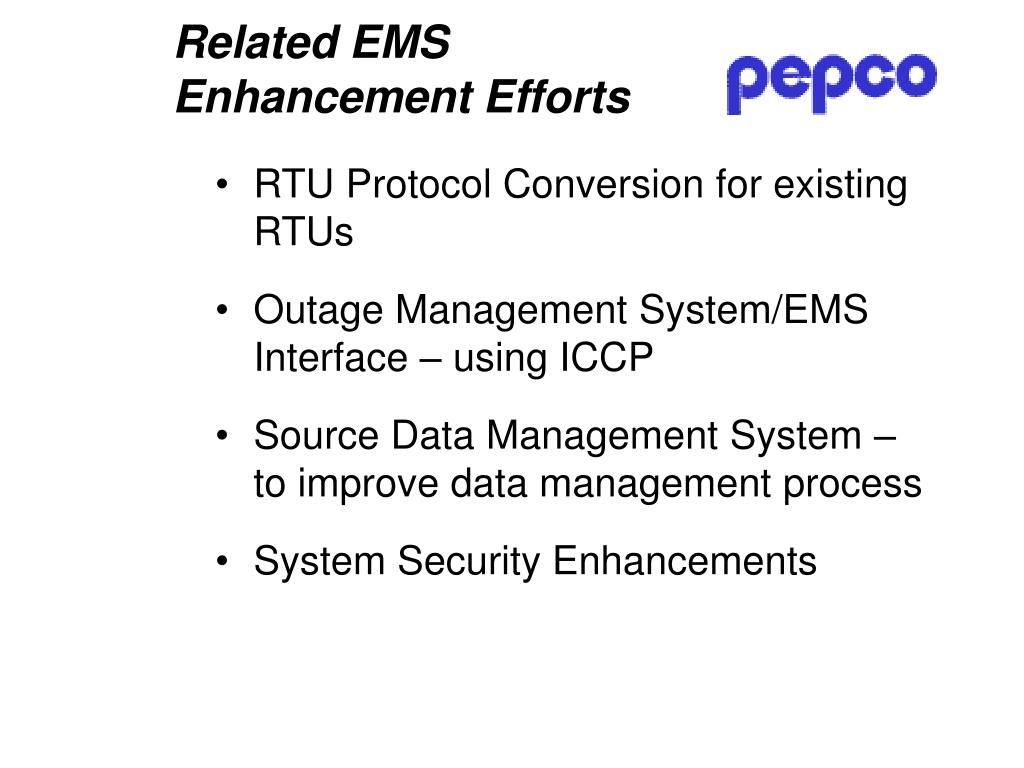

    Related ems enhancement efforts l.jpg
    Related EMS Enhancement Efforts

    • RTU Protocol Conversion for existing RTUs

    • Outage Management System/EMS Interface – using ICCP

    • Source Data Management System – to improve data management process

    • System Security Enhancements


    Related ems enhancement efforts28 l.jpg
    Related EMS Enhancement Efforts

    • PEPCO Substation Automation Initiatives:

      • Increased data from smart relays and Substation Automation systems (4 kV, 13 kV, 69 kV, 230 kV substations)

      • VAR Dispatch – using feeder capacitors.


    Related ems enhancement efforts29 l.jpg
    Related EMS Enhancement Efforts

    • PEPCO Distribution Automation Initiatives:

      • Feeder sectionalization using fault detectors and Motor Operated Disconnects

      • 69 kV MODs

      • 13 kV MODs

      • Utilinet Spread Spectrum Radios


    Ems migration30 l.jpg
    EMS Migration

    • Future Migration Phases

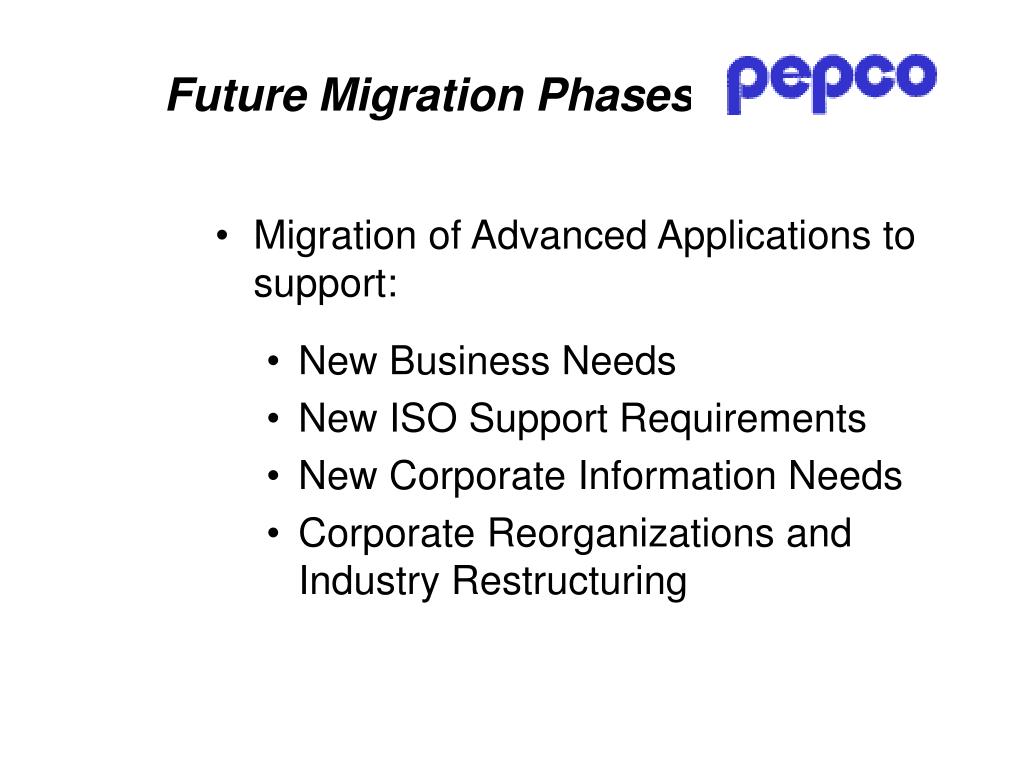

    Future migration phases l.jpg
    Future Migration Phases

    • Migration of Advanced Applications to support:

      • New Business Needs

      • New ISO Support Requirements

      • New Corporate Information Needs

      • Corporate Reorganizations and Industry Restructuring

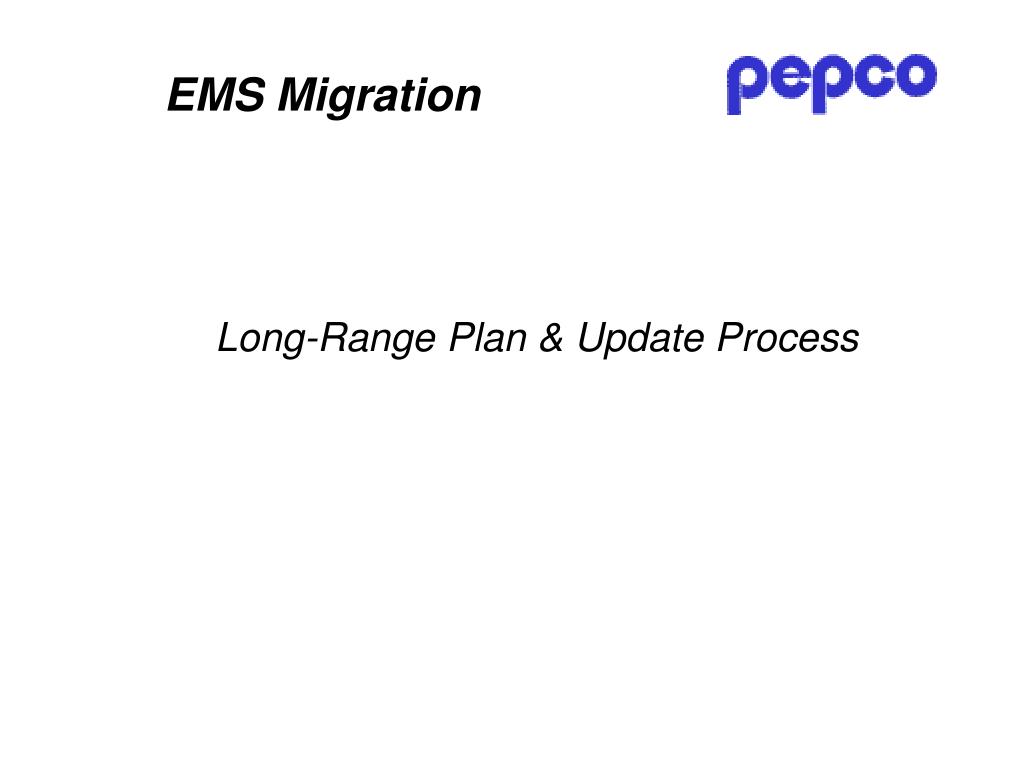

    Ems migration32 l.jpg
    EMS Migration

    • Long-Range Plan & Update Process

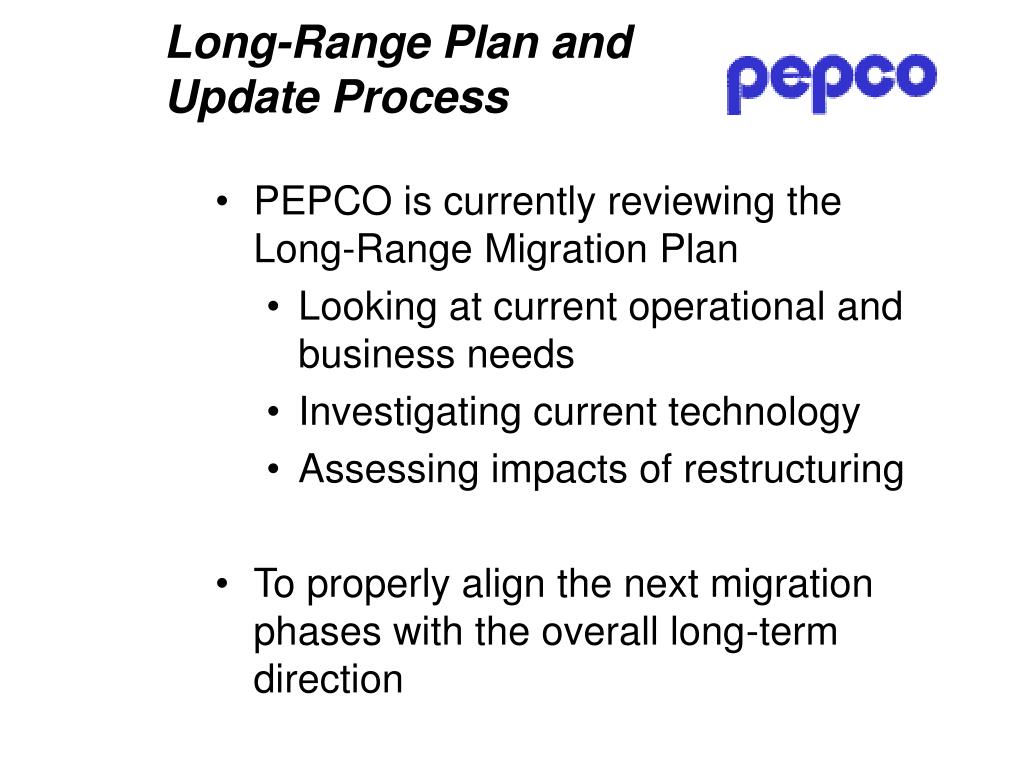

    Long range plan and update process l.jpg
    Long-Range Plan and Update Process

    • PEPCO is currently reviewing the Long-Range Migration Plan

      • Looking at current operational and business needs

      • Investigating current technology

      • Assessing impacts of restructuring

    • To properly align the next migration phases with the overall long-term direction


    Long range plan and update process34 l.jpg
    Long-Range Plan and Update Process

    • Goal is to provide an updated 10 Year Forecast for planning purposes.

    • Also to more clearly define the near-term needs and associated migration projects.


    Ems migration35 l.jpg
    EMS Migration

    • Challenges for the Future


    Challenges for the future l.jpg
    Challenges for the Future

    • Distribution Operations Optimization

      • Fault detection and automated feeder reconfiguration

      • Other distribution functions

    • Additional Expansion of Distribution Functional and Data Requirements

      • Smart Relays, MODs, etc.


    Challenges for the future37 l.jpg
    Challenges for the Future

    • Integration with Corporate Systems

      • Corporate-wide Data Availability

        • For Maintenance Monitoring System

      • Enterprise Application Integration (EAI) Environment


    Ems migration38 l.jpg
    EMS Migration

    Questions and Comments?


    Ems migration39 l.jpg
    EMS Migration

    • Thank You!
