  1. Geometric Measurements Fundamental Tools for Mathematical Modeling

  2. Geometric Measurements Volume V o l u m e

  3. Volume: Geometric Measurements The amount of space occupied by a three-dimensional object or region of space, expressed in cubic units.

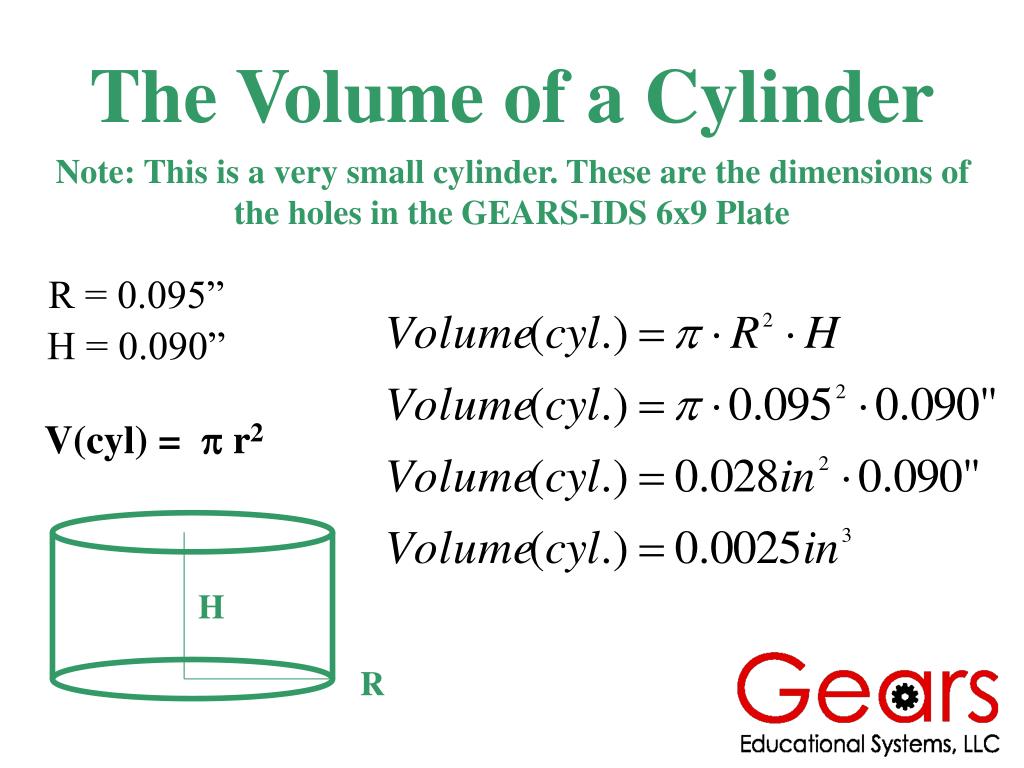

  4. The Volume of a Cylinder Note: This is a very small cylinder. These are the dimensions of the holes in the GEARS-IDS 6x9 Plate R = 0.095” H = 0.090” V(cyl) =  r2 H R

  5. The Volume of a Rectangular Prism 1” 1” 1” 2.0” Volume = 12 in3 3.0” 2.0”

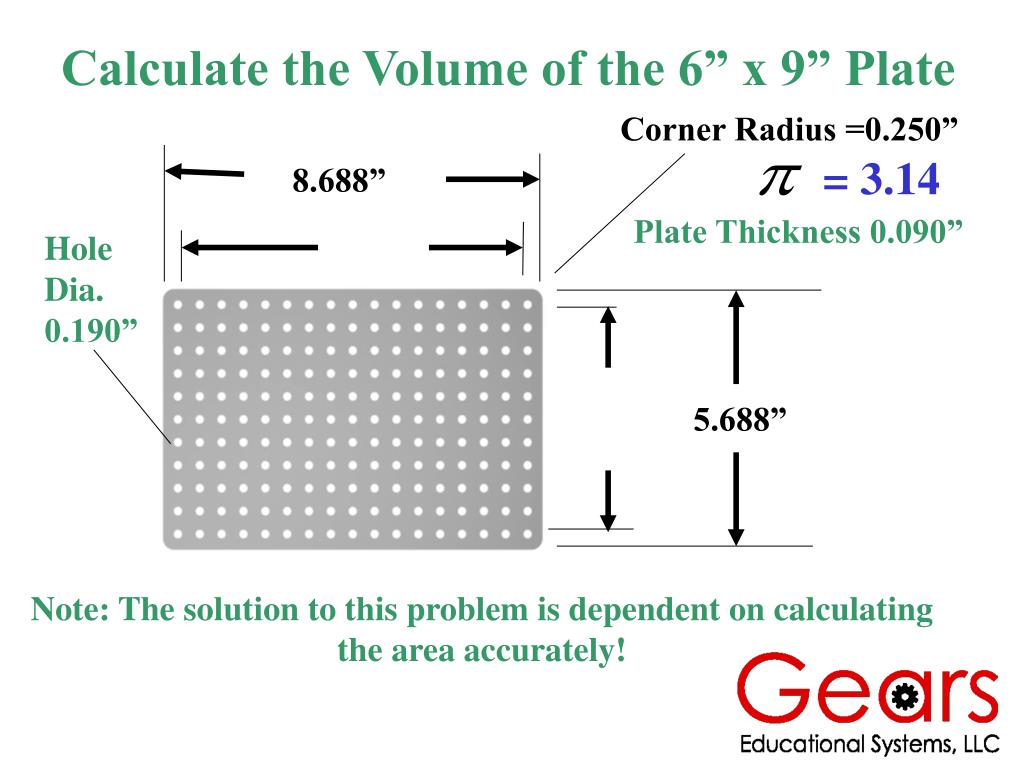

  6. = 3.14 Calculate the Volume of the 6” x 9” Plate Corner Radius =0.250” 8.688” Plate Thickness 0.090” Hole Dia. 0.190” 5.688” Note: The solution to this problem is dependent on calculating the area accurately!

  7. Volume of Solids V = lwh V = s3 s s h s l w r h V = (4/3)r3 V = r2h r Quick Reference Slide

  8. Go Forth and Calculate, The End For Now
