slide1

08/09学年第1学期

硬件描述语言及器件

教材:任勇峰等编著《VHDL与硬件实现速成》

主讲教师:刘文怡

slide2
教学安排
  • 第1讲:VHDL概述及其开发环境
  • 第2讲:VHDL的基本元素
  • 第3讲:VHDL的进程
  • 第4讲:其它并行语句
  • 第5讲:VHDL实例剖析
  • 第6讲:VHDL的顺序描述语句
  • 第7讲:结构体的描述风格
  • 第8讲:计数器状态控制
  • 第9讲:不同风格的状态机设计
  • 第10讲:VHDL综合举例
10 vhdl
第10讲:VHDL综合举例
  • 1 上节内容回顾
  • 2 使用完整框架编写一个4路二输入异或门。
  • 3 使用组件语句编写一个4位的移位寄存器。
  • 4 具有通道选择的单输入8输出的通道选择器。

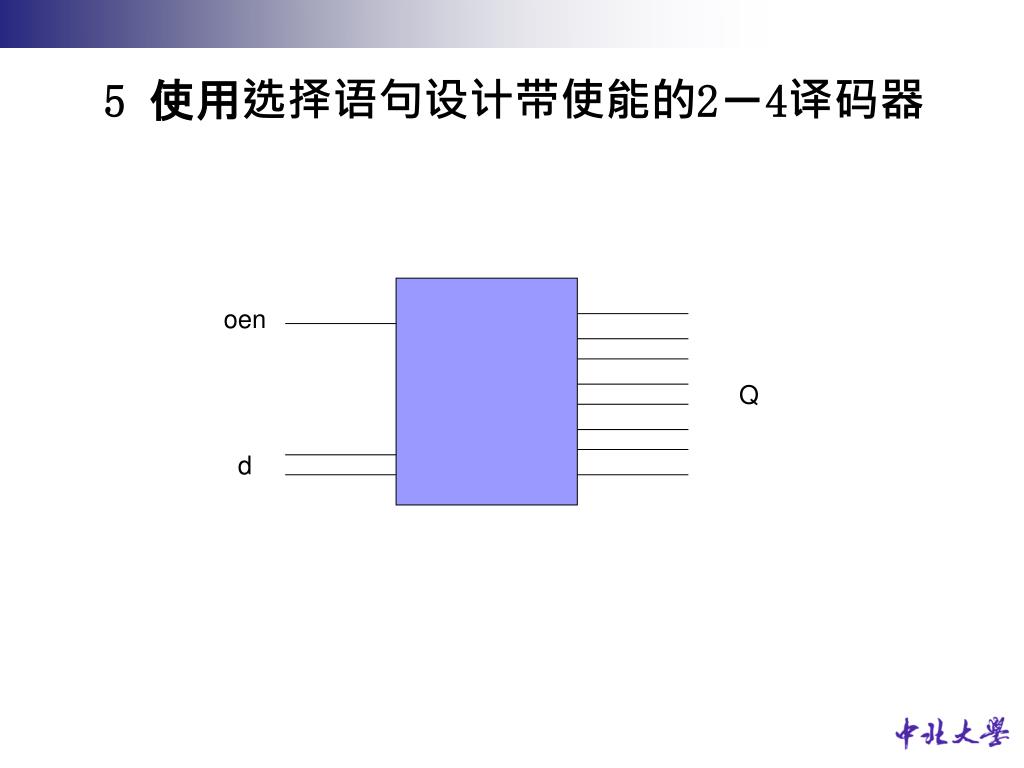

  • 5 使用选择语句设计一个带使能的2-4译码器。
  • 6 使用条件语句设计74ls688比较器
  • 7 生成ADS8402的控制时序,实现数据采集。
  • 8 按定义实现写时序
slide4
1 上节内容回顾
  • 计数型结构
  • 递变型对比
  • 枚举类型定义状态机
  • 带复位的状态机
  • Moore状态机
  • Mealy状态机
slide5
计数型结构
  • PROCESS (clr,clk)
  • BEGIN
  • IF(clr=1) THEN
  • Count_B<=“00000000”;
  • q <= ‘0’;
  • ELSIF (clk'EVENT AND clk= ‘1’ ) THEN
  • IF (Count_B = “00001111”) THEN
  • Count_B<=“00000000”;
  • else
  • Count_B<=count_B + 1;
  • IF (Count_B = “00000000”) THEN
  • q <= ‘1’;
  • ELSIF (Count_B = “00000001”) THEN
  • q <= ‘0’;
  • ELSIF (Count_B = “00000011”) THEN
  • q <= ‘1’;
  • ELSIF (Count_B = “00000100”) THEN
  • q <= ‘0’;
  • END IF;
  • END IF;
  • END IF;
  • END PROCESS;
slide6

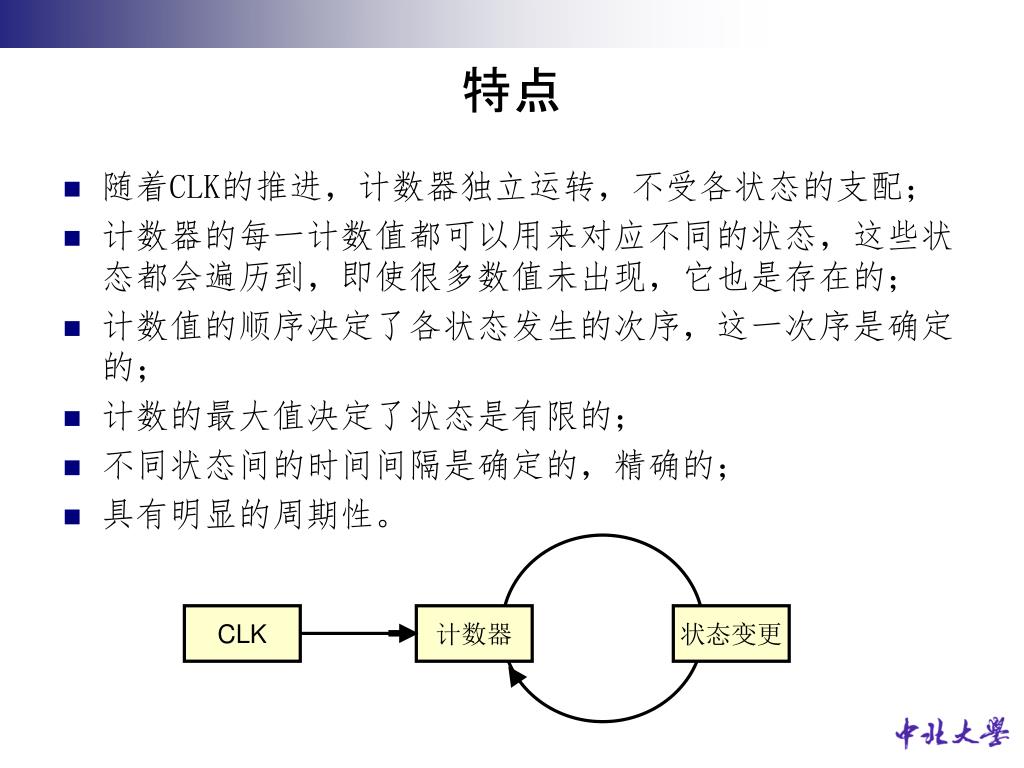

特点
  • 随着CLK的推进,计数器独立运转,不受各状态的支配;
  • 计数器的每一计数值都可以用来对应不同的状态,这些状态都会遍历到,即使很多数值未出现,它也是存在的;
  • 计数值的顺序决定了各状态发生的次序,这一次序是确定的;
  • 计数的最大值决定了状态是有限的;
  • 不同状态间的时间间隔是确定的,精确的;
  • 具有明显的周期性。

CLK

计数器

状态变更

slide7

IF (Count_B = “00001111”) THEN

  • Count_B<=“00000000”;
  • else
  • Count_B<=count_B + 1;
  • IF (Count_B = “00000000”) THEN
  • q <= ‘1’;
  • ELSIF (Count_B = “00000001”) THEN
  • q <= ‘0’;
  • ELSIF (Count_B = “00000011”) THEN
  • q <= ‘1’;
  • ELSIF (Count_B = “00000100”) THEN
  • q <= ‘0’;
  • END IF;
  • END IF;

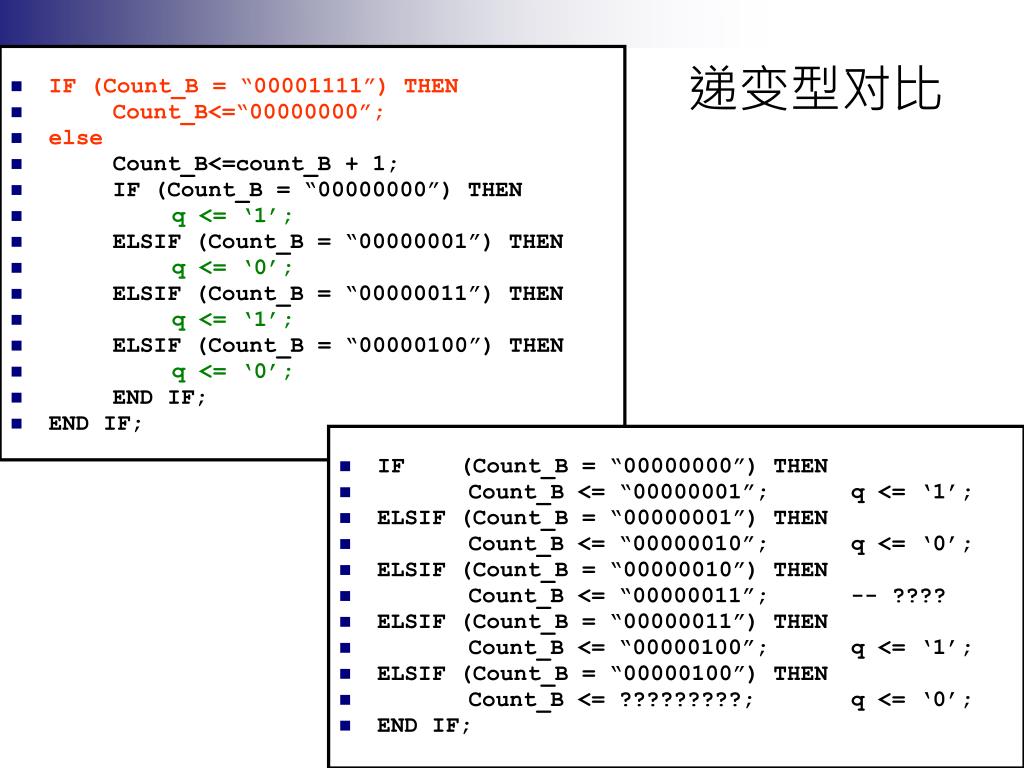

递变型对比
  • IF (Count_B = “00000000”) THEN
  • Count_B <= “00000001”; q <= ‘1’;
  • ELSIF (Count_B = “00000001”) THEN
  • Count_B <= “00000010”; q <= ‘0’;
  • ELSIF (Count_B = “00000010”) THEN
  • Count_B <= “00000011”; -- ????
  • ELSIF (Count_B = “00000011”) THEN
  • Count_B <= “00000100”; q <= ‘1’;
  • ELSIF (Count_B = “00000100”) THEN
  • Count_B <= ?????????; q <= ‘0’;
  • END IF;
slide8

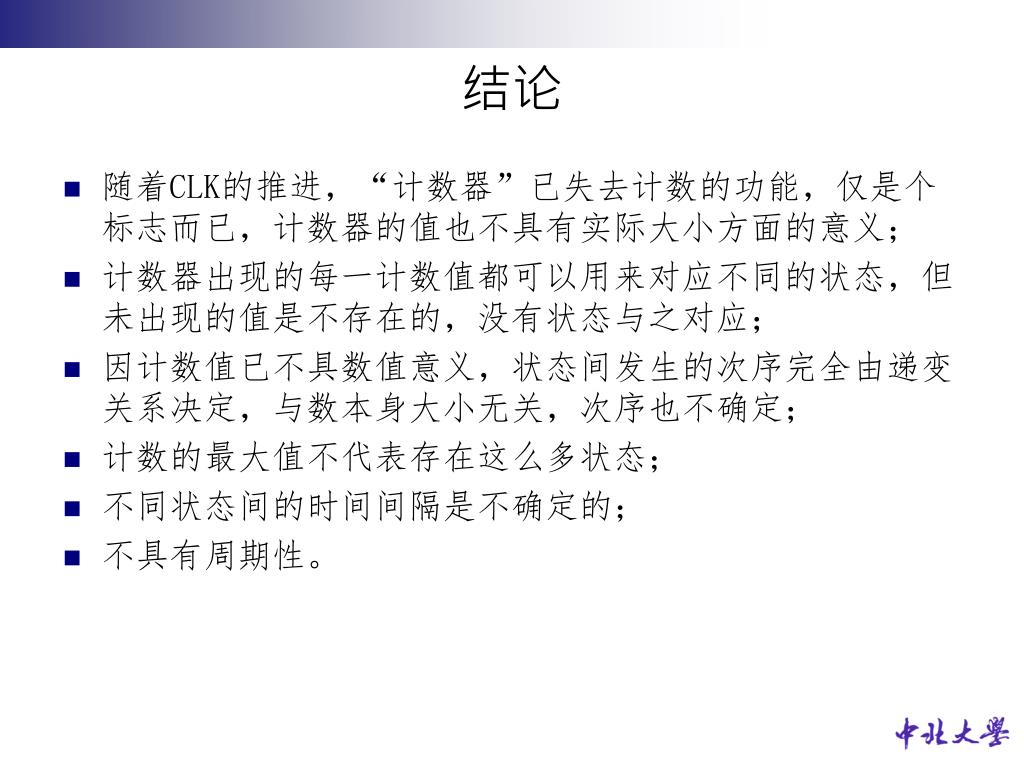

结论
  • 随着CLK的推进,“计数器”已失去计数的功能,仅是个标志而已,计数器的值也不具有实际大小方面的意义;
  • 计数器出现的每一计数值都可以用来对应不同的状态,但未出现的值是不存在的,没有状态与之对应;
  • 因计数值已不具数值意义,状态间发生的次序完全由递变关系决定,与数本身大小无关,次序也不确定;
  • 计数的最大值不代表存在这么多状态;
  • 不同状态间的时间间隔是不确定的;
  • 不具有周期性。
slide9
枚举类型定义状态机
  • 定义方式:type 名称 is (元素1,元素2…);
  • 举例:
  • type week is (mon, tue, wed, thu, fri, sat, sun);
  • type std_logic is (‘U’,‘X’,'0‘,'1‘,‘Z’,‘W’,‘L’,‘H’,‘-’);
  • type states is (state0,state1,state2,state3);
slide10

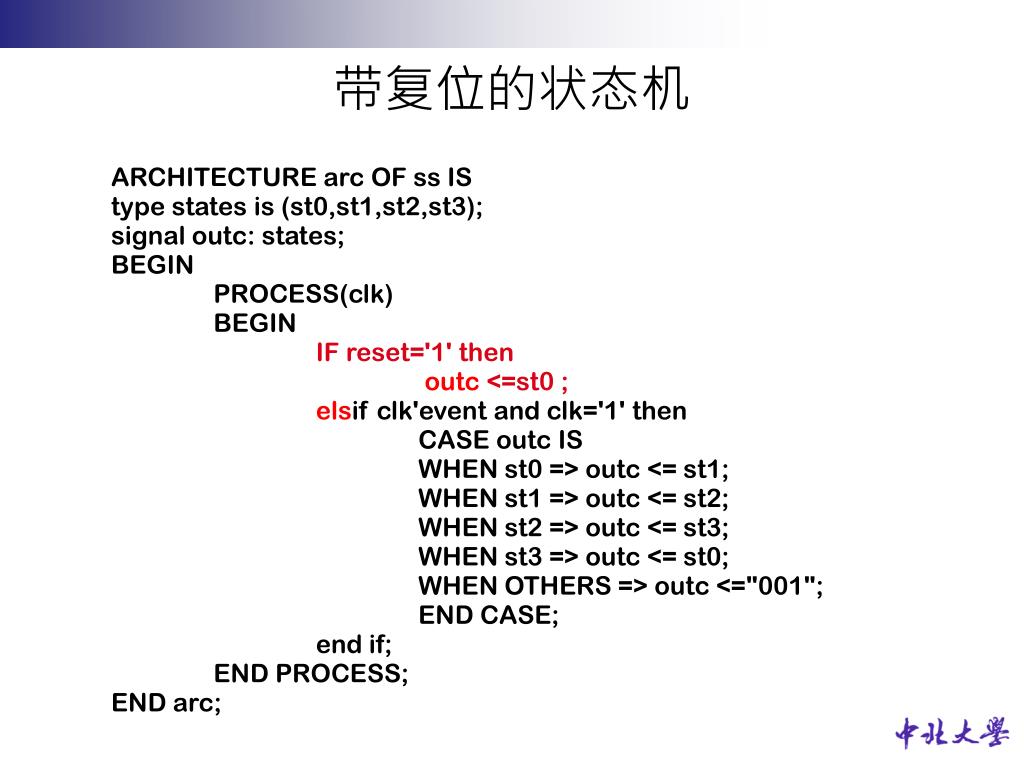

带复位的状态机

ARCHITECTURE arc OF ss IS

type states is (st0,st1,st2,st3);

signal outc: states;

BEGIN

PROCESS(clk)

BEGIN

IF reset='1' then

outc<=st0 ;

elsif clk'event and clk='1' then

CASE outcIS

WHEN st0 => outc<= st1;

WHEN st1 => outc<= st2;

WHEN st2 => outc<= st3;

WHEN st3 => outc<= st0;

WHEN OTHERS => outc<="001";

ENDCASE;

end if;

END PROCESS;

END arc;

moore

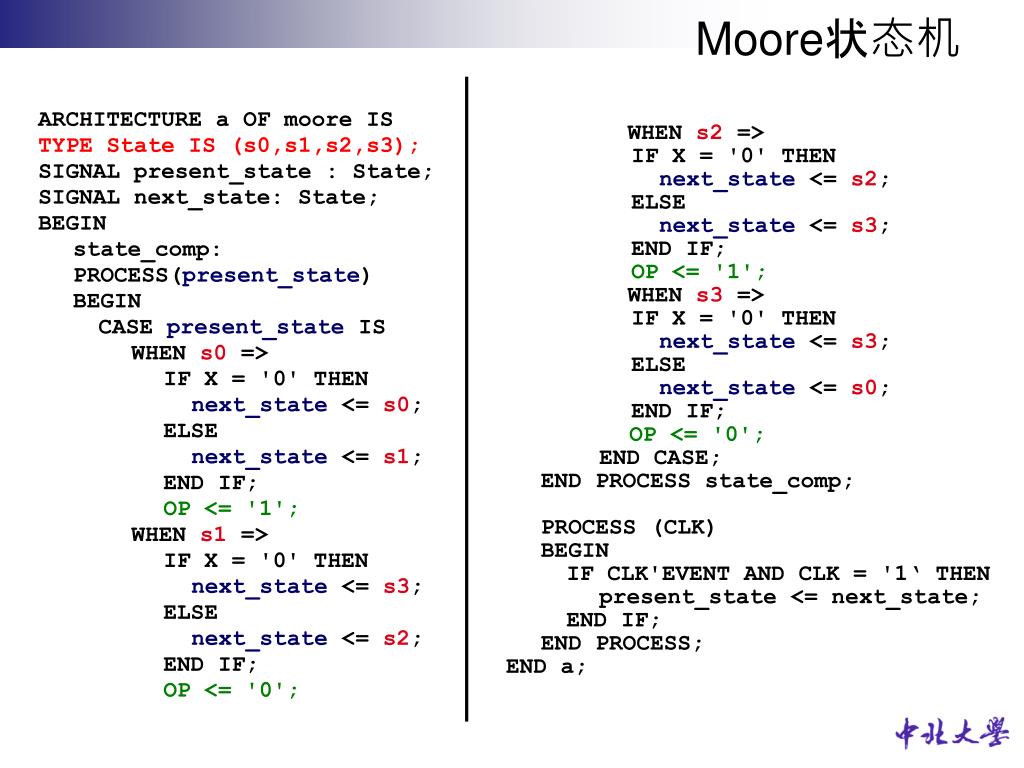

Moore状态机

ARCHITECTURE a OF moore IS

TYPE State IS (s0,s1,s2,s3);

SIGNAL present_state : State;

SIGNAL next_state: State;

BEGIN

state_comp:

PROCESS(present_state)

BEGIN

CASE present_state IS

WHEN s0 =>

IF X = '0' THEN

next_state <= s0;

ELSE

next_state <= s1;

END IF;

OP <= '1';

WHEN s1 =>

IF X = '0' THEN

next_state <= s3;

ELSE

next_state <= s2;

END IF;

OP <= '0';

WHEN s2 =>

IF X = '0' THEN

next_state <= s2;

ELSE

next_state <= s3;

END IF;

OP <= '1';

WHEN s3 =>

IF X = '0' THEN

next_state <= s3;

ELSE

next_state <= s0;

END IF;

OP <= '0';

END CASE;

END PROCESS state_comp;

PROCESS (CLK)

BEGIN

IF CLK'EVENT AND CLK = '1‘THEN

present_state <= next_state;

END IF;

END PROCESS;

END a;

mealy
Mealy状态机

ARCHITECTURE a OF mealy IS

TYPE State IS (s0,s1,s2,s3);

SIGNAL present_state : State;

SIGNAL next_state: State;

BEGIN

state_comp: PROCESS(present_state)

BEGIN

CASE present_state IS

WHEN s0 =>

IF X = '0' THEN

next_state <= s0;

ELSE

next_state <= s1;

END IF;

IF X = '0' THEN op <= '0';

ELSE

op <= '1';

END IF;

WHEN s1 =>

IF X = '0' THEN

next_state <= s3;

ELSE

next_state <= s2;

END IF;

IF X = '0' THEN op <= '1';

ELSE

op <= '1';

END IF;

WHEN s2 =>

IF X = '0' THEN

next_state <= s2;

ELSE

next_state <= s3;

END IF;

IF X = '0' THEN op <= '0';

ELSE

op <= '1';

END IF;

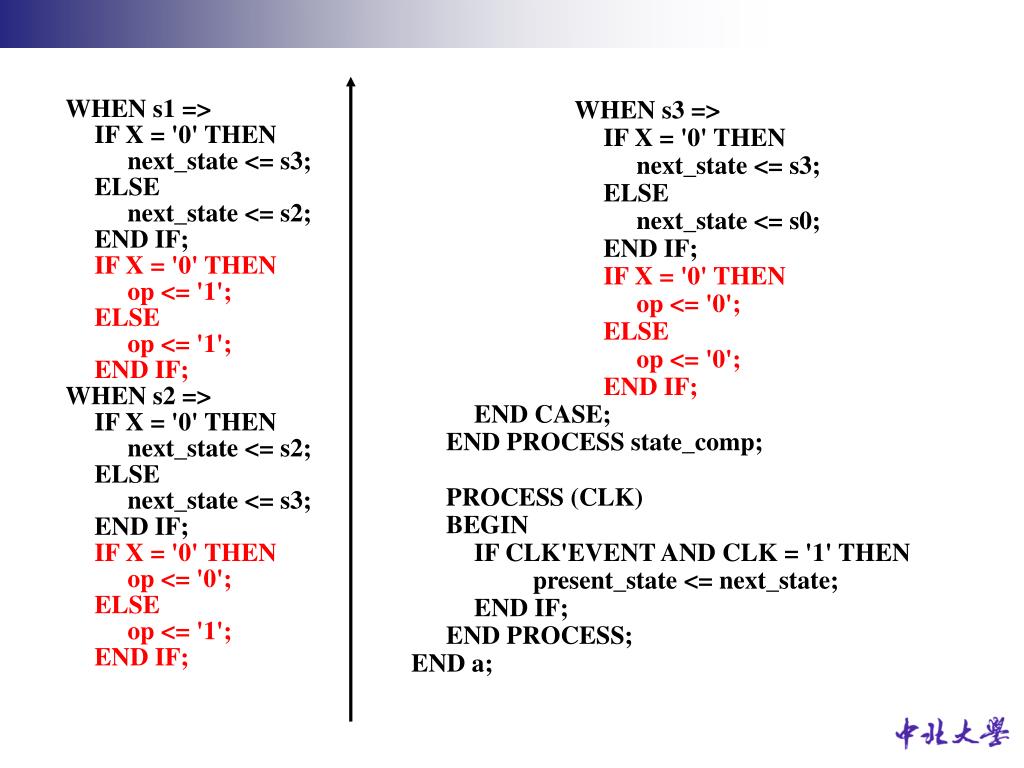

slide13

WHEN s1 =>

IF X = '0' THEN

next_state <= s3;

ELSE

next_state <= s2;

END IF;

IF X = '0' THEN op <= '1';

ELSE

op <= '1';

END IF;

WHEN s2 =>

IF X = '0' THEN

next_state <= s2;

ELSE

next_state <= s3;

END IF;

IF X = '0' THEN op <= '0';

ELSE

op <= '1';

END IF;

WHEN s3 =>

IF X = '0' THEN

next_state <= s3;

ELSE

next_state <= s0;

END IF;

IF X = '0' THEN op <= '0';

ELSE

op <= '0';

END IF;

END CASE;

END PROCESS state_comp;

PROCESS (CLK)

BEGIN

IF CLK'EVENT AND CLK = '1' THEN

present_state <= next_state;

END IF;

END PROCESS;

END a;

slide14
2 使用完整框架编写一个4路二输入异或门

A(0)

Q(0)

B(0)

A(1)

Q(1)

B(1)

A(2)

Q(2)

B(2)

A(3)

Q(3)

B(3)

slide20

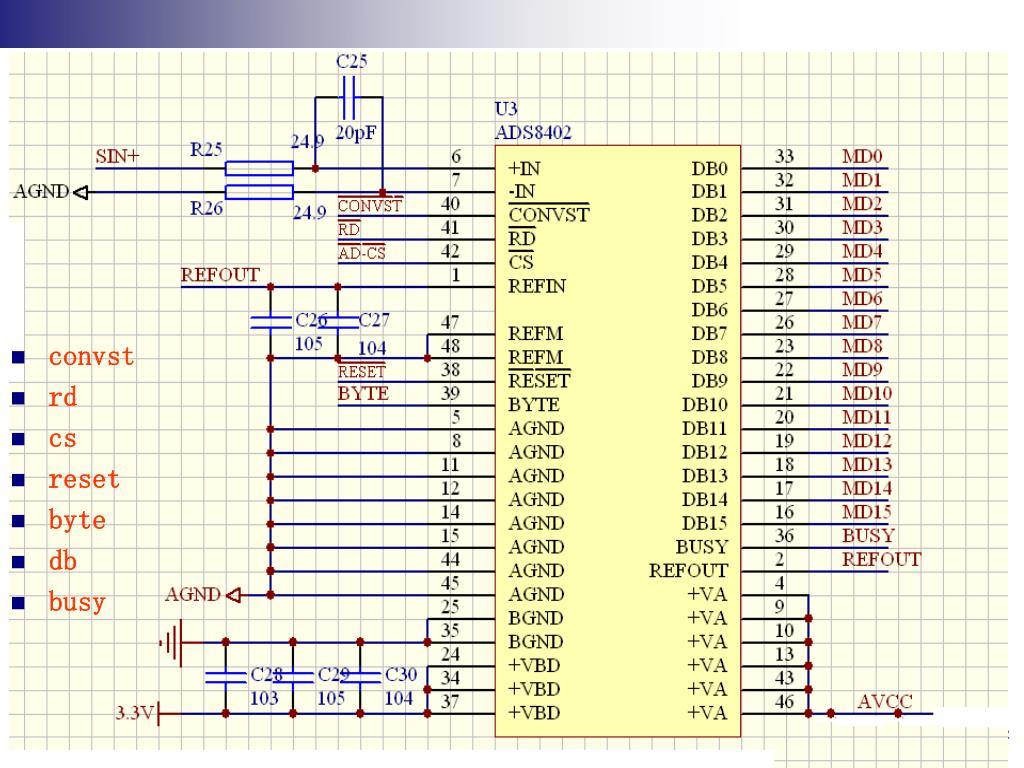

convst

  • rd
  • cs
  • reset
  • byte
  • db
  • busy
slide21

<630ns

>650ns

采集时序

>40ns

>20ns

slide22
设计思路
  • 设采样率500ksps,则采样周期为2000ns,由于关键的几个计时段要求大于20ns、40ns、650ns,可以采用100ns的计时步长,故采用晶振频率为10MHz。计数器循环最大次数为20次,5位信号向量即可。
  • 0 8 9 16 19
  • 关键时间:0、800ns、900ns、1600ns、2000ns
slide23

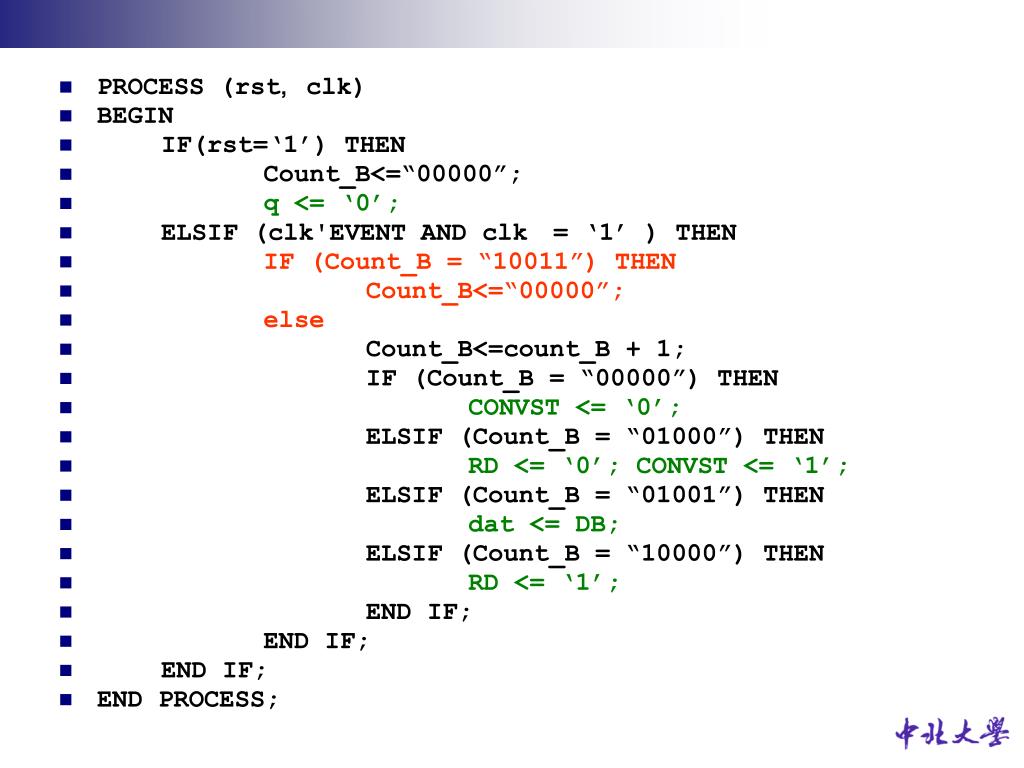

PROCESS (rst,clk)

  • BEGIN
  • IF(rst=‘1’) THEN
  • Count_B<=“00000”;
  • q <= ‘0’;
  • ELSIF (clk'EVENT AND clk= ‘1’ ) THEN
  • IF (Count_B = “10011”) THEN
  • Count_B<=“00000”;
  • else
  • Count_B<=count_B + 1;
  • IF (Count_B = “00000”) THEN
  • CONVST <= ‘0’;
  • ELSIF (Count_B = “01000”) THEN
  • RD <= ‘0’; CONVST <= ‘1’;
  • ELSIF (Count_B = “01001”) THEN
  • dat <= DB;
  • ELSIF (Count_B = “10000”) THEN
  • RD <= ‘1’;
  • END IF;
  • END IF;
  • END IF;
  • END PROCESS;
slide24
其它控制语句
  • CS <= ‘0’;
  • BYTESEL <= ‘0’;
  • RESET <= ‘1’;
  • PROCESS (rst,clk)
  • BEGIN
  • IF(rst=‘1’) THEN
  • Count_B<=“00000”;
  • q <= ‘0’;
  • ELSIF (clk'EVENT AND clk= ‘1’ ) THEN
  • .. .. .. .. ..
  • END IF;
  • END PROCESS;
slide25
8 按定义实现写时序
  • 一旦探测到“写允许”WREN变低,FPGA控制8位数据线给出数据X,然后“写”信号WR有效(变低),等到“接收完成”ROK信号变低,控制“写信号”WR变高,等待下一次“写允许”,发送X+1……,如此循环,写入递增数据。
slide26

ARCHITECTURE arc OF ss IS

  • type states is (st0,st1,st2,st3);
  • signal outc: states;
  • Signal dat: std_logic_vector(7 downto 0);
  • BEGIN
  • PROCESS(clk)
  • BEGIN
  • IF reset='1' then
  • outc <=st0 ;
  • dat <= “00000000”;
  • elsif clk'event and clk='1' then
  • CASE outc IS
  • WHEN st0 =>
  • if WREN=‘0’ then
  • dbus <= dat;
  • WR <= ‘0’;
  • outc <= st1;
  • else outc <= st0;
slide27

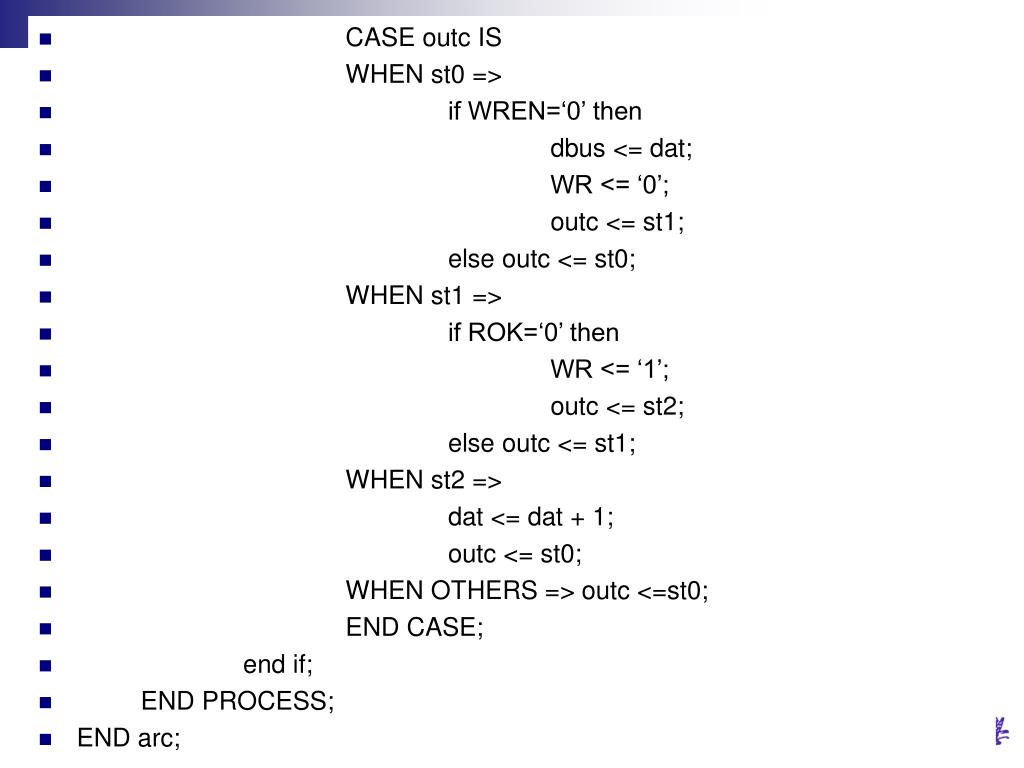

CASE outc IS

  • WHEN st0 =>
  • if WREN=‘0’ then
  • dbus <= dat;
  • WR <= ‘0’;
  • outc <= st1;
  • else outc <= st0;
  • WHEN st1 =>
  • if ROK=‘0’ then
  • WR <= ‘1’;
  • outc <= st2;
  • else outc <= st1;
  • WHEN st2 =>
  • dat <= dat + 1;
  • outc <= st0;
  • WHEN OTHERS => outc <=st0;
  • ENDCASE;
  • end if;
  • END PROCESS;
  • END arc;
