  1. NS-2 Tutorial Choe, Hyun Jung (Stella) Spring 2008 High Performance Networks Department of Computer Science and EngineeringThe University of Texas at Arlington

  2. Outline • NS-2 Overview • How to Run NS-2 • How to Program • Simulation Examples • Project Overview • Q & A

  3. NS-2 Overview

  4. What is NS-2? • VINT Project • UC Berkeley, LBL, USC/ISI, and Xerox PARC • Goals • Support networking research and education • Freely distributed, open source • Share code, protocols, models, etc • a Discrete Event Simulator • Link layer and up • Wired and Wireless

  5. NS Models • Wired • Routing: DV, LS, PIM-SM etc. • Transportation: TCP and UDP • Traffic sources: web, ftp, telnet, cbr, stochastic etc. • Queuing disciplines: drop-tail, RED, FQ, SFQ, DRR etc. • QoS: IntServ and Diffserv … • Emulation • Wireless • Ad hoc routing, mobile IP and Satellite • Directed diffusion, sensor-MAC

  6. NS Architecture • Object-oriented (C++, OTcl) • data / control separation • C++ for data: • per packet processing, core of ns • fast to run, detailed, complete control • OTcl for control: • Simulation scenario configurations • Periodic or triggered action • Manipulating existing C++ objects • fast to write and change

  7. Pure OTcl objects C++ C++/OTcl split objects Pure C++ objects otcl OTcl and C++: The Duality ! OTcl (object variant of Tcl) and C++ share class hierarchy !

  8. Post-processing: • simple trace analysis, often in Tcl, Awk or Perl • visualize ns (or other) output • Pre-processing: • Traffic and topology generators NS Components

  9. Part II: How to Run NS-2

  10. How to Run NS-2 • gamma2 server • Version: 2.30 • Please use /tmp for your trace files (not codes) (later) • xdisplay for graphical results • If you want to install NS2 in your own PC • Current release: ns-2.31, Mar 10, 2007) • http://www.isi.edu/nsnam/ns/ns-build.html • Platforms • Most Unix and Linux • Windows and Mac

  11. How to Setup Path • ls –a • .cshrc setenv LD_LIBRARY_PATH /opt/ns-allinone-2.30/… • .bash_profile export PATH=/opt/ns-allinone-2.30/bin:$PATH export LD_LIBRARY_PATH=/opt/ns-allinone-2.30/otcl-1.12:/opt/ns-allinone-2.30/lib:$LD_LIBRARY_PATH export TCL_LIBRARY=/opt/ns-allinone-2.30/tcl8.4.13/library

  12. gamma /tmp • for Temporary Usage only • Do Not save your scripts under /tmp • Use Your Own directory • mkdir /tmp/your_dir/ • Example set nf [open /tmp/your_dir/out.nam w]

  13. How to Install NS-2 (Under Windows) • http://nsnam.isi.edu/nsnam/index.php/Running_Ns_and_Nam_Under_Windows_9x/2000/XP_Using_Cygwin • Cygwin-1.3.12 or later required • Select “UNIX” text type • to check current mode, type “mount | grep textmode” • C:\Cygwin (not C:\Program Files\Cygwin) • “Install” <X11> and <Devel> Categories (next page) and others (e.g., vim) in <Editor> • Download NS-2 under Cygwin (E.g., under /usr/local/) • tar zxvf ns-allinone-2.2x.x.tar.gz • cd ns-allinone-2.2x • ./install

  14. Error? • error near unexpected token `)' ./configure: line 7624: ` OSF*)' tcl8.3.2 configuration failed! Exiting ... Tcl is not part of the ns project. Please see www.Scriptics.com to see if they have a fix for your platform. • Remove ‘ only if there are two ‘ at the end of relid • find . | xargs -n 1 grep -H relid\‘ • Others • http://ns-2.blogspot.com/2006/05/problem-in-installing-ns-2292-allinone.html • http://www.isi.edu/nsnam/ns/ns-cygwin-old.html

  15. How to Use Cygwin-X • http://xfree86.cygwin.com/docs/ug//usr/X11R6/ • Run /usr/X11R6/bin/startxwin.bat • % sh /usr/X11R6/bin/startxwin.sh • % cp /etc/X11/xinit/xinitrc ~/.xinitrc • PATH=%PATH:/usr/X11R6/bin • % startx &

  16. NS-2 Directory Structure /opt/ns-allinone-2.30/ ns-allinone ... Tcl8.4.13 TK8.4.13 OTcl tclcl ns-2 nam-1.12 C++ code ... tcl ex test mcast lib ... examples validation tests OTcl code

  17. Part III: How to Program

  18. Basic Tcl Programming • set b 0 • “b = 0” in C • set x $b • set x [expr $a + $b] • http://www-sop.inria.fr/maestro/personnel/Eitan.Altman/COURS-NS/n3.pdf

  19. Basic Tcl # Command arg1 arg2 arg3 … set a 43 set b 27 proc test { a b } { set c [expr $a + $b] set d [expr [expr $a - $b] * $c] for {set k 0} {$k < 10} {incr k} { if {$k < 5} { puts “k < 5, pow = [expr pow($d, $k)]” } else { puts “k >= 5, mod = [expr $d % $k]” } } }

  20. Elements of NS-2 • Create the event scheduler • [Turn on tracing] • Create network • Setup routing • Insert errors • Create transport connection • Create traffic • Transmit application-level data

  21. Network Components TclCL Event Scheduler OTcl Tcl C/C++ NS-2 How to Simulate • Create event scheduler • set ns [new Simulator] • Schedule events • $ns at <time> <event> • <event>: any legitimate ns/tcl commands • $ns at 5.0 “finish” • Start scheduler • $ns run • TclCL • C++ and OTcl linkage • glue library that makes it easy to share functions, variables, etc

  22. Example: helloWorld.tcl set ns [new Simulator] $ns at 1 “puts \“Hello World!\”” $ns at 1.5 “exit” $ns run % ns simple.tcl Hello World! %

  23. Creating Network • Nodes • set n0 [$ns node] • set n1 [$ns node] • Links and queuing • $ns duplex-link $n0 $n1 <bandwidth> <delay> <queue_type> • <queue_type>: DropTail, RED, CBQ, FQ, SFQ, DRR • $ns duplex-link-op $no $n1 OPTIONS n0 n1

  24. Setup Routing • Unicast • $ns rtproto <type> • <type>: Static, Session, DV, cost, multi-path • Multicast • $ns multicast (right after [new Simulator]) • $ns mrtproto <type> • <type>: CtrMcast, DM, ST, BST

  25. Creating Connection: UDP • UDP • set udp [new Agent/UDP] • set null [new Agent/Null] • $ns attach-agent $n0 $udp • $ns attach-agent $n1 $null • $ns connect $udp $null UDP null n0 n1

  26. Creating Traffic: On Top of UDP • CBR • set src [new Application/Traffic/CBR] • $src attach-agent $udp0 • Exponential or Pareto on-off • set src [new Application/Traffic/Exponential] • set src [new Application/Traffic/Pareto] • $src attach-agent $udp0 CBR UDP null n0 n1

  27. Structure of a Unicast Node

  28. Structure of a Simplex Link

  29. Creating Connection: TCP • TCP • set tcp [new Agent/TCP] • set tcpsink [new Agent/TCPSink] • $ns attach-agent $n0 $tcp • $ns attach-agent $n1 $tcpsink • $ns connect $tcp $tcpsink TCP sink n0 n1

  30. Creating Traffic: On Top of TCP • FTP • set ftp [new Application/FTP] • $ftp attach-agent $tcp • Telnet • set telnet [new Application/Telnet] • $telnet attach-agent $tcp FTP TCP sink n0 n1

  31. A simulation example ftp W=32 tcp sink n0 n4 5Mb, 15ms n2 n3 10Mb,2ms 10Mb,2ms n1 n5 sink tcp ftp W=32

  32. TCP Agents • ns has several variants of TCP available: • -- Agent/TCP/Tahoe a ``tahoe'' TCP sender • -- Agent/TCP/Reno a ``Reno'' TCP sender • -- Agent/TCP/NewReno Reno with a modification • -- Agent/TCP/Sack1 TCP with selective repeat (follows RFC2018) • -- Agent/TCP/Vegas TCP Vegas • -- Agent/TCP/Fack Reno TCP with ``forward acknowledge ment'' • The oneway TCP receiving agents currently supported are: • -- Agent/TCPSink TCP sink with one ACK per packet • -- Agent/TCPSink/DelAck TCP sink with configurable delay per ACK • -- Agent/TCPSink/Sack1 selective ACK sink (follows RFC2018) • -- Agent/TCPSink/Sack1/DelAck Sack1 with DelAck • The twoway experimental sender currently supports only a Reno form of TCP: • -- Agent/TCP/FullTcp

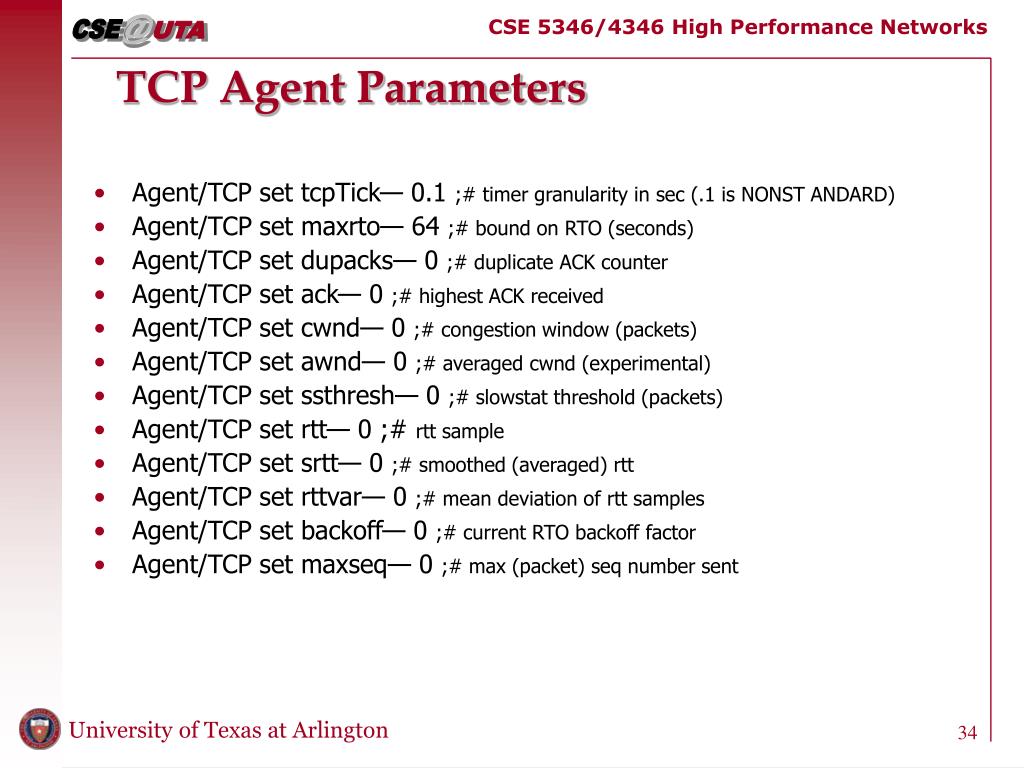

  33. TCP Agent Parameters • Agent/TCP set tcpTick— 0.1 ;# timer granularity in sec (.1 is NONST ANDARD) • Agent/TCP set maxrto— 64 ;# bound on RTO (seconds) • Agent/TCP set dupacks— 0 ;# duplicate ACK counter • Agent/TCP set ack— 0 ;# highest ACK received • Agent/TCP set cwnd— 0 ;# congestion window (packets) • Agent/TCP set awnd— 0 ;# averaged cwnd (experimental) • Agent/TCP set ssthresh— 0 ;# slowstat threshold (packets) • Agent/TCP set rtt— 0 ;# rtt sample • Agent/TCP set srtt— 0 ;# smoothed (averaged) rtt • Agent/TCP set rttvar— 0 ;# mean deviation of rtt samples • Agent/TCP set backoff— 0 ;# current RTO backoff factor • Agent/TCP set maxseq— 0 ;# max (packet) seq number sent

  34. Tracing and Monitoring I • Trace packets on all links • #Open the NAM trace file #Open the Trace file • set nf [open out.nam w] set tf [open out.tr w] • $ns namtrace-all $nf $ns trace-all $tf • Must appear immediately after creating scheduler • Turn on tracing on specific links • $ns trace-queue $n0 $n1 • $ns namtrace-queue $n0 $n1 • Event tracing (support TCP right now) • Record “event” in trace file:$ns eventtrace-all

  35. Tracing and Monitoring II

  36. Tracing and Monitoring III • Queue monitor set qmon [$ns monitor-queue $n0 $n1 $q_f $sample_interval] • Get statistics for a queue $qmon set pdrops_ • Record to trace file as an optional 29.000000000000142 0 1 0.0 0.0 4 4 0 1160 1160 0 • Flow monitor set fmon [$ns_ makeflowmon Fid] $ns_ attach-fmon $slink $fmon $fmon set pdrops_

  37. Tracing and Monitoring IV • Variable tracing in nam Agent/TCP set nam_tracevar_ true $tcp tracevar srtt_ $tcp tracevar cwnd_ • Monitor agent variables in nam $ns add-agent-trace $tcp $tcp $ns monitor-agent-trace $tcp $srm0 tracevar cwnd_ …… $ns delete-agent-trace $tcp

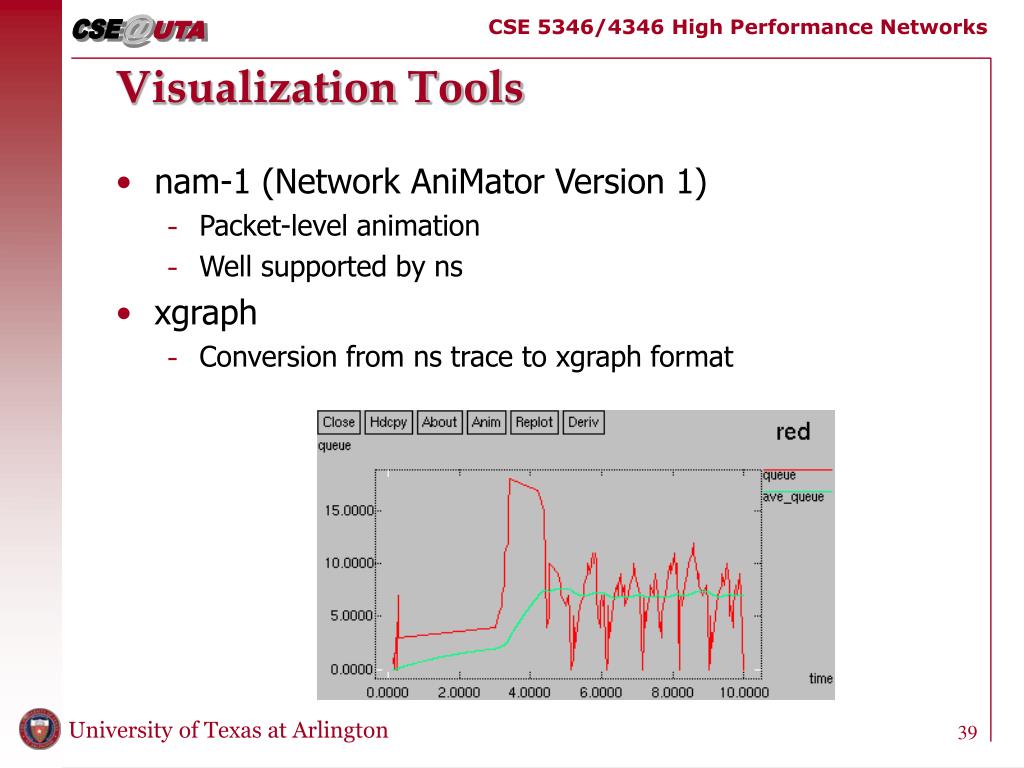

  38. Visualization Tools • nam-1 (Network AniMator Version 1) • Packet-level animation • Well supported by ns • xgraph • Conversion from ns trace to xgraph format

  39. xgraph • The xgraph program draws a graph on an X display given data read from either data files. • To run it: xgraph dataFileName • You can save the hardcopy of the graph as a postscript file. • Xgraph is available on gamma: • /opt/ns-allinone-2.30/xgraph-12.1

  40. nam • Basic visualization • Topology layout • Animation control • Synchronous replay • Fine-tune layout • TCP/SRM visualization • Editor: generate ns simulation scripts

  41. nsnam Interface • Color • Node manipulation • Link manipulation • Topology layout • Protocol state • Misc

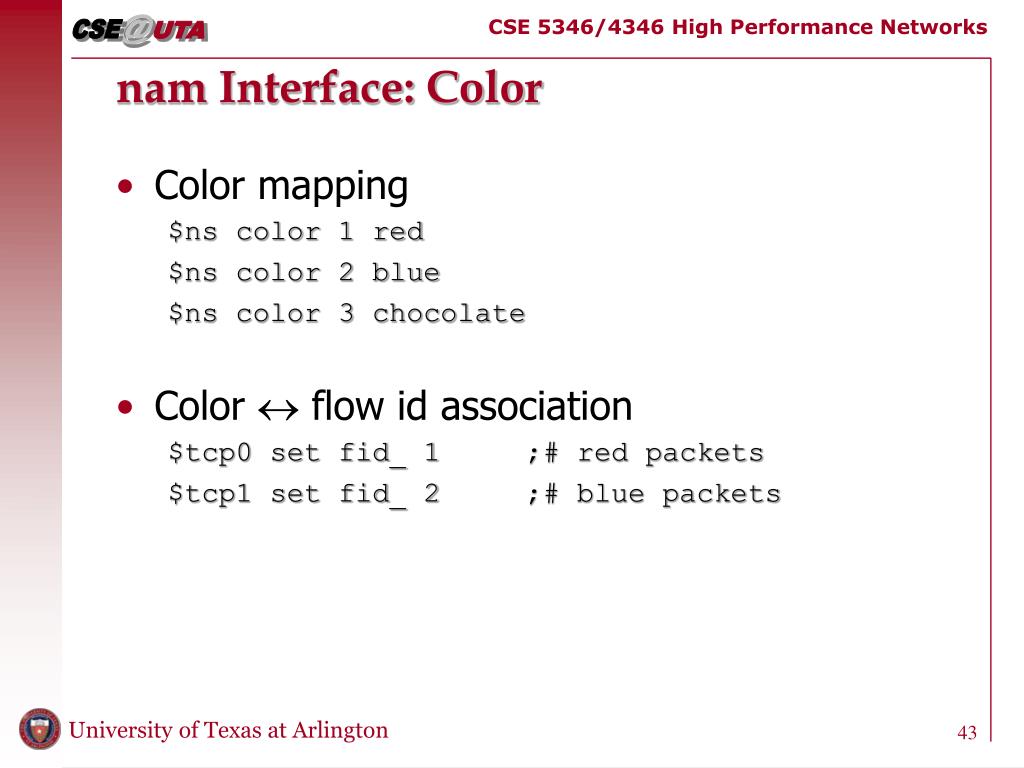

  42. nam Interface: Color • Color mapping $ns color 1 red $ns color 2 blue $ns color 3 chocolate • Color  flow id association $tcp0 set fid_ 1 ;# red packets $tcp1 set fid_ 2 ;# blue packets

  43. nam Interface: Nodes • Color $node color red • Shape (can’t be changed after sim starts) $node shape box ;# circle, box, hexagon • Marks (concentric “shapes”) $ns at 1.0 “$n0 add-mark m0 blue box” $ns at 2.0 “$n0 delete-mark m0” • Label (single string) $ns at 1.1 “$n0 label \”web cache 0\””

  44. nam Interfaces: Links • Color $ns duplex-link-op $n0 $n1 color "green" • Label $ns duplex-link-op $n0 $n1 label "abced" • Dynamics (automatically handled) $ns rtmodel Deterministic {2.0 0.9 0.1} $n0 $n1 • Asymmetric links not allowed

  45. nam Interface: Topo Layout • “Manual” layout: specify everything $ns duplex-link-op $n(0) $n(1) orient right $ns duplex-link-op $n(1) $n(2) orient right $ns duplex-link-op $n(2) $n(3) orient right $ns duplex-link-op $n(3) $n(4) orient 60deg • If anything missing  automatic layout

  46. nam Interface: Protocol State • Monitor values of agent variables $ns add-agent-trace $srm0 srm_agent0 $ns monitor-agent-trace $srm0 $srm0 tracevar C1_ $srm0 tracevar C2_ # … … $ns delete-agent-trace $tcp1

  47. nam Interface: Misc • Annotation • Add textual explaination to your sim $ns at 3.5 "$ns trace-annotate \“packet drop\"“ • Set animation rate $ns at 0.0 "$ns set-animation-rate 0.1ms"

  48. Summary: Generic Script Structure set ns [new Simulator] # [Turn on tracing] # Create topology # Setup packet loss, link dynamics # Create routing agents # Create: # - multicast groups # - protocol agents # - application and/or setup traffic sources # Post-processing procs # Start simulation
