tracksys

TrackSys

Final ProjectPresentation and Demonstration

modus pwnens design
Modus Pwnens Design
  • Gordon Celesta – Project Manager
  • Jordan Ell – Designer / Programmer
  • Triet Huynh – Designer / Programmer
  • Brian Richter – Designer / Programmer
  • Braden Simpson – Lead Programmer
overview
Overview
  • Project Description
  • Use Cases
  • Prototypes
  • Demonstration
  • Development
  • Design Patterns
  • Technical Implementation
  • Reflections
  • Recommendations
  • Summary
  • Client Feedback
  • Questions
problem description

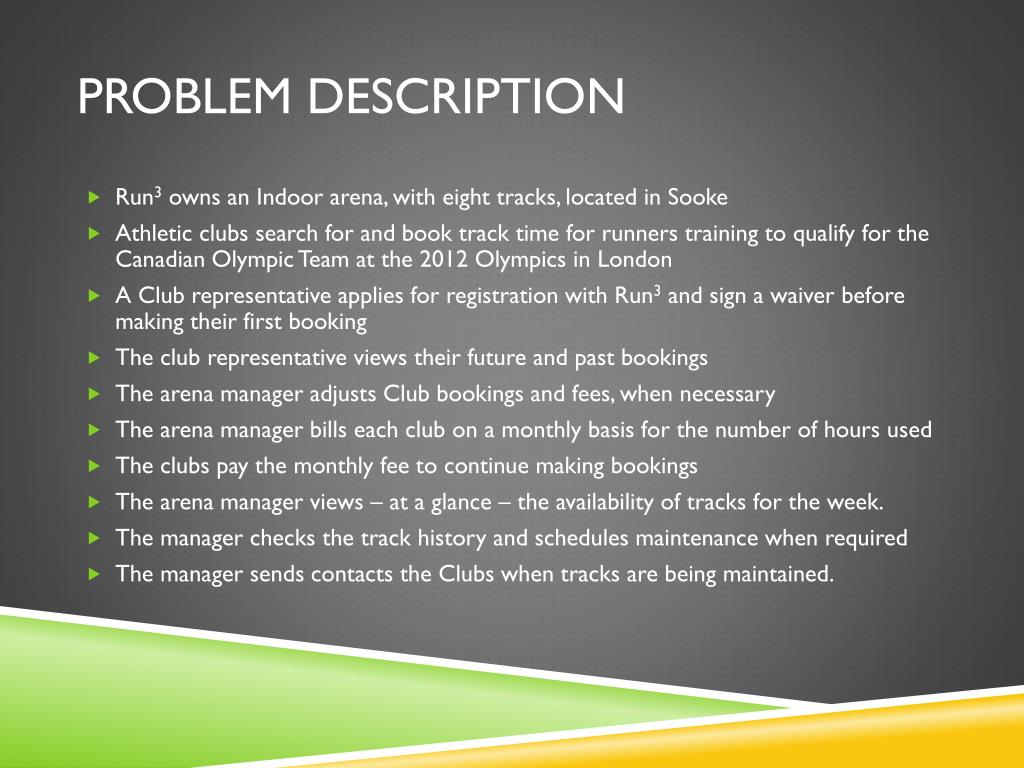

Problem Description
  • Run3 owns an Indoor arena, with eight tracks, located in Sooke
  • Athletic clubs search for and book track time for runners training to qualify for the Canadian Olympic Team at the 2012 Olympics in London
  • A Club representative applies for registration with Run3 and sign a waiver before making their first booking
  • The club representative views their future and past bookings
  • The arena manager adjusts Club bookings and fees, when necessary
  • The arena manager bills each club on a monthly basis for the number of hours used
  • The clubs pay the monthly fee to continue making bookings
  • The arena manager views – at a glance – the availability of tracks for the week.
  • The manager checks the track history and schedules maintenance when required
  • The manager sends contacts the Clubs when tracks are being maintained.
club use cases
Club Use Cases
  • Club applies for registration
  • Club checks track availability
  • Club books track
  • Club cancels booking
  • Club pays monthly fee
  • Club requests history
manager use cases

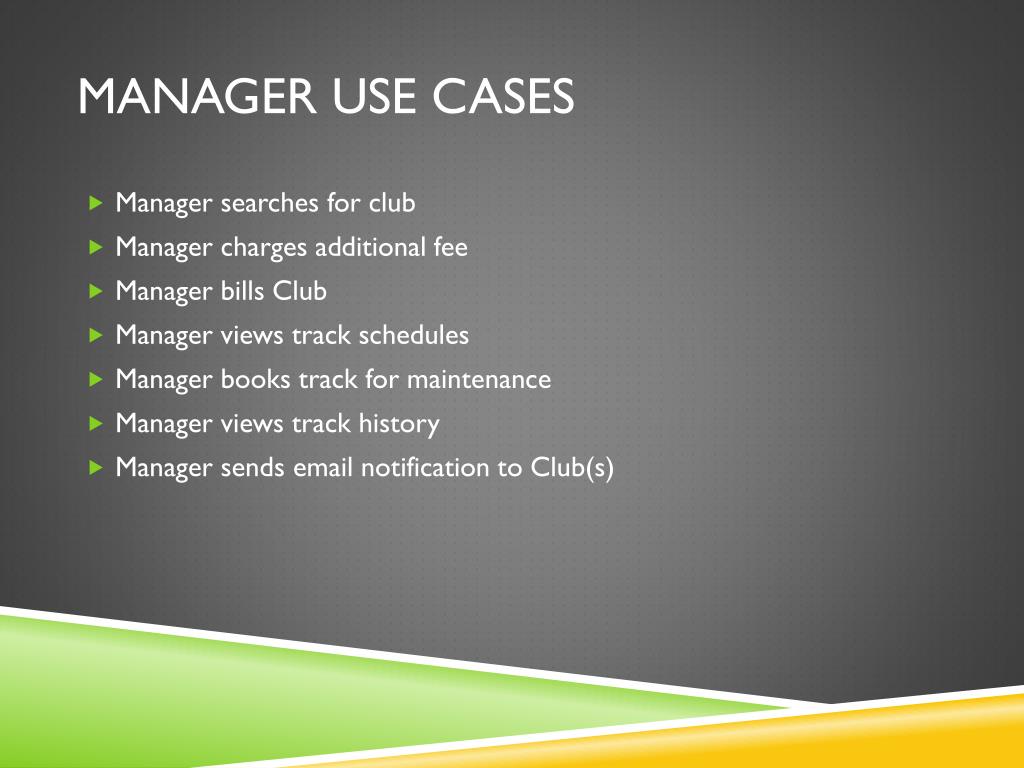

Manager Use Cases
  • Manager searches for club
  • Manager charges additional fee
  • Manager bills Club
  • Manager views track schedules
  • Manager books track for maintenance
  • Manager views track history
  • Manager sends email notification to Club(s)
prototypes

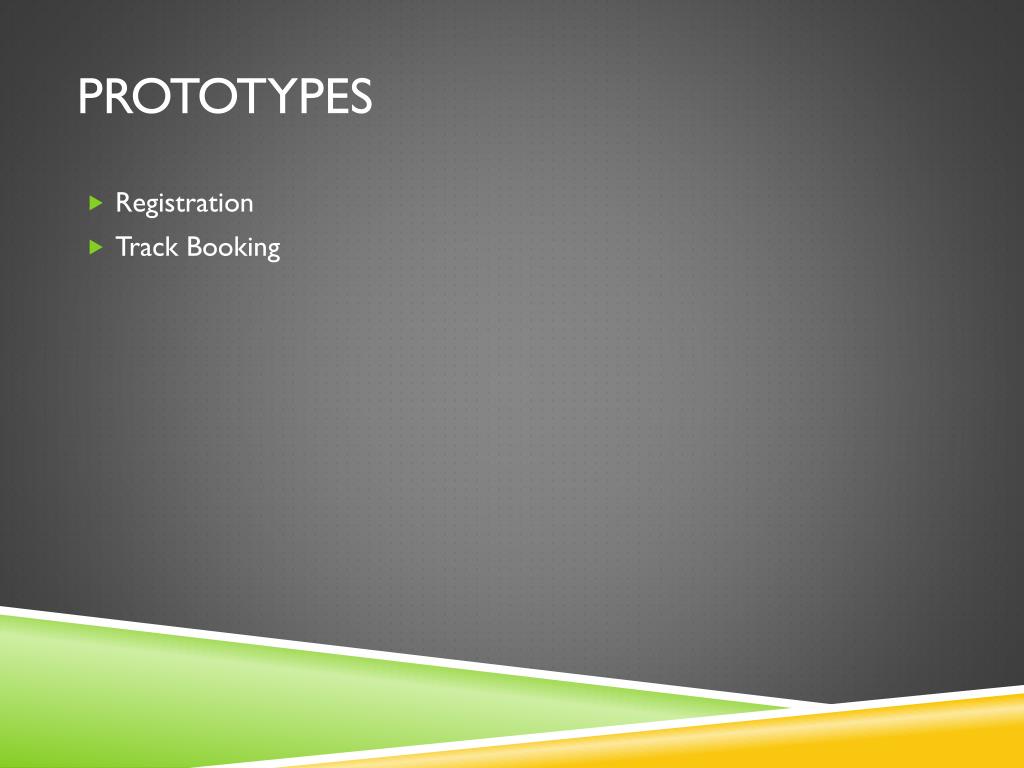

Prototypes
  • Registration
  • Track Booking
development unified process
Development - Unified Process
  • Inception Phase
    • Domain, Use cases
    • Requirements
    • Client Meeting 1
  • Elaboration Phase
    • Low fidelity prototypes
    • Client Meeting II
  • Construction Phase
    • Rapid Implementation
  • Transition Phase
    • Testing
development network graph

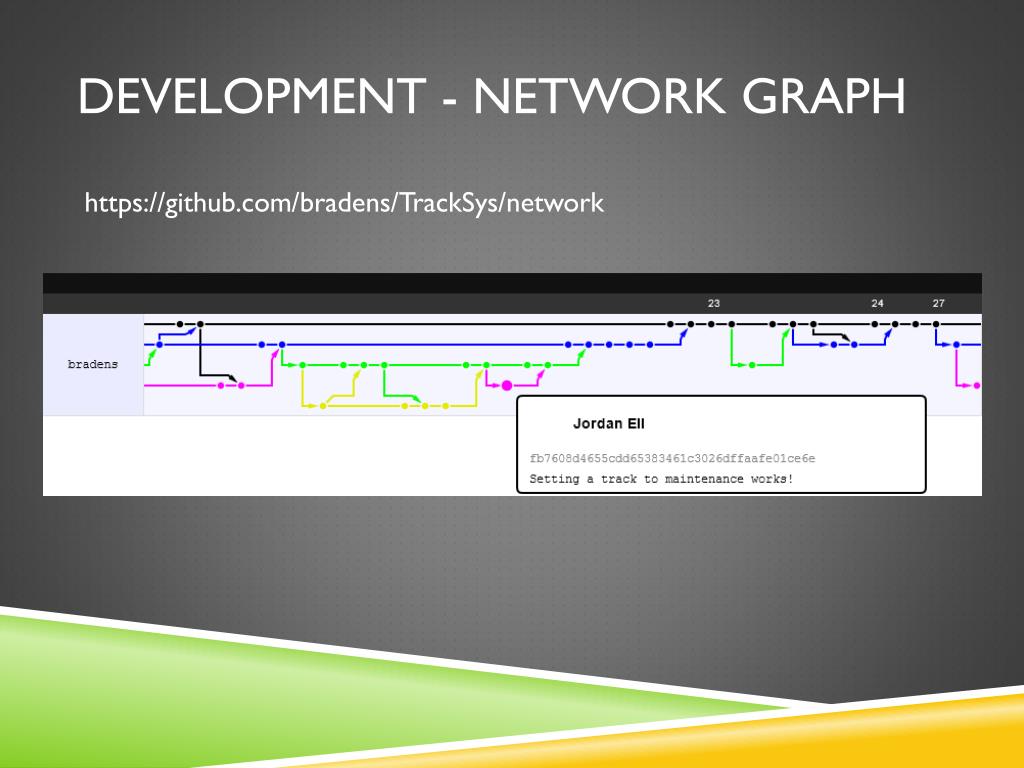

Development - Network Graph

https://github.com/bradens/TrackSys/network

design patterns

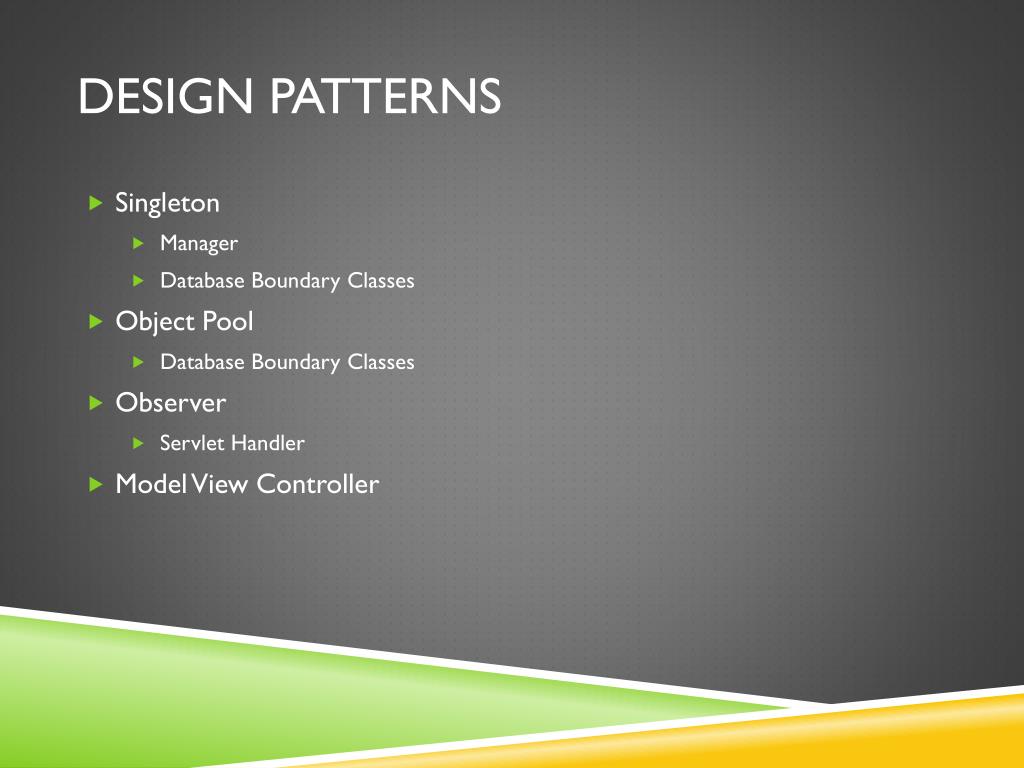

Design Patterns
  • Singleton
    • Manager
    • Database Boundary Classes
  • Object Pool
    • Database Boundary Classes
  • Observer
    • Servlet Handler
  • Model View Controller
technical implementation

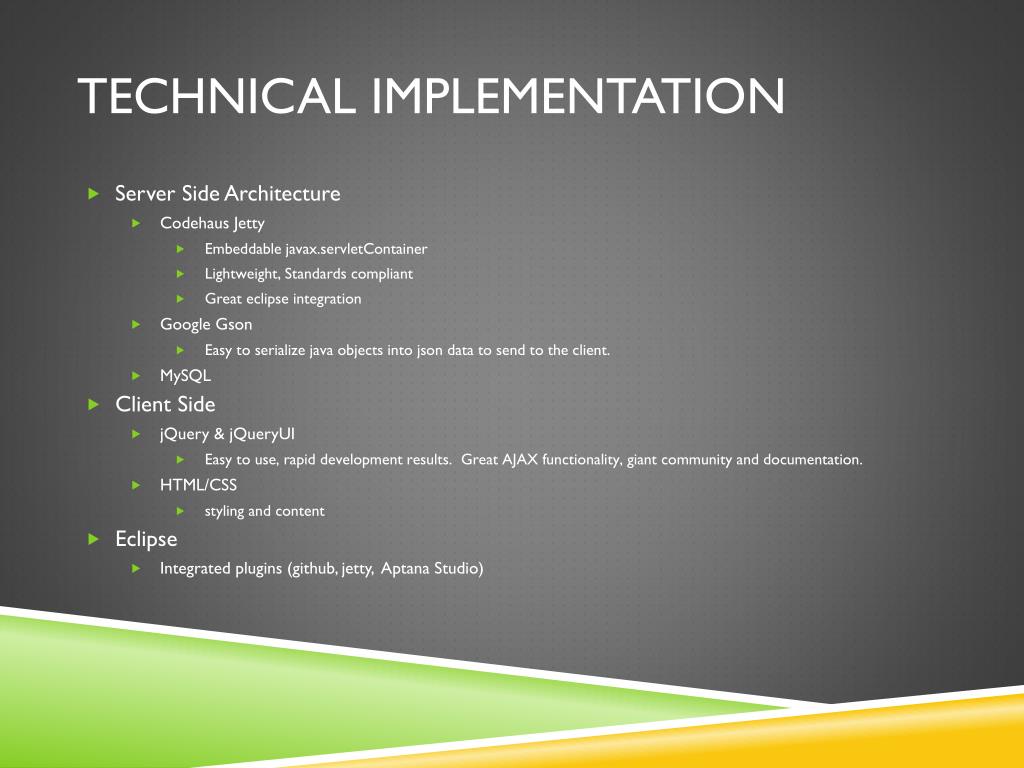

Technical Implementation
  • Server Side Architecture
    • Codehaus Jetty
      • Embeddable javax.servletContainer
      • Lightweight, Standards compliant
      • Great eclipse integration
    • Google Gson
      • Easy to serialize java objects into json data to send to the client.
    • MySQL
  • Client Side
    • jQuery & jQueryUI
      • Easy to use, rapid development results.  Great AJAX functionality, giant community and documentation.
    • HTML/CSS
      • styling and content
  • Eclipse
    • Integrated plugins (github, jetty, Aptana Studio)
recommendations
Recommendations
  • Additional meetings
  • Lab for the class
  • Start project earlier
  • More time for coding and a more iterative process for the implementation phase in stages.
reflections
Reflections
  • Team dynamic
  • "Jelled" at Felicitas
  • Skype
  • Google Docs
  • Email
  • Group study rooms
summary
Summary
  • Use case driven development
  • Unified Process
  • Four primary use cases
    • Club applies for registration
    • Club books track
    • Club pays monthly fee
    • Club requests history
reflections1
Reflections
  • Very detailed handwritten mockups
  • Team used Use-Cases as basis (gave us an easy understanding of their work)
  • Professionalism (Business card)
  • Proper agenda, team lead us comfortably through the meetings
