simulating biological systems in the stochastic pi calculus

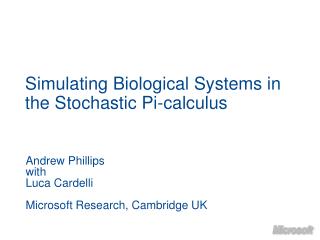

Simulating Biological Systems in the Stochastic Pi-calculus

Andrew Phillips

with

Luca Cardelli

Microsoft Research, Cambridge UK

modelling biology
Modelling Biology
  • The Human Genome project:
    • Map out the complete genetic code in humans
    • To understand and predict gene and protein behaviour
    • Like reading the source code of a computer program...
    • But functional meaning of the code is still a mystery!
  • Systems Biology:
    • Understand and precisely describe the behaviour of biological systems
  • Two complementary approaches:
    • Look at experimental results and infer general system properties
    • Build detailed models of systems and test these in the lab
  • Biological Modelling:
    • Conduct virtual experiments, saving time and money.
    • Need tools for modelling complex parallel systems.
    • Should also scale up to very large systems.
    • The beginnings of a biological programming language...
programming biology
Languages for complex, parallel computer systems:

Languages for complex, parallel biological systems:

Programming Biology

stochasticp-calculus

large connected reaction graphs
Large, Connected Reaction Graphs

http://www.celldesigner.org/

compositional modelling
Compositional Modelling

Build complex models incrementally, by direct composition of simpler components:

model analysis
Model Analysis
  • A formal programming language
  • Analysis techniques (types,equivalences,model-checking)
  • Could help provide insight into fundamental properties of biological systems
equivalent models
Equivalent Models
  • Can we replace one model with another?
related work
Related Work
  • Stochastic p-calculus proposed by [Priami, 1995]
  • Used to simulate a range of biological systems:
    • RTK MAPK pathway [Regev et al., 2001]
    • Gene Regulation by positive Feedback [Priami et al., 2001]
    • Cell Cycle Control in Eukaryotes [Lecca and Priami, 2003]
  • First simulator for stochastic p-calculus [BioSPI]
    • A subset of p-calculus with limited choice
    • Compiles a calculus process to an FCP procedure
    • Executed by the FCP Logix platform [Silverman et al., 1987]
graphical stochastic p calculus
Graphical Stochastic p-calculus
  • Display stochastic p-calculus models as graphs
    • [Phillips and Cardelli, 2005]
    • Helps make the stochastic p-calculus more accessible
    • Defined a graphical calculus and graphical execution model
    • Proved equivalent to the stochastic p-calculus
    • [Phillips, Cardelli and Castagna, 2006]

PROVED EQUIVALENT

the s tochastic pi m achine
The Stochastic PiMachine
  • A simulation algorithm for stochastic p-calculus
    • [Phillips and Cardelli, 2004]
    • Based on standard theory of chemical kinetics [Gillespie, 1977]
    • The probability of a reaction is proportional to its rate
    • Proved correct with respect to the stochastic p-calculus.

PROVED CORRECT

the spim simulator
The SPiM Simulator
  • Simulation algorithm mapped to functional code (F#)
    • Used as the basis for implementing the SPiM simulator.
    • [Phillips, 2006] GUI by James Margetson, MSRC
    • Close correspondence between formal algorithm and functional code
    • Correct specification improves confidence in simulation results
    • Used in various research centres (UK, France, Italy, Sweden...)

http://research.microsoft.com/~aphillip/spim

visualising simulations in 3d
Visualising Simulations in 3D
  • Generate a 3D view of the interactions

Software by Rich Williams, MSRC

course outline
Course Outline
  • The Stochastic Pi-calculus
  • Gene Networks
  • Signalling Networks
  • Immune System Pathway
the stochastic pi calculus

The Stochastic Pi-calculus

Introductory Tutorial

calculus syntax
Calculus Syntax

p::= ?x(m) Input value m on channel x

!x(n)   Output value n on channel x

trDelay at rate r

P::= p1.P1 + ... + pN.PNChoice between actions

P1 | ... | PMParallel composition of processes

X(n)   Instance of X with arguments n

new x1,...,xNP Restriction of names x1,...,xN to P

E::= X(m) = P Definition of X, where fn(P) Ím

E1, ... ,ENUnion of definitions

execution stochastic delay
Execution: Stochastic Delay

tr.P1 + ... + pN.PN

execution stochastic delay1
Execution: Stochastic Delay

tr.P1 + ... + pN.PN ¾®P1

execution interaction
Execution: Interaction

!x(n).P1 + ... + pN.PN | ?x(m).Q1 + ... + pM.QM

execution interaction1
Execution: Interaction

!x(n).P1 + ... + pN.PN | ?x(m).Q1 + ... + pM.QM

¾®P1 |Q1{n/m}

{n/m}

execution binding interaction
Execution: Binding Interaction

new n (!x(n).P1 + ... + pN.PN ) | ?x(m).Q1 + ... + pM.QM

execution binding interaction1
Execution: Binding Interaction

new n (!x(n).P1 + ... + pN.PN ) | ?x(m).Q1 + ... + pM.QM

¾® new n ( P1 | Q1{n/m} )

n

{n/m}

ionization na cl na cl
Ionization: Na + Cl  Na+ + Cl-

let Na() = !ionize; Na_plus()

and Na_plus() = ?deionize; Na()

run Na()

let Cl() = ?ionize; Cl_minus()

and Cl_minus() = !deionize; Cl()

run Cl()

  • Na can ionize Cl at rate(ionize) = 100s-1
  • Cl-can deionize Na+ at rate(deionize) = 10s-1
ionization na cl na cl1
Ionization: Na + Cl  Na+ + Cl-

let Na() = !ionize; Na_plus()

and Na_plus() = ?deionize; Na()

run Na()

let Cl() = ?ionize; Cl_minus()

and Cl_minus() = !deionize; Cl()

run Cl()

  • Na can ionize Cl by an output on the ionize channel
ionization na cl na cl2
Ionization: Na + Cl  Na+ + Cl-

let Na() = !ionize; Na_plus()

and Na_plus() = ?deionize; Na()

run Na_plus()

let Cl() = ?ionize; Cl_minus()

and Cl_minus() = !deionize; Cl()

run Cl_minus()

  • Cl-can deionize Na+ by an output on the deionize channel
ionization na cl na cl3
Ionization: Na + Cl  Na+ + Cl-

let Na() = !ionize; Na_plus()

and Na_plus() = ?deionize; Na()

run Na()

let Cl() = ?ionize; Cl_minus()

and Cl_minus() = !deionize; Cl()

run Cl()

  • Na and Cl are no longer charged
ionization na cl na cl4
Ionization: Na + Cl  Na+ + Cl-
  • A number of Na and Cl atoms can be composed in parallel.
ionization na cl na cl5
Ionization: Na + Cl  Na+ + Cl-
  • One of the Na atoms can ionize one of the Cl atoms.
ionization na cl na cl6
Ionization: Na + Cl  Na+ + Cl-
  • Additional Na and Cl atoms can interact in parallel.
ionization na cl na cl7
Ionization: Na + Cl  Na+ + Cl-
  • A Cl-ion can deionize any of the Na+ ions.
ionization na cl na cl8
Ionization: Na + Cl  Na+ + Cl-
  • These reactions can continue indefinitely...
virtual experiment na cl na cl
Virtual Experiment: Na + Cl  Na+ + Cl-
  • What happens if we mix 100×Na and 100×Cl ?
  • Use a more compact representation to count populations.
  • The colour is proportional to the number of atoms:
virtual experiment na cl na cl1
Virtual Experiment: Na + Cl  Na+ + Cl-
  • One of the Na atoms can ionize one of the Cl atoms.
virtual experiment na cl na cl2
Virtual Experiment: Na + Cl  Na+ + Cl-
  • Additional Na and Cl atoms can interact in parallel.
virtual experiment na cl na cl3
Virtual Experiment: Na + Cl  Na+ + Cl-
  • A Cl-ion can deionize any of the Na+ ions.
virtual experiment na cl na cl4
Virtual Experiment: Na + Cl  Na+ + Cl-
  • Eventually an Equilibrium is reached...
virtual experiment na cl na cl5
Virtual Experiment: Na + Cl  Na+ + Cl-
  • At equilibrium: 100×[Na][Cl] = 10×[Na+][Cl-]
  • Approximately 76×Na and 24×Na+
binding h cl hcl
Binding: H + Cl  HCl

let H() = new e@10.0 (

!share(e); H_Bound(e))

and H_Bound(e) = !e; H()

let Cl() = ?share(e); Cl_Bound(e)

and Cl_Bound(e) = ?e; Cl()

run ( H() | Cl() )

  • H has a private electron e.
  • H can share its electron with Cl at rate(share) = 100s-1
  • HCl can break its private bond at rate(e) = 10s-1
binding h cl hcl1
Binding: H + Cl  HCl

let H() = new e@10.0 (

!share(e); H_Bound(e))

and H_Bound(e) = !e; H()

let Cl() = ?share(e); Cl_Bound(e)

and Cl_Bound(e) = ?e; Cl()

run ( H() | Cl() )

  • H can share its electron with Cl on the share channel.
binding h cl hcl2
Binding: H + Cl  HCl

let H() = new e@10.0 (

!share(e); H_Bound(e))

and H_Bound(e) = !e; H()

let Cl() = ?share(e); Cl_Bound(e)

and Cl_Bound(e) = ?e; Cl()

run new e (H_Bound(e) |Cl_Bound(e))

  • HCl can break its private bond by synchronising on e.

e

binding h cl hcl3
Binding: H + Cl  HCl

let H() = new e@10.0 (

!share(e); H_Bound(e))

and H_Bound(e) = !e; H()

let Cl() = ?share(e); Cl_Bound(e)

and Cl_Bound(e) = ?e; Cl()

run (H() | Cl() )

  • H and Cl are no longer bound
binding h cl hcl4
Binding: H + Cl  HCl
  • A number of H and Cl atoms can be composed in parallel.
binding h cl hcl5
Binding: H + Cl  HCl
  • One of the H atoms can bind with one of the Cl atoms
binding h cl hcl6
Binding: H + Cl  HCl

e

  • Additional H and Cl atoms can bind in parallel.
binding h cl hcl7
Binding: H + Cl  HCl

e

  • A single HCl molecule can split into H and Cl atoms.

e

binding h cl hcl8
Binding: H + Cl  HCl

e

  • These reactions can continue indefinitely...
virtual experiment h cl hcl
Virtual Experiment: H + Cl  HCl
  • As with the previous reaction, we mix 100×H and 100×Cl
virtual experiment h cl hcl1
Virtual Experiment: H + Cl  HCl
  • One of the H atoms can bind with one of the Cl atoms
virtual experiment h cl hcl2
Virtual Experiment: H + Cl  HCl
  • Additional H and Cl atoms can bind in parallel.

e x1

virtual experiment h cl hcl3
Virtual Experiment: H + Cl  HCl
  • A single HCl molecule can split into H and Cl atoms.

e x2

virtual experiment h cl hcl4
Virtual Experiment: H + Cl  HCl
  • Eventually an Equilibrium is reached...

e x1

virtual experiment h cl hcl5
Virtual Experiment: H + Cl  HCl
  • At equilibrium: 100×[H][Cl] = 10×[HCl]
  • Approximately 3×H and 97×HCl
calculus syntax1
Calculus Syntax

p-calculus:

Graphical p-calculus:

calculus semantics
Calculus Semantics

P ~ Q

a

a

~

P’

Q’

gene networks

Gene Networks

with

Luca Cardelli (MSR Cambridge)

Ralf Blossey (IRI Lille)

gene with negative control
val transcribe = 0.1 val degrade = 0.001

val unblock = 0.0001

new a@1.0:chan new b@1.0:chan

let Neg(a:chan,b:chan) =

do delay@transcribe;

(Protein(b) | Neg(a,b))

or ?a; Blocked(a,b)

and Blocked(a:chan,b:chan) =

delay@unblock; Neg(a,b)

and Protein(b:chan) =

do !b; Protein(b)

or delay@degrade

run Neg(a,b)

Neg(a,b) produces protein b and is blocked by protein a

Gene with Negative Control

a

b

gene simulation
Gene Simulation
  • Simulation results show evolution over time
  • Level of protein b fluctuates around 100
gene simulation 0s
Gene Simulation: 0s
  • A protein b can be transcribed at rate 0.1
  • P(transcribe) = 1

x1

gene simulation 10 50401s
Gene Simulation: 10.50401s
  • Another protein b can be transcribed
  • P(transcribe) = 0.1 / 0.101

x1

x1

gene simulation 19 7126s
Gene Simulation: 19.7126s
  • And another...
  • P(transcribe) = 0.1 / 0.102

x1

x2

gene simulation 26 80166s
Gene Simulation: 26.80166s
  • A protein b can be degraded at rate 0.001
  • P(degrade) = 0.003 / 0.103

x1

x3

gene simulation 30 31779s
Gene Simulation: 30.31779s
  • Eventually reach an equilibrium between transcription and degradation

x1

x2

gene simulation 2980 631s
Gene Simulation: 2980.631s
  • Equilibrium at about 100 proteins.
  • P(transcribe) = 0.1 / 0.2 = P(degrade)

x1

x100

repressilator elowitz and leibler 2000
Repressilator [Elowitz and Leibler, 2000]
  • A gene network engineered in live bacteria.
  • Modelled as a simple combination of Neg gates:

( Neg(lac,tet)

| Neg(tet,lambda)

| Neg(lambda,lac)

| Neg(tet,gfp)

)

© 2000 Elowitz, M.B., Leibler. S. A Synthetic Oscillatory Network of Transcriptional Regulators. Nature 403:335-338.

repressilator simulation

lac

lac

lambda

lambda

lac

lambda

tet

tet

tet

Repressilator Simulation
  • Alternate oscillation of proteins: tet, lac, lambda, tet, ...
  • Why are the oscillations in a particular order?
repressilator debugging
Repressilator: Debugging

lac

lambda

  • Understand how the oscillations are produced.
  • Neg(lac,tet) | Neg(tet,lambda) | Neg(lambda,lac)

tet

repressilator 0s
Repressilator: 0s

x1

x1

x1

  • Initially there is one copy of each gene
  • Any one of the proteins can be transcribed at rate 0.1
  • P(transcribe) = 0.3 / 0.3
repressilator 5 568177s
Repressilator: 5.568177s

x1

x1

x1

x1

  • The tet protein can block the lambda gene at rate 1.0
  • P(tet) = 1.0 / 1.301
repressilator 6 329912s
Repressilator: 6.329912s

x1

x1

x1

x1

  • Now no lambda protein can be transcribed.
  • But lac protein can still be transcribed at rate 0.1
  • P(transcribe) = 0.2 / 0.2011
repressilator 11 62149s
Repressilator: 11.62149s

x1

x1

x1

x1

x1

  • The lac protein can block the tet gene at rate 1.0
  • P(lac) = 1.0 / 1.2021
repressilator 13 21617s
Repressilator: 13.21617s

x1

x1

x1

x1

x1

  • Now no tet or lambda protein can be transcribed.
  • A tet protein can degrade at rate 0.001
  • P(degrade) = 0.002 / 0.1022
repressilator
Repressilator

x1

x1

x1

x1

  • Meanwhile, lots of lac protein is transcribed
repressilator1
Repressilator

x1

  • Represents one oscillation cycle
  • Equilibrium between transcription and degradation
  • Eventually, lambda or lac gene unblocks at rate 0.0001
  • P(unblock) = 0.0002 / 0.2002

x1

x1

x100

repressilator2
Repressilator

x1

  • Suppose the lac gene unblocks
  • There is a high probability that it will block immediately
  • P(lac) = 100.0 / 100.3001

x1

x1

x100

repressilator 11039 31s
Repressilator: 11039.31s

x1

  • Eventually, the lambda gene unblocks at rate 0.0001
  • P(unblock) = 0.0002 / 0.2002

x1

x1

x100

repressilator 11039 77s
Repressilator: 11039.77s

x1

x1

x1

x100

  • There is nothing to block the lambda gene.
  • The lambda protein can now take over...
  • A high probability of oscillating in a particular order.
programming better oscillators
Programming Better Oscillators
  • We observe irregular oscillations when degrade << unblock
repressilator with dimers
let Neg(a:chan,b:chan) = (

new b2@dimerize:chan Neg2(a,b2,b)

)

and Neg2(a:chan,b2:chan,b:chan) =

do delay@transcribe;

(Protein(b2,b) | Neg2(a,b2,b))

or ?a; Blocked(a,b2,b)

and Blocked(a:chan,b2:chan,b:chan) =

delay@unblock; Neg2(a,b2,b)

and Protein(b2:chan, b:chan) =

do ?b2; Protein2(b) or !b2

or delay@degrade

and Protein2(b:chan) =

do !b; Protein2(b)

or delay@degrade

Refined model of a gene with cooperative binding

Different implementation, same main program

Neg(lac,tet) | Neg(tet,lambda) | Neg(lambda,lac)

Repressilator with Dimers
dimers improve regularity
Dimers Improve Regularity
  • Proteins form dimers first
  • Improves regularity of oscillations
  • Investigating stochasticity, cooperativity, ODEs
  • [Blossey, Cardelli, Phillips, 2007]
gene with additional inhibitor
val transcribe = 0.1 val degrade = 0.001

val unblock = 0.0001

new a@1.0:chan new b@1.0:chan

new r@1.0:chan

let Negp(a:chan,b:chan,r:chan) =

do delay@transcribe;

(Proteinp(b,r) | Negp(a,b,r))

or ?a; Blockedp(a,b,r)

and Blockedp(a:chan,b:chan,r:chan) =

delay@unblock; Negp(a,b,r)

and Proteinp(b:chan,r:chan) =

do !b; Proteinp(b,r)

or ?r

or delay@degrade

let Inh(r:chan) = !r; Inh(r)

run Negp(a,b,r)

Gene with additional Inhibitor

r

a

b

bacteria logic gates guet et al 2002
Bacteria Logic Gates [Guet et al., 2002]

© 2002 AAAS. Reprinted with permission from Guet et al. Combinatorial Synthesis of Genetic Networks. Science 296 (5572): 1466 - 1470

  • 3 genes: tetR, lacI, lcI
  • 5 promoters: PL1, PL2, PT, Pl-, Pl+
  • 125 possible networks consisting of 3 promoter-gene units
  • 2 inputs: IPTG (represses Lac), aTc (represses Tet)
  • 1 output: GFP (linked to Pl-)
combinatorial library of genes
Combinatorial Library of Genes
  • Can model 125 networks using just 2 modules (Neg, Negp).
  • Used simulation to investigate system behaviour.
  • Can easily refine the modules without rewiring the networks.
  • [Blossey, Cardelli, Phillips, 2006]

let D038() =

( Negp(TetR,TetR,aTc)

| Negp(TetR,LacI,IPTG)

| Neg(LacI,LambdacI)

| Neg(LambdacI,GFP)

)

D038()

D038() | Inh(aTc)

D038() | Inh(IPTG)

D038() | Inh(aTc) | Inh(IPTG)

signalling networks

Signalling Networks

with

Luca Cardelli (MSR Cambridge)

Jasmin Fisher (EPFL Lausanne)

enzymatic reactions
Enzymatic Reactions

x1

x1

  • An enzyme can bind to a substrate
enzymatic reactions1
Enzymatic Reactions

x1

x1

  • The enzyme and substrate can unbind

r

enzymatic reactions2
Enzymatic Reactions

x1

x1

  • The enzyme can bind to the substrate again
enzymatic reactions3
Enzymatic Reactions

x1

x1

  • The enzyme can react with the substrate

r

enzymatic reactions4
Enzymatic Reactions

x1

  • The enzyme is restored and the substrate is transformed into a product

x1

mapk cascade huang and ferrel 1996
Mapk Cascade [Huang and Ferrel, 1996]
  • Signals the presence of an input enzyme

x1

x100

x1

x100

x1

x10

x1

immune system modelling mhc i antigen presentation

Immune System Modelling:MHC I Antigen Presentation

with

Luca Cardelli (MSR Cambridge)

Leonard Goldstein (Cambridge University)

Tim Elliott (Southampton University)

Joern Werner (Southampton University)

mhc a biological virus scanner
MHC: A Biological Virus Scanner

©2005 from Immunobiology, Sixth Edition by Janeway et al.

Reproduced by permission of Garland Science/Taylor & Francis LLC.

mhc a biological virus scanner1
MHC: A Biological Virus Scanner

©2005 from Immunobiology, Sixth Edition by Janeway et al.

Reproduced by permission of Garland Science/Taylor & Francis LLC.

investigate the role of tapasin
Investigate the Role of Tapasin

©2005 from Immunobiology, Sixth Edition by Janeway et al.

Reproduced by permission of Garland Science/Taylor & Francis LLC.

peptide loading model
Peptide Loading Model
  • Each graph represents a component
peptide loading model1
Peptide Loading Model
  • MHC can load a peptide

x1

x1

peptide loading model2
Peptide Loading Model
  • The loaded peptide can escape

x1

x1

u

peptide loading model3
Peptide Loading Model
  • The loaded peptide can escape

x1

x1

peptide loading model4
Peptide Loading Model
  • MHC can bind tapasin

x1

x1

peptide loading model5
Peptide Loading Model
  • The bound tapasin can unbind

x1

uT

x1

peptide loading model6
Peptide Loading Model
  • The bound tapasin can unbind

x1

x1

experimental setup
Experimental Setup
  • Assume low, medium and high affinity peptides
model parameters
Model Parameters
  • MHC spends < 2h on average in the ER.
tapasin hypotheses
Tapasin Hypotheses
  • Tapasin:
    • Can increase peptide loading at ER entrance
    • Can destabilise loaded MHC
  • Peptide:
    • Can increase tapasin unbinding from MHC
peptide filtering
Peptide Filtering
  • How does MHC egress the right peptides?
  • Consider a loaded peptide with unbinding rate u
  • Competition between unbinding and egression

P(egress,u) = egress / (u + egress)

P(egress,u) = 1/(1 + u / egress)

egress  : P(egress,u)  1

egress  0 : P(egress,u)  1/ u

x1

peptide discrimination
Peptide Discrimination
  • Consider 3 loaded MHC complexes
  • Stable peptides are more likely to egress

Pi(egress) = P(egress,ui) / kP(egress,uk)

egress : Pi(egress)  1/k1 = 1/3

egress  0: Pi(egress)  (1/ ui) / k (1/ uk )

x1

x1

x1

discrimination upper bound
Discrimination Upper Bound
  • Assume low = 6/2, med = 6/5, high = 6/12
  • Upper bound as egresstends to 0

Pi(egress)  (1/ ui) / k (1/ uk )

= (1/ ui) / (2/6 + 5/6 +12/6)

= (1/ ui)  (6/19)

discrimination vs egression
Discrimination vs Egression
  • Calculate peptide discrimination for different values of egress.
  • Assume 1000 uniformly loaded MHC complexes
peptide editing simulations
Peptide Editing Simulations
  • Simulate peptide editing for different values of egress.
peptide editing results
Peptide Editing Results
  • Simulation results are comparable to predictions
peptide filtering with tapasin
Peptide Filtering with Tapasin
  • Tapasin adds a second filtering stage.

P(uT,u) = uT / (uq + uT)

P(uT,u) = 1 / (1 + uq/uT)

P(uT,egress,u) = P(uT,u)  P(egress,u)

uT, egress : P(uT,egress,u)  11

uT, egress 0 : P(uT,egress,u)  (1/uq)  (1/u)

x1

peptide discrimination1
Peptide Discrimination
  • Tapasin improves upper bound on discrimination

Pi(uT,egress) = P(uT,egress,ui) / k P(uT,egress,uk)

uT,egress: Pi(uT,egress) 11 /k 11 = 1/3

uT,egress 0: Pi(uT,egress)  (1/uiq)(1/ui) / k (1/ukq)(1/uk)

x1

x1

x1

discrimination vs egression1
Discrimination vs Egression
  • Calculate peptide discrimination for different values of uT/q and egress.
  • Assume 1000 uniformly loaded MHC complexes
tapasin improves discrimination
Tapasin Improves Discrimination
  • Max discrimination without tapasin 105:263:632
  • Max discrimination with tapasin 23:145:832
peptide editing simulations1
Peptide Editing Simulations
  • Simulate peptide editing with tapasin, for different values of q and egress .
peptide editing results1
Peptide Editing Results
  • Simulation results are comparable to predictions
mhc alleles model predictions
MHC Alleles: Model Predictions
  • Peptide discrimination in absence of tapasin: Depends on egress.
  • Peptide discrimination in presence of tapasin: Depends on q and ratio of complexes that follow tapasin pathway.
  • Cell surface expression in absence of tapasin: Depends on dMHCo.
mhc alleles model simulations
MHC Alleles: Model Simulations
  • Explain varying dependence on tapasin
peptide loading flytrap model
Peptide Loading: Flytrap Model
  • MHC I captures peptides like a Venus Flytrap.

unstable

peptide escapes

peptide enters

open MHC

stable peptide is captured

and presented at cell surface

flytrap model
Flytrap Model
  • MHC undergoes a conformational change after peptide loading
compositional modelling2
Compositional Modelling
  • Adding two new peptides
compositional modelling3
Compositional Modelling
  • Adding a conformational change to MHC
next steps
Next Steps
  • A functional model of MHC I Antigen presentation

[Cardelli, Elliott, Goldstein, Phillips, Werner]

  • Medical Research Grant (MRC 2006-2007) to complete a more detailed MHC model.
  • Medical Research Grant (MRC 2007-2010) to perform targeted experiments.

Calreticulin

TAP transporter

Erp57

conclusions
Conclusions
  • Biological systems work surprisingly well, though we don’t fully understand why
    • We still have a lot to learn from nature.
  • Long-term benefits for medical research:
    • Better understand disease.
    • Speed up the design of a cure.
  • Long-term benefits for computing:
    • Write more robust concurrent / distributed programs
    • Design and verification of biological computers
    • Smart drugs? Computers in a test tube...?
  • Biological modelling is pushing the boundaries of concurrent programming
outlook
Outlook
  • Senior executives of pharmaceutical companies:

“a real need for a modular biological programming language”

references
References
  • [Blossey et al., 2006] Blossey, R., Cardelli, L., and Phillips, A. (2006). A compositional approach to the stochastic dynamics of gene networks. Transactions in Computational Systems Biology, 3939:99–122.
  • [Gillespie, 1977] Gillespie, D. T. (1977). Exact stochastic simulation of coupled chemical reactions. J. Phys. Chem., 81(25):2340–2361.
  • [Guet et al., 2002] Guet, C.C., Elowitz, M.B., Hsing, W. & Leibler, S. (2002) Combinatorial synthesis of genetic networks. Science 296 1466-1470.
  • [Huang and Ferrel, 1996] Huang, C.-Y. F. and Ferrel, J. E. (1996). Ultrasensitivity of the mitogen-activated protein kinase cascade. PNAS, 93:10078–10083.
  • [Lecca and Priami, 2003] Lecca, P. and Priami, C. (2003). Cell cycle control in eukaryotes: a biospi model. In BioConcur’03. ENTCS.
  • [Phillips, 2006] Phillips, A. (2006). The Stochastic Pi-Machine: A Simulator for the Stochastic Pi-calculus. Available from http://research.microsoft.com/˜aphillip/spim/.
  • [Phillips and Cardelli, 2004] Phillips, A. and Cardelli, L. (2004). A correct abstract machine for the stochastic pi-calculus. In Bioconcur’04. ENTCS.
  • [Phillips and Cardelli, 2005] Phillips, A. and Cardelli, L. (2005). A graphical representation for the stochastic pi-calculus. In Bioconcur’05.
references1
References
  • [Phillips et al., 2006] Phillips, A., Cardelli, L., and Castagna, G. (2006). A graphical representation for biological processes in the stochastic pi-calculus. Transactions in Computational Systems Biology, 4230:123–152.
  • [Priami, 1995] Priami, C. (1995). Stochastic -calculus. The Computer Journal, 38(6):578–589. Proceedings of PAPM’95.
  • [Priami et al., 2001] Priami, C., Regev, A., Shapiro, E., and Silverman, W. (2001). Application of a stochastic name-passing calculus to representation and simulation of molecular processes. Information Processing Letters, 80:25–31.
  • [Regev et al., 2001] Regev, A., Silverman, W., and Shapiro, E. (2001). Representation and simulation of biochemical processes using the pi- calculus process algebra. In Altman, R. B., Dunker, A. K., Hunter, L., and Klein, T. E., editors, Pacific Symposium on Biocomputing, volume 6, pages 459–470, Singapore. World Scientific Press.
  • [Sangiorgi and Walker, 2001] Sangiorgi, D. and Walker, D. (2001). The -calculus: a Theory of Mobile Processes. Cambridge University Press.
  • [Silverman et al., 1987] Silverman, W., Hirsch, M., Houri, A., and Shapiro, E. (1987). The logix system user manual, version 1.21. In Shapiro, E., editor, Concurrent Prolog: Collected Papers (Volume II), pages 46–77. MIT Press, London.
