Presentation Transcript
overview
OVERVIEW
  • Working with user accounts.
  • Working with security groups.
  • Managing file system access.
working with user accounts
WORKING WITH USER ACCOUNTS
  • Establish security accounts.
  • Modify user accounts.
  • Delete user accounts.
establish security accounts
Establish security accounts

ConsoleOne:

  • Comprehensive tool to administer nearly any object that exists in an NDS tree.
establish security accounts6
Establish security accounts

To create a new user account:

  • Access File menu.
  • Choose New.
  • Choose User.
establish security accounts7
Establish security accounts

New User Dialog Box

establish security accounts8
Establish security accounts

To create a new user account:

  • Click OK to create user account.
  • Assign user password.
modify user accounts
Modify user accounts

Steps:

  • Double-click user object.
  • Click different tabs to access account settings types in the Properties dialog box.
modify user accounts10
Modify user accounts

General/Identification:

  • Defines additional user information.
modify user accounts11
Modify user accounts

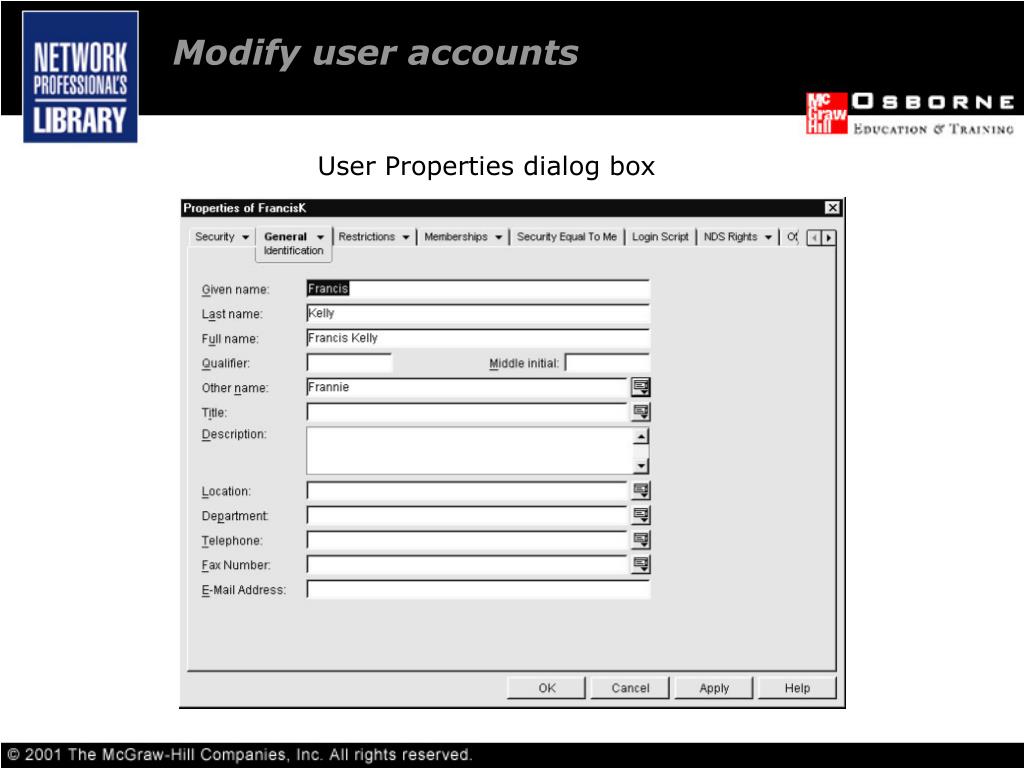

User Properties dialog box

modify user accounts12
Modify user accounts

General/Environment:

  • Enables definition of the language the user will use and the default server.
modify user accounts13
Modify user accounts

Default Server:

  • In a single Network, do not set the server.
  • In a multi-server Network, specify the server.
modify user accounts14
Modify user accounts

General/Environment tab

modify user accounts15
Modify user accounts

Restrictions/Password Restrictions tab

modify user accounts16
Modify user accounts

Login Restrictions:

  • Account disabled.
  • Account has expiration date.
  • Limit concurrent connections from different computers.
modify user accounts17
Modify user accounts

Time Restrictions:

  • Allow/disallow login times.
modify user accounts18
Modify user accounts

Restrictions/Time Restrictions tab

modify user accounts19
Modify user accounts

Address Restrictions:

  • Restrict access.

Intruder Detection:

  • Restrictions/Intruder Lockout.
modify user accounts20
Modify user accounts

Administrative duties:

  • Rights to files/ folders.
  • Memberships/ group membership.
  • Memberships/ Security Equal To.
  • Security Equal to Me.
delete user accounts

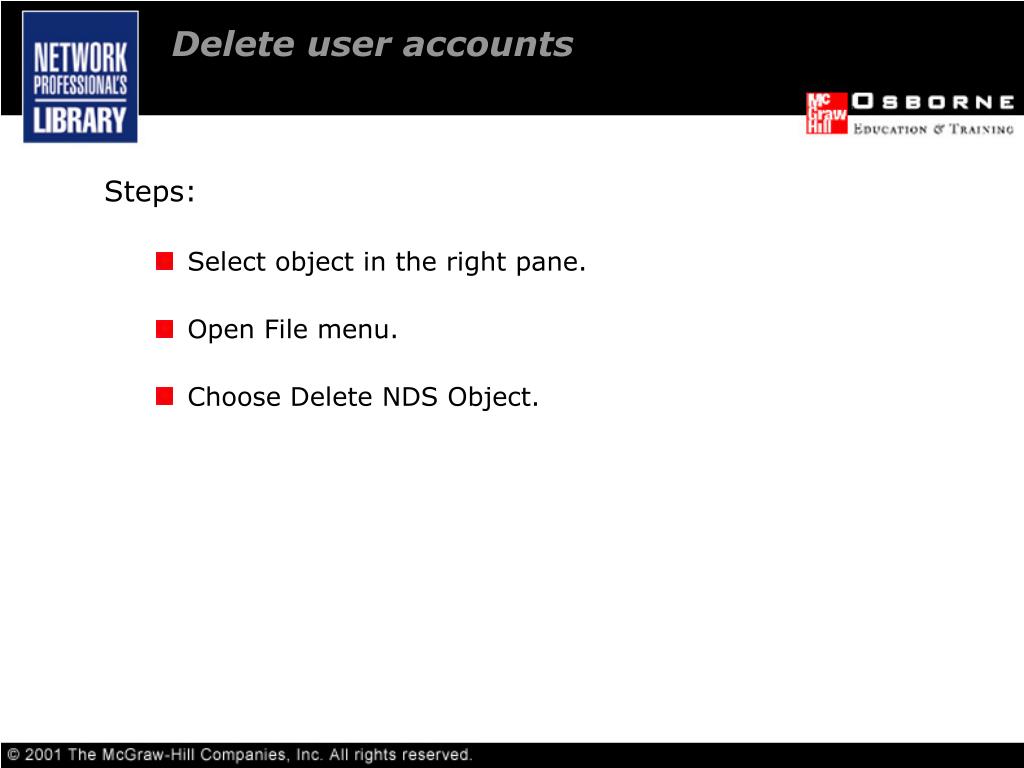

Delete user accounts

Steps:

  • Select object in the right pane.
  • Open File menu.
  • Choose Delete NDS Object.
working with security groups
WORKING WITH SECURITY GROUPS
  • Creating groups
  • Maintaining group membership
creating groups

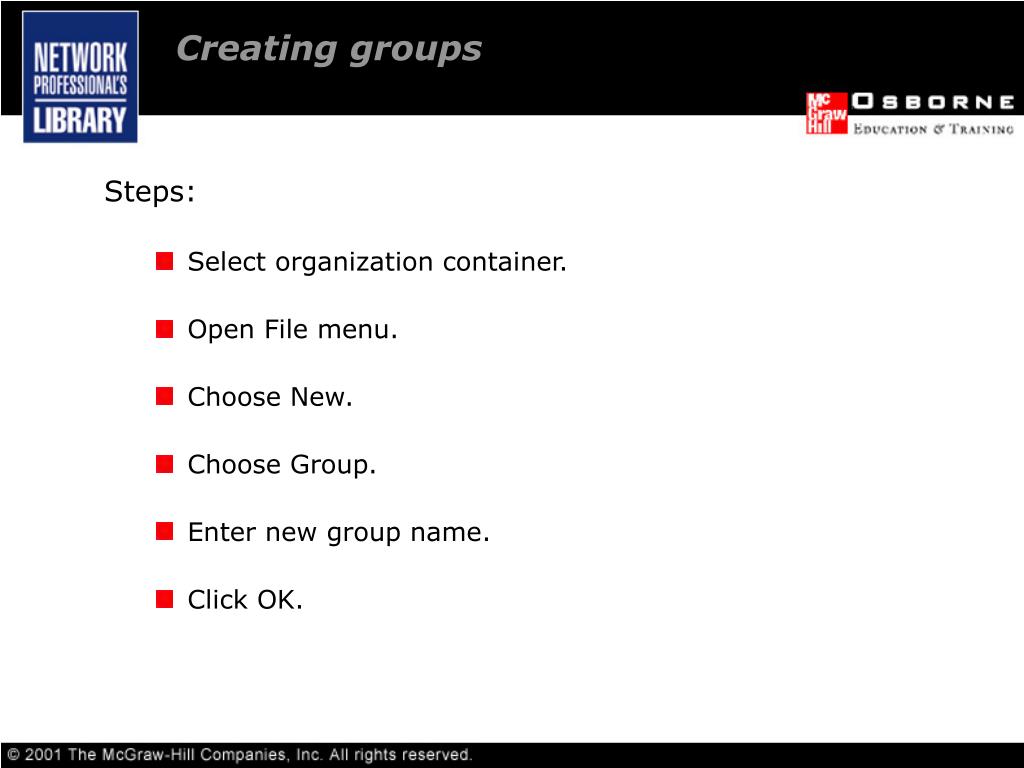

Creating groups

Steps:

  • Select organization container.
  • Open File menu.
  • Choose New.
  • Choose Group.
  • Enter new group name.
  • Click OK.
creating groups24
Creating groups

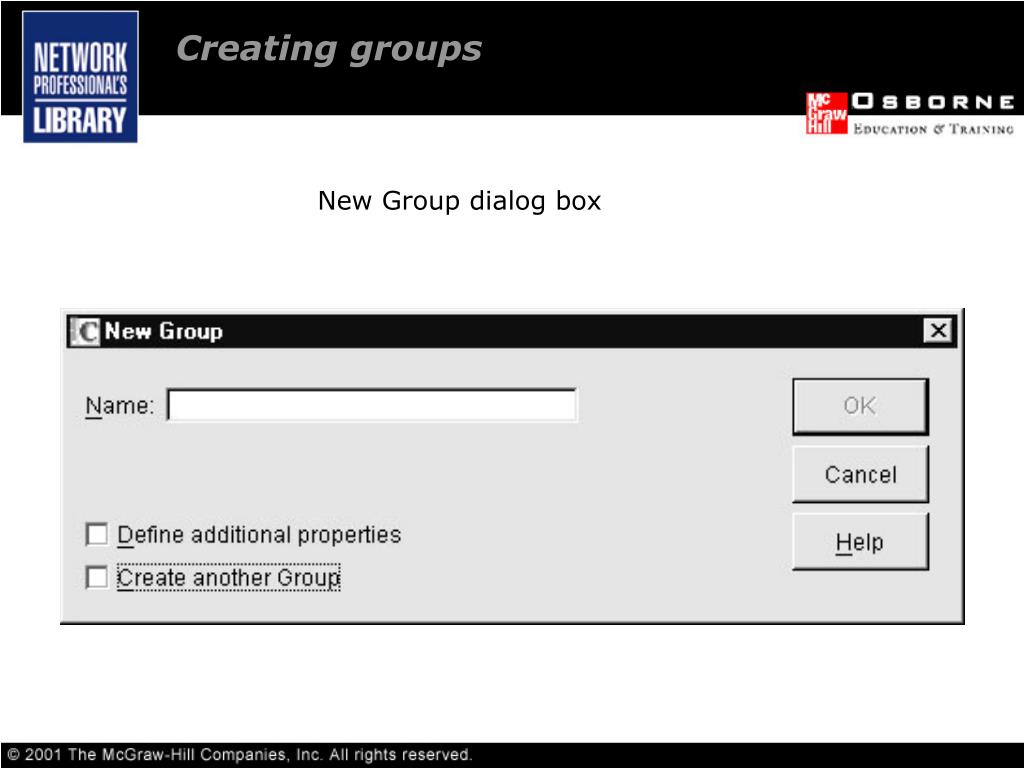

New Group dialog box

maintaining group membership
Maintaining group membership

Steps:

  • Open group object in ConsoleOne
  • Use Members tab.
  • Open individual user’s Properties dialog box.
  • Use Memberships/Group Membership tab.
maintaining group membership26
Maintaining group membership

ConsoleOne Member’s tab

managing file system access
MANAGING FILE SYSTEM ACCESS

Administer volume and folder security:

  • Use Network Neighborhood/My Computer as Administrator.
  • Use ConsoleOne to assign permissions.
managing file system access30

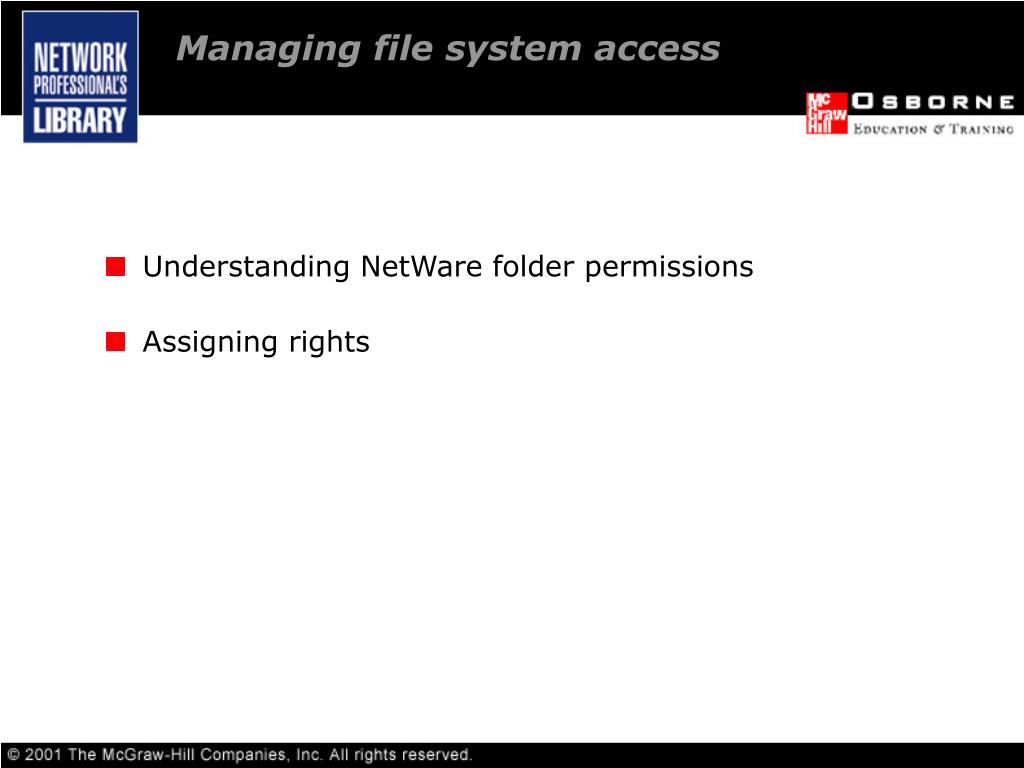

Managing file system access
  • Understanding NetWare folder permissions
  • Assigning rights
understanding netware folder permissions
Understanding NetWare folder permissions
  • Manage permissions to folders and individual files.
  • Folder and file permissions use same rights.
understanding netware folder permissions32
Understanding NetWare folder permissions

File system security rights:

  • Supervisor
  • Read
  • Write
  • Create
understanding netware folder permissions33
Understanding NetWare folder permissions

File system security rights:

  • Erase
  • Modify
  • File Scan
  • Access Control
understanding netware folder permissions34
Understanding NetWare folder permissions

Tips:

  • For read-only access to a folder, grant Read and File Scan rights.
  • Create folders similar to secure in-box by granting Create right.
  • Cumulative file system rights.
  • Consider capabilities granted to user with rights.
assigning rights
Assigning rights

To add a Trustee:

  • Navigate to the folder.
  • Right-click the folder.
  • Choose Properties.
  • Select Add Trustee button.
  • Choose user/group from list.
  • Click OK.
  • Use checkboxes in Access Rights portion of the Trustees of This Directory tab.
assigning rights36
Assigning rights

To remove a Trustee:

  • Select that person in the list.
  • Click Delete Trustee.
summary
SUMMARY

Working with user accounts:

  • Establish security accounts
  • Modify user accounts
  • Delete user accounts
summary38
Summary

Working with security groups:

  • Creating groups
  • Maintaining group membership
summary39

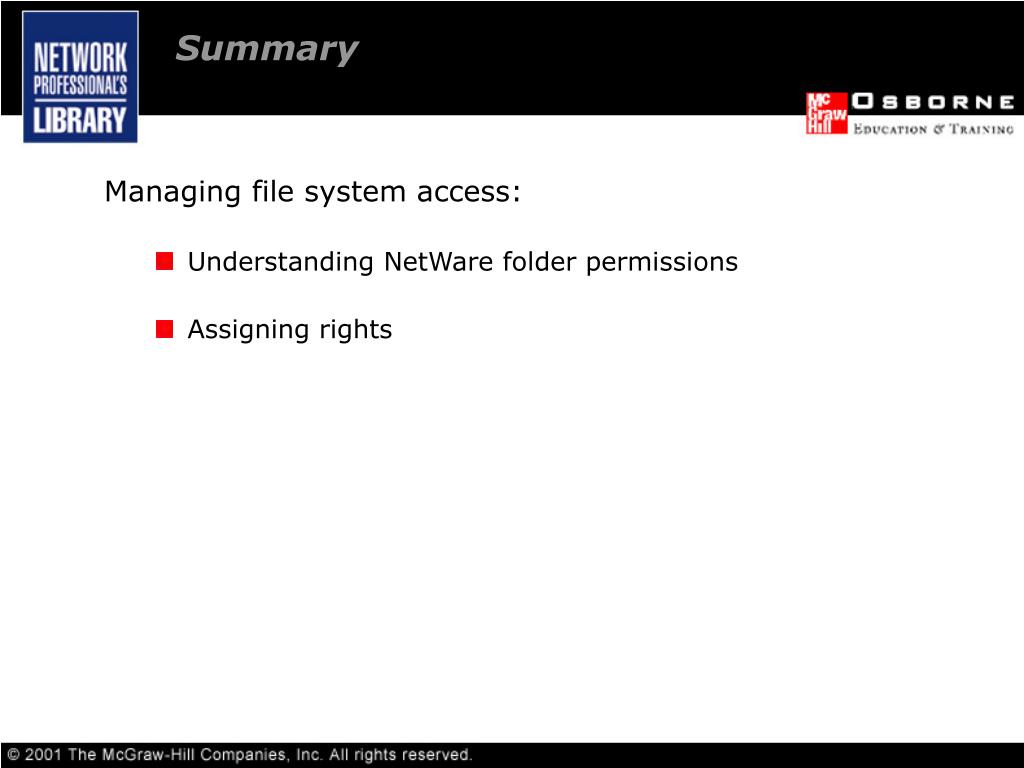

Summary

Managing file system access:

  • Understanding NetWare folder permissions
  • Assigning rights
