  1. PRODUCT DESIGN And Concurrent Engineering Environment MECH 528 - 001 • PROPOSAL TO SENIOR MANAGEMENT • Dec 2nd, 2003 PDT #7 Andreea Luliana Vladan Sally Warner Nola Vannasing Ricardo Plancarte (Team Leader) Jahir Amezcua

  2. Concurrent Engineering Roles • Team Leader (Project Manager) Ricardo • Marketing Manager Nola • Product Manager Sally • Project Engineer Andreea • Manufacturing Engineer Jahir • Supply Management Representative Jahir • Design Engineer Sally

  3. Presentation Overview • Brief Product Description • Final product (Proof of concept) • Manufacturing Process (problems encountered, product design, material, schedule, etc..) • Market and distribution channels • Financial Analysis • Lessons learned (working within a cross-functional team)

  4. Mission Statement • Product Description • A convenient device that will allow purse carriers to hang them right at the edge of the table where they are seated.

  5. Critical Customer Needs • The PPH can adjust to different tables • The PPH can hold a lot of weight • The PPH is small and compact • The PPH is lightweight

  6. Target Specifications • Table thickness: measured tables, manufacturing standard table thickness • Purse mass: weighed purses • Device size and weight: compared to the size of other standard items that people carry in their purses such as cell phones

  7. Final product and detailed Design

  8. Final product and detailed Design

  9. Final product and detailed Design

  10. Final product and detailed Design

  11. Final product and detailed Design

  12. Final product and detailed Design

  13. Final product and detailed Design

  14. Final product and detailed Design

  15. Final product and detailed Design

  16. Final product and detailed Design

  17. Final product and detailed Design

  18. Final product and detailed Design

  19. A

  20. Software testing and prototyping • Piece was modeled in superdraw as a 2-D beam with a support at the mid-section • BC’s: - clamped at one end (part of device pressing on the bottom of the table) -Free at the second end with applied load • An automatic finite element mesh was chosen in Algor and analyzed • Results: for acceptable stresses the device could sustain about 10.5 kg (target was 5kg)

  21. Manufacturing Process • Plastic Injection Molding 1988 80 Ton Engel Injection Mold Machine

  22. Manufacturing Process • Plastic Injection Molding • Raw Material: Plastic Pellets. • Pellets heated and melted in a barrel. • Molten plastic injected into the mold. • Solidification and extraction from mold. • Bonding of plastic and rubber (super glue, epoxy) • Inspection of the final product. • Packaging and Shipping

  23. Manufacturing Process • Mold Design Considerations • Key Process Variables • Mold Temperature (43- 65C) • Material Temperature (204-260C) • Injection Filling Time (110 seg) • Injection Flow Rate (55 g/min)

  24. Manufacturing Process • Mold Design Considerations • Key Process Variables • Draft Angle: Facilitates the part extraction of the mold. (1) • Radii: Prevents stress concentration. (1.5 mm) • Location of the ingate. • Minimize number of bends that causes turbulence in flow.

  25. Manufacturing Process • Estimating Costs for Molding Process • Total Cost = Material + Setup + Molding + Labor • Material Cost: Volume (cm3) * Density (g/cm3) * ABS Price ($/g) • Setup Cost: Setup time (hr) * Cost per hr ($/hr) / Total Parts (PPH) • Molding Cost: Machine rate ($/hr) * Cycle time (hr/cycle) / Parts per cycle (PPH/cycle) • Labor Cost: Operator rate ($/hr) * Cycle time (hr/cycle) / Parts per cycle (PPH/cycle)

  26. Manufacturing Process • Estimating Costs for Molding Process • Initial Production: 1000 PPH • PPH Volume = 70 cm3 • Total Unit Cost = $1.15 per PPH • Production Time = 18 hours

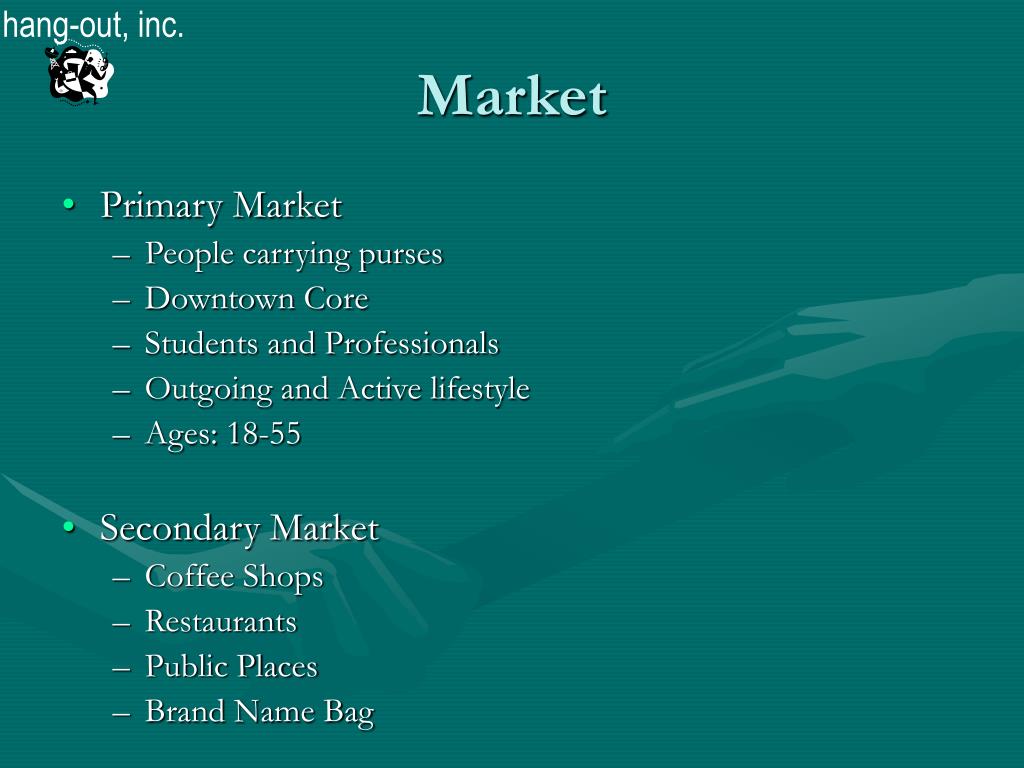

  27. Market • Primary Market • People carrying purses • Downtown Core • Students and Professionals • Outgoing and Active lifestyle • Ages: 18-55 • Secondary Market • Coffee Shops • Restaurants • Public Places • Brand Name Bag

  28. Market • Time to Market • Promotional incentives to bag retailers • On Shelf before Christmas • Advertising • Posters in Stores • Pamphlets next to cash registers • Ad in Metro Newspaper

  29. Distribution Channels Market

  30. Market • Pricing

  31. Financial Analysis Initial investment cost: $1,500.00MarketingRamp-Up Cost *Profitability reached in 2nd Quarter of Operations)

  32. Lessons Learned • Time restrictions can be very dangerous • Concurrent Engineering is one of the best options to develop great ideas • Communication plays a major role in effectively running cross-functional teams • Team member Availability can be a big issue when scheduling meetings • The cost of having 5 people at a meeting is 5 times more expensive than the cost of 1, but the rewards can outweigh the costs if effectively conducted

  33. THANK YOU QUESTIONS..????
