MP32 Draft Gauge - Edge Wise MIEPL

<br>"MIEPL make Draft Gauge helps technicians to quickly and accurately measure draft. MIEPL Draft Gauge is suitable for many applications, including checking uf002ue pipes, chimneys, draft regulators, basement ventilation and more.<br><br>

mieplinstrument
Download Presentation

MP32 Draft Gauge - Edge Wise MIEPL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

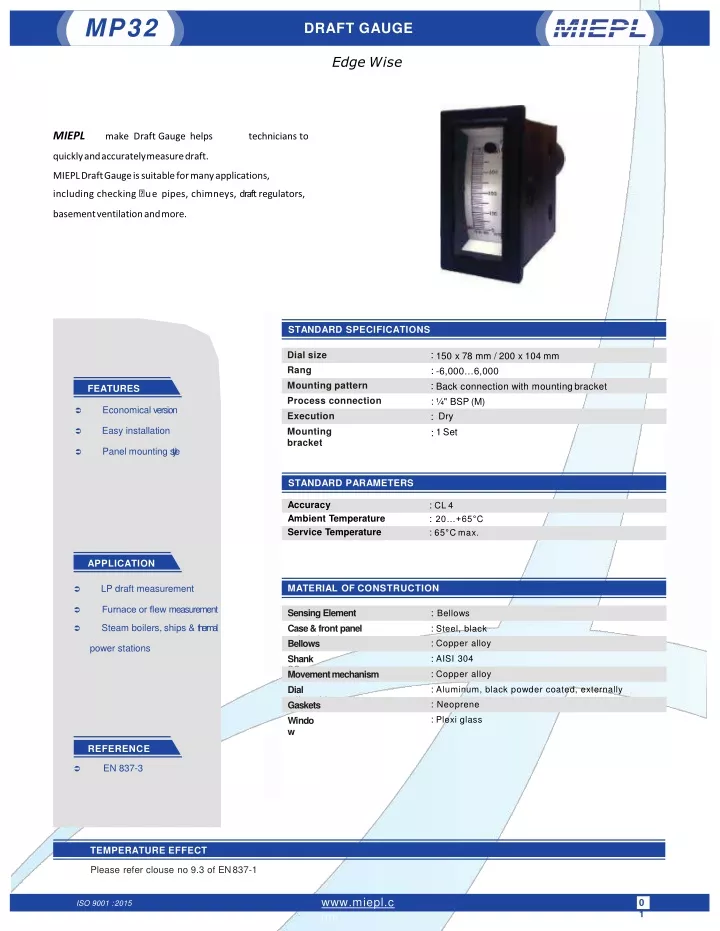

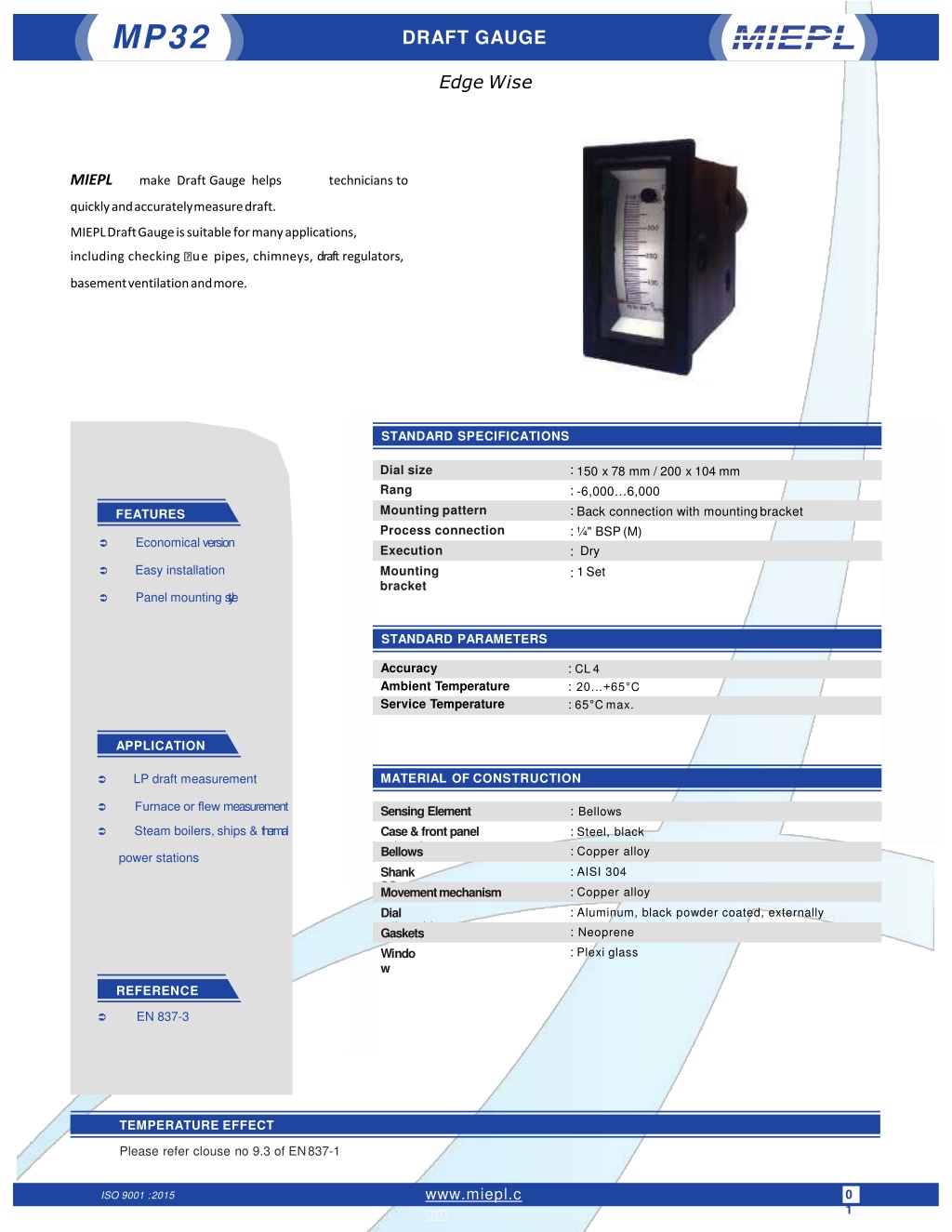

  1. MP32 DRAFTGAUGE EdgeWise MIEPL make DraftGaugehelps technicians to quicklyandaccuratelymeasuredraft. MIEPLDraftGaugeissuitableformanyapplications, including checking ue pipes, chimneys, draft regulators,basementventilationandmore. STANDARDSPECIFICATIONS Dialsize : 150 x 78 mm / 200 x 104mm Range : -6,000…6,000mmWC Mountingpattern : Back connection with mountingbracket FEATURES Processconnection : ¼" BSP(M) Economical version Easy installation Panel mounting style Execution :Dry Mountingbracket : 1Set STANDARDPARAMETERS Accuracy : CL4 AmbientTemperature :20…+65°C ServiceTemperature : 65°Cmax. APPLICATION MATERIAL OFCONSTRUCTION LP draft measurement Furnace or flew measurement Steam boilers, ships & thermal power stations SensingElement :Bellows Case &frontpanel : Steel, blackpainted Bellows : Copperalloy Shank : AISI 304SS Movementmechanism : Copperalloy Dial : Aluminum, black powder coated, externallyadjustable Gaskets :Neoprene : Plexiglass Window REFERENCE EN 837-3 TEMPERATUREEFFECT Please refer clouse no 9.3 of EN837-1 www.miepl.com 01 ISO 9001 :2015

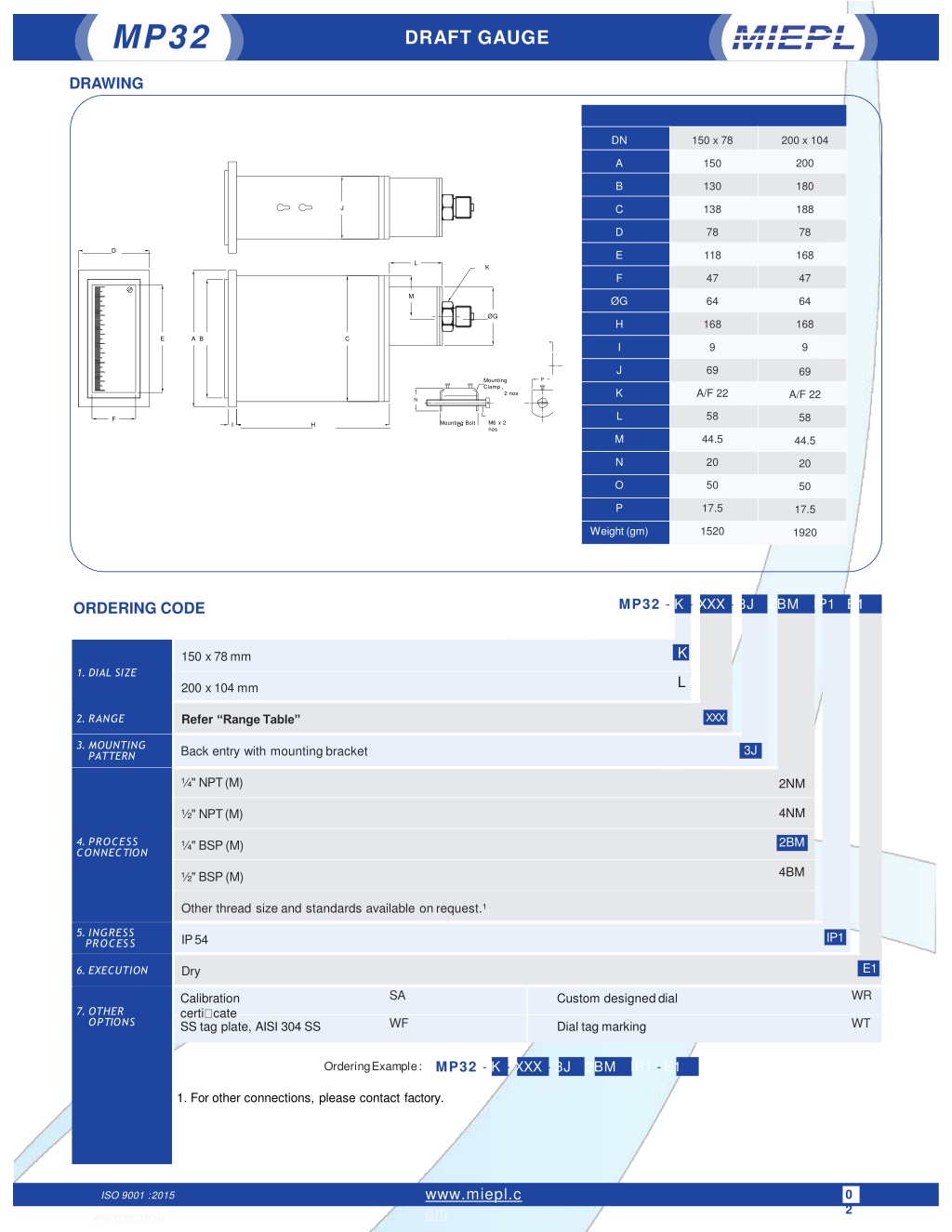

  2. MP32 DRAFTGAUGE DRAWING J D L K M ØG C E AB P Mounting Clamp, 2nos N MountingBolt F M6 x 2nos I H O MP32 - K - XXX - 3J - 2BM - IP1 -E1 ORDERINGCODE 1. DIALSIZE K 150 x 78mm L 200 x 104mm 2.RANGE XXX Refer “RangeTable” 3. MOUNTING PATTERN 3J Back entry with mountingbracket 4. PROCESS CONNECTION ¼" NPT(M) 2NM 4NM ½" NPT(M) 2BM ¼" BSP(M) 4BM ½" BSP(M) Other thread size and standards available onrequest.¹ 5. INGRESS PROCESS IP1 IP54 6. EXECUTION E1 Dry SA WR 7. OTHER OPTIONS Calibrationcerticate Custom designeddial WF WT SS tag plate, AISI 304SS Dial tagmarking MP32 - K - XXX - 3J - 2BM - IP1 -E1 OrderingExample: 1. For other connections, please contactfactory. www.miepl.com All dimensions are inmm. 02 ISO 9001 :2015 PROTECTION
