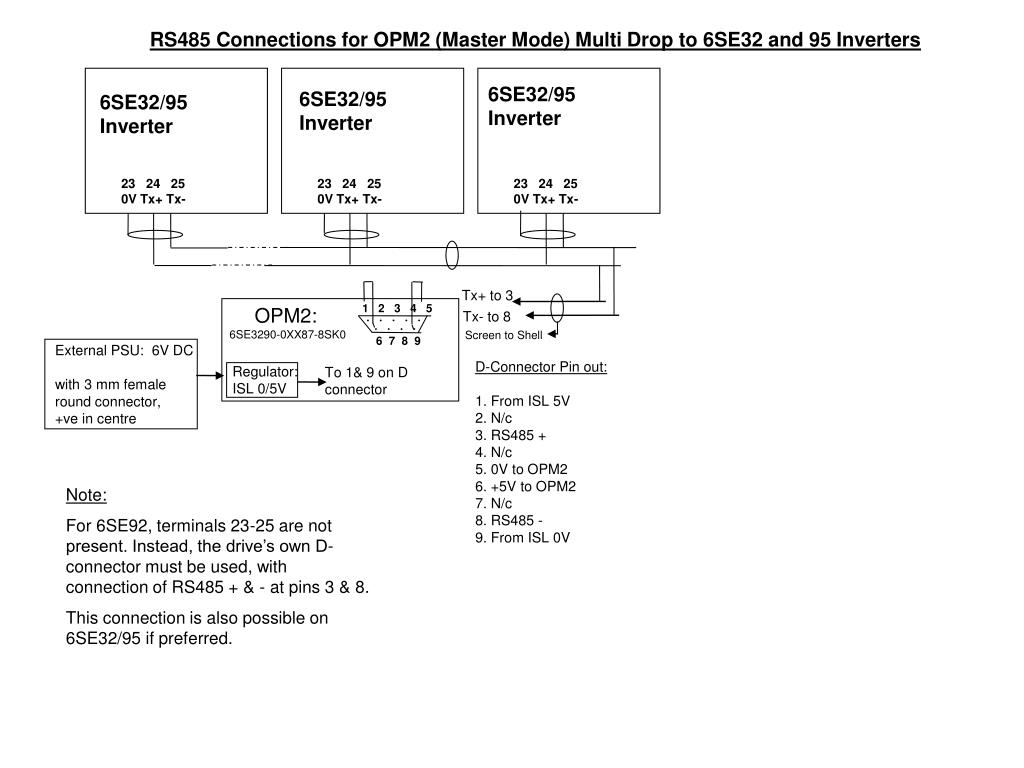

RS485 Connections for OPM2 (Master Mode) Multi Drop to 6SE32 and 95 Inverters

6SE32/95

Inverter

6SE32/95

Inverter

6SE32/95

Inverter

23 24 25

0V Tx+ Tx-

23 24 25

0V Tx+ Tx-

23 24 25

0V Tx+ Tx-

Tx+ to 3

1 2 3 4 5

OPM2:

6SE3290-0XX87-8SK0

. . . . .

Tx- to 8

. . . .

Screen to Shell

6 7 8 9

External PSU: 6V DC

with 3 mm female

round connector,

+ve in centre

D-Connector Pin out:

1. From ISL 5V

2. N/c

3. RS485 +

4. N/c

5. 0V to OPM2

6. +5V to OPM2

7. N/c

8. RS485 -

9. From ISL 0V

Regulator: ISL 0/5V

To 1& 9 on D connector

Note:

For 6SE92, terminals 23-25 are not present. Instead, the drive’s own D-connector must be used, with connection of RS485 + & - at pins 3 & 8.

This connection is also possible on 6SE32/95 if preferred.
