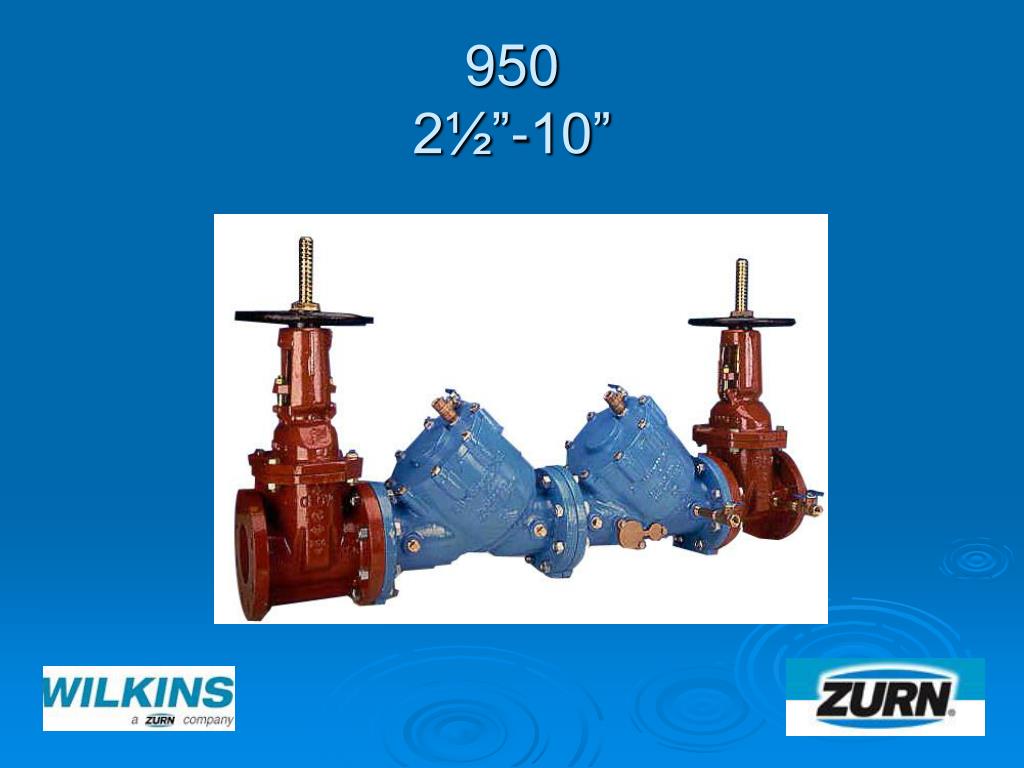

950 2½”-10”

950 2½”-10”. Modification Overview. Production of the 950 (21/2”-10”) began in 1990 and was discontinued in 2004. Check Cover Removal. Cover is o-ring sealed. Loosen bolts 1/2”. The spring load is now released from the cover and retained by the check subassembly.

mia-welch
Download Presentation

950 2½”-10”

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 9502½”-10”

  2. Modification Overview • Production of the 950 (21/2”-10”) began in 1990 and was discontinued in 2004.

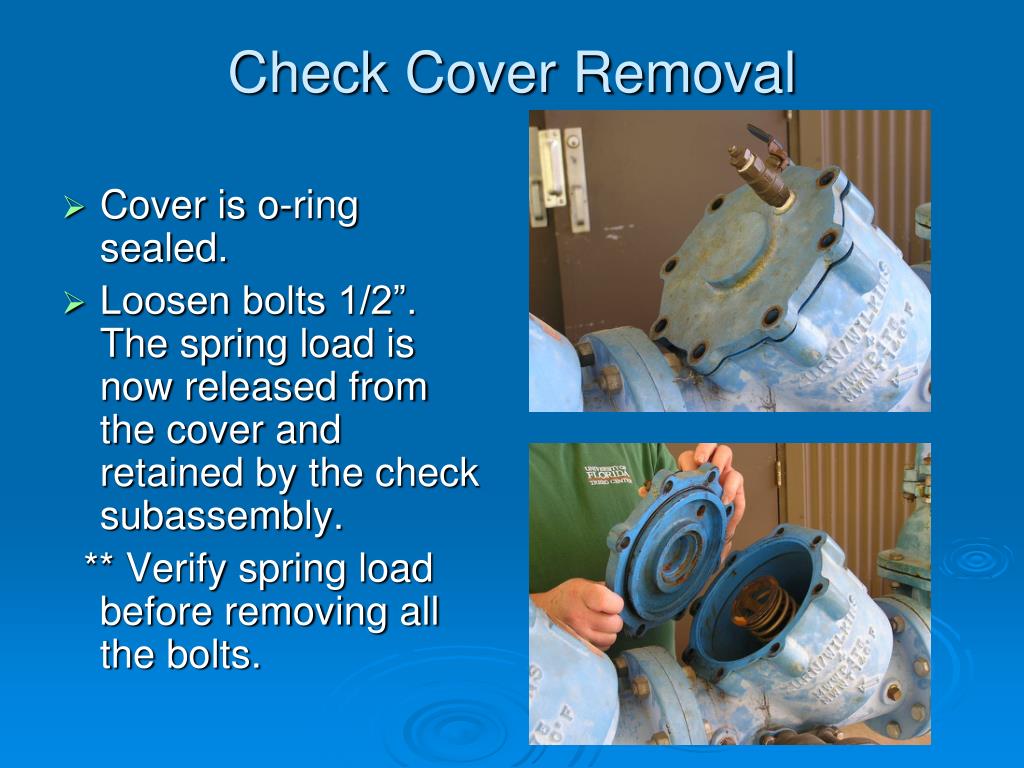

  3. Check Cover Removal • Cover is o-ring sealed. • Loosen bolts 1/2”. The spring load is now released from the cover and retained by the check subassembly. ** Verify spring load before removing all the bolts.

  4. Check Valve Removal • Center stem guided check assembly. • Disc & spring subassembly. • Slide subassembly straight out of seat and body.

  5. Check Seat Removal • Seats are bolted into the body and o-ring sealed. • Remove the bolts and pull the seat straight out of the body. • 4”-10” - Inspect plastic guide bushing in center of seat.

  6. Check Disc Replacement • Remove retaining nut and disc retainer.

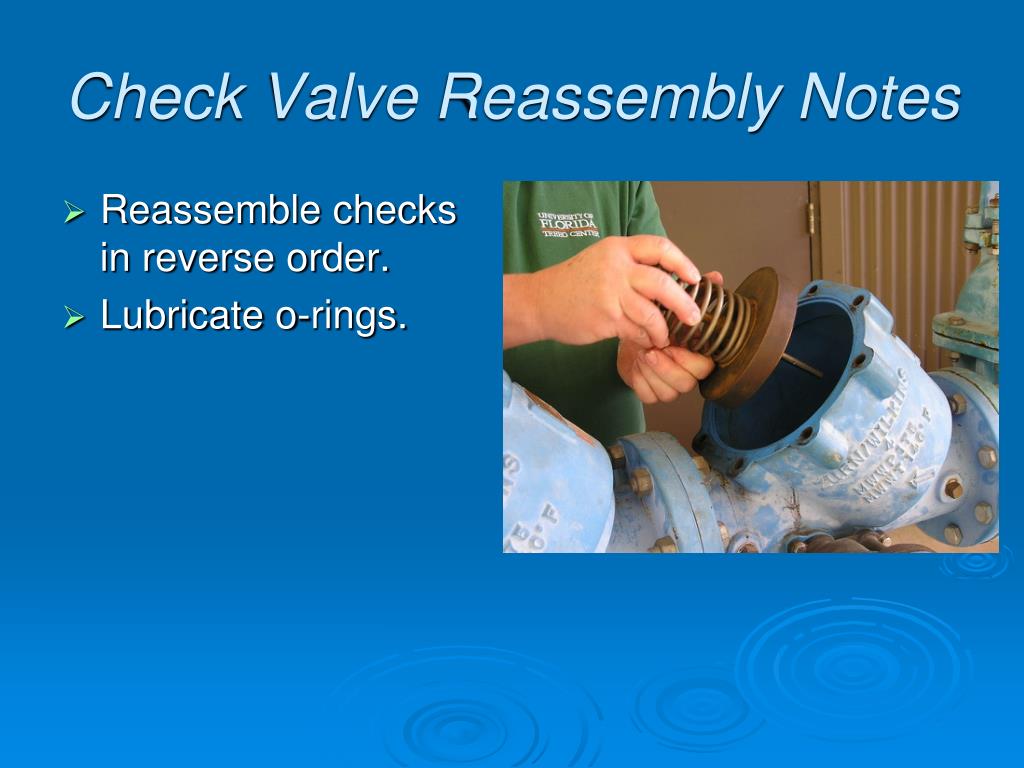

  7. Check Valve Reassembly Notes • Reassemble checks in reverse order. • Lubricate o-rings.
