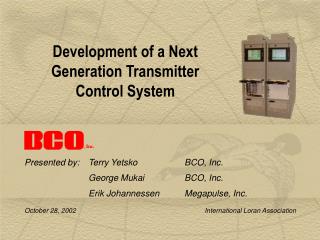

  1. Development of a Next Generation Transmitter Control System Presented by: Terry Yetsko BCO, Inc. George Mukai BCO, Inc. Erik Johannessen Megapulse, Inc.

  2. Need for Modernized Transmitter Control • Significant upgrade required both in functional capability and technology. • Required as part of Loran recap effort. • Present SSX control console over 20 years old. • Not supportable long term. • Maintainability/reliability do not lend themselves to unattended operation. • Present SSX control console does not support required Loran enhancements. • Present architecture robust but inflexible. • System demands on the system are greater in the future. • Better timing. • Better envelope control.

  3. TCS Design Philosophy • Retained Existing Partitioning at System Level • GFE Loran Timer, Remote Control, Control Console and Power Distribution • XMTR Components - PGAs, Output & Coupling Networks, RF Switch • Retained Existing Functionality • Replaced TOPCO, PATCO, SDA and Display Units with modernized/updated sub-assemblies • Incorporated New Functionality • Support for Additional Drive Half Cycles • Dynamic Re-Assignment of HCGs • Real-Time Loran Signal Quality Analysis (SQA) • Allowed for Future Capabilities • Intrapulse Frequency Modulation (IFM) • Enhanced Data Analysis

  4. Antenna Current Feedback DHC Feedback RF Output Pulse Generator (Unit 3) Coupling Network (Unit 5) Output Network (Unit 4) Antenna PATCO TOPCO SDA RF Switch Antenna Switch FromTimer (Unit 1) MTS Timing Signals Switch Network (Unit 6) DHC Current Pulse Pulse Generator (Unit 3) Coupling Network (Unit 5) Output Network (Unit 4) Rate A & B MPT, Set/Reset & 5 MHz RF Output Switch Control MTS 1 - 72 TCS Design Philosophy

  5. TCS Block Diagram

  6. Transmitter Control Subsystem (TCS) TCC (Transmitter Control Console) #1 TCC (Transmitter Control Console) #2 Redundant Transmitter Control Consoles Alarm/Status Panel Fire Detect Assys Thinview-15-SS9-RM-SP410 15” Touchscreen Display Retractable Keyboard Tray Kontron(ICS) RMX-EKB104 Control Connector Assembly(s) TCA (Transmitter Control Assembly) APC SU042-2 Redundant Switch Rear Mount Fan Assemblies APC Smart-UPS 3000 RM 5U

  7. TCA – Block Diagram

  8. TCA – VME Chassis Five Functional Groups 20 Slot Chassis B A C E D Two Custom VME Cards: One Custom PCI Daughter Card for HCG Control One Custom VME Card for Signal Conditioning, Qty 4 Five COTS (Commercial-Off-The-Shelf) 6U VME Cards Three COTS PMC (PCI Mezzanine Card) Modules

  9. Majority of PATCO, TOPCO and Signal Distribution Assembly (SDA) functionality combined into one (1) custom VME Card married to: Motorola MVME 2431-3 750 MHz PPC Processor <and> ICS-550 65 MHz Dual Channel Data Acquisition Module. PATCO functions: timing and triggering, failsafe blanking, DHC feedback analysis, MTS data stream generation, polarity control, antenna feedback analysis and antenna tuning TOPCO functions: fault monitoring and analysis SDA functions: MTS data stream multiplexing HCG/Serial Data Stream Control Group (HCG/SDSC) TOPCO SDA PATCO

  10. HCG/SDSC Block Diagram

  11. TCS – Main Station Control Screen

  12. TCS – Station Configuration Screen

  13. TCS – Loop Maintenance Screen

  14. TCS – Engineering Screens

  15. Control Loop Algorithm - Amplitude • Current system uses ratios to a reference voltage to control all 4 DHC amplitudes • Both ratios and reference voltages are thumbwheel selectable. • Adjustments to the reference voltage controls output power. • Ratios still utilized for DHC 2, 3 & 4. • Ratios are contained in ECD table. • Measurements made on 6th pulse in group (like current system). • Potential expansion to analyze all pulses (droop compensation). • DHC 1 adjusted based on power indication from antenna feedback. • Control loop is now closed based on system output as opposed to interim feedback (DHC feedback). • Control loops now compensate for variability in network cabinets.

  16. Control Loop Algorithm - Timing • Original timing loops utilized hardware implementation based on 60 % points. • Software algorithm currently maintains that approach but could be enhanced to be less sensitive to pulse shape. • Configurable items provide flexibility. • Averaging period and adjustment step size • DHC Timing Position • Currently set to offset DHC 2,3,4 150nsec, 100 nsec and 100 nsec respectively to improve phase modulation. • Potential expansion to base offsets either on ECD selection or analysis of antenna feedback. • Fixed offsets added to DHC timing for individual pulses in each group. • Potential enhancement to base offset on feedback analysis of individual pulses.

  17. Control Loop Algorithm - Tuning • Original antenna tuning based on 5th to 12th 0-crossing. • Analysis showed more accurate measurement achieved starting at 6th 0-crossing. • Algorithm modified to tune based on 6th to 12th crossing. • Crossings are configurable to provide flexibility. • Similar slope crossings chosen to minimize error caused by feedback offset. • Averaging period and adjustment time also configurable.

  18. SQA Functionality • Hardware implementation using 65 MHz Data Acquisition Module provided capability for detailed analysis of antenna feedback. • Amplitude control loops are partially based on antenna feedback. • Lordac functionality is embedded in the control system software. • Analysis of signal quality is used in redundancy and failure analysis decisions. • Potential enhancements involve analysis of antenna feedback being applied to: • Pulse to pulse timing and amplitude control. • ECD control.
