cs 630 advanced microcomputer programming

CS 630: Advanced Microcomputer Programming

Fall 2006

Professor Allan B. Cruse

University of San Francisco

course synopsis
Course Synopsis
  • We study the IA32 processor architecture
  • It’s implemented in our Pentium 4 CPUs
  • Also implemented in some earlier CPUs
  • Not only Intel, but also by its competitors (e.g., present as ‘legacy mode’ in AMD64)
  • IA32 architecture adopted by newer Macs
  • IA32 architecture continues in Core 2 Duo
point of view

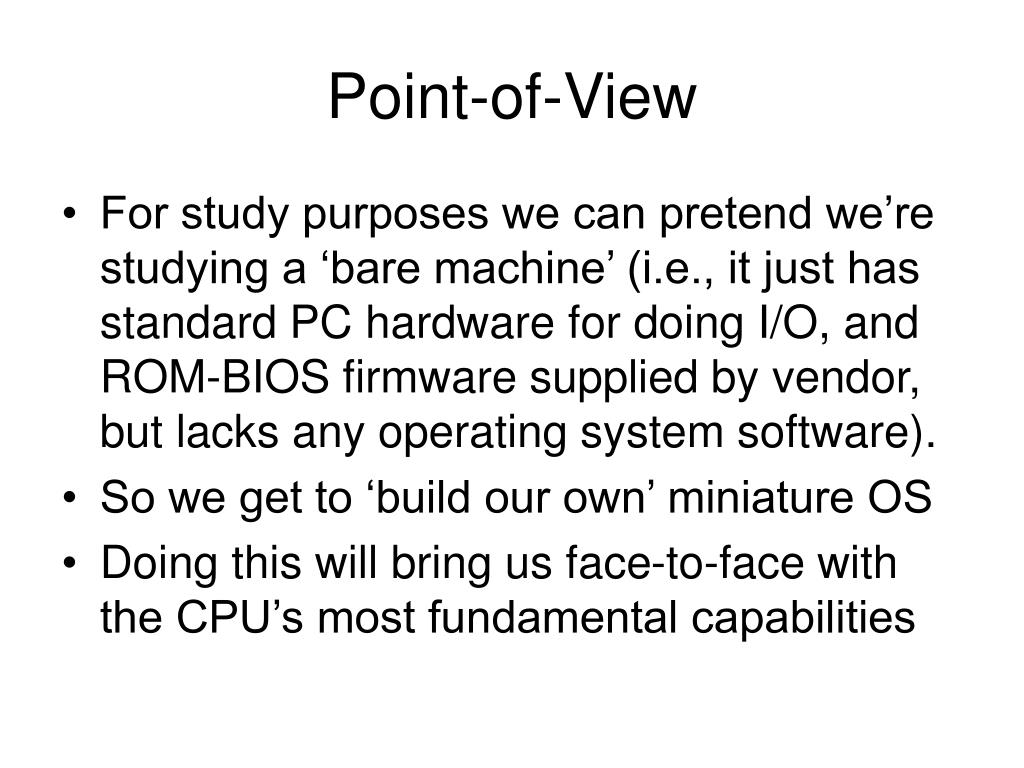

Point-of-View
  • For study purposes we can pretend we’re studying a ‘bare machine’ (i.e., it just has standard PC hardware for doing I/O, and ROM-BIOS firmware supplied by vendor, but lacks any operating system software).
  • So we get to ‘build our own’ miniature OS
  • Doing this will bring us face-to-face with the CPU’s most fundamental capabilities
methodology
Methodology
  • Our interactive computer classroom lets us take a ‘hands on’ approach to our studies (i.e., we combine ‘theory’ with ‘practice’)
  • Typically we’ll devote first part each class to a ‘lecture’ about aspects of IA32 theory
  • Then we’ll take time in the second part of class for ‘laboratory exercises’ that put the newly learned ideas into ‘working code’
course prerequisites
Course prerequisites
  • Experience with C / C++ programming
  • Familiarity with use of Linux / UNIX OS
  • Acquaintance with x86 assembly language
    • Knowledge of the x86 general registers
    • Awareness of the x86’s instruction-set
  • Understand the CPU’s fetch-execute cycle
  • Recall the ways memory is addressed
review of system components

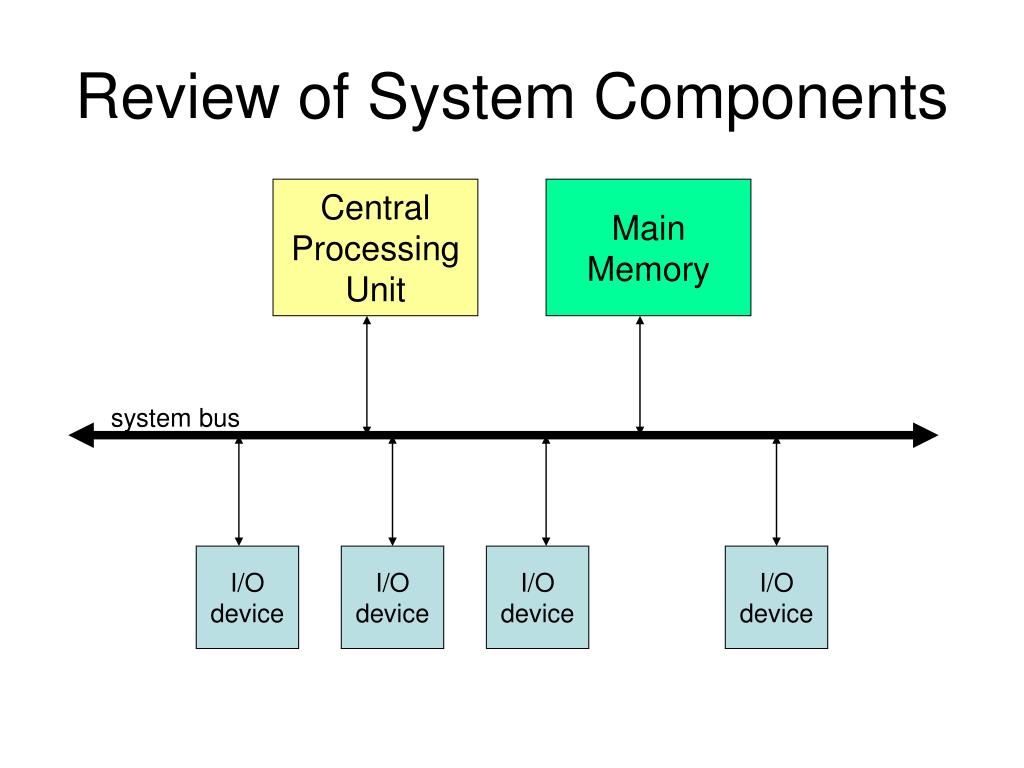

Review of System Components

Central

Processing

Unit

Main

Memory

system bus

I/O

device

I/O

device

I/O

device

I/O

device

review of the x86 api
Review of the x86 API

CS

EAX

DS

EBX

ES

ECX

FS

EDX

GS

ESI

SS

EDI

Segment Registers (16-bits)

EBP

ESP

EIP

General Registers (32-bits)

EFLAGS

Program Control and Status Registers (32 bits)

review of instruction set
Review of Instruction-Set
  • Data-transfer instructions (mov, xchg, …)
  • Control-transfer instructions (jmp, call, …)
  • Arithmetic/Logic instructions (add, or, …)
  • Shift/Rotate instructions (shr, rol, …)
  • String-manipulation instructions (movs, …)
  • Processor-control instructions (cli, hlt, …)
  • Floating-point instructions (fldpi, fmul, …)
review fetch execute cycle
Review “Fetch-Execute” Cycle

main memory

central processor

Temporary

Storage

(STACK)

ESP

Program

Variables

(DATA)

EAX

EAX

EAX

EAX

Program

Instructions

(TEXT)

EIP

the system bus

steps in fetch execute cycle
Steps in ‘Fetch-Execute Cycle’

Fetch next instruction

Advance instruction-pointer

Decode fetched instruction

Execute decoded instruction

INTR

?

Interrupt

Service

Routine

no

yes

review of operand addressing
Review of operand addressing
  • Implicit addressing (e.g. pushf, cbw, scasb, cli, xlat, …)
  • Direct addressing (e.g., incl salary, movw $0, counter, …)
  • Indirect addressing (e.g., add %dx, 0x14(%ebx, %esi, 2) )
course textbook

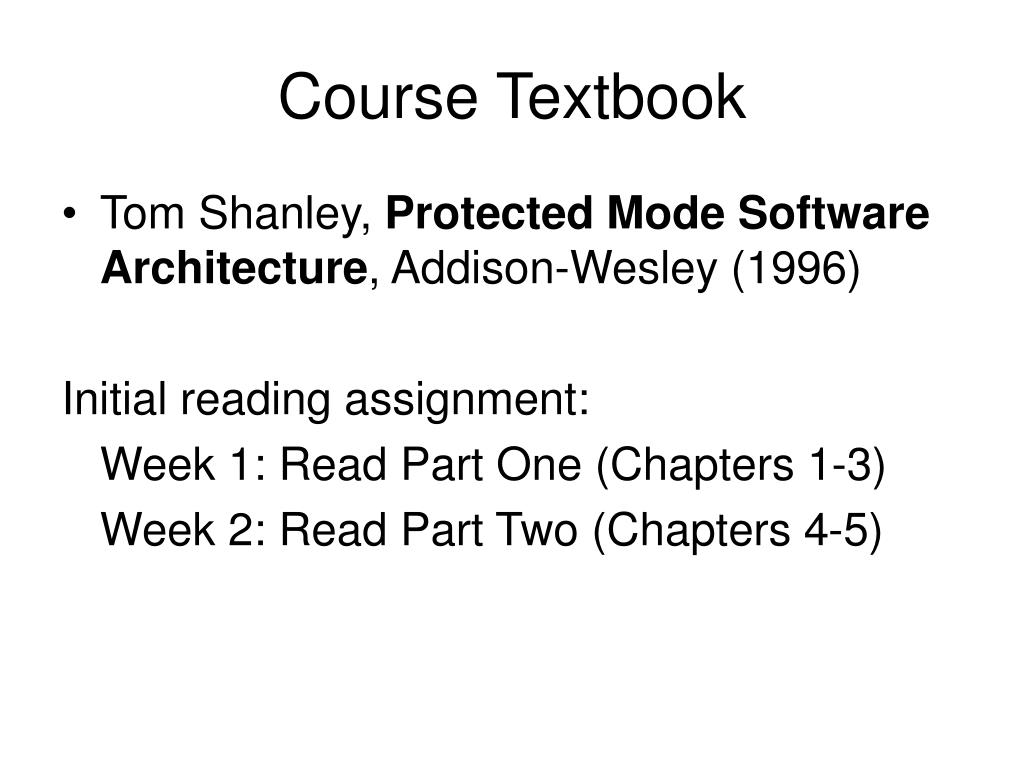

Course Textbook
  • Tom Shanley, Protected Mode Software Architecture, Addison-Wesley (1996)

Initial reading assignment:

Week 1: Read Part One (Chapters 1-3)

Week 2: Read Part Two (Chapters 4-5)

instructor contact information

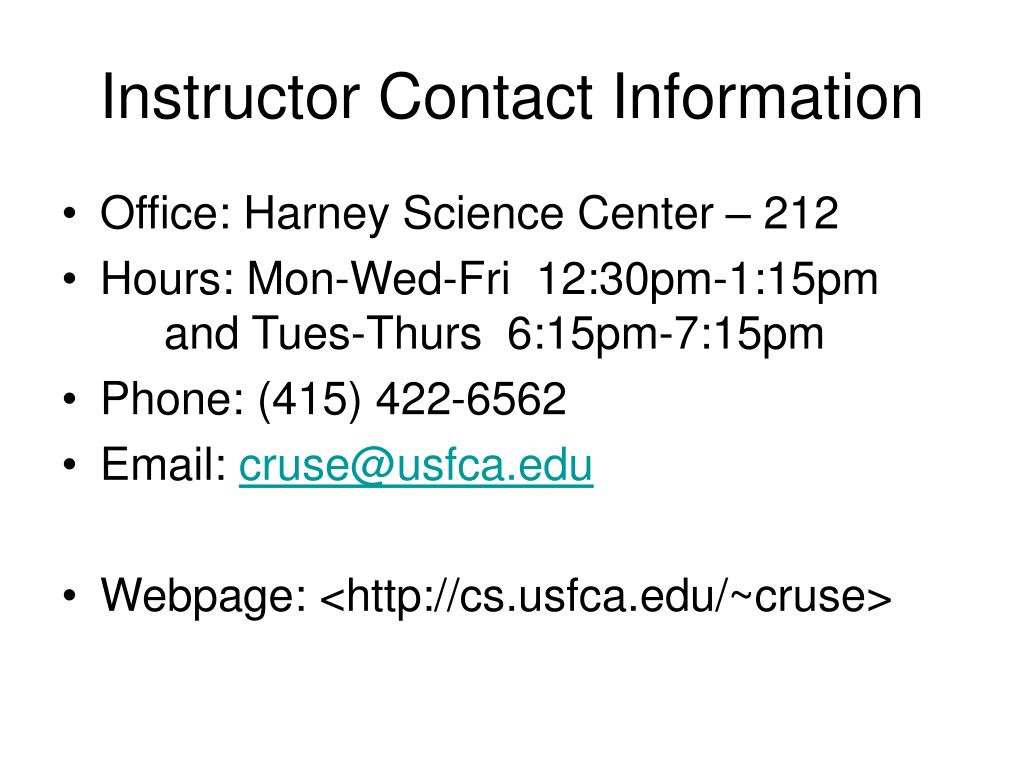

Instructor Contact Information
  • Office: Harney Science Center – 212
  • Hours: Mon-Wed-Fri 12:30pm-1:15pm and Tues-Thurs 6:15pm-7:15pm
  • Phone: (415) 422-6562
  • Email: cruse@usfca.edu
  • Webpage: <http://cs.usfca.edu/~cruse>
cpu execution modes
CPU Execution Modes

POWER-ON / RESET

REAL

MODE

PROTECTED

MODE

VIRTUAL

8086

MODE

SYSTEM

MANAGEMENT

MODE

early intel processors

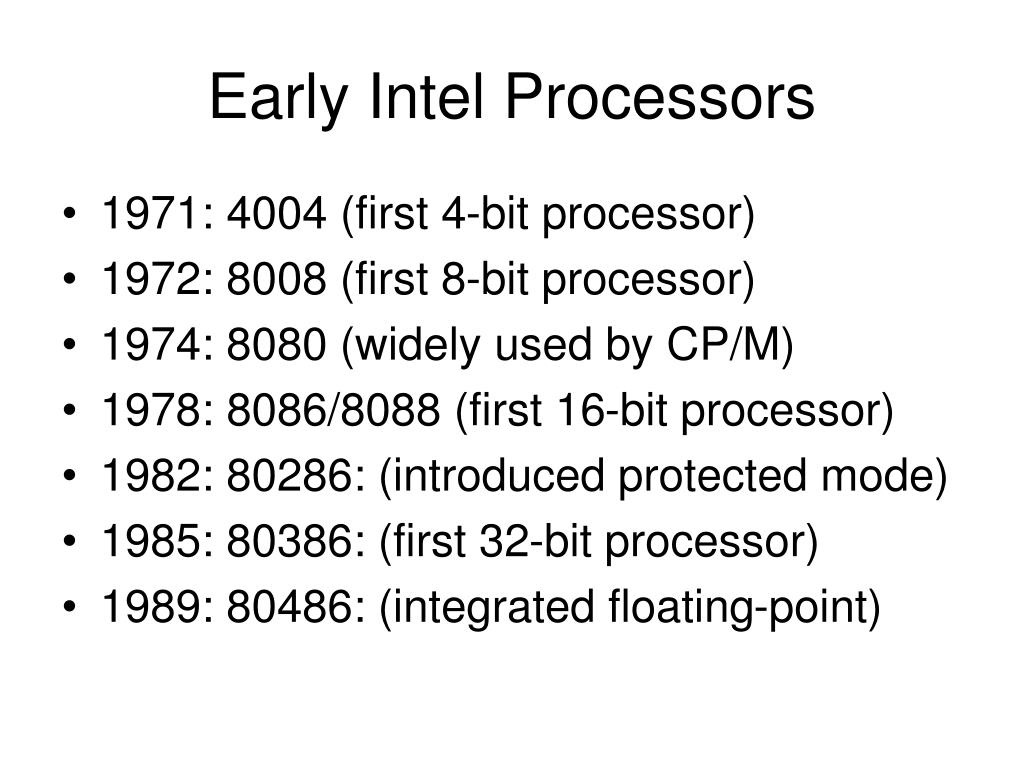

Early Intel Processors
  • 1971: 4004 (first 4-bit processor)
  • 1972: 8008 (first 8-bit processor)
  • 1974: 8080 (widely used by CP/M)
  • 1978: 8086/8088 (first 16-bit processor)
  • 1982: 80286: (introduced protected mode)
  • 1985: 80386: (first 32-bit processor)
  • 1989: 80486: (integrated floating-point)
later intel processors

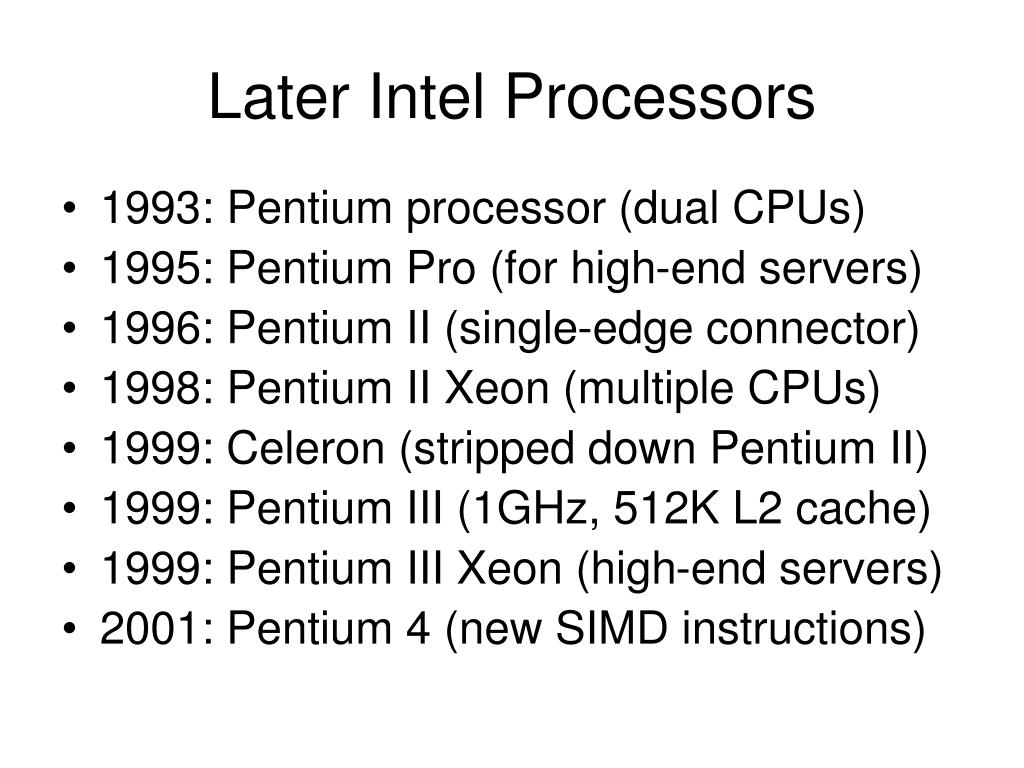

Later Intel Processors
  • 1993: Pentium processor (dual CPUs)
  • 1995: Pentium Pro (for high-end servers)
  • 1996: Pentium II (single-edge connector)
  • 1998: Pentium II Xeon (multiple CPUs)
  • 1999: Celeron (stripped down Pentium II)
  • 1999: Pentium III (1GHz, 512K L2 cache)
  • 1999: Pentium III Xeon (high-end servers)
  • 2001: Pentium 4 (new SIMD instructions)
even newer intel processors
Even newer Intel Processors
  • 2003: Pentium-M (‘mobile’ -- for laptops)
  • 2005: Pentium-D (‘dual core’ -- for ‘smp’)
  • 2006: Core 2 Duo (released this summer)
  • Newest CPUs support ‘EM64T’ and ‘VT’
    • EM64T: Extended Memory 64-bit Technology
    • VT: Intel’s ‘Virtualization Technology’
backward compatibility
Backward Compatibility
  • From its first commercial success onward, “backward compatibility” (i.e., support for the software legacy) has been viewed by Intel as an engineering design imperative
  • So the first 16-bit processors (8086/8088), used in IBM-PCs, were designed in a way that would let them run the vast number of CP/M programs written for 8-bit 8080 CPU
real mode
Real Mode
  • 8086/8088 had only one execution mode
  • It used “segmented” memory-addressing
  • Physical memory on 8086 was subdivided into overlapping “segments” of fixed-size
  • The length of any “segment” was 64KB, to match the size of an 8080s address-space
  • This scheme supported CP/M applications
  • (Our Pentium CPUs continue that support)
64kb memory segments
64KB Memory-Segments
  • Fixed-size segments partially overlap
  • Segments start on paragraph boundaries
  • Segment-registers serve as “selectors”

stack

data

SS

DS

code

CS

real mode address translation

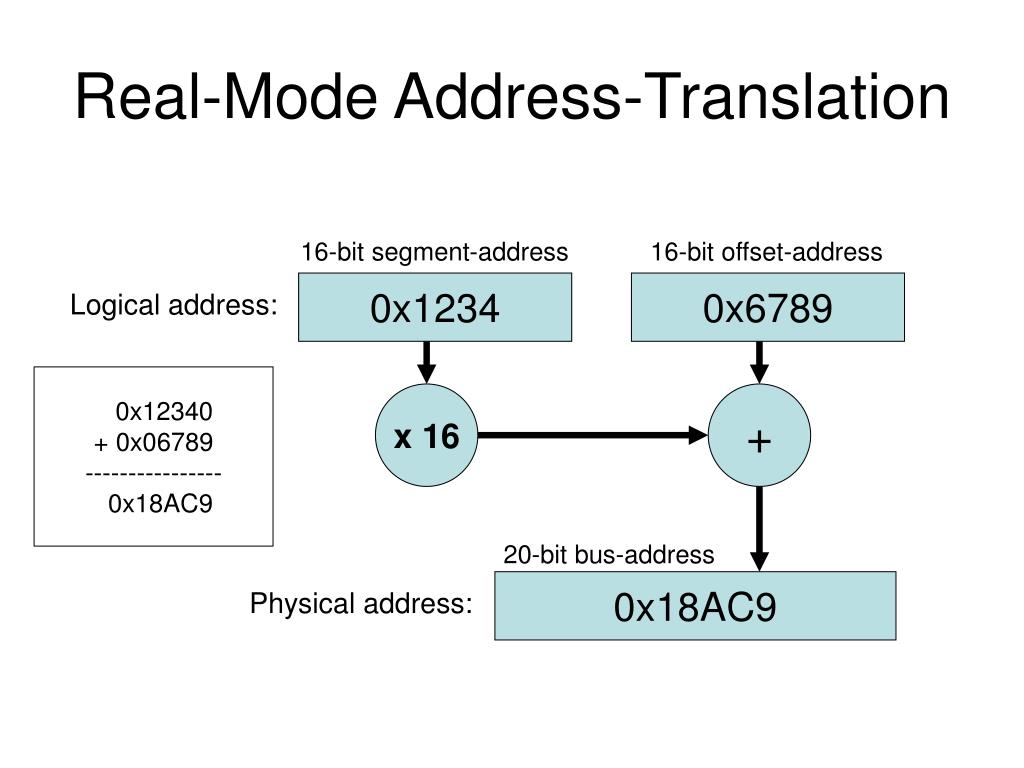

Real-Mode Address-Translation

16-bit segment-address

16-bit offset-address

0x1234

0x6789

Logical address:

0x12340

+ 0x06789

----------------

0x18AC9

x 16

+

20-bit bus-address

0x18AC9

Physical address:

protected mode
Protected Mode
  • Any Pentium CPU starts up in ‘Real Mode’
  • While in real mode, its behavior is like an 8086 (i.e., any program can do anything it wants, as the CPU’s protection mechanisms are disabled)
  • But software can enter ‘protected mode’ (on a 80286 or higher) using a special instruction to modify a bit within a processor control-register
  • Once in protected mode, the segment-sizes can be adjusted, accesses to physical memory (or to peripheral devices) can be restricted, and tasks can be isolated from interfering with one another
enabling protection
Enabling Protection

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

N

E

E

T

T

S

E

M

M

P

P

E

80286 Machine Status Word

Code-fragment that

enables protection

smsw %ax

or $1, %ax

lmsw %ax

PE (Protection Enabled) 0=no, 1=yes

protected mode segments
Protected-Mode Segments
  • Segments can have varying lengths
  • Segments may, or may not, overlap
  • Segments are assigned ‘access-attributes’

operating system

GS

stack

data

SS

code

DS

CS

our bare machine
Our ‘bare machine’
  • If we want to do a “hands on” study of our CPU, without any operating system getting in our way, we have to begin by exploring ‘Real Mode’ (it’s the CPU’s startup state)
  • We will need to devise a mechanism by which our program-code can get loaded into memory (since we won’t have an OS)
  • This means we must write a ‘boot loader’
what s a boot loader
What’s a ‘boot loader’
  • A ‘boot loader’ is a small program that is resident in the starting sector of a disk (or tape or other non-volatile storage medium)
  • After testing and initializing the machine’s essential hardware devices, the startup program in the ROM-BIOS firmware will read the ‘boot loader’ into memory, at an assigned location, and then jump there
pc rom bios boot locn
PC ROM-BIOS BOOT_LOCN

ROM-BIOS

Vendor’s Firmware

No installed memory

Video Display Memory

VRAM

1-MB

Volatile Program Memory

RAM

0x00007E00

BOOT_LOCN

512 bytes

0x00007C00

IVT and BDA

8086 memory-map

some requirements
Some Requirements
  • A ‘boot loader’ has to be 512 bytes in size (because it has to fit within a disk sector)
  • Must begin with executable machine-code
  • Must end with a special ‘boot signature’
  • Depending on the type of storage medium, it may need to share its limited space with certain other data-structures (such as the ‘partition table’ on a hard disk, or the Bios Parameter Block’ on a MS-DOS diskette)
writing a boot loader
Writing a ‘boot loader’
  • Not practical to use a high-level language
  • We need to use 8086 assembly language (our classroom/lab systems provides ‘as’)
  • This assembler’s syntax differ’s from the standard set by Intel and Microsoft, but it follows a tradition, established in 1970s at AT&T, for its original versions of UNIX
  • That ‘as’ syntax is documented online
using rom bios functions
Using ROM-BIOS functions
  • Our system firmware provides many basic service-functions that real mode programs can invoke (this includes ‘boot-loaders’):
    • Video display functions
    • Keyboard input functions
    • Disk access functions
    • System query functions
    • A machine ‘re-boot’ function
example write string function
Example: Write_String function
  • Setup parameters in designated registers
    • AH = function ID-number (e.g. 0x13)
    • AL = cursor handling method (e.g. 0x01)
    • BH = display page-number (e.g., 0x00)
    • BL = color attributes (e.g., 0x0A)
    • CX = length of the character-string
    • DH, DL = row-number, column-number
    • ES:BP = string’s starting-address (seg:off)
  • Call BIOS via software interrupt (int-0x10)
downloading a class demo
Downloading a class demo
  • You can ‘download’ a program source-file from our CS 630 course-website to your own ‘present working directory’ by using the Linux file-copy command, like this:

$ cp /home/web/cruse/cs630/bootmsw.s .

(Here the final period-character (‘.’) is the Linux shell’s symbol for your ‘current directory’).

compiling and installing
Compiling and Installing
  • Compiling our ‘boot loader’ using ‘as’ is a two-step operation (and requires use of a linker-script, named ‘ldscript’):

$ as bootload.s –o bootload.o

$ ld bootload.o –T ldscript –o bootload.b

  • Installing our bootloader into the starting sector of a floppy diskette is very simple:

$ dd if=bootload.b of=/dev/fd0

no floppy drive
No floppy drive!
  • Our workstations no longer have diskette-drives, but we have devised alternatives:
    • Copy the bootloader to a hard disk partition
    • Install the bootloader on a diskette-image file
  • Tonight we can use the first alternative: $ dd if=bootloader.b of=/dev/sda4
  • The ‘grub’ menu includes an option that will let you ‘boot’ from this ‘cs630 partition’
executing a boot loader

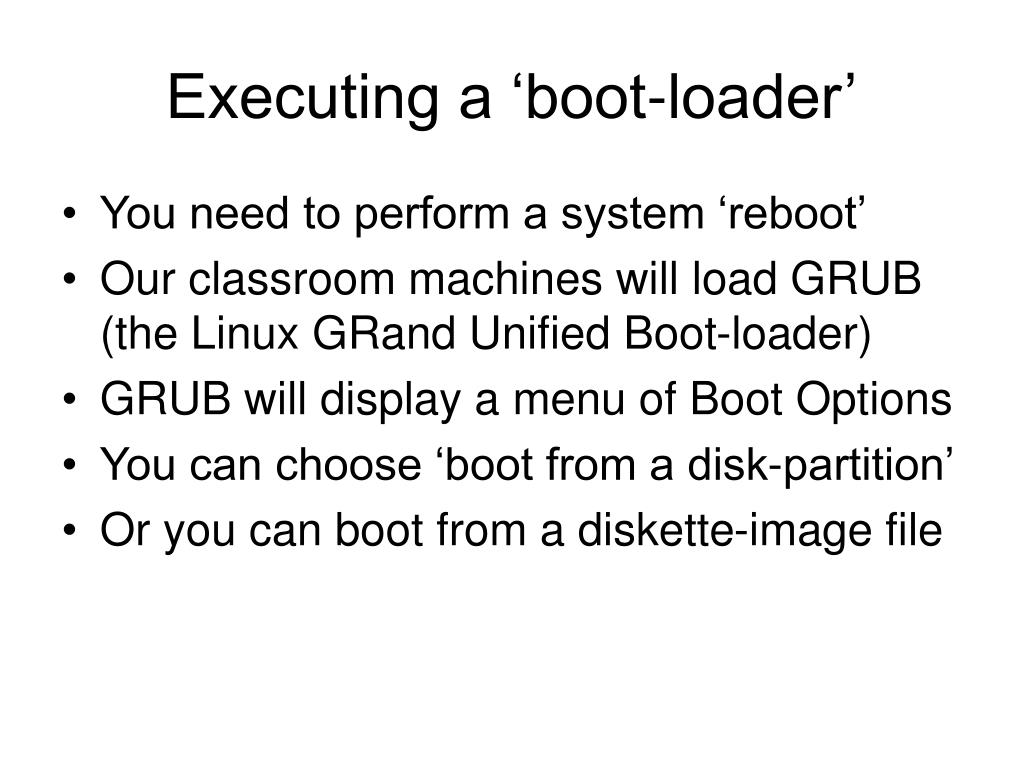

Executing a ‘boot-loader’
  • You need to perform a system ‘reboot’
  • Our classroom machines will load GRUB (the Linux GRand Unified Boot-loader)
  • GRUB will display a menu of Boot Options
  • You can choose ‘boot from a disk-partition’
  • Or you can boot from a diskette-image file
in class exercise 1
In-class Exercise #1
  • Look at our CS 630 class website:

<http://cs.usfca.edu/~cruse/cs630>

  • Download, assemble, and install our demo ‘bootmsw.s’
  • Copy the ‘binary-executable’ (i.e., bootmsw.b’) to the first sector of the hard-disk’s partition #4:

$ dd if=bootmsw.b of=/dev/sda4

  • Reboot machine and use GRUB’s menu to boot our demo-program from the ‘cs630 partition’
in class exercise 2

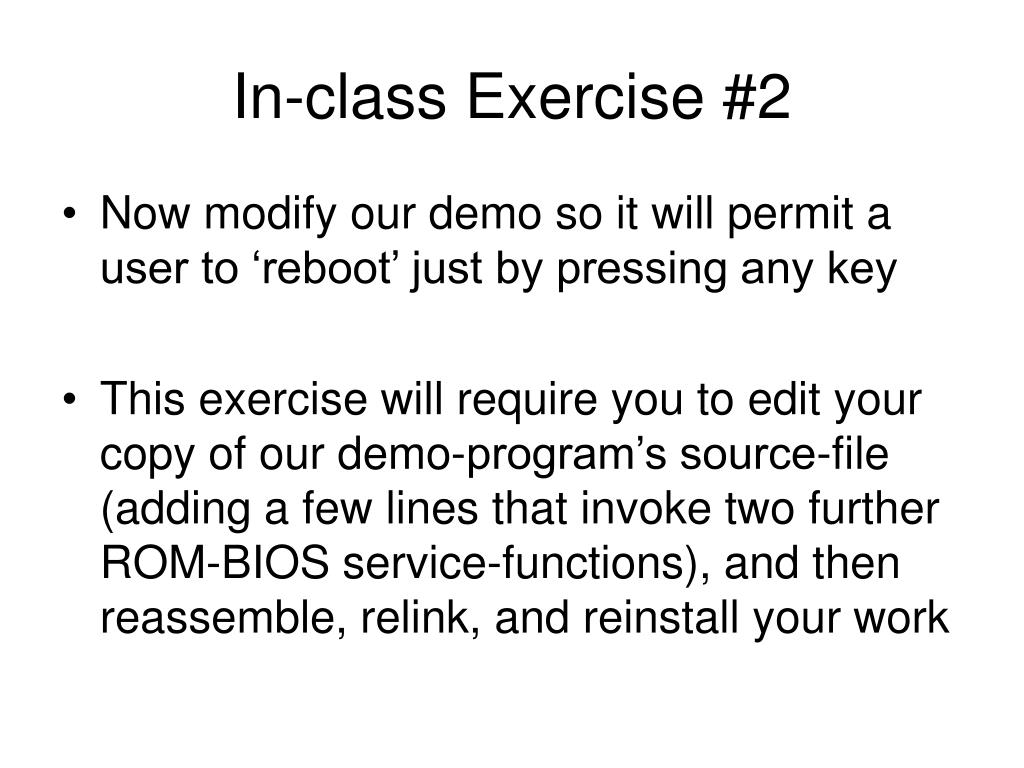

In-class Exercise #2
  • Now modify our demo so it will permit a user to ‘reboot’ just by pressing any key
  • This exercise will require you to edit your copy of our demo-program’s source-file (adding a few lines that invoke two further ROM-BIOS service-functions), and then reassemble, relink, and reinstall your work
a valuable online reference
A valuable Online Reference
  • Professor Ralf Brown’s Interrupt List (see webpage link under ‘Resources’)
  • It tells how to make BIOS system-calls, to perform numerous low-level services from within Real-Mode 8086 applications (such as ‘boot loader’ programs)
programming details

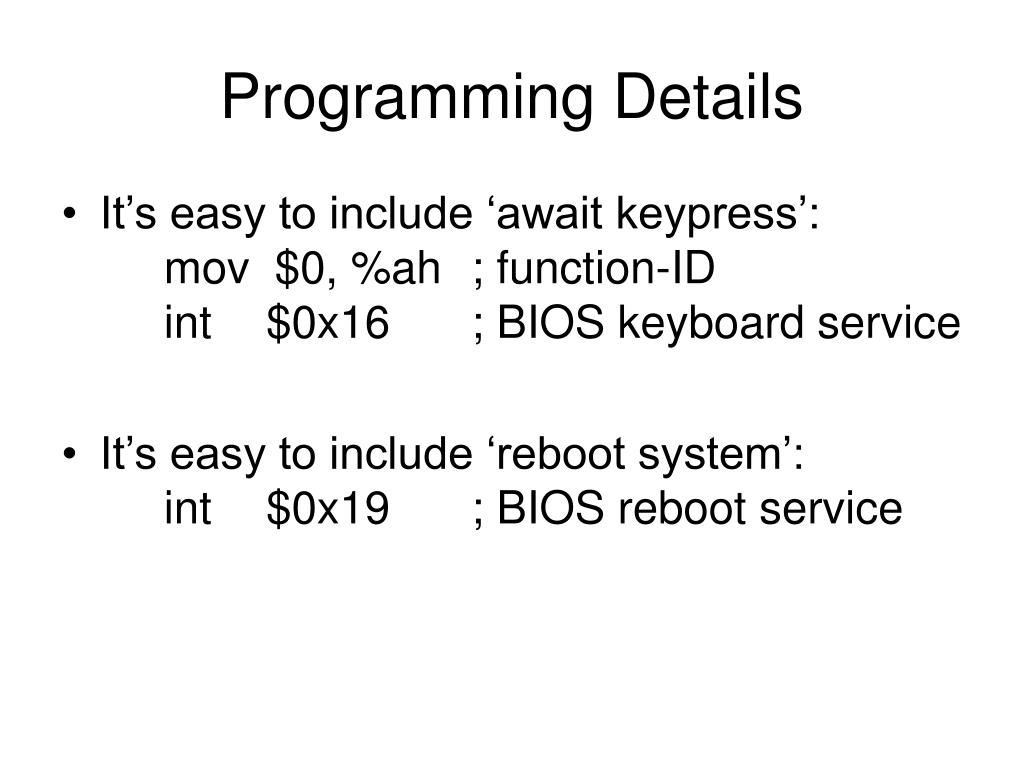

Programming Details
  • It’s easy to include ‘await keypress’: mov $0, %ah ; function-ID int $0x16 ; BIOS keyboard service
  • It’s easy to include ‘reboot system’: int $0x19 ; BIOS reboot service
