    1. ELEVATORS Environmental Technology IV - Professor Tango & Parker - Spring 2009

    2. Elisha Otis

    3. 1889

    4. 1889 1857

    5. OtisSchindlerThyssen-KruppKone(formally Montgomery Elevator)

    6. TWO TYPES OF ELEVATORS 1. Hydraulic 2. Traction

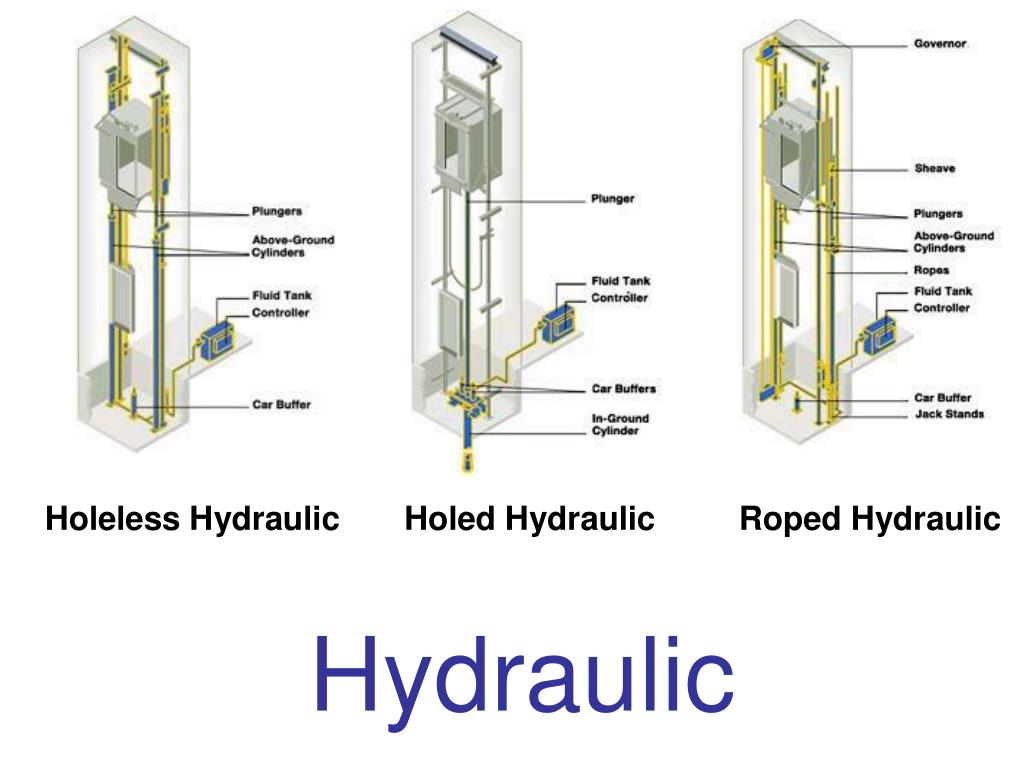

    7. Hydraulic

    8. Hydraulic Elevator (holed) Guide Rails Door Operator Plunger & Cylinder Controller & Pumping Unit Hoistway Door To & From Oil Pipe

    9. Hydraulic Elevators - holed • Rise Limitations: ~ 60 feet • Cost: $35 - $85K • Speeds: 100/125/150 fpm • Advantages: • low cost • no penthouse • no structural load on building • Disadvantages • slow • energy inefficient

    10. Hydraulic Elevator (holeless) Door Operator Guide Rails Plungers & Cylinders Controller & Pumping Unit Hoistway Door To & From Oil Pipe

    11. Hydraulic Elevators - Holeless • Rise Limitations: 20 feet • Cost: $35 - $45K • Speeds: 100/125 fpm • Advantages: • no well hole • minimizes environmental contamination • Disadvantages: • limited travel

    12. Holeless: Roped Hydraulic

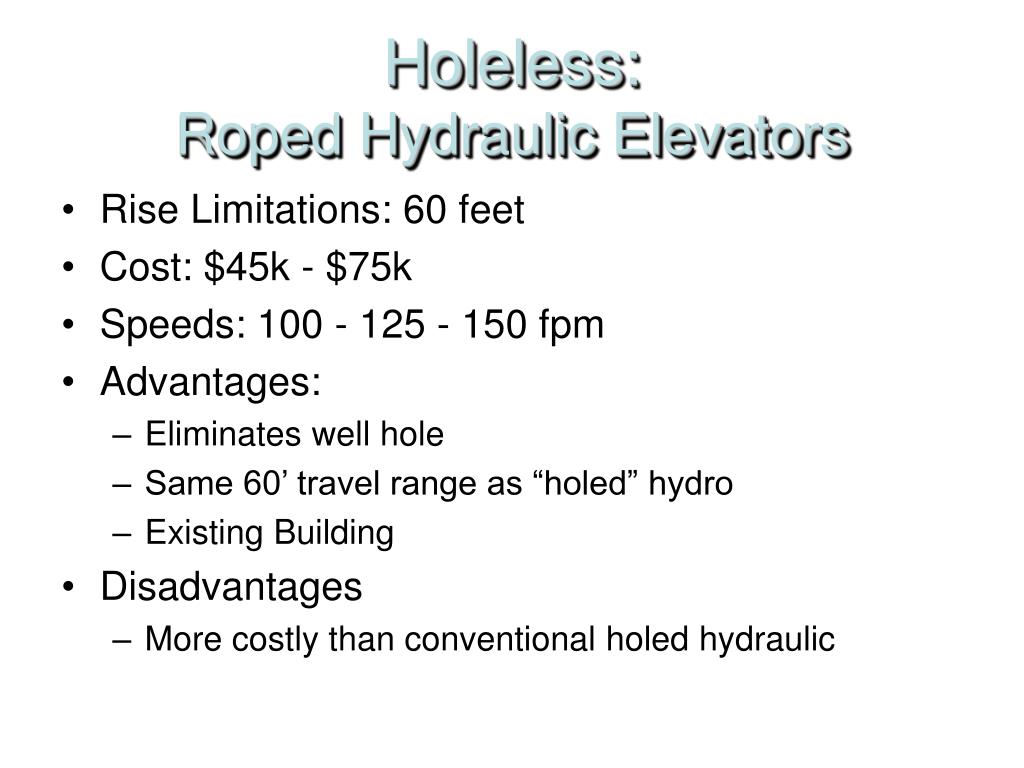

    13. Holeless: Roped Hydraulic Elevators • Rise Limitations: 60 feet • Cost: $45k - $75k • Speeds: 100 - 125 - 150 fpm • Advantages: • Eliminates well hole • Same 60’ travel range as “holed” hydro • Existing Building • Disadvantages • More costly than conventional holed hydraulic

    14. http://www.kone.com/en_US/main/0,,content=59104,00.html

    15. TractionGEARED & GEARLESS

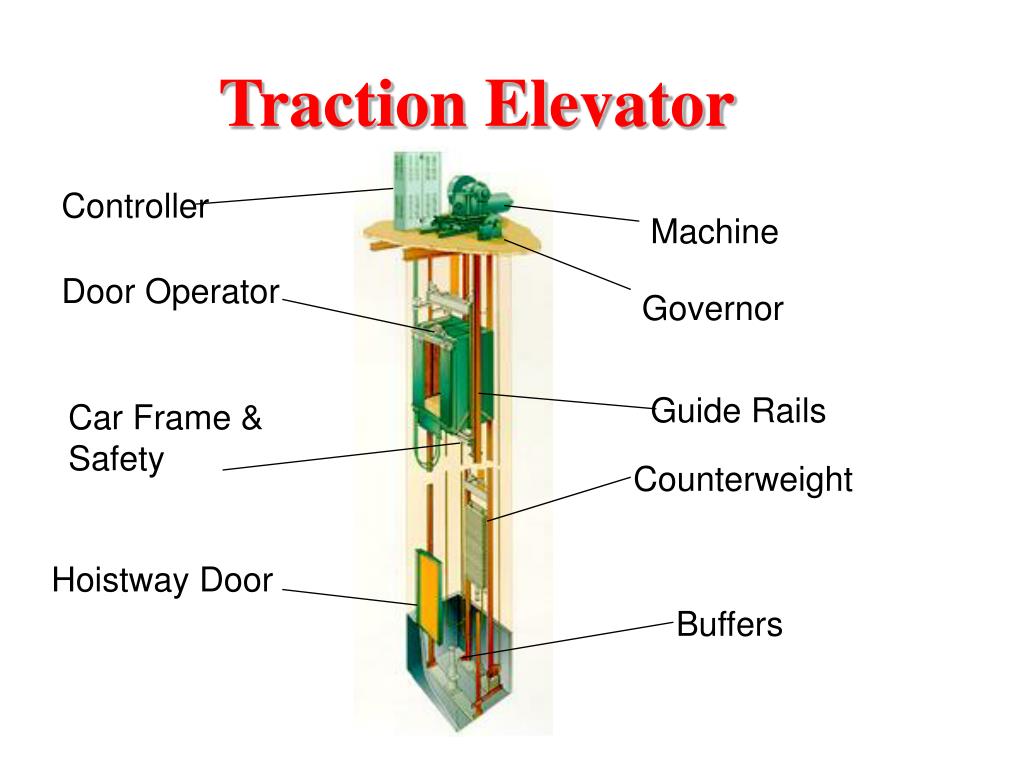

    16. Traction Elevator Controller Machine Door Operator Governor Guide Rails Car Frame & Safety Counterweight Hoistway Door Buffers

    17. Traction Elevators • Rise Limitations: ~ 300 feet (Geared) unlimited (Gearless) • Cost: $150,000 - $200,000 (Geared) $200,000 + (Gearless) • Speeds: 350 - 500 fpm (Geared) 500 - 1800+ (Gearless) • Advantages of Gearless: • smoother • approx. twice machine life

    18. Otis Gen 2click to play movie(Traction)Rise Limitation: 300 feet

    19. Elevator Selection • 1. Building Height • elevator type • 2. Customer Expectations Service Time • speedcapacityquantity • 3. Space Limitations • 4. Optional approaches • sky lobbies • double deck

    20. Sky Lobby at Level 41&42 29 Double deck elevators 88 stories tall

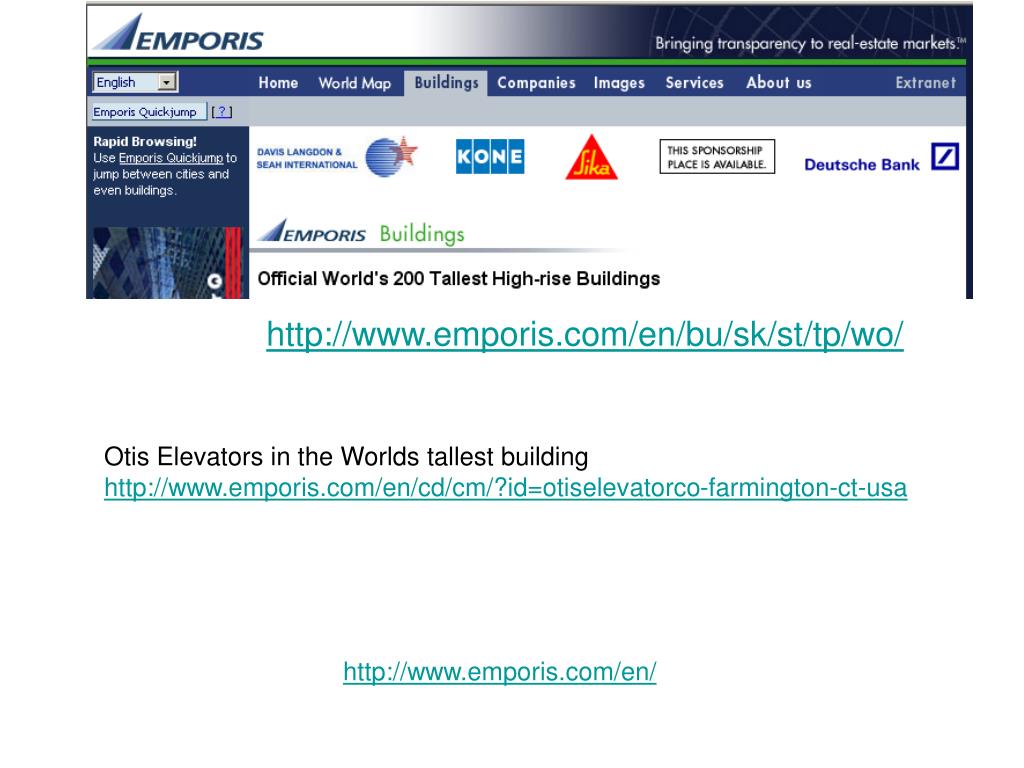

    21. http://www.emporis.com/en/bu/sk/st/tp/wo/ Otis Elevators in the Worlds tallest building http://www.emporis.com/en/cd/cm/?id=otiselevatorco-farmington-ct-usa http://www.emporis.com/en/

    22. Gearless

    23. Gearless

    24. Geared

    25. Geared

    26. Booth Museum of Western Art Cartersville, GA

    27. Futuristic Developments ODYSSEY

    28. next Thursday Guest Speaker Bob Beyer Elevator Consultant Elevator Advisors Inc. www.elevatoradvisors.com

    29. Bob Beyer Lecture Key Points • In the next 5 years 75% of all the elevators will be MRL ( Machine room less • MRLs will replace Hydraulic and Geared Traction type elevators • MRL have lower energy costs – up to 60% less than geared. (Only 2-3% of the total buildings electrical load is for the elevators) • Machine rooms must be air-conditioned • In office buildings above 5 floor you should have a dedicated service elevator (4500lbs. minimum size for service elevator) • 1 service elevator for every 2 passenger elevators in a hotel over 15 stories. • In the next 5 years al the signs saying “Do Not Use The Elevator In Case Of Fire” will be gone. Elevators are the safest way out of a building until the fire actually reaches the shafts ( which are two hour rated in high rise)
