Presentation Transcript
concept security

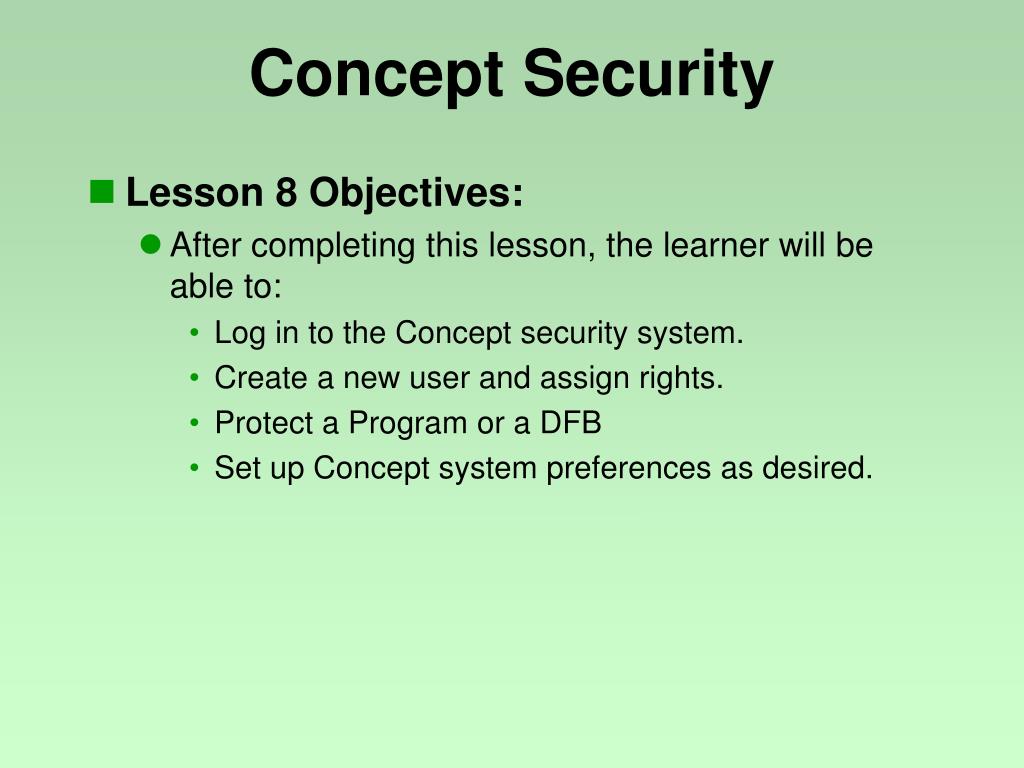

Concept Security
  • Lesson 8 Objectives:
    • After completing this lesson, the learner will be able to:
      • Log in to the Concept security system.
      • Create a new user and assign rights.
      • Protect a Program or a DFB
      • Set up Concept system preferences as desired.
concept security1
Concept Security
  • Different access rights for up to 128 users with their name and individual password protect against unauthorized access!
  • Name: 2 to 16 characters, Password: 6 to 12 characters
  • Access Levels (Rights):

1 Read only

2 plus SFC Animation Panel

3 plus Change Data

4 plus Force Control

5 plus Download

6 plus Change Program

7 plus Change Configuration

8 plus Tools (DFB, Converter)

9 plus Supervisor

the program group
The Program Group
  • Concept Security
slide7

Project/DFB Protection Tool

  • Protect - Project or DFB’s
  • Allow Projects to be downloaded to the PLC
    • Users cannot make changes to IEC Code
    • No Animation
  • Security Tool
    • New PROTECT tab
  • Protected Projects or DFB’s cannot be exported to ASC file without a Password
slide8

Project/DFB Protection Tool

  • What the User will see if Access is attempted to a DFB?
concept options confirmations
Concept: Options Confirmations
  • Confirm deletion of single object
    • If this check box is activated, a query will be performed prior to each deletion of a single object.
  • Confirm deletion of multiple objects
    • If this check box is activated, a query will be performed prior to the simultaneous deletion of several objects.
preferences common
Preferences  Common
  • Use command Common to open dialog box where several common settings for saving a project, address format, etc can be made.
preferences graphical editors

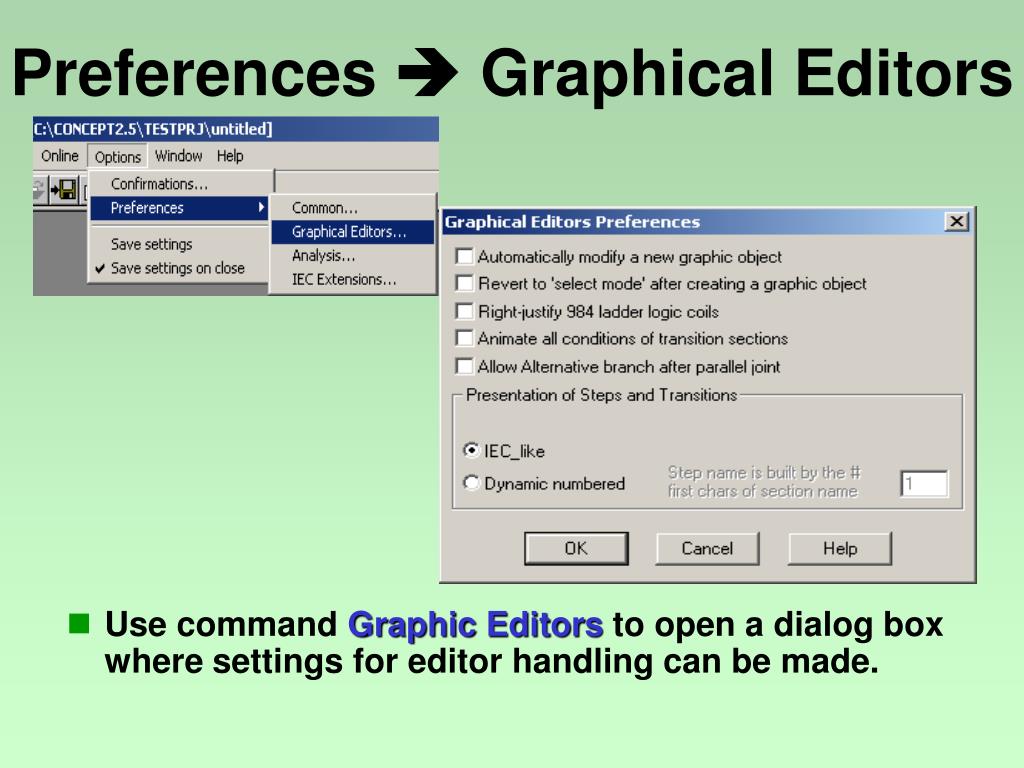

Preferences  Graphical Editors
  • Use command Graphic Editors to open a dialog box where settings for editor handling can be made.
preferences analysis

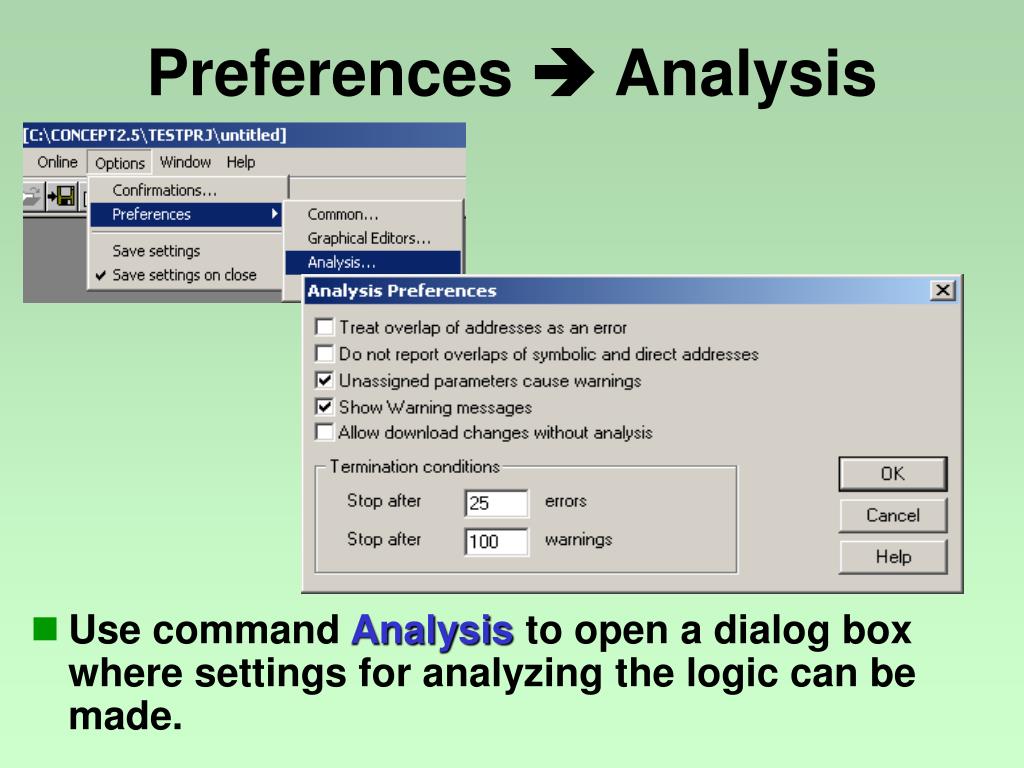

Preferences  Analysis
  • Use command Analysis to open a dialog box where settings for analyzing the logic can be made.
preferences iec extensions

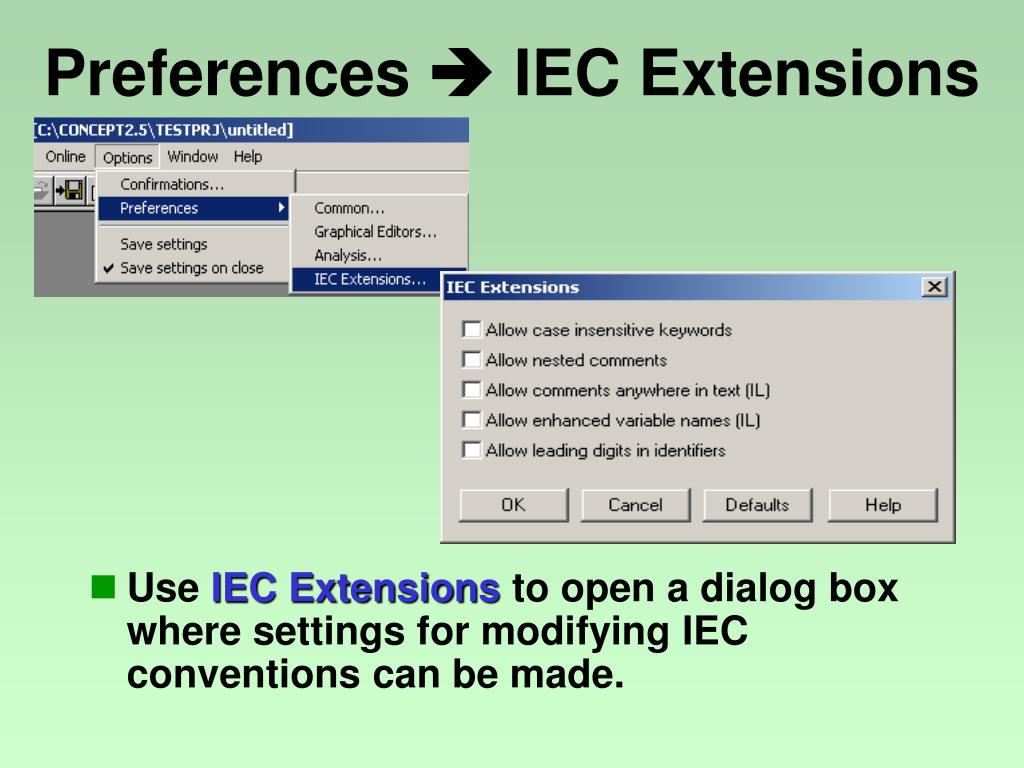

Preferences  IEC Extensions
  • Use IEC Extensions to open a dialog box where settings for modifying IEC conventions can be made.
