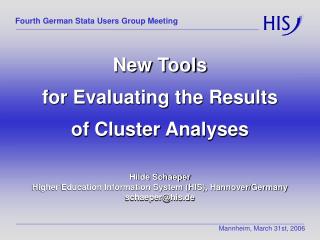

  1. Fourth German Stata Users Group Meeting New Tools for Evaluating the Results of Cluster Analyses Hilde Schaeper Higher Education Information System (HIS), Hannover/Germany schaeper@his.de Mannheim, March 31st, 2006

  2. Main features of cluster analysis Basic idea to form groups of similar objects (observations or variables) such that the classification objects are homogeneous within groups/clusters and heterogeneous between clusters Type of analysis heuristic tool of discovery lacking an underlying coherent body of statistical theory Range of methods cluster analysis is a family of more or less closely related techniques

  3. VII Evaluation and validation (number of clusters, interpretation, stability, validity)  Steps and decisions in cluster analysis ISelection of a sample (outliers may influence the results) II Selection and transformation of variables (irrelevant and correlated variables can bias the classification; cluster analysis requires the variables to have equal scales) III Choice of the basic approach (in particular: agglomerative hierarchical vs. partitioning cluster analysis) IV Choice of a particular clustering technique V Selection of a dissimilarity or similarity measure (depends partly on the mea-surement level of the variables and the clustering technique chosen) VIChoice of the initial partition in case of partition methods

  4. Criteria for a good classification  Interpretability Clusters should be substantively interpretable.  Internal validity (internal homogeneity and external heterogeneity) Objects that belong to the same cluster should be similar.  Objects of different clusters should be different. The clusters should be well isolated from each other.  The classification should fit to the data and should be able to explain the variation in the data.  Reasonable number and size of clusters (additional) The number of clusters should be as small as possible. The size of the clusters should not be too small.  Stability Small modifications in data and methods should not change the results.

  5. Criteria for a good classification (cont.)  External validity Clusters should correlate with external variables that are known to be correlated with the classification and that are not used for clustering.  Relative validity The classification should be better than the null model which assumes that no clusters are present. The classification should be better than other classifications.

  6. Tools for decision making and evaluation Tools for determining the number of clusters Tools for testing the stability of a classification (Tools for assessing the internal validity of a classification)

  7. Determining the number of clusters: hierarchical methods (Visual) inspection of the fusion/agglomeration levels  dendrogram (official Stata program)  scree diagram (easy to produce) agglomeration schedule (new program)

  8. Determining the number of clusters: agglomeration schedule Syntax cluster stop [clname], rule(schedule) [laststeps(#)] Description cluster stop, rule(schedule) displays the agglomeration schedule for hierarchical agglomerative cluster analysis und computes the differences between the stages of the clustering process. Additional options laststeps(#) specifies the number of steps to be displayed.

  9. Determining the number of clusters: agglomeration schedule Example: Cluster analysis of 799 observations, using Ward’s linkage and squared Euclidean distances cluster stop ward, rule(schedule) last(15) Number Fusion Stage clusters value Increase -------------------------------------------------- 798 1 1529,7205 834,5939 797 2 695,1265 15,2987 796 3 679,8278 414,1430 795 4 265,6848 60,3970 794 5 205,2878 32,0320 793 6 173,2559 12,1593 792 7 161,0966 22,5605 791 8 138,5361 29,6152 790 9 108,9209 3,4233 789 10 105,4976 14,2701 788 11 91,2275 6,7869 787 12 84,4405 2,2950 786 13 82,1455 1,5409 785 14 80,6046 14,8871 784 15 65,7175 3,2681

  10. Determining the number of clusters: dendrogram

  11. Determining the number of clusters: hierarchical methods (Visual) inspection of the fusion/agglomeration levels  dendrogram (official Stata program)  scree diagram (easy to produce) agglomeration schedule (new program)  Statistical measures/tests for the number of clusters  Duda’s and Hart’s stopping rule/Caliński’s and Harabasz’s stopping rule (official Stata program) Mojena’s stopping rules (new program)

  12. The Caliński and Harabasz index The Duda and Hart index +--------------------------------------+ | Number | Duda/Hart | | of | | pseudo | | clusters | Je(2)/Je(1) | T-squared | |----------+-------------+-------------| | 1 | 0,7418 | 277,39 | | 2 | 0,7094 | 192,14 | | 3 | 0,6606 | 167,46 | | 4 | 0,6393 | 91,42 | | 5 | 0,7744 | 76,93 | | 6 | 0,7798 | 57,31 | | 7 | 0,7183 | 72,95 | | 8 | 0,7640 | 50,05 | | 9 | 0,5660 | 81,29 | | 10 | 0,7380 | 42,61 | | 11 | 0,5678 | 61,64 | | 12 | 0,7669 | 42,26 | | 13 | 0,6579 | 41,09 | | 14 | 0,7274 | 36,73 | | 15 | 0,5697 | 46,82 | +--------------------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 2 | 277,39 | | 3 | 239,32 | | 4 | 254,86 | | 5 | 228,46 | | 6 | 210,01 | | 7 | 197,16 | | 8 | 189,27 | | 9 | 183,03 | | 10 | 176,34 | | 11 | 171,95 | | 12 | 167,85 | | 13 | 164,64 | | 14 | 162,64 | | 15 | 161,78 | +---------------------------+ Determining the number of clusters: Stata’s stopping rules

  13. Determining the number of clusters: Mojena’s stopping rules Model I  assumes that the agglomeration levels are normally distributed with a particular mean and standard deviation  tests at level k whether level k+1 comes from the aforementioned distribution  suggests the choice of the k-cluster solution when the null hypothesis has to be reject-ed for the first time (i. e. when a sharp increase/decrease of the fusion levels occurs) Model I modified  assumes that the agglomeration levels up to level k are normally distributed Model II  assumes that the agglomeration levels up to step k can be described by a linear re-gression line  tests at level k whether the fusion value of level k+1 equals the predicted value  suggests to set the number of clusters equal to k when the null hypothesis has to be rejected for the first time

  14. Determining the number of clusters: Mojena’s stopping rules Syntax cluster stop [clname], rule(mojena) [laststeps(#) m1only] Description cluster stop, rule(mojena) calculates Mojena’s test statistics (Mojena I, Mojena I modified, and Mojena II) for determining the number of clusters of hierarchical agglomerative clustering methods and the corresponding signifi-cance levels. Additional options laststeps(#) specifies the number of steps to be displayed. m1only is used to suppress the calculation of Mojena I modified and Mojena II.

  15. Determining the number of clusters: Mojena’s stopping rules cluster stop ward, rule(mojena) last(15) No. of Mojena I Mojena I mod. Mojena II Stage clusters t p t p t p ------------------------------------------------------------------------- 798 1 . . . . . . 797 2 22,9003 0,0000 39,2306 0,0000 38,8261 0,0000 796 3 10,3453 0,0000 22,8581 0,0000 22,4229 0,0000 795 4 10,1152 0,0000 36,7300 0,0000 36,1526 0,0000 794 5 3,8851 0,0001 16,4988 0,0000 15,8908 0,0000 793 6 2,9765 0,0015 14,2385 0,0000 13,6099 0,0000 792 7 2,4946 0,0064 13,2516 0,0000 12,6058 0,0000 791 8 2,3117 0,0105 13,6952 0,0000 13,0275 0,0000 790 9 1,9723 0,0245 12,9355 0,0000 12,2483 0,0000 789 10 1,5268 0,0636 10,8525 0,0000 10,1556 0,0000 788 11 1,4753 0,0703 11,3345 0,0000 10,6247 0,0000 787 12 1,2607 0,1039 10,4254 0,0000 9,7065 0,0000 786 13 1,1586 0,1235 10,2615 0,0000 9,5338 0,0000 785 14 1,1240 0,1307 10,6825 0,0000 9,9431 0,0000 784 15 1,1009 0,1356 11,3061 0,0000 10,5505 0,0000

  16. Determining the number of clusters: partitioning methods Measures using the error sum of squares Explained variance (Eta2):specifies to which extent a particular solution improves the solution with one cluster Proportional reduction of errors (PRE):compares a k-cluster solution with the previous (k–1) solution F-max statistic:corrects for the fact that more clusters automatically result in a higher explained variance Beale’s F statistic:tests the null hypothesis that a solution with k clusters is not improved by a solution with more clusters (conservative test, provides only convincing results if the clusters are well separated) new program Caliński’s and Harabasz’s stopping rule  official Stata program

  17. +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 3 | 322,13 | +---------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 6 | 252,44 | +---------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 4 | 274,31 | +---------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 7 | 228,73 | +---------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 5 | 279,87 | +---------------------------+ +---------------------------+ | | Calinski/ | | Number of | Harabasz | | clusters | pseudo-F | |-------------+-------------| | 8 | 210,20 | +---------------------------+ Determining the number of clusters: Stata’s stopping rule Example: Cluster analysis of 799 observations, using the kmeans partition method and squared Euclidean distances

  18. Determining the number of clusters: Eta2, PRE, F-max, Beale’s F Syntax clnumber varlist, maxclus(#)[kmeans_options] Description clnumber performs kmeans cluster analyses with the variables specified in var-list and computes Eta2, the PRE coefficient, the F-max statistic, Beale’s F va-lues and the corresponding p-values. Options maxclus(#) is required and specifies the maximum number of clusters for which cluster analyses are performed. maxclus(4), for example, requests cluster analyses for two, three, and four clusters. kmeans_options specifiy options allowed with kmeans cluster analysis except for k(#) and start(group(varname)).

  19. Determining the number of clusters: Eta2, PRE, F-max, Beale’s F clnumber v1–v7, max(8) start(prandom(154698)) First part of the output Eta square, PRE coefficient, F-max value A[8,3] Eta2 Pre F-max cl_1 0 . . cl_2 ,27878797 ,27878797 308,08417 cl_3 ,44732155 ,23368104 322,12939 cl_4 ,50863156 ,11093251 274,31017 cl_5 ,58504803 ,15551767 279,86862 cl_6 ,61414929 ,07013162 252,4398 cl_7 ,63407795 ,05164863 228,73256 cl_8 ,65036945 ,04452178 210,1983

  20. Determining the number of clusters: Eta2, PRE, F-max, Beale’s F Second part of the output Upper triangle: Beale‘s F statistic; lower triangle: probability B[8,8] c1 c2 c3 c4 c5 c6 c7 r1 0 1,7527399 2,1746911 2,1056324 2,3824281 2,3440412 2,2895238 r2 ,09228984 0 2,454542 2,1062746 2,4264587 2,3137652 2,2097109 r3 ,0067297 ,01637451 0 1,4336405 2,0737441 1,9334281 1,8205698 r4 ,00225687 ,00910208 ,18682639 0 2,7415018 2,1763191 1,9278474 r5 ,00005713 ,00028111 ,01048918 ,00768272 0 1,3762712 1,2922468 r6 ,00001341 ,00010317 ,00641878 ,00668153 ,21053567 0 1,1750857 r7 4,554e-06 ,00005409 ,00517453 ,00663361 ,20309237 ,3133238 0 r8 1,600e-06 ,00002861 ,00408524 ,00598863 ,18868905 ,28969417 ,32290457 c8 r1 2,2479901 r2 2,1372527 r3 1,7502537 r4 1,8003233 r5 1,261865 r6 1,1717306 r7 1,1590454 r8 0

  21. Determining the number of clusters: Eta2, PRE, F-max, Beale’s F Second part of the output Upper triangle: Beale‘s F statistic; lower triangle: probability B[8,8] c1 c2 c3 c4 c5 c6 c7 r1 0 1,7527399 2,1746911 2,1056324 2,3824281 2,3440412 2,2895238 r2 ,09228984 0 2,454542 2,1062746 2,4264587 2,3137652 2,2097109 r3 ,0067297 ,01637451 0 1,4336405 2,0737441 1,9334281 1,8205698 r4 ,00225687 ,00910208 ,18682639 0 2,7415018 2,1763191 1,9278474 r5 ,00005713 ,00028111 ,01048918 ,00768272 0 1,3762712 1,2922468 r6 ,00001341 ,00010317 ,00641878 ,00668153 ,21053567 0 1,1750857 r7 4,554e-06 ,00005409 ,00517453 ,00663361 ,20309237 ,3133238 0 r8 1,600e-06 ,00002861 ,00408524 ,00598863 ,18868905 ,28969417 ,32290457 c8 r1 2,2479901 r2 2,1372527 r3 1,7502537 r4 1,8003233 r5 1,261865 r6 1,1717306 r7 1,1590454 r8 0

  22. Testing the stability of a classification Stability  is a precondition of validity  refers to the property of a cluster solution that it is not affected by small modi-fications of data and methods can be measured by comparing two classifications and computing the propor-tion of consistent allocations

  23. Testing the stability of a classification: the Rand index Original Rand index (Rand 1971)  ranges between 0 and 1 with 1 = perfect agreement  values greater than 0.7 are considered as sufficient Adjusted Rand index (Hubert & Arabie 1985)  accounts for chance agreement  offers a solution for the problem that the expected value of the Rand index does not take a constant value  maximum value of 1; expected value of zero, if the classifications are select-ed randomly  usually yields much smaller values than the Rand index

  24. Output clrand groupvar1 groupvar2 Comparison of two classifications Grouping variables: "groupvar1" and "groupvar2“ Rand index: 0,9695 Adjusted Rand index (Hubert & Arabie): 0,9320 Testing the stability of a classification: the Rand index Syntax clrand groupvar1 groupvar2 Description clrandcompares two classifications with respect to the (in)consistency of as-signments of the classification objects to clusters and computes the Rand index and the adjusted Rand index proposed by Hubert & Arabie. The command re-quires the specification of two grouping variables obtained from previous cluster analyses.

  25. Testing the stability of a classification: the Rand index Comparisons of the 3-cluster solutions using different start options (adj. Rand) Comparisons of the 5-cluster solutions using different start options (adj. Rand)

  26. Outlook  speeding up the program for calculating Mojena’s stopping rules  improvement of clnumber  improvement of clrand  new program for checking whether a local minimum is found with kmeans or kmedians cluster analysis  new programs for calculating additional statistics (e. g. homogeneity mea-sures, measures for the fit of a dendrogram)

  27. Finding groups of variables Basic idea: examples Finding groups of observations

  28. Consequences of decision making: example Comparison of two kmeans cluster analyses using different initial group centres

  29. Determining the number of clusters: inverse scree test
