temporal and real time databases a survey

Temporal and Real-Time Databases: A Survey

by Gultekin Ozsoyoglu and

Richard T. Snodgrass

Presentation by Didi Yao

introduction
Introduction
  • Survey two areas that can benefit from cross infusion: temporal and real-time DBs
  • Temporal: time-varying info
  • Real-time: transactions w/ time constraints
  • Both can benefit from one another
real time databases

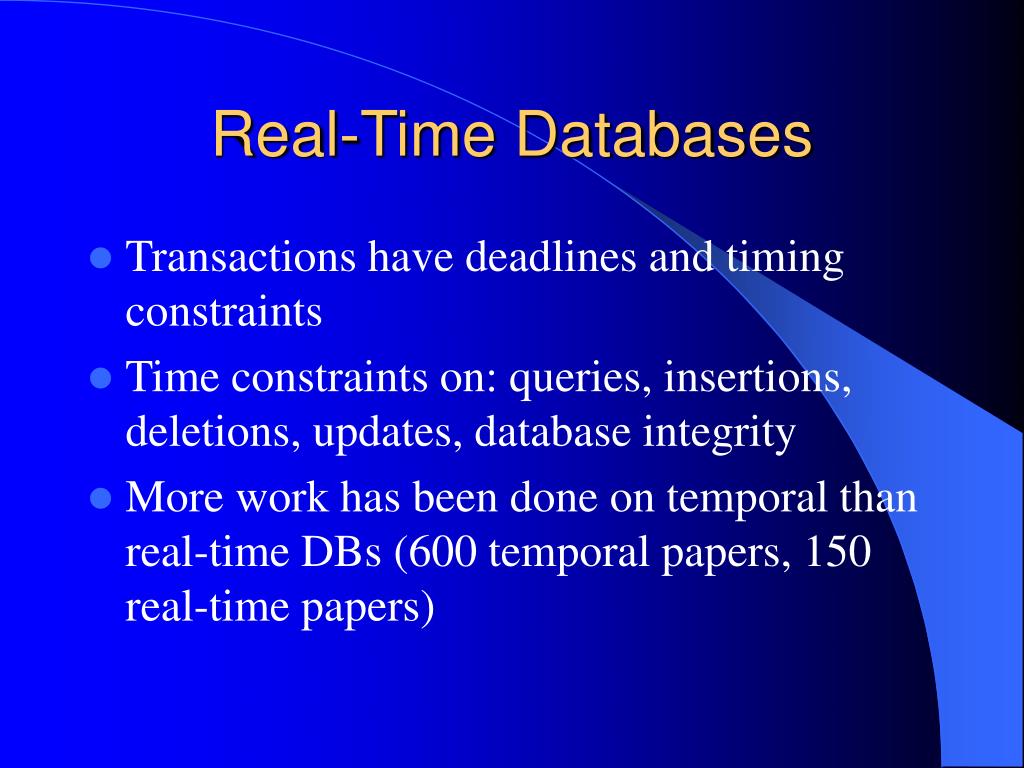

Real-Time Databases
  • Transactions have deadlines and timing constraints
  • Time constraints on: queries, insertions, deletions, updates, database integrity
  • More work has been done on temporal than real-time DBs (600 temporal papers, 150 real-time papers)
the time domain
The Time Domain
  • 2 structures: linear and branching
  • Densities of the time line:
    • Discrete models naturals
    • Dense models reals or rationals
    • Continuous models reals (no gaps)
  • Most proposals for adding temporal to relational data models use discrete
the time domain cont
The Time Domain (cont.)
  • Relative (unanchored): 3PM, Nov 9, 2000
  • Relative has direction
  • Absolute (anchored): 3 hours
  • Absolute, in a way, is also relative
the time domain cont6
The Time Domain (cont.)
  • Valid time
    • When a fact was true in reality
    • Bounded or unbounded
  • Transaction time
    • When a fact was stored
    • Grows monotonically
  • Others: user-defined time, decision time
  • Indeterminacy- “don’t know exactly when”
time in real time dbs
Time in Real-Time DBs
  • Valid time
    • Used for data that have real-world counterparts
  • Transaction time
    • Transactions affecting real-time systems
    • Never aborted or rolled back
  • Does not assume future, linear, bounded
  • Does not deal with temporal indeterminacy
temporal data models relational
Temporal Data Models (relational)
  • Time support in conventional DBs is only user-defined time: Date, Time, Timestamp
  • Table I (temporal relational data models):
    • 14 “valid time” models
    • 3 “transaction time” models
    • 9 “valid and transaction time” models
  • “Valid time” wins
temporal data models oo
Temporal Data Models (OO)
  • Table II

(temporal OO data models):

    • 3 “valid” models
    • 5 “transaction” models
    • 4 “both” models
valid time temporal model
Valid Time (Temporal Model)
  • Single chronon
    • Event timestamp
  • Interval
    • Interval timestamp
  • Valid-time
    • Set of intervals
transaction time temporal model

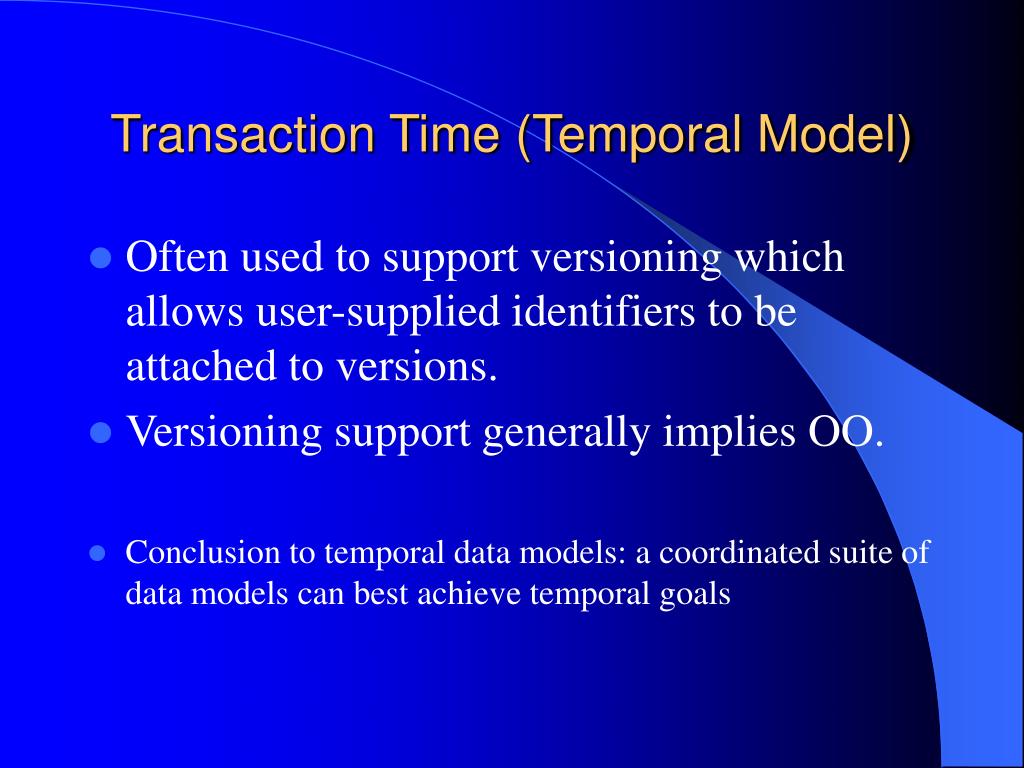

Transaction Time (Temporal Model)
  • Often used to support versioning which allows user-supplied identifiers to be attached to versions.
  • Versioning support generally implies OO.
  • Conclusion to temporal data models: a coordinated suite of data models can best achieve temporal goals
real time data models
Real-time Data Models
  • Relational model is used for real-time DBs
  • OO model may benefit real-time DBs:
    • rich data semantics, complex objects, encapsulation, methods, messages
  • However, the added complexity affects real-timeliness
temporal query languages
Temporal Query Languages
  • User-defined time supported by most DBs
  • 3 approaches to supporting Valid-time:
    • Use relational or OO model directly
    • Include general extensions to data model and query languages (only used on OO query languages)
    • add new constructs and temporal operators
temporal query languages14
Temporal Query Languages
  • Transaction-time is used for rollbacks and versioning (extension and schema)
  • Extension versioning (tuples, object instances or attributes are versioned)
    • Use model directly, general extensions, or modify data model and language
  • Schema versioning (object definition versioned)
    • Multiple schemas in effect
real time data and transaction properties
Real-Time Data and Transaction Properties
  • Hard transaction: missing a deadline is disastrous
  • Soft transaction: missing a deadline will not kill you
  • Factors that affect real-time transactions:
    • Transaction arrival pattern: periodic, sporadic
    • Data access type: random, round-robin
    • Knowing whether an item will be accessed beforehand
    • Knowing the CPU and I/O usage beforehand
real time properties cont
Real-Time Properties (cont.)
  • It is not possible to have both external consistency AND integrity constraint sat.
  • External consistency may:
    • Lead to triggers (more coolant)
    • Require aborts (abort objects from furnace)
  • Internal consistency may need resolution through new transactions.
  • Cooperate, not compete
conventional vs real time
Conventional vs. Real-Time
  • Conventional DBs:
    • Fair in data and resource allocation
    • Use response time and throughput as measures
  • Real-Time DBs:
    • Timely transaction execution
    • Fairness is secondary
    • Use % of non-missed deadlines as a measure
    • Transactions prioritized on deadlines
real time consistency
Real-Time Consistency
  • Absolute data consistency
  • Relative data consistency
    • A set of data items that are relatively consistent to each other
architectural issues
Architectural Issues
  • Temporal query optimization is more involved than conventional query opt.
  • Predicates are harder to optimize
    • Joins with more inequalities are frequent
  • Time advances in one direction
    • Natural clustering on sort order
  • Methods to optimize query:
    • Replace algebraic expression with a more efficient, equivalent one
    • Change access method of an operator
    • Change implementation of an operator
architectural issues cont
Architectural Issues (cont.)
  • Temporal joins: proposed extensions to nested loop and merge joins
  • Temporal indices are important because of the size of temporal data but no work has been done to empirically compare them
architectural issues cont22
Architectural Issues (cont.)
  • Transaction processing
    • Adapt existing concurrency control and transaction management to support transaction time
    • Timestamp at the end of transaction
  • Processing transaction with hard deadlines
    • Arrival patterns, items to be accessed, CPU, I/O access times must all be known
architectural issues cont23
Architectural Issues (cont.)
  • Processing transaction with soft deadlines
    • Priority assignment policies:
      • Earliest-deadline-first, least-slack-time-first, etc…
  • Concurrency control protocols
    • Lock-based protocols
    • Timestamp-ordering protocols (timestamp start)
    • Optimistic concurrency control protocols (timestamp end)
architectural issues cont24

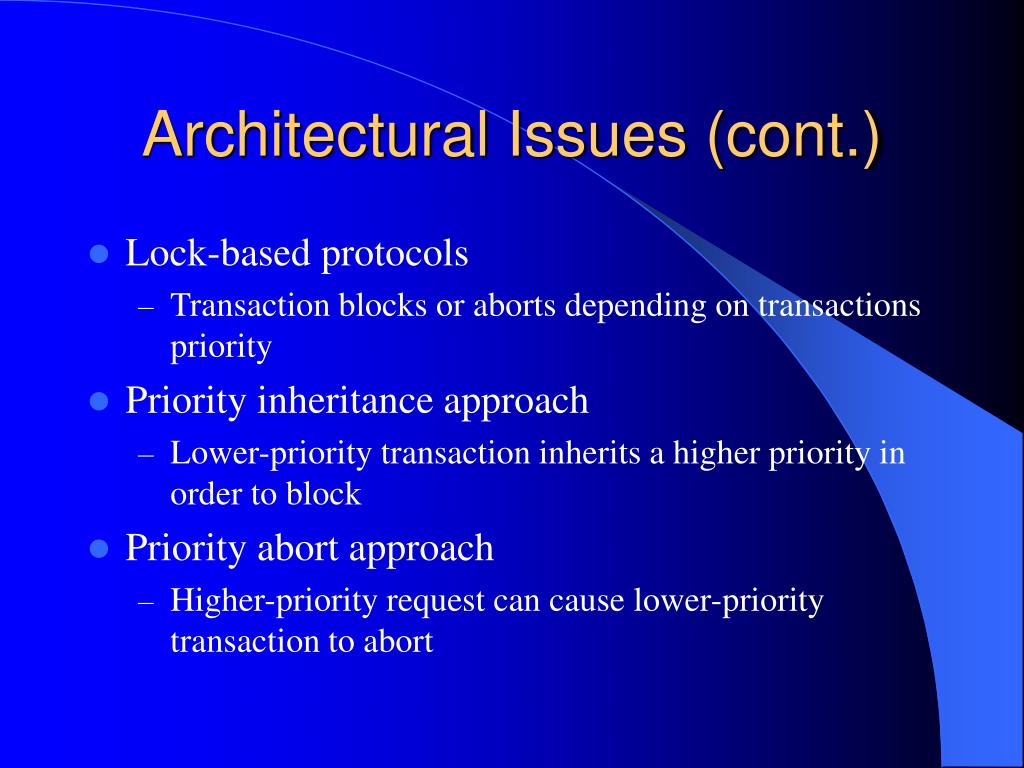

Architectural Issues (cont.)
  • Lock-based protocols
    • Transaction blocks or aborts depending on transactions priority
  • Priority inheritance approach
    • Lower-priority transaction inherits a higher priority in order to block
  • Priority abort approach
    • Higher-priority request can cause lower-priority transaction to abort
architectural issues cont25
Architectural Issues (cont.)
  • Timestamp-ordering protocols
    • Timestamps transaction start
    • Early conflict resolution
    • Suffers from priority inversion
  • Optimistic concurrency control protocols
    • Timestamps transaction end
    • Nonblocking and deadlock-free
    • Aborts and restart wastes resources
architectural issues cont26

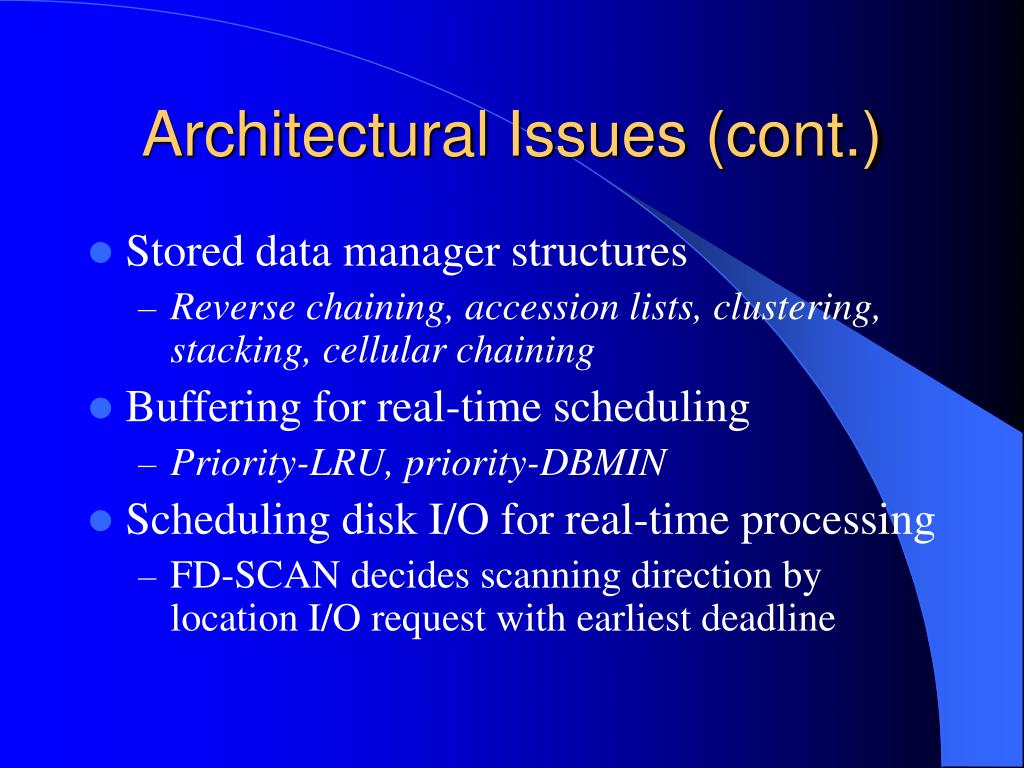

Architectural Issues (cont.)
  • Stored data manager structures
    • Reverse chaining, accession lists, clustering, stacking, cellular chaining
  • Buffering for real-time scheduling
    • Priority-LRU, priority-DBMIN
  • Scheduling disk I/O for real-time processing
    • FD-SCAN decides scanning direction by location I/O request with earliest deadline
conclusion
Conclusion
  • Temporal relational database (25 years)
  • Temporal OO database (15 years)
  • Real-time databases (since 1986)
  • Accomplishments
    • No data model is good enough, need suite of models
    • Real-time and temporal people are interacting and starting to use the same language
  • Needs
    • Real-time models that capture semantic knowledge
    • Too many temporal data models, not many real-time models and no real-time query language
    • Performance is still a challenge
