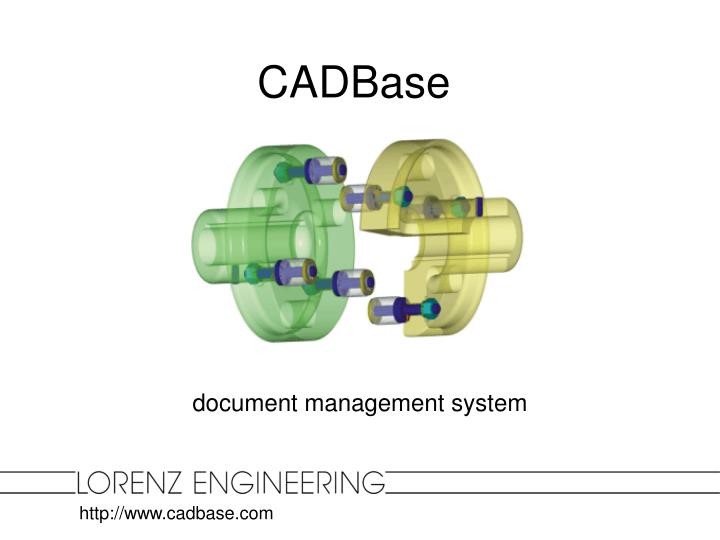

  1. CADBase document management system http://www.cadbase.com

  2. modular concept • drawing management • part lists + ERP database • language translation • batch processing • jobserver http://www.cadbase.com

  3. CADBasebasic key features • complete data front end for the CAD-engineerfile management numbering systemrevisions and releases communication with CAD and other programs ... • information system for other departmentsquick search file preview printing and plotting ... http://www.cadbase.com

  4. CADBasetechnical key features • easy installation and configurationautomatic defaults for most common functions • Common viewer technologies Autodesk CAD-viewers  low cost and perfect compatibility • MS-Access compatible databasedata access from other application low cost and easy administration • Interface to ERP – systemsODBC, SAP BAPI etc... http://www.cadbase.com

  5. CADBasedrawing management • powerful search functionsconfigurable tree view incremental search history search search for any database field • thumbnail or detailed file previewsthumbnails: fast detailed views: zoom, pan, plot, layers on/off etc... • preview formats AutoCAD, Inventor, MS-Office, PDF, TIF, GIF, BMP etc... http://www.cadbase.com

  6. CADBasedrawing management • InterfacesAutoCAD + Mechanical title blocks, part lists, external references... Inventor file properties, part lists, IParts, derived components... • where-used listAutoCAD + Mechanical external references, images etc... Inventor parts, sub-assemblies, spreadsheets, images, derived parts in IPT, IAM, IDW, IPN http://www.cadbase.com

  7. CADBasedrawing management • insert files into CADAutoCAD + Mechanical - blocks, external references, images, part list items  drawingsInventor - parts IParts and sub-assemblies  assemblies - parts assemblies and presentations  drawing views - Parts, assemblies  derived parts - assemblies  presentations http://www.cadbase.com

  8. CADBasepart lists • supports AutoCAD, Mechanical and Inventor standards • extracts list from CAD • manually add, remove and edit list items • structured list with chapter titles • list spanning several drawings • filtered output • update information from ERP database • free configurable export and print format http://www.cadbase.com

  9. CADBaselanguage translation • supports arbitrary number of foreign languages • instant translation of CAD files, PDF and Excel • translates text, mtext, dimensions, block attributes, in drawing, blocks and external references • uses wild cards for numbers and formulas • based on a learning database • export untranslated items to translation list http://www.cadbase.com

  10. CADBasebatch processing • batch functions - translation of PDF, XLS, DWG etc... into foreign languages - print / plot - create digital output (DWF, DXF, PDF...) - copy files to target folder - programmable user functions - extract AutoCAD title block information and Inventor properties • plots each particular drawing frame with correct scale and format http://www.cadbase.com

  11. CADBasebatch processing • supports DWG, IDW, PDF, XLS, TIF, GIF, BMP, JPG etc... • supports SSL plotter language • easy job creation and definition - automatic by ERP interface - transfer file list from part lists - manually by file selection or drag & drop http://www.cadbase.com

  12. CADBasejobserver • runs on a dedicated job server computer • jobs are defined and edited on a client workstation and then passed to the jobserver for processing • application software for native file processing (e.g. AutoCAD, Inventor, Adobe Acrobat...) not needed on client computers • client computers are instantly available for other tasks • message to client informs about finished job and job status http://www.cadbase.com

  13. CADBasedevelopment • on the German market since 1998 • English Beta version available (setup + help in German) • final version available by Sept. 30 2004 • downloadable from www.cadbase.com • free download for all minor updates and sevice releases • local dealers welcome http://www.cadbase.com

  14. CADBasepricing • first licence add. licence • drawing management 1250 US$ 500 US$ • part lists 940 US$ 440 US$ • language translation 1625 US$ 625 US$ • batch processing 625 US$ 250 US$ • jobserver 2500 US$ • pricing without VAT http://www.cadbase.com
