  1. Products & System forMetering of Heating & Cooling

  2. Metering of District Heating & Cooling Meteringin substations for • Billing • Process monitoring • Process control with local access and remote communication • Energy Meter with separate parts • Flow sensor • Temperature sensors • Calculator

  3. Metering of District Heating & Cooling Meteringat residential sites • Billing with local access and remote communication • Compact Energy Meter consisting of • Flow sensor ultrasonic or mechanical • Temperature sensors • Calculator

  4. Products • Calculators • Temperature sensors • Flow sensors • Ultrasonic • Inductive • Mechanical • Compact meters • Communication components • Test equipment for calculators & temperature sensors

  5. Products Calculators

  6. Calculator family F2 + F22 F22 F22 with radio F2 F2 HC (Heating/Cooling)

  7. Calculator family F4 F4 “Plug & play” system F4 HC (Heating/Cooling) MF 4 (Mixed fluids)

  8. Calculators F4 - med options The basic meter can be equipped with Future proof • RS232 board for Modem • Logg board for hourly values • E.g. water meter cab be connected to pulse inputs • Additional options for future functionality

  9. Products Flowsensors

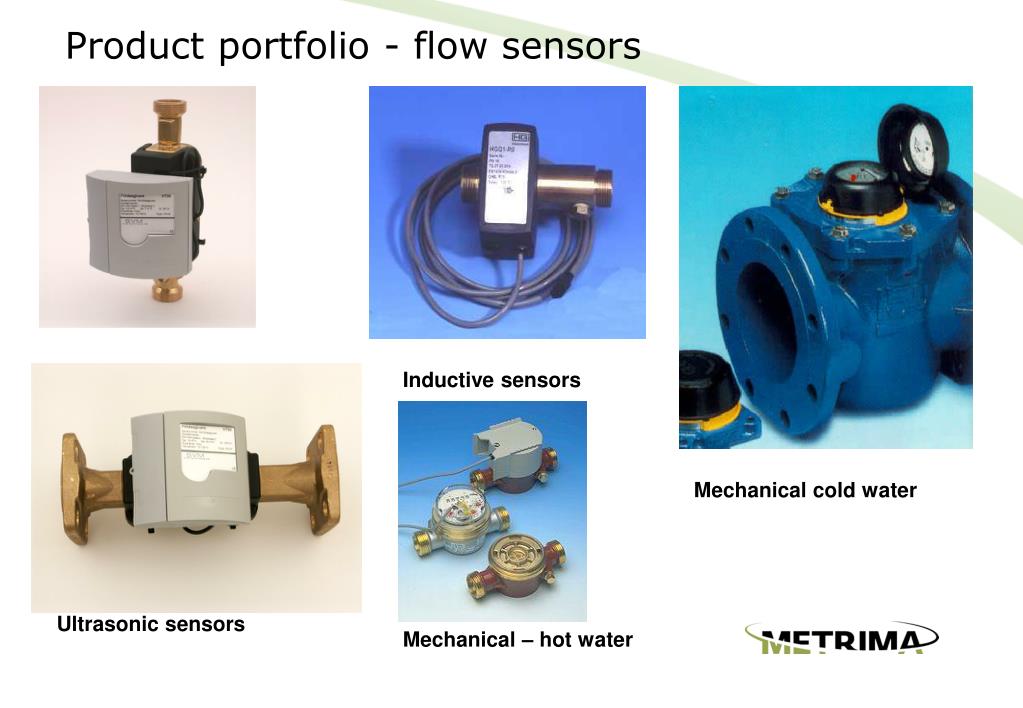

  10. Product portfolio - flow sensors Inductive sensors Mechanical cold water Ultrasonic sensors Mechanical – hot water

  11. Products Temperature sensors

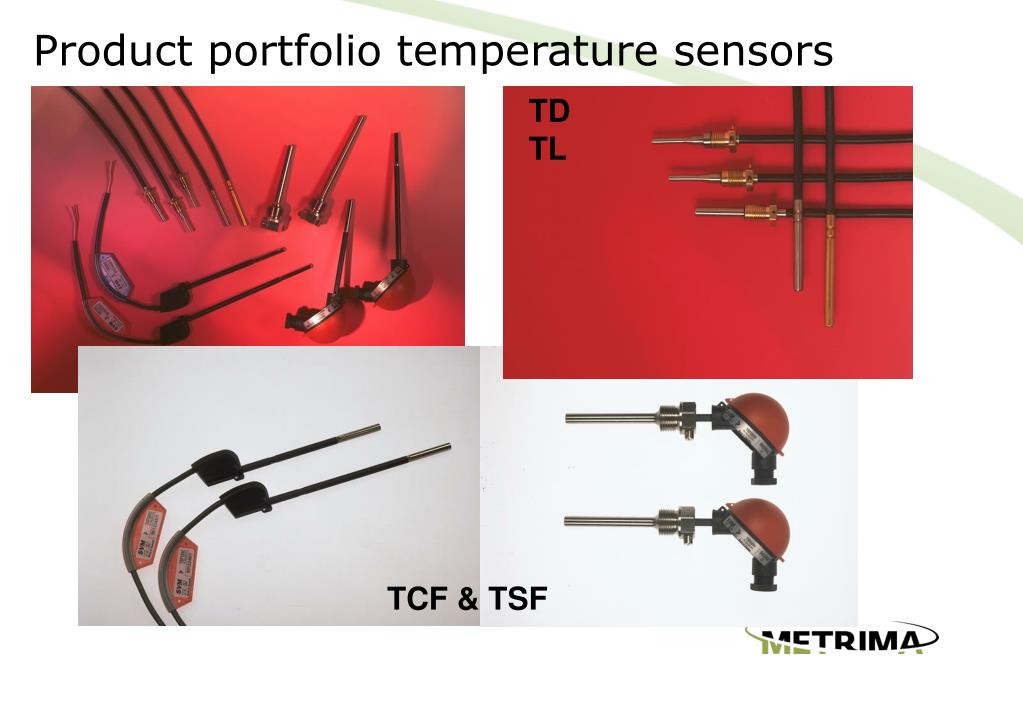

  12. Product portfolio temperature sensors TD TL TCF & TSF

  13. Products Compact metersheating & cooling

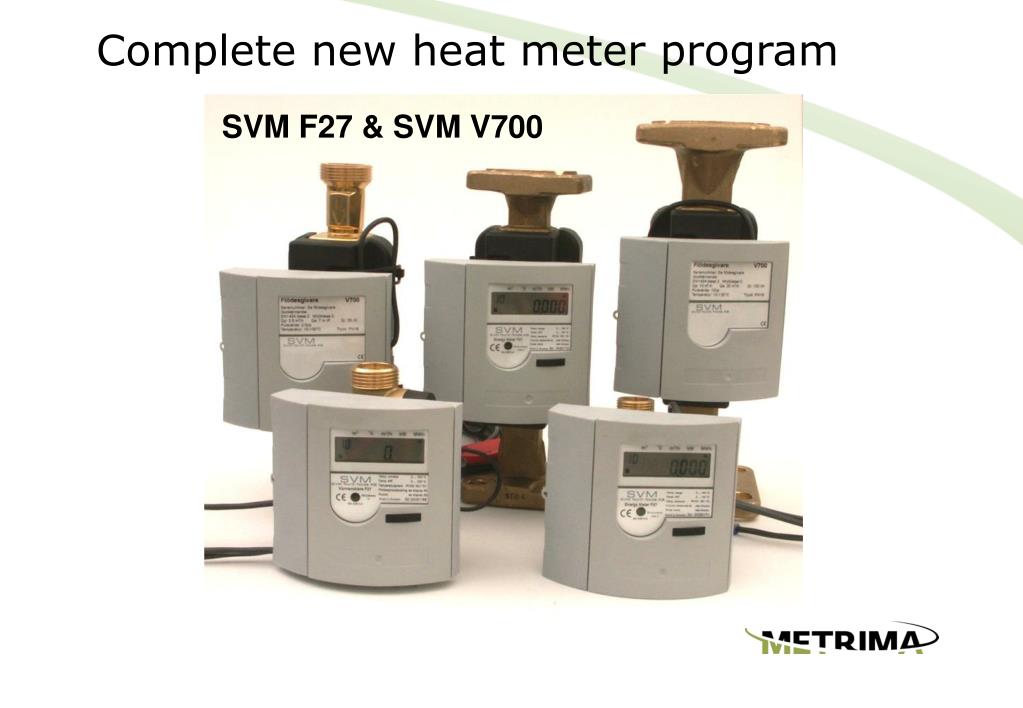

  14. Complete new heat meter program SVM F27 & SVM V700

  15. Systems Test systems

  16. Test system Test system for Calculators and temperature sensors Temperature sensorcalibration bath

  17. Systems AMR systems and meter data management

  18. Systemdesign MCom 3

  19. MCom 3 - Views The physical view The logical view The geographic view

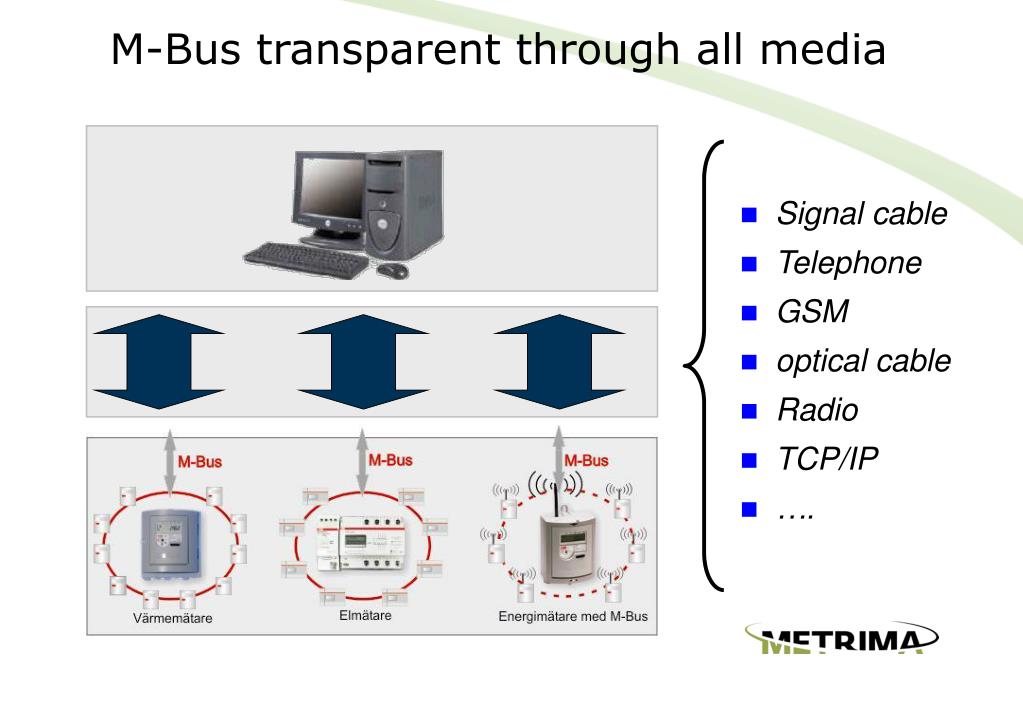

  20. M-Bus transparent through all media • Signal cable • Telephone • GSM • optical cable • Radio • TCP/IP • ….

  21. References – Mcom 3 Installations with MComand remote reading • Total number of installations in operation:> 230 systems • In Sweden > 60 systems • Jönköpings Energiverk 3200 heat meters • Skellefteå Kraft 1700 heat meters • Gotlands Energiverk 600 heat meters • Oxelö Energi 600 heat/electricity & water meters • Kiruna 1500 heat meters • Frösunda, NCC fastighet, Brf 750 electricity meters • Akademiska Hus i Lund 400 heat, cooling, water & gas meters • Akademiska Hus i Uppsala 850 heat, cooling & water meters
