Fractals

Fractals. Compact Set. Compact space X  E N A collection {U a ; U a  E N } of open sets, X   U a .  finite collection {U a k ; k = 1 … n } Such that X   U a k . Equivalent to every sequence of points in X has a subsequence that converges in X . X. y n. y 1. p. Y.

menefer
Download Presentation

Fractals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Fractals

  2. Compact Set • Compact space X  EN • A collection {Ua;Ua EN} of open sets, X Ua. •  finite collection {Uak;k = 1 …n} • Such that X Uak. • Equivalent to every sequence of points in X has a subsequence that converges in X. X yn y1 p Y A space X is compact if and only if it is closed and bounded.

  3. Applies to a subset S of a metric space X. Open sets U, V  X S U V U  V =  {U, V} is a partition of S. Example: {0, 1} R Let U = (-0.5, 0.5) Let V = (0.5, 1.5) Disconnected S U S V

  4. A space is disconnected if and only if there is a continuous map onto {0, 1} If a space has no partition it is connected. i.e. if its not disconnected. Example: [0, 1] is connected. Sketch proof by contradiction Letf: [0, 1]  {0, 1} Assume continuous Suppose f(1) = 1 Let y be the least upper bound such that f(y) = 0 f is continuous, 1 x > y, d |x – y| <d, |f(x) – f(y)| <1. So f(x) = f(y) = 1. Connected

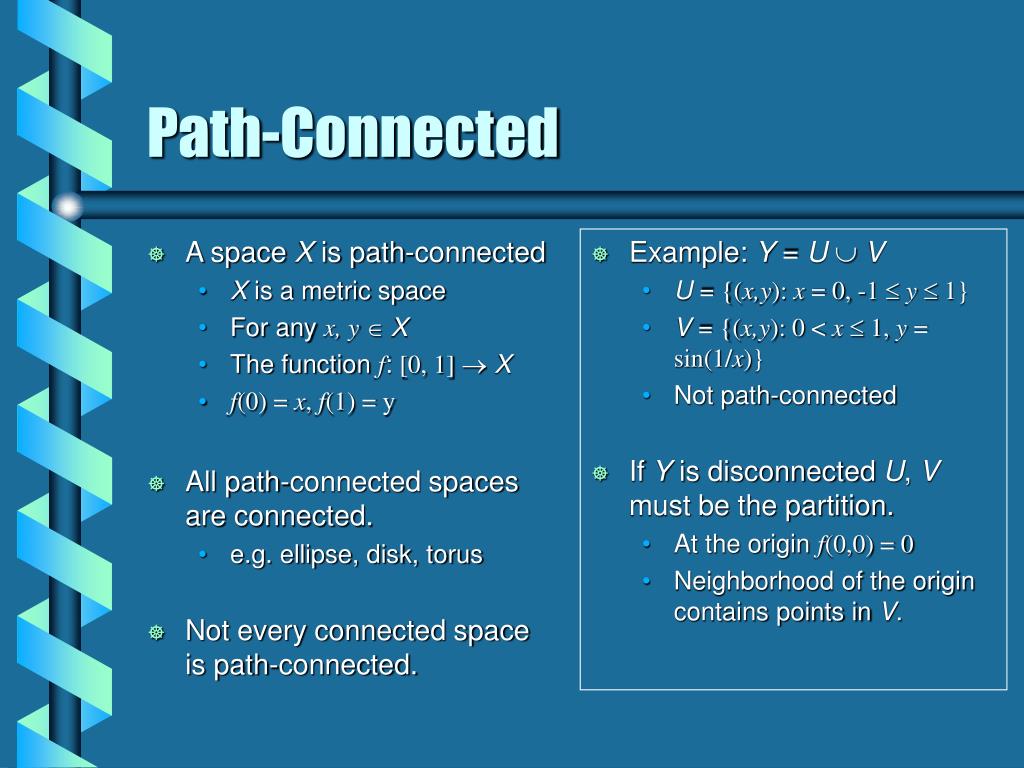

  5. A space X is path-connected X is a metric space For any x, yX The function f: [0, 1]X f(0) = x, f(1) = y All path-connected spaces are connected. e.g. ellipse, disk, torus Not every connected space is path-connected. Example: Y = UV U = {(x,y): x = 0, -1 y 1} V = {(x,y): 0 < x 1, y = sin(1/x)} Not path-connected If Y is disconnected U, V must be the partition. At the origin f(0,0) = 0 Neighborhood of the origin contains points in V. Path-Connected

  6. Subset of the interval [0, 1] At each step remove the open middle third of each interval. Continue ad infinitum. Set consists solely of disconnected points. The set is totally disconnected, but compact! C can be mapped onto [0,1]!! Cantor Set 0 1 2 3 

  7. Countable sets can be mapped into a subset of the natural numbers. N = {nZ: n > 0} Can be finite or infinite Countable sets include: Empty set Finite sets Integers Rational numbers Uncountable sets cannot be mapped into N. Uncountable sets include: Real numbers Complex numbers Cantor set Countable

  8. A map g is a contraction map Metric space X The function g: XX a [0,1]  x1, x2X d(g(x1), g(x2)) ad(x1, x2) Contraction maps have a fixed point: g(x) = x. Suppose for 1 nN, gn is a contraction map. G: H(X) H(X) G(A) =  {gn(A): 1 nN} a contraction map on H(X) Contraction Map X g x

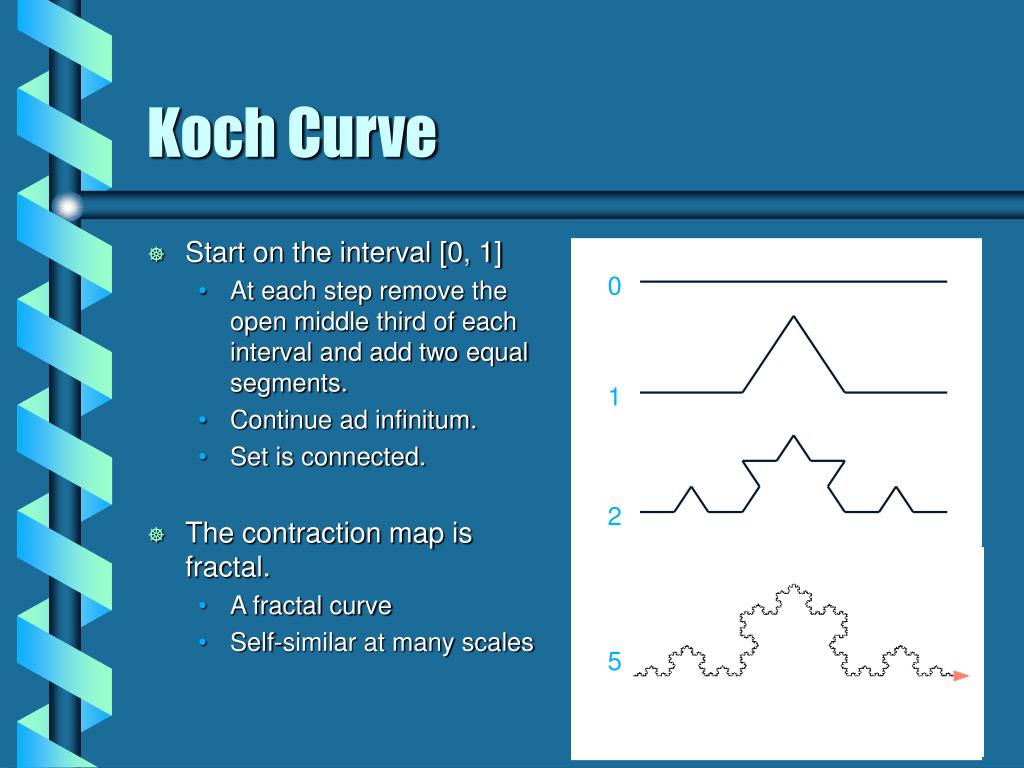

  9. Start on the interval [0, 1] At each step remove the open middle third of each interval and add two equal segments. Continue ad infinitum. Set is connected. The contraction map is fractal. A fractal curve Self-similar at many scales Koch Curve 0 1 2 5

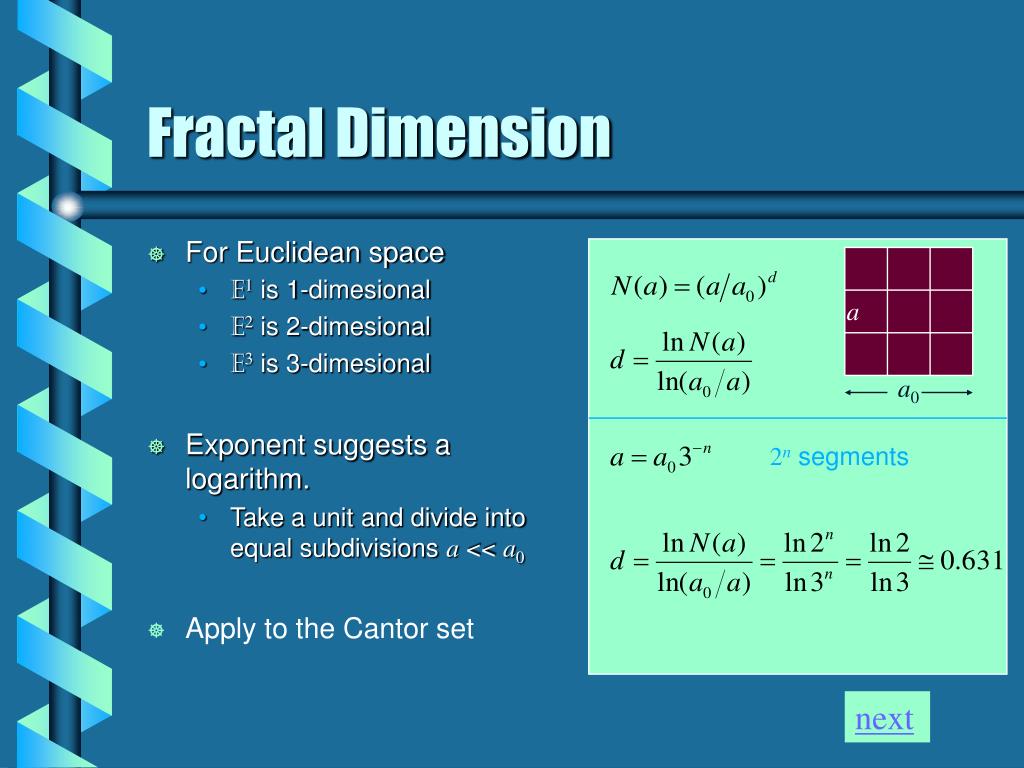

  10. For Euclidean space E1 is 1-dimesional E2 is 2-dimesional E3 is 3-dimesional Exponent suggests a logarithm. Take a unit and divide into equal subdivisions a << a0 Apply to the Cantor set Fractal Dimension a a0 2n segments next
