Tabletop-Laboratory-Autoclave

Labtron Tabletop Autoclave is a compact 20L unit and pressure of 0.22 MPa. It features a temperature range of 105-134u00b0C, 3 sterilizing baskets, a safe door lock system, and automatic power cut-off with a low water level alarm for reliable and efficient sterilization.

mendozaalissa
Download Presentation

Tabletop-Laboratory-Autoclave

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

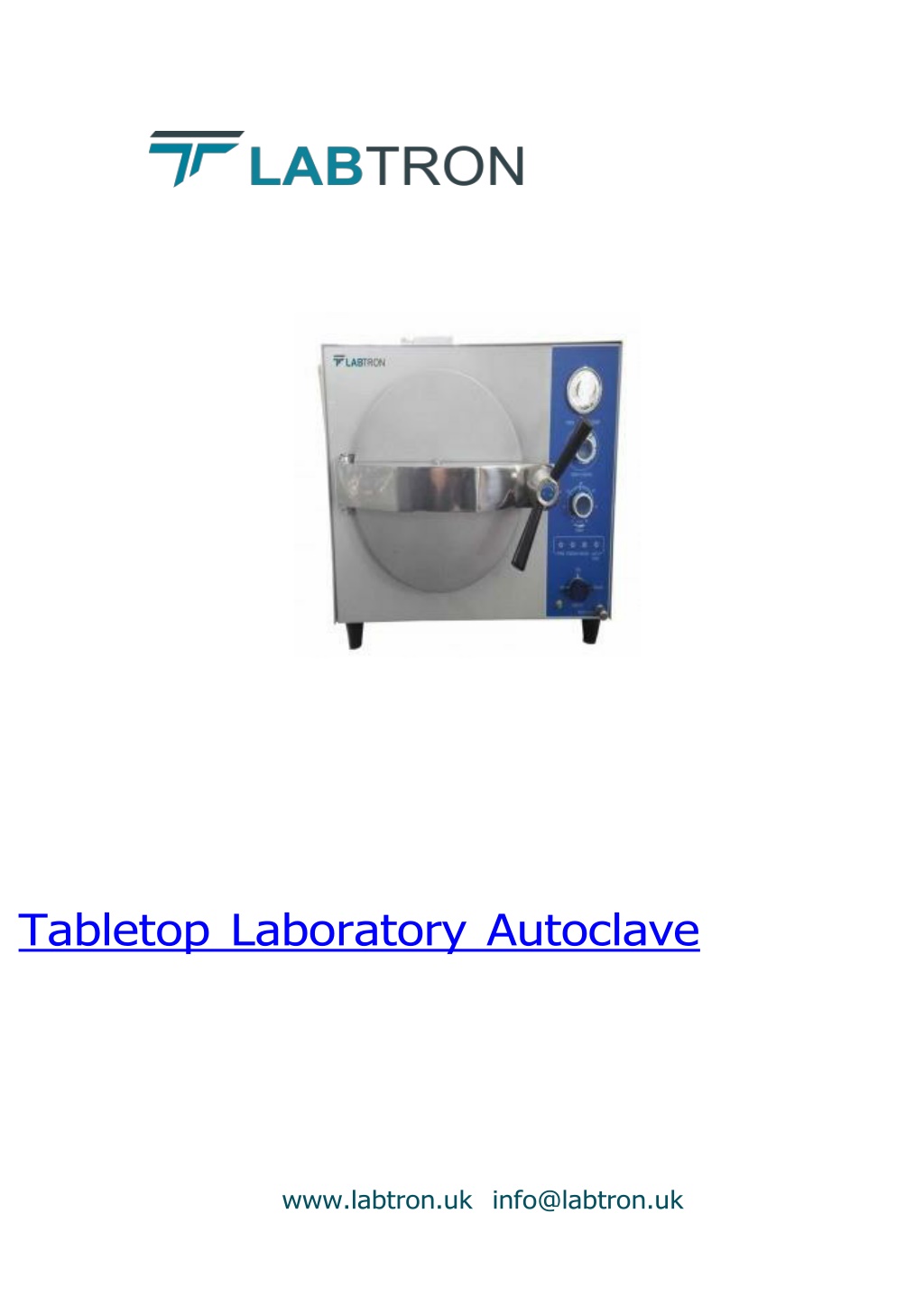

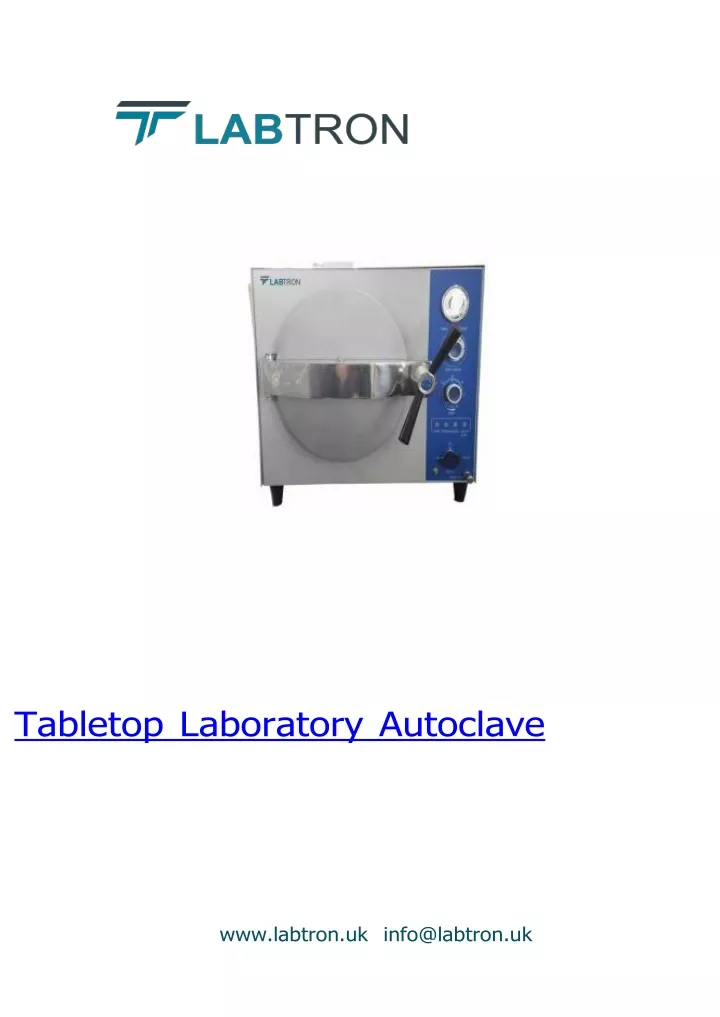

  1. Tabletop Laboratory Autoclave www.labtron.uk info@labtron.uk

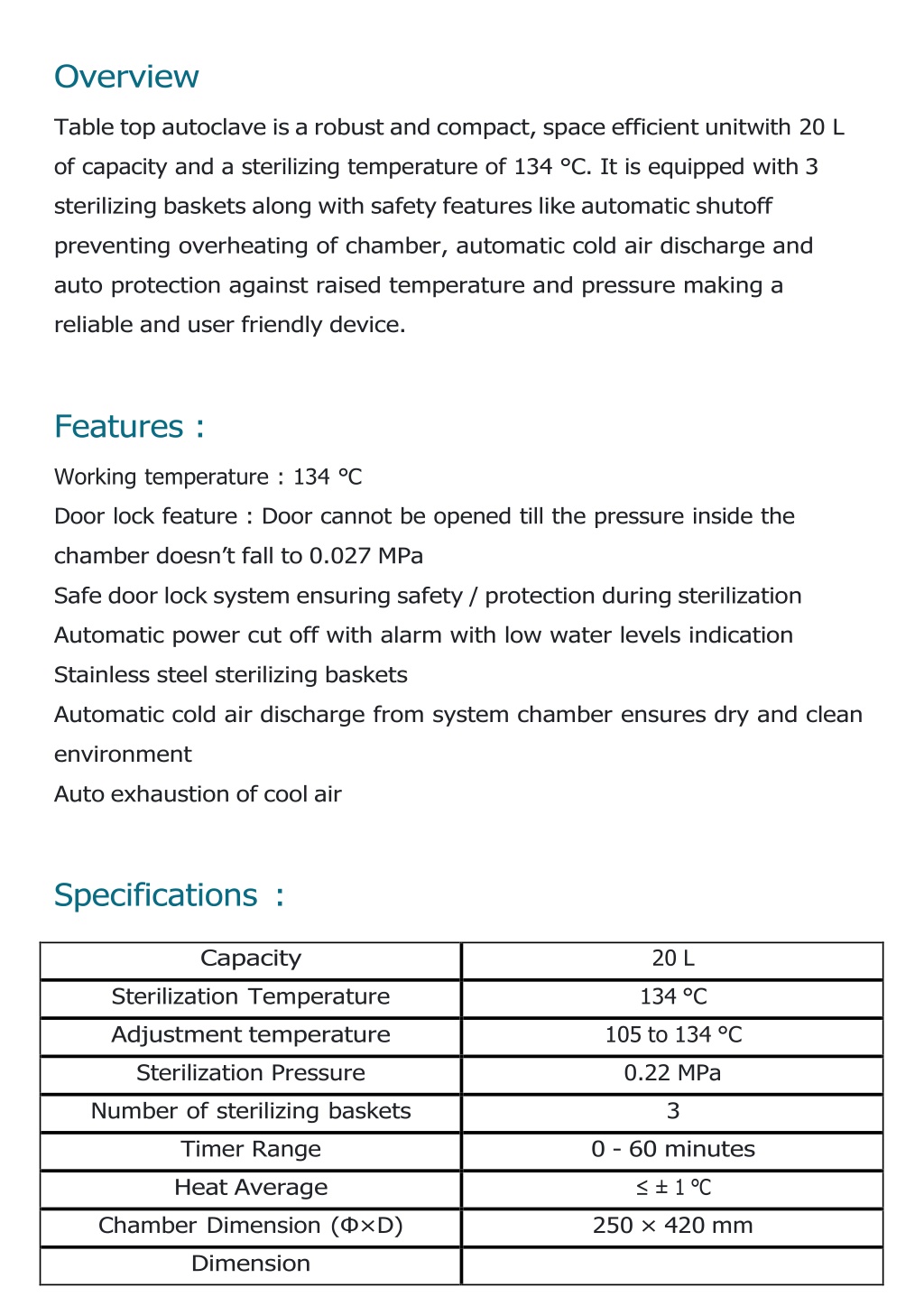

  2. Overview Table top autoclave is a robust and compact, space efficient unit with 20 L of capacity and a sterilizing temperature of 134 °C. It is equipped with 3 sterilizing baskets along with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure making a reliable and user friendly device. Features : Working temperature : 134 ℃ Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa Safe door lock system ensuring safety / protection during sterilization Automatic power cut off with alarm with low water levels indication Stainless steel sterilizing baskets Automatic cold air discharge from system chamber ensures dry and clean environment Auto exhaustion of cool air Specifications : Capacity 20 L Sterilization Temperature 134 °C Adjustment temperature 105 to 134 °C Sterilization Pressure 0.22 MPa Number of sterilizing baskets 3 Timer Range Heat Average 0 - 60 minutes ≤ ± 1 ℃ Chamber Dimension (Φ×D) Dimension 250 × 420 mm

  3. Net Weight Gross Weight 40 kg 44 kg Power Supply 1.5 kW / AC 220 V 50 Hz Applications : Table top autoclave has its application in medical, clinical and drug testing research and also in hospitals, cosmetic salons & tattoo parlours. Labtron Equipment Ltd Quatro House, Lyon Way,Camberley, Surrey GU16 7ER United KingdomQuatro House, Lyon Way,Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.uk | Website: www.labtron.uk
