Features to Consider When Choosing Press Brake Tooling

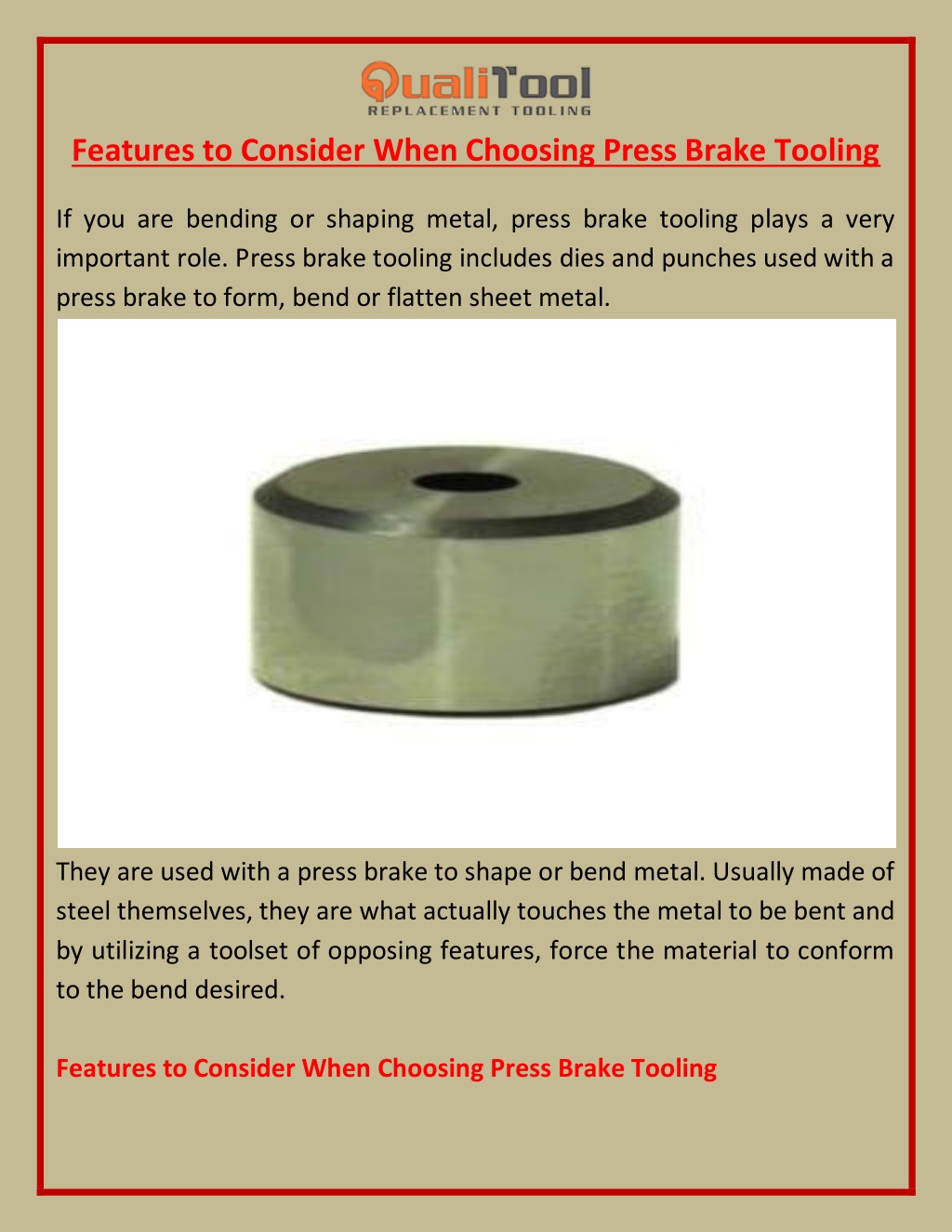

1. Features to Consider When Choosing Press Brake Tooling If you are bending or shaping metal, press brake tooling plays a very important role. Press brake tooling includes dies and punches used with a press brake to form, bend or flatten sheet metal. They are used with a press brake to shape or bend metal. Usually made of steel themselves, they are what actually touches the metal to be bent and by utilizing a toolset of opposing features, force the material to conform to the bend desired. Features to Consider When Choosing Press Brake Tooling

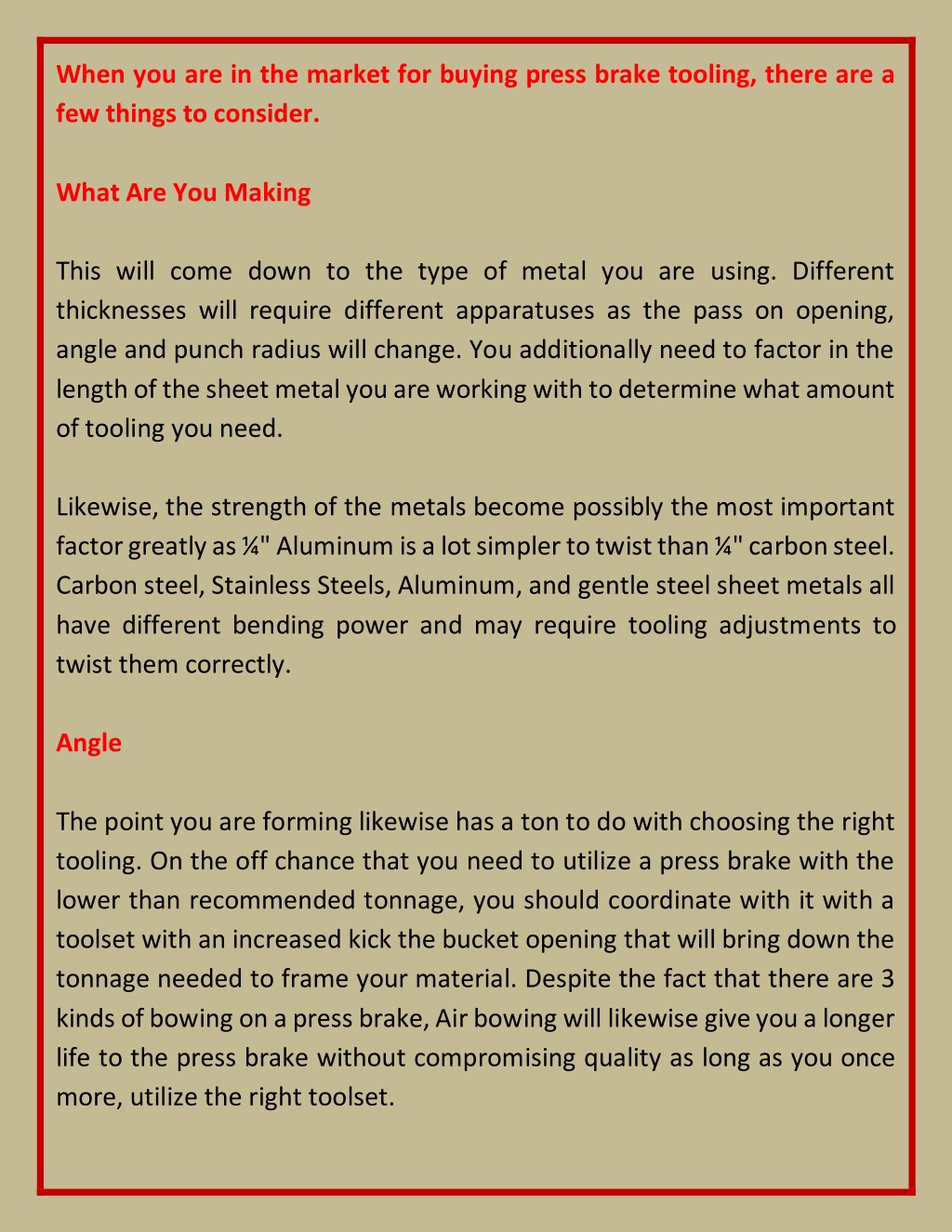

2. When you are in the market for buying press brake tooling, there are a few things to consider. What Are You Making This will come down to the type of metal you are using. Different thicknesses will require different apparatuses as the pass on opening, angle and punch radius will change. You additionally need to factor in the length of the sheet metal you are working with to determine what amount of tooling you need. Likewise, the strength of the metals become possibly the most important factor greatly as ¼" Aluminum is a lot simpler to twist than ¼" carbon steel. Carbon steel, Stainless Steels, Aluminum, and gentle steel sheet metals all have different bending power and may require tooling adjustments to twist them correctly. Angle The point you are forming likewise has a ton to do with choosing the right tooling. On the off chance that you need to utilize a press brake with the lower than recommended tonnage, you should coordinate with it with a toolset with an increased kick the bucket opening that will bring down the tonnage needed to frame your material. Despite the fact that there are 3 kinds of bowing on a press brake, Air bowing will likewise give you a longer life to the press brake without compromising quality as long as you once more, utilize the right toolset.

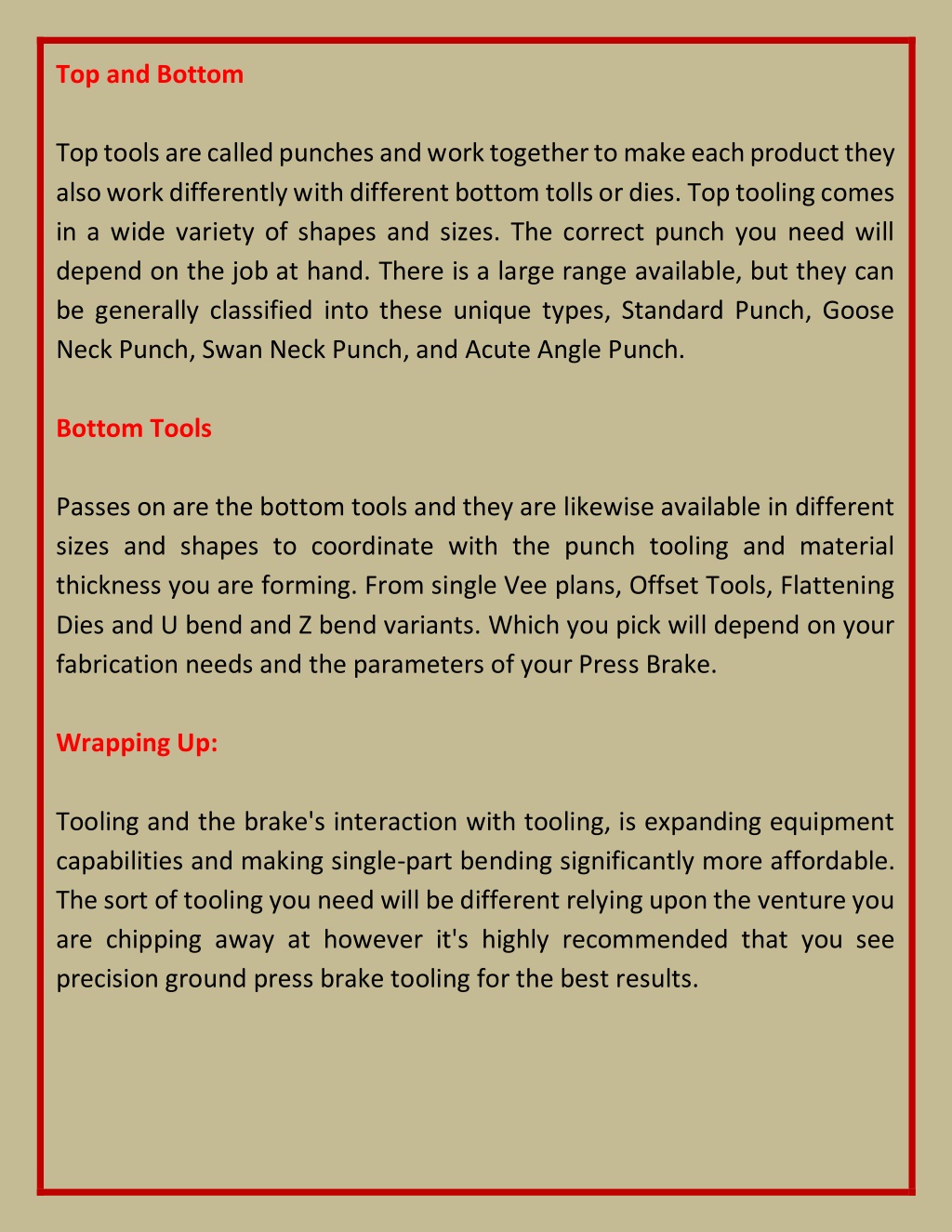

3. Top and Bottom Top tools are called punches and work together to make each product they also work differently with different bottom tolls or dies. Top tooling comes in a wide variety of shapes and sizes. The correct punch you need will depend on the job at hand. There is a large range available, but they can be generally classified into these unique types, Standard Punch, Goose Neck Punch, Swan Neck Punch, and Acute Angle Punch. Bottom Tools Passes on are the bottom tools and they are likewise available in different sizes and shapes to coordinate with the punch tooling and material thickness you are forming. From single Vee plans, Offset Tools, Flattening Dies and U bend and Z bend variants. Which you pick will depend on your fabrication needs and the parameters of your Press Brake. Wrapping Up: Tooling and the brake's interaction with tooling, is expanding equipment capabilities and making single-part bending significantly more affordable. The sort of tooling you need will be different relying upon the venture you are chipping away at however it's highly recommended that you see precision ground press brake tooling for the best results.
