  1. ACG 4401 Access 2007 Tables Part I Datasheet vs. Design View

  2. Creating the Database • Start Access • Getting Started Page Appears • Choose Blank Database • Type in filename • Extension will be .accdb • Choose your folder • Click Crate Button

  3. Backing up the Database • Office Button • Manage • Back Up Database

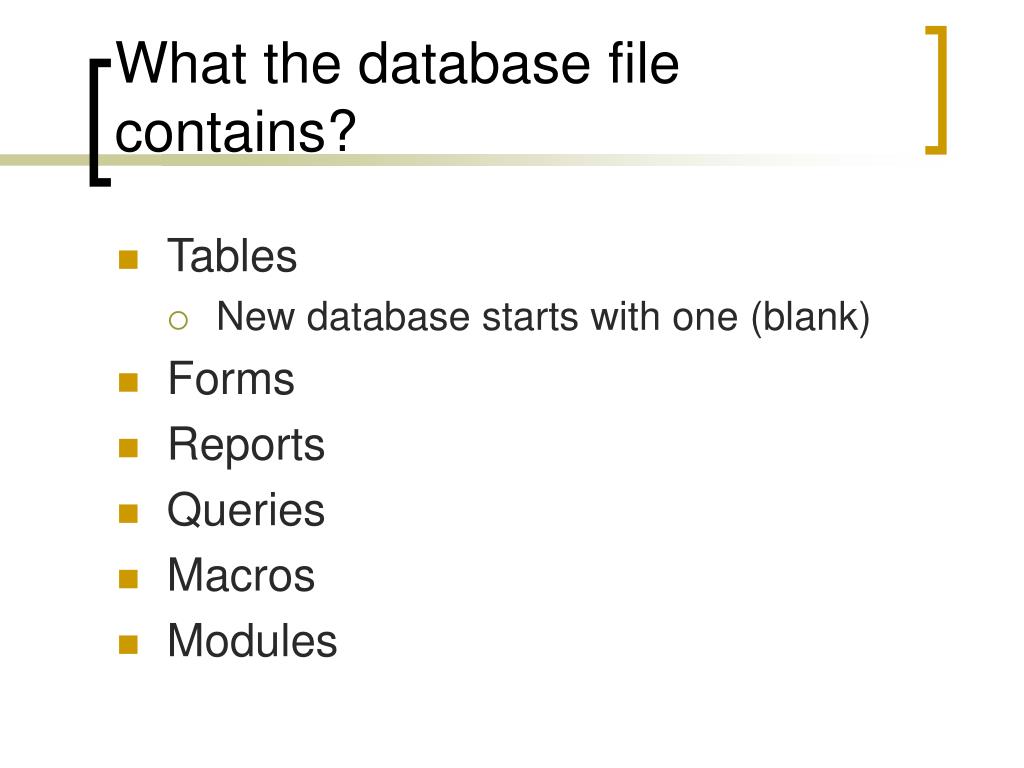

  4. What the database file contains? • Tables • New database starts with one (blank) • Forms • Reports • Queries • Macros • Modules

  5. Creating Tables • Datasheet View • Fast and Easy • Similar in Appearance to Excel • Columns become fields • Drawbacks • Data types are “guessed” by Access • Design View • Full Control over each field in your table • Full control over Data Types • Full control over other Field Properties

  6. Datasheet – Creating Table • Select your table (or create a new one) • Enter data in each column • Use a different column for each field • Add Column Names • These will be the names of your fields in your table • Double-click the column heading and edit • Save your table

  7. Multiple Datasheets • Each table will appear as a Tab (Access 2007) • Each table will appear as a separate Window (Access 2003 or earlier)

  8. Design View • Complete Control over the structure of your Tables • Fields/Attributes • Data Types • Other Data Properties • Used to: • Add Fields • End of Table • Move to last row of field list • Between Fields • Move to the row below where you want the new field • Right-click, Choose Insert Rows • Rearrange Fields • Just drag and drop • Delete Fields

  9. Fields Descriptions • Description will appear in the Status Bar • Control: Provide prompting/feedback to users

  10. For Each Field • Enter Field Name • Enter Data Type • Enter Description (optional) • Enter/Change Data Type Properties

  11. What are the Data Types • Text • Memo • Number • Currency • Date/Time • Yes/No • Hyperlink • Attachment • AutoNumber • OLE Object

  12. Text • Any Character accepted • Limited to 255 characters • ~ 1 paragraph • Properties: • Text Length • For most fields use 50 • If you know exact length (e.g. SS#) use the exact length (e.g. 9)

  13. Memo • Used to store a large amount of Unformatted text • 65k worth of data • ~ 1 average book chapter • To Edit large blocks of text (or anything) • Shift-F2

  14. Number • Field Size depends on Number Type • Byte • 0-255 • No decimals • Integer • -32,768 – 32,768 • No decimals • Long Integer (Access Default) • -2,147,483,648 – 2,147,483,648 • No decimals • Single (Best choice for decimals) • +/- up to 38 zeroes • Decimals to 7 places • Double • +/- up to 308 zeroes • Decimals to 15 places • Decimal • +/- up to 28 zeroes • Decimals to 28 places

  15. Currency • Most Efficient for Financial Calculations

  16. Date/Time • Access stores the Date and Time • Choose how it’s Displayed in the Format Field

  17. Yes/No • Any field that can be one of two states • Yes/No • On/Off • True/False • Male/Female

  18. Hyperlink • URL • File Address • Email Address

  19. Attachment • Access Stores the file inside the database • Pictures • Music Files • Word Files • Excel Files

  20. AutoNumber • Remember Primary Keys • Access automatically creates this field type when you crate a new Table • Unless: Create>>Tables>>Table Design • Default is sequential numbering • Two Options • Random # • Replication ID • Guaranteed to be unique • Useful if database is distributed but will later be merged

  21. Access 2007 Tables Part II Data Input Controls

  22. Input Control • From Design • Format the Datasheet • Home>Font • Gridlines • Every other Row Color • Fonts • Text Color • Background

  23. Data Entry Controls • Preventing Blank Fields • Required Property • Allowed Zero Length • Preventing Duplicate Values • Default Values • Input Masks • Validation Rules • Lookups

  24. Preventing Blank Fields • For any required field • Change Required Property to “Yes” • But Access considers “ “ to be data • Change Allow Zero Length Property to “No” • This also works for number field types if you want do not want to accept “0” as a number

  25. Preventing Duplicate Values • Indexed Property • Sorts a field in your table • Improves Performance when searching/querying • Three Options • No (Default) • Yes [Allow Duplicates] • Yes [No Duplicates]

  26. Default Values • Eliminates Need for User Input • Use Default Value Property • Same data is usually entered • For Example, Orlando for city • Dynamic default values • Access inputs the data but it changes based on condition • Date() Today's date is entered • Text default values must be enclosed in “”

  27. Input Masks • Enforce data value pattern • Phone Number • (407) 823-5739 • (999) 000-0000 • Social Security Number • 111-23-7456 • 999-99-9999 • Inventory Item Number • MB678-Z123 • >LL999->L999

  28. Input Mask • Open table in Design View • Select field that will have pattern • Choose Input Mask Property • Click on the small ellipse ... • Choose from the Access provided Masks or Create your Own • Choose how to store the Data • Store only the data • 4078235739 • Store the data and extra characters • (407) 823-5739

  29. Creating Your Own Mask • Placeholders • Where should the user input data, and what type of data is allowed • Special Characters • How to treat data that is entered in the mask • Literals • Formatting for the mask • () in phone number, - for SS #

  30. Placeholder Characters

  31. Special Characters

  32. Field Validation Rules • Restrict data allowed • If data matches rule it can be entered • If data does not match rule Access keeps it out • Applying Validation Rule • Open table in Design View • Select field • Go to Validate Rule Property • Type Expression • Type Error Message in Validation Text Property

  33. Writing Expressions • Validating Numbers • <, >, <>, <=, >=, =, Between • Validating Dates • Dates must be entered between ## • #05/23/2008# • <, >, <=, >= • Date Functions • Date () Today’s date, one second after midnight • Now(0 Today’s date and current time • <, > • Validating Text • Starts with • Ends with • Contains • Like Operator and * wildcard or ? Single character • Combining Validation Conditions • And • Or

  34. Validating Text Examples • Start of text • Like “ACG*” • End of text • Like “*4401” • Contains text anywhere • Like “*A*B*” • Contains text specific place • Like “????7Y2” • if 1st 4 characters are text • Like “####7Y2” • if 1st 4 characters are numbers • Restrict character to certain letters or symbols • Like “[AE]*” • Must begin with A or E • Like “[ABCD]*” or Like “[A-D]*” • Must begin with A, or B, or C, or D

  35. Table Validation Rules • Allows comparison of multiple fields from a table • For example: • Ship Date can NOT be before Order date • Validation Rule = Order Date < Ship Date • To create table validation rule • Open table in Design View • Table Tools > Design > Show/Hide > Property Sheet • Set Validation Rule • Set Validation Text • field names must appear between [] • [DateOrdered] < [DateShipped] or • [DateOrdered] <= [DateShipped]

  36. Lookups • Helps to standardize data • Enter a value by choosing from a list • Two Types • List has fixed set values • List comes from another table

  37. Fixed Lookup Lists • Open Table in Design View • Go to field which will have lookup • Change Data type to Lookup Wizard • Choose “I will type in the values that I need” • Enter the values • Choose if lookup can store multiple values

  38. Lookup List Property • Disable user ability to add to or override list • Set the Limit to List property = “Yes” • Allow list modification • Set the Limit to List property = “No”

  39. Access 2007 Tables Part III Linking Tables

  40. Defining a Relationship • Each relationship links two tables • Primary Key from one table • Foreign key from another table • Primary key value from 1st table • Choose: • Database Tools > Show/Hide > Relationships • Add tables that participate in relationship • Drag the field from one table (the one side) to the related field in the other table (the many side) • Edit relationship • Set Enforce Referential Integrity • Prevents Insert, Deletion or Update anomalies • Cascade Deletes • You don’t want to do this, but... • It deletes every record in all related tables • Cascade Updates • Any changes made in a link field (the one side) are automatically made in the linked field (the many side)

  41. Lookups with Related Tables • 2nd Lookup Option • Data values come from related table • You must remove any defined relationship before doing the lookup • Same steps as Lookup described earlier • Choose “I want the lookup column to look up values in a table or query” • Choose the table • Choose the field for the lookup • Choose a field that describes the lookup field • Choose a field to sort • Choose “Hide Key Column” • Name the lookup • Finish

  42. Access 2007 Queries

  43. Types of Queries • Select • Display data that matches criteria • Action Queries • Append data • Delete data • Update data • Matches criteria • All Queries are Objects stored in the database

  44. Steps to Create Select Query • Create > Other > Query Design • Select table(s) • Select fields you want displayed • Double click or • Drag • Choosing * field will select all fields • Arrange fields from left to right • Best done by selecting in order you want • But you can drag fields around to re-arrange • To Hide a Column • Uncheck the Show checkbox • Choose a field to sort by • Create your Criteria • Run Your Query • Save the Query

  45. Join Queries • Combine two related tables • Primary key • Foreign key • Just add two (or more) tables to your Query Design • Create Relationship • If relationship doesn’t already exist • Everything else is the same.

  46. Inner Joins vs Outer Joins • Inner Joins • Only shows linked records • Each Inventory item related to a Vendor • Each Sales order related to a Customer • Outer Joins • Show linked records AND • Other records from one of the two linked tables • All Sales order that match a criteria based on Customer AND remaining Customers not linked to a Sales Order

  47. Creating Outer Joins • Right Click Join line in Query • Choose: • Only choose rows where joined fields from both tables are equal (inner join) • Include All records from “xxxxx” table and only those records from “yyyyy” table where joined fields are equal (outer join) • Include All records from “yyyy” table and only those records from “xxxx” table where joined fields are equal (outer join)

  48. Creating a Calculated Field • Two Parts: • Calculated field name: Expression • Using field names for the table(s) • Enclose in [] and • [TableName.FieldName] • [Customer.FirstName]

  49. Math Expressions • + • - • * • / • ^ - Exponentiation 22 • \ - Integer Division 5/2 = 2 • Mod – Modulas 5/2 = 1 (the remainder)

  50. Writing Expressions • Long Expression? • Shift-F2
