  1. Chapter 4 CPU Scheduling

  2. Contents Scheduling concepts Types of scheduling – Long, medium, short CPU scheduler Dispatcher Scheduling criteria Kinds of scheduling Scheduling algorithms Scheduling algorithm evaluation

  3. Scheduling • Key to multi-programming • Objective of multiprogramming is to maximize resource utilization • Not possible to achieve without proper scheduling • All resources are scheduled before use • CPU is primary resource and scheduling CPU is central to OS • Four types of schedulers: Long term, Short term, Medium term, I/O

  4. CPU, I/O cycle • Process execution consists of cycle of CPU execution and I/O operation • Process alternate between these 2 states • Begins with CPU burst, followed by I/O burst, again CPU burst …. terminates after a CPU burst • I/O bound jobs have short CPU bursts • CPU bound jobs have long CPU bursts • Durations of CPU bursts have been extensively measured • Many jobs have more shorter CPU bursts

  5. Process Scheduling

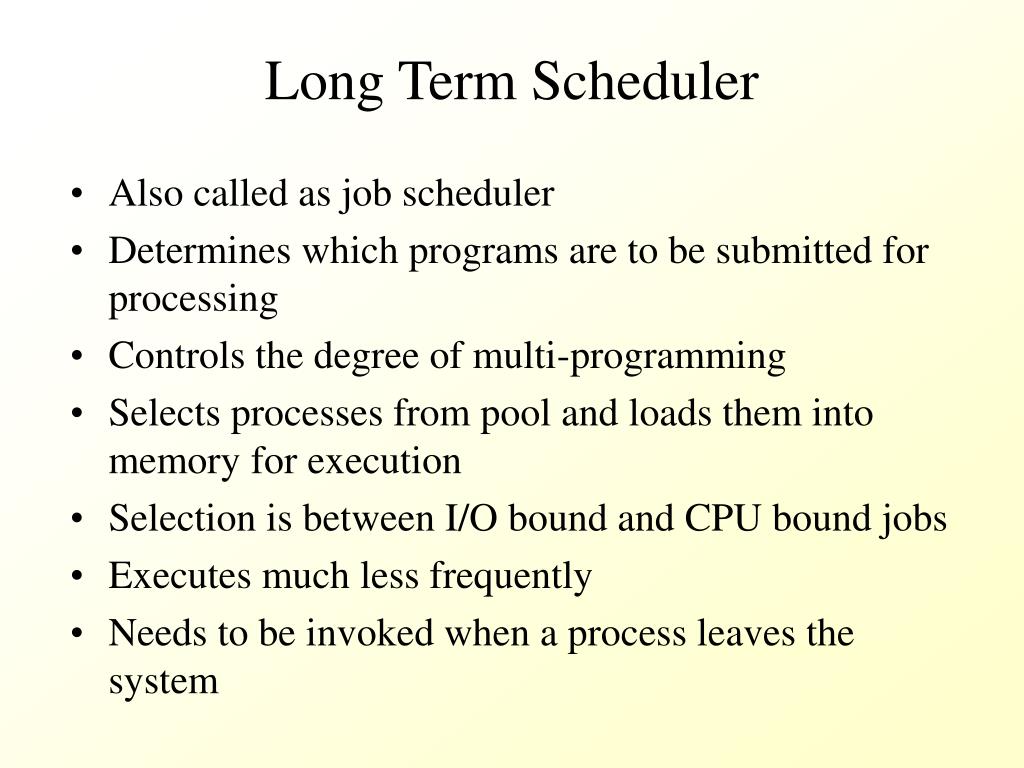

  6. Long Term Scheduler • Also called as job scheduler • Determines which programs are to be submitted for processing • Controls the degree of multi-programming • Selects processes from pool and loads them into memory for execution • Selection is between I/O bound and CPU bound jobs • Executes much less frequently • Needs to be invoked when a process leaves the system

  7. Medium Term Scheduler • Part of the swapping function • Usually based on the need to manage multi-programming • The process can be reintroduced into memory and its execution can be continued where it left off • If no virtual memory, memory management is also an issue

  8. Short Term Scheduler • Also called as CPU scheduler • Makes fine grained decisions of which job to execute next. That is which job actually gets to use the processor • Selects from among the processes that are ready to execute and allocates the CPU to one of them • This scheduler is called often and it executes at least once every milliseconds

  9. Selects a process from the processes in Ready queue • CPU scheduling decisions occur when a process: • 1. switches from running to waiting state • 2. switches from running to ready state (interrupt occurs) • 3. switches from waiting to ready state (ex. after completion of I/O) • 4. terminates • Scheduling under 1, 4 is non preemptive • Scheduling under 2 and 3 is preemptive

  10. Preemptive and non-preemptive scheduling • New jobhas to be scheduled in cases of 1 and 4 – non preemptive • In case of 2 and 3 scheduling is optional – preemptive • Scheduling done when status of ready queue changes • Preemptive scheduling is expensive, hard • Requires extra hardware • Processes can share data • Should be careful and cautious -if one preempted by another and the shared data referred by the new process • At time of processing system calls, kernel may be busy on behalf of a process • If preempted, chaos is the result – unless such preemptions are taken care of the OS

  11. Dispatcher • Dispatcher module gives control of the CPU to the process selected by the short-term scheduler and this involves: • switching context • switching to user mode • jumping to the proper location in the user program to restart that program • Dispatch latency – the time taken by dispatcher to stop one process and start another running • Dispatcher should execute fast because it is invoked during every process switch

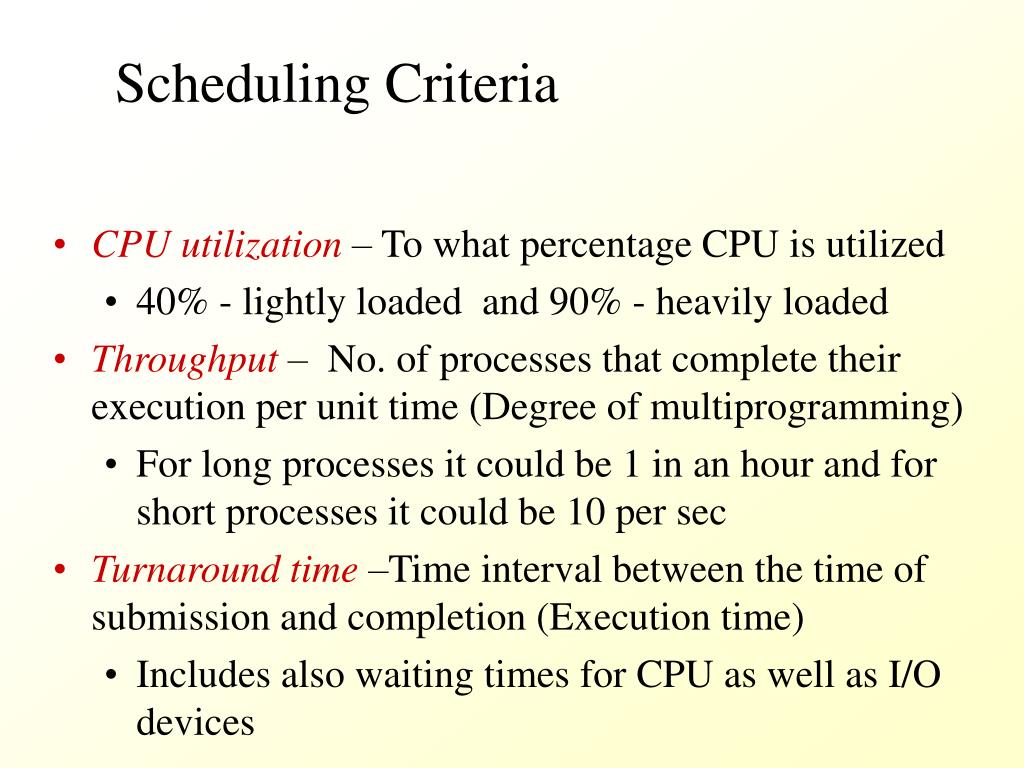

  12. Scheduling Criteria • CPU utilization – To what percentage CPU is utilized • 40% - lightly loaded and 90% - heavily loaded • Throughput– No. of processes that complete their execution per unit time (Degree of multiprogramming) • For long processes it could be 1 in an hour and for short processes it could be 10 per sec • Turnaround time –Time interval between the time of submission and completion (Execution time) • Includes also waiting times for CPU as well as I/O devices

  13. Scheduling criteria • Waiting time – sum of all the time waiting in Ready queue • Does not take into account wait time for I/O and I/O operation time • Response time – amount of time it takes from the time of submission of a job until the first response is produced • In time shared systems small turn around time may not be enough • Response time should be small. It is the time taken to start responding. Does not include time to output that response

  14. Optimization Criteria • Maximize CPU utilization and throughput • Minimize turnaround time, waiting time and response time • We optimize average times. Occasionally optimize extreme measures Ex. Minimize maximum response time • In time shared systems it is better if variance in response time is minimized • A system that has reasonable and predictable response time is better than system with small average response timeand highly variable

  15. Kinds of Scheduling • Non-preemptive scheduling: A process runs to completion when scheduled • Preemptive scheduling: A process may be preempted for another process which may be scheduled. A set of processes are processed in an overlapped manner

  16. Non-preemptive and preemptive scheduling methods • Non-preemptive: • FCFS – First come first served • SJF – shortest job first and SRTF – shortest remaining time first • Priority scheduling • Preemptive: • SJF • Priority scheduling • Round robin • Multilevel queue • Multilevel feed back queue

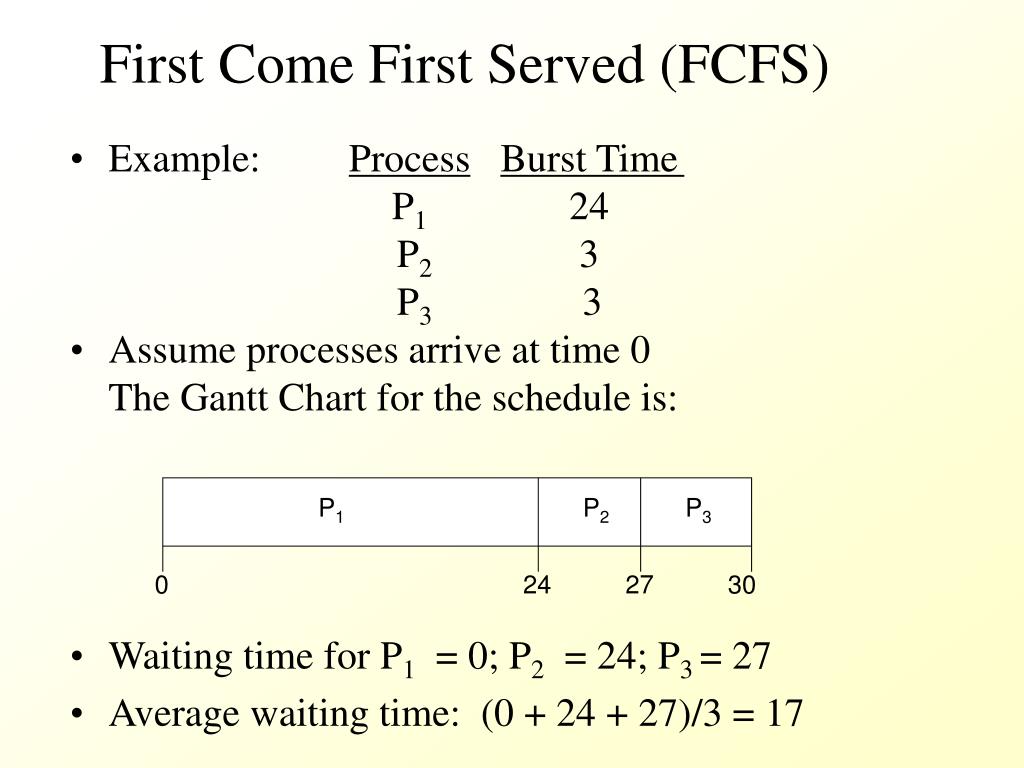

  17. P1 P2 P3 0 24 27 30 First Come First Served (FCFS) • Example: ProcessBurst Time • P1 24 • P2 3 • P33 • Assume processes arrive at time 0The Gantt Chart for the schedule is: • Waiting time for P1 = 0; P2 = 24; P3= 27 • Average waiting time: (0 + 24 + 27)/3 = 17

  18. P2 P3 P1 0 3 6 30 FCFS Scheduling • Suppose processes arrive as: P2 , P3 , P1 . • The Gantt chart for the schedule is: • Waiting time for P1 = 6;P2 = 0; P3 = 3 • Average waiting time: (6 + 0 + 3)/3 = 3 • Much better than previous case

  19. FCFS scheduling • All I/O bound processes finish CPU bursts quickly and wait for I/O operations • Convoy effect - short processes wait for a long process to get off the CPU • CPU bound process is keeping I/O device – I/O operations are much slower than CPU operations • CPU is idle and all other jobs wait for I/O • Not good for time shared systems – each user has to get a share of CPU time frequently

  20. Shortest-Job-First (SJF) Scheduling • In fact it is shortest next CPU burst • Assume CPU burst length for each process in ready queue are known • Two schemes: • Non-preemptive – once CPU assigned, process not preempted until its CPU burst completes • Can be preemptive – if a new process with CPU burst less than remaining time of current, preempt Shortest-Remaining-Time-First (SRTF) • SJF is optimal – gives minimum average waiting time for a given set of processes

  21. Example of Non-Preemptive SJF P2 P3 P1 0 3 7 23 • ProcessBurst Time • P1 16 • P2 3 • P3 4 • SJF (non-preemptive) The Gantt Chart for the schedule is:Here, the waiting time for P1 is 7ms, P2 is 0ms, P3 • is 3ms. • Average waiting time = (7 + 0 + 3 )/3 =10/3=3.33 ms.

  22. Example of Preemptive SJF • ProcessArrival timeBurst Time • P1 0 8 • P2 1 4 • P3 2 9 • P4 3 5 • SJF (preemptive) The Gantt Chart for the schedule is: • Average waiting time = (10-1) +(1-1) +(17-2)+(5-3)/4 • = 26/4 =6.5ms. 0 1 5 10 17 19

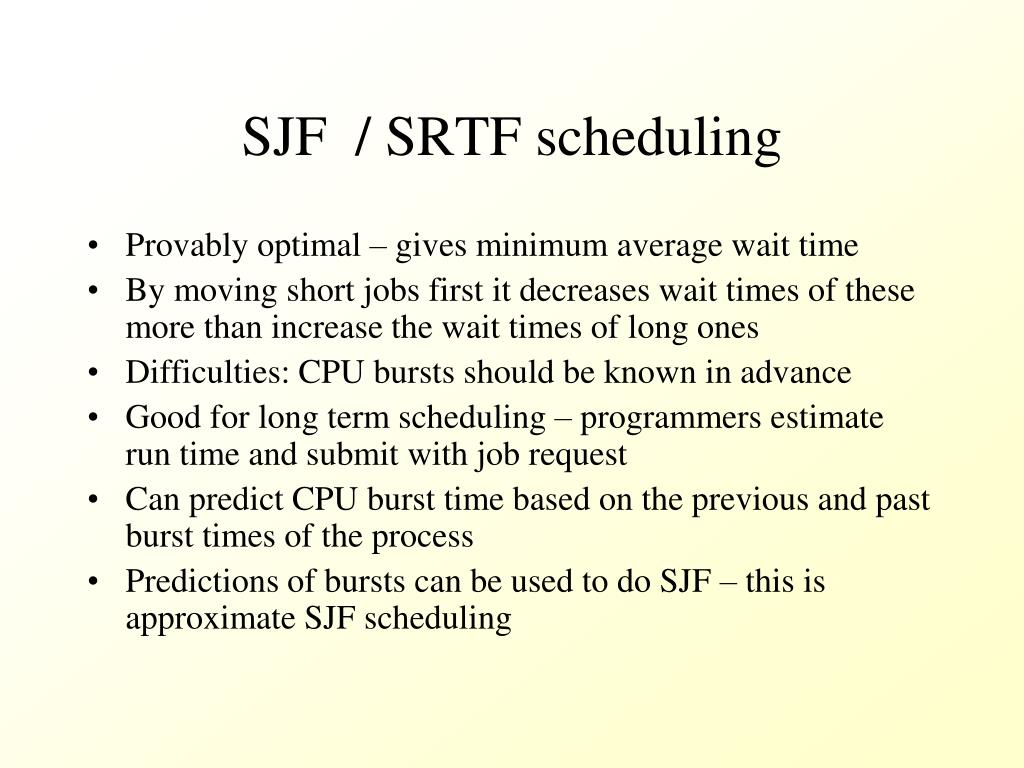

  23. SJF / SRTF scheduling • Provably optimal – gives minimum average wait time • By moving short jobs first it decreases wait times of these more than increase the wait times of long ones • Difficulties: CPU bursts should be known in advance • Good for long term scheduling – programmers estimate run time and submit with job request • Can predict CPU burst time based on the previous and past burst times of the process • Predictions of bursts can be used to do SJF – this is approximate SJF scheduling

  24. Burst time prediction • Exponential average formula • Tn+1 = a * tn + (1-a) * Tn : 0a 1 • Tn storesthe past history • tn contains most recent information of burst time • Set values for ‘a’ suitably • Tn+1 = a * tn + (1-a)*a* tn-1+(1-a)2* a* tn-1 …

  25. Priority Scheduling • Priority number (integer) associated with process • SJF and SRTF are special cases of general priority scheduling • Larger the burst time lower is the priority • CPU allocated to process with highest priority • Can be preemptive or non preemptive • Preemptive priority scheduling will preempt the CPU if a high priority job arrives to ready queue • Problem: Starvation / indefinite blocking  low priority processes may never execute • Solution: Aging increasing gradually the priority of processes which are waiting in the system for CPU for a long time • Ex: If priority is 127 (low) decrement by 1 for every 15 minutes of wait – takes 32 hours to get the priority 0.

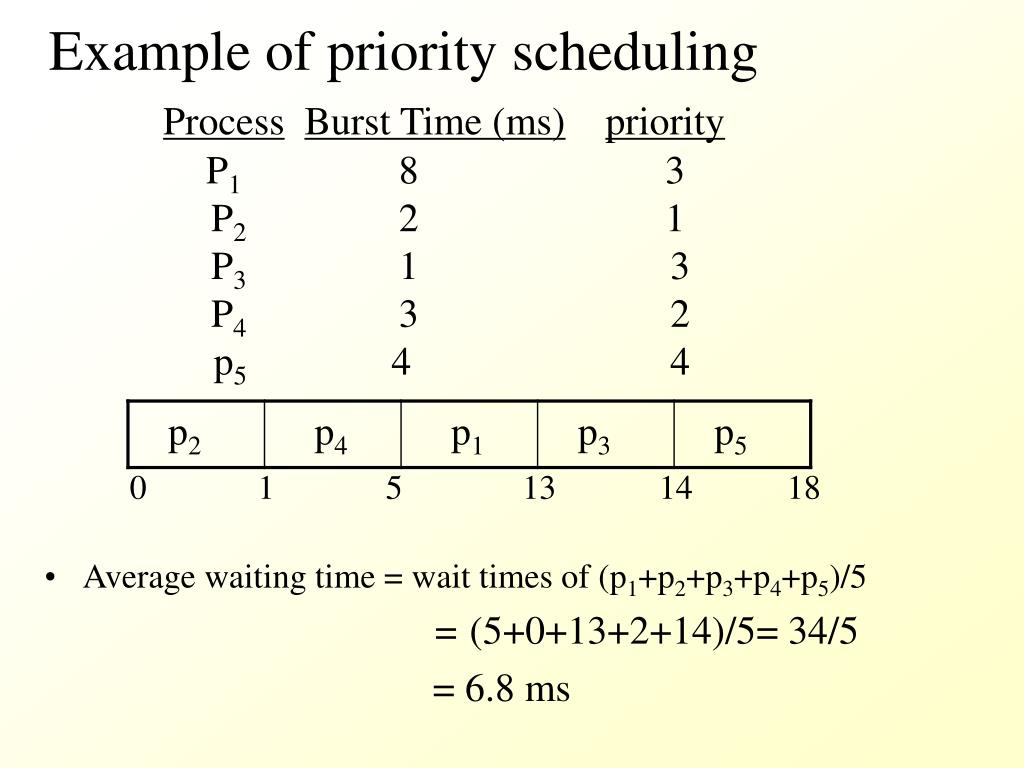

  26. Example of priority scheduling • Process Burst Time (ms)priority • P1 8 3 • P22 1 • P3 1 3 • P4 3 2 • p5 4 4 • Average waiting time = wait times of (p1+p2+p3+p4+p5)/5 • = (5+0+13+2+14)/5= 34/5 • = 6.8 ms 0 1 5 13 14 18

  27. Round robin scheduling • • Designed for time-sharing systems • Jobs get the CPU for a fixed time (quantum time or time slice) • • Similar to FCFS, but with preemption • - CPU interrupted at regular intervals • • Needs hardware timer • Ready queue treated as a circular buffer • • Process may use less than a full time slice • They terminate and scheduling take place • If process is incomplete at the end of time slice, they • join end of ready queue • With n processes and quantum = q, each process waits for at most (n-1)*q

  28. Dynamics of Round Robin (RR) • Decision mode: preemptive • A process is allowed to run until the time slice period called time quantum, is reached • Then a clock interrupt occurs and the running process is dispatched • If there are n processes in the ready queue and the time • quantum is q, then each process gets 1/n of the CPU time in • chunks of at most q time units at once. No process waits • more than (n-1)q time units.

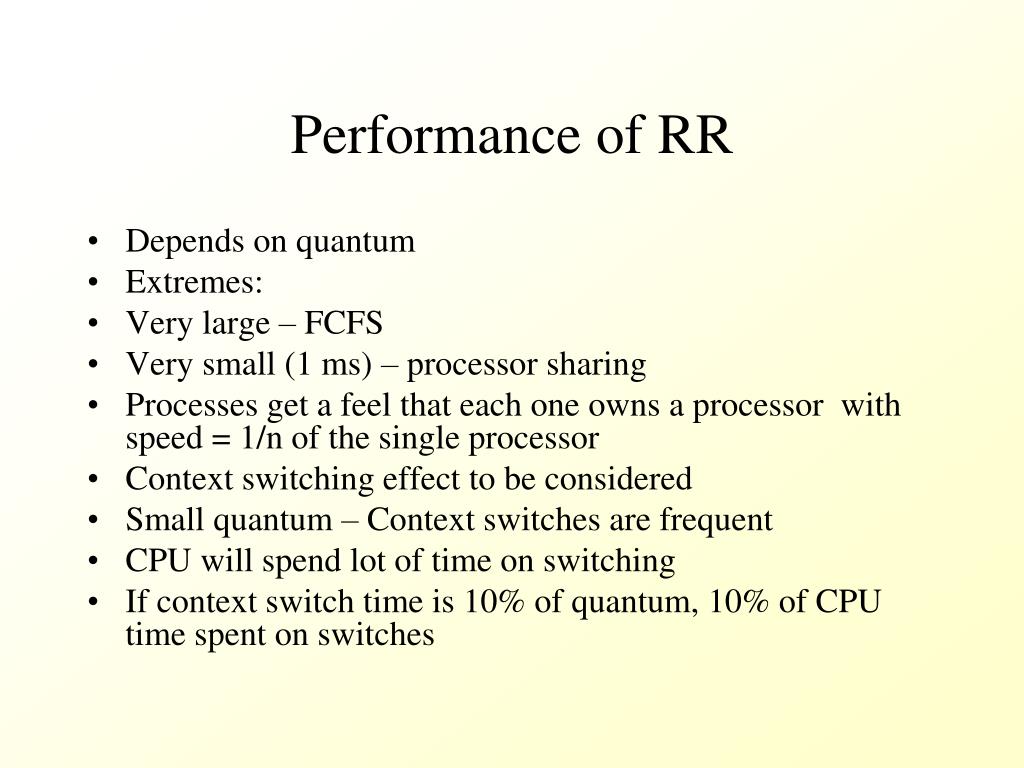

  29. Performance of RR • Depends on quantum • Extremes: • Very large – FCFS • Very small (1 ms) – processor sharing • Processes get a feel that each one owns a processor with speed = 1/n of the single processor • Context switching effect to be considered • Small quantum – Context switches are frequent • CPU will spend lot of time on switching • If context switch time is 10% of quantum, 10% of CPU time spent on switches

  30. Performance of RR • Turn around time also depends on time quantum • Increase in quantum time - less frequent executions of switching – lesser turn around time • Average turn around time (TT) does not always improve with increase in quantum time • TT can be improved if most processes can finish their jobs in one quantum • With 3 processes of 10 ms each, and time slice = 1 ms, average turn around time = 29 ms (excluding switching time) • If time slice = 10, average turn around time = 20 ms (plus switching time)

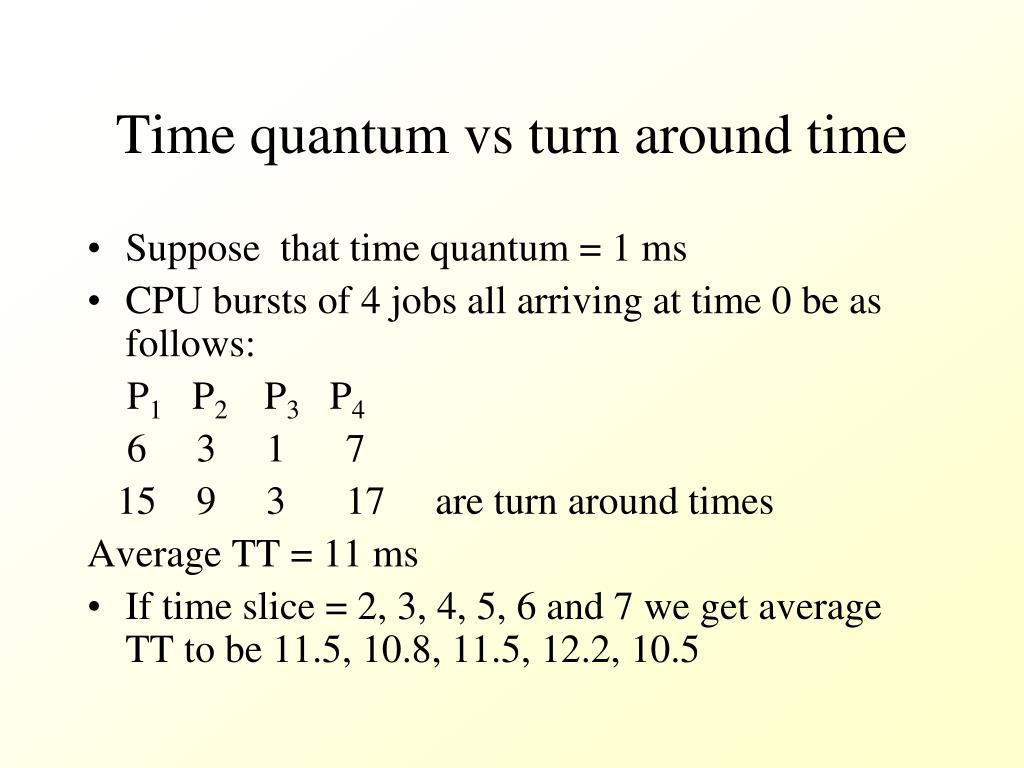

  31. Time quantum vs turn around time • Suppose that time quantum = 1 ms • CPU bursts of 4 jobs all arriving at time 0 be as follows: P1 P2 P3 P4 6 3 1 7 15 9 3 17 are turn around times Average TT = 11 ms • If time slice = 2, 3, 4, 5, 6 and 7 we get average TT to be 11.5, 10.8, 11.5, 12.2, 10.5

  32. Round-Robin Example Service Time Arrival Time Process 1 0 3 2 2 6 3 4 4 4 6 5 5 8 2

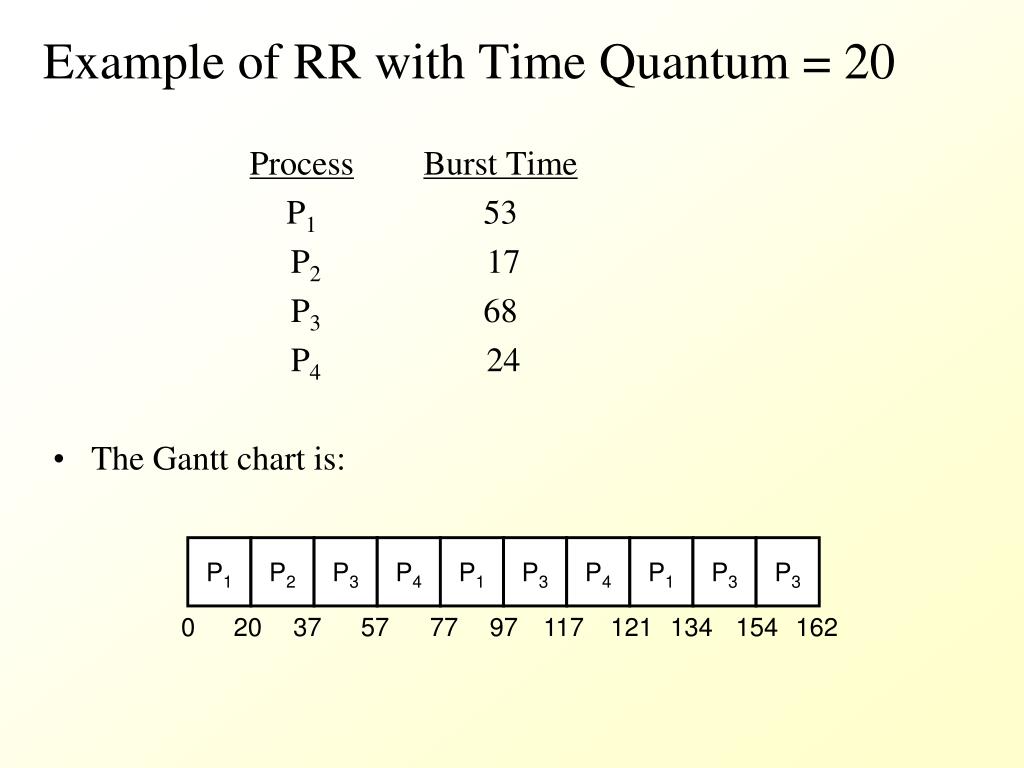

  33. P1 P2 P3 P4 P1 P3 P4 P1 P3 P3 0 20 37 57 77 97 117 121 134 154 162 Example of RR with Time Quantum = 20 ProcessBurst Time P153 P217 P368 P424 • The Gantt chart is:

  34. Features of RR • All processes gets equal share of the CPU • Typically RR gives longer turnaround time than SJF, but better response time – good for time-sharing • Short time slices gives better response time • Simple, low overhead, works for interactive systems If quantum too small, too much time wasted in context switching If too large, reduces to FCFS Typical value: 10 - 100 msRule of thumb: Choose quantum so that large majority (80-90%) of jobs finish CPU burst in one quantum

  35. Multilevel queue scheduling • This scheduling partitions the ready queue into several separate queues. Ex: Ready queue can be logically divided into separate queues based on the idea that jobs can be categorized as:- foreground (interactive)- background (batch) • Assign high priority for type 1 jobs - externally • These two categories have different response time requirements – make 2 queues • Each queue has its own scheduling algorithm: foreground – RR background – FCFS • Method is complex but flexible • .

  36. Multilevel queue scheduling • Scheduling must be done among the queues –fixed • priority preemptive • All foreground jobs are served and then background • attended to only when foreground queue empty • Another method -using time slice between the queues: • Each queue gets a certain amount of CPU time which it • can schedule amongst its processes i.e., 80% to • foreground in RR; 20% to background in FCFS

  37. Multilevel Queue Scheduling

  38. Multilevel feedback queue • Preemptive scheduling with dynamic priorities • A process can move between the various queues • Multilevel-feedback-queue scheduler defined by the following parameters: • number of queues • scheduling algorithms for each queue • method used to determine which queue a process will enter when that process needs service • method used to determine when to upgrade process • method used to determine when to demote process • Most general CPU scheduling – most complex • Several parameters to set – if chosen properly could be the best for target system

  39. Multilevel Feedback Queues

  40. Example of Multilevel Feedback Queue • Three queues: • Q0 : time quantum 8 milliseconds • Q1 : time quantum 16 milliseconds • Q2 : FCFS • Scheduling : • A new job enters queue Q0which is servedFCFS. When it gets CPU, job receives 8 milliseconds. If it does not finish in 8 milliseconds, job is moved to queue Q1. • At Q1 job is again served FCFS and receives 16 additional milliseconds. If it still does not complete, it is preempted and moved to queue Q2. • Could be also vice versa.

  41. Example of Multilevel Feedback Queue

  42. Comparison of algorithms • Which one is best ? • The answer depends on: • on the system workload (extremely variable) • hardware support for the dispatcher • relative weighting of performance criteria (response time, CPU utilization, throughput...) • The evaluation method used (each has its limitations...) • Hence the answer depends on too many factors to give any...

  43. Scheduling Algorithm Evaluation • Deterministic modeling • Queuing models • Simulation • Implementation

  44. Algorithm Evaluation Analytic evaluation: - Deterministic modeling : takes a particular predetermined workload and compares the performance of each algorithm for that workload. Simple and easy to do; but requires exact numbers for input which is hard to get for any given system. Not realistic. Queuing models(stochastic model ) : - Knowing the job arrival rates and service rates we can compute CPU utilization, average queue length, average waiting time, etc. - This is a separate area called queuing-network analysis.

  45. Experimental method: • - Simulation : • - Involves programming a model of the system • - Results are of limited accuracy • Implementation: • - Implement the algorithm and study the • performance • - It is the best way to study and compare the • performance of different algorithms • - It is expensive and time consuming

  46. Evaluation of CPU Schedulers by Simulation

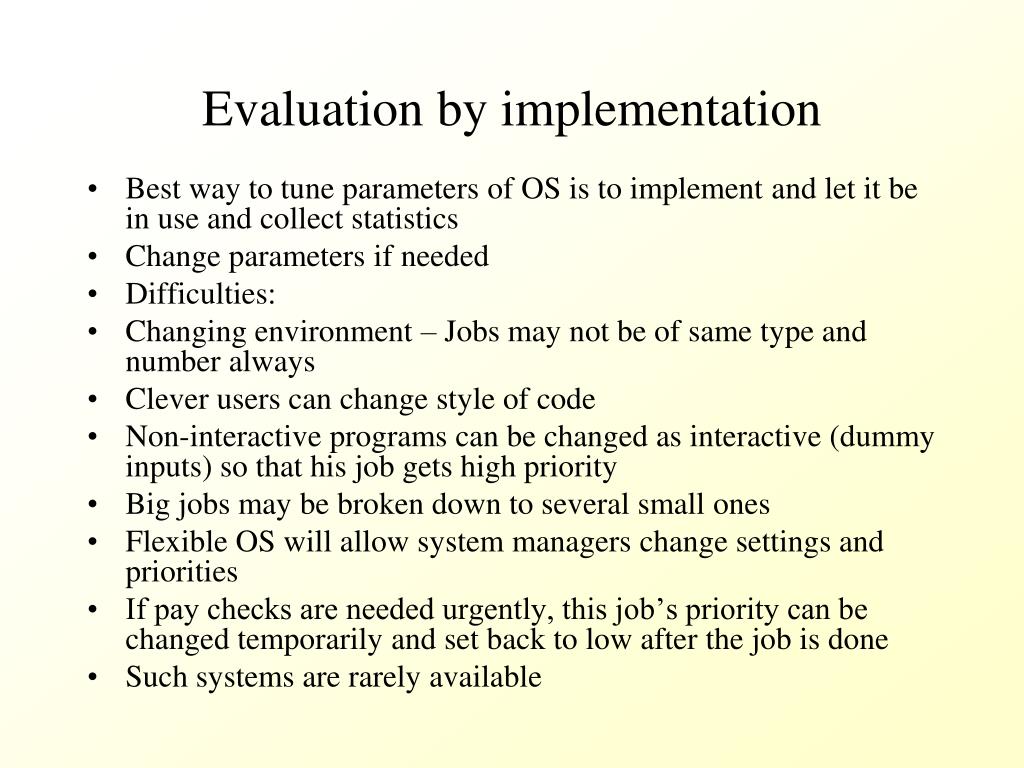

  47. Evaluation by implementation • Best way to tune parameters of OS is to implement and let it be in use and collect statistics • Change parameters if needed • Difficulties: • Changing environment – Jobs may not be of same type and number always • Clever users can change style of code • Non-interactive programs can be changed as interactive (dummy inputs) so that his job gets high priority • Big jobs may be broken down to several small ones • Flexible OS will allow system managers change settings and priorities • If pay checks are needed urgently, this job’s priority can be changed temporarily and set back to low after the job is done • Such systems are rarely available
