2. Carlo Gavazzi, Inc. Parking Guidance SystemBy Erich Industries, Inc.

3. About Carlo Gavazzi, Inc. • Established 1931 • Global Manufacturer of Automation and Control Products • Global HQ Lainate (Milan), Italy • US HQ Buffalo Grove (Chicago), IL

4. Solutions

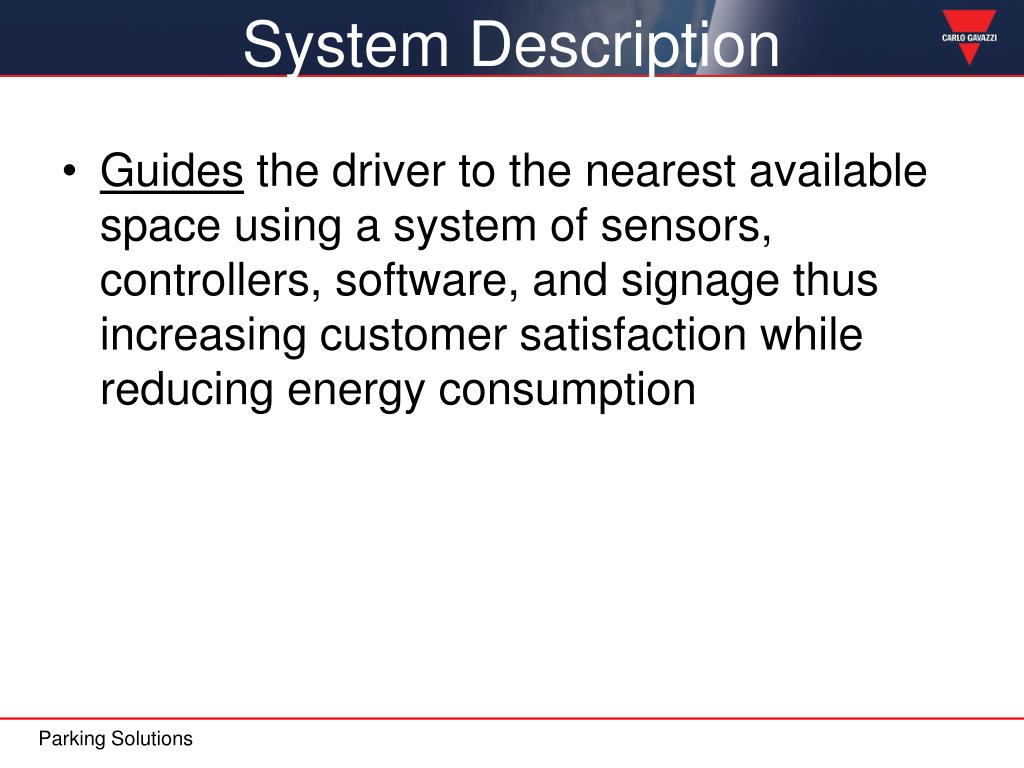

5. System Description • Guides the driver to the nearest available space using a system of sensors, controllers, software, and signage thus increasing customer satisfaction while reducing energy consumption

6. System Overview Bus L1 Max 123 sensors Master Module Carpark Monitor Slave mode BCD Display #1 Bus L1 Up to 480 Carpark Monitors Max 123 sensors Master Module BCD Display #2 Master Module Bus L2 Master Display Carpark Monitor Master mode

7. Overview: System with PC Bus L1 Master Module Max 123 sensors Carpark Monitor Slave mode Bus L1 Master Module Up to 480 Carpark Monitors Max 123 sensors Master Module The PC software is monitoring all the ultrasonic sensors via the Master Modules (GP34960005) and showing the status of the sensors and displays graphically on the screen. Other functions include booking, alarm handling and statistical analysis (CG software under development). System does not depend on PC. Bus L2 RS485 Carpark Monitor Master mode

8. System Configuration

9. System Configuration

10. The Products Relevant Technical Data • GP6220220X724, GP62402224724 – Ultrasonic Sensor • Ultrasonic sensor for detection of cars • Available with red/green or red/blue LED’s (blue for handicapped) • Available without LED’s for connection of external LED’s • Up to 4m detection distance • Extended temperature range –40 to 158 F • Individual or “global” calibration (all at once in a network) • Built-in Dupline 3-wire bus interface for sensor networking and power • Easy coding with dedicated handheld carpark programming tool • Fast and easy installation due to push-wire connectors for Bus-in • and Bus-out terminals, no screwdriver needed • Easy sensor replacement due to mounting in holder

11. The Products Relevant Technical Data • GP6289000X – LED Indicator • External LED Indicator controlled by sensor output • Used in those cases where sensors with built-in • LED’s are not visible from parking driveways • Available with red/green or red/blue LED’s • (blue for handicapped) • Clear indication visible over long distance • Fast and easy installation with pushwire connectors

12. The Products Technical Data • GP34829091724 – Carpark Monitor • Intelligent unit which can be configured to monitor a certain • range of sensors addresses (an area of the carpark) • Connected to external carpark display via RS485 for sending the • number of free places to be displayed • Linked to sensors via Dupline 3-wire bus (Bus L1) • Upper level Dupline 2-wire bus interface (Bus L2) providing link • between Direction Indicators enabling units in master mode to add • together the number of free places in a larger area, e.g. an entire • floor • Option to include roof parking bays (surface parking) via counting system • Early lane detection feature for faster updating of carpark users • Easy programming via dedicated handheld carpark configuration tool • Power Supply: 20-30 VDC

13. The Products Technical Data • GP676301XX – Carpark displays • Slave displays showing the number of free parking bays in a • parking segment • Flexible modular concept with several options • Different number of digits • Moving green arrow option • Handicap sign option • Text option • Indoor / Outdoor option • Displays are configurable via DIP-switches • Power supply: 24 VDC

14. The Products Technical Data • GP73800080 – Carpark Configuration and Test Unit • Handheld unit for configuration of Carpark Sensors and • Carpark Monitors • Test unit for carpark system, able to monitor status of • sensors, simulate occupancy and initiate “global” calibration • (several sensors at once) • 2x20 character LCD display and keyboard with 12 tactile • switches • Fast and easy to use • Powered from 9V battery

15. The Product The Products Features and Benefits • Time saving –The users of busy Parking Facilities will save time and experience increased comfort and reduced stress • Maximizing Productivity –The Parking Facility can be utilized more efficiently because free places can be “sold” faster, and new spaces can be planned with reduced loss of space for turning areas • Minimize energy cost –Cars can drive up to 20% less in the parking facility thereby less fuel is consumed • Simplified setup – • Easy to install due to push-wire connections, no special cable, 3 wires only, simple rules for the wiring, easy setup and commissioning via handheld configuration unit TIME SAVING MINIMIZE ENERGY COST MAXIMIZING PRODUCTIVITY SIMPLIFIED SETUP

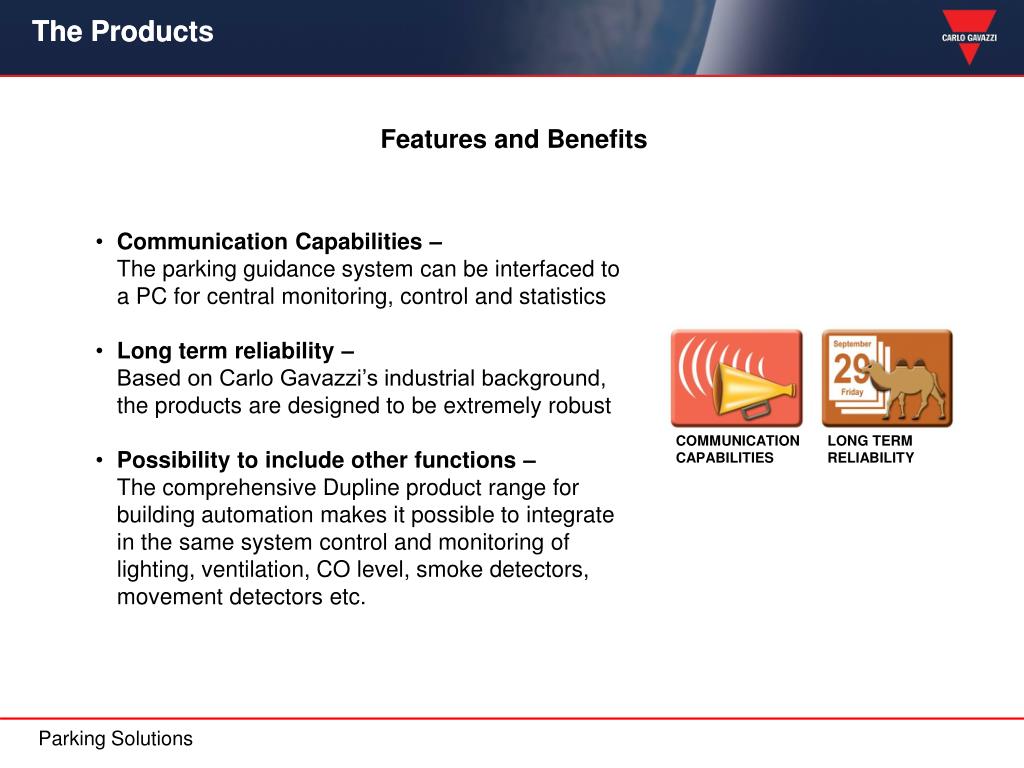

16. The Product The Products Features and Benefits • Communication Capabilities –The parking guidance system can be interfaced to a PC for central monitoring, control and statistics • Long term reliability –Based on Carlo Gavazzi’s industrial background, the products are designed to be extremely robust • Possibility to include other functions –The comprehensive Dupline product range for building automation makes it possible to integrate in the same system control and monitoring of lighting, ventilation, CO level, smoke detectors, movement detectors etc. COMMUNICATION CAPABILITIES LONG TERM RELIABILITY

17. References

18. References

19. References

20. Certifications - PG 010 According to EMC Directive 89/336/EEC: EN50081-1: Emission (Residential) EN61000-6-2: Immunity (Industrial) According to Low-voltage Directive 73/237/EEC EN60947-1: Low voltage switchgear and controlgear Other Approvals

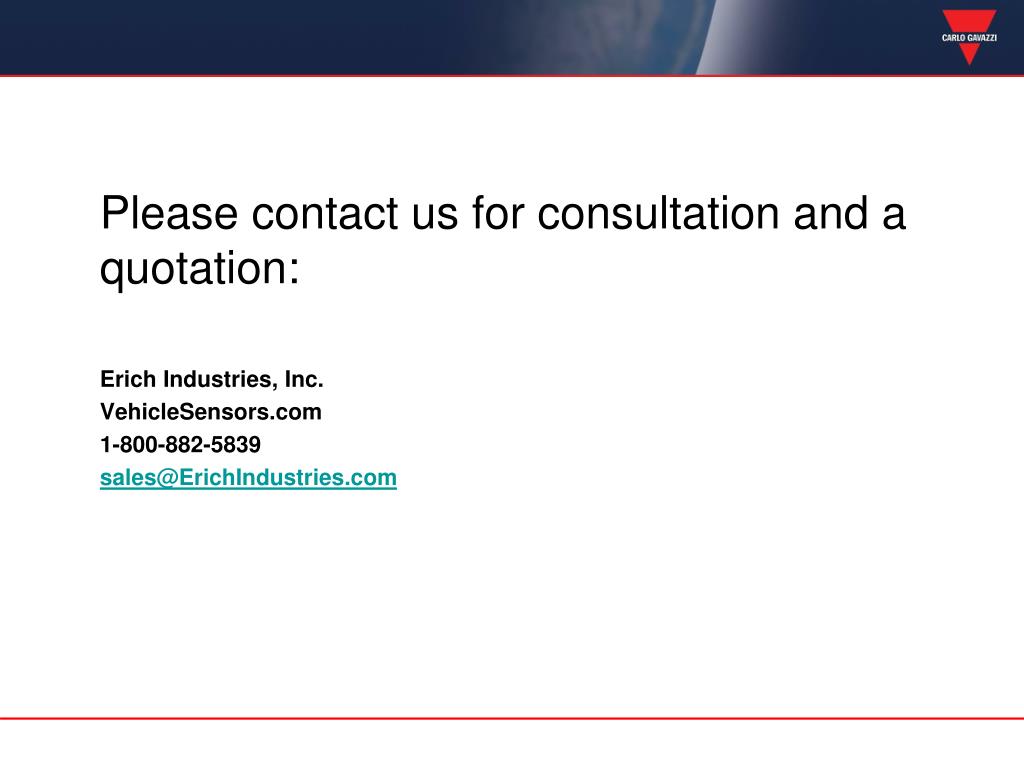

21. Please contact us for consultation and a quotation: Erich Industries, Inc. VehicleSensors.com 1-800-882-5839 sales@ErichIndustries.com
