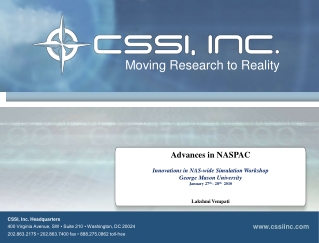

Moving Research to Reality. Advances in NASPAC Innovations in NAS-wide Simulation Workshop George Mason University January 27 th - 28 th 2010 Lakshmi Vempati. CSSI, Inc. Headquarters 400 Virginia Avenue, SW • Suite 210 • Washington, DC 20024

Download Presentation

CSSI, Inc. Headquarters 400 Virginia Avenue, SW • Suite 210 • Washington, DC 20024

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Moving Research to Reality Advances in NASPAC Innovations in NAS-wide Simulation Workshop George Mason University January 27th - 28th 2010 Lakshmi Vempati CSSI, Inc. Headquarters400 Virginia Avenue, SW • Suite 210 • Washington, DC 20024 202.863.2175 • 202.863.7400 fax • 888.275.0862 toll-free www.cssiinc.com

  2. Outline • Introduction • NASPAC Current Architecture • Recent Enhancements • Oceanic Operations • Terminal Area Modeling • Closing comments

  3. Introduction • National Airspace System Performance Analysis Capability (NASPAC) • System-wide model developed in the 1980’s • Discrete event simulation representing the NAS as a network of interconnected queues • Used for cost-benefit analysis • Technical and software support provided by CSSI and Metron for the FAA (Joe Post)

  4. NASPAC Current Architecture

  5. Oceanic Operations • Model separation of aircraft in US oceanic airspace through the use of restrictions • Oceanic regions modeled (with updated find crossings module) • Oakland oceanic (ZOA), • New York oceanic (ZNY) and • Anchorage oceanic (ZAN) sectors 10 and 11. • Challenges • No geometry information in the simulation engine • Limitation of existing find crossings module to NW quadrant of the globe only • Pre processing and data requirements • Process and merge ATOP FPL with FZ where necessary and cleanse data • Compile international waypoint data into NASPAC readable format • Sector definitions for New York, Oakland and Anchorage • Oceanic separation standards lookup based on • Equipage • Oceanic Region

  6. Filed waypoint + filed cruise altitude used by 2 or more flights • Restriction • All headings (0-359) • All airport pairs • For entire day • 10 min in trail separation • ± 500 ft altitude bounds above or below the target filed cruise altitude Yes Gate Finder Sector names Gate Finder Input schedule Sector definitions • Gate Finder to generate restrictions • Un-capacitated US oceanic sectors for Oakland (ZOA), New York (ZNY), and Anchorage (ZAN) fully functional with newer sector crossings module • Restriction generated at any "filed waypoint + filed cruise altitude" in the schedule used by 2 or more flights

  7. Oceanic Operations: Example restrictions • Restrictions created for one NASPAC schedule: • Vertically-oriented lines represent restrictions created on oceanic network waypoints • Horizontally-oriented lines represent restrictions on all other waypoints

  8. Terminal Area Modeling • Incorporate SID/STAR/IAP routes into flight schedules and integrate into trajectory modeler to support modeling altitude restrictions (level-offs) • Challenges • SID/STAR/IAP definitions are updated every 56 days. • Not all procedure definitions are included in the National Flight Database. Example SIDs with non-structured routing • SID/STAR/IAP charts contain extensive information in free text as well as graphically. Not all information is captured in the database. • Special cases: • Altitude restrictions based on direction of arrival e.g. KORD Janesville 5 Arrival • Procedures applicable to: Aircraft type (e.g. Turboprop, Turbojet), Equipage (e.g. DME, GPS), Speed restrictions (e.g. 250K, 280K), Time of day, Runway use (e.g. R12L fly at 10000) • Expect to cross at lowest available altitude (e.g. KEWR Williamsport 5Arrival) • Combination of multiple aircraft type, multiple runway altitude restrictions (e.g. KBOS Gardner 3 Arrival) • Existing schedule filed waypoint inconsistencies • Field 10 parsing issues • Issues with merging existing routes with SID/STAR/IAP

  9. Has SID/STAR Input schedule No Modified schedule Field 10 Parser Assigning/Merging Algorithm Yes Lookup SID/STAR Implementation Assign Sid/Star/IAP Database Merge • Pre-processing and data requirements • Field 10 (Route of flight information) • SID/STAR/IAP definitions • Supplemental information from aeronautical charts • Parse field10, lookup SID/STAR when specified and merge into waypoints list • Assignment and Merging Algorithm

  10. SID/STAR Assignment Examples ATL Departures IAD Arrivals

  11. Closing comments • Initial oceanic restrictions and in trail separations (distance and time-based) implemented • Initial SID/STAR routing, assignment and merging • Ongoing efforts: • Oceanic in-trail climb/descent • IAP assignment • Full integration into NASPAC

  12. Questions?

  13. Moving Research to Reality Backup Slides CSSI, Inc. Headquarters400 Virginia Avenue, SW • Suite 210 • Washington, DC 20024 202.863.2175 • 202.863.7400 fax • 888.275.0862 toll-free www.cssiinc.com

  14. Oceanic Separation Standards
