Aluminum Alloy Big Bore Power Chuck

This chuck's lightweight aluminum alloy body makes installation easy, accommodating one-inch larger size chucks on the same equipment. Reduced load and weight contribute to energy savings. Special T-groove design enhances stress distribution, prolonging chuck lifespan. Improved balance and outward drawing design. Includes dimension chart and specifications.

melanie-ashley
Download Presentation

Aluminum Alloy Big Bore Power Chuck

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

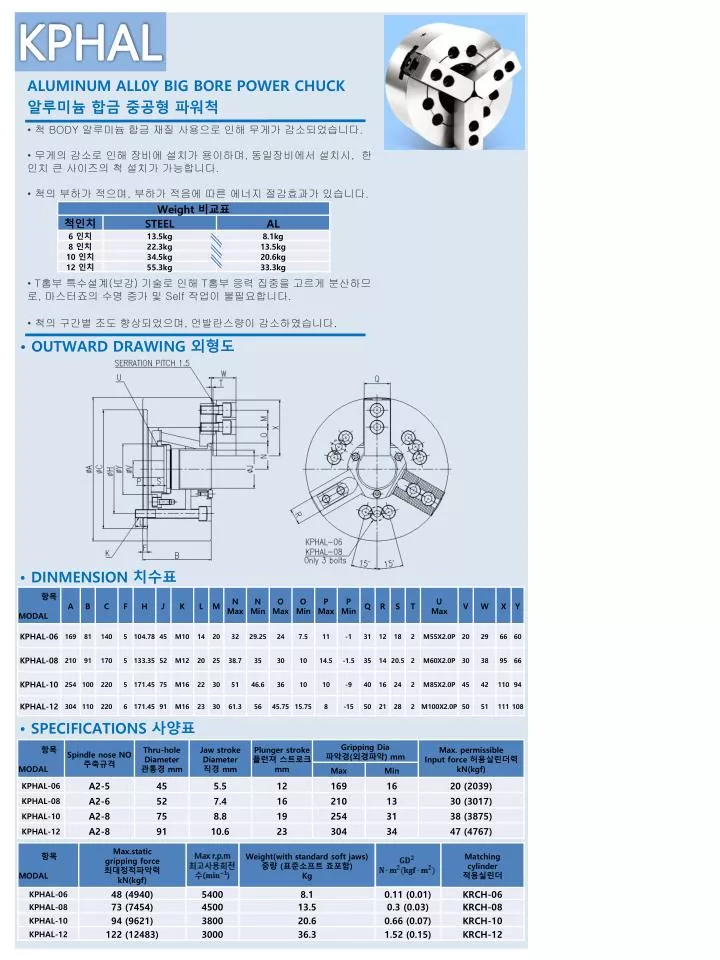

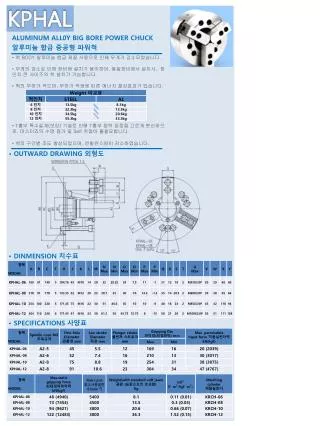

  1. KPHAL ALUMINUM ALL0Y BIG BORE POWER CHUCK 알루미늄 합금 중공형 파워척 • 척 BODY 알루미늄 합금 재질 사용으로 인해 무게가 감소되었습니다. • 무게의 감소로 인해 장비에 설치가 용이하며, 동일장비에서 설치시, 한 인치 큰 사이즈의 척 설치가 가능합니다. • 척의 부하가 적으며, 부하가 적음에 따른 에너지 절감효과가 있습니다. • T홈부 특수설계(보강) 기술로 인해 T홈부 응력 집중을 고르게 분산하므로, 마스터죠의 수명 증가 및 Self 작업이 불필요합니다. • 척의 구간별 조도 향상되었으며, 언발란스량이 감소하였습니다. • OUTWARD DRAWING 외형도 • DINMENSION 치수표 • SPECIFICATIONS 사양표
