Presentation Transcript
slide1

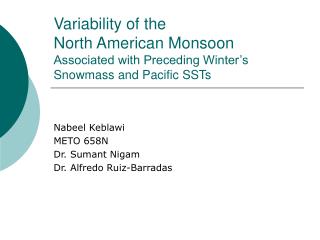

Variability of the North American MonsoonAssociated with Preceding Winter’s Snowmass and Pacific SSTs

Nabeel Keblawi

METO 658N

Dr. Sumant Nigam

Dr. Alfredo Ruiz-Barradas

overview
Overview
  • Introduction (brief)
  • Data & Methodology
  • Climatology/Variability
  • SWE/Monsoon/Pacific SSTs
  • Discussion
  • Conclusion
background information
Background Information
  • Indian Monsoon
  • North American Monsoon
    • Connection with neighboring snow cover of the preceding winter.
    • Blanford Hypothesis: Winter/Spring snow cover in the Himalayas mountain region has an inverse relationship with June-September Indian rainfall.
contradictory results
Contradictory results
  • In recent years there have been contradictions against the Blanford Hypothesis.
  • Fusallo (2004), Bamzai & Shukla (1999) and Ye & Bao (2001):
    • Positive correlation between snow cover and monsoonal rainfall anomalies
    • These results are at odds with the Blanford Hypothesis for the spatial distribution of snow cover.
rationale
Rationale
  • Given all these contradictions, there’s the need to determine the driving factors of the monsoon, whether they are:
    • Antecedent Pacific SST Anomalies – ENSO & PDO
      • ENSO: Equatorial SST Anomalies in Pacific Ocean
      • PDO: ENSO-like SST Anomalies in North Pacific
    • Antecedent Snow Depth Anomalies – SWE
    • Other factors involved?
  • Monsoons in North America and India often cause flash flooding that is hazardous and disruptive.
  • Areas that are prone to severe drought.
  • Implications on the regional water supply.
slide6
Data
  • Snow Depth & Precipitation
    • NARR: 1° x 1° 1979-2002
    • ERA40: 2.5° x 2.5° 1979-2002
  • ENSO-MEI & PDO
    • NOAA-NCEP
  • Initial comparison between NARR & ERA40 ruled out any differences in correlation between SWE & Precip anomalies due to time differences and resolution.
  • However, ERA40 snow depth data was concluded to be of lesser quality than the NARR data due to ERA40’s coarse resolution.
    • Snow depth varies greatly over small spatial areas…
    • E.g. windward slopes vs. lee slopes on a mountain range
variables
Variables
  • Snow Depth
    • Units: mm SWE (Snow Water Equivalent)
  • Surface Convective Precipitation
    • Units: mm/day
  • ENSO & NPO indices
    • Standardized Indices from NOAA-NCEP
spatial domain
Spatial Domain
  • North America:
    • Latitudes: 20°N-60°N
    • Longitudes: 140°W-100°W
  • Areas of highest variability are selected by taking the standard deviation maximums of the anomalies of snow depth and convective rainfall.
methodology
Methodology
  • Snow depth (mm SWE): April 1
    • Representative of total winter snow accumulations
  • Convective Precipitation (mm/day): JAS
  • Climatologies/Anomalies of each variable
    • Std. dev >0.5 mm/day for July rainfall
  • Indices: Area-averaged anomalies within selected areas divided by one standard deviation.
  • Statistical Analysis: Correlations/Regressions
precipitation variability areas are fixed throughout jas
Precipitation Variability (areas are fixed throughout JAS)

North Zone

South Zone

North & South Zones are fixed throughout JAS

enso pdo time series
ENSO & PDO Time Series

The correlation between ENSO & PDO is r = 0.79

correlation pacific ssts swe
Correlation: Pacific SSTs & SWE

Notice the opposite correlations of US vs. Canadian Rockies

regression pacific ssts on swe
Regression: Pacific SSTs on SWE

CAN#2

CAN#1

US#1

US#2

ENSO – strongest influence on snowfall all over the Rockies

correlation pacific ssts july precip
Correlation: Pacific SSTs & July Precip

In the monsoon zones: little or no correlation for July, but…

correlation pacific ssts august precip
Correlation: Pacific SSTs & August Precip

… significant positive correlations merely one month later! remarkable

correlation pacific ssts sept precip
Correlation: Pacific SSTs & Sept Precip

Positive correlations still there…

regression pacific ssts on july precip
Regression: Pacific SSTs on July Precip

Looking at the bars, ENSO has a stronger effect on US precipitation than the PDO.

regression pacific ssts on august precip
Regression: Pacific SSTs on August Precip

A noticeable change from previous month; moisture associated with ENSO/PDO events surges northward well into the US…

regression pacific ssts on sept precip
Regression: Pacific SSTs on Sept Precip

Influence from the PDO abates somewhat in September, while that from ENSO stays to the north throughout the last month of monsoon.

us1 swe regressed on jas precipitation
US1 SWE Regressed on JAS Precipitation

Similar pattern to the SWE-monsoon correlation table; no effect in July, then the linkage becomes stronger.

us2 swe regressed on jas precipitation
US2 SWE Regressed on JAS Precipitation

Unlike US1, US2 not significantly linked with the monsoon.

c1 swe regressed on jas precipitation
C1 SWE Regressed on JAS Precipitation

C1 shows inverse relationship with monsoon except perhaps for Sept…

c2 swe regressed on jas precipitation
C2 SWE Regressed on JAS Precipitation

C2 is an interesting case: consistent inverse relationship with monsoon… opposite of US1!

discussion
Discussion
  • Snow depth in the US Rockies #1 show strong and consistent positive correlation with the North American Monsoon.
    • But the antecedent ENSO is also positively correlated with the snow depth in US1, and subsequently with the monsoon.
    • ENSO  SWE  Monsoon
    • ENSO  Monsoon
  • Negative correlation between monsoon and Canadian Rockies snow depth.
    • Correlation/Regression figures of antecedent Pacific SSTs on Canadian Rockies SWE anomalies supports this with strong negative correlation also.
discussion28
Discussion
  • These results indicate that Pacific SSTs may be one factor driving the monsoon.
  • Appears unlikely that SWE is driving the monsoon.
  • Possible Physical Explanation -- Suppose we have anomalously warm Pacific SSTs:
    • 1) Through increased evaporation rates overlying anomalously warm waters, this anomalously moist air eventually flows into the monsoon region…
    • 2) Then we have increased moisture flux convergence in the monsoon region -- moisture advection and increased thermodynamic instability atmos. column…
    • 3) Orographical effects may also force vertical motion and locally enhance rainfall…
discussion29
Discussion
  • Canadian Rockies SWE correlation with monsoon opposite of US Rockies SWE.
  • And the effect of Pacific SSTs on the US Rockies vs. the Canadian Rockies also appears to be opposite of each other:
    • US Rockies SWE above normal in warm ENSO/PDO.
    • Canadian SWE below normal in warm ENSO/PDO.
    • This may explain the “contradictory” results between SWE and the monsoon – they make sense when we consider that the Pacific SSTs are driving the monsoon, not SWE anomalies.
    • However, this says nothing about the onset of the monsoon, of which the SWE anomalies may still influence via land-sea temperature gradients.
potential for future research
Potential for Future Research
  • The NAM-Pacific SST relationship may be further investigated to determine if the Pacific SSTs are stronger factors in driving the monsoon.
    • Not just ENSO or PDO … but also the Pacific Warm Pool, ENSO 1+2, ENSO3.4, MJO, etc …
  • The relationship between SWE and the monsoon may also be investigated on daily-weekly time scales to determine its influence on the onset of the monsoon.
  • Other variables, such as total column precipitable water, soil moisture, and geopotential height may also be used to further investigate moisture flux convergence, wind strength/direction, and the effects of SWE and Pacific SSTs on the onset and strength of the monsoon.
references
References
  • Bamzai, A. S., Shukla, J. Relation between Eurasian Snow Cover, Snow Depth, and the Indian Summer Monsoon: An Observational Study. Journal of Climate 1999 12: 3117-3132.
  • Barlow, M., Nigam, S., Berbery, E. H.ENSO, Pacific Decadal Variability, and U.S. Summertime Precipitation, Drought, and Stream Flow. Journal of Climate 2001 14: 2105-2128.
  • Castro, Christopher L., McKee, Thomas B., Pielke, Roger A.The Relationship of the North American Monsoon to Tropical and North Pacific Sea Surface Temperatures as Revealed by Observational Analyses. Journal of Climate 2001 14: 4449-4473.
  • Fasullo, J. A Stratified Diagnosis of the Indian Monsoon—Eurasian Snow Cover Relationship. Journal of Climate 2004 17: 1110-1122.
  • Hawkins, Timothy W., Ellis, Andrew W., Skindlov, Jon A., Reigle, DallasIntra-annual Analysis of the North American Snow Cover–Monsoon Teleconnection: Seasonal Forecasting Utility. Journal of Climate 2002 15: 1743-1753.
  • Lo, Fiona, Clark, Martyn P. Relationships between Spring Snow Mass and Summer Precipitation in the Southwestern United States Associated with the North American Monsoon System. Journal of Climate 2002 15: 1378-1385.
  • Matsui, Toshi, Lakshmi, Venkat, Small, Eric. Links between Snow Cover, Surface Skin Temperature, and Rainfall Variability in the North American Monsoon System. Journal of Climate 2003 16: 1821-1829.
  • Matthew Newman, Gilbert P. Compo and Michael A. Alexander. 2003: ENSO-Forced Variability of the Pacific Decadal Oscillation. Journal of Climate: Vol. 16, No. 23, pp. 3853–3857.
  • Niklas Schneider and Bruce D. Cornuelle. 2005: The Forcing of the Pacific Decadal Oscillation*. Journal of Climate: Vol. 18, No. 21, pp. 4355–4373.
  • Vernekar, A.D., Zhou, J., Shukla, J. The Effect of Eurasian Snow Cover on the Indian Monsoon. Journal of Climate 1995 8: 248-266.
  • Wu, Tong-Wen, Qian, Zheng-An. The Relation between the Tibetan Winter Snow and the Asian Summer Monsoon and Rainfall: An Observational Investigation. Journal of Climate 2003 16: 2038-2051.
  • Zhang, Yongsheng, Li, Tim, Wang, Bin. Decadal Change of the Spring Snow Depth over the Tibetan Plateau: The Associated Circulation and Influence on the East Asian Summer Monsoon. Journal of Climate 2004 17: 2780-2793.
