Presentation Transcript
Rheumatoid arthritis 11 05 l.jpg

Rheumatoid Arthritis11/05

Stephanie Boade Silas, M.D.

Division of Rheumatology, UUMC


Objectives l.jpg
Objectives

  • Know the epidemiology and risk factors of rheumatoid arthritis.

  • Have a basic understanding of the pathology and pathogenesis of RA.

  • Know the distinctive musculoskeletal and extraarticular clinical features of RA.

  • Understand how labs and imaging studies are used to make a diagnosis of RA.


Rheumatoid arthritis l.jpg
Rheumatoid Arthritis

  • Chronic, systemic inflammatory disease

  • 1% of North American Caucasians

  • Peak incidence 4th to 6th decades

  • Females 2-3X > Males

  • Pathogenesis unknown


Pathogenesis l.jpg
Pathogenesis

  • Synovial Hyperplasia

  • Hypercellularity

  • Inflammatory cells

  • Joint effusions

  • Pannus

    • Invasive synovium

    • Erodes cartilage and bone




Normal synovium l.jpg
Normal Synovium

  • Synovial lining

    • Loosely organized

    • 1-3 cell layers

    • Type A = MΦ

    • Type B = fibroblast

  • Subsynovium

    • Few cells

    • Scattered vessels, nerves, lymphatics


Rheumatoid synovium l.jpg
Rheumatoid Synovium

  • Synovial lining

    • Hyperplasia

    • 10 cell layers thick

  • Subsynovial

    • T cells: CD4>CD8

    • Dendritic cells

    • B cells/Plasma cells

      • RF

    • Vast blood supply


Rheumatoid ankle pannus l.jpg
Rheumatoid Ankle -- Pannus

  • Unique to RA

  • Synovial fibroblast cells migrate over cartilage surface

  • Transformed phenotype

  • RANKL-RANK

    • Osteoclasts at interface



Slide14 l.jpg

Pathogenesis of Rheumatoid Arthritis

Choy, E. H.S. et al. N Engl J Med 2001;344:907-916

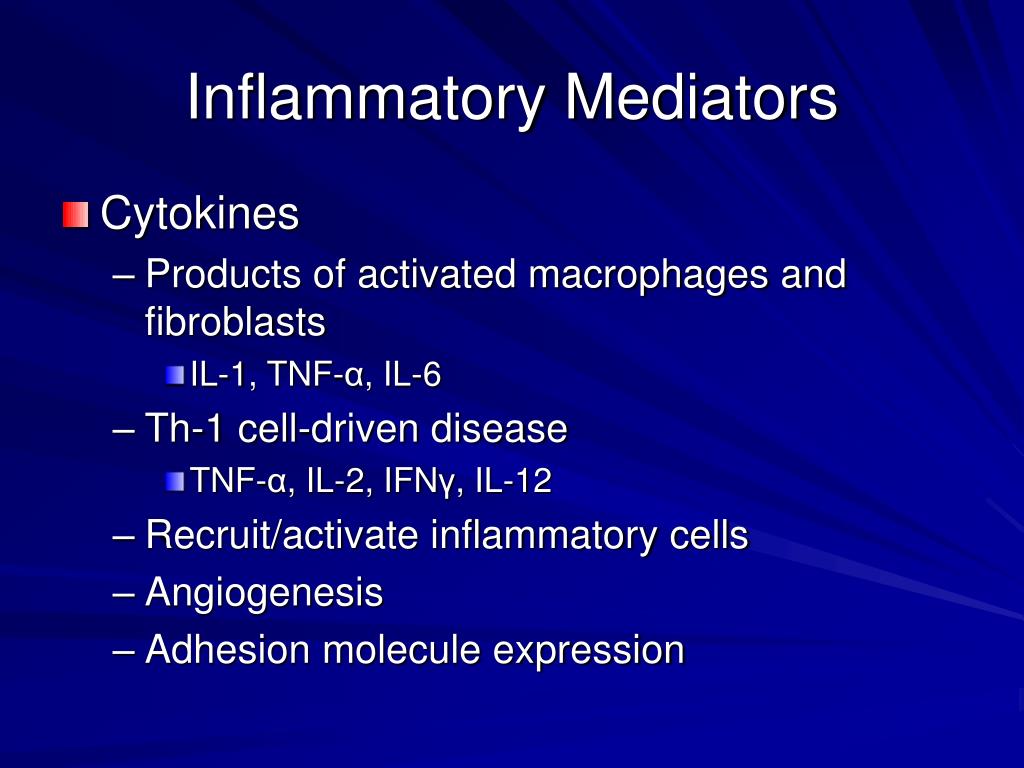

Inflammatory mediators l.jpg
Inflammatory Mediators

  • Cytokines

    • Products of activated macrophages and fibroblasts

      • IL-1, TNF-α, IL-6

    • Th-1 cell-driven disease

      • TNF-α, IL-2, IFNγ, IL-12

    • Recruit/activate inflammatory cells

    • Angiogenesis

    • Adhesion molecule expression


Inflammatory mediators16 l.jpg
Inflammatory Mediators

  • Chemokines

  • Cell surface proteins

    • Adhesion molecules, membrane bound TNF, RANKL

    • Costimulatory molecules

      • CD80 or CD86 on APC bind CD28 T cell

        • CTLA-4 on T cell also binds CD80/86 – inhibits costim.

  • Enzymes

    • Matrix metalloproteinases (MMPs)

  • Transcription factors

    • NF-κB, AP-1

  • Complement/Immune complexes


Slide17 l.jpg

Cytokine Signaling Pathways Involved in Inflammatory Arthritis

Choy, E. H.S. et al. N Engl J Med 2001;344:907-916

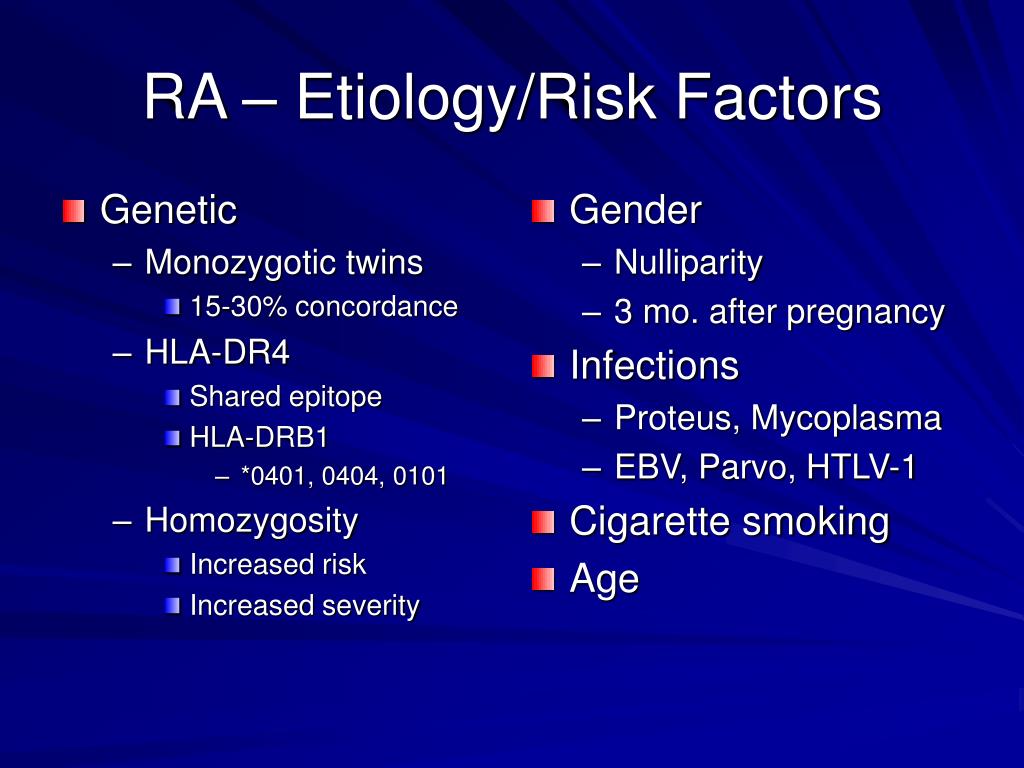

Ra etiology risk factors l.jpg

Genetic Arthritis

Monozygotic twins

15-30% concordance

HLA-DR4

Shared epitope

HLA-DRB1

*0401, 0404, 0101

Homozygosity

Increased risk

Increased severity

Gender

Nulliparity

3 mo. after pregnancy

Infections

Proteus, Mycoplasma

EBV, Parvo, HTLV-1

Cigarette smoking

Age

RA – Etiology/Risk Factors


Ra clinical features l.jpg
RA -- Clinical Features Arthritis

  • Morning stiffness = hallmark of inflammatory joint disease

  • Joint inflammation – Synovitis/Effusions

    • Warmth, swelling, (erythema)

  • Structural changes

    • Cartilage loss, bony erosions, periarticular damage


Joint distribution l.jpg
Joint Distribution Arthritis

  • Predominantly peripheral synovial joints

    • Hand and Feet

  • Symmetric involvement

  • Hands predominate

    • Wrist

    • MCP’s

    • PIP’s

    • Not DIP’s



Synovitis l.jpg
Synovitis Arthritis


Ra hands l.jpg
RA - hands Arthritis


Ra hand deformity l.jpg

Ulnar deviation at MCP’s Arthritis

Radial deviation at wrists

Swan-neck deformities

Boutonniere deformities

Tendon nodules

Tendon rupture

3rd, 4th, and 5th extensor tendons

Carpal tunnel syndrome

Ulnar neuropathy

RA Hand Deformity



Ulnar deviation l.jpg
Ulnar Deviation Arthritis




Ra knees l.jpg
RA - Knees Arthritis

  • Symmetric lateral and medial joint space loss

  • Effusions

  • Synovial proliferation

  • Baker’s cyst

    • Posterior herniation of joint capsule

    • May rupture

      • Hx and U/S can distinguish

      • Crescent-sign on exam


Popliteal cyst l.jpg
Popliteal Cyst Arthritis



Ra feet l.jpg
RA - feet Arthritis

  • MTP synovitis

    • Direct palpation

    • Global lateral/medial squeezing

  • MTP subluxation

    • Cock-up deformities of toes

    • Callous formation on soles

  • Ankles - synovitis/effusions

    • Tarsal tunnel syndrome -- medial foot and sole paresthesias


Mtp subluxation l.jpg
MTP subluxation Arthritis

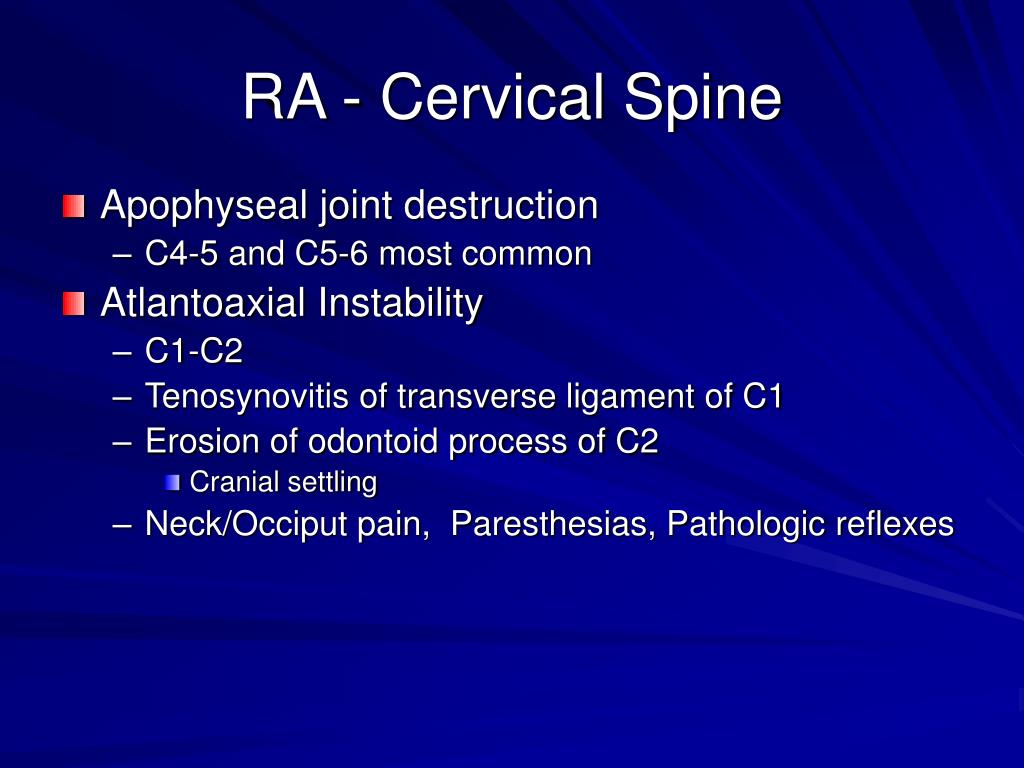

Ra cervical spine l.jpg
RA - Cervical Spine Arthritis

  • Apophyseal joint destruction

    • C4-5 and C5-6 most common

  • Atlantoaxial Instability

    • C1-C2

    • Tenosynovitis of transverse ligament of C1

    • Erosion of odontoid process of C2

      • Cranial settling

    • Neck/Occiput pain, Paresthesias, Pathologic reflexes

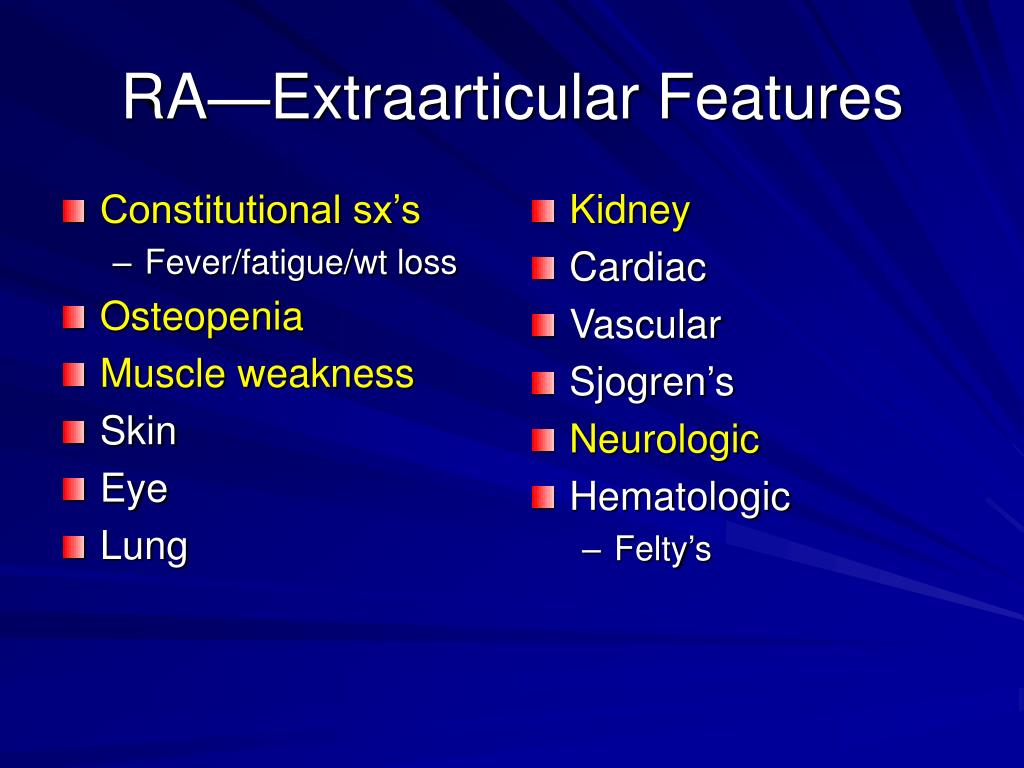

Ra extraarticular features l.jpg

Constitutional sx’s Arthritis

Fever/fatigue/wt loss

Osteopenia

Muscle weakness

Skin

Eye

Lung

Kidney

Cardiac

Vascular

Sjogren’s

Neurologic

Hematologic

Felty’s

RA—Extraarticular Features


Extraarticular features l.jpg
Extraarticular Features Arthritis

  • Rheumatoid nodules (15%)

    • Central necrosis surrounded by palisading fibroblasts and lymphocytes

    • Subcutaneous, bursal, tendon sheaths

    • Extensor surfaces / Pressure points

      • Forearms

      • Achilles

      • Ischial area

      • MTP’s

      • Flexor surface of fingers




Extraarticular manifestations l.jpg
Extraarticular manifestations Arthritis

  • Vasculitis

    • Leukocytoclastic vasculitis

      • Palpable purpura

    • Vasculitic lesions on fingers

    • Mononeuritis multiplex

    • Visceral involvement (PAN)


Ra vasculitis l.jpg
RA - Vasculitis Arthritis


Ra vasculitis44 l.jpg
RA - Vasculitis Arthritis


Extraarticular ra ocular l.jpg
Extraarticular RA -- Ocular Arthritis

  • Sicca symptoms

  • Episcleritis

  • Scleritis



Extraarticular manifestations47 l.jpg
Extraarticular Manifestations Arthritis

  • Pulmonary

    • Pleural effusions

    • Interstitial lung disease

    • Nodules

  • Cardiac

    • Pericarditis -- < 10% clinically

    • Myocarditis

    • Atherosclerosis – 3X increased risk of CAD




Hematologic l.jpg
Hematologic Arthritis

  • Anemia of chronic disease

    • Low Fe, Low TIBC, Ferritin > 40 - 100

  • Felty’s syndrome

    • Triad

      • RA

      • Splenomegaly

      • Neutropenia

    • Frequent infections/Leg ulcers

  • Iron deficiency anemia (NSAIDs)


Slide51 l.jpg

Lab – Evidence of Inflammation Arthritis

  • Synovial Fluid – WBC > 2000/mm3

  • Serum – Acute phase response

    • Acute phase proteins

      • CRP, ceruloplasmin, complement, serum amyloid A, fibrinogen, alpha-1-antitrypsin, haptoglobin, and ferritin

      • Negative APP’s = albumin, transferrin

  • Erythrocyte sedimentation rate


Laboratory rf l.jpg
Laboratory – RF Arthritis

  • Rheumatoid Factor

    • Antibody against the Fc fragment of Ig

    • Not sensitive

      • 80% of RA patients

    • RF+ patients more likely to have

      • More severe disease

      • Extraarticular manifestations


Rf is not specific for ra l.jpg
RF is not Arthritisspecific for RA.

  • Other autoimmune disease

    • Sjogren’s syndrome , Systemic Lupus

  • Chronic infection

    • Hep B/C, SBE, Viral, Parasites, TB

  • Pulmonary inflammation

    • Sarcoid, IPF, Silicosis, Asbestosis

  • Malignancy

  • Healthy – 4% young; 5-25% > age 60


Anti ccp l.jpg
Anti-CCP Arthritis

  • Anti-cyclic citrullinated peptide

  • Specificity = 90%

  • Sensitivity = 50-80%


Radiography l.jpg
Radiography Arthritis

  • Periarticular osteopenia

  • Symmetric joint space loss

  • Marginal erosions

  • Absence of productive changes

  • Best films for diagnosis:

    • Bilateral Hand Arthritis Series

    • Bilateral Foot Series

  • Larger joints may not show erosions early due to thicker cartilage.


Ra erosions56 l.jpg
RA - Erosions Arthritis


Ra imaging l.jpg
RA - imaging Arthritis


Ra knees58 l.jpg
RA - knees Arthritis


Classification criteria for ra 4 criteria present 6 wks l.jpg

Morning stiffness > 1 hour Arthritis

Arthritis of ≥ 3 joints areas (PIP, MCP, wrist, elbow, knee, ankle, and MTP)

Arthritis of hand joints (wrist, MCP, PIP)

Symmetric arthritis

Rheumatoid nodules

RF+

Radiographic changes

Erosions

Unequivocal periarticular osteopenia

Classification Criteria for RA≥ 4 criteria present > 6 wks


Differential diagnosis l.jpg

Viral polyarthritis Arthritis

Connective tissue disease

Fibromyalgia

Spondyloarthropathy

Psoriatic arthritis

Crystalline arthritis

Septic arthritis

Osteoarthritis

Paraneoplastic disease

Multicentric reticulohistiocytosis

Differential Diagnosis


Ra treatment l.jpg
RA -- Treatment Arthritis

  • Aggressive treatment early!

  • DMARDs = disease modifying anti-rheumatic drugs

    • Combinations

  • Biologics – TNF- inhibitors, IL-1 antagonists, Anti-CD20, CTLA4 Ig

  • NSAIDs

  • Steroids

    • Osteoporosis prophylaxis
