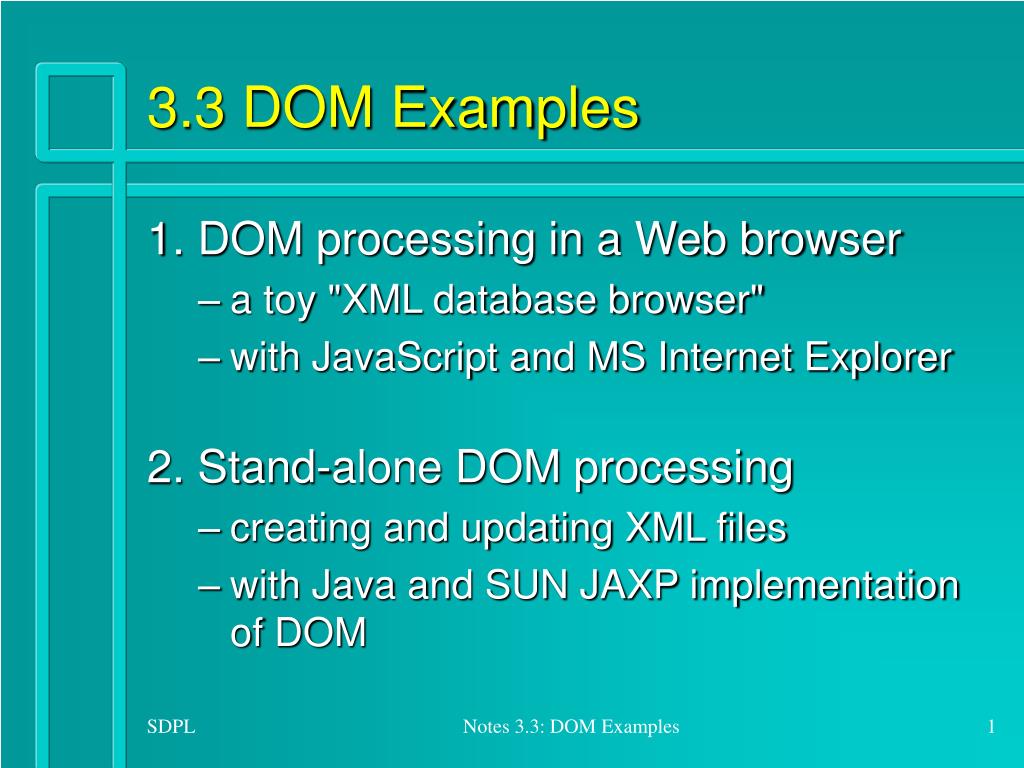

  1. 3.3 DOM Examples 1. DOM processing in a Web browser • a toy "XML database browser" • with JavaScript and MS Internet Explorer 2. Stand-alone DOM processing • creating and updating XML files • with Java and SUN JAXP implementation of DOM Notes 3.3: DOM Examples

  2. A Very Short Introduction to JavaScript • a simple object-orientedscripting language • for computations in a host environment (e.g. a browser or a server) • depends on host objects for central tasks like input and output • used to manipulate, customise and automate facilities of an existing system • originally a Web scripting language • core language independent of host environments • standardised version called ECMAScript (Aug. 1998) Notes 3.3: DOM Examples

  3. Basic components of JavaScript • Objects: collections of properties: • other objects, primitive values, or methods • Methods: functions associated to an object • Primitive values • Undefined,Null,numbers (ints and floats) • Strings:"Hi world!", 'Type "Y" for yes' • Booleanstrue and false • true != 1andfalse != 0, but • if (1)andif (2)succeed , whileif (0)fails Notes 3.3: DOM Examples

  4. Syntax, data types and variables • JavaScript syntax resembles Java • JavaScript is loosely typed • variables need not be declared; normally created by assigning a value • Global and local variables: function newFunction() { var loop=1; // local variable total=0; // global variable ...additional statements... } Notes 3.3: DOM Examples

  5. Web Scripting in a Browser • The client-side host environment provides • objects for UI components: windows, menus, pop-ups, dialog boxes, text areas, anchors, frames, history, cookies, and input/output • means to attach scripting code to events • actions occurring on the Web page:mouse actions, page and image loading, selection, form submission,… • Scripting code resides in the HTML page • reactive to user interaction; no need for a main program Notes 3.3: DOM Examples

  6. Event Handlers • Scripts normally event-driven, triggered by actions on the Web page • Event handlers attached to elements corresponding to UI objects which notify events: <tagName attr1="…" attr2="…" ... onEventName="JavaScript code;"> • Events part of the DOM • standardised in DOM Level 2 Notes 3.3: DOM Examples

  7. Some Common Events & Handlers • click & onClick (on a form element or link) • change & onChange (of text, textarea, or select element) • focus & onFocus and blur & onBlur: • input focus given to or removed from a form element • load & onLoad andunload & onUnload • User loads or exits the page Notes 3.3: DOM Examples

  8. A JavaScript-DOM example • A simple database browser • Technical basis • msxml parser included in MS IE 5 browser • exposes XML documents to JavaScript as a DOM-compliant ActiveX object Notes 3.3: DOM Examples

  9. DOM example: UI frames • The UI consists of two HTML frames: one for control buttons, the other for display <HTML><HEAD> <TITLE>XML DOM Database viewer</TITLE> </HEAD> <FRAMESET COLS="*,2*"> <!-- 1/3 of width for controls frame and 2/3 for display frame --> <FRAME SRC="controls.html"> <FRAME ID="display" SRC="display.html"> <!-- an originally empty HTML page --> </FRAMESET> </HTML> Notes 3.3: DOM Examples

  10. The Example Database File <?xml version="1.0" encoding="ISO-8859-1" ?> <db><person idnum="1234"><last >Kilpeläinen</last><first>Pekka</first></person> <person idnum="5678"><last >Möttönen</last><first>Matti</first></person> <person idnum="9012"><last >Möttönen</last><first>Maija</first></person> <person idnum="3456"><last >Römppönen</last><first>Maija</first></person> </db> Notes 3.3: DOM Examples

  11. Main data structures (Script begins) • In controls.html: <SCRIPT LANGUAGE="JScript"> <!-- // Script begins; Variables: var xmldoc = new ActiveXObject("Microsoft.XMLDOM"); var displStr; /* string for HTML display of xmldoc */ var current; // index of current row var displayFrame; var persons; /* list of person elements in xmldoc */ Notes 3.3: DOM Examples

  12. Body of the controls frame <BODY onLoad="initFrames()"> <!-- Slightly simplified! --> <H2>XML DOM Database Viewer</H2> <B>Enter the location of the XML file: </B> <INPUT ID="XMLFile" TYPE="text" SIZE="30" VALUE="db.xml"></INPUT> <INPUT TYPE="button" onClick="loadXML()" VALUE="Load XML and Display DB"></INPUT> <BUTTON onClick="displayDB()"> Refresh Display</BUTTON> <!-- Show XML button omitted ... --> Notes 3.3: DOM Examples

  13. Controls Frame: navigation buttons <BUTTON OnClick="if (persons==null) alert('Empty database'); else { if ( checkPrev(persons,current) ) showPerson(--current); else alert('At the first person') }"> Previous Person</BUTTON> <BUTTON OnClick="if (persons==null) alert('Empty database'); else {if ( checkNext(persons,current) ) showPerson(++current); else alert('No more persons') }"> Next Person</BUTTON> </BODY> Notes 3.3: DOM Examples

  14. Helper functions (Script continues) function initFrames() // on load { displayFrame = parent.display; displayFrame.document.open(); displayFrame.document.write(""); displayFrame.document.close();} function checkPrev(list, index) { return (index > 0); } function checkNext(list, index) { return (index < list.length - 1);}/* DOM Core features emphasised */ Notes 3.3: DOM Examples

  15. DB Viewer: XML loading function loadXML(){ … xmldoc.load(XMLFile.value); if (xmldoc.documentElement != null) { persons= xmldoc.getElementsByTagName("person"); current = 0; displayDB(); } } Notes 3.3: DOM Examples

  16. Generating the HTML display (1) function displayDB(){ //... // addhtml() collects result to displStr displStr = ""; var rows = xmldoc.documentElement.childNodes; addhtml('<TABLE>'); for (var i = 0; i < rows.length; i++) { // generate HTML for each row; // See loop body below Notes 3.3: DOM Examples

  17. Generating the HTML display (2) var currRow = rows.item(i); addhtml('<TR>'); addhtml('<TD>' + ((i == current)?'*** ':' ') + '</TD>'); // print stars in front of current addhtml('<TD>' + currRow.getAttribute("idnum") + '</TD>'); addhtml('<TD>' + // contents of element ‘last’ currRow.firstChild.firstChild.nodeValue + '</TD>'); addhtml('<TD>' + // contents of element ‘first’ currRow.lastChild.firstChild.nodeValue + '</TD>'); addhtml('</TR>'); }; // end loop through rows Notes 3.3: DOM Examples

  18. Generating the HTML display (3) // Complete the HTML display: addhtml('</TABLE>'); displayFrame.document.open(); displayFrame.document.write(displStr); displayFrame.document.close(); } // end displayDB() // Wrapper for displaying current person: function showPerson(pers){ displayDB() // simply display all } Notes 3.3: DOM Examples

  19. A Java-DOM example • A stand-alone toy application BuildXml • either creates a new db document with two person elements, or adds them to an existing db document • based on the example in Sect. 8.6 of Deitel et al: XML - How to program • Technical basis • DOM support of the Java-based JAXP XML processor implementation • native XML document initialisation and storage methods of the JAXP 1.1 default parser (Apache Crimson) Notes 3.3: DOM Examples

  20. Code of BuildXml (1) • Begin by importing necessary packages: import java.io.*; import org.w3c.dom.*; import org.xml.sax.*; import javax.xml.parsers.*; // Native (parse and write) methods of the // JAXP 1.1 default parser (Apache Crimson): import org.apache.crimson.tree.XmlDocument; Notes 3.3: DOM Examples

  21. Code of BuildXml (2) • Class for modifying the document in file fileName: public class BuildXml { private Document document; public BuildXml(String fileName) { File docFile = new File(fileName); Element root = null; // doc root elemen // Obtain a SAX-based parser: DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance(); DocumentBuilder builder; /* … */ Notes 3.3: DOM Examples

  22. Code of BuildXml (3) • (After a succestul try to get a new documentBuilder builder from factory:)if (!docFile.exists()) { //create new doc document = builder.newDocument(); // add a comment: Comment comment = document.createComment( "A simple personnel list"); document.appendChild(comment); // Create the root element: root = document.createElement("db"); document.appendChild(root); Notes 3.3: DOM Examples

  23. Code of BuildXml (4) … or if docFile already exists:} else { // access an existing doc try { // to parse docFile document = builder.parse(docFile); root = document.getDocumentElement(); } catch (SAXException se) { System.err.println("Error: " + se.getMessage() ); System.exit(1); } /* A similar catch for a possible IOException */ Notes 3.3: DOM Examples

  24. Code of BuildXml (5) • Create and add two child elements to root:Node personNode = createPersonNode(document, "1234", "Pekka", "Kilpeläinen"); root.appendChild(personNode); personNode = createPersonNode(document, "5678", "Irma", "Könönen"); root.appendChild(personNode); Notes 3.3: DOM Examples

  25. Code of BuildXml (6) • Finally, store the result document:try { // to write the // XML document to file fileName ((XmlDocument) document).write( new FileOutputStream(fileName)); } catch ( IOException ioe ) { ioe.printStackTrace(); } Notes 3.3: DOM Examples

  26. Subroutine to create person elements public Node createPersonNode(Document document, String idNum, String fName, String lName) { Element person = document.createElement("person"); person.setAttribute("idnum", idNum); Element firstName = document.createElement("first"); person.appendChild(firstName); firstName.appendChild( document.createTextNode(fName) ); /* … similarly for a lastName */ return person; } Notes 3.3: DOM Examples

  27. The main routine for BuildXml public static void main(String args[]){ if (args.length > 0) { String fileName = args[0]; BuildXml buildXml = new BuildXml(fileName); } else { System.err.println( "Give filename as argument"); }; } // main Notes 3.3: DOM Examples

  28. Summary of XML APIs • XML processors make the structure and contents of XML documents available to applications through APIs • Event-based APIs • notify application through parsing events • e.g., the SAX callback interfaces • Object-model (or tree) based APIs • provide a full parse tree • e.g, DOM, W3C Recommendation • more convenient, but may require too much resources with the largest documents • Major parsers support both SAX and DOM Notes 3.3: DOM Examples
