history

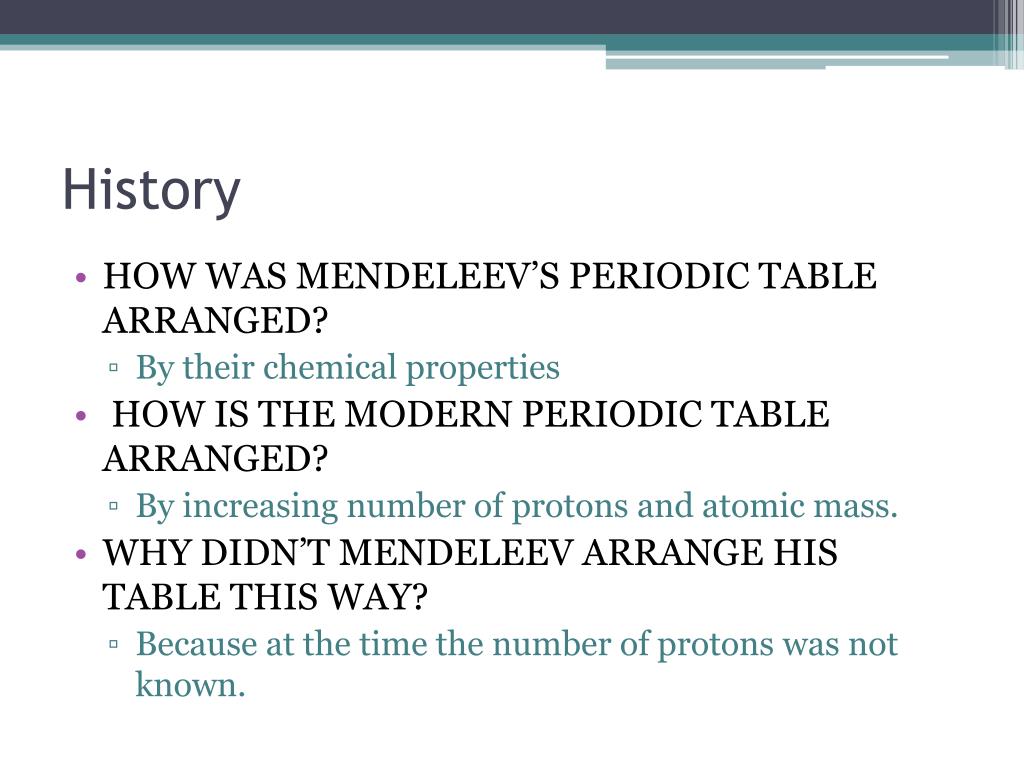

History
  • HOW WAS MENDELEEV’S PERIODIC TABLE ARRANGED?
    • By their chemical properties
  •  HOW IS THE MODERN PERIODIC TABLE ARRANGED?
    • By increasing number of protons and atomic mass.
  • WHY DIDN’T MENDELEEV ARRANGE HIS TABLE THIS WAY?
    • Because at the time the number of protons was not known.

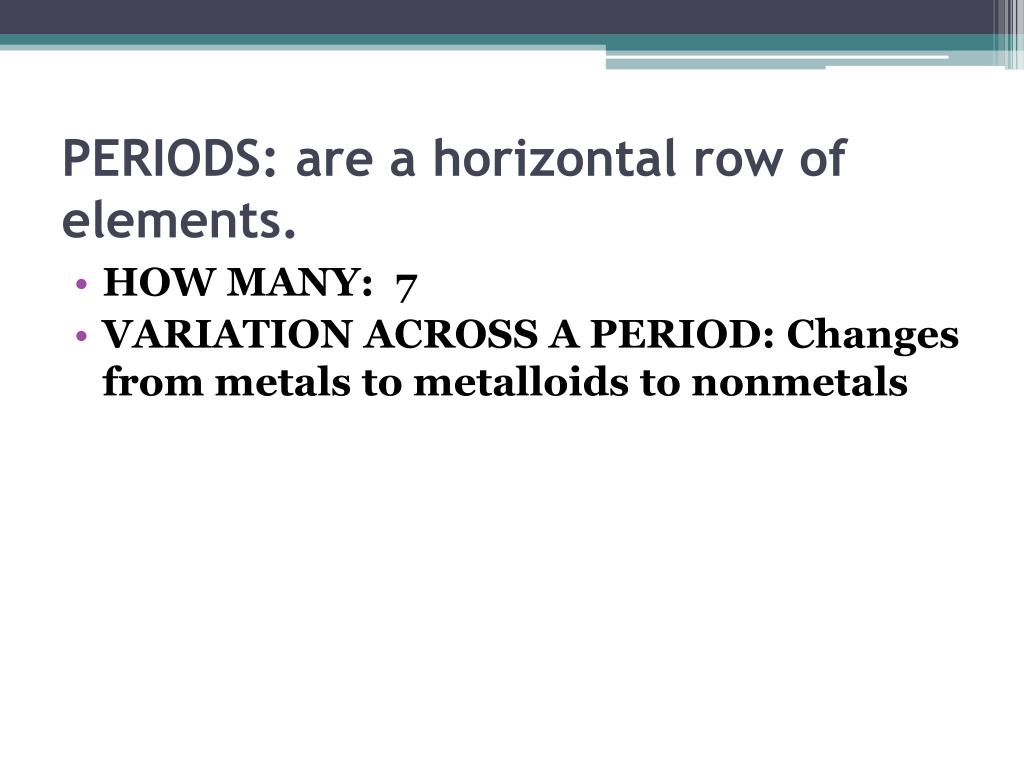

periods are a horizontal row of elements
PERIODS: are a horizontal row of elements.
  • HOW MANY: 7
  • VARIATION ACROSS A PERIOD: Changes from metals to metalloids to nonmetals

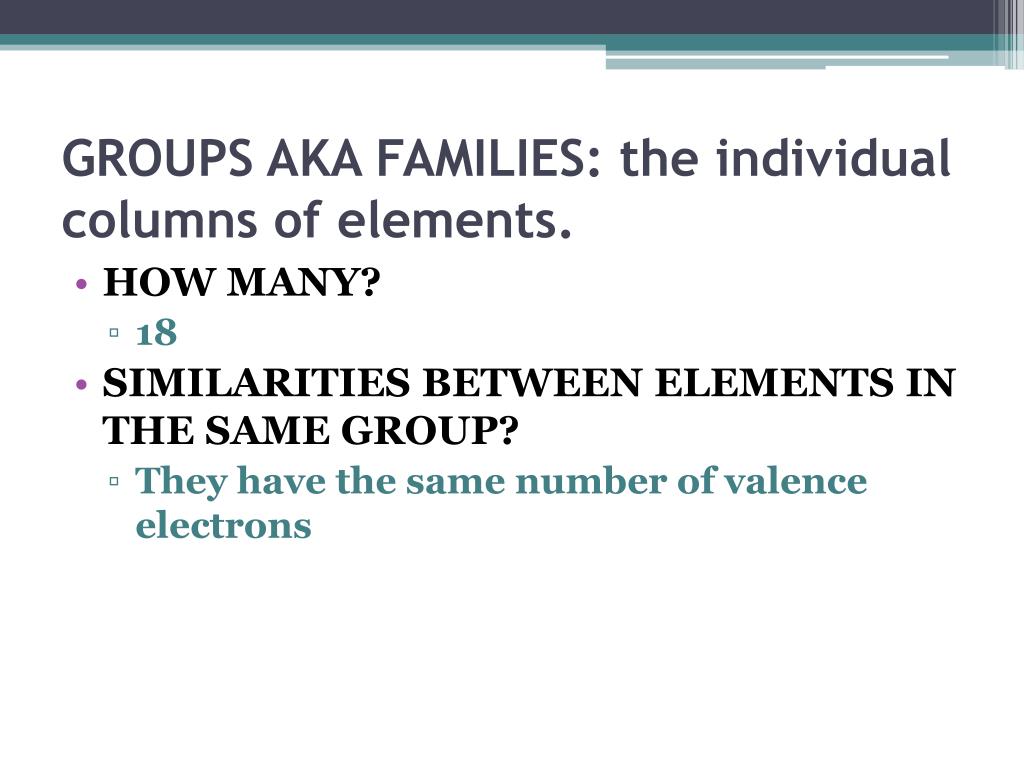

groups aka families the individual columns of elements
GROUPS AKA FAMILIES: the individual columns of elements.
  • HOW MANY?
    • 18
  • SIMILARITIES BETWEEN ELEMENTS IN THE SAME GROUP?
    • They have the same number of valence electrons
slide6

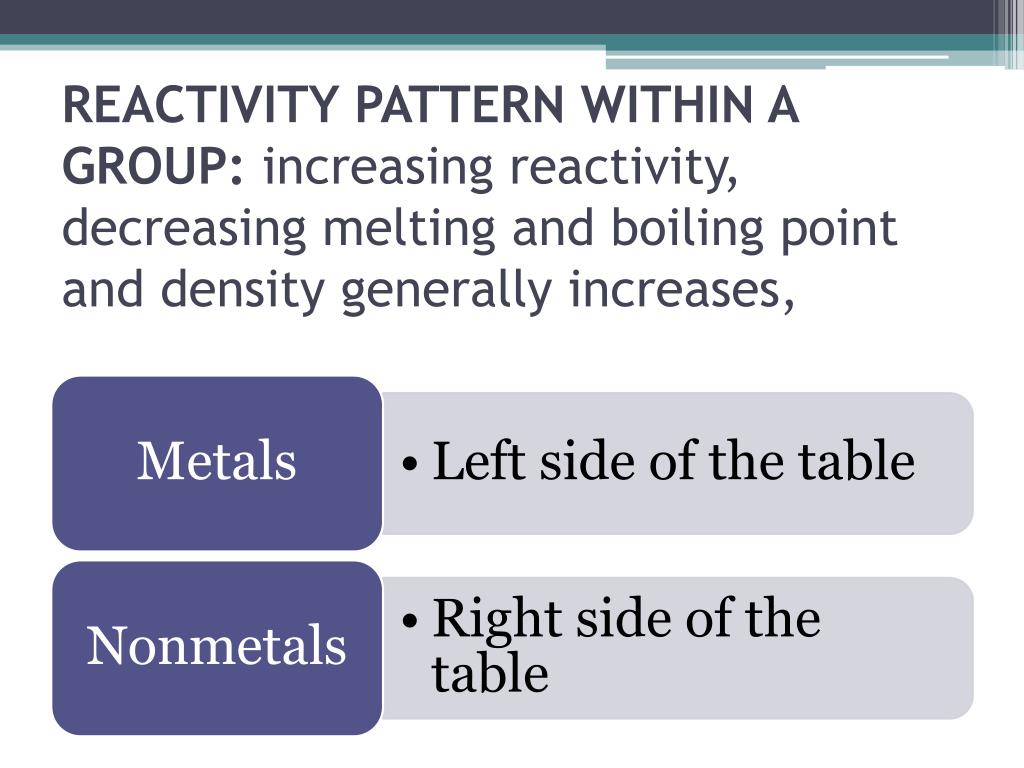

REACTIVITY PATTERN WITHIN A GROUP: increasing reactivity, decreasing melting and boiling point and density generally increases,
slide8

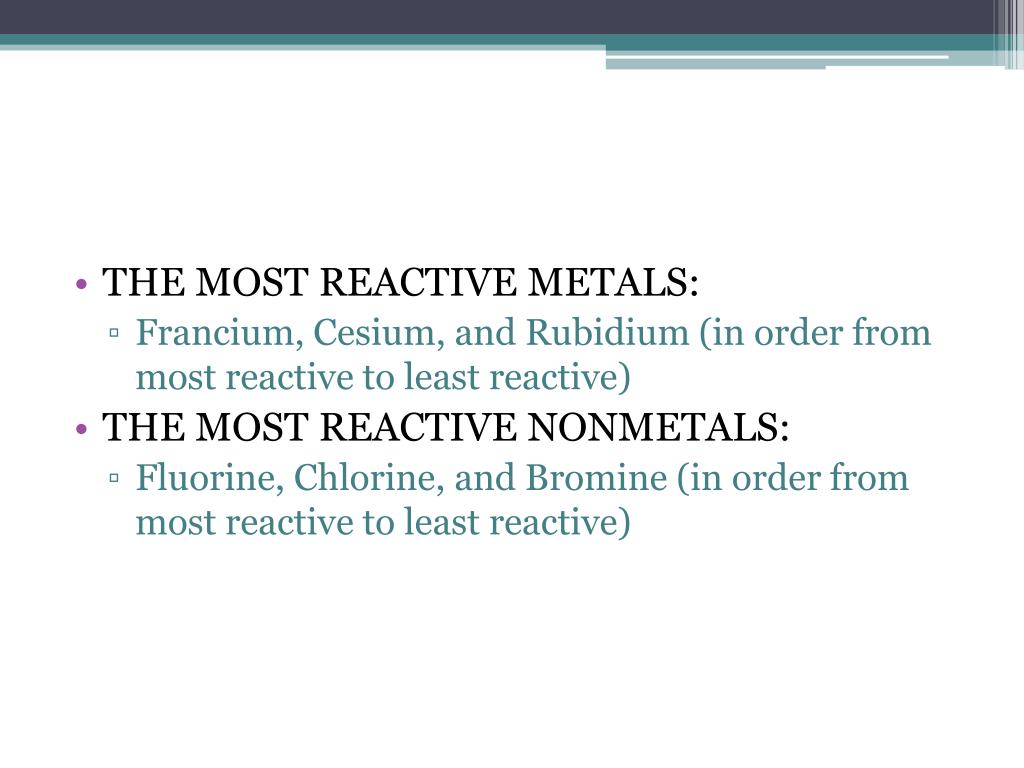

THE MOST REACTIVE METALS:

    • Francium, Cesium, and Rubidium (in order from most reactive to least reactive)
  • THE MOST REACTIVE NONMETALS:
    • Fluorine, Chlorine, and Bromine (in order from most reactive to least reactive)
excited electron

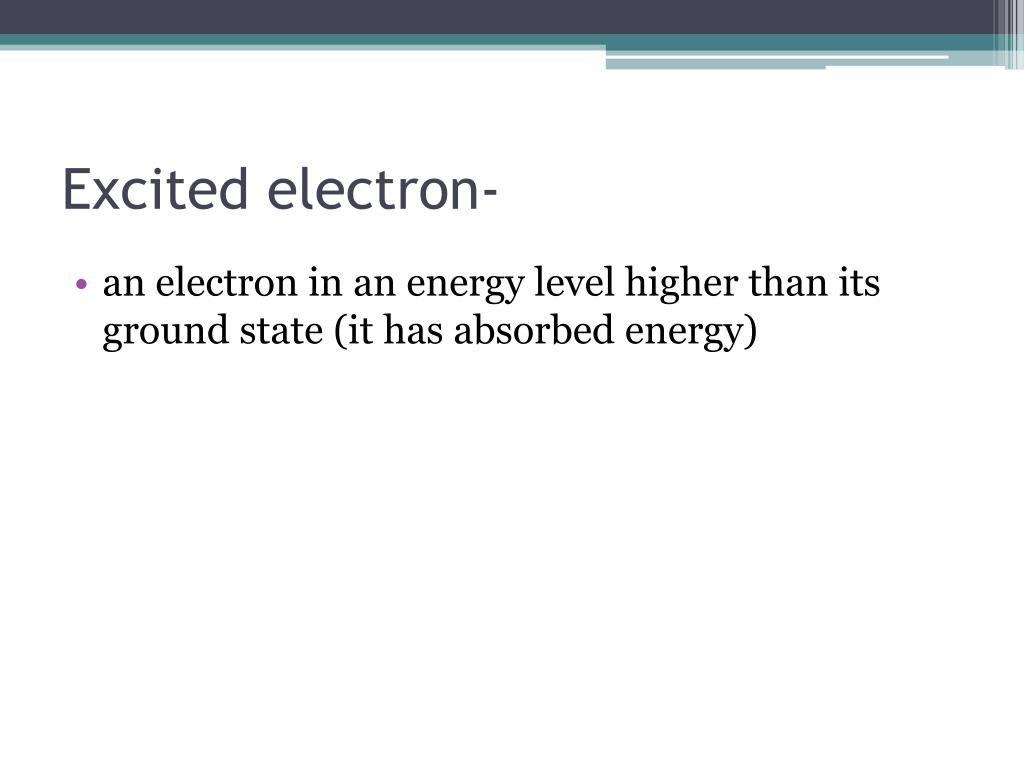

Excited electron-
  • an electron in an energy level higher than its ground state (it has absorbed energy)
ground state
Ground state-
  • all the electrons have the lowest possible energy.
energy level

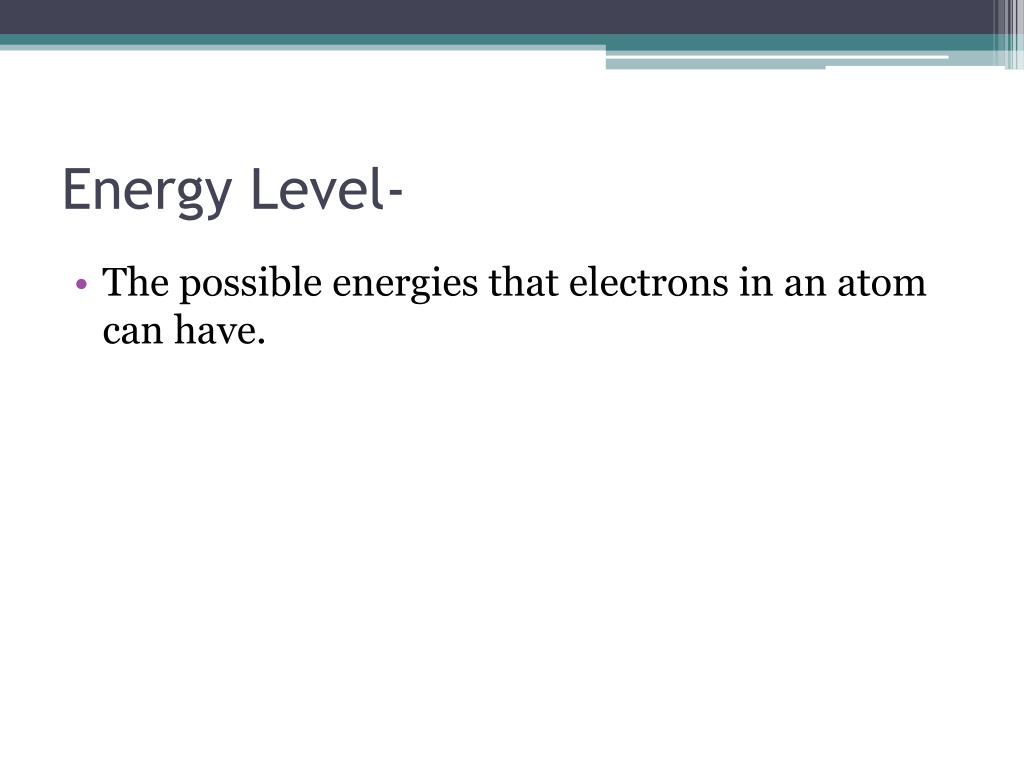

Energy Level-
  • The possible energies that electrons in an atom can have.
sub level

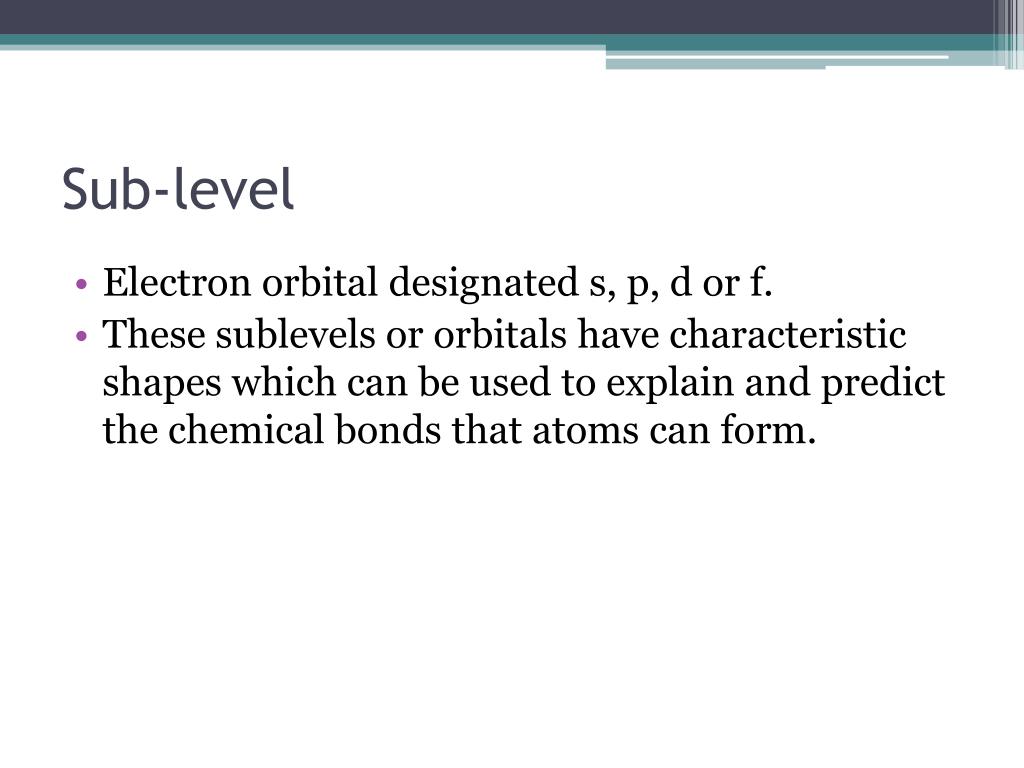

Sub-level
  • Electron orbital designated s, p, d or f.
  • These sublevels or orbitals have characteristic shapes which can be used to explain and predict the chemical bonds that atoms can form.
orbital
Orbital-
  • the region of space around the nucleus where an electron is likely to be found.
energy level energy shell
Energy level/energy shell-
  • the possible energies that electrons in an atom can have.

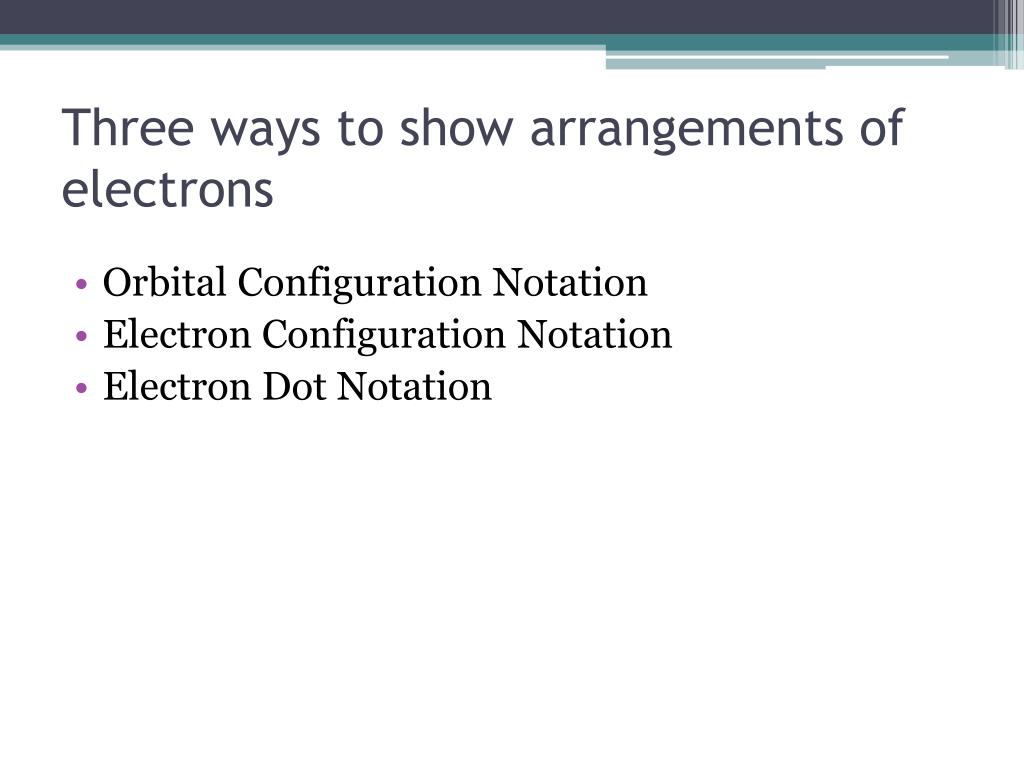

three ways to show arrangements of electrons
Three ways to show arrangements of electrons
  • Orbital Configuration Notation
  • Electron Configuration Notation
  • Electron Dot Notation
electron configuration

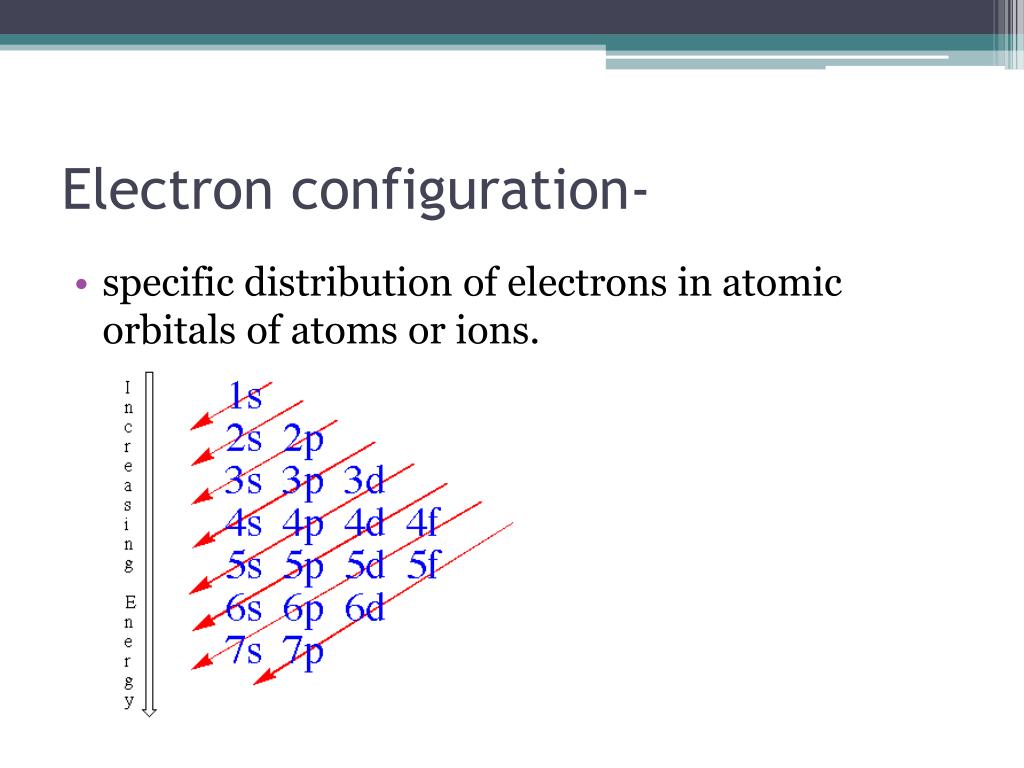

Electron configuration-
  • specific distribution of electrons in atomic orbitals of atoms or ions.
valence shell

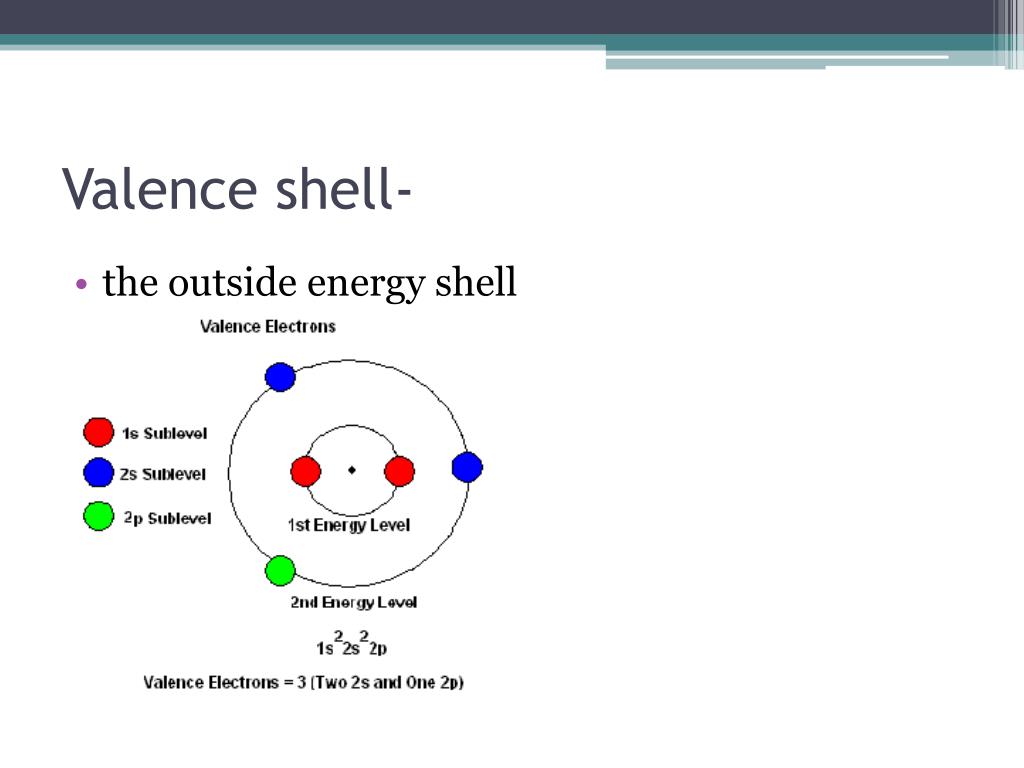

Valence shell-
  • the outside energy shell
valence electrons
Valence electrons-
  • an electron that is in the highest energy level of an atom.
orbital configuration notation
Orbital Configuration Notation
  • each electron is assigned a space with an up spin or a down spin.
  • All up spins must be placed first.
  • Then place all down spins until all electrons are used.
electron configuration notation
Electron configuration notation:
  • is just the letters and numbers from the orbital configuration.
  • Example: Ar= 1s2 2s2 2p6 3s2 3p6
electron dot notation
Electron dot notation:
  • the valence electrons represented by dots around the element symbol.
  • -fill in using the house memory trick

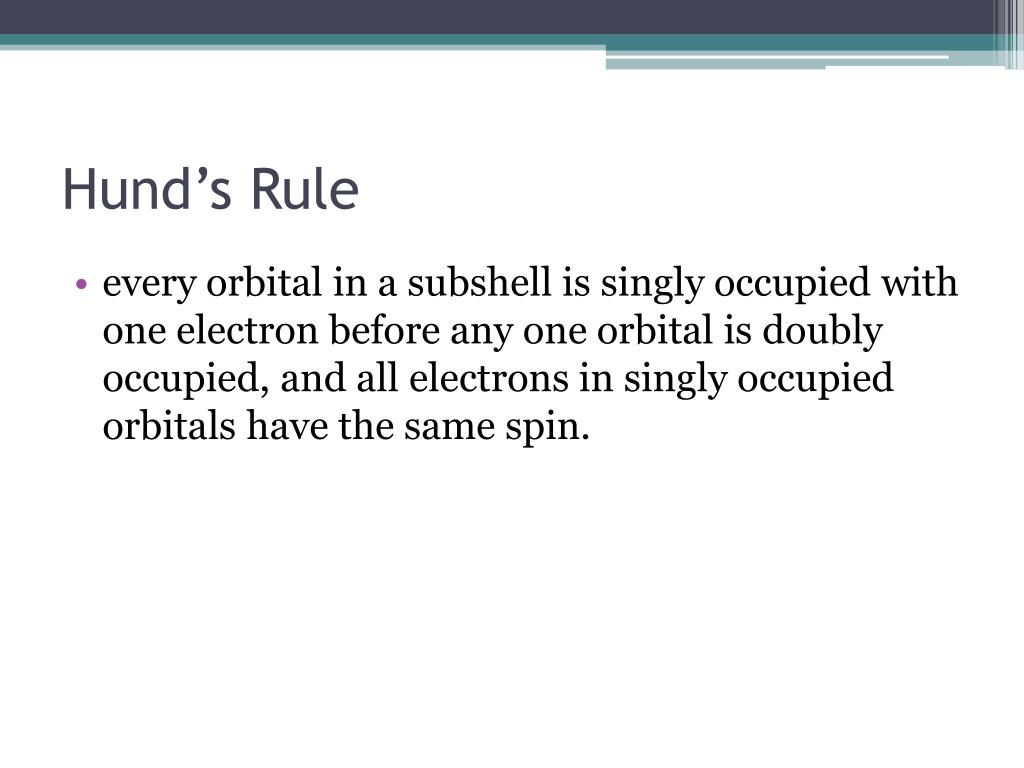

hund s rule
Hund’s Rule
  • every orbital in a subshell is singly occupied with one electron before any one orbital is doubly occupied, and all electrons in singly occupied orbitals have the same spin.

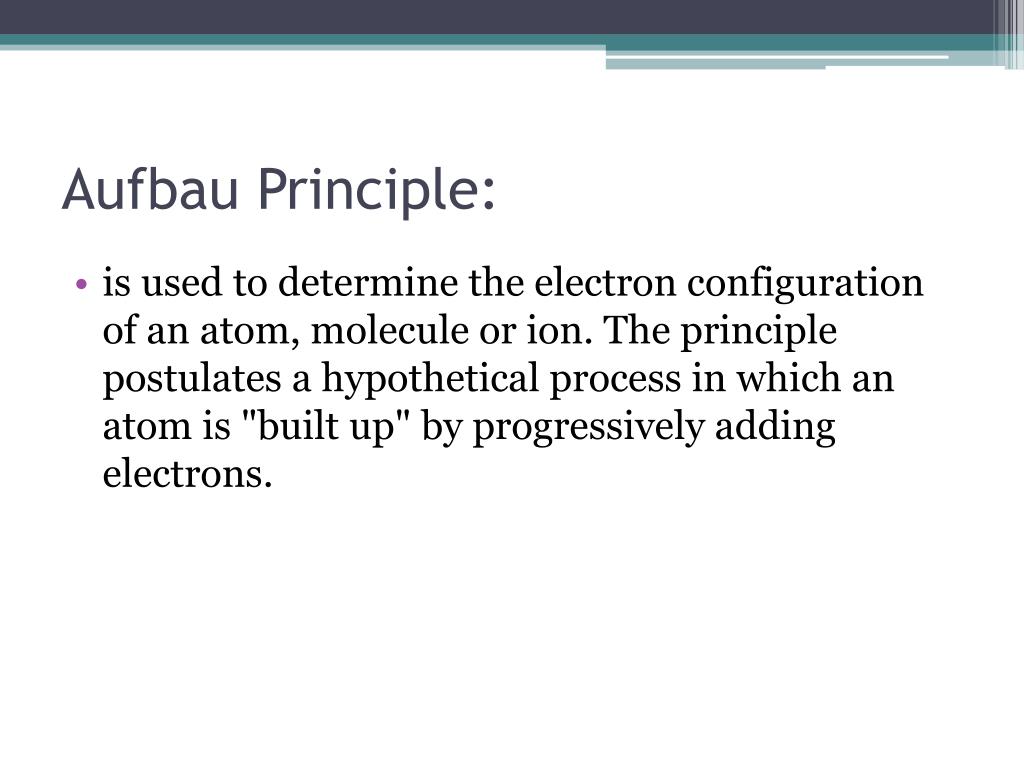

aufbau principle
Aufbau Principle:
  • is used to determine the electron configuration of an atom, molecule or ion. The principle postulates a hypothetical process in which an atom is "built up" by progressively adding electrons.

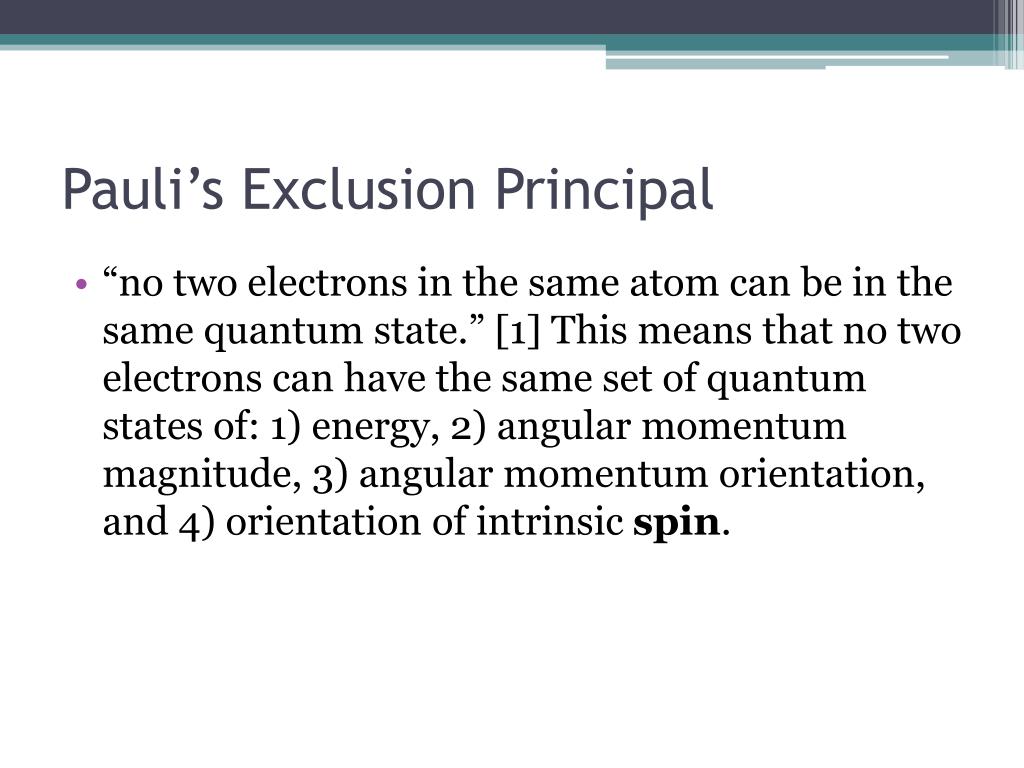

pauli s exclusion principal
Pauli’s Exclusion Principal
  • “no two electrons in the same atom can be in the same quantum state.” [1] This means that no two electrons can have the same set of quantum states of: 1) energy, 2) angular momentum magnitude, 3) angular momentum orientation, and 4) orientation of intrinsic spin.
assessment
Assessment
  • LIST THE PERIOD TO WHICH EACH OF THE FOLLOWING BELONGS:
    • STRONTIUM:
      • 5
    • IRON:
      • 4
    • RADON:
      • 6
    • ANTIMONY:
      • 5
  • HOW MANY ELEMENTS ARE IN PERIOD 4?
    • 18
  • HOW MANY ELEMENTS ARE IN PERIOD 6?
    • 32

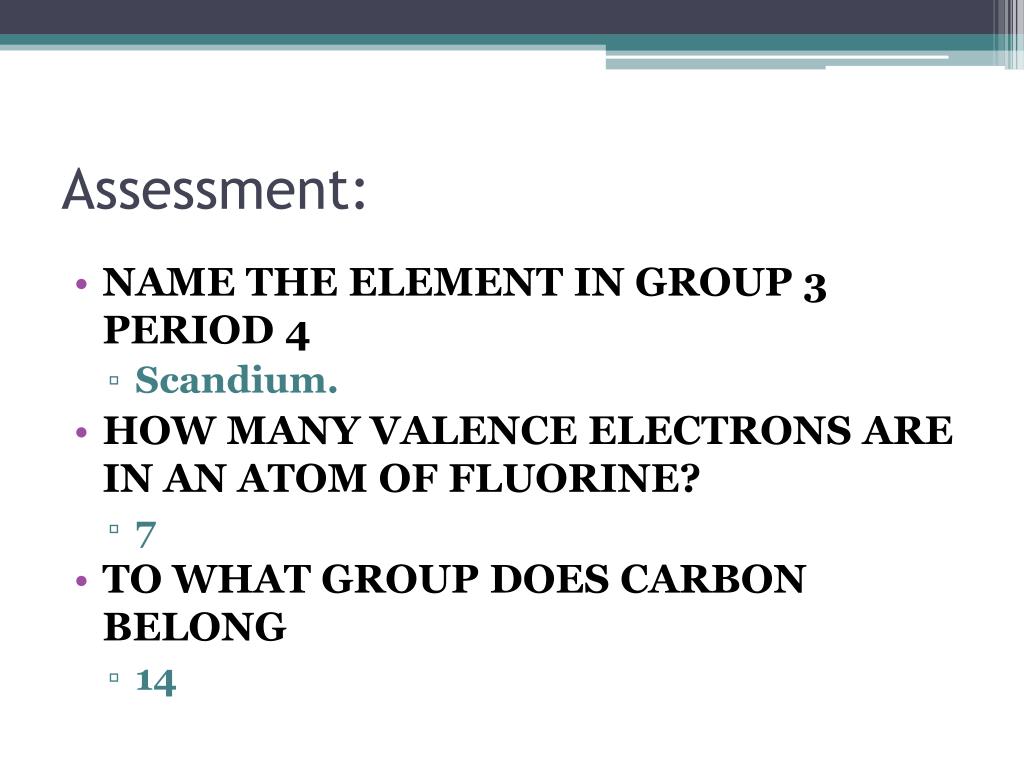

assessment1
Assessment:
  • NAME THE ELEMENT IN GROUP 3 PERIOD 4
    • Scandium.
  • HOW MANY VALENCE ELECTRONS ARE IN AN ATOM OF FLUORINE?
    • 7
  • TO WHAT GROUP DOES CARBON BELONG
    • 14
