  1. 802.1x Best Practises Ing. Peter Feciľak Peter.Fecilak@tuke.sk 29.04.2008, KPI, FEI, TUKE.

  2. Content of the presentation • Basic terminology- 802.1x- RADIUS server- Dynamic VLAN membership • Why to implement 802.1x ? • Problems in 802.1x implementation • Discussion...

  3. What is 802.1x ? • IEEE standard for port-based Network Access Control • Provides port-based authentication • Supported in wired/wireless environment

  4. 802.1x terminology

  5. Radius authentication server • Provides authentication and other AAA services for end-device by a number of authentication mechanisms • Each authentication mechanism has its own level of security(EAP/MD5, EAP/LEAP, EAP/PEAP) • Can be linked to external user/computer database – ActiveDirectory / LDAP / MYSQL

  6. Radius authentication server • Supports delegation of requests(e.g. eduroam) • Runs on different platformsMS Windows:Cisco Secure Access Control ServerLinux:Freeradius / old version of CS ACS

  7. Authenticator – access layer • Provides port-based authentication and dynamic VLAN membership via RADIUS server(EAP and Radius protocol) • Three types of VLANs: • Dynamic VLAN from RADIUS • AUTH-FAIL VLAN • GUEST-VLAN • Catalyst switches supports periodical re-authentication (Steve Riley vulnerability from 2005)

  8. 802.1x Supplicant • Application that provides authentication via EAP against authenticator • Possible types of authentication: • Computer (domain account) • User (domain account, OTP…) • Computer with user account

  9. 802.1x Supplicant • Supported under Windows and Linux as well • Linux authentication tools: • Xsupplicant (wired) • WPA_supplicant (wireless) • open1x

  10. 802.1x Linux Supplicant fecilak@travelko:~$ cat /etc/xsupplicant/xsupplicant.conf default_interface = eth0 default { type = wired allow_types = eap-peap identity = "pfecilak" eap-peap { inner_id = "pfecilak" root_cert = NONE chunk_size = 1398 random_file = /dev/urandom allow_types = all session_resume = yes eap-mschapv2 { username = "pfecilak" password = “Moje1Tajne2Heslo3!#" } } }

  11. 802.1x Windows Supplicant • Native 802.1x supplicant under: • MS Windows XP • MS Vista • MS Windows 2000 (latest SP) • External supplicants: • Cisco Secure Services Agent

  12. 802.1x Windows Supplicant

  13. 802.1x Windows Supplicant User-authentication GUI agent:

  14. Why to implement 802.1x ? • Provide port-based control for accessing network resources (problems with controlling physical access) • Identify regular network users. Provide them easy access to network resources. Isolate non-regular users from internal infrastructure.

  15. Why to implement 802.1x ? • Apply different security levels for specified communities of users. • Provide mobility features via RADIUS and Dynamic VLAN membership

  16. Number of Security Levels • Identify User/Computer roles and grand them access to network resources as defined by their security level.

  17. Problems in 802.1x implementation • Devices that does not support 802.1x connected to access-layer causes problems(e.g. hubs/unmanagable switches) • Computers connected via IP phones that doesn’t support 802.1x has problem with authentication • Periodical re-authentication can cause problems in large domain

  18. Problems in 802.1x implementation • Computer authentication with User to VLAN mapping can cause problem during IP settings renewal process • Authentication tab not shown in local area network configuration(needs Wireless Zero Configuration)

  19. Best practises • When 802.1x is used mainly in MS Windows domain, use Cisco Secure ACS and computer domain accounts • Do not use dynamic VLAN membership with User to VLAN mapping. Better is computer authentication with domain account

  20. Best practises • Scale the number of RADIUS servers concerning whether re-authentication is enabled and the number of end clients that will use 802.1x authentication • I recommend to use 1 server for 100 computers when re-authentication at every 5 minutes is used

  21. Best practises Classification to profiles for providing different security-levels: • User Network • For regular users granting access to network resources • Visitors Network • For guest access from internal infrastructure granting only internet access • Guest/Auth-fail VLAN • Fully isolated network. No network resources can be accessed.

  22. Discussion/Questions and Answers

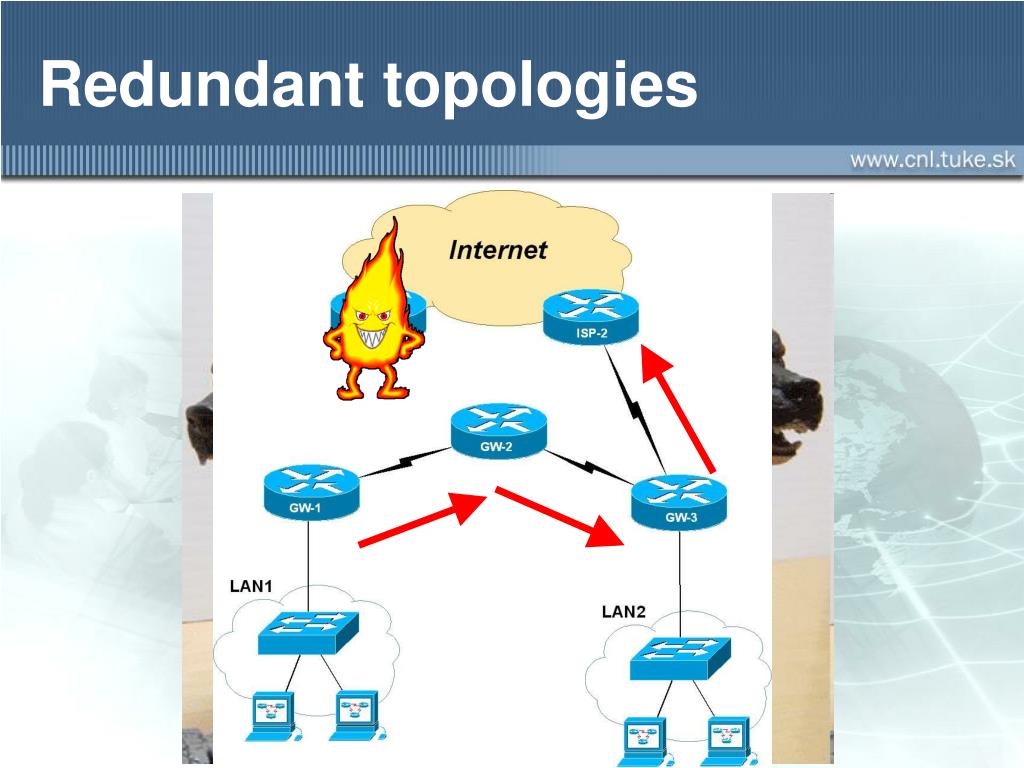

  23. Redundant topologies

  24. Redundant topologies

  25. Problem

  26. Solution – redundant gateways 192.168.1.2 192.168.1.1 192.168.1.0/24

  27. Mas 192.168.1.2 192.168.1.1 192.168.1.3 GW-1-1 GW-1-2 Master Slave Virtual Router Solution – HSRP Slave MASTER 192.168.1.3 Master 192.168.1.3 SLAVE 192.168.1.2 192.168.1.1 192.168.1.0/24

  28. First Hop Redundancy Protocols HSRP VRRP GLBP

  29. Example - HSRP 192.168.1.2 192.168.1.1 GW-1-1(config)# interface FastEthernet 0/0 GW-1-1(config-if)# ip address 192.168.1.2 255.255.255.0 GW-1-1(config-if)# standby 1 priority 80 GW-1-1(config-if)# standby 1 preempt GW-1-1(config-if)# standby 1 ip 192.168.1.3 GW-1-1(config-if)# no shutdown GW-1-2(config)# interface FastEthernet 0/0 GW-1-2(config-if)# ip address 192.168.1.1 255.255.255.0 GW-1-2(config-if)# standby 1 priority 150 GW-1-2(config-if)# standby 1 preempt GW-1-2(config-if)# standby 1 ip 192.168.1.3 GW-1-2(config-if)# no shutdown IP: 192.168.1.100 Netmask: 255.255.255.0 Gateway: 192.168.1.3

  30. Configuration statements - HSRP 192.168.1.2 192.168.1.1 GW-1-1(config)# interface FastEthernet 0/0 GW-1-1(config-if)# ip address 192.168.1.2 255.255.255.0 GW-1-1(config-if)# standby 1 priority 80 GW-1-1(config-if)# standby 1 preempt GW-1-1(config-if)# standby 1 ip 192.168.1.3 GW-1-1(config-if)# no shutdown GW-1-2(config)# interface FastEthernet 0/0 GW-1-2(config-if)# ip address 192.168.1.1 255.255.255.0 GW-1-2(config-if)# standby 1 priority 150 GW-1-2(config-if)# standby 1 preempt GW-1-2(config-if)# standby 1 ip 192.168.1.3 GW-1-2(config-if)# no shutdown IP: 192.168.1.100 Netmask: 255.255.255.0 Gateway: 192.168.1.3

  31. The End Thank you for your attention… Ing. Peter Feciľak Peter.Fecilak@tuke.sk 29.04.2008, KPI, FEI, TUKE.
