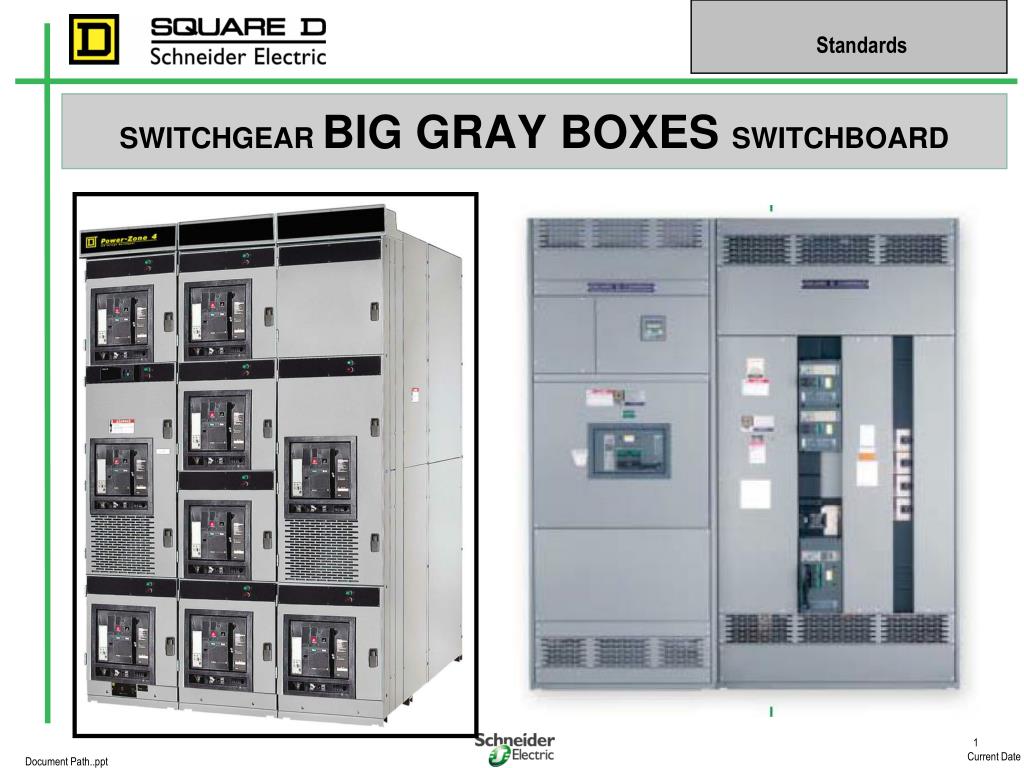

SWITCHGEAR BIG GRAY BOXES SWITCHBOARD

Loading in 2 Seconds...

play fullscreen
1 / 24

SWITCHGEAR BIG GRAY BOXES SWITCHBOARD - PowerPoint PPT Presentation


  • 181 Views
  • Uploaded on

SWITCHGEAR BIG GRAY BOXES SWITCHBOARD. Why Different Standards? ANSI vs UL. Standards Comparison. Standards Comparison (cont.). Comparison (cont.). Switchgear has Defined Short Time Withstand Ratings!. “Practice” Comparison . Switchgear maintenance permitted (not required by standard).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'SWITCHGEAR BIG GRAY BOXES SWITCHBOARD' - meaghan


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide7

Comparison (cont.)

Switchgear has Defined Short Time Withstand Ratings!

slide8

“Practice” Comparison

Switchgear maintenance permitted (not required by standard).

Switchboard maintenance often not allowed.

old vs new

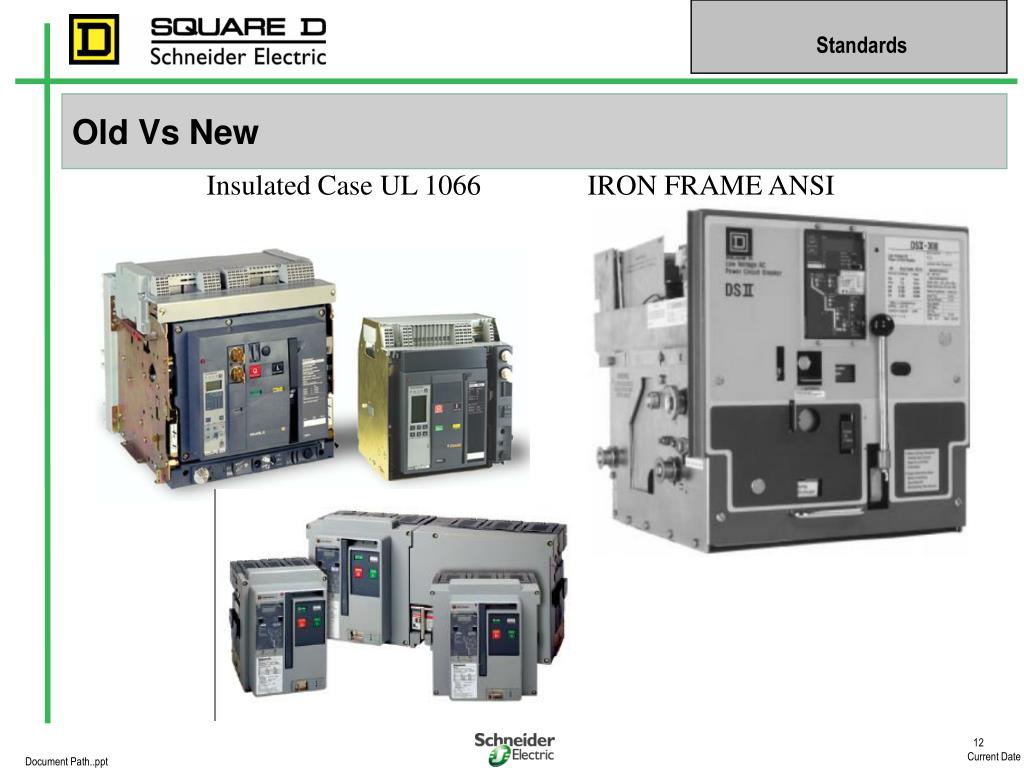

Old Vs New

Insulated Case UL 1066 IRON FRAME ANSI

advantages of insulated case vs iron frame
Advantages of Insulated Case Vs Iron Frame
  • Smaller footprint
  • More reliable (Modular Design with Fewer Parts)
  • Higher interrupting ratings
  • Higher withstand ratings (30 Cycles)
  • Reduced maintenance
  • Electronic Trip Units
    • Field Installable Trip Units
    • Communications
    • Power monitoring (2.5% Accuracy)
mechanical construction

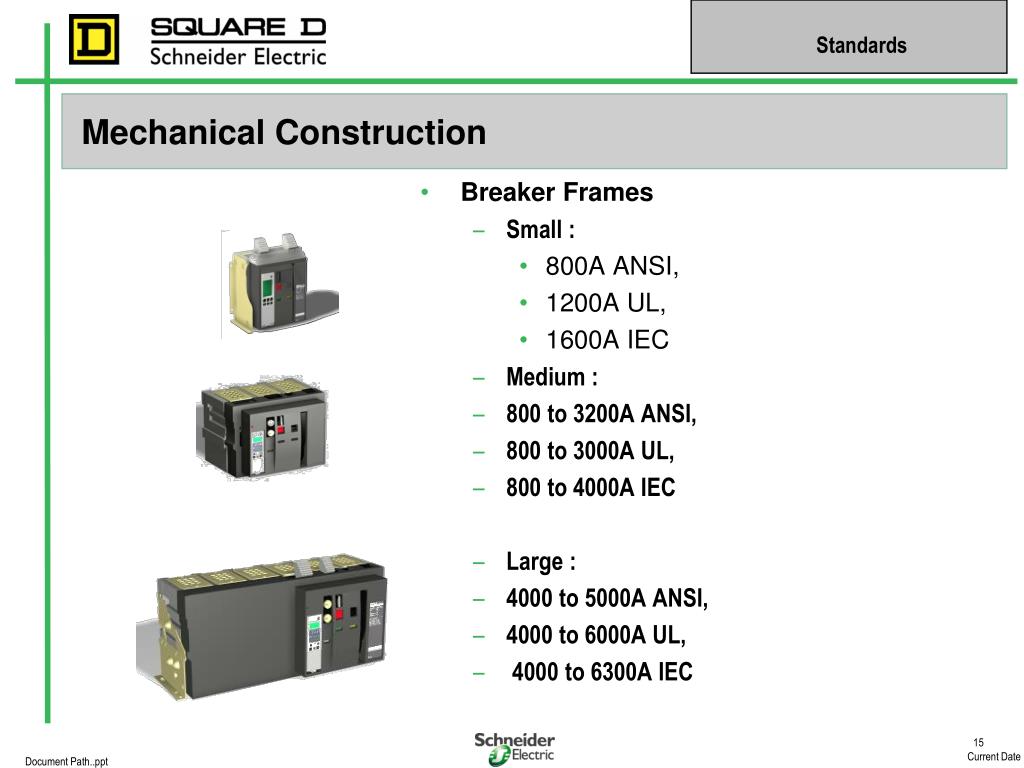

Mechanical Construction
  • Breaker Frames
    • Small :
      • 800A ANSI,
      • 1200A UL,
      • 1600A IEC
    • Medium :
    • 800 to 3200A ANSI,
    • 800 to 3000A UL,
    • 800 to 4000A IEC
    • Large :
    • 4000 to 5000A ANSI,
    • 4000 to 6000A UL,
    • 4000 to 6300A IEC
organic vs iron frame

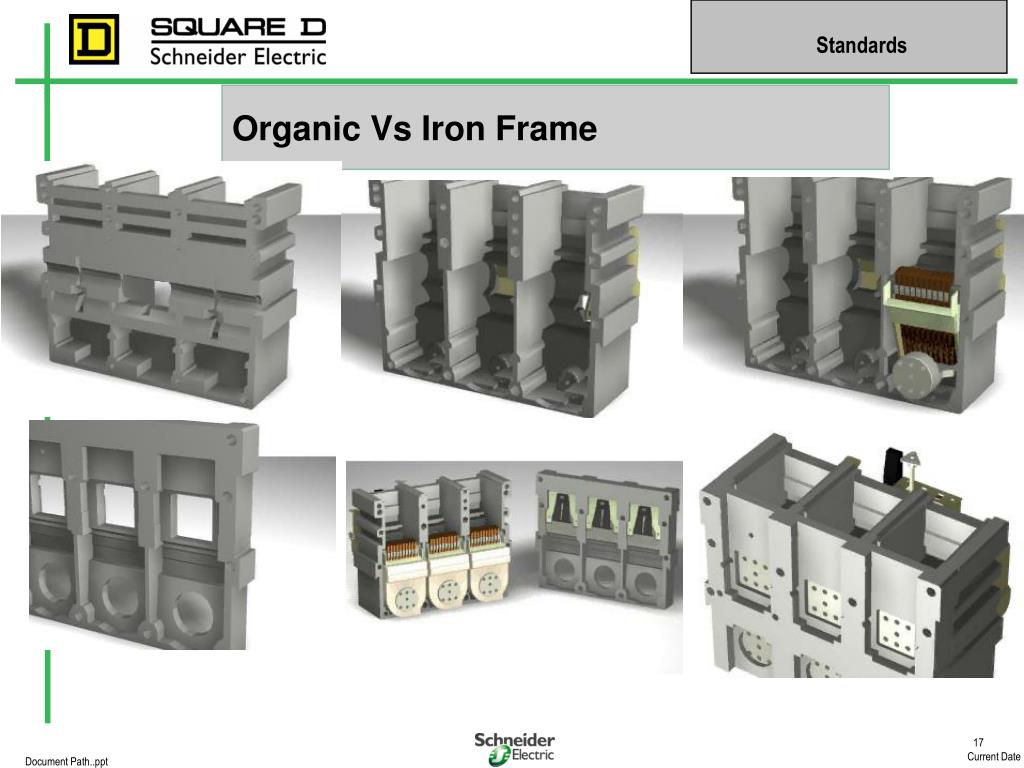

Organic Vs Iron Frame

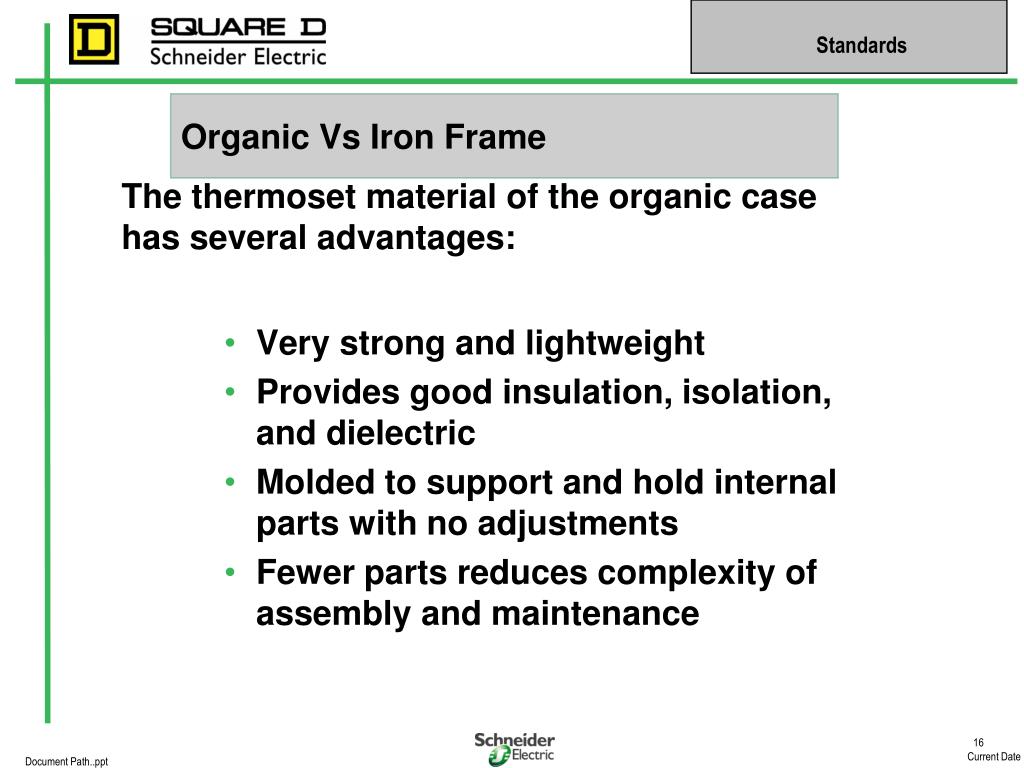

The thermoset material of the organic case has several advantages:

  • Very strong and lightweight
  • Provides good insulation, isolation, and dielectric
  • Molded to support and hold internal parts with no adjustments
  • Fewer parts reduces complexity of assembly and maintenance
display type

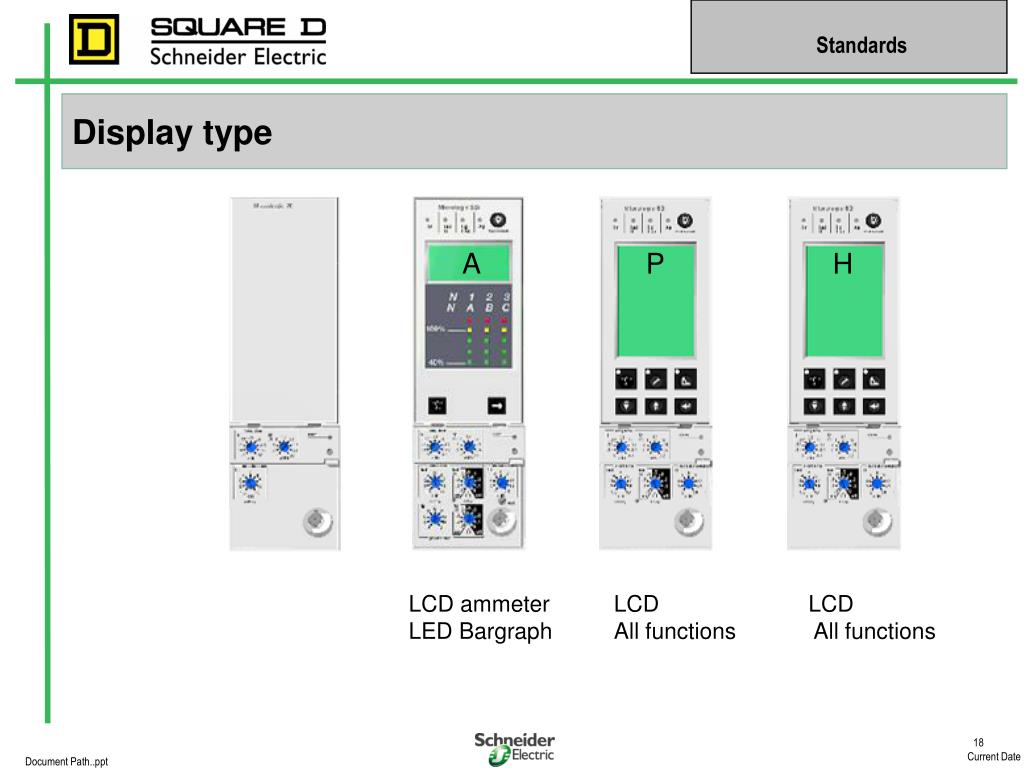

Display type

A

P

H

LCD ammeter

LED Bargraph

LCD

All functions

LCD

All functions

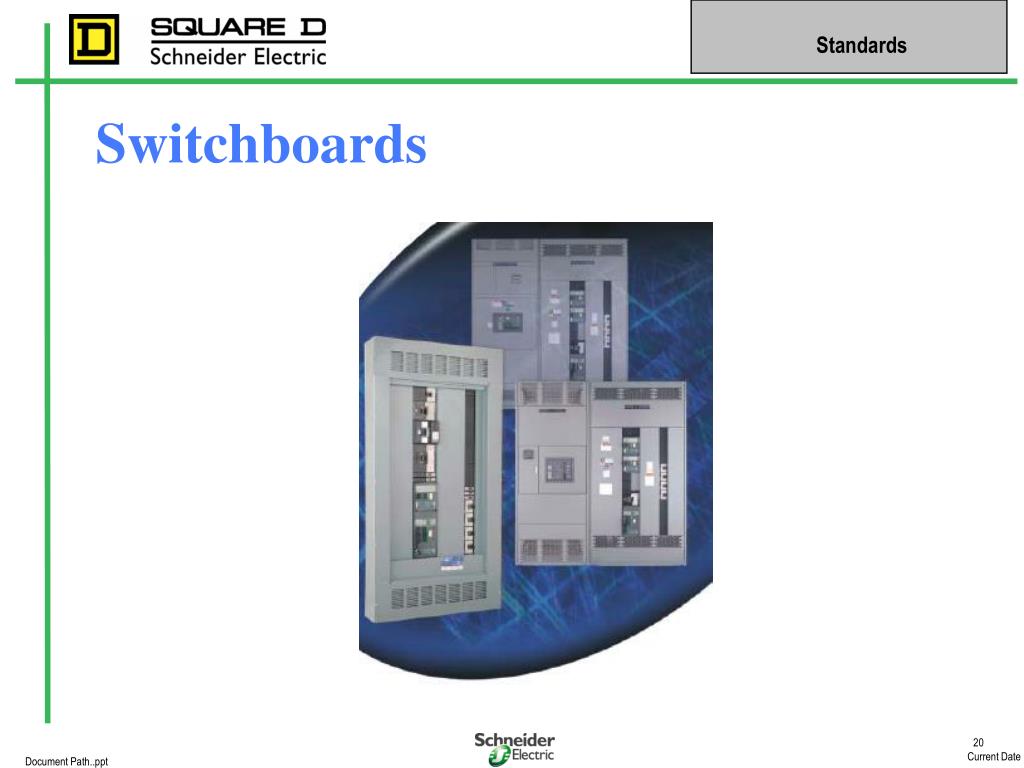

switchboards
Switchboards

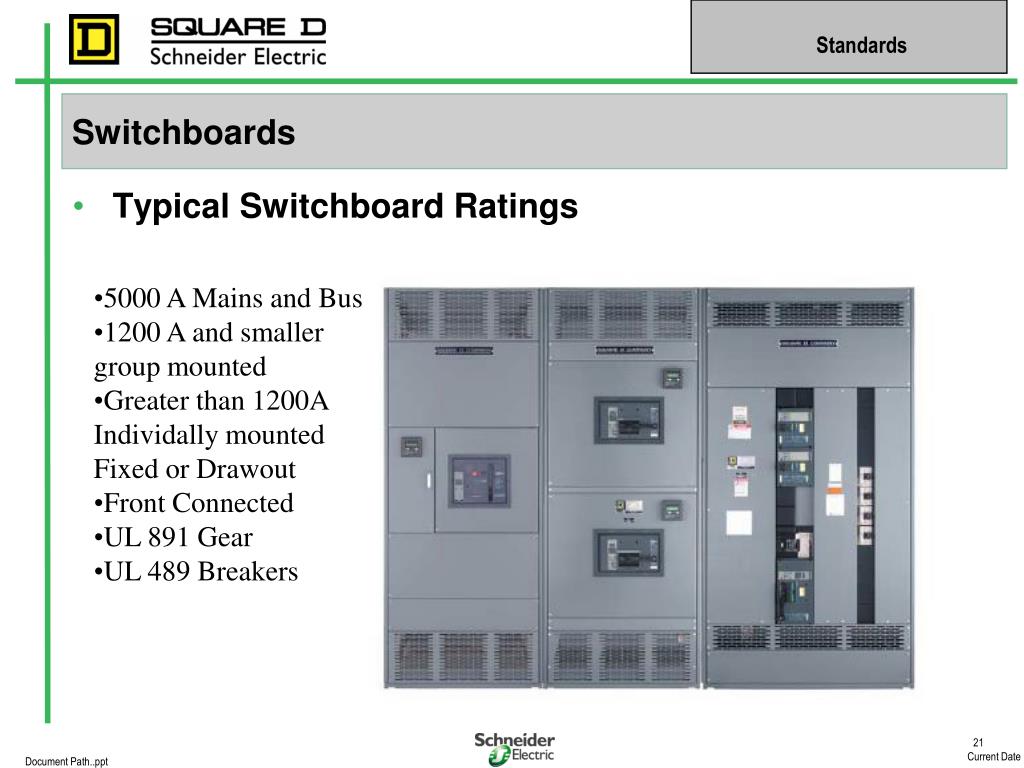

  • Typical Switchboard Ratings
  • 5000 A Mains and Bus
  • 1200 A and smaller group mounted
  • Greater than 1200A Individally mounted Fixed or Drawout
  • Front Connected
  • UL 891 Gear
  • UL 489 Breakers

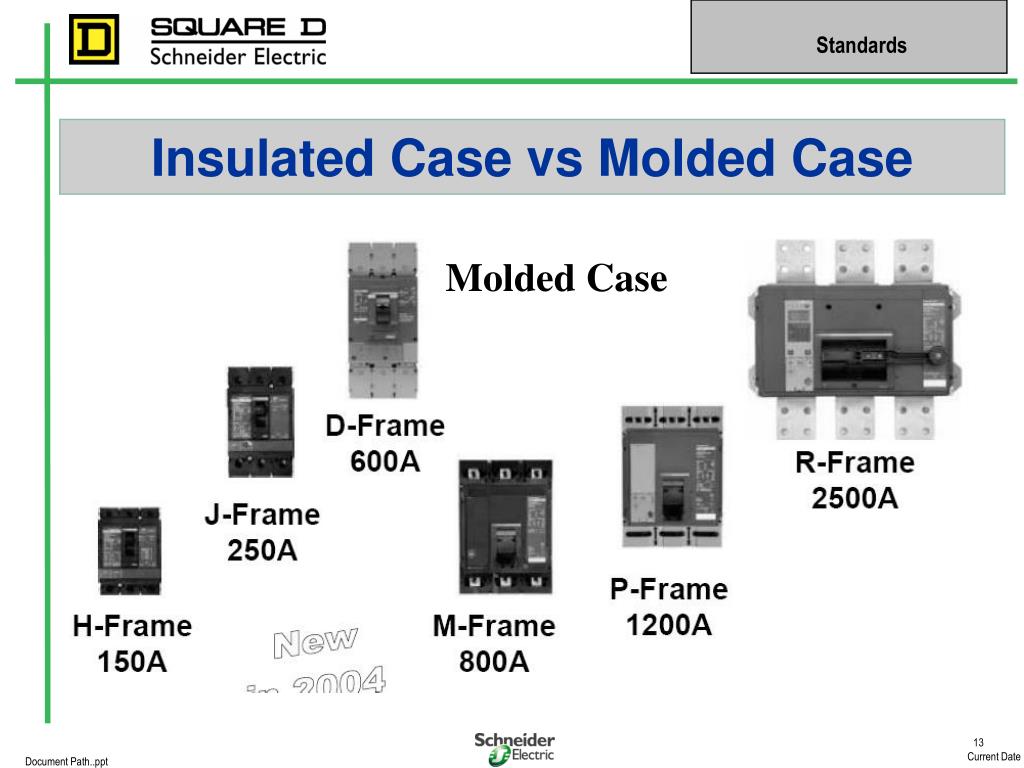

hybred ul 891 switchboards
“Hybred UL 891 Switchboards”
  • Mix Insulated Case and Molded Case
  • Individially mounted
    • Front Connected
    • Rear Connected
  • Individually mounted
    • Drawout
    • Fixed
  • Group Mounted and Drawout
  • Fusible and Circuit Breaker
  • No requirement for isolation or
    • Barriers
