Presentation Transcript

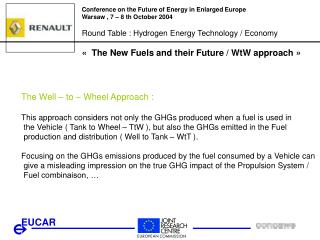

slide1

EUCAR

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

The Well – to – Wheel Approach :

This approach considers not only the GHGs produced when a fuel is used in

the Vehicle ( Tank to Wheel – TtW ), but also the GHGs emitted in the Fuel

production and distribution ( Well to Tank – WtT ).

Focusing on the GHGs emissions produced by the fuel consumed by a Vehicle can

give a misleading impression on the true GHG impact of the Propulsion System /

Fuel combinaison, …

slide2

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Well – to – Tank

Emphasis on the Hydrogen Production Pathways

slide3

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Compressed Hydrogen Pathways

* Excluding Electricity ( Electrolysis )

slide4

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Liquified Hydrogen Pathways

* Excluding Electricity ( Electrolysis )

slide5

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Electricity

to

Hydrogen Pathways

Electricity Production Pathways

IGCC Integrated Gasification Combined Cycle / CCGT : Combined Cycle Gas Turbine

hydrogen pathways

Summary

Hydrogen Pathways

Electrolysis must be the “last resort”

unless an uncontroversial renewable energy source can be used

Liquid H2 is more Energy and GHG intensive than Compressed H2

slide7

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Tank – to – Wheel

Gasoline, Diesel, Natural Gas, Hydrogen

2002 : only Internal Combustion Engines

2010 : include both I.C.E and Fuel Cells

as a Reference : « Virtual » Vehicle PISI 1,6 Gasoline

slide8

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

* additional fuels are under consideration : LPG, Bio-Gas

tank to wheel study compared g h g emissions1
Tank-to-Wheel study : Compared G.H.G. emissions

Forecast 2010

Direct H2 Fuel Cells

slide11

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Well – to – Wheel

* Conventional Fuel ICE / Hydrogen ICE / Hydrogen FC

slide12

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

* Conventional Fossil Fuels / Hydrogen ( ICE )

slide13

WTW, 2010 technologies, Hydrogen FC

250

200

150

g CO2eq/km

100

50

0

Diesel CIDI

Gasoline PISI

Gasoline SIDI

Diesel CIDI dpf

CNG, 4000 km

LH2, ref remote

LH2, LNG, ref central

CH2, LNG, ref central

CH2, Coal EU-mix, gasifier

LH2, NG 4000 km, ref central

CH2, NG 4000 km, ref on-site

LH2, farmed wood, gasifier central

CH2, farmed wood, gasifier on-site

CH2, farmed wood, gasifier central

CH2, NG 4000 km,ref central, pip...

CH2, EU-mix elec, electrolysis on...

LH2, NG 4000 km, electrolysis ce...

2000-2010 performance range

TTW

WTT

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

* Conventional Fossil Fuels / Hydrogen ( Fuel Cell )

slide14

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Well – to – Wheel ( GHG global Impact )

Conventional Fuel ICE / Hydrogen ICE / Hydrogen FC

Strongly depending on the H2 production Pathways, the H2 fuelled Vehicles could offer

attractive GHG figures

slide15

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

Well – to – Wheel ( GHG global Impact )

( continued, … )

Prior to enter into the Hydrogen era, there are many « BioMass to Liquid Fuel » pathways to develop in order to bring an « immediate » effect on the entire vehicle fleet, …

slide16

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

BtL : BioMass to Liquid Fuels ( like “SunDiesel” fuels ) are nowadays :

Intrinsically “Clean” : ( 0 sulfur, 0 aromatics )

Low polluting : particles HC CO

- 25 % - 60 % - 90 %

* Usable directly in  present « State-of-the-Art » vehicles : entire fleet, …

* Need NO specific distribution network (blend : 1 up to 100 %)

* Need NO specific technology to be developped

Will bring :

- Immediate, global G.H.G. benefit, as soon as available

- Durable and domestic sourcing ( biomass, residues and waste )

- Potential renewable hydrogen sourcing….

slide17

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

On an Environmental Point of View, and as far as the GHG impact of the

Road Transport Sector is concerned, the only valid approach is the

Global Well to Wheel Overview, as the only way to cover the complete chain :

** from the Fuel Production ( Well ) to the Fuel Consumption ( Wheel ), …

** just as an example, …, for a Std Diesel Passenger Car :

slide18

Conference on the Future of Energy in Enlarged Europe

Warsaw , 7 – 8 th October 2004

Round Table : Hydrogen Energy Technology / Economy

«  The New Fuels and their Future / WtW approach »

a « Step by Step » Approach, … :
