Analysis of Texture Variations in 6” Wafer Using Azimuthal Plots and Phase Quantification

This study investigates the texture variations in a 6” wafer, utilizing data from four detectors (GE1, GE2, GE3, GE4) that were scanned every millimeter. Results indicate strong {220} reflections in GE3 and GE4, contrasting with weaker readings in GE1 and GE2, which also reveal contributions from {113} and {133} planes. The study suggests a connection between sample geometry, specifically curvature, and texture loss. Phase fraction analysis indicates a 2-4% presence of hcp, with implications for understanding phase transitions and texture correlations.

meagan
Download Presentation

Analysis of Texture Variations in 6” Wafer Using Azimuthal Plots and Phase Quantification

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. APS8_14 M.J. Kramer July 1, 2012

  2. 70 mm strip from center of the 6” wafer • Data taken every 1 mm • 4 detectors show some variation in texture GE3 GE4 GE2 GE1

  3. Azimuthal plots show this more clearly

  4. GE 3 and GE4 show a very strong {220} while GE1 and GE2 have a weaker {220} and more contributions from {113} and {133}

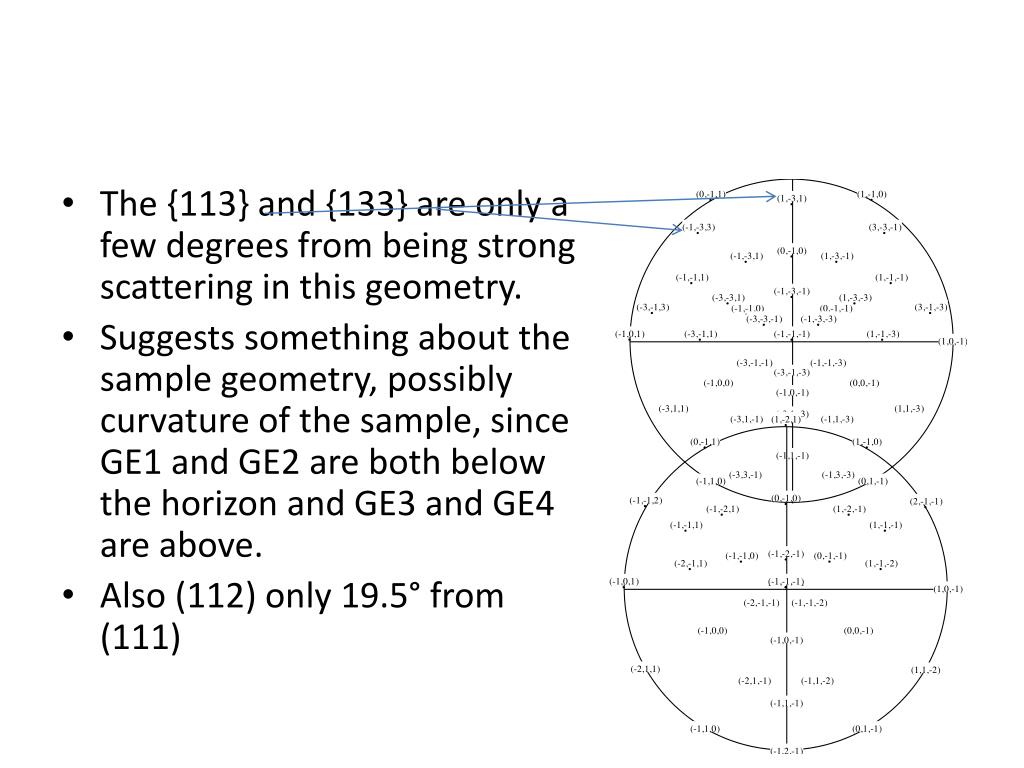

  5. The {113} and {133} are only a few degrees from being strong scattering in this geometry. • Suggests something about the sample geometry, possibly curvature of the sample, since GE1 and GE2 are both below the horizon and GE3 and GE4 are above. • Also (112) only 19.5° from (111)

  6. Rietveld fitting provides a clearer idea of the reflections of the 2nd Ag phase. • Quantify the phase fraction via fcc (220) to the hcp peak • Roughly 2-4% • Broadening of the hcp peak and overlap

  7. GE4 GE4 • Indication of intercalations driving the phase transition? • Direct correlation between loss of the texture and disappearance of the hcp phase Disordered phase Discrete phase

  8. GE2 • Slightly different orientation provides a different perspective GE2

  9. GE1 • GE doesn’t show the disordered region • Loss hcp still correlates with loss of (220) texturing • Also the (220) texture is strong when hcp diffuse is weak

  10. GE3

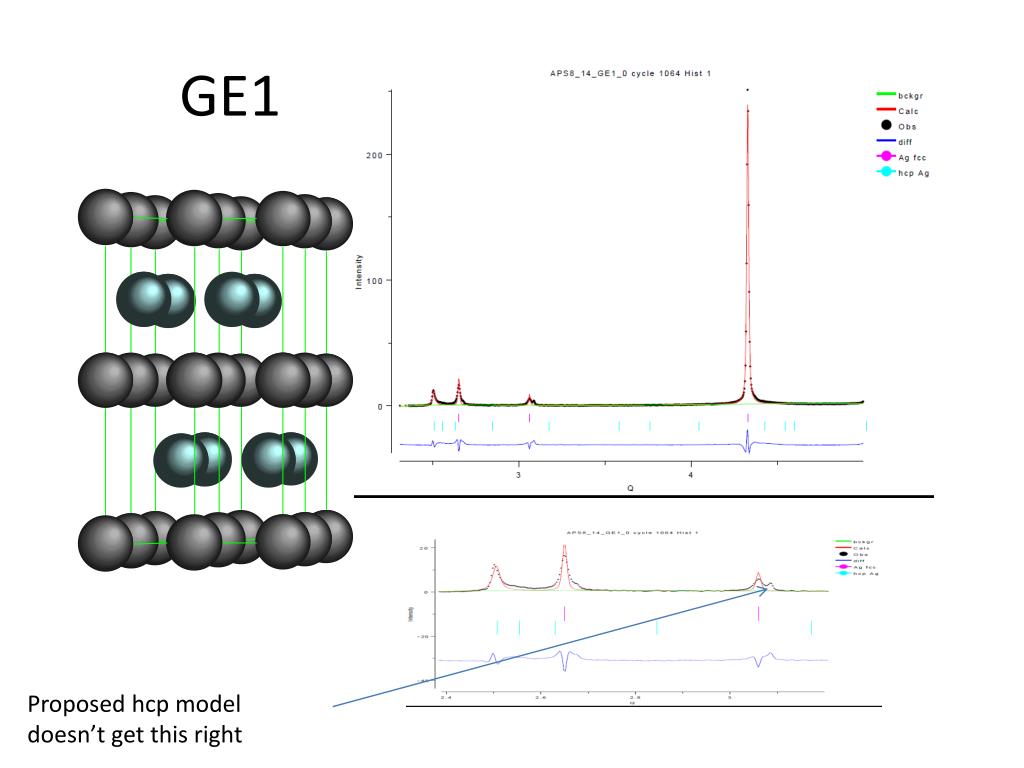

  11. GE1 Proposed hcp model doesn’t get this right
