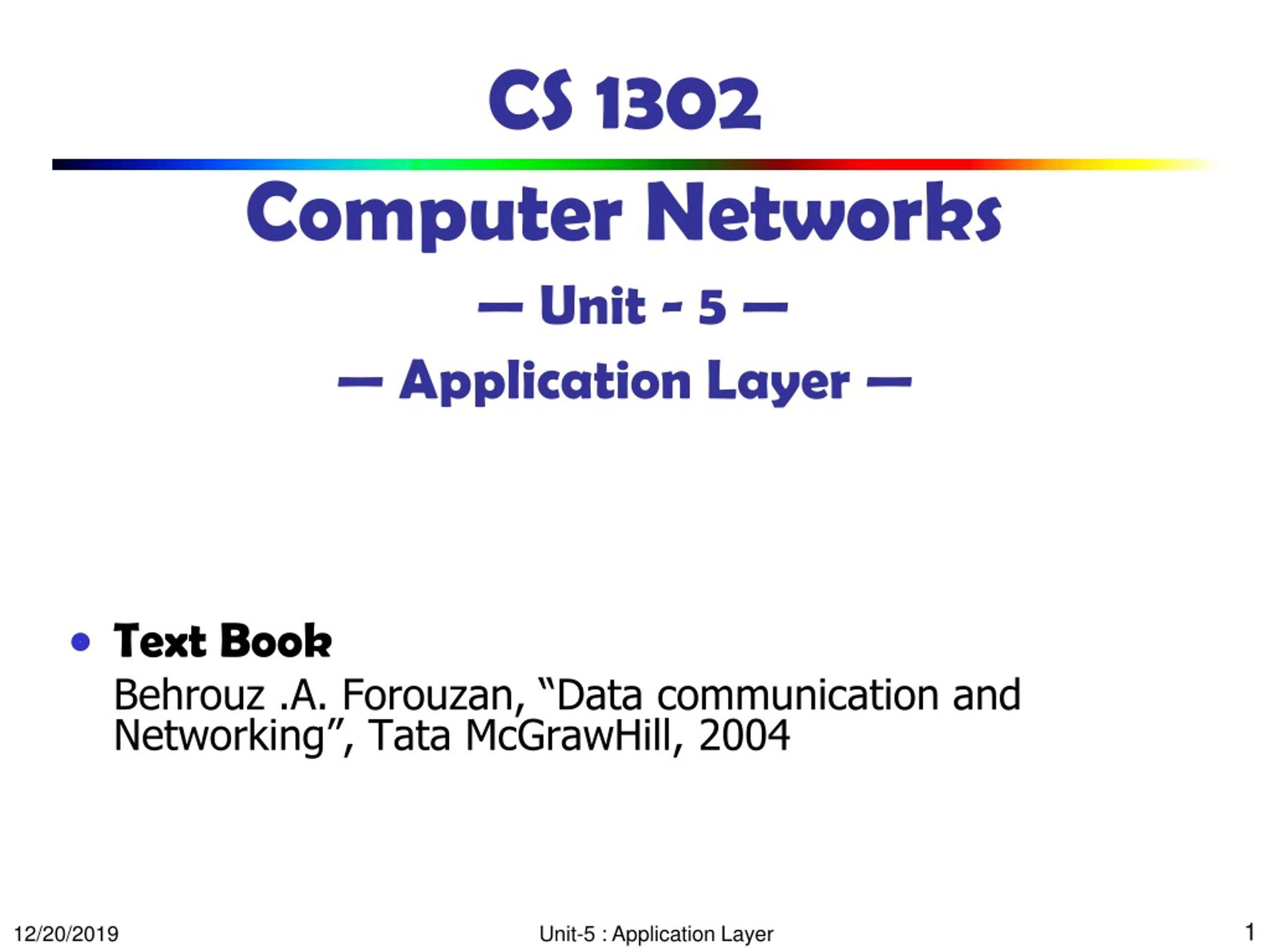

  1. CS 1302Computer Networks— Unit - 5 —— Application Layer — • Text Book Behrouz .A. Forouzan, “Data communication and Networking”, Tata McGrawHill, 2004 Unit-5 : Application Layer

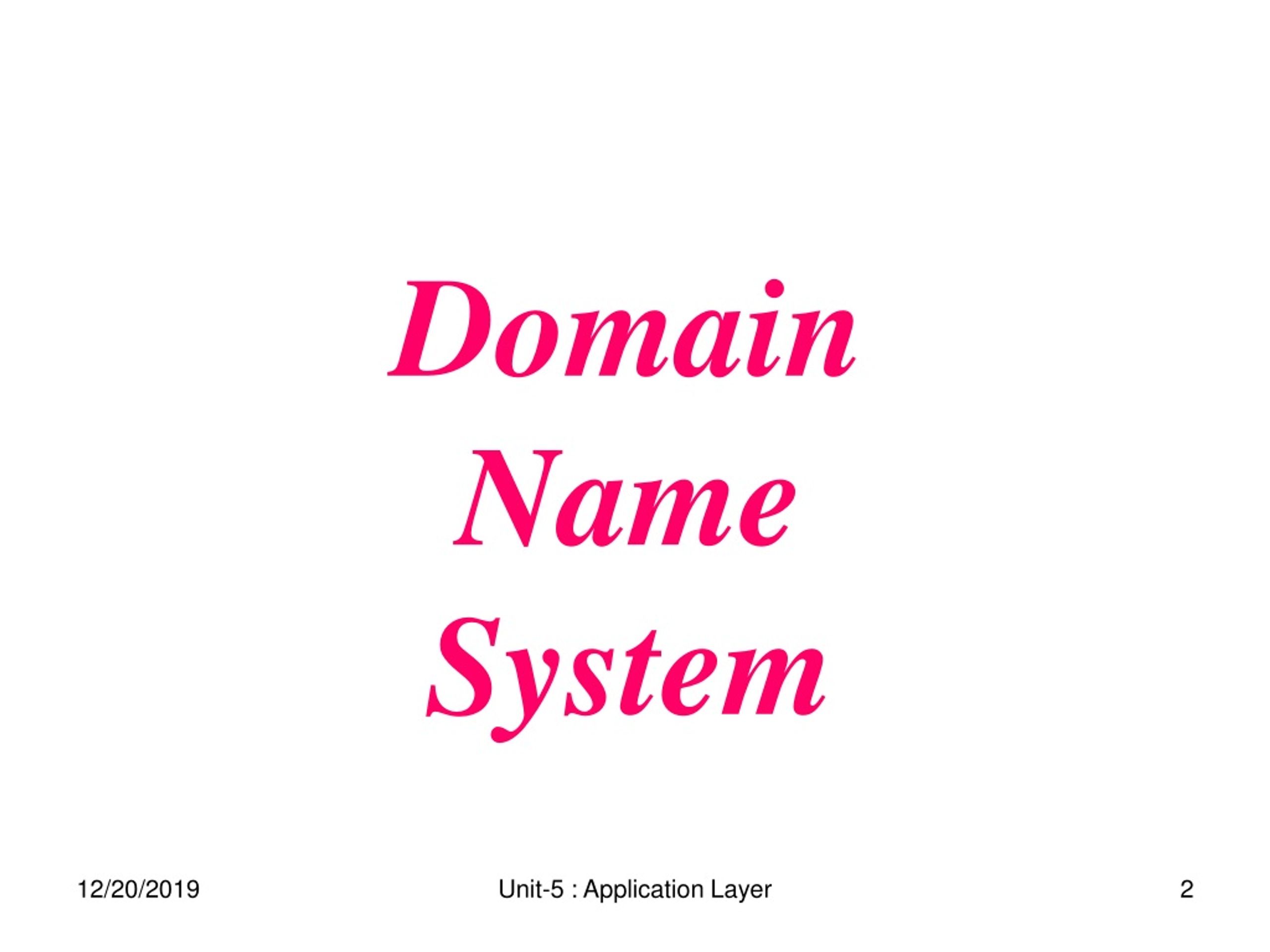

  2. DomainName System Unit-5 : Application Layer

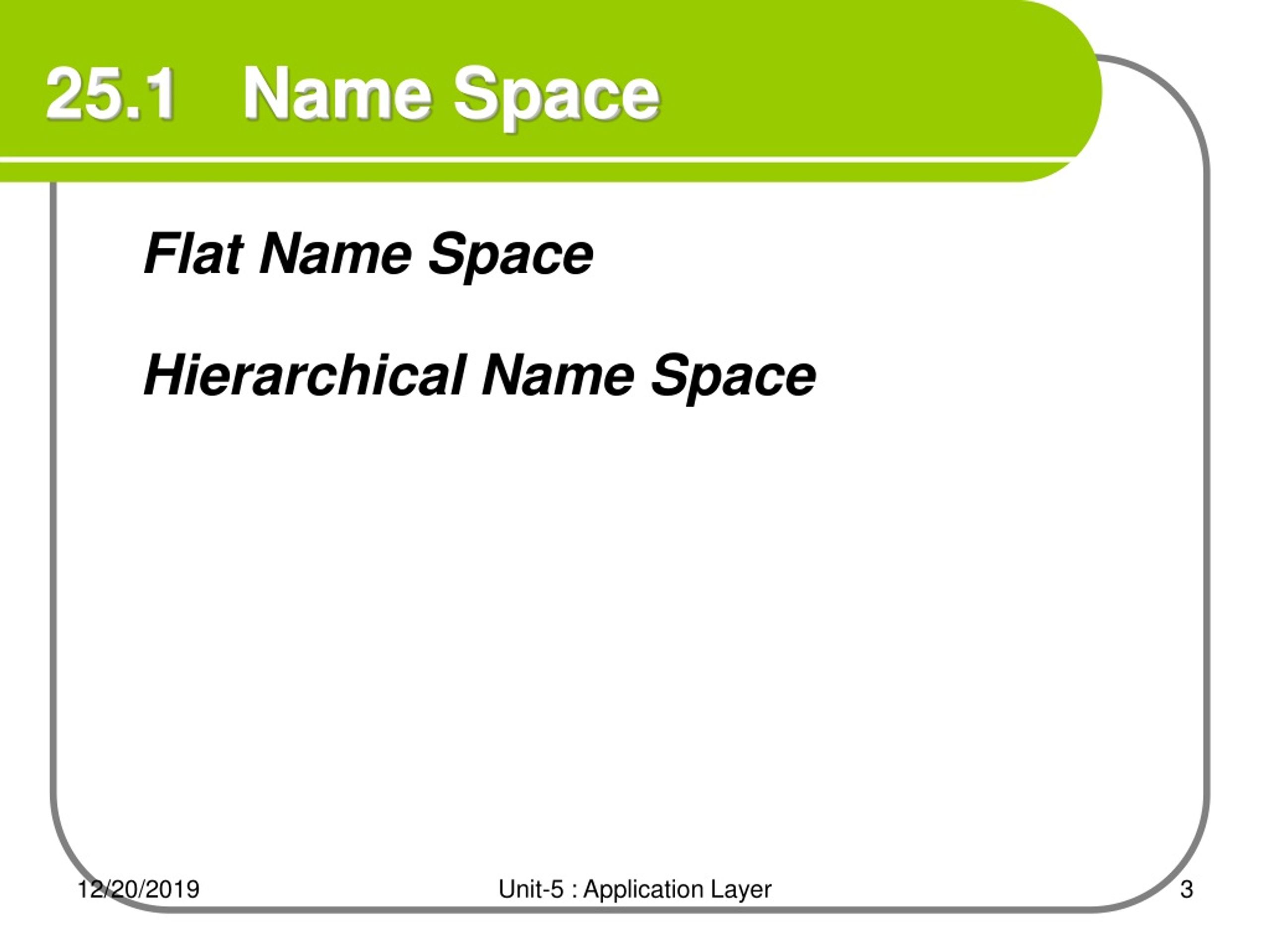

  3. 25.1 Name Space Flat Name Space Hierarchical Name Space Unit-5 : Application Layer

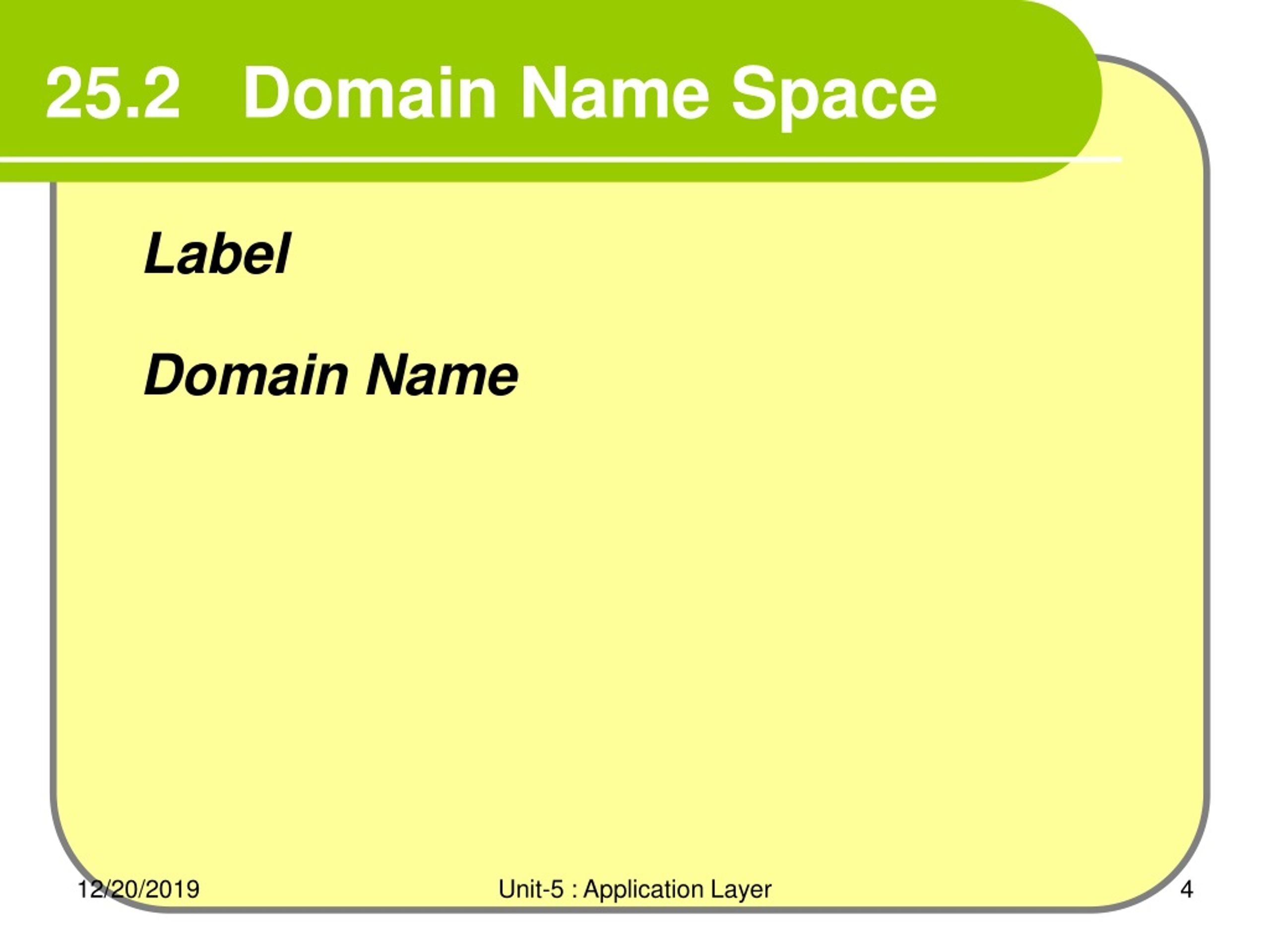

  4. 25.2 Domain Name Space Label Domain Name Unit-5 : Application Layer

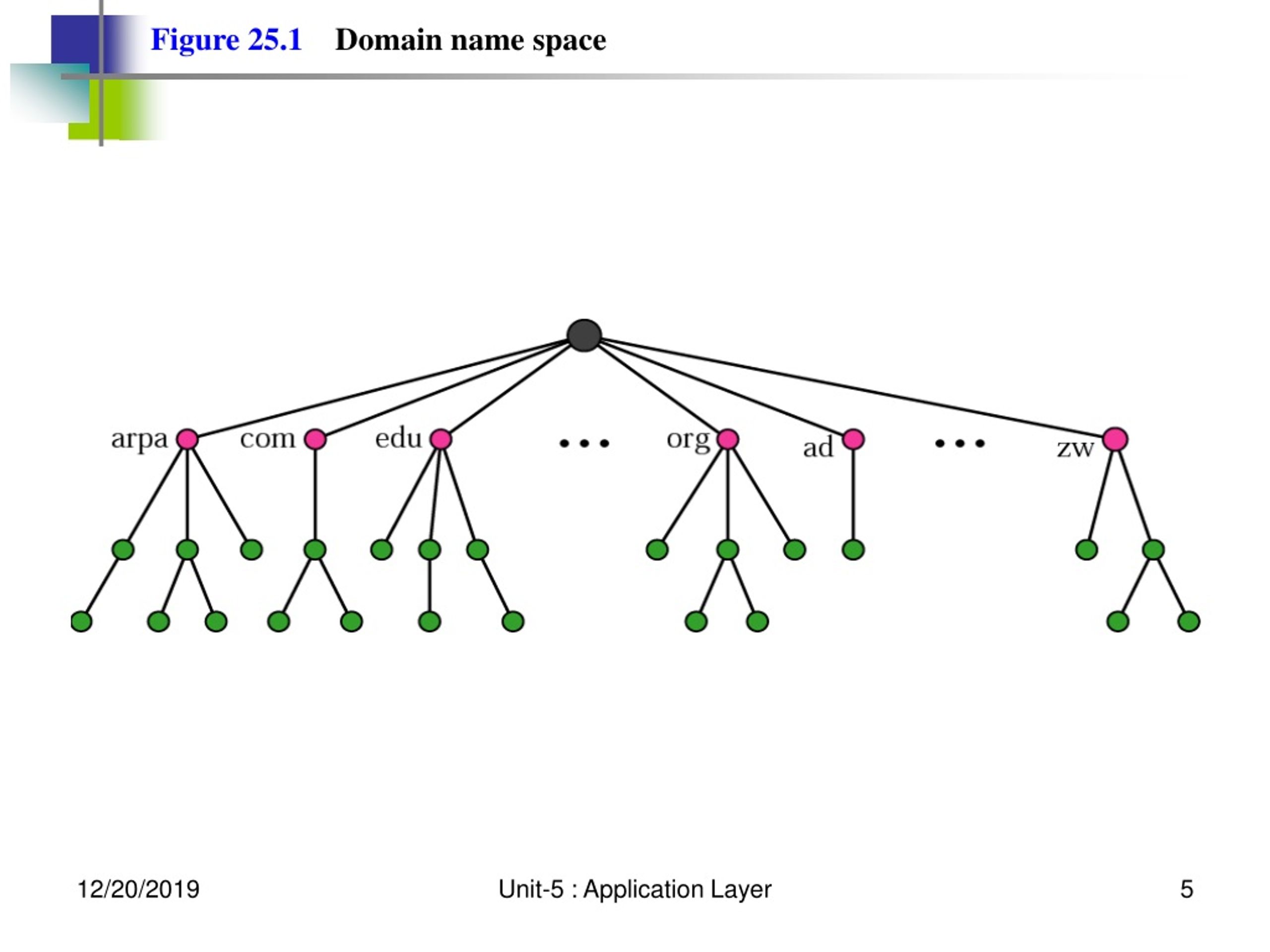

  5. Figure 25.1Domain name space Unit-5 : Application Layer

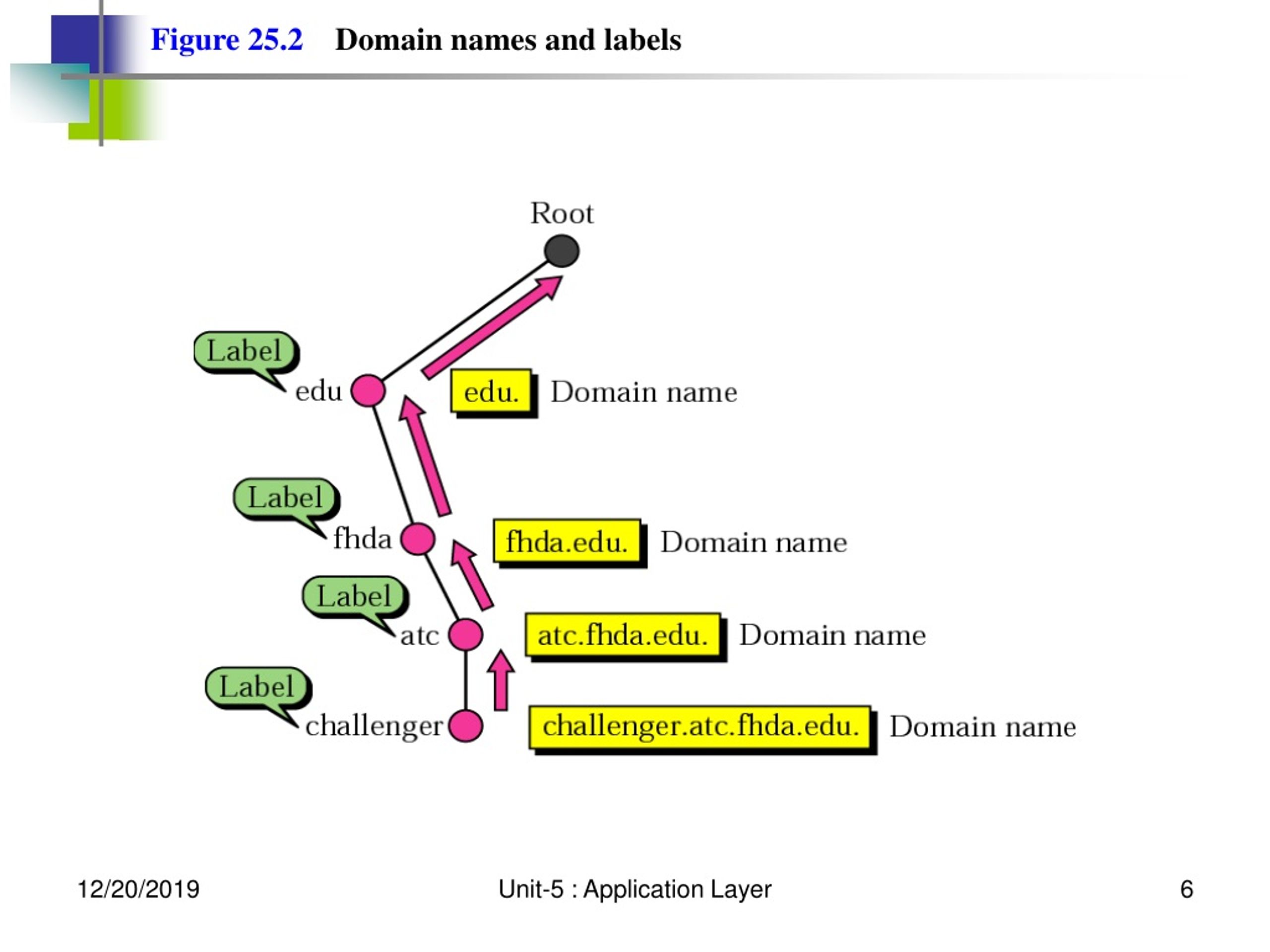

  6. Figure 25.2Domain names and labels Unit-5 : Application Layer

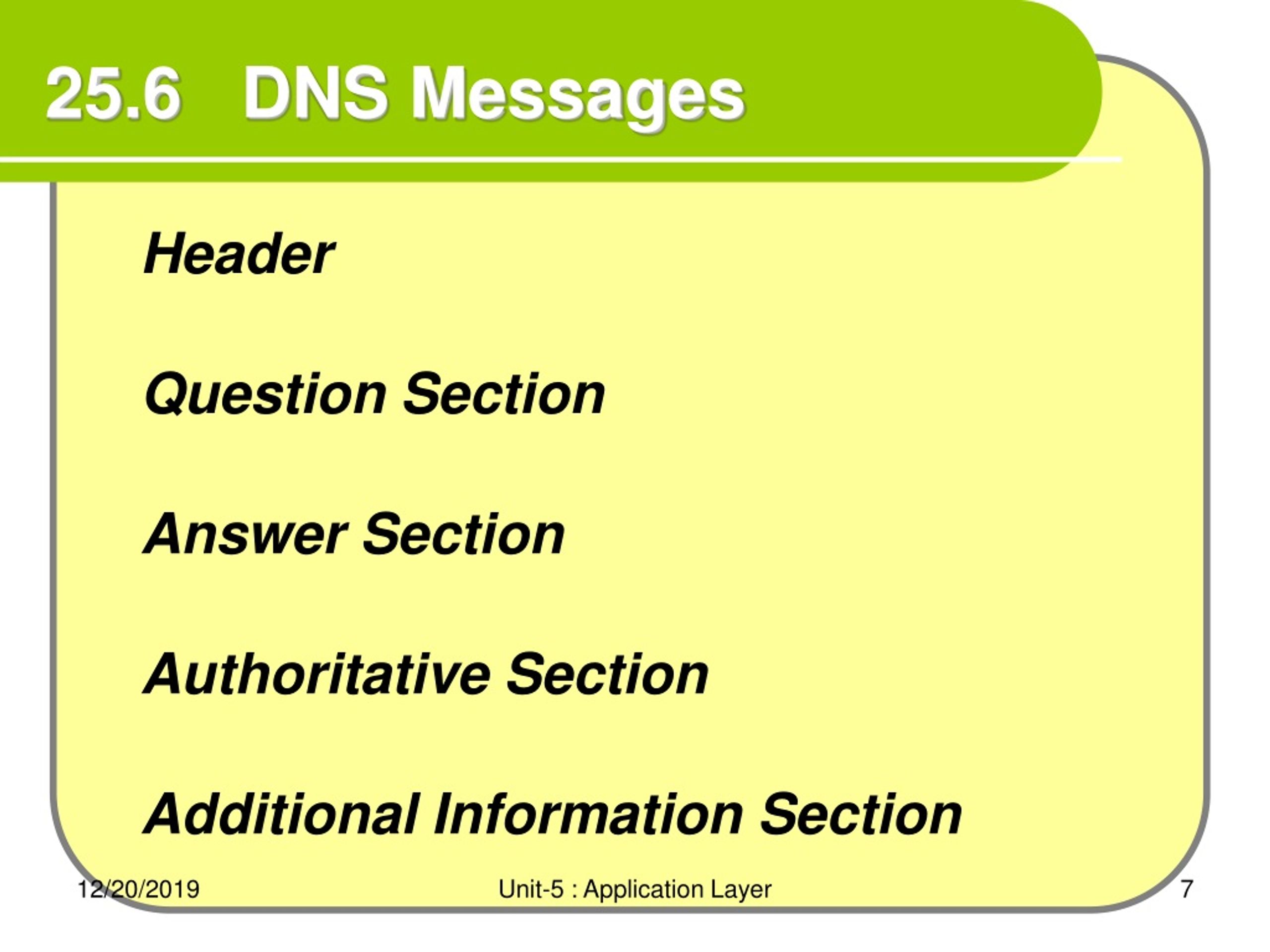

  7. 25.6 DNS Messages Header Question Section Answer Section Authoritative Section Additional Information Section Unit-5 : Application Layer

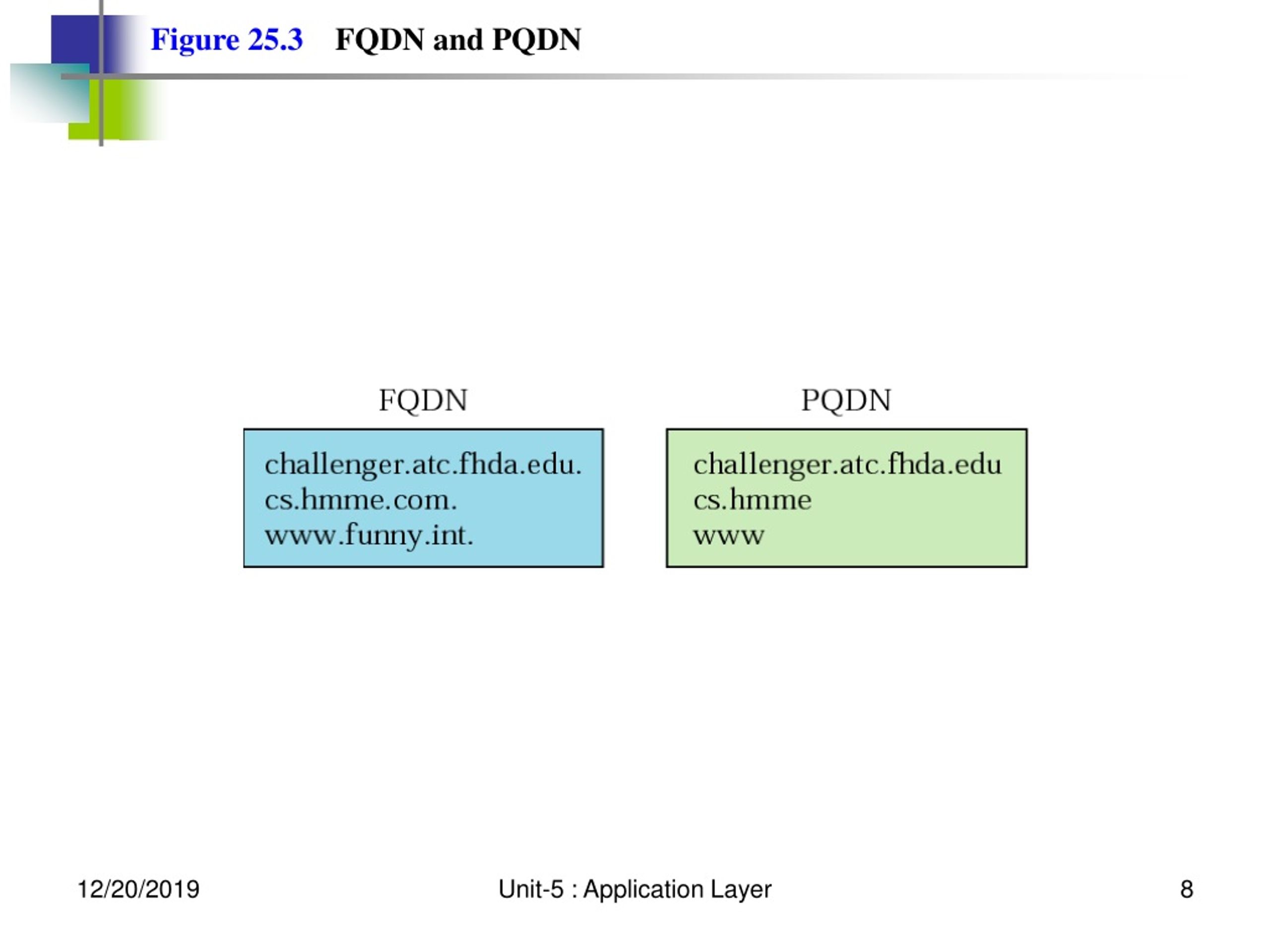

  8. Figure 25.3FQDN and PQDN Unit-5 : Application Layer

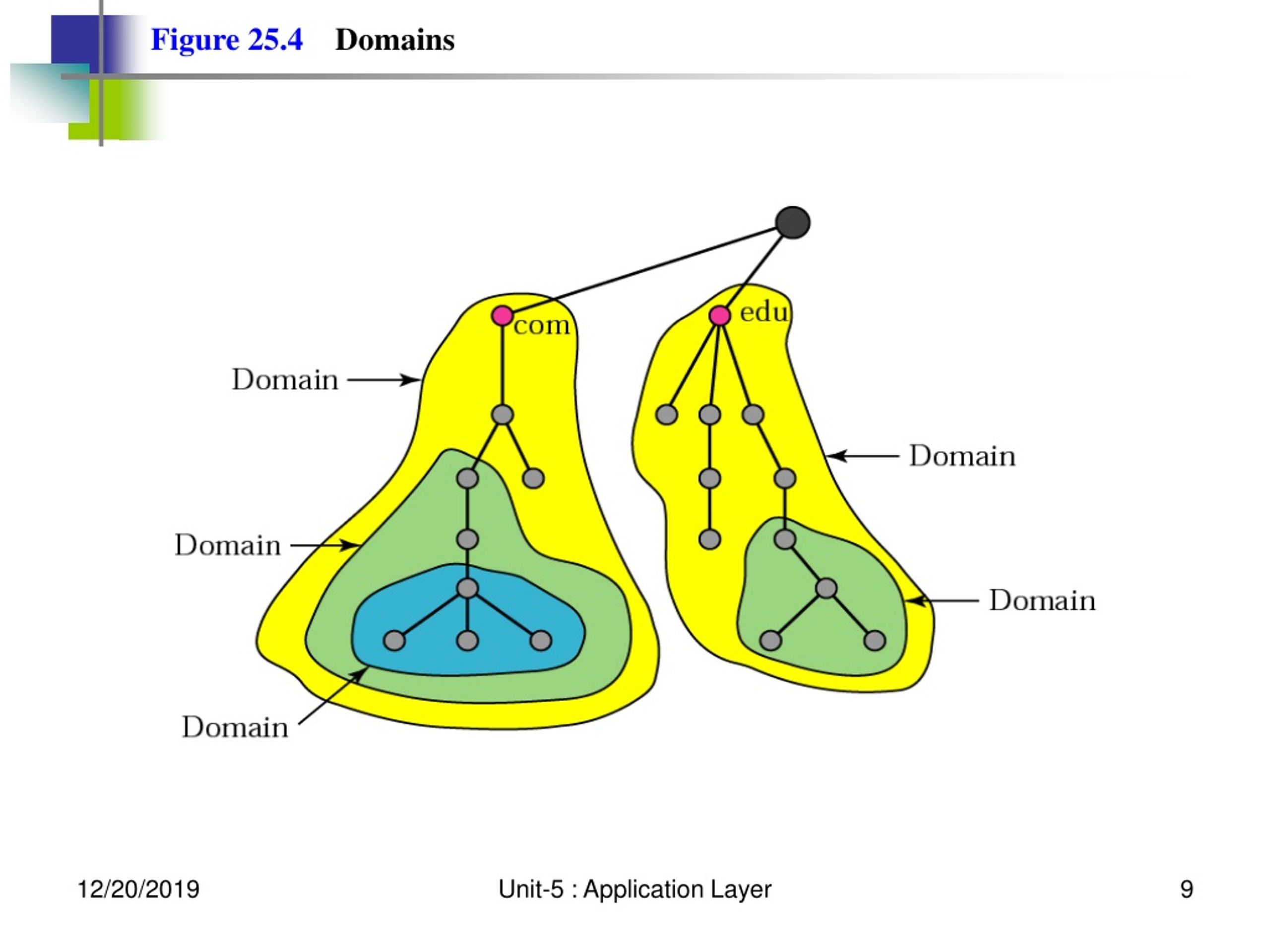

  9. Figure 25.4Domains Unit-5 : Application Layer

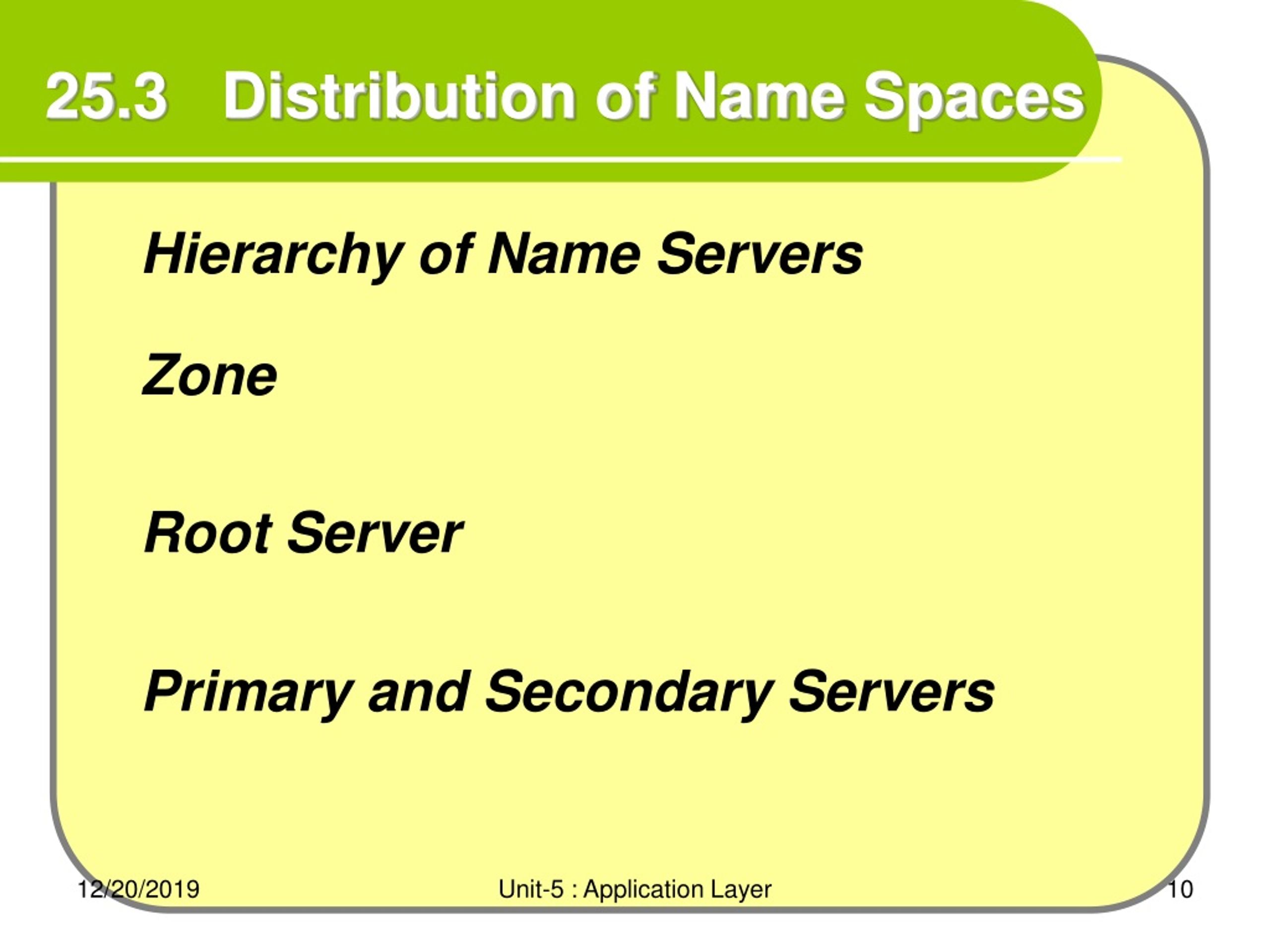

  10. 25.3 Distribution of Name Spaces Hierarchy of Name Servers Zone Root Server Primary and Secondary Servers Unit-5 : Application Layer

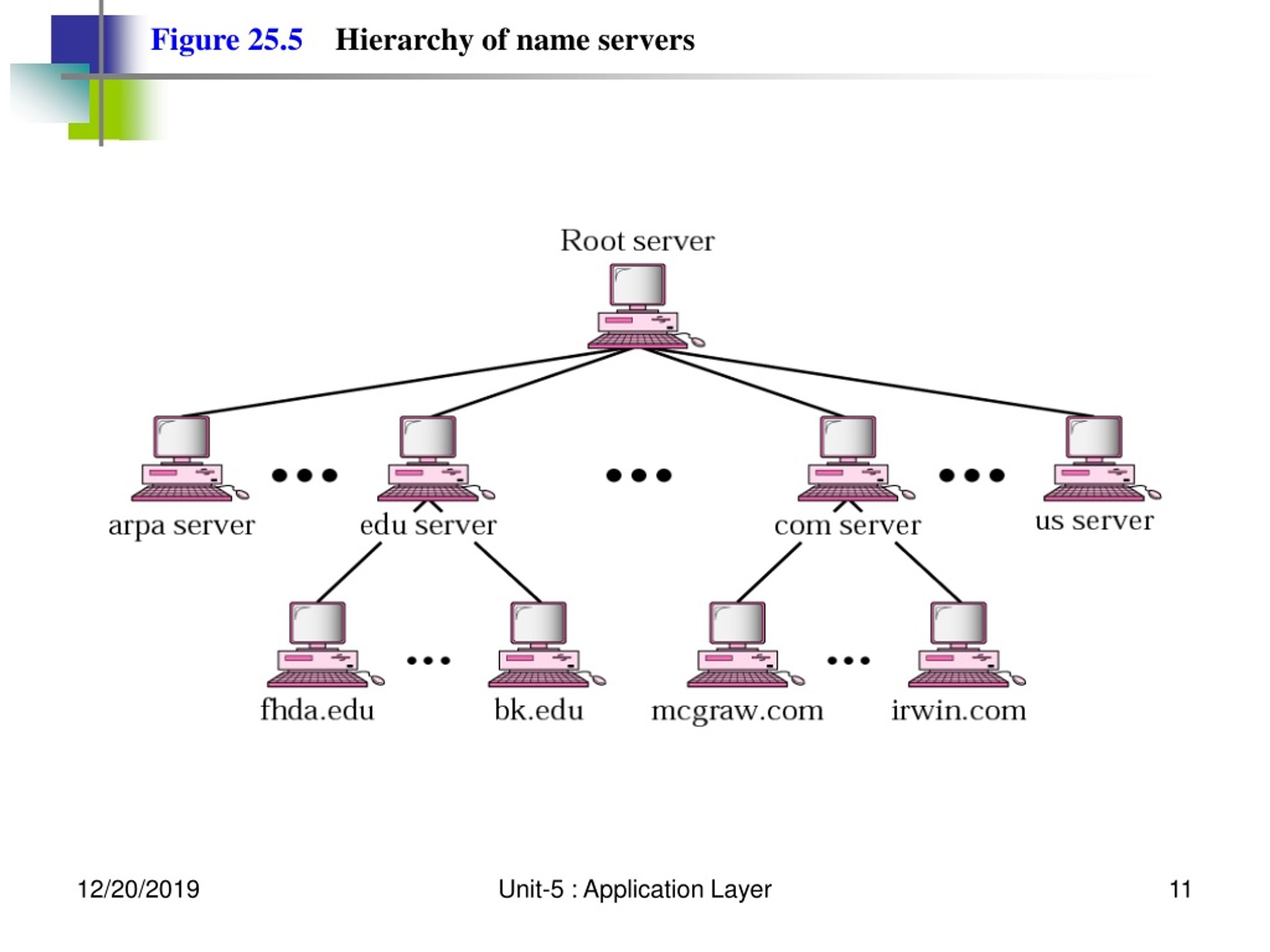

  11. Figure 25.5Hierarchy of name servers Unit-5 : Application Layer

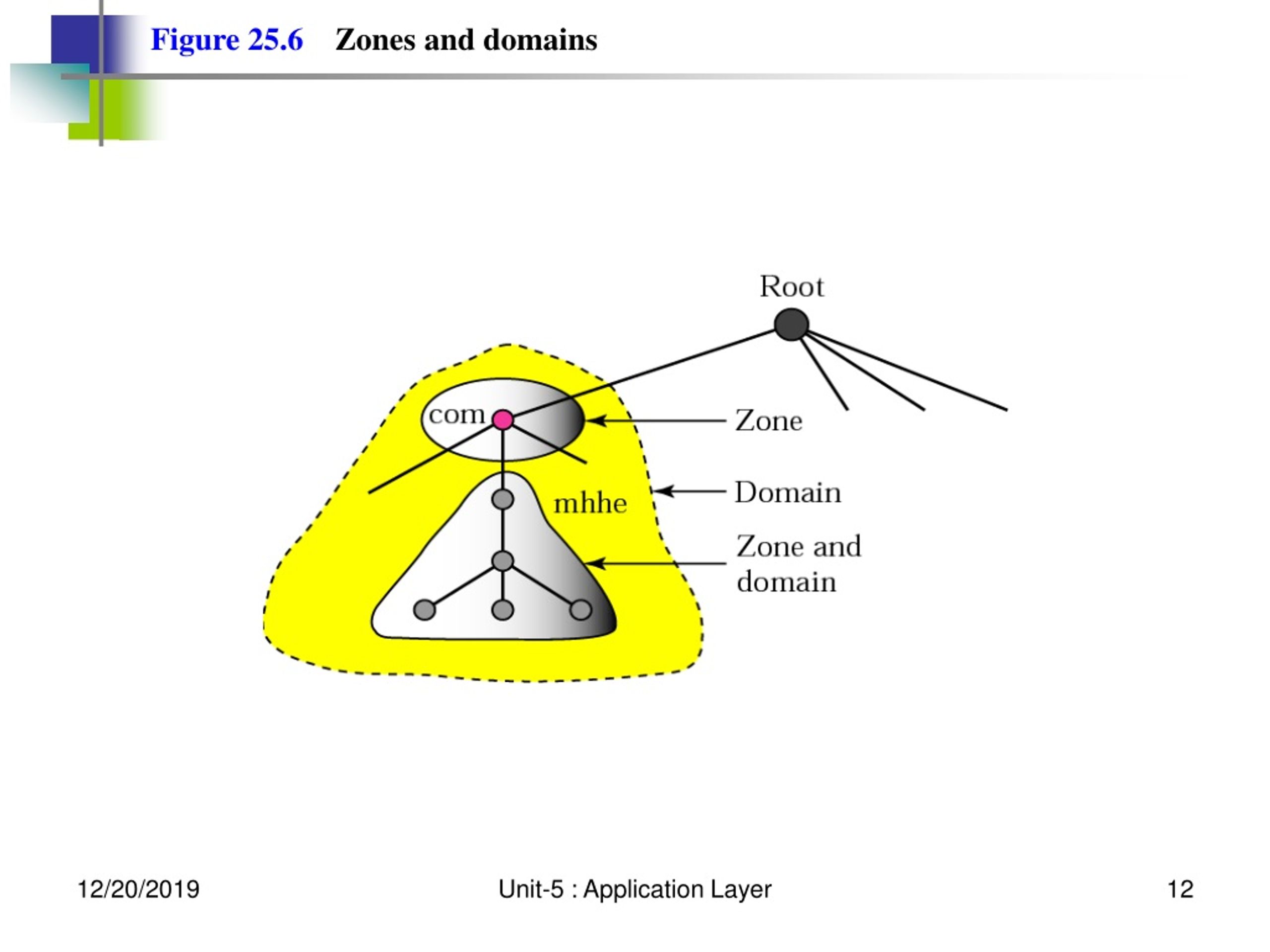

  12. Figure 25.6Zones and domains Unit-5 : Application Layer

  13. Note: A primary server loads all information from the disk file; the secondary server loads all information from the primary server. Unit-5 : Application Layer

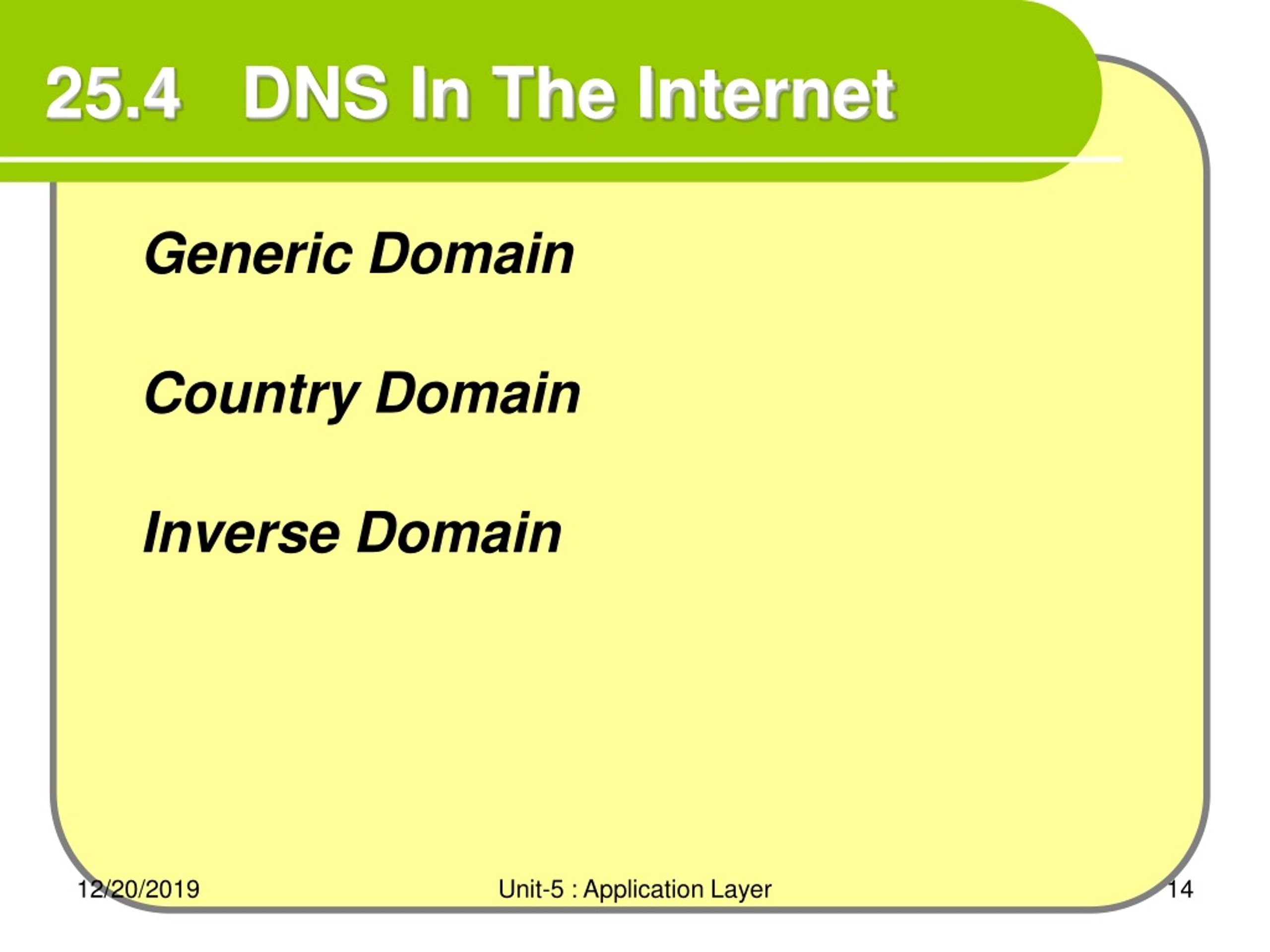

  14. 25.4 DNS In The Internet Generic Domain Country Domain Inverse Domain Unit-5 : Application Layer

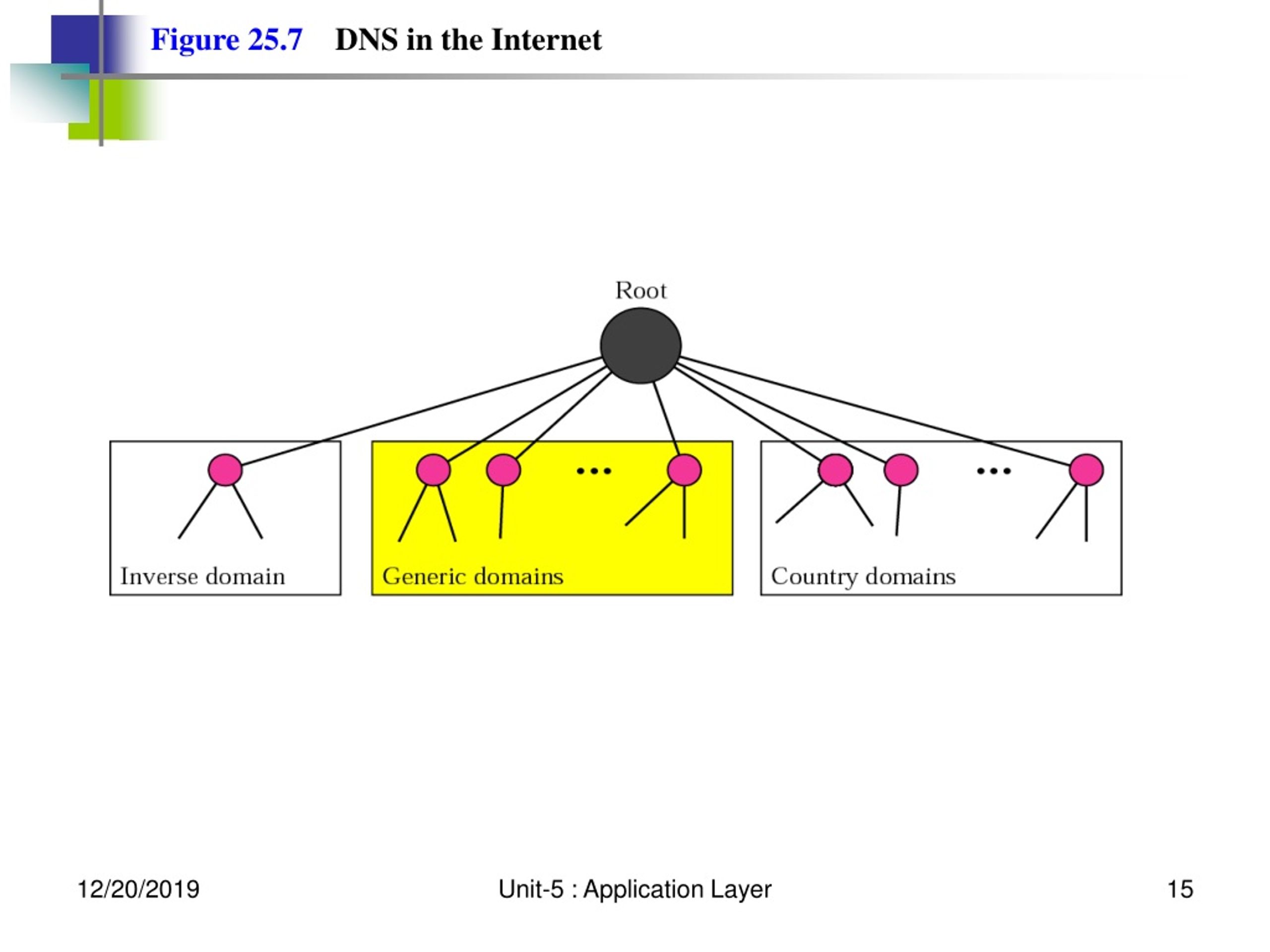

  15. Figure 25.7DNS in the Internet Unit-5 : Application Layer

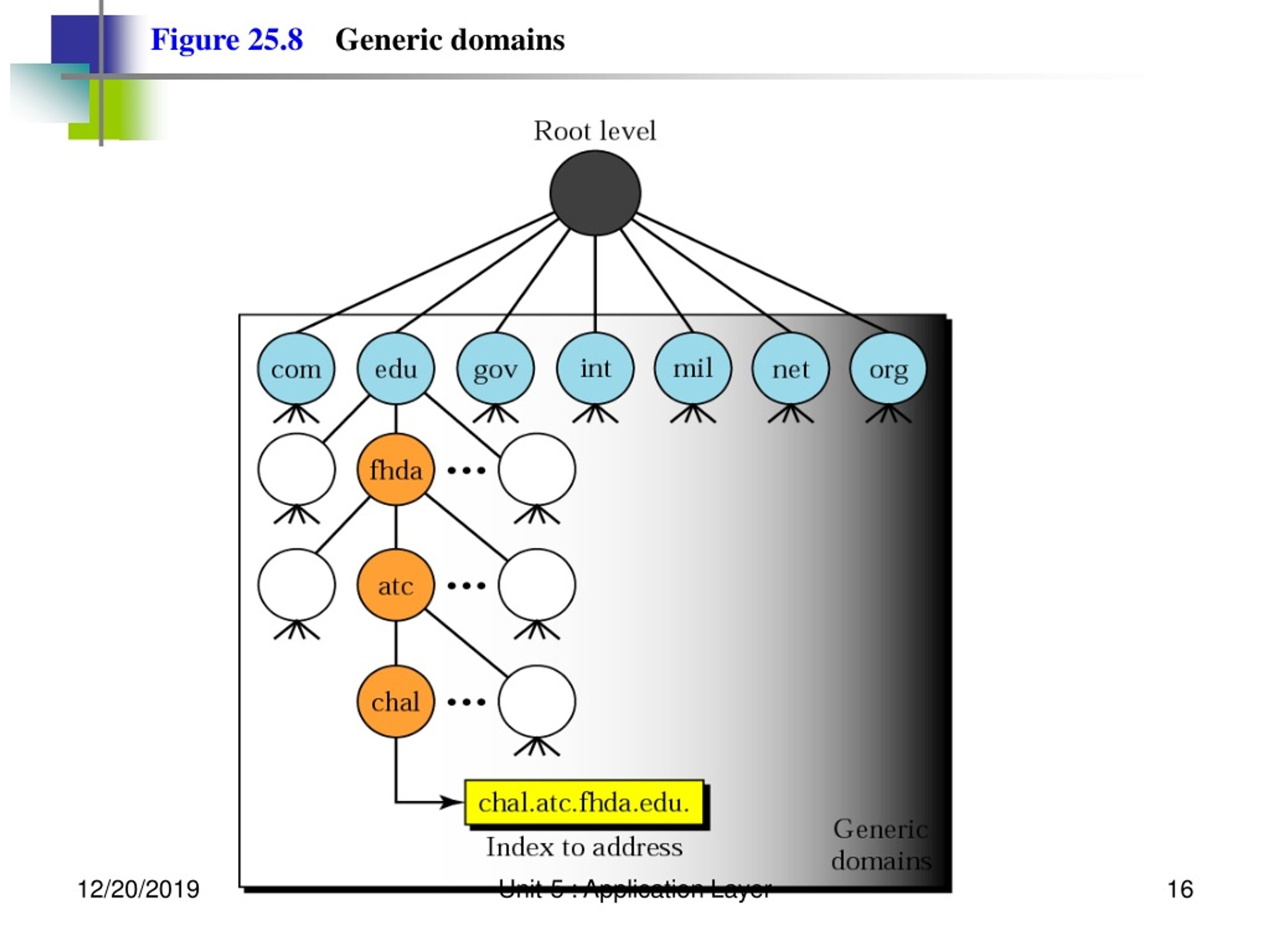

  16. Figure 25.8Generic domains Unit-5 : Application Layer

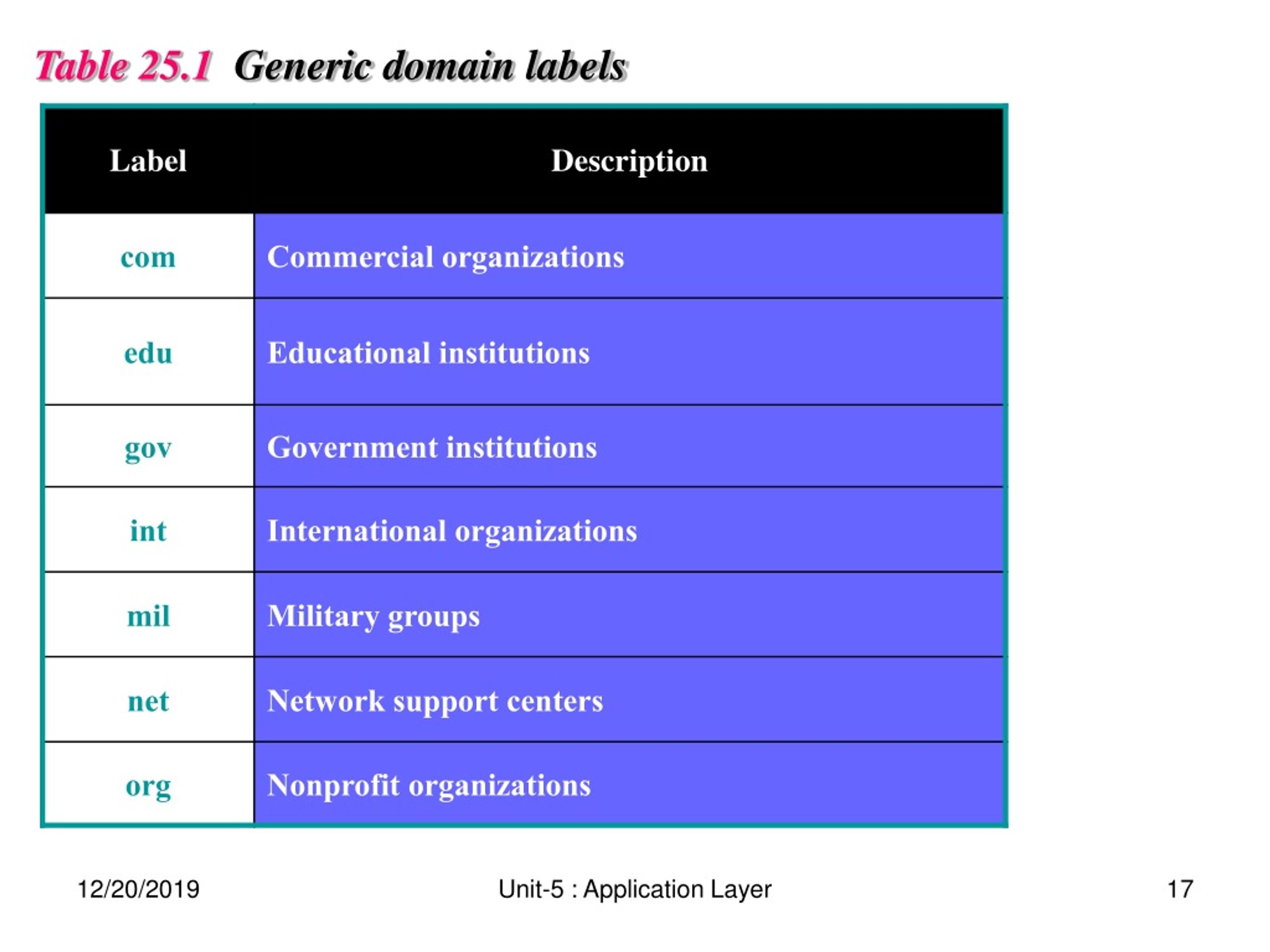

  17. Table 25.1 Generic domain labels Unit-5 : Application Layer

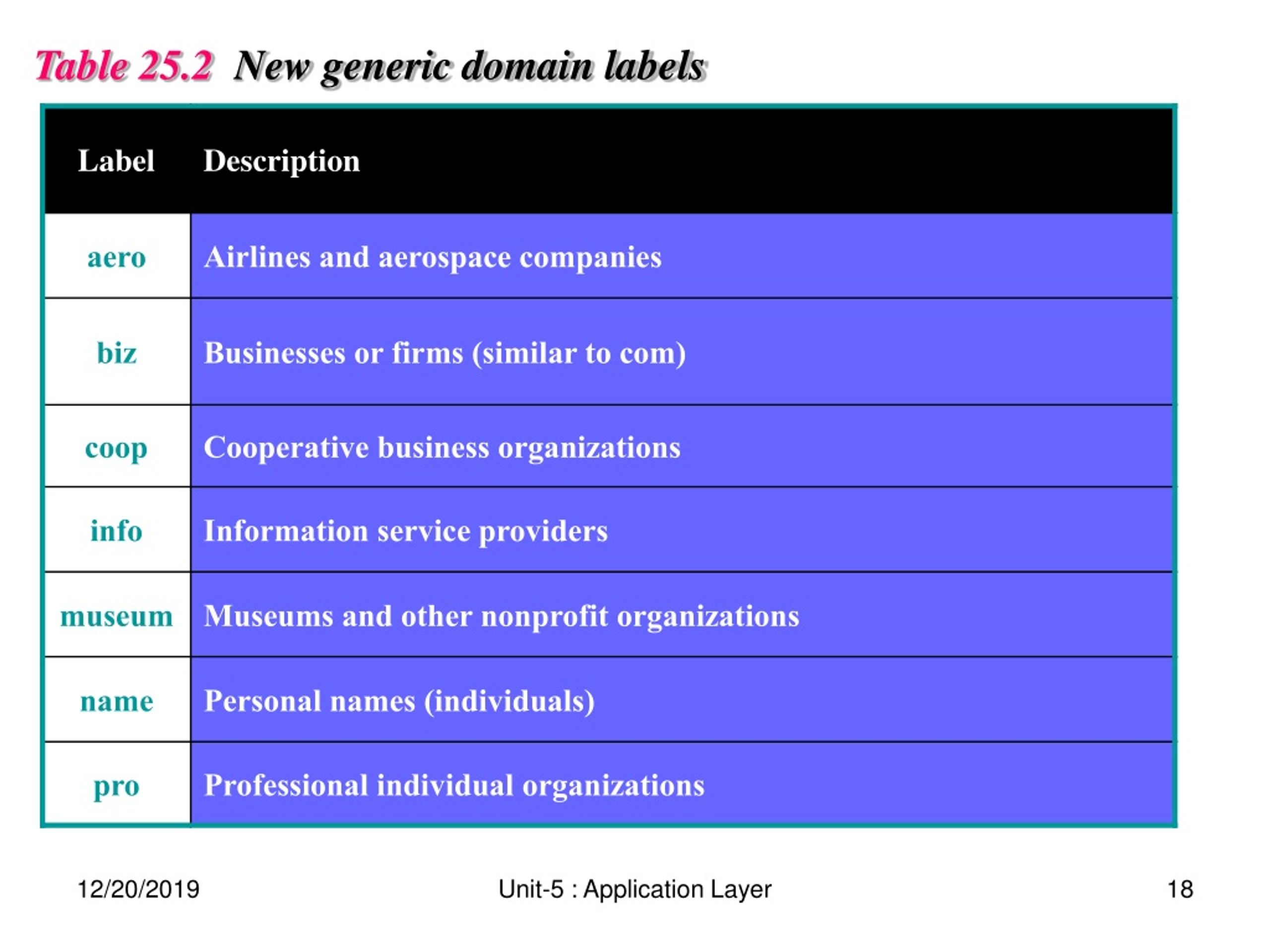

  18. Table 25.2 New generic domain labels Unit-5 : Application Layer

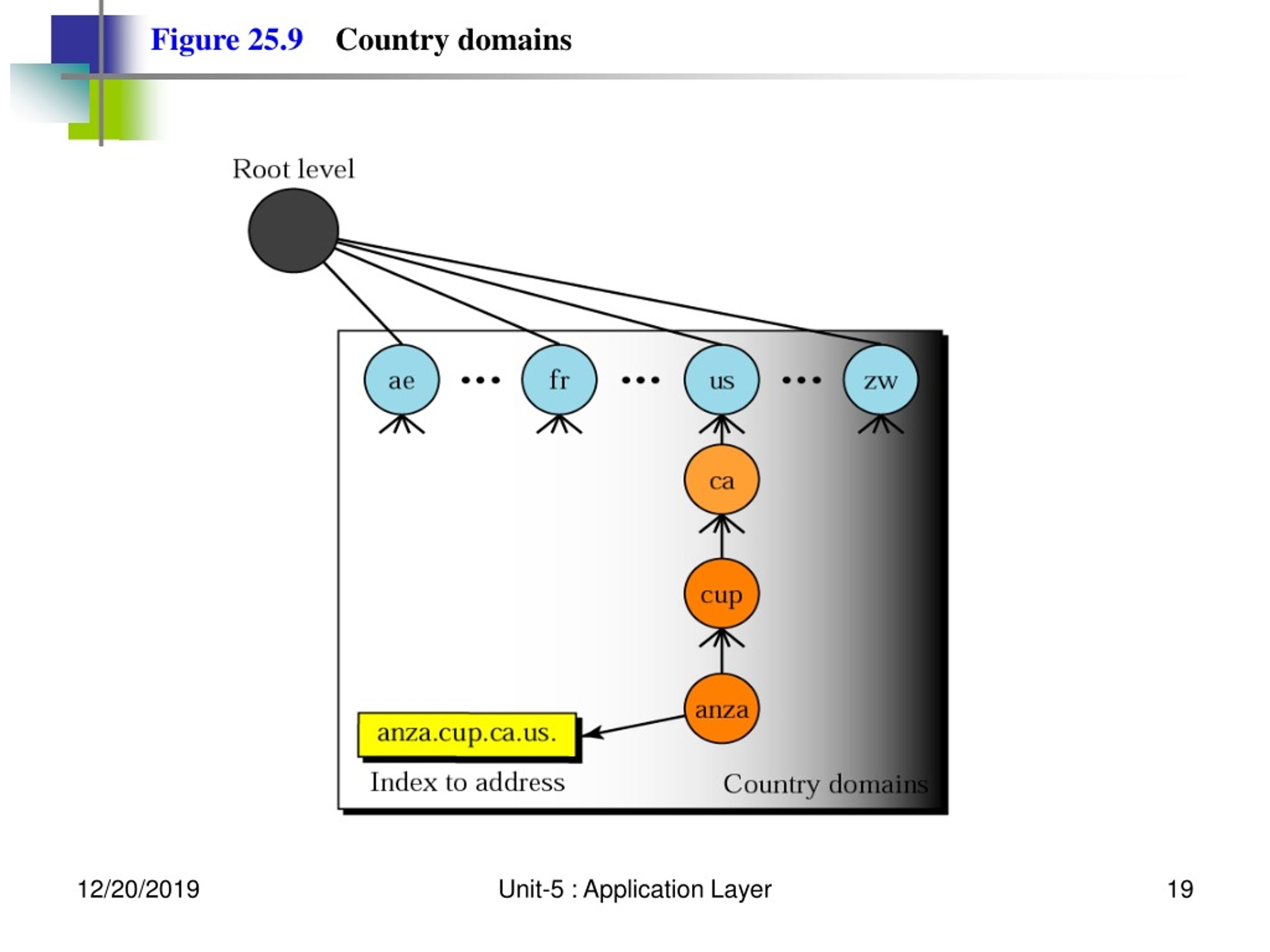

  19. Figure 25.9Country domains Unit-5 : Application Layer

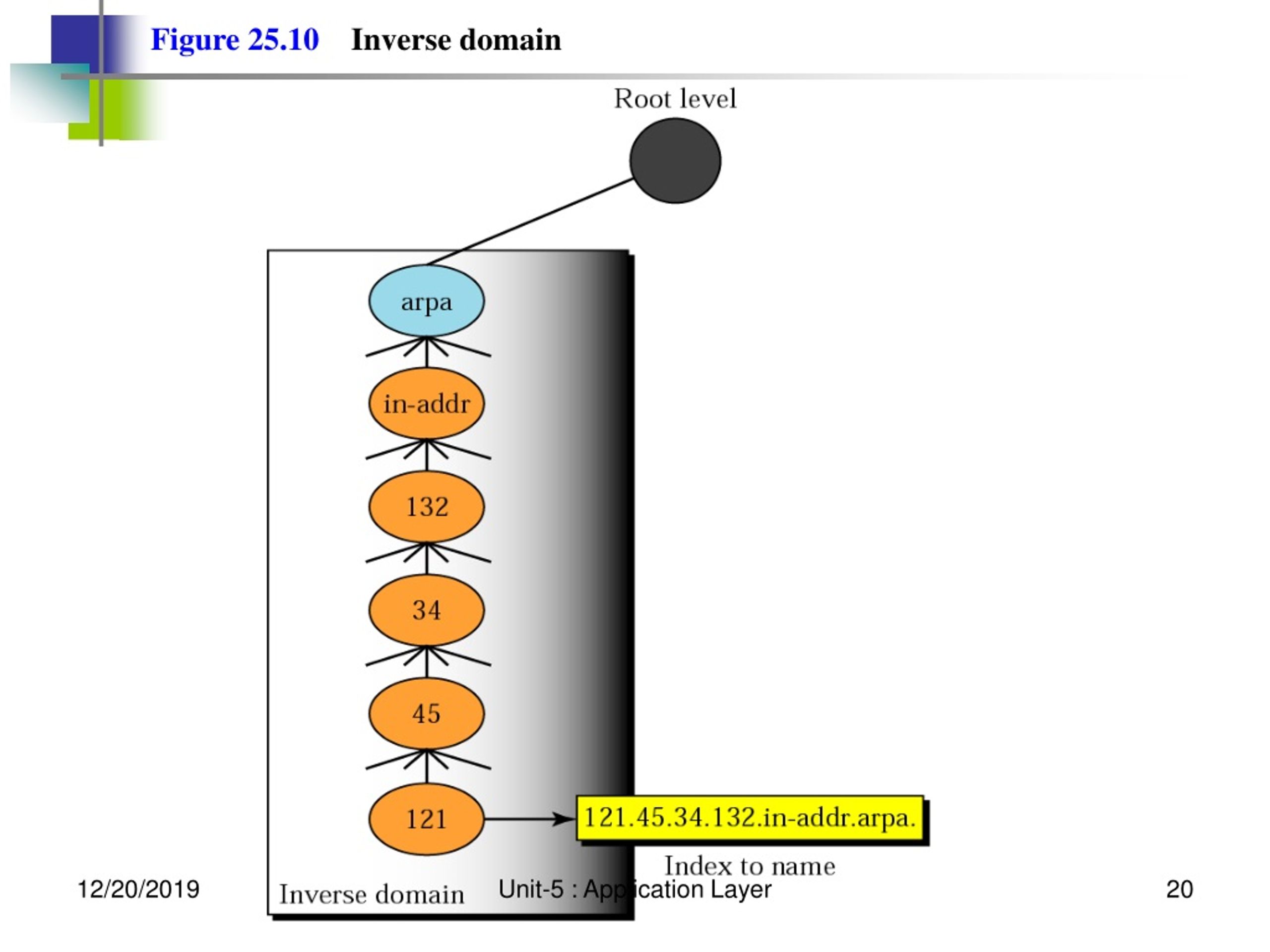

  20. Figure 25.10Inverse domain Unit-5 : Application Layer

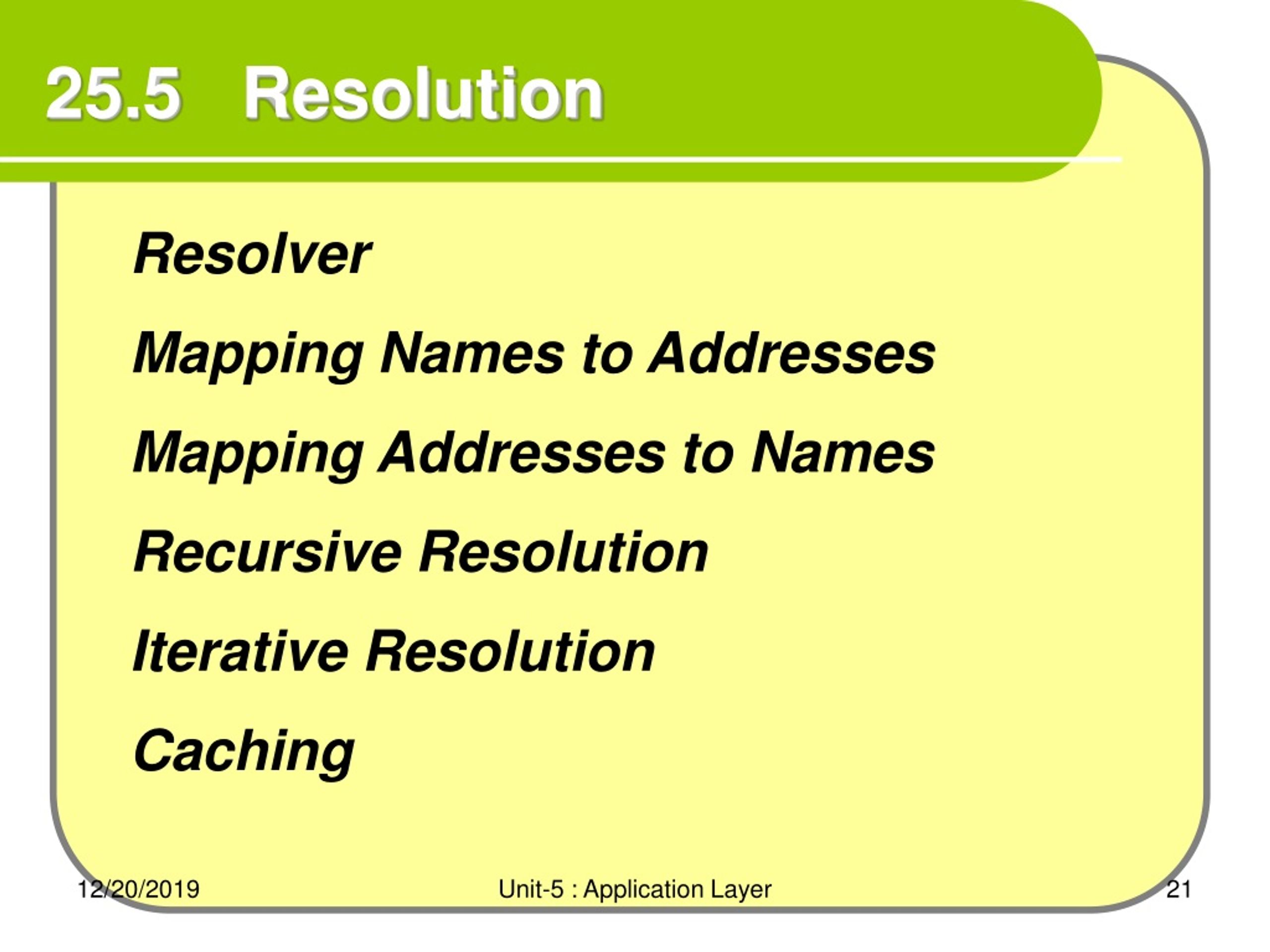

  21. 25.5 Resolution Resolver Mapping Names to Addresses Mapping Addresses to Names Recursive Resolution Iterative Resolution Caching Unit-5 : Application Layer

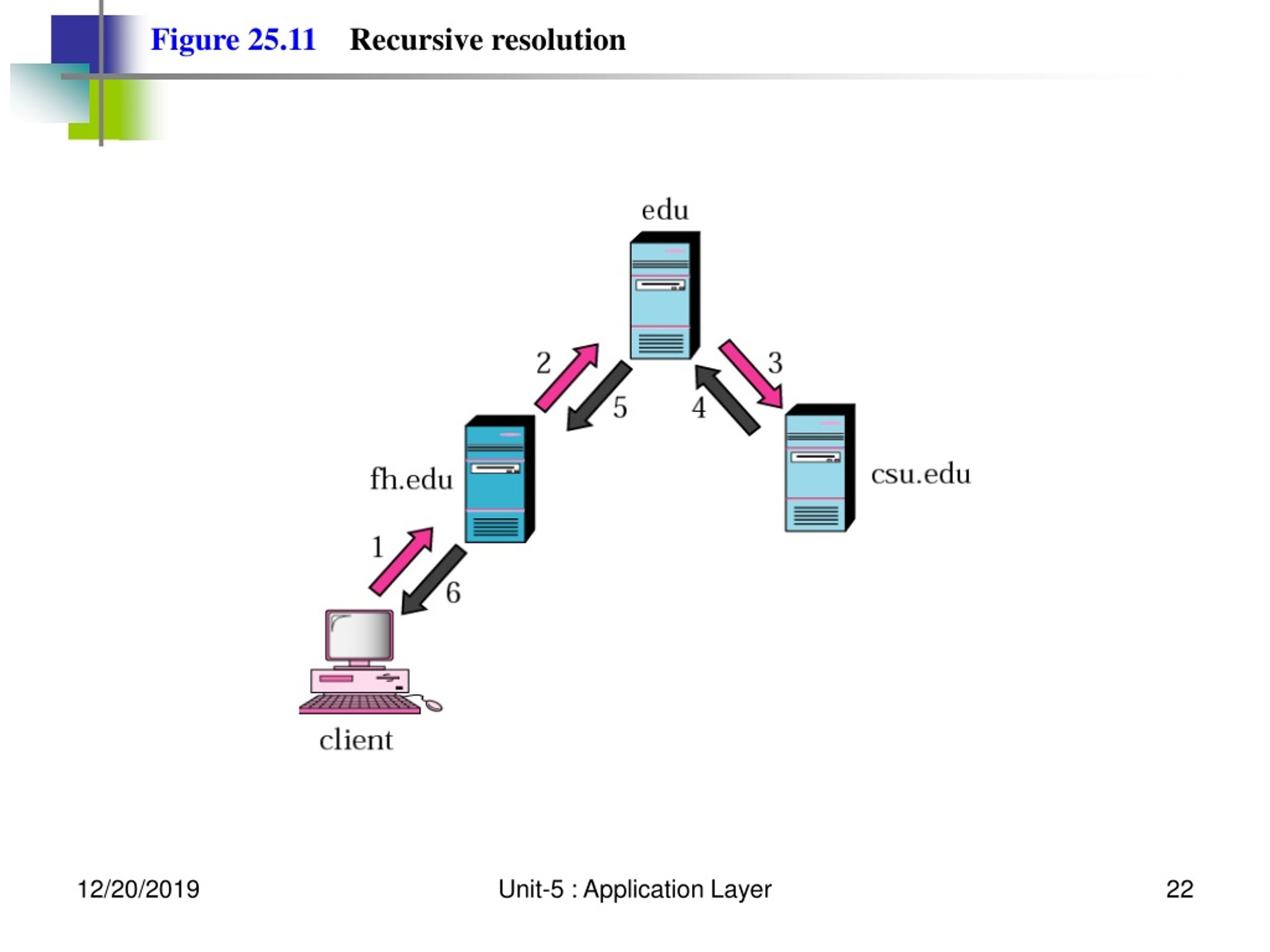

  22. Figure 25.11Recursive resolution Unit-5 : Application Layer

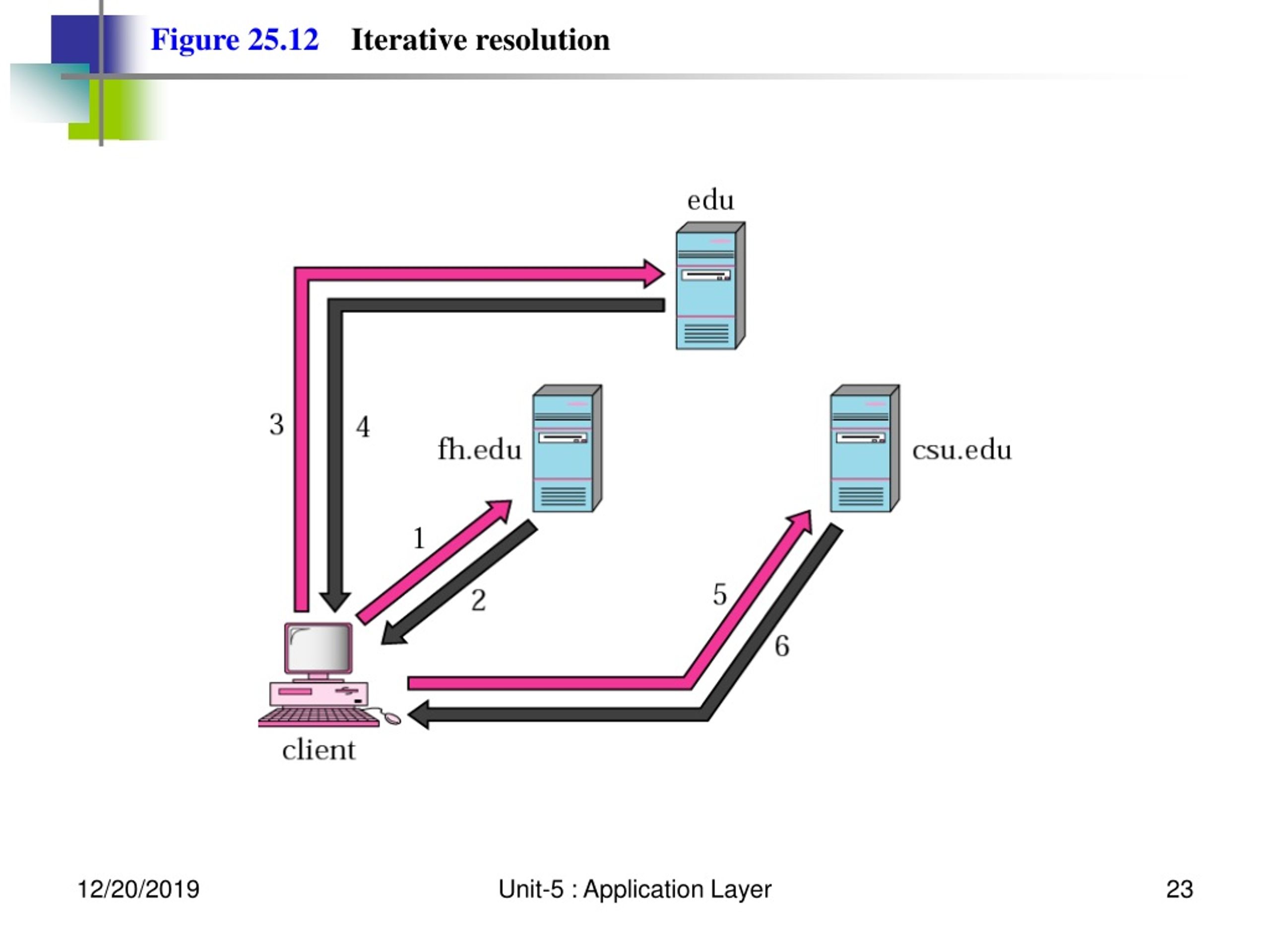

  23. Figure 25.12Iterative resolution Unit-5 : Application Layer

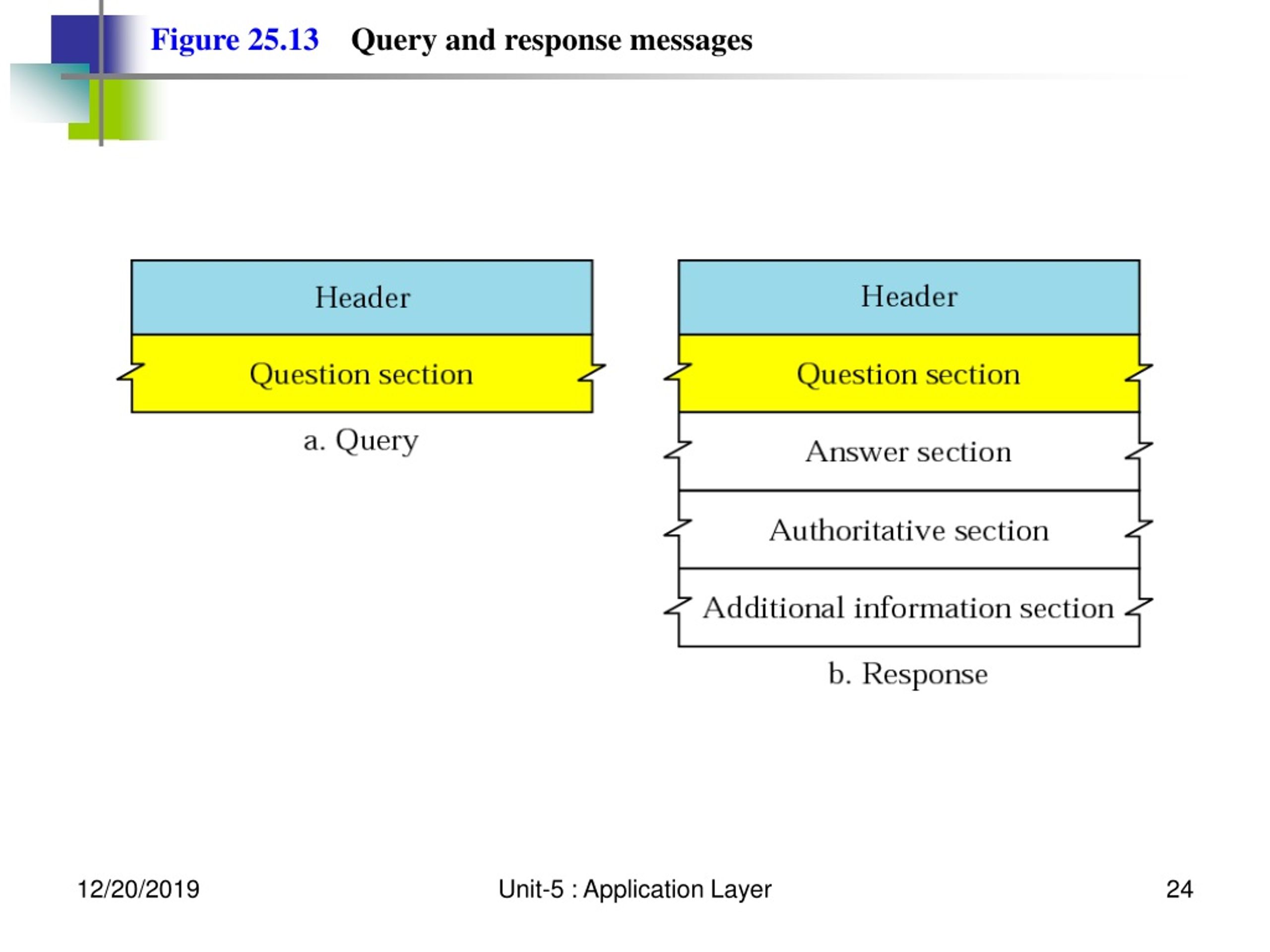

  24. Figure 25.13Query and response messages Unit-5 : Application Layer

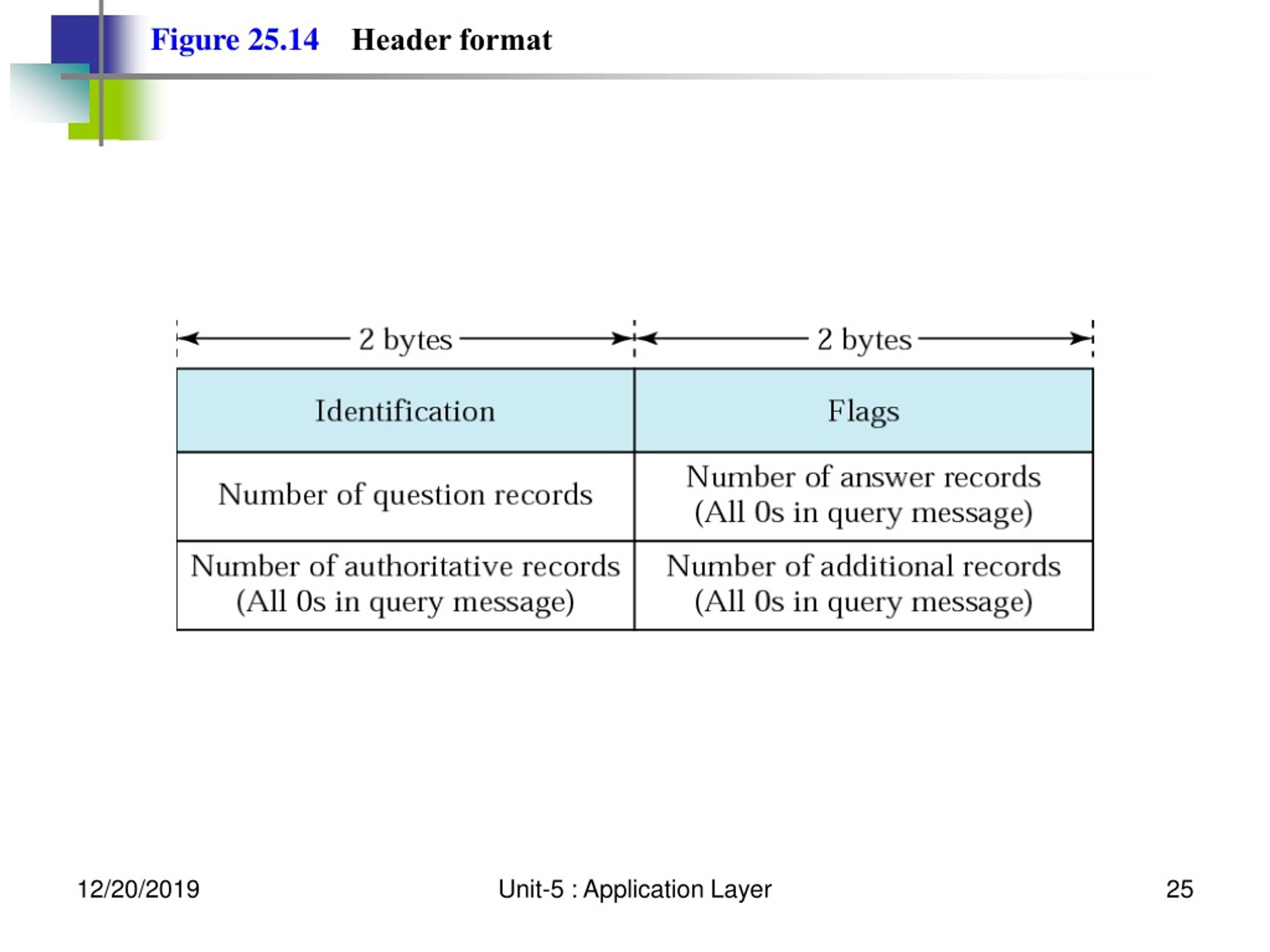

  25. Figure 25.14Header format Unit-5 : Application Layer

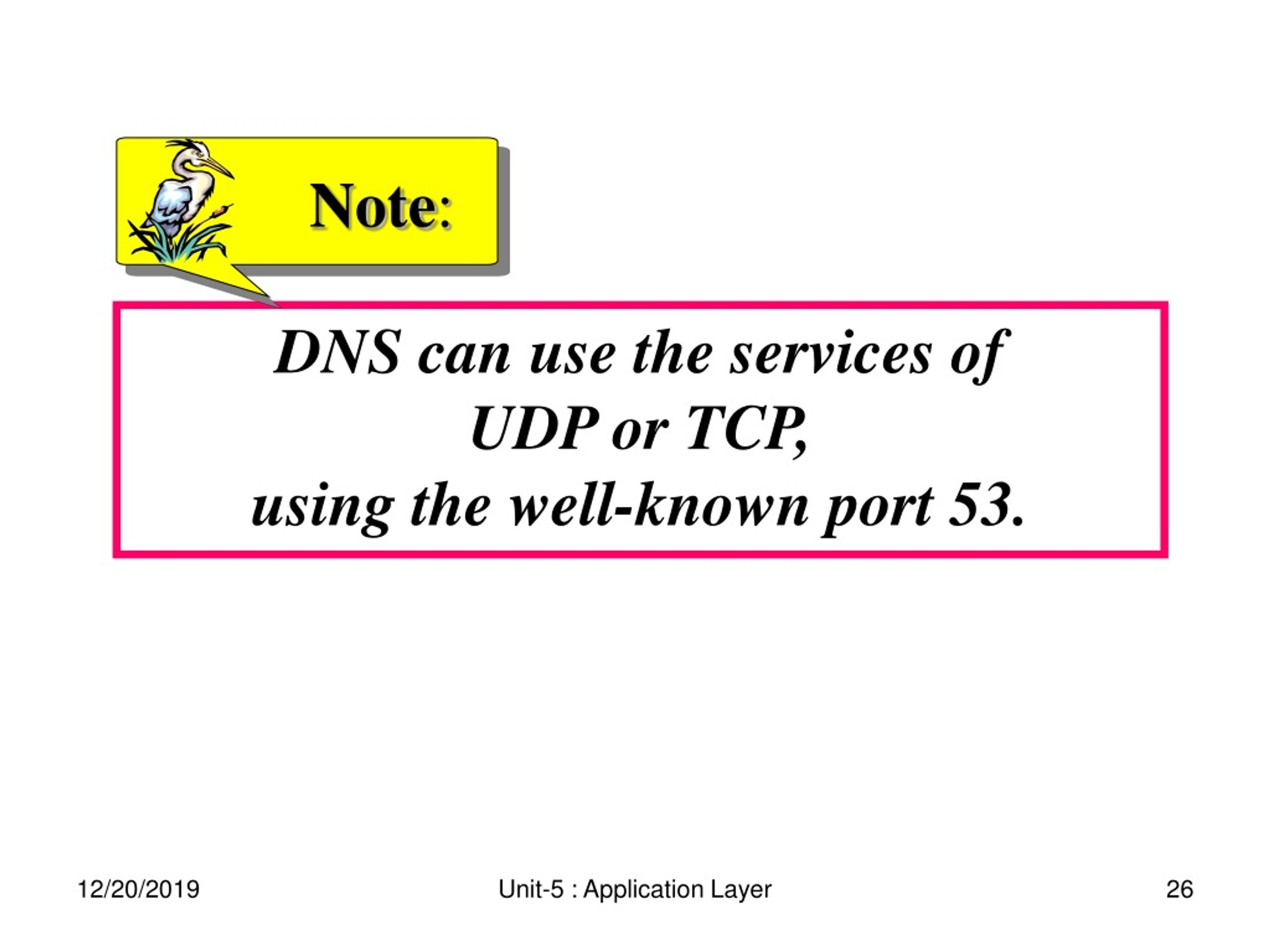

  26. Note: DNS can use the services of UDP or TCP, using the well-known port 53. Unit-5 : Application Layer

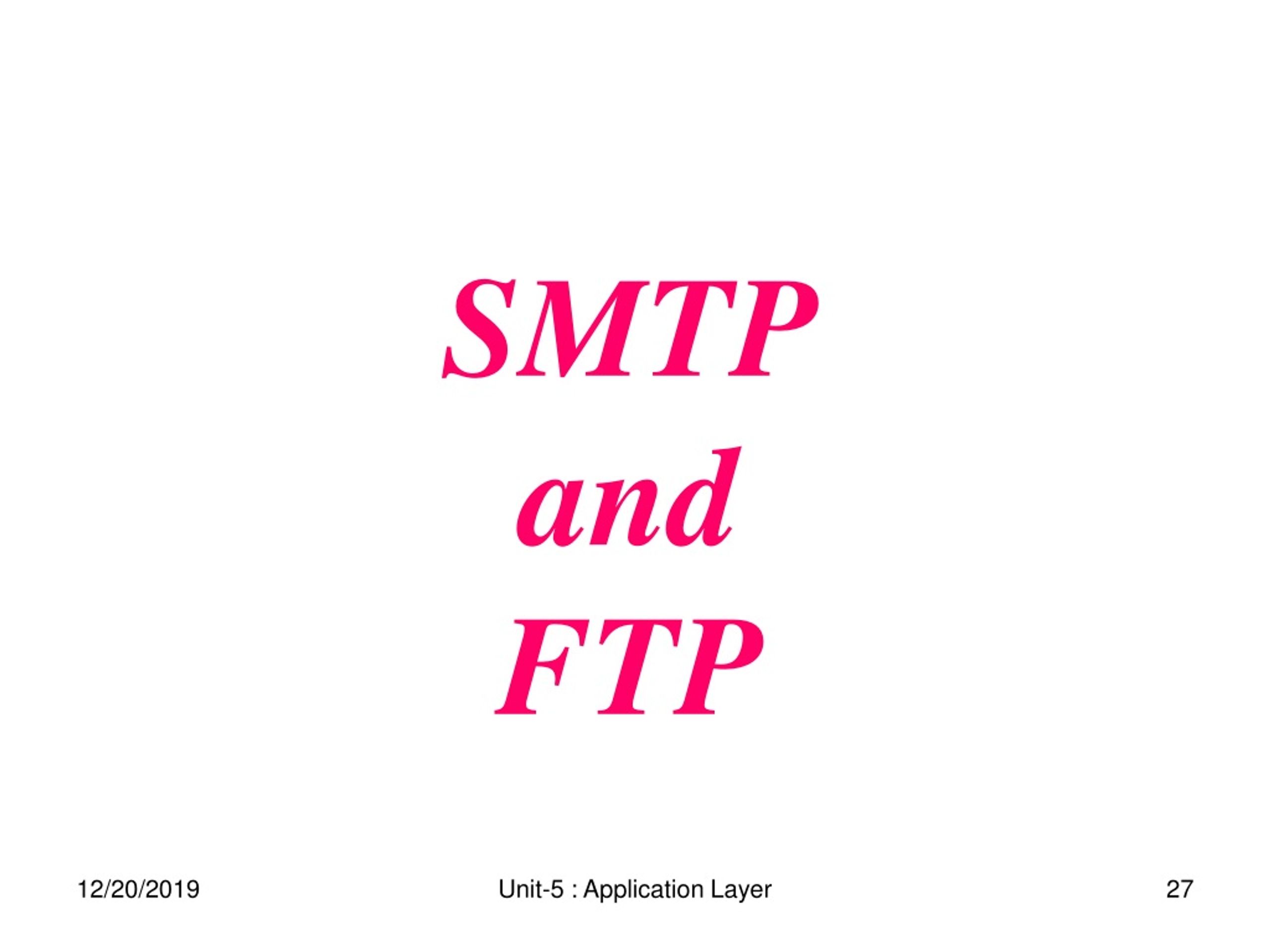

  27. SMTPandFTP Unit-5 : Application Layer

  28. 26.1 Electronic Mail Sending/Receiving Mail Addresses User Agent MIME Mail Transfer Agent Mail Access Protocols Unit-5 : Application Layer

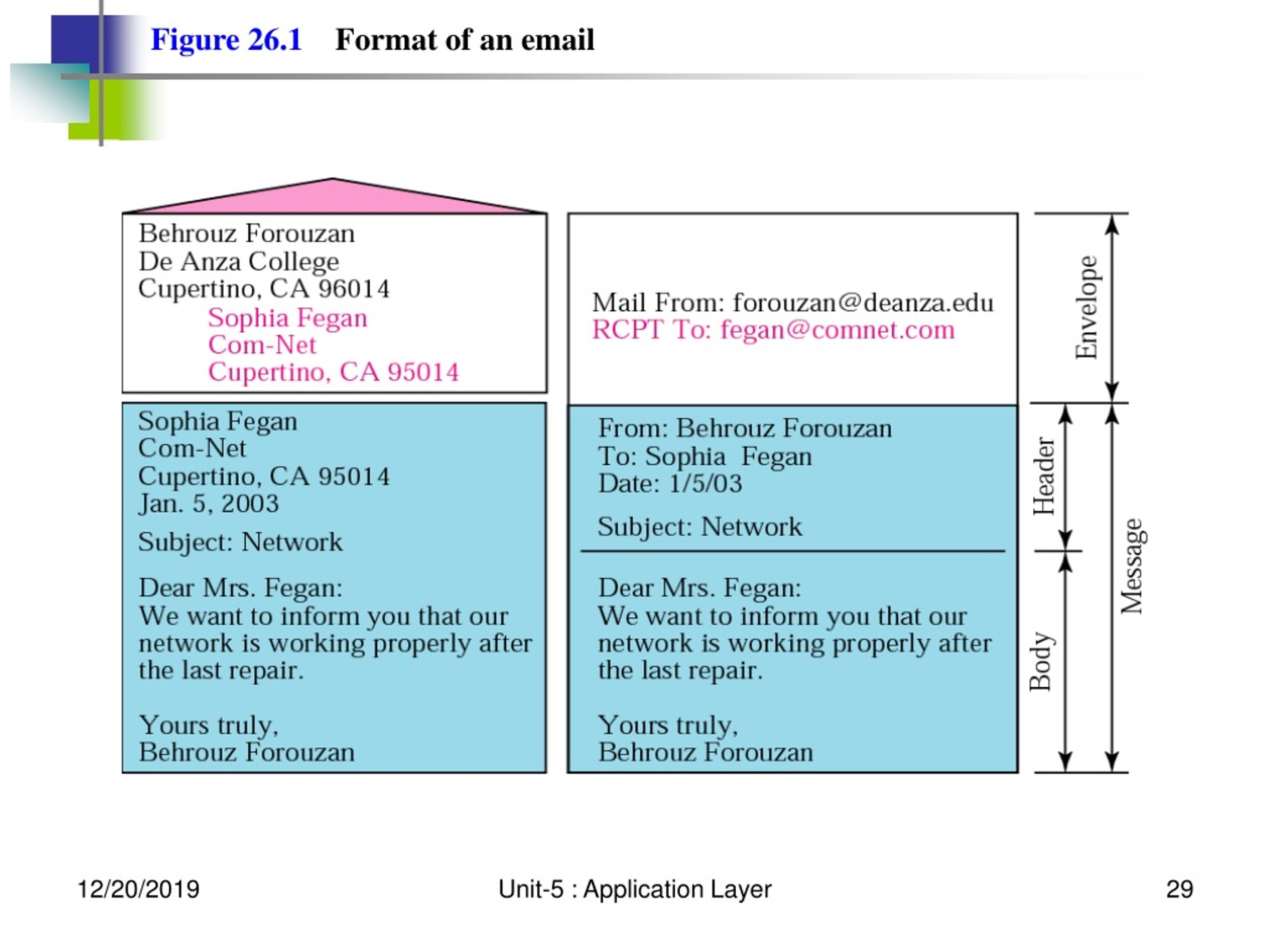

  29. Figure 26.1Format of an email Unit-5 : Application Layer

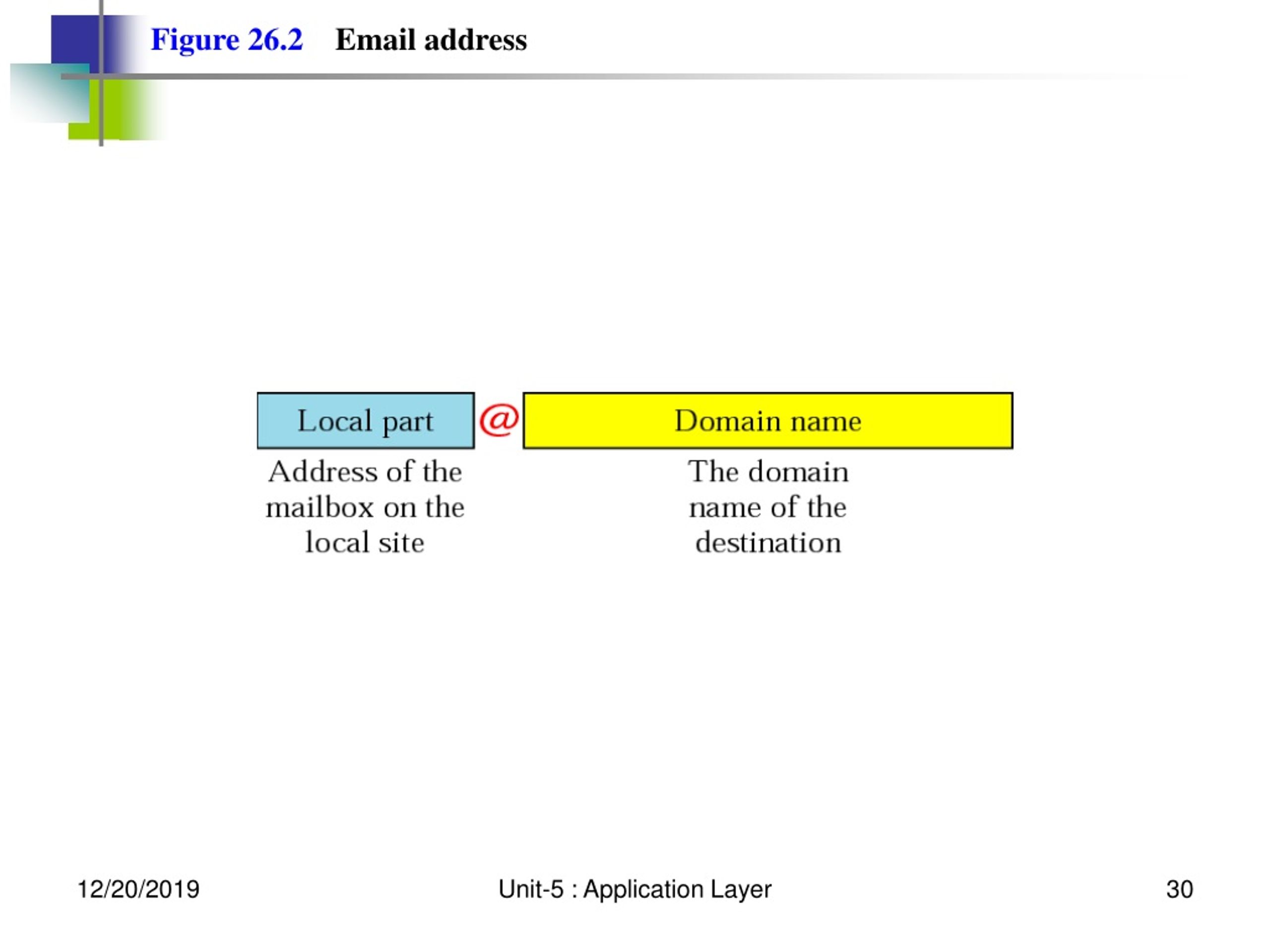

  30. Figure 26.2Email address Unit-5 : Application Layer

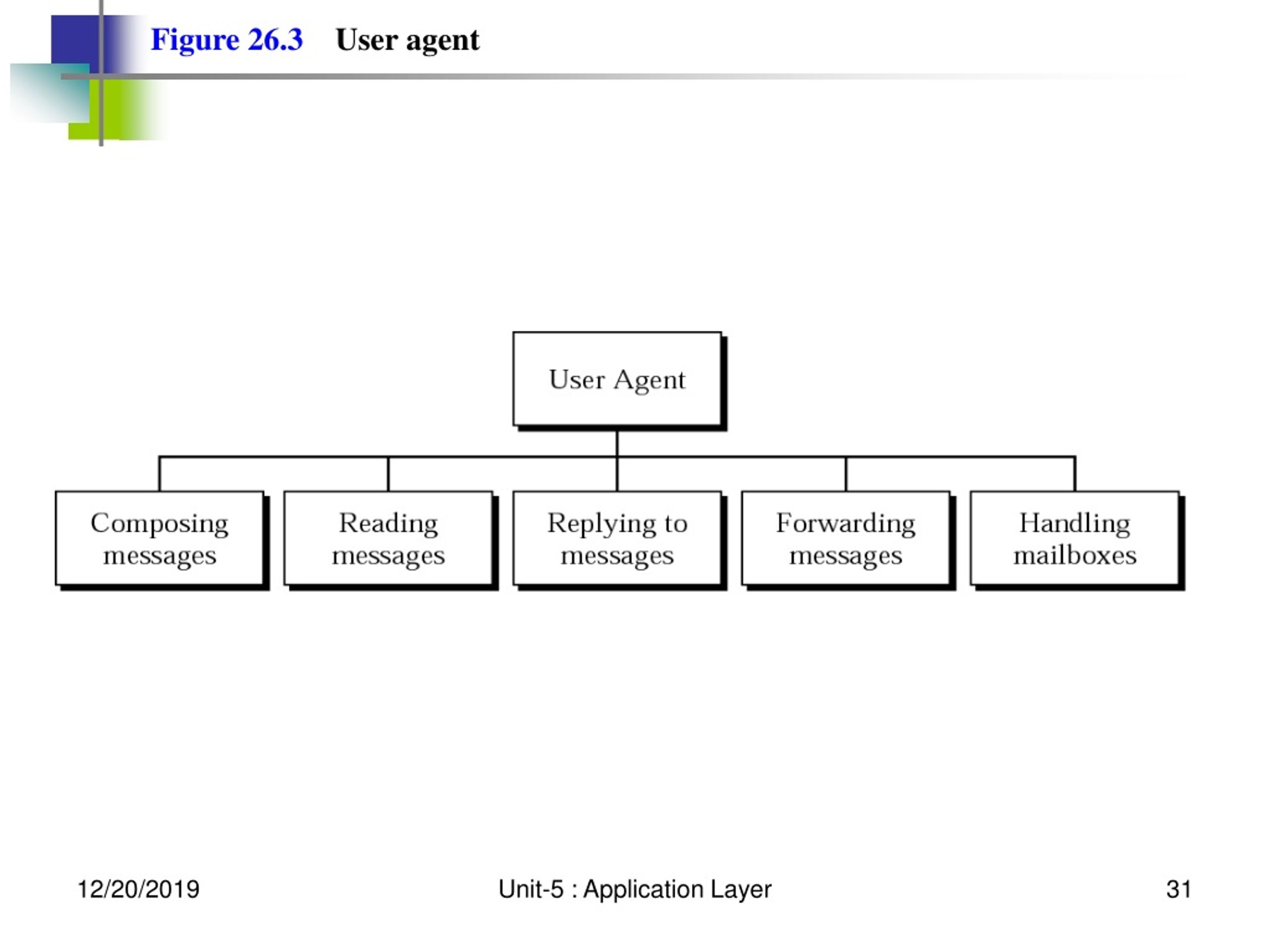

  31. Figure 26.3User agent Unit-5 : Application Layer

  32. Note: Some examples of command-driven user agents are mail, pine, and elm. Unit-5 : Application Layer

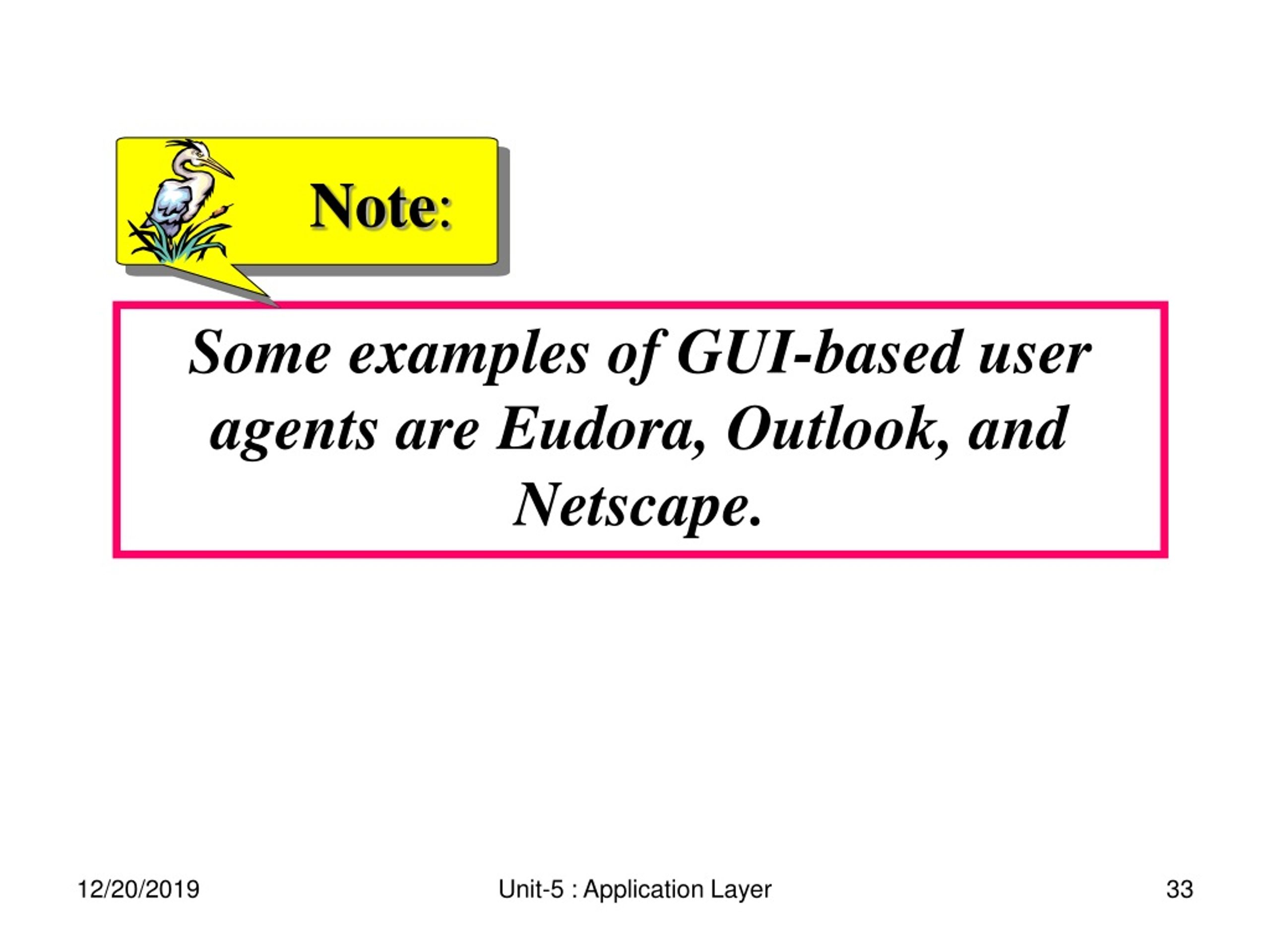

  33. Note: Some examples of GUI-based user agents are Eudora, Outlook, and Netscape. Unit-5 : Application Layer

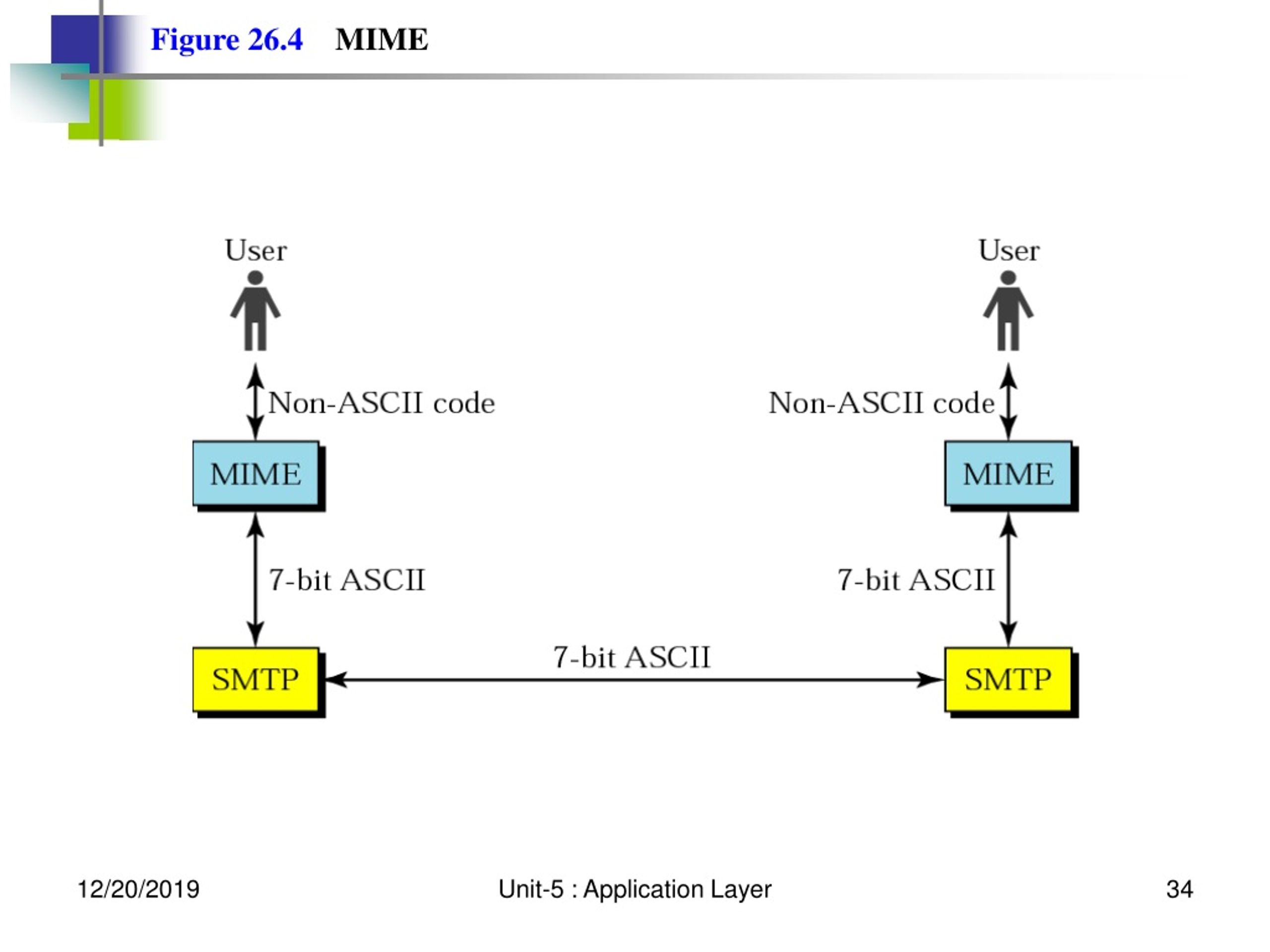

  34. Figure 26.4MIME Unit-5 : Application Layer

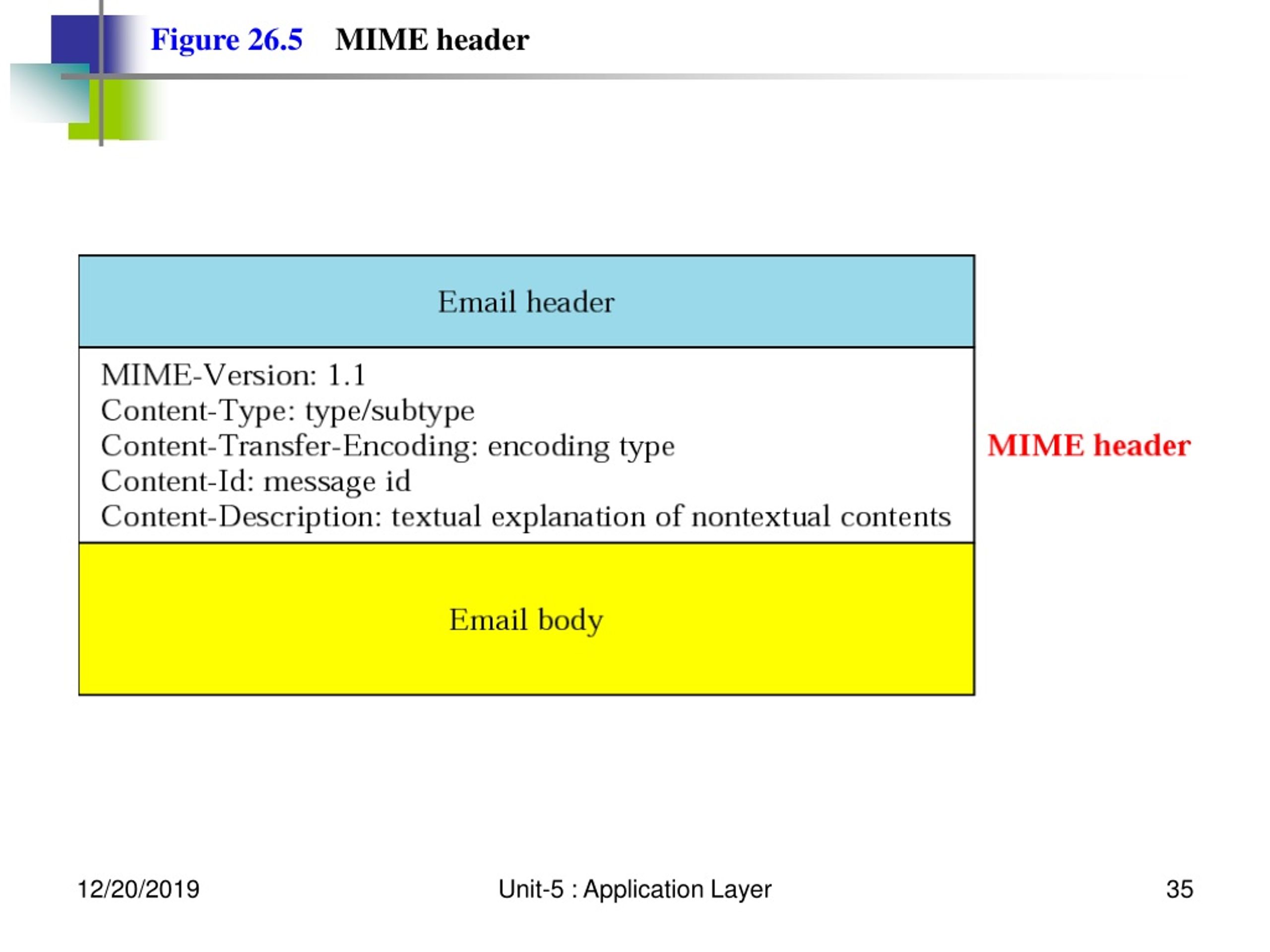

  35. Figure 26.5MIME header Unit-5 : Application Layer

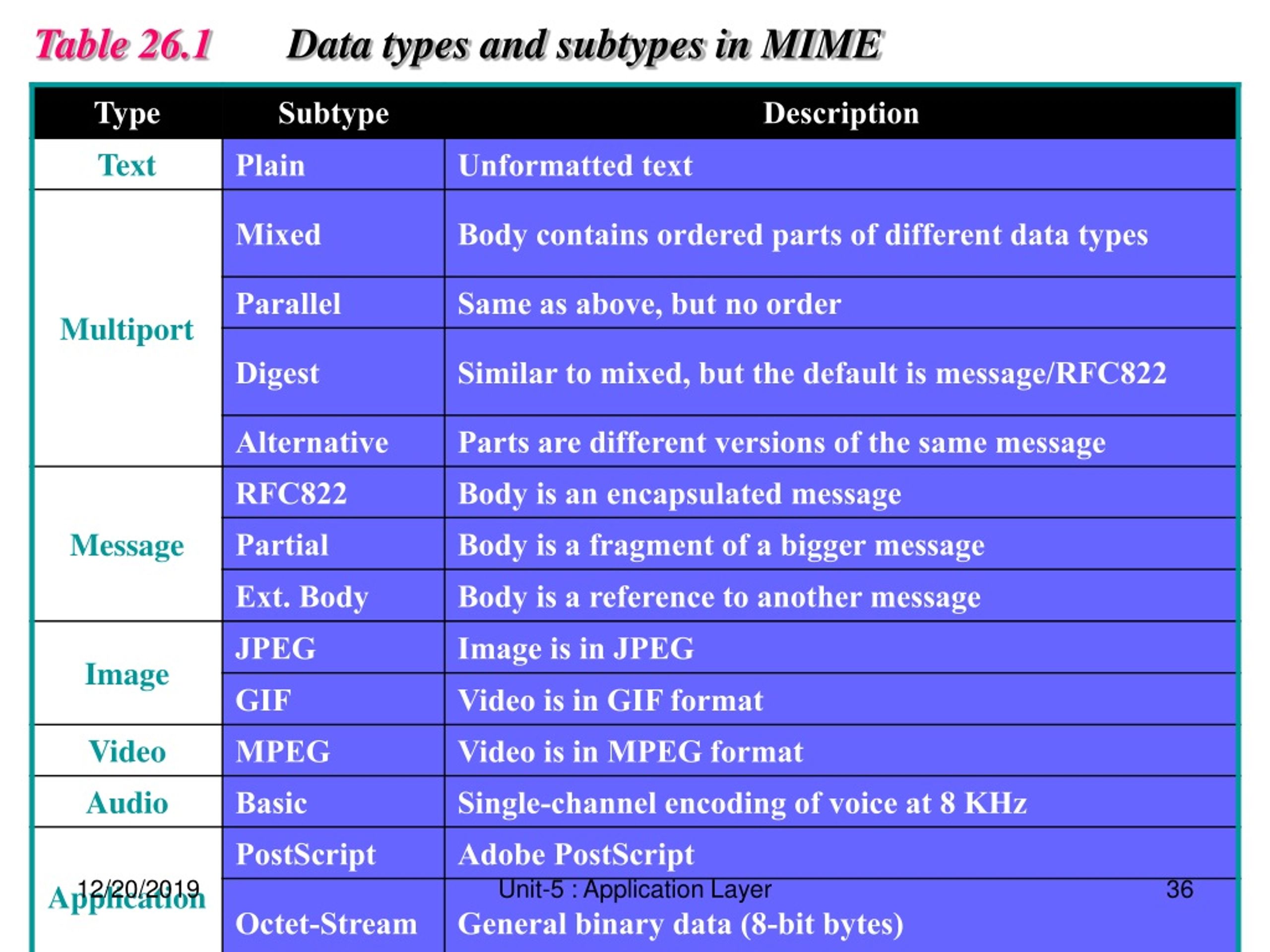

  36. Table 26.1 Data types and subtypes in MIME Unit-5 : Application Layer

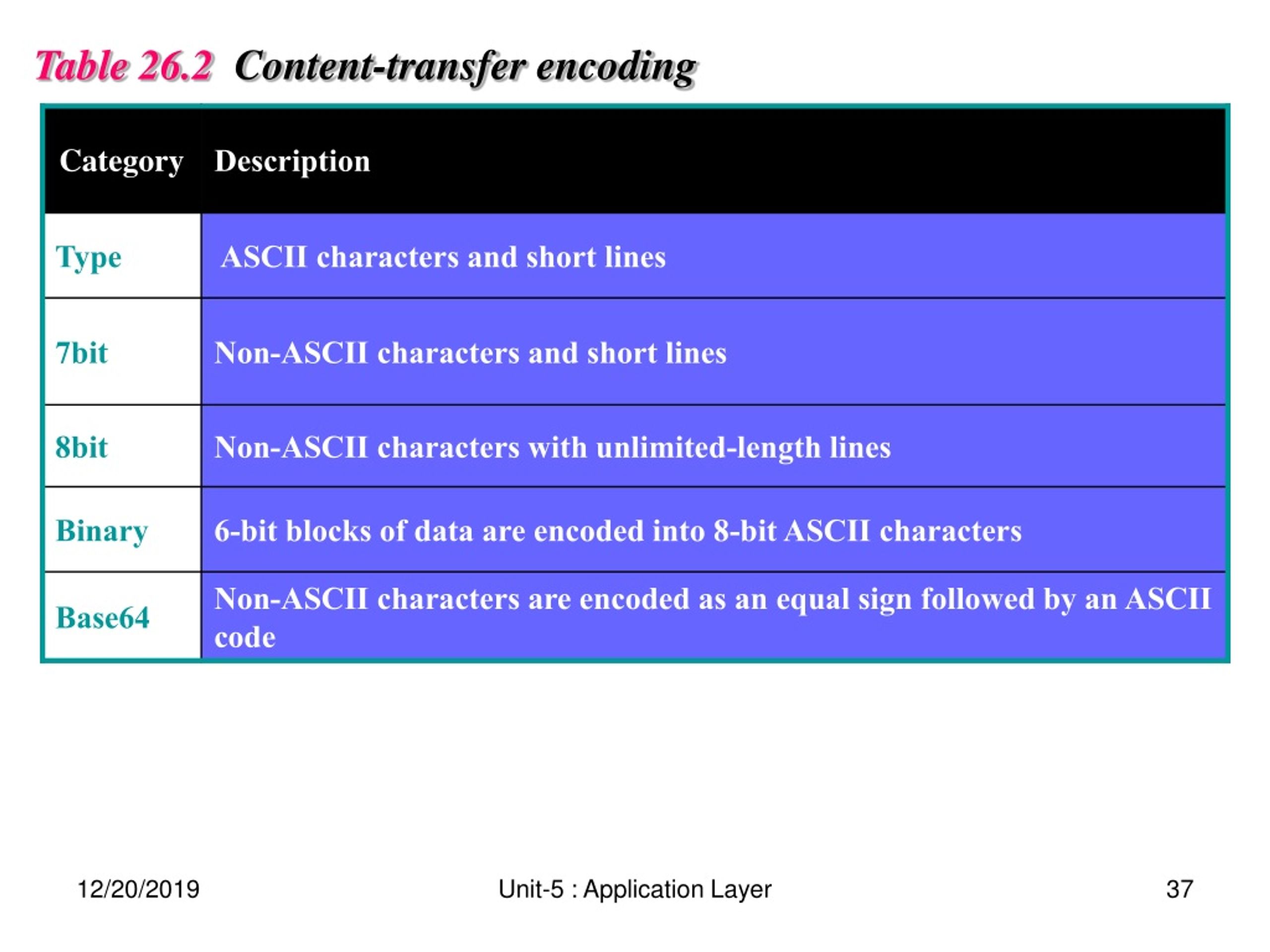

  37. Table 26.2 Content-transfer encoding Unit-5 : Application Layer

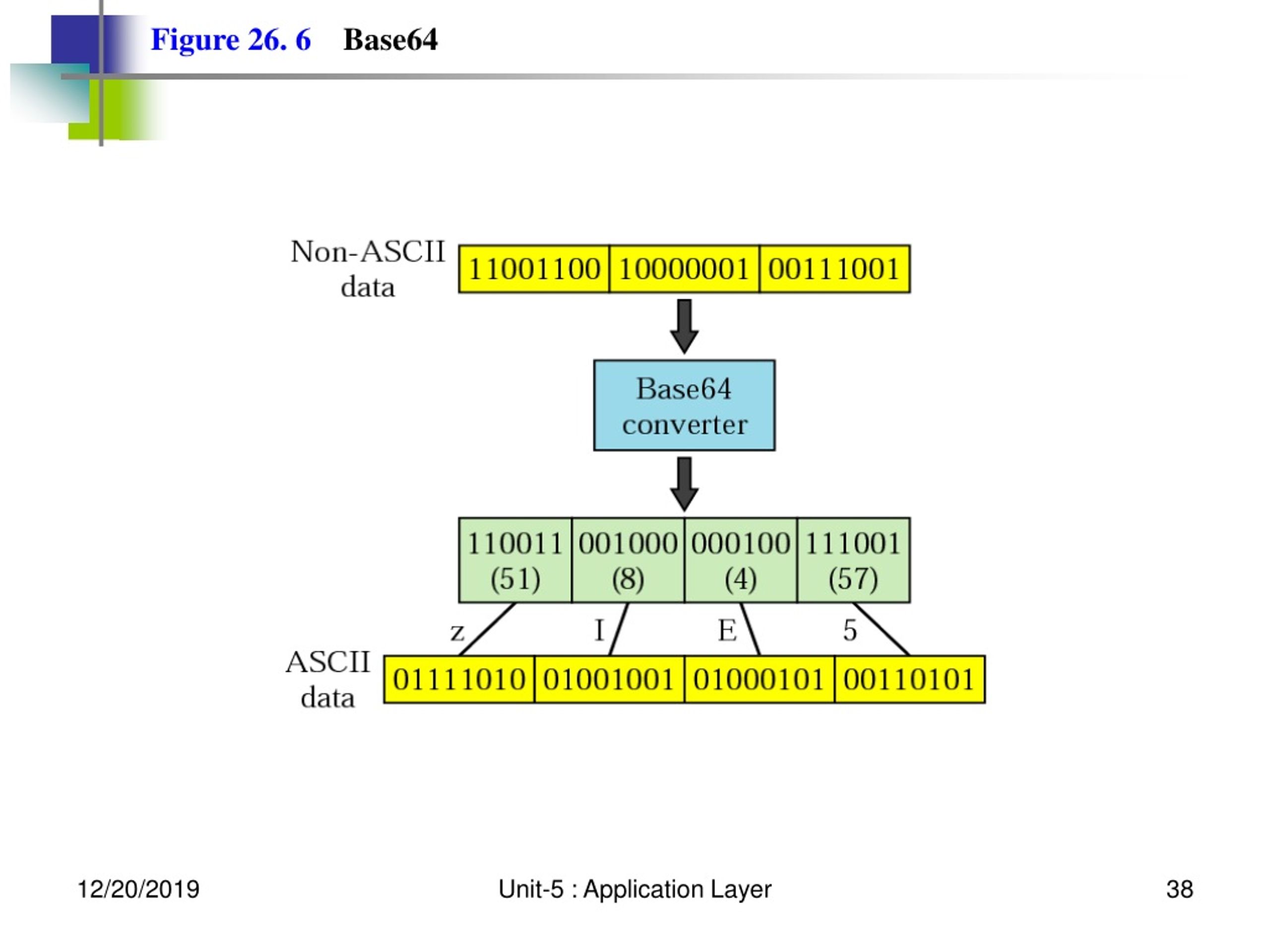

  38. Figure 26. 6Base64 Unit-5 : Application Layer

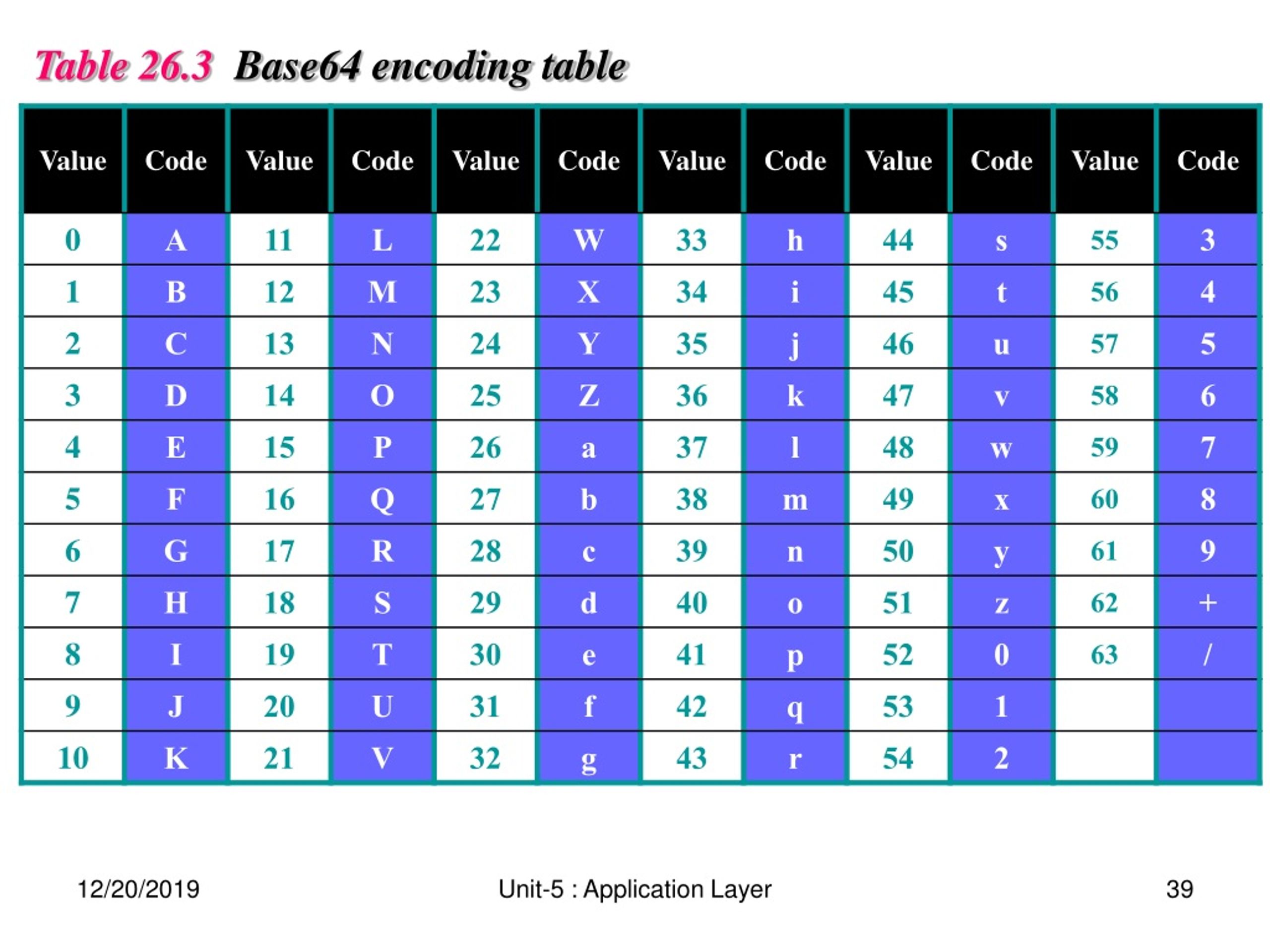

  39. Table 26.3 Base64 encoding table Unit-5 : Application Layer

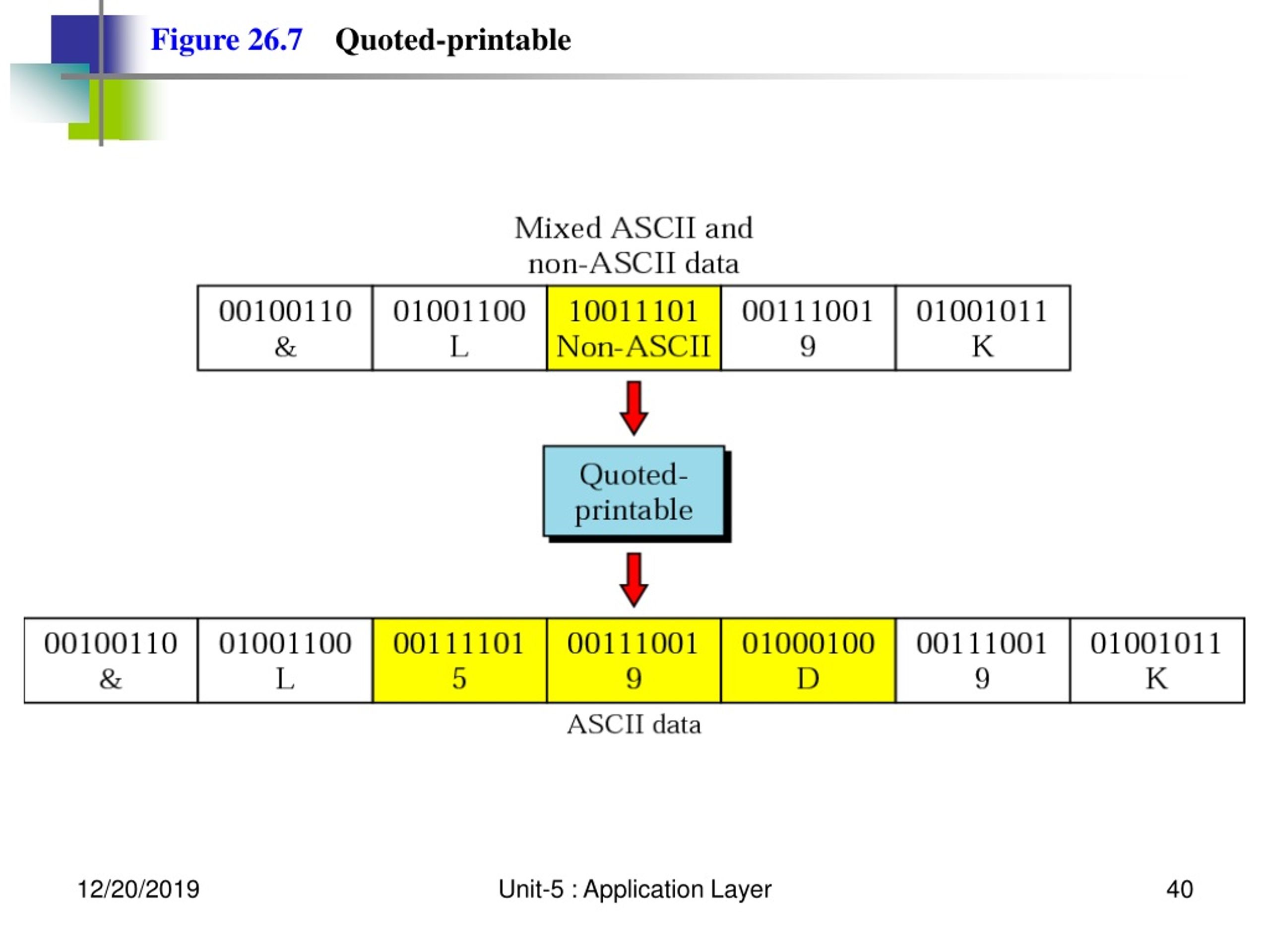

  40. Figure 26.7Quoted-printable Unit-5 : Application Layer

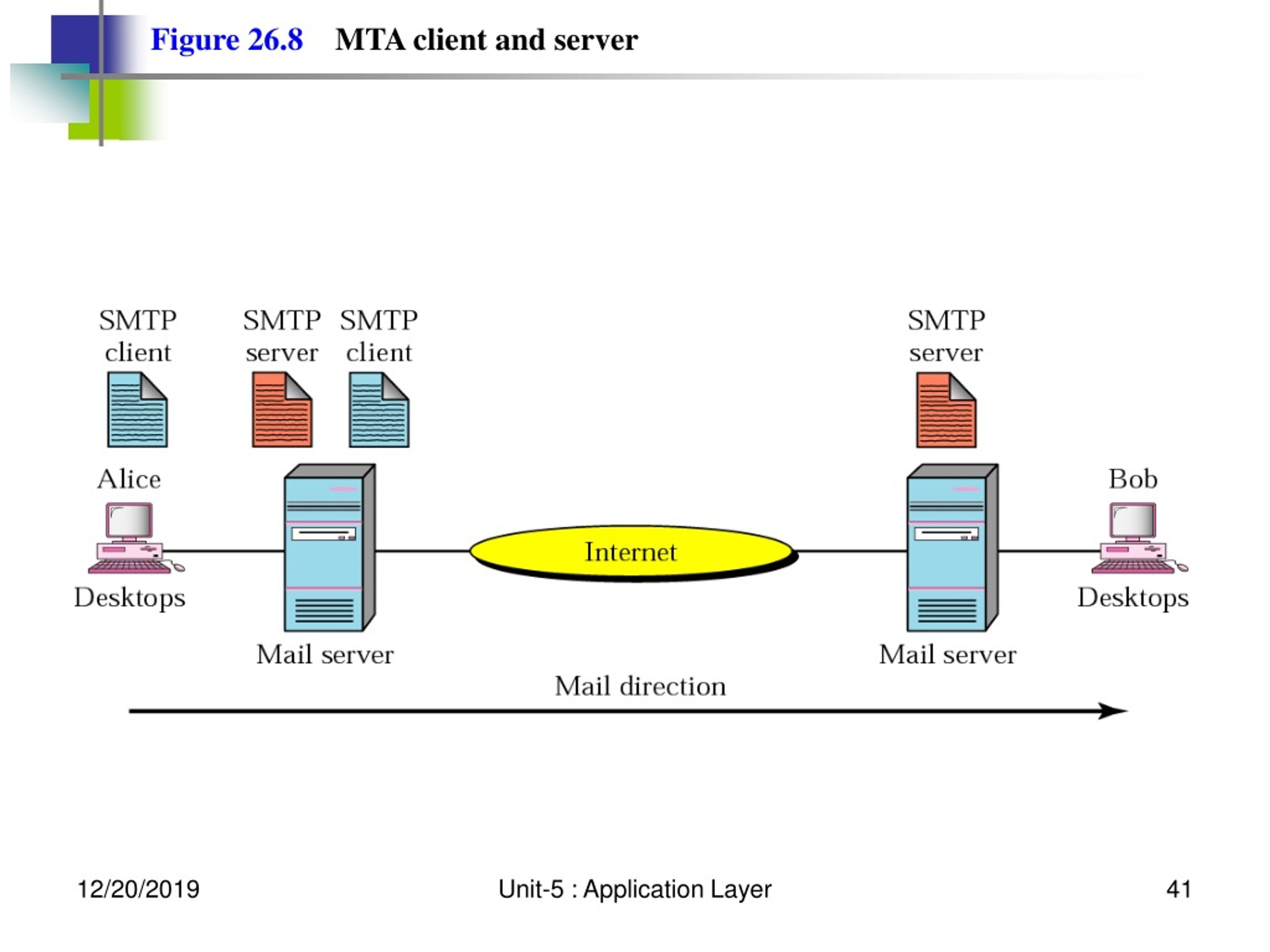

  41. Figure 26.8MTA client and server Unit-5 : Application Layer

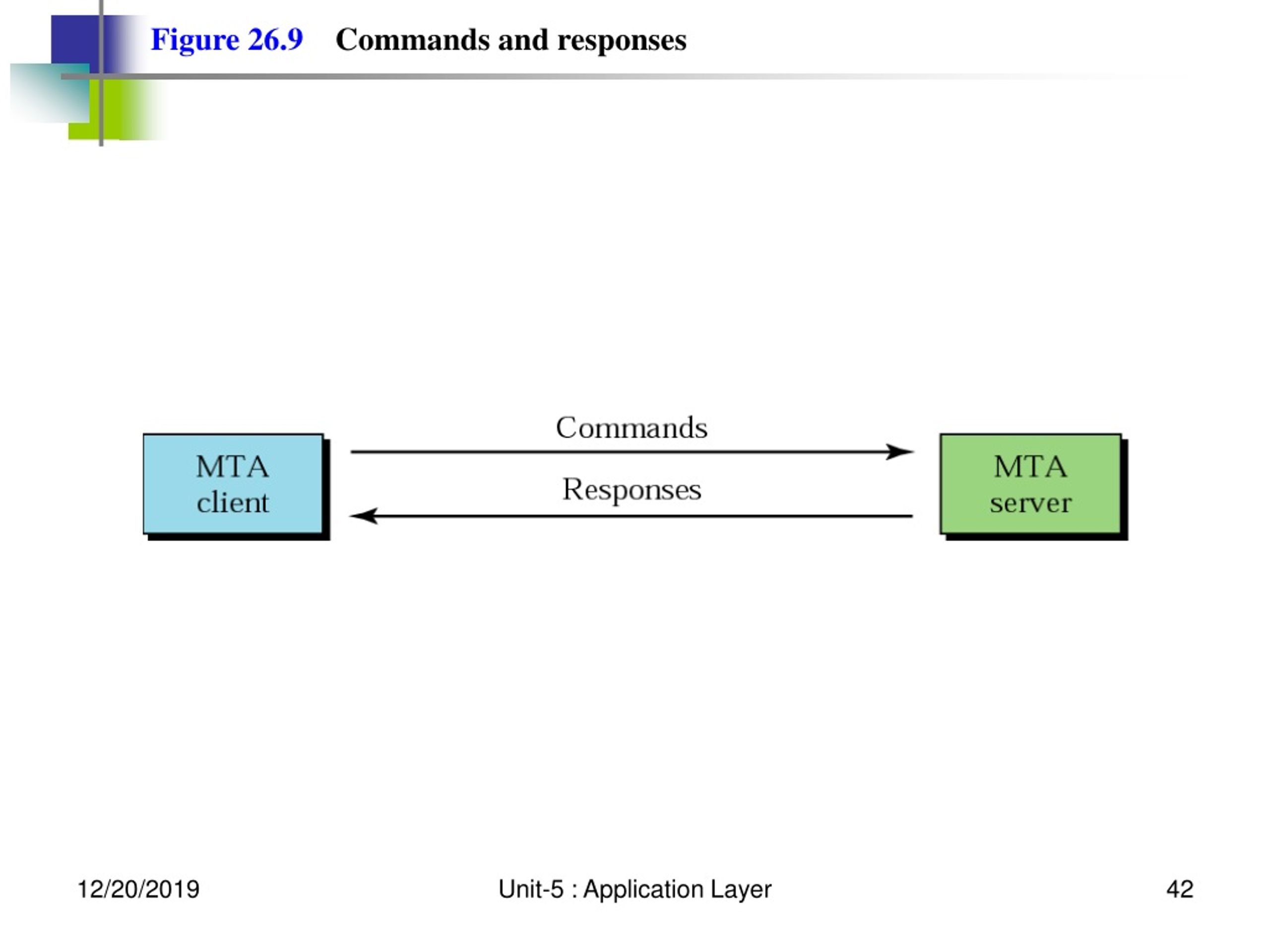

  42. Figure 26.9Commands and responses Unit-5 : Application Layer

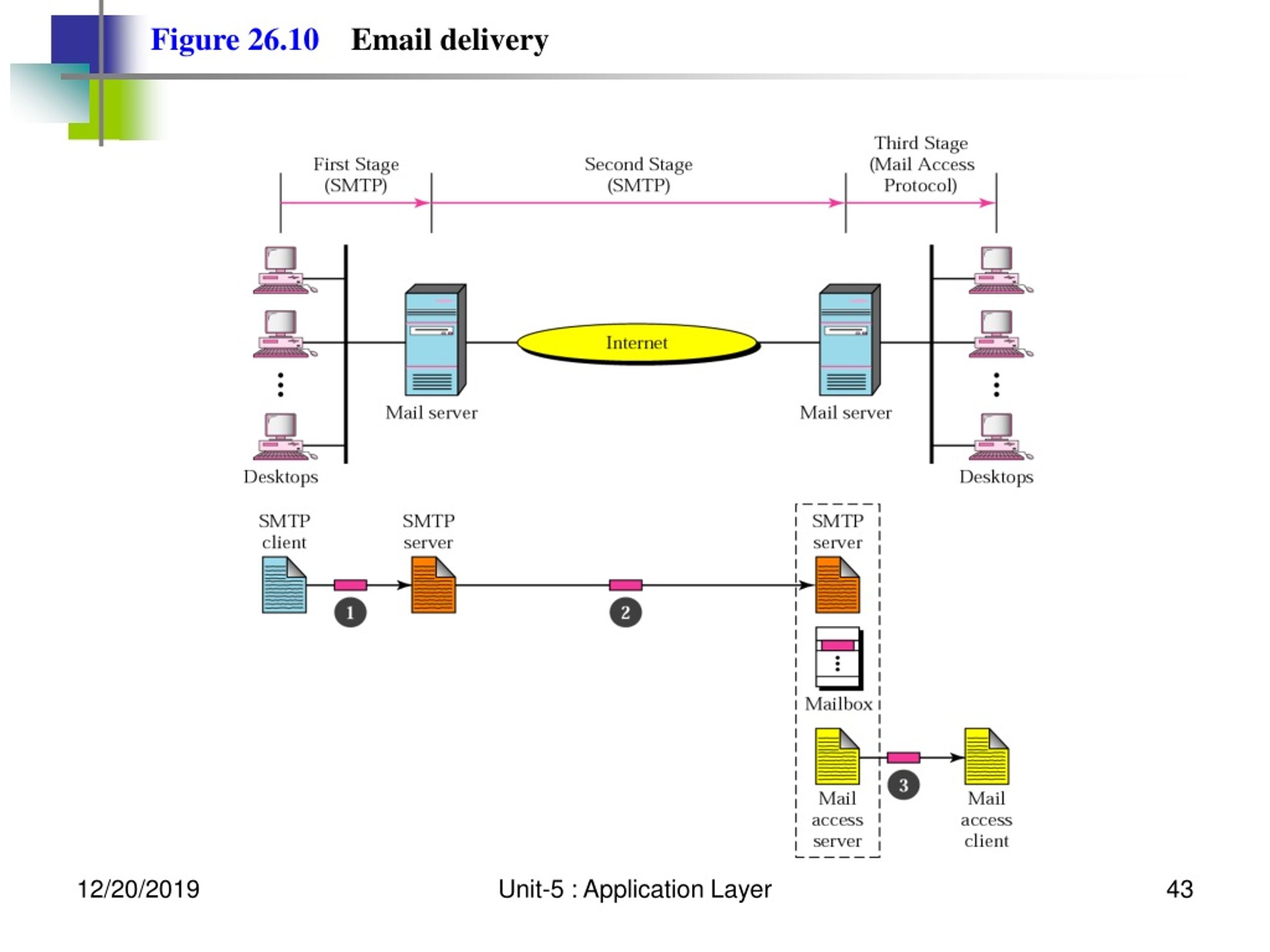

  43. Figure 26.10Email delivery Unit-5 : Application Layer

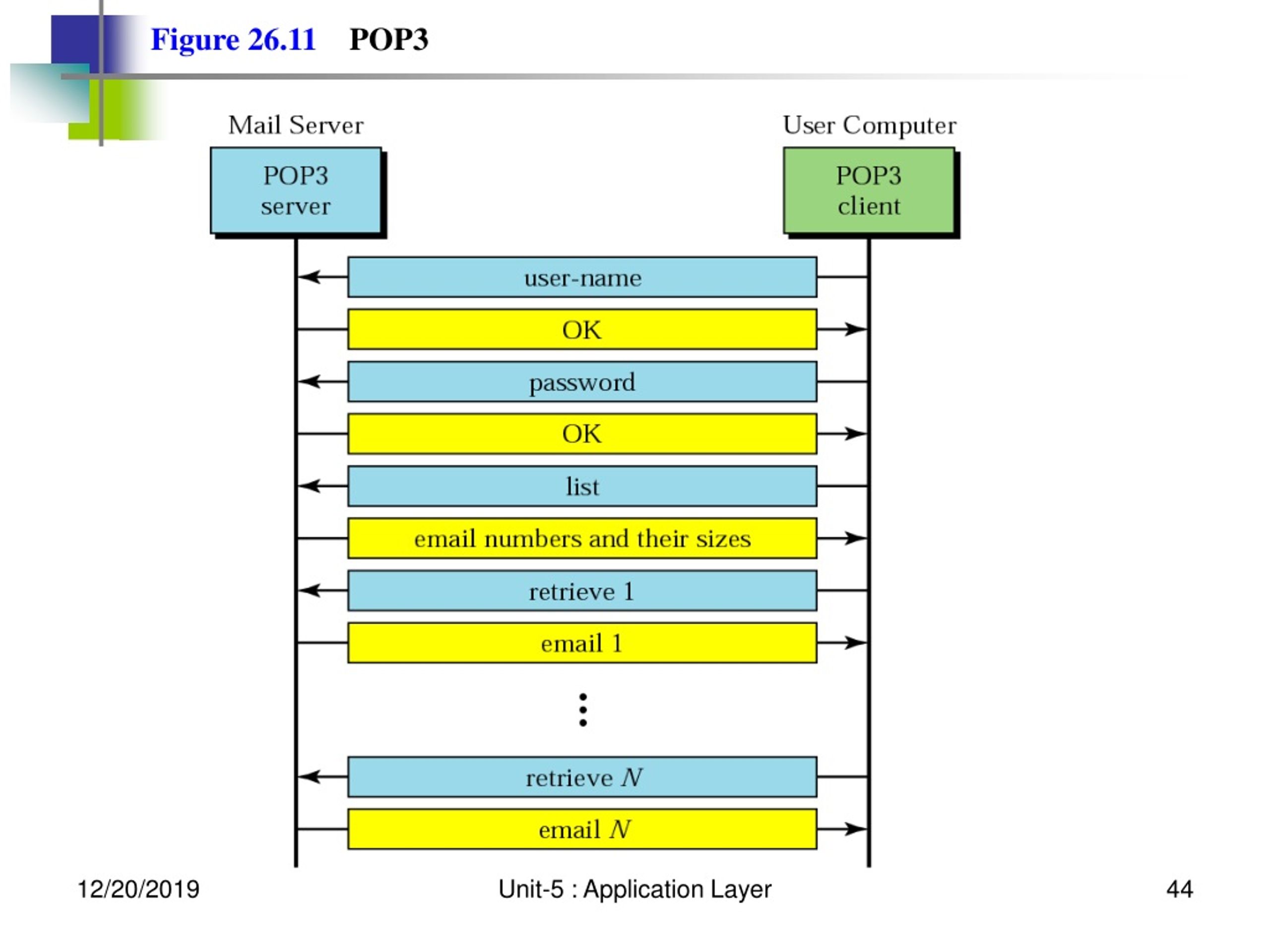

  44. Figure 26.11POP3 Unit-5 : Application Layer

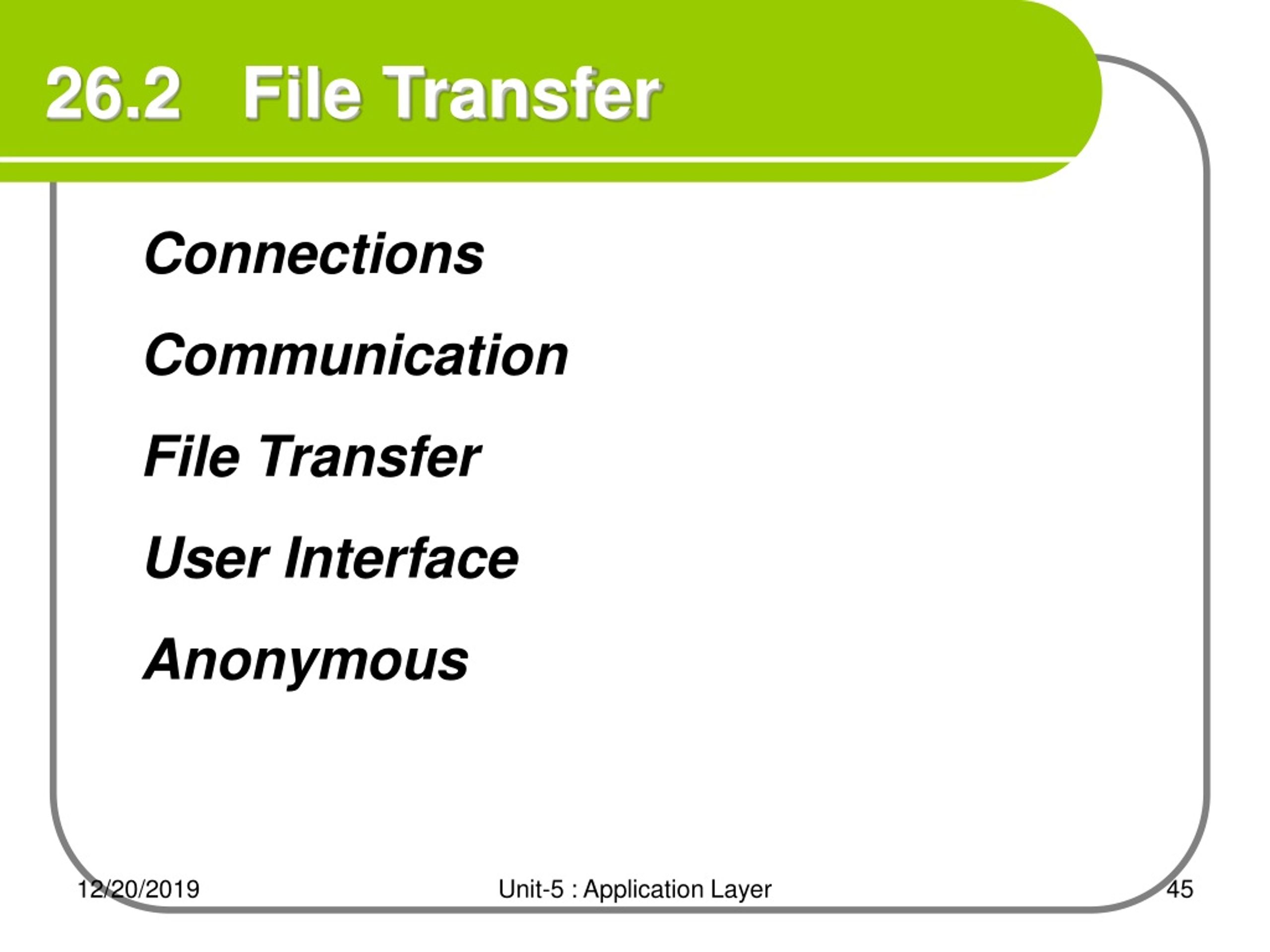

  45. 26.2 File Transfer Connections Communication File Transfer User Interface Anonymous Unit-5 : Application Layer

  46. Note: FTP uses the services of TCP. It needs two TCP connections. The well-known port 21 is used for the control connection, and the well-known port 20 is used for the data connection. Unit-5 : Application Layer

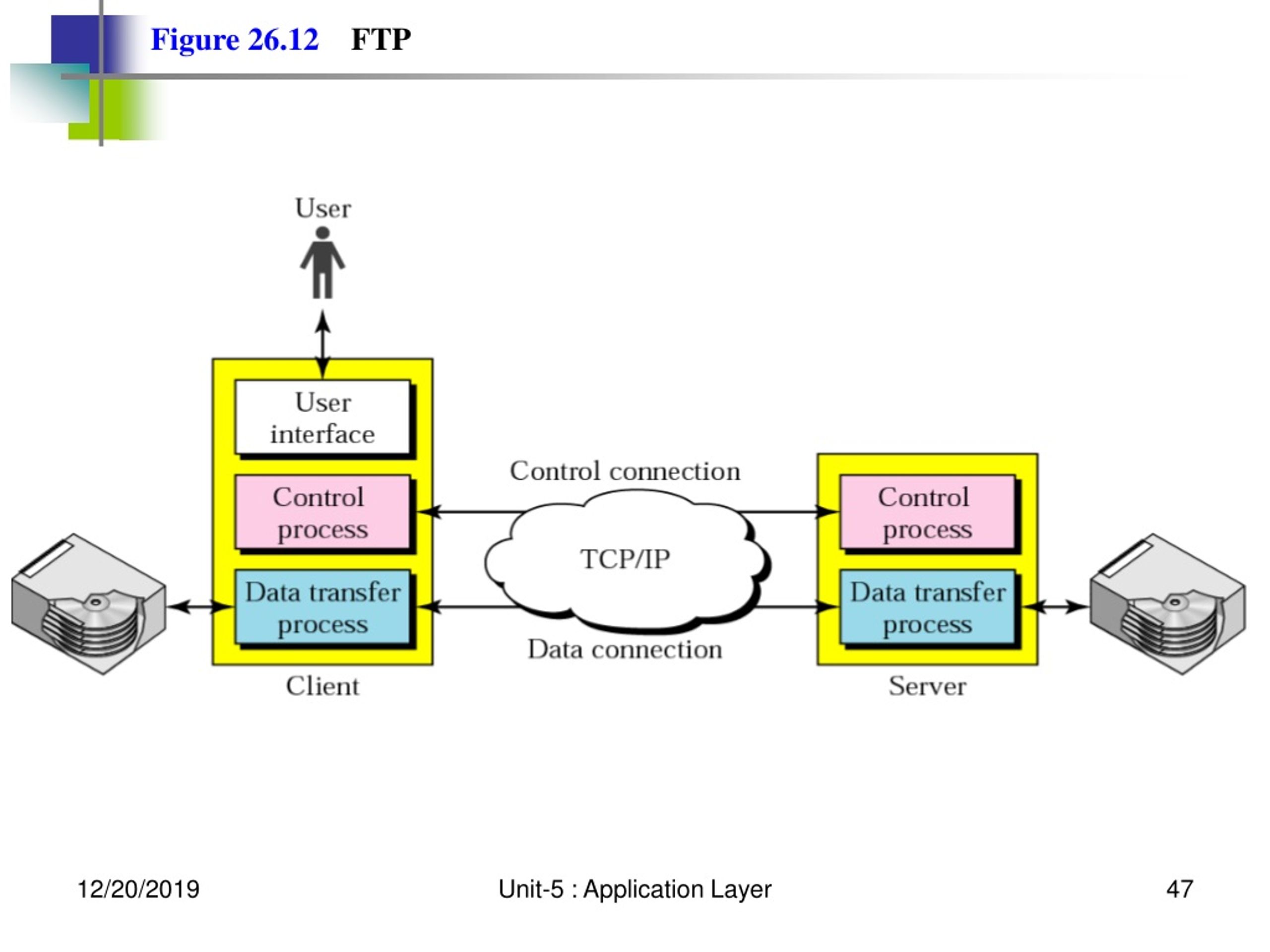

  47. Figure 26.12FTP Unit-5 : Application Layer

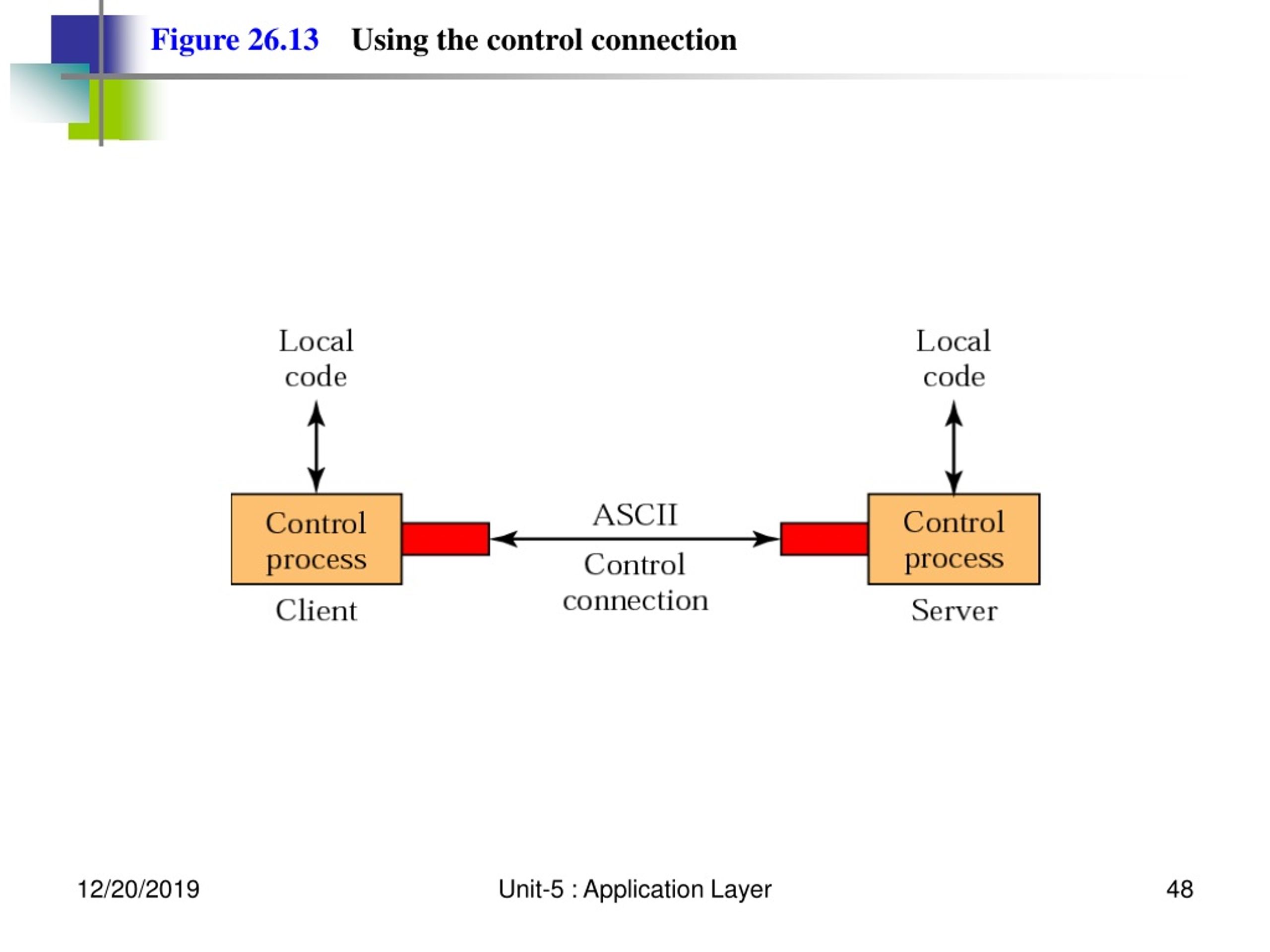

  48. Figure 26.13Using the control connection Unit-5 : Application Layer

  49. Figure 26.14Using the data connection Unit-5 : Application Layer

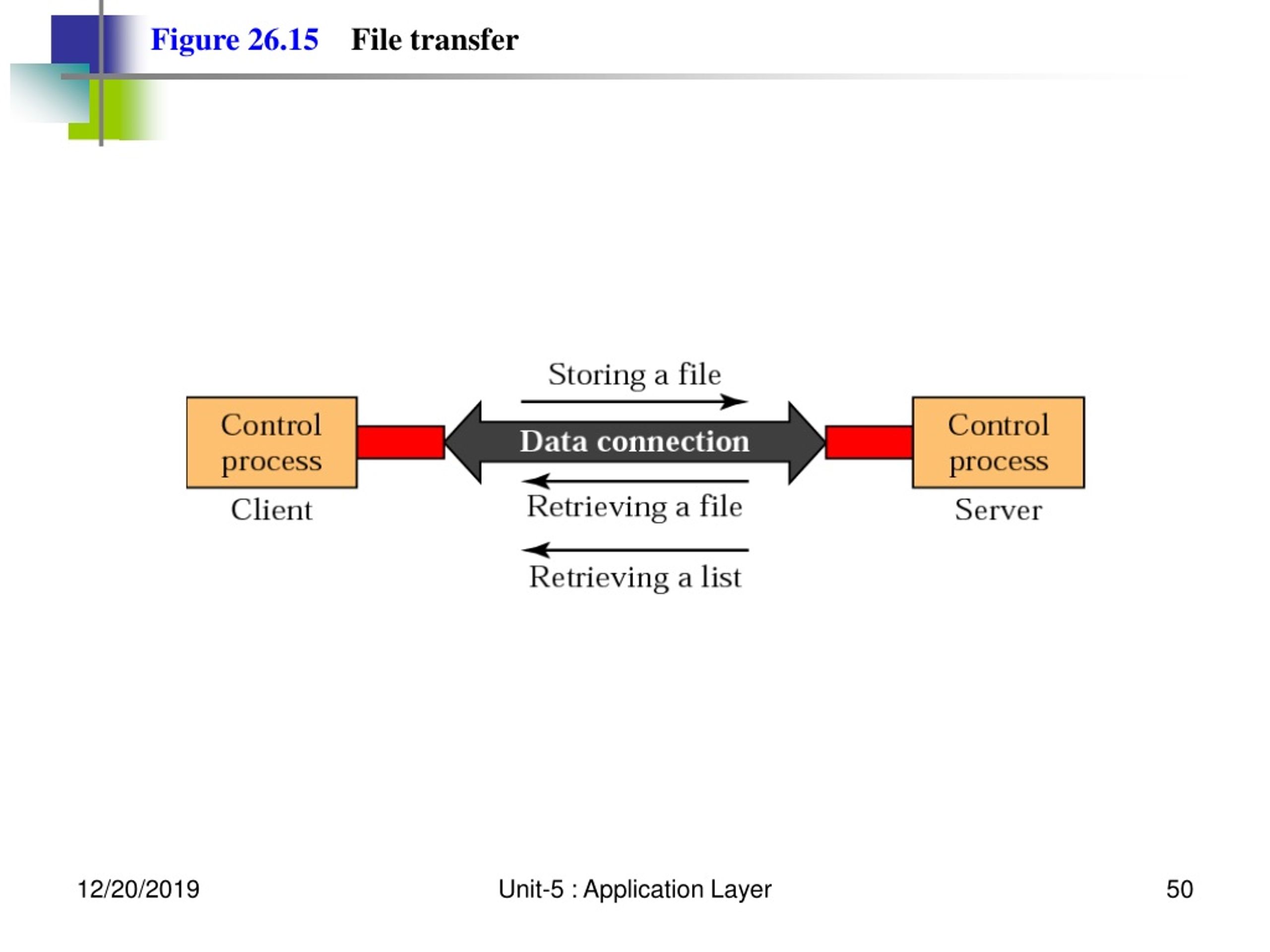

  50. Figure 26.15File transfer Unit-5 : Application Layer
