Presentation Transcript

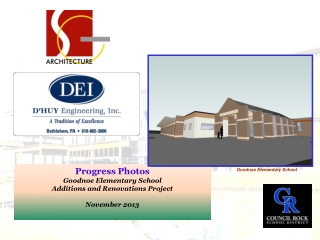

  1. Progress Photos Goodnoe Elementary School Additions and Renovations Project November 2013 Goodnoe Elementary School

  2. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • August-Demolition of all modular classroom units. • August-U.S. Roofing staging for Phase I of the roof replacement. • August-Preparation of subgrade for stepped foundations at new classrooms

  3. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • August-Approval of submittals and the delivery of the reinforcing bars. • August-Trenching, placement of reinforcing, insp. of of trench bottoms, reinforcing and concrete.

  4. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • August-Ongoing footing installations 21AUG13. • August-Test Cylinders for 7, 10, 28 and 56 day break tests.

  5. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Concrete slab on grade construction is complete. • Structural steel delivered to site early NOV13.

  6. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Early stage of column and perimeter beam placement. • Detailing, testing and placement of roof deck moved rapidly. Erector worked double shift to expedite the installation.

  7. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Metal stud installation closely followed the sequencing of the structural steel erection in an effort to complete the exterior walls. • MEP infrastructure is being installed beneath the new roof deck.

  8. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Parapet construction and exterior sheathing installation is following the metal stud installations. • The new roof system is scheduled for installation the week of 25NOV13.

  9. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • The installation of the water barrier and masonry ties are following the sheathing installation. • The brick veneer installation has commenced and is following behind the other trades. • Window installations are planned for the week of 02DEC13.

  10. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Interior metal stud partitions, door frames, MEP rough-ins, etc. are moving quickly. • New ADA ramp and stairs ready for finished floor systems. • Structural bracing at exterior wall construction.

  11. PROJECT PHOTOGRAPHSNovember 2013Goodnoe Elementary School – Additions and Renovations • Brick veneer construction. • Through-wall flashing systems properly extended past face of brick veneer. • Through-wall flashing systems properly turned up in cavity space with water barrier lapped over the vertical leg.

  12. QUESTIONS? Thank you!
