Presentation Transcript

Summary l.jpg
Summary

  • Discrete Time vs Discrete Event Simulation

  • Random number generation

    • Generating a random sequence

    • Generating random variates from a Uniform distribution

    • Testing the quality of the random number generator

  • Some probability results

  • Evaluating integrals using Monte-Carlo simulation

  • Generating random numbers from various distributions

    • Generating discrete random variates from a given pmf

    • Generating continuous random variates from a given distribution


Discrete time vs discrete event simulation l.jpg
Discrete Time vs. Discrete Event Simulation

  • Solve the finite difference equation

  • Given the initial conditions x0, x-1 and the input function uk, k=0,1,… we can simulate the output!

  • This is a time driven simulation.

  • For the systems we are interested in, this method has two main problems.


Issues with time driven simulation l.jpg
Issues with Time-Driven Simulation

Δt

  • System Dynamics

  • System Input

u1(t)

t

u2(t)

t

x(t)

t

  • Inefficient: At most steps nothing happens

  • Accuracy: Event order in each interval

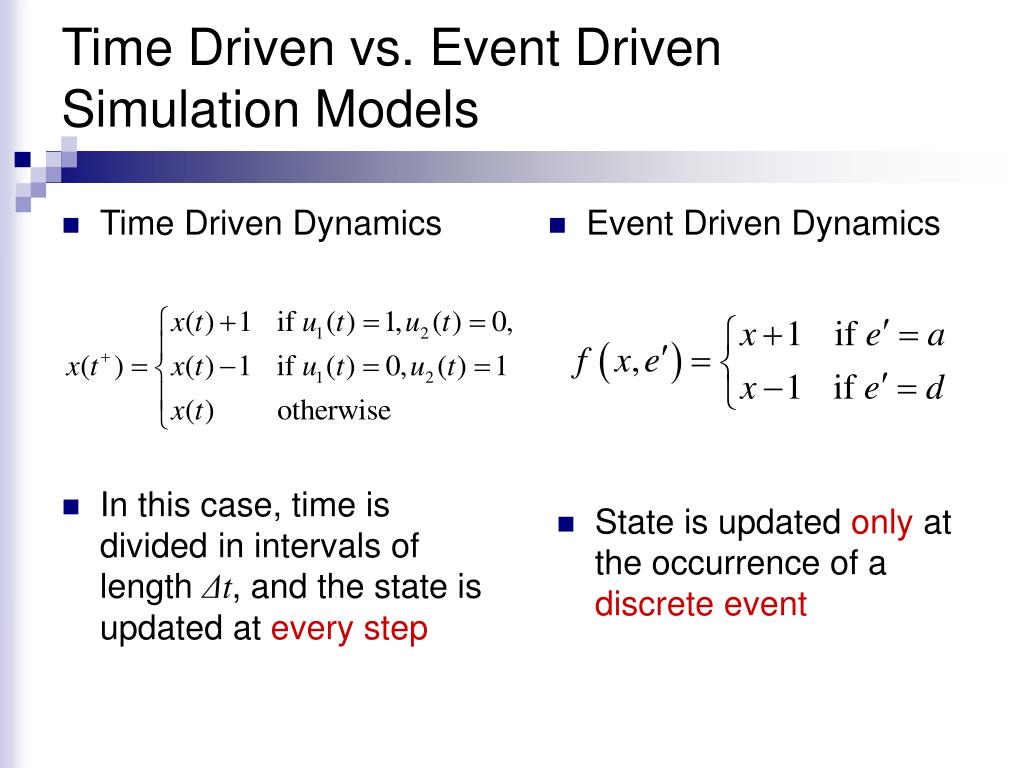

Time driven vs event driven simulation models l.jpg
Time Driven vs. Event Driven Simulation Models

  • Time Driven Dynamics

  • Event Driven Dynamics

  • In this case, time is divided in intervals of length Δt, and the state is updated at every step

  • State is updated only at the occurrence of a discrete event

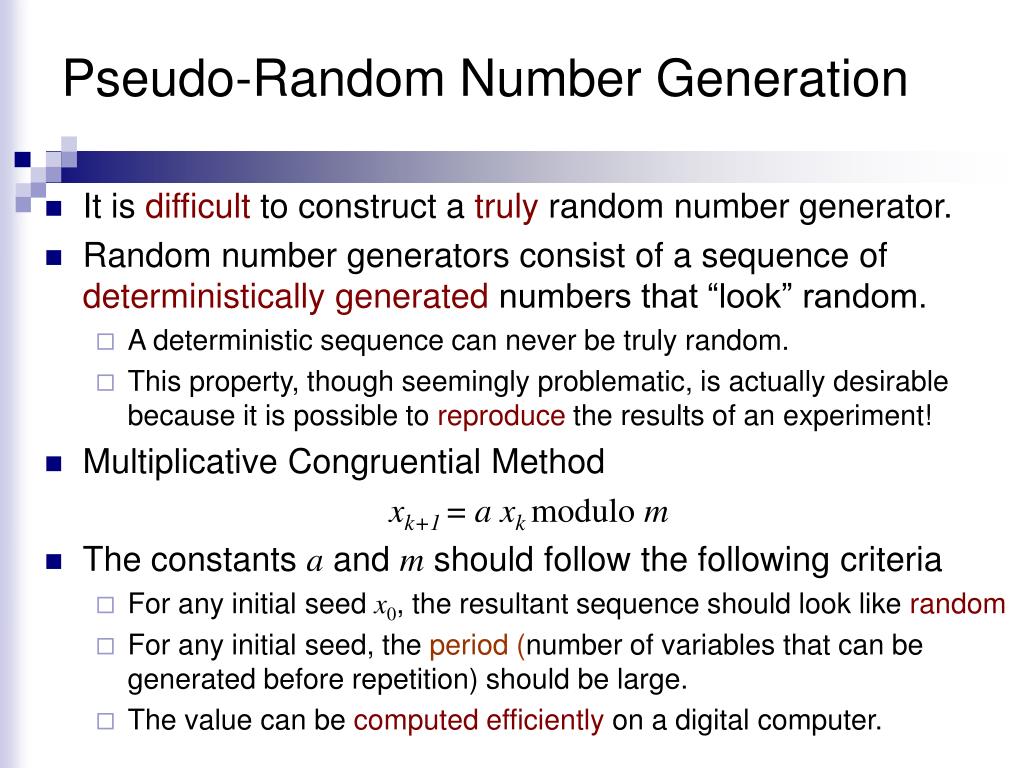

Pseudo random number generation l.jpg
Pseudo-Random Number Generation

  • It is difficult to construct a truly random number generator.

  • Random number generators consist of a sequence of deterministically generated numbers that “look” random.

    • A deterministic sequence can never be truly random.

    • This property, though seemingly problematic, is actually desirable because it is possible to reproduce the results of an experiment!

  • Multiplicative Congruential Method

    xk+1=a xk modulo m

  • The constants a and m should follow the following criteria

    • For any initial seed x0, the resultant sequence should look like random

    • For any initial seed, the period (number of variables that can be generated before repetition) should be large.

    • The value can be computed efficiently on a digital computer.


Pseudo random number generation7 l.jpg
Pseudo-Random Number Generation

  • To fit the above requirements, m should be chosen to be a large prime number.

    • Good choices for parameters are

      • m= 231-1 and a=75for 32-bit word machines

      • m= 235-1 and a=55for 36-bit word machines

  • Mixed Congruential Method

    xk+1 = (a xk + c) modulo m

  • A more general form:

    • where n is a positive constant

  • xk/m maps the random variates in the interval [0,1)


Quality of the random number generator rng l.jpg
Quality of the Random Number Generator (RNG)

  • The random variate uk=xk/m should be uniformly distributed in the interval [0,1).

    • Divide the interval [0,1) into k subintervals and count the number of variates that fall within each interval.

    • Run the chi-square test.

  • The sequence of random variates should be uncorrelated

    • Define the auto-correlation coefficient with lag k > 0 Ckand verify that E[Ck] approached 0 for all k=1,2,…

      where uiis the random variate in the interval [0,1).


Some probability review results l.jpg
Some Probability Review/Results

Pr{X=1}=p1

Pr{X=2}=p2

Pr{X=3}=p3

1

X

1

2

3

p1+ p2 + p3

p1+ p2

p1

X

1

2

3

  • Probability mass functions

  • Cumulative mass functions


Some probability results review l.jpg
Some Probability Results/Review

Probability density functions

fX(x)

x1

x

0

1

FX(x)

x

0

  • Cumulative distribution

Pr{x=x1}= 0!


Independence of random variables l.jpg
Independence of Random Variables

Joint cumulative probability distribution.

  • Independent Random Variables.

  • For discrete variables

  • For continuous variables


Conditional probability l.jpg
Conditional Probability

Conditional probability for two events.

  • Bayes’ Rule.

  • Total Probability


Expectation and variance l.jpg
Expectation and Variance

Expected value of a random variable

  • Expected value of a function of a random variable

  • Variance of a random variable


Covariance of two random variables l.jpg
Covariance of two random variables

The covariance between two random variables is defined as

  • The covariance between two independent random variables is 0 (why?)


Markov inequality l.jpg
Markov Inequality

If the random variable X takes only non-negative values, then for any value a > 0.

  • Note that for any value 0<a < E[X], the above inequality says nothing!


Chebyshev s inequality l.jpg
Chebyshev’s Inequality

If X is a random variable having mean μ and variance σ2, then for any value k > 0.

x

σ

fX(x)

μ

  • This may be a very conservative bound!

    • Note that for X~N(0,σ2), for k=2, from Chebyshev’s inequality Pr{.}<0.25, when in fact the actual value is Pr{.}< 0.05

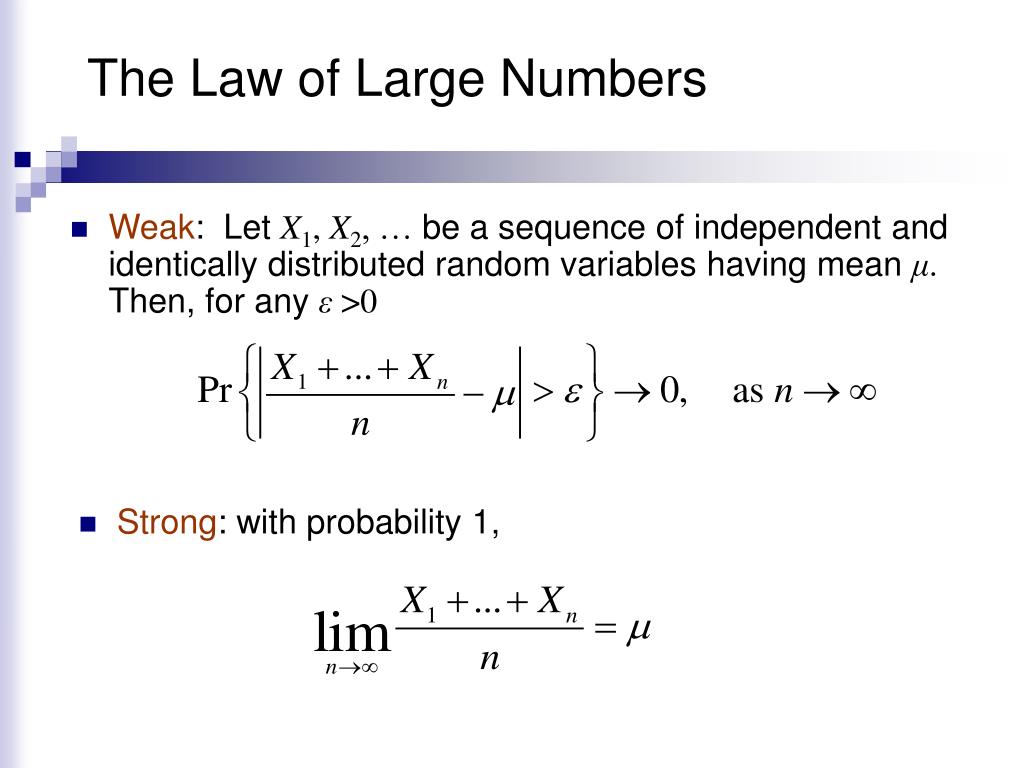

The law of large numbers l.jpg
The Law of Large Numbers

Weak: Let X1, X2, … be a sequence of independent and identically distributed random variables having mean μ. Then, for any ε>0

  • Strong: with probability 1,


The central limit theorem l.jpg
The Central Limit Theorem

Let X1, X2, …Xn be a sequence of independent random variables with mean μiand variance σι2. Then, define the random variable X,

  • Let

  • Then, the distribution of X approaches the normal distribution as n increases, and if Xi are continuous, then


Chi square test l.jpg
Chi-Square Test

  • Let k be the number of subintervals, thus pi=1/k, i=1,…,k.

  • Let Ni be the number of samples in each subinterval. Note that E[Ni]=Npi where N is the total number of samples

  • Null HypothesisH0: The probability that the observed random variates are indeed uniformly distributed in (0,1).

  • Let T be

  • Define p-value= PH0{T>t} indicate the probability of observing a value t assuming H0 is correct.

  • For large N, T is approximated by a chi-square distribution with k-1 degrees of freedom, thus we can use this approximation to evaluate the p-value

  • The H0 is accepted if p-value is greater than 0.05 or 0.01


Monte carlo approach to evaluating integrals l.jpg
Monte-Carlo Approach to Evaluating Integrals

Suppose that you want to estimate θ, however it is rather difficult to analytically evaluate the integral.

  • Suppose also that you don’t want to use numerical integration.

  • Let U be a uniformly distributed random variable in the interval [0,1) and ui are random variates of the same distribution. Consider the following estimator.

Strong Law of Large Numbers

  • Also note that:


Monte carlo approach to evaluating integrals21 l.jpg
Monte-Carlo Approach to Evaluating Integrals

Use Monte-Carlo simulation to estimate the following integral.

  • Let y=(x-a)/(b-a), then the integral becomes

  • What if

  • Use the substitution y= 1/(1+x),

  • What if


Example estimate the value of l.jpg
Example: Estimate the value of π.

(-1,1)

(1,1)

(-1,-1)

(1,-1)

  • Let X, Y, be independent random variables uniformly distributed in the interval [-1,1]

  • The probability that a point (X,Y) falls in the circle is given by

  • SOLUTION

    • Generate N pairs of uniformly distributed random variates (u1,u2) in the interval [0,1).

    • Transform them to become uniform over the interval [-1,1), using (2u1-1,2u2-1).

    • Form the ratio of the number of points that fall in the circle over N


Discrete random variates l.jpg
Discrete Random Variates

Suppose we would like to generate a sequence of discrete random variates according to a probability mass function

1

u

X

x

Inverse Transform Method

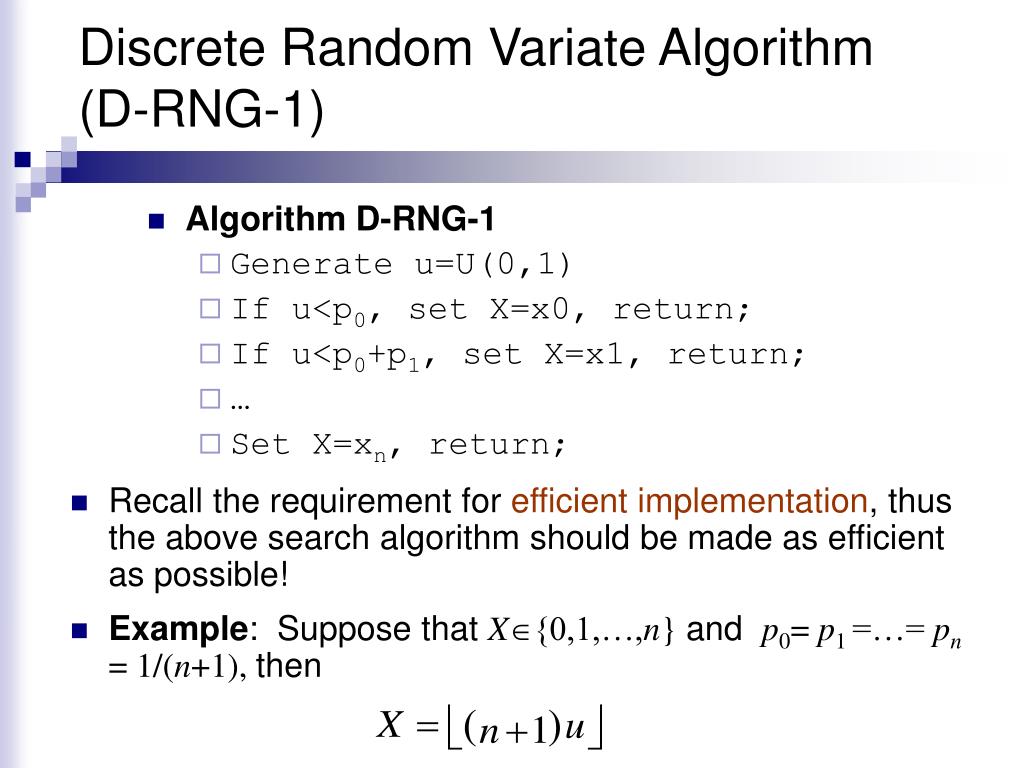

Discrete random variate algorithm d rng 1 l.jpg
Discrete Random Variate Algorithm (D-RNG-1)

Algorithm D-RNG-1

Generate u=U(0,1)

If u<p0, set X=x0, return;

If u<p0+p1, set X=x1, return;

Set X=xn, return;

  • Recall the requirement for efficient implementation, thus the above search algorithm should be made as efficient as possible!

  • Example: Suppose that X{0,1,…,n} and p0= p1 =…= pn = 1/(n+1), then


Discrete random variate algorithm l.jpg
Discrete Random Variate Algorithm

D-RNG-1: Version 1

Generate u=U(0,1)

If u<0.1, set X=x0, return;

If u<0.3, set X=x1, return;

If u<0.7, set X=x2, return;

Set X=x3, return;

More Efficient

  • Assume p0= 0.1, p1 = 0.2, p2 = 0.4, p3 = 0.3. What is an efficient RNG?

  • D-RNG-1: Version 2

    • Generate u=U(0,1)

    • If u<0.4, set X=x2, return;

    • If u<0.7, set X=x3, return;

    • If u<0.9, set X=x1, return;

    • Set X=x0, return;


Geometric random variables l.jpg
Geometric Random Variables

Let p the probability of success and q=1-p the probability of failure, then X is the time of the first success with pmf

  • Using the previous discrete random variate algorithm, X=j if

As a result:

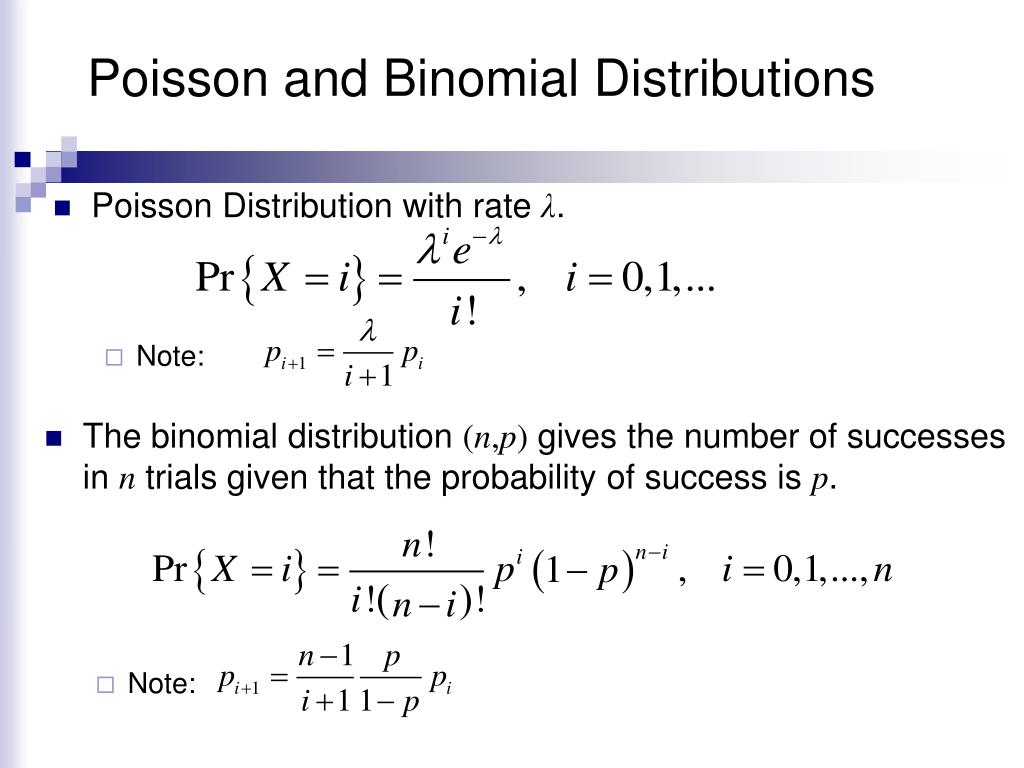

Poisson and binomial distributions l.jpg
Poisson and Binomial Distributions

Poisson Distribution with rate λ.

  • Note:

  • Note:

  • The binomial distribution (n,p) gives the number of successes in n trials given that the probability of success is p.


Accept reject method d rng ar l.jpg
Accept/Reject Method (D-RNG-AR)

Suppose that we would like to generate random variates from a pmf {pj, j≥0} and we have an efficient way to generate variates from a pmf {qj, j≥0}.

Let a constant c such that

  • In this case, use the following algorithm

  • D-RNG-AR:

    • Generate a random variate Y from pmf {qj, j≥0}.

    • Generate u=U(0,1)

    • If u< pY/(cqY), set X=Y and return;

    • Else repeat from Step 1.


Accept reject method d rng ar29 l.jpg
Accept/Reject Method (D-RNG-AR)

Show that the D-RNG-AR algorithm generates a random variate with the required pmf {pj, j≥0}.

1

pi/cqi

qi

Therefore


D rng ar example l.jpg
D-RNG-AR Example

Determine an algorithm for generating random variates for a random variable that take values 1,2,..,10 with probabilities 0.11, 0.12, 0.09, 0.08, 0.12, 0.10, 0.09, 0.09, 0.10, 0.10 respectively.

  • D-RNG-1:

    • Generate u=U(0,1)

    • k=1;

    • while(u >cdf(k))

      • k=k+1;

    • x(i)=k;

  • D-RNG-AR:

    • u1=U(0,1), u2=U(0,1)

    • Y=floor(10*u1 + 1);

    • while(u2 > p(Y)/c)

      • u1= U(0,1); u2=U(0,1);

      • Y=floor(10*rand + 1);

    • y(i)=Y;


The composition approach l.jpg
The Composition Approach

Let X1 have pmf {qj, j≥0} and X2 have pmf {rj, j≥0} and define

  • Suppose that we have an efficient way to generate variates from two pmfs {qj, j≥0} and {rj, j≥0}

  • Suppose that we would like to generate random variates for a random variable having pmf, a(0,1).

  • Algorithm D-RNG-C:

    • Generate u=U(0,1)

    • If u <= a generate X1

    • Else generate X2


Continuous random variates inverse transform method l.jpg
Continuous Random VariatesInverse Transform Method

Suppose we would like to generate a sequence of continuous random variates having density function FX(x)

Algorithm C-RNG-1: Let U be a random variable uniformly distributed in the interval (0,1). For any continuous distribution function, the random variate X is given by

FX(x)

1

x

u

X


Example exponentially distributed random variable l.jpg
Example: Exponentially Distributed Random Variable

Suppose we would like to generate a sequence of random variates having density function

  • Solution

  • Find the cumulative distribution

  • Let a uniformly distributed random variable u

  • Equivalently, since 1-u is also uniformly distributed in(0,1)


Convolution techniques and the erlang distribution l.jpg
Convolution Techniques and the Erlang Distribution

Suppose the random variable X is the sum of a number of independent identically distributed random variables

  • Algorithm C-RNG-Cv:

    • Generate Y1,…,Yn from the given distribution

    • X=Y1+Y2+…+Yn.

  • An example of such random variable is the Erlang with order n which is the sum of n iid exponential random variables with rate λ.


Accept reject method c rng ar l.jpg
Accept/Reject Method (C-RNG-AR)

Suppose that we would like to generate random variates from a pdf fX(x) and we have an efficient way to generate variates from a pdf gX(x).

Let a constant c such that

  • In this case, use the following algorithm

  • C-RNG-AR:

    • Generate a random variate Y from density gX(x).

    • Generate u=U(0,1)

    • If u< fX(Y)/(cgX(Y)), set X=Y and return;

    • Else repeat from Step 1.


Accept reject method c rng ar36 l.jpg
Accept/Reject Method (C-RNG-AR)

The C-RNG-AR is similar to the D-RNG-AR algorithm except the comparison step where rather than comparing the two probabilities we compare the values of the density functions.

  • Theorem

    • The random variates generated by the Accept/Reject method have density fX(x).

    • The number of iterations of the algorithm that are needed is a geometric random variable with mean c

  • Note: The constant c is important since is implies the number of iterations needed before a number is accepted, therefore it is required that it is selected so that it has its minimum value.


C rng ar example l.jpg
C-RNG-AR Example

Use the C-RNG-AR method to generate random variates X that are normally distributed with mean 0 and variance 1, N(0,1).

  • First consider the pdf of the absolute value of |X|.

  • We know how to generate exponentially distributed random variates Y with rate λ=1.

  • Determine c such that it is equal to the maximum of the ratio


C rng ar example38 l.jpg
C-RNG-AR Example

  • C-RNG-AR for N(0,1):

    • u1=U(0,1), u2=U(0,1);

    • Y= -log(u1);

    • while(u2 > exp(-0.5(Y-1)*(Y-1)))

      • u1= U(0,1); u2=U(0,1);

      • Y= -log(u1);

    • u3= U(0,1);

    • If u3 < 0.5 X=Y;

    • Else X= -Y;

  • Suppose we would like Z~N(μ,σ2), then

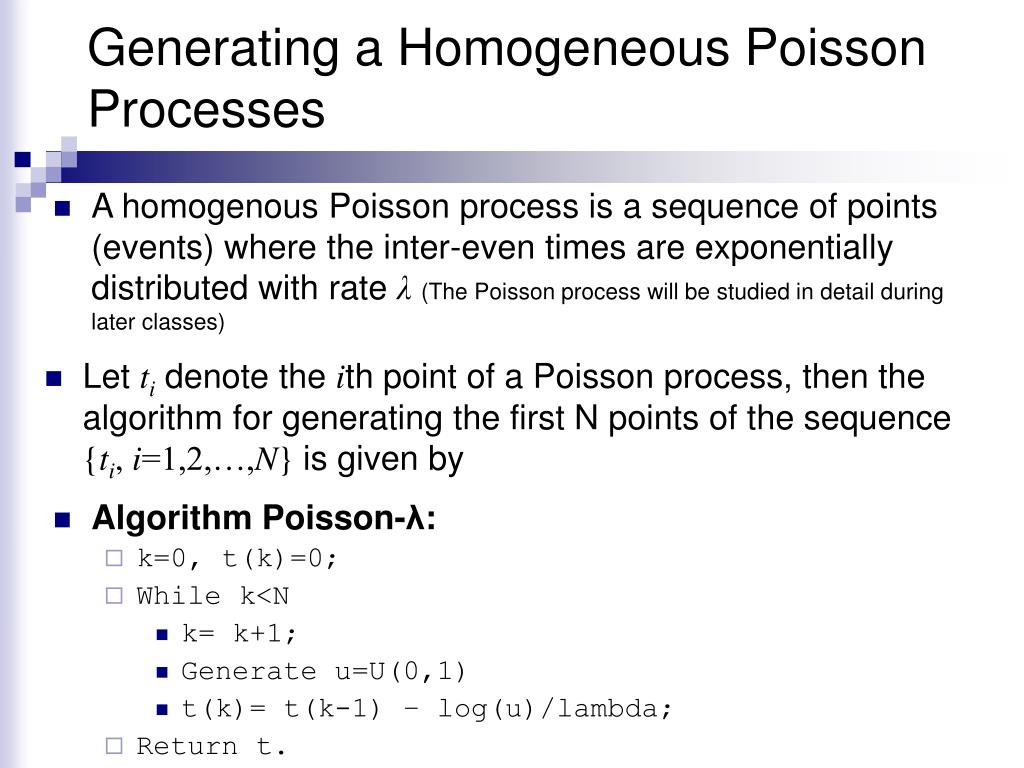

Generating a homogeneous poisson processes l.jpg
Generating a Homogeneous Poisson Processes

A homogenous Poisson process is a sequence of points (events) where the inter-even times are exponentially distributed with rate λ(The Poisson process will be studied in detail during later classes)

  • Let ti denote the ith point of a Poisson process, then the algorithm for generating the first N points of the sequence {ti, i=1,2,…,N} is given by

  • Algorithm Poisson-λ:

    • k=0, t(k)=0;

    • While k<N

      • k= k+1;

      • Generate u=U(0,1)

      • t(k)= t(k-1) – log(u)/lambda;

    • Return t.


Generating a non homogeneous poisson processes l.jpg
Generating a Non-Homogeneous Poisson Processes

Suppose that the process is non-homogeneous i.e., the rate varies with time, i.e.,λ(t) ≤λ, for all t<T.

  • Let ti denote the ith point of a Poisson process, andτ the actual time, then the algorithm for generating the first N points of the sequence {ti, i=1,2,…,N} is given by

  • Algorithm Thinning Poisson-λ:

    • k=0, t(k)=0, tau= 0;

    • While k<N

      • Generate u1=U(0,1);

      • tau= tau – log(u1)/lambda;

      • Generate u2= U(0,1);

      • If(lambda(tau)\lambda < u2)

        • k= k+1, t(k)= tau;

    • Return t.


Generating a non homogeneous poisson processes41 l.jpg
Generating a Non-Homogeneous Poisson Processes

Again, suppose that the process is non-homogeneous i.e., the rate varies with time, i.e.,λ(t) ≤λ, for all t<T but now we would like to generate all points ti directly, without thinning.

  • Assuming that we are at point ti, then the question that we need to answer is what is the cdf of Si where Siis the time until the next event

  • Thus, to simulate this process, we start from t0 and generate S1 from FS1 to go to t1=t0+S1. Then, from t1, we generate S2 from FS2 to go to t2=t1+S2 and so on.


Example of non homogeneous poisson processes l.jpg
Example of Non-Homogeneous Poisson Processes

Suppose that λ(t)= 1/(t+α), t≥0, for some positive constant a. Generate variates from this non-homogeneous Poisson process.

  • First, let us determine the rate of the cdf

  • Inverting this yields


Example of non homogeneous poisson processes43 l.jpg
Example of Non-Homogeneous Poisson Processes

  • Inverse Transform

  • Thus we start from t0=0


The composition approach44 l.jpg
The Composition Approach

  • Suppose that we have an efficient way to generate variates from cdfs G1(x),…, Gn(x).

  • Suppose that we would like to generate random variates for a random variable having cdf

  • Algorithm C-RNG-C:

    • Generate u=U(0,1)

    • If u<p1, get X from G1(x), return;

    • If u<p1+p2, get X from G2(x), return;


Polar method for generating normal random variates l.jpg
Polar Method for Generating Normal Random Variates

Y

R

θ

X

  • Let X and Y be independent normally distributed random variables with zero mean and variance 1. Then the joint density function is given by

  • Then make a variable change

  • The new joint density function is

Exponential with rate 1/2

Uniform in the interval [0,2π]


Polar method for generating normal random variates46 l.jpg
Polar Method for Generating Normal Random Variates

Generates 2 independent RVs

(-1,1)

(1,1)

(V1,V2)

(-1,-1)

(1,-1)

  • Algorithm C-RNG-N1:

    • Generate u1=U(0,1), u2=U(0,1);

    • R= -2*log(u1); W= 2*pi*u2;

    • X= sqrt(R) cos(W); Y= sqrt(R) sin(W);

  • But, sine and cosine evaluations are inefficient!

  • Algorithm C-RNG-N2:

    • Generate u1=U(0,1), u2=U(0,1);

    • Set V1= 2*u1-1, V2= 2*u2-1;

    • S=V1*V1+V2*V2;

    • If S > 1, Go to 1

    • R= sqrt(-2*log(S)/S);

    • X= R*V1;

    • Y= R*V2;


Simulation of discrete event systems l.jpg
Simulation of Discrete Event Systems

STATE

TIME

EVENT CALENDAR

e1

t1

Update Time

t’=t1

Update State

x’=f(x,e1)

e2

t2

Delete

Infeasible

Events

Add New

Feasible

Events

CLOCK

STRUCTURE

RNG

INITIALIZE


Verification of a simulation program l.jpg
Verification of a Simulation Program

  • Standard debugging techniques

    • Debug “modules” or subroutines

    • Create simple special cases, where you know what to expect as an output from each of the modules

    • Often choosing carefully the system parameters, the simulation model can be evaluated analytically.

    • Create a trace which keeps track of the state variables, the event list and other variables.


ad
