unavco geon it and geophysical research

UNAVCO/GEONIT and Geophysical Research

Data, Visualization, and Research in the Rocky Mountains

Chuck Meertens and Greg Bensen

UNAVCO, Boulder, Colorado

www.unavco.org

www.geongrid.org

overview of presentation
UNAVCO Research contributions

Acquisition, Formatting, and Delivery of Metadata, Data, and Derived Products

Visualization of Geophysical Data and Models

Rocky Mountains science research

Collaboration with U. of Utah Yellowstone Database development

Overview of Presentation

www.geongrid.org

unavco geon pop
UNAVCO/GEON PoP

Access to UNAVCO/GEON resources provided via the GEONgrid Portal

www.geongrid.org

unavco geon pop4

Geological

Survey of

Canada

Chronos

NASA

Livermore

USGS

ESRI

CUASI

PoP node

5-node cluster

1TF cluster

Partner services

Partner Projects

UNAVCO/GEON PoP
  • Provides Custom GEON Access to UNAVCO Resources
      • Data
      • Metadata
      • Software
      • Visualization
      • Geon research
      • Education and Outreach

UNAVCOPOP

www.geongrid.org

data access methods

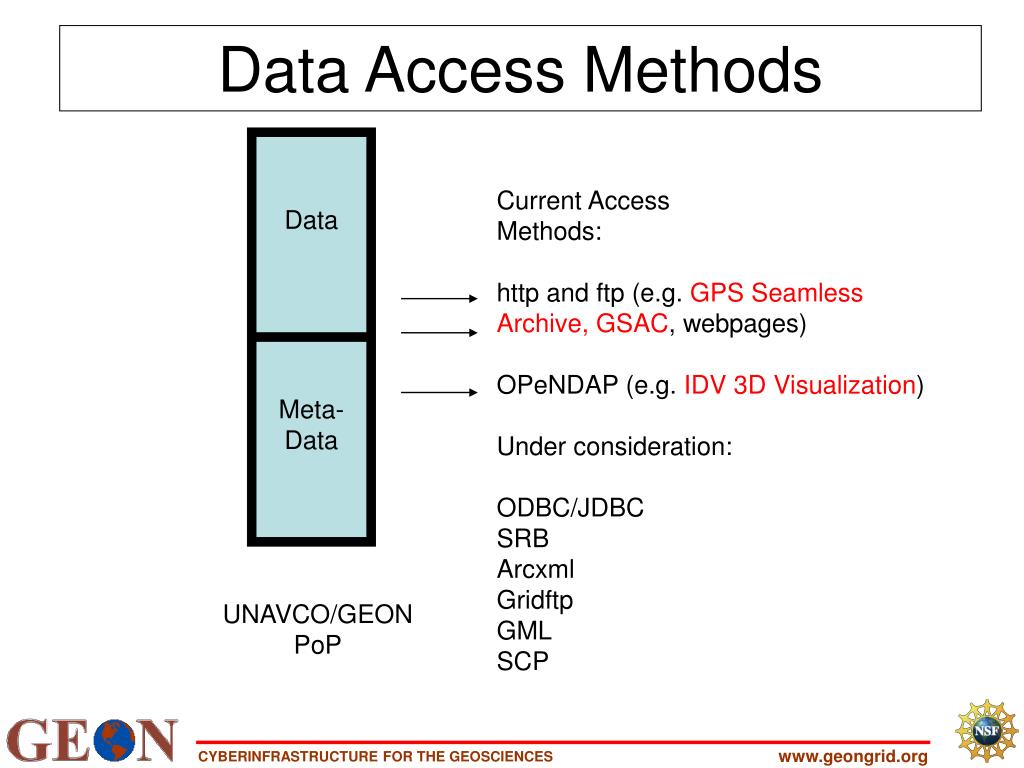

Data Access Methods

Data

Current Access

Methods:

http and ftp (e.g. GPS Seamless Archive, GSAC, webpages)

OPeNDAP (e.g. IDV 3D Visualization)

Under consideration:

ODBC/JDBC

SRB

Arcxml

Gridftp

GML

SCP

Meta-

Data

UNAVCO/GEON

PoP

www.geongrid.org

gps seamless archive gsac
GPS Seamless Archive (GSAC)
  • The GSAC helps you locate GPS data files which are archived at different GPS Data Archive Centers from a single user interface.
  • GSAC Clients:
  • The GSAC Wizard is a web-based client.
  • 2. The GSAC command-line client.
  • GSAC Retailer:
  • Gathers metadata and file locations from wholesalers
  • Organizes data into a POSTSQL relational database (same as GEON)
  • Provides services to GSAC Clients

GEON “Instance”

Of GSAC Retailer

GSAC developed by Scripps and UNAVCO

The GSAC will be the primary means of GPS raw data and data product discovery and access for EarthScope

www.geongrid.org

unavco geon opendap server
UNAVCO/GEONOPeNDAP Server

Unidata

OPeNDAP software

Unix binaries

UNAVCO/GEON OPeNDAP Server

- Seismic Tomography, Global Strain Rate, Geodynamic Models, Earthquakes

-NetCDF format

-GPSVel vectors

-Free Form ASCII data

Some OPeNDAP Server

Software:

-Free Form

-netCDF

-IDL

-Matlab

OPeNDAP data

connector

  • Web browser
  • Data preview
  • Data download

IDV

Visualization

Free form

GPS vectors

http://geon.unavco.org

www.geongrid.org

slide8

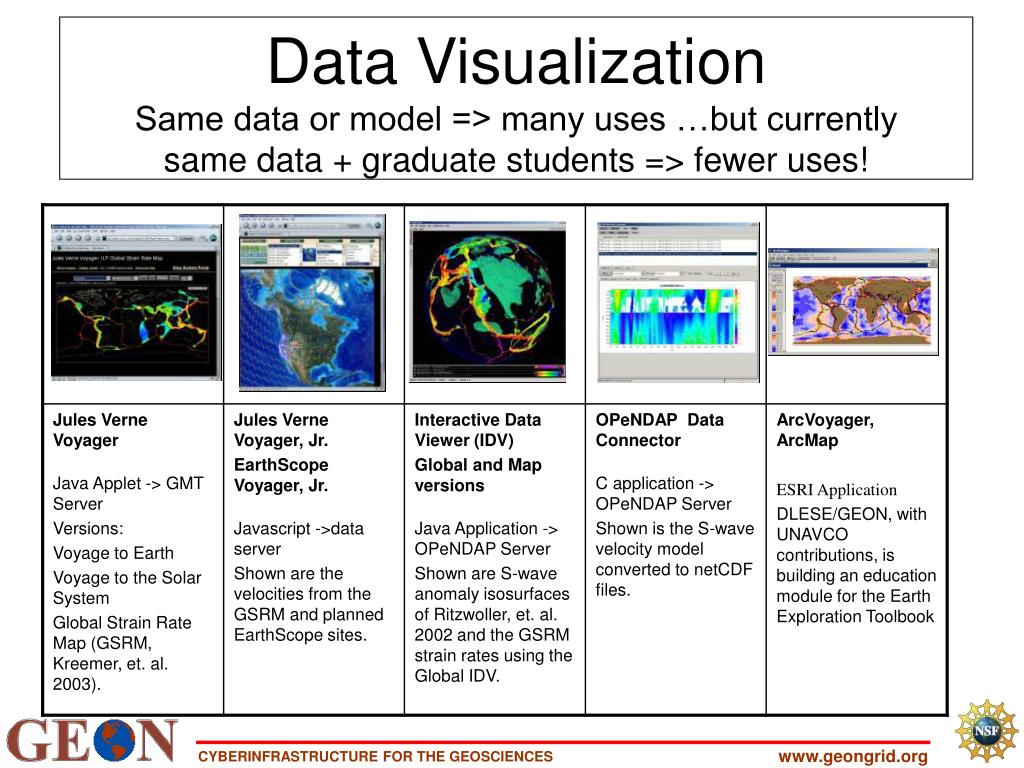

Data VisualizationSame data or model => many uses …but currentlysame data + graduate students => fewer uses!

www.geongrid.org

slide9

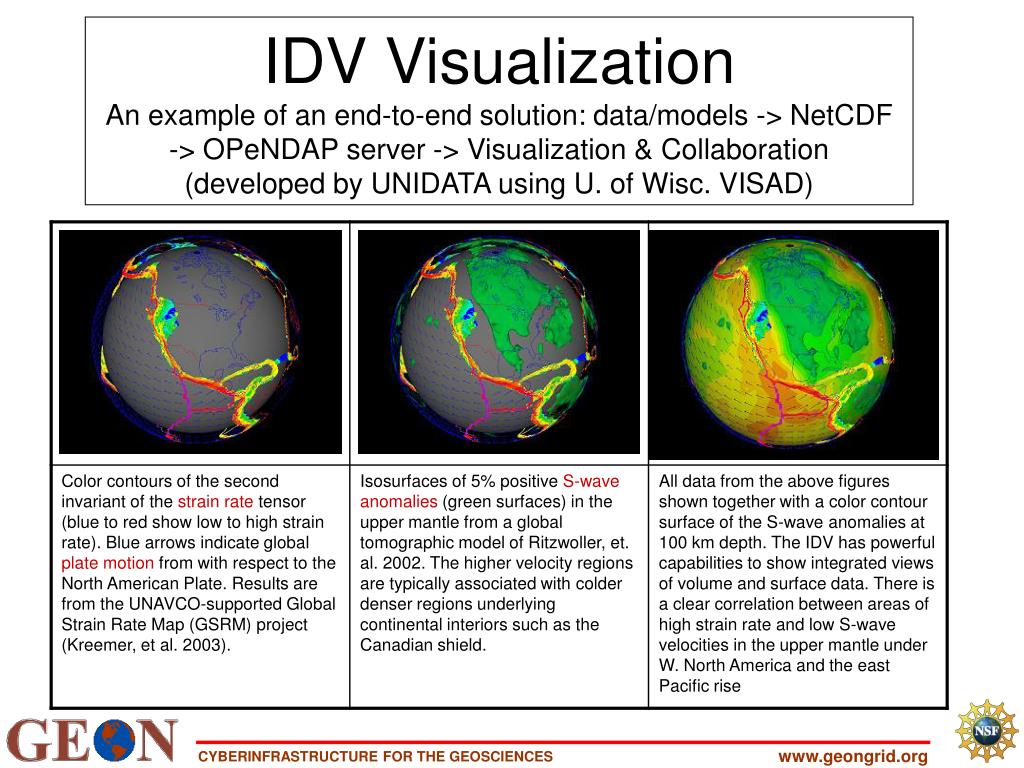

IDV VisualizationAn example of an end-to-end solution: data/models -> NetCDF -> OPeNDAP server -> Visualization & Collaboration (developed by UNIDATA using U. of Wisc. VISAD)

www.geongrid.org

data visualization example mantle tomography with idv
Data VisualizationExample: Mantle Tomography with IDV

Example data on UNAVCO/GEON node and IDV xml configuration files simplify getting started with the IDV

Metadata embedded in NetCDF file is returned from the OPenDAP Server in response to URI

www.geongrid.org

idv visualization mantle geodynamics convection with geologic plate motions over 120 m a
IDV VisualizationMantle Geodynamics: Convection with geologic plate motions over 120 m.a.

Purpose: "resolving multiple scale (both temporal and spatial) physics in mantle convection and lithospheric deformation"

scale: "whole mantle with plates"

resolution: "~40-50 -km, spherical geometry"

method: "Numerical (finite element)"

material_properties: "temperature and depth dependent viscosity (linear, no elasticity)"

code: "CitcomS [Zhong, Zuber, Moresi and Gurnis, 2000], 5000 time steps, over 4 million nodes!"

output: "normalized thermal and composition structure of the mantle from convection"

credits: "McNamara and Zhong (2004) - Allen McNamara and Shijie Zhong"

location: "Department of Physics at University of Colorado at Boulder, Campus box 390 Boulder Co, 80309-0390 USA"

website: "http://anquetil.colorado.edu/szhong"

Mantle Temperature

www.geongrid.org

idv visualization unavco geon enhancements to unidata s open source java code
IDV VisualizationUNAVCO/GEON Enhancementsto UNIDATA’s Open source Java Code
  • UNAVCO is adding new features to UNIDAT’s IDV
  • (Dr. Stuart Wier, under contract to UNAVCO)
      • Earthquakes (done)
      • GPS vectors with error ellipses
      • Earthquake focal mechanisms
      • Customize for earth science (not atm)

www.geongrid.org

data conversion software

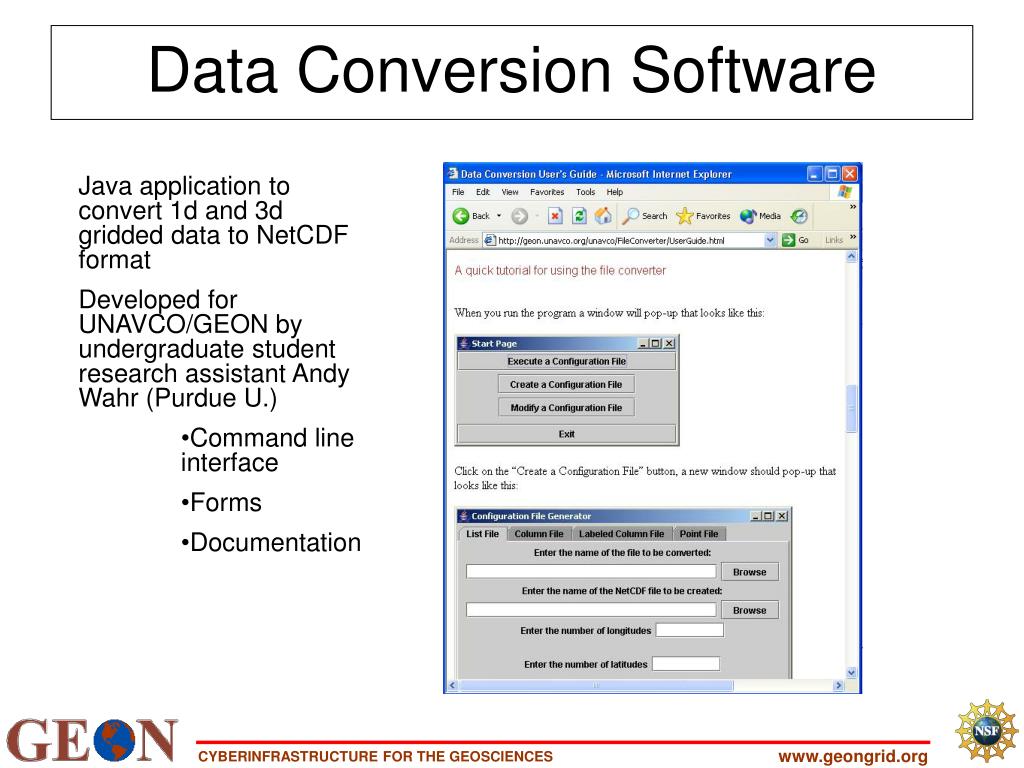

Data Conversion Software
  • Java application to convert 1d and 3d gridded data to NetCDF format
  • Developed for UNAVCO/GEON by undergraduate student research assistant Andy Wahr (Purdue U.)
      • Command line interface
      • Forms
      • Documentation

www.geongrid.org

slide14

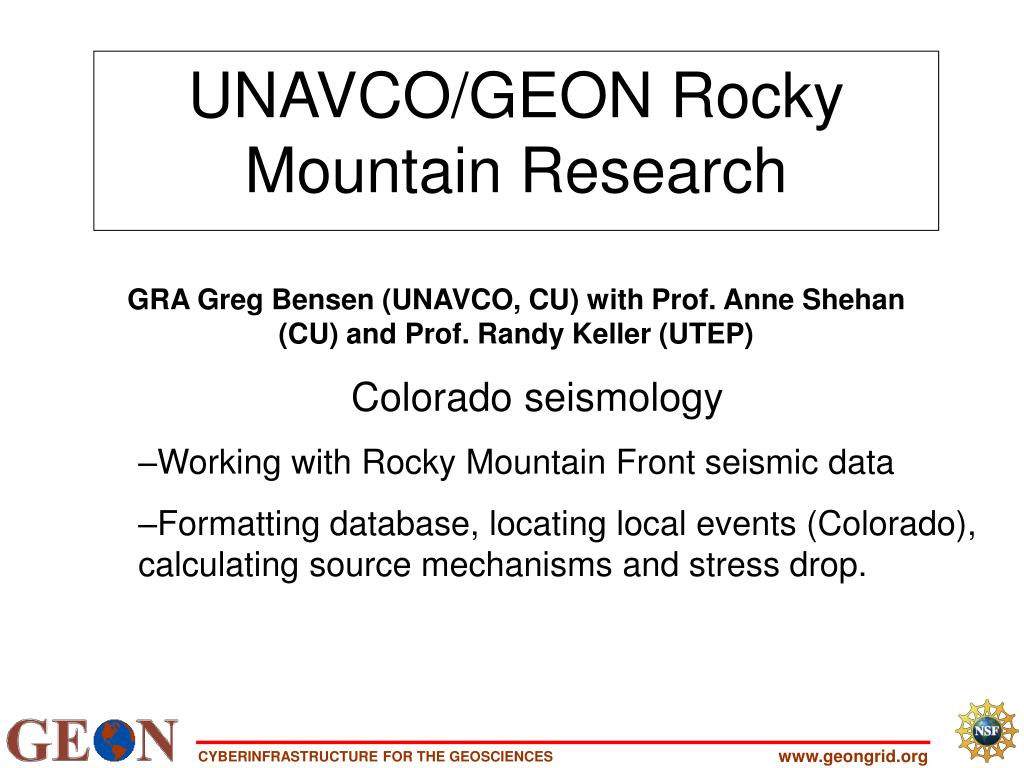

UNAVCO/GEON Rocky Mountain ResearchGRA Greg Bensen (UNAVCO, CU) with Prof. Anne Shehan (CU) and Prof. Randy Keller (UTEP)
  • Colorado seismology
    • Working with Rocky Mountain Front seismic data
    • Formatting database, locating local events (Colorado), calculating source mechanisms and stress drop.

www.geongrid.org

goals of rocky mountain research
Locations of local events will tell us about distribution of seismic hazards

Source mechanisms (~200 new events) show magnitude and direction of the state of stress

Will help to understand tectonics of the central Rocky Mountains

Resulting data will be used to experiment with new visualization and serving techniques using GEON resources.

Goals of Rocky Mountain Research

www.geongrid.org

new analysis of earthquakes in the rocky mountain region

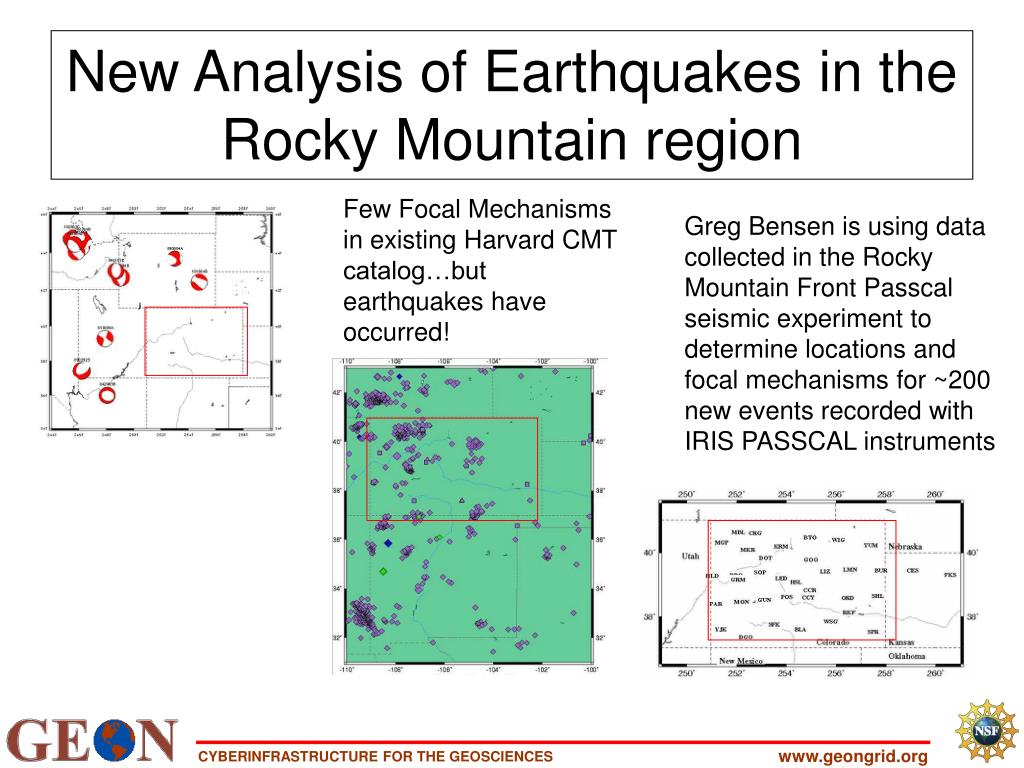

New Analysis of Earthquakes in the Rocky Mountain region

Few Focal Mechanisms in existing Harvard CMT catalog…but earthquakes have occurred!

Greg Bensen is using data collected in the Rocky Mountain Front Passcal seismic experiment to determine locations and focal mechanisms for ~200 new events recorded with IRIS PASSCAL instruments

www.geongrid.org

related activities yellowstone

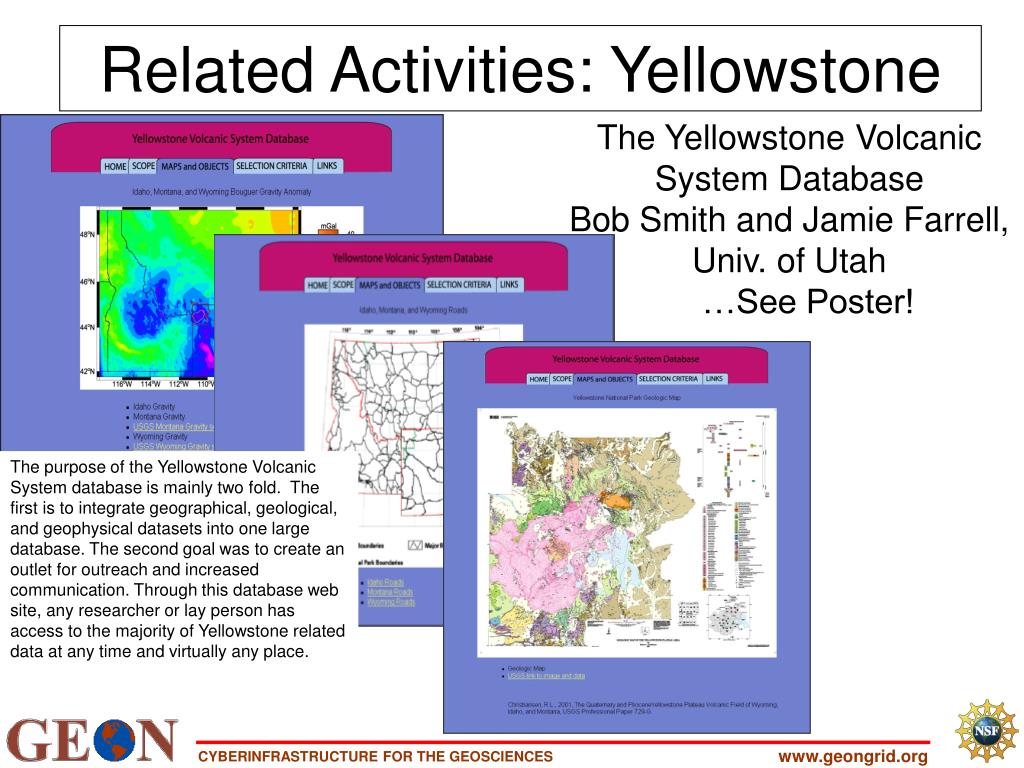

Related Activities: Yellowstone

The Yellowstone Volcanic

System Database

Bob Smith and Jamie Farrell,

Univ. of Utah

…See Poster!

The purpose of the Yellowstone Volcanic System database is mainly two fold. The first is to integrate geographical, geological, and geophysical datasets into one large database. The second goal was to create an outlet for outreach and increased communication. Through this database web site, any researcher or lay person has access to the majority of Yellowstone related data at any time and virtually any place.

www.geongrid.org

yellowstone tomography viewed with the idv

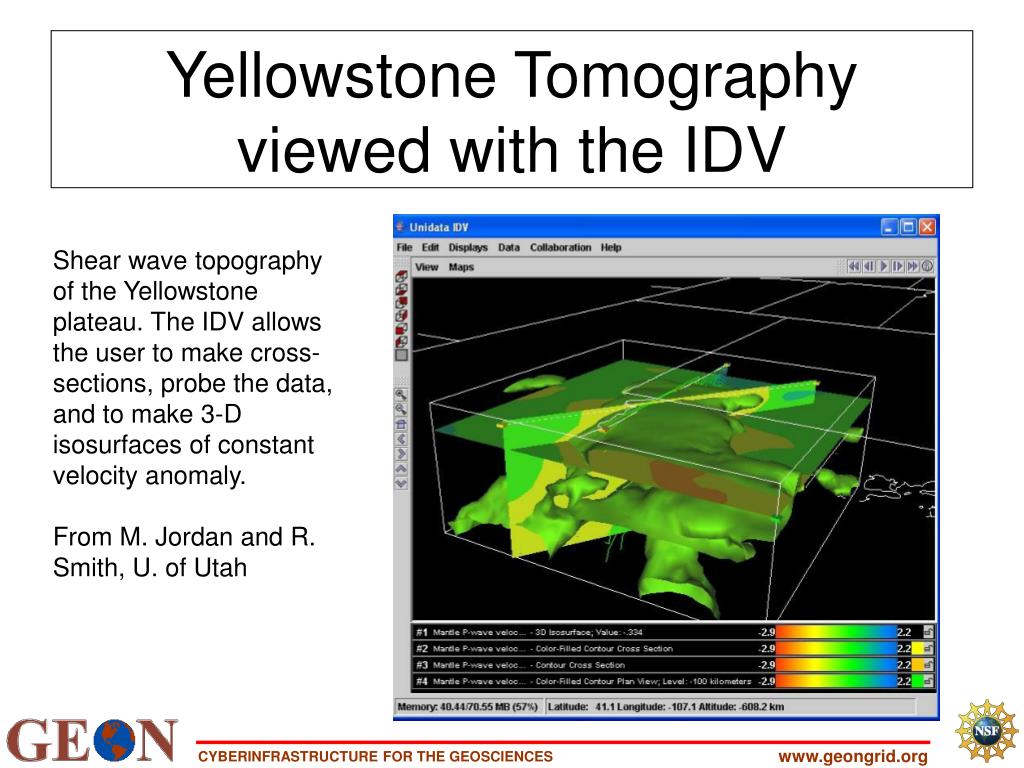

Yellowstone Tomography viewed with the IDV

Shear wave topography of the Yellowstone plateau. The IDV allows the user to make cross-sections, probe the data, and to make 3-D isosurfaces of constant velocity anomaly.

From M. Jordan and R. Smith, U. of Utah

www.geongrid.org

the u of utah yellowstone volcanic system database examples
The U. of Utah Yellowstone Volcanic System Database Examples

Geography

Boundaries

States

Yellowstone National Park

Grand Tetons National Park

Glacier National Park

Roads

States

Yellowstone National Park

Grand Tetons National Park

Water Bodies

Rivers

States

Yellowstone National Park

Grand Tetons National Park

Lakes

States

Yellowstone National Park

Grand Tetons - wetlands

Geology

Idaho

Montana

Wyoming

Yellowstone National Park

Grand Teton National Park

Geophysics

Gravity

States

Greater Yellowstone Area

Aeromagnetics

Idaho

Montana

Wyoming

Yellowstone National Park

Earthquakes - Yellowstone

Seismograph Stations in Greater Yellowstone

GPS stations - University of Utah 2000 campaign

www.geongrid.org

yellowstone volcano observatory
Yellowstone Volcano Observatory

YVO is collaboration between the USGS, National Park Service and the University of Utah. Plans are to host the YVO data server on the U. of Utah GEON POP

Sample from “Seisviewer”

www.geongrid.org

harvard cmt solutions for rocky mountain region

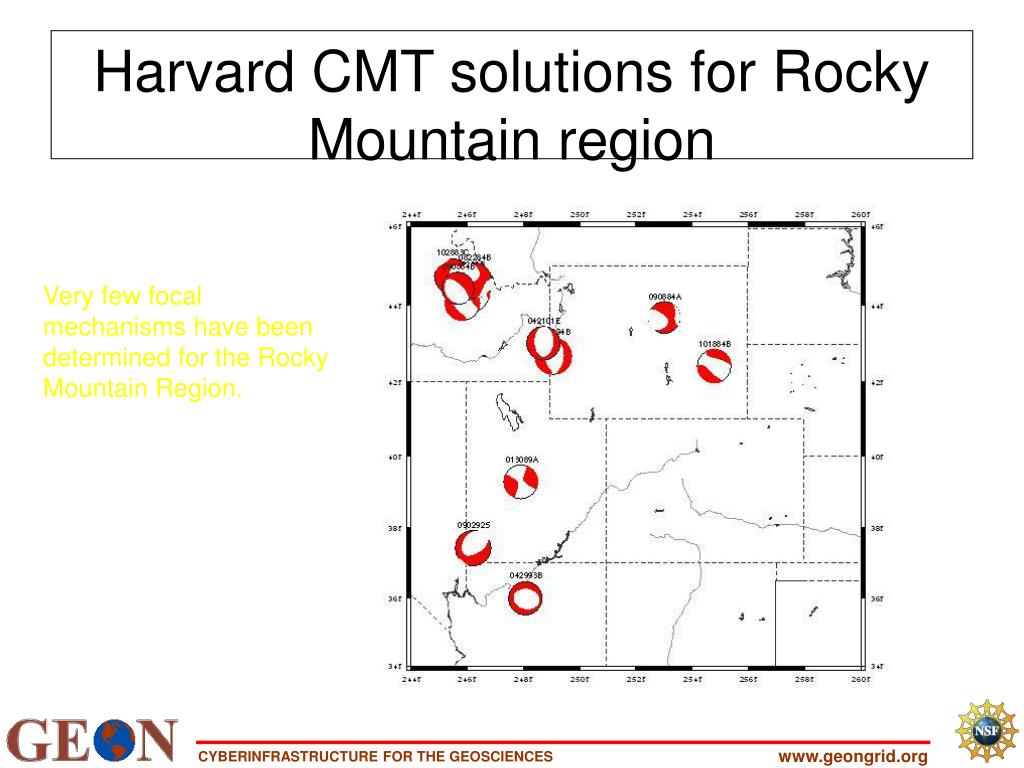

Harvard CMT solutions for Rocky Mountain region

Very few focal mechanisms have been determined for the Rocky Mountain Region.
