How to adjust coilovers

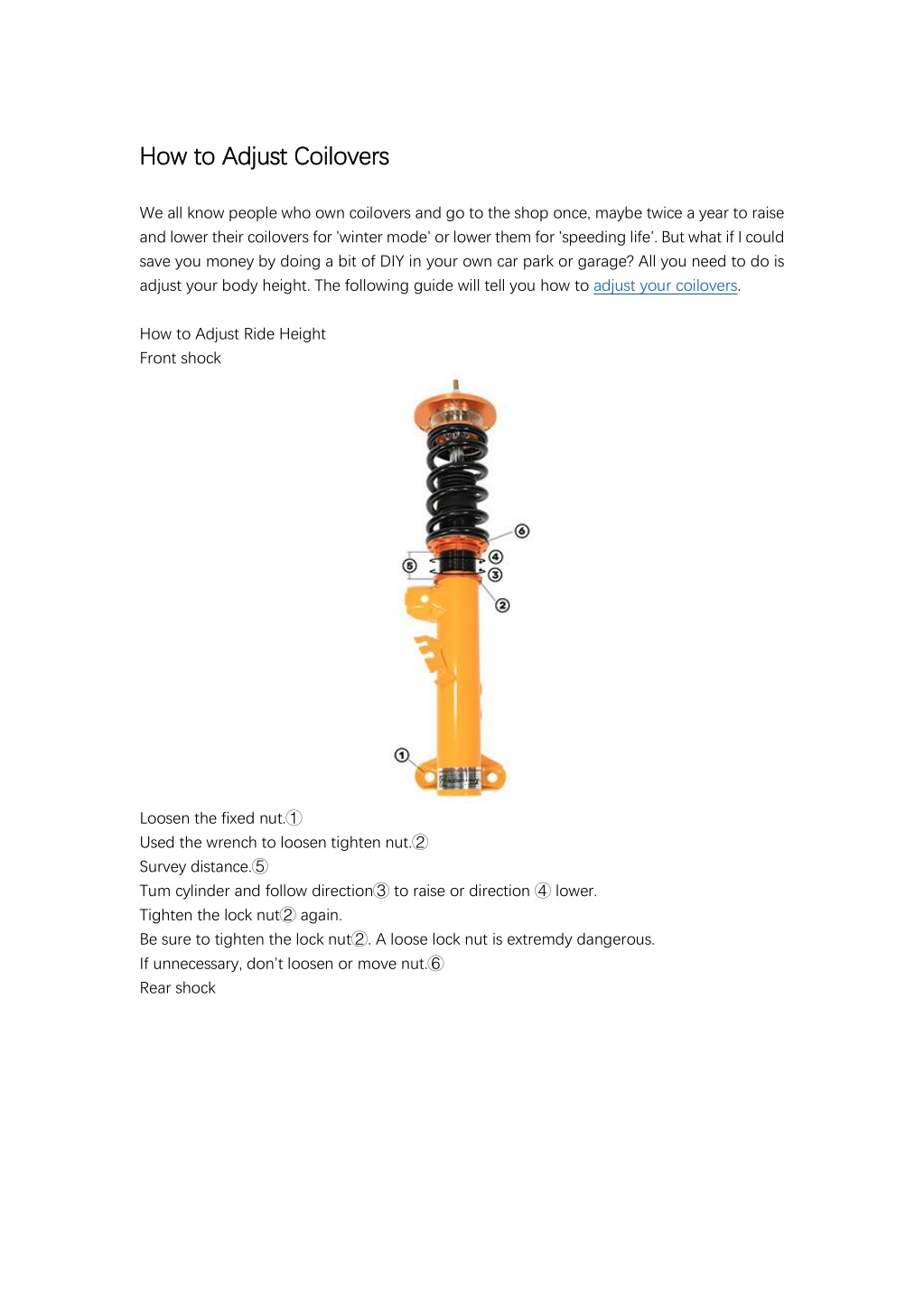

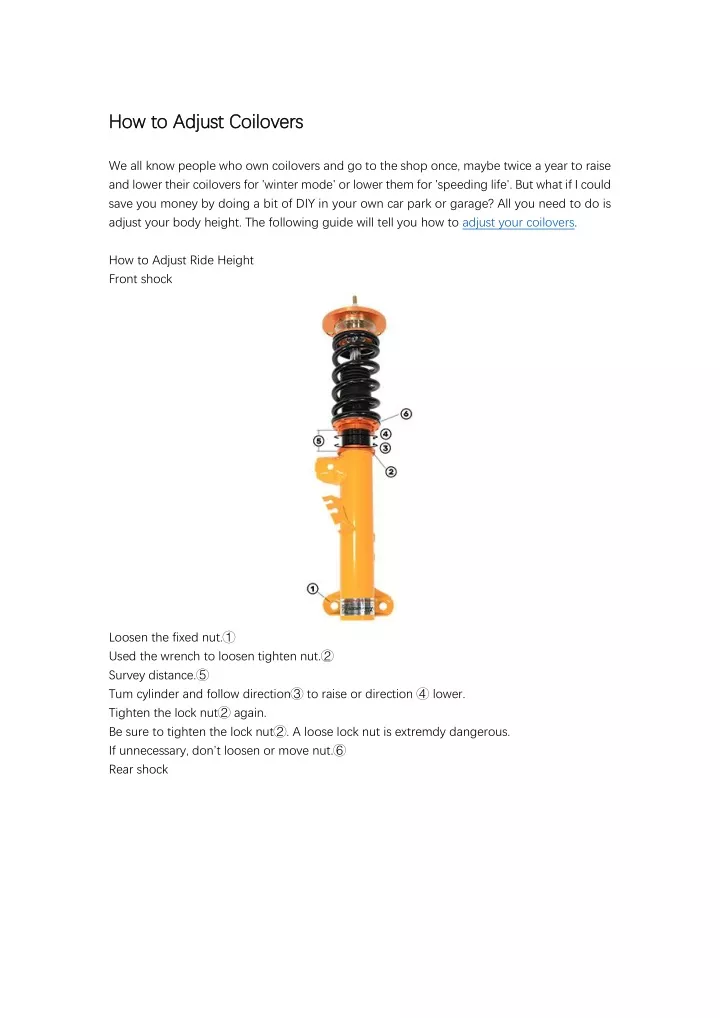

1. How to Adjust Coilovers How to Adjust Coilovers We all know people who own coilovers and go to the shop once, maybe twice a year to raise and lower their coilovers for 'winter mode' or lower them for 'speeding life'. But what if I could save you money by doing a bit of DIY in your own car park or garage? All you need to do is adjust your body height. The following guide will tell you how to adjust your coilovers. How to Adjust Ride Height Front shock Loosen the fixed nut.① Used the wrench to loosen tighten nut.② Survey distance.⑤ Tum cylinder and follow direction③ to raise or direction ④ lower. Tighten the lock nut② again. Be sure to tighten the lock nut②. A loose lock nut is extremdy dangerous. If unnecessary, don’t loosen or move nut.⑥ Rear shock

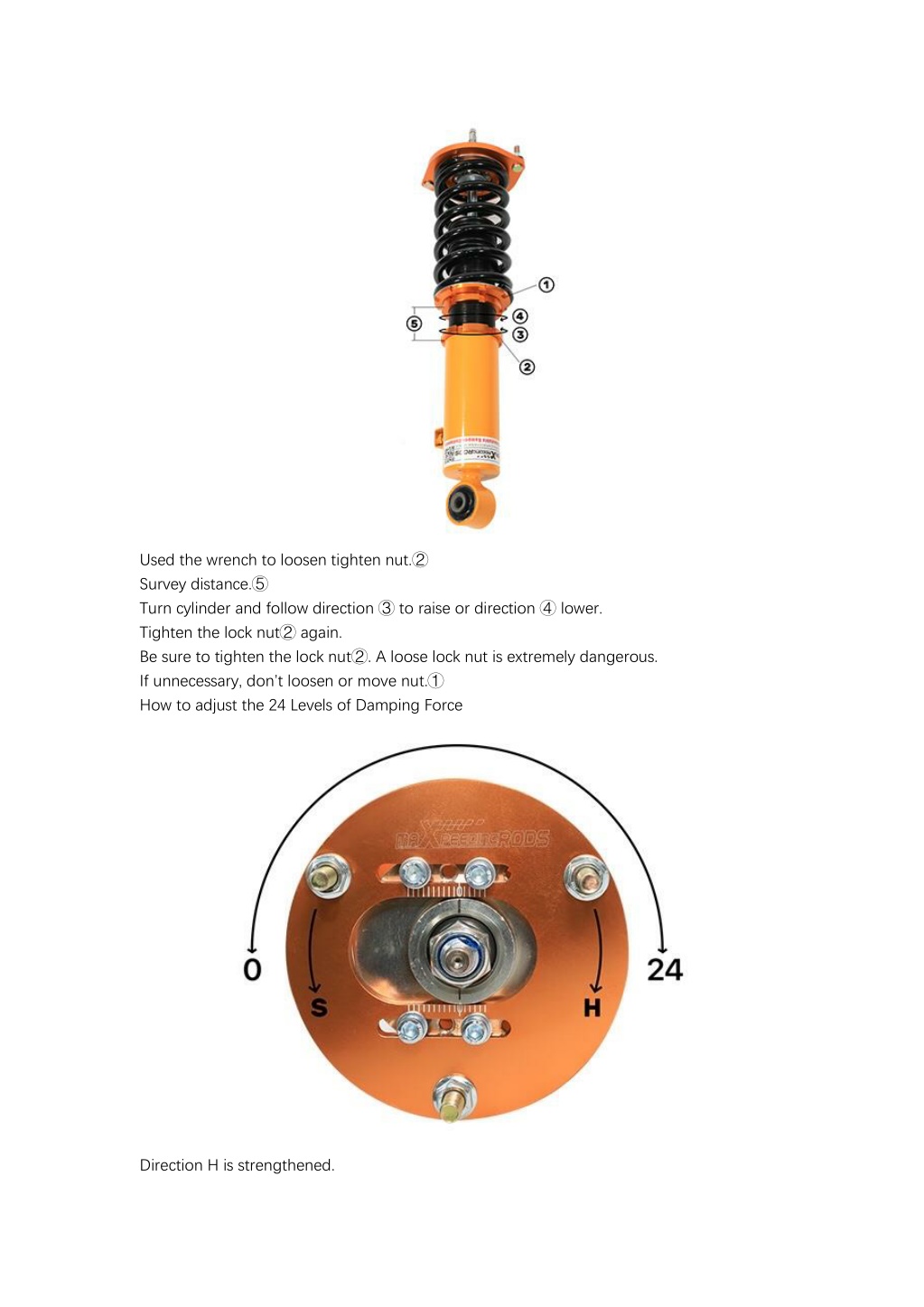

2. Used the wrench to loosen tighten nut.② Survey distance.⑤ Turn cylinder and follow direction ③ to raise or direction ④ lower. Tighten the lock nut② again. Be sure to tighten the lock nut②. A loose lock nut is extremely dangerous. If unnecessary, don’t loosen or move nut.① How to adjust the 24 Levels of Damping Force Direction H is strengthened.

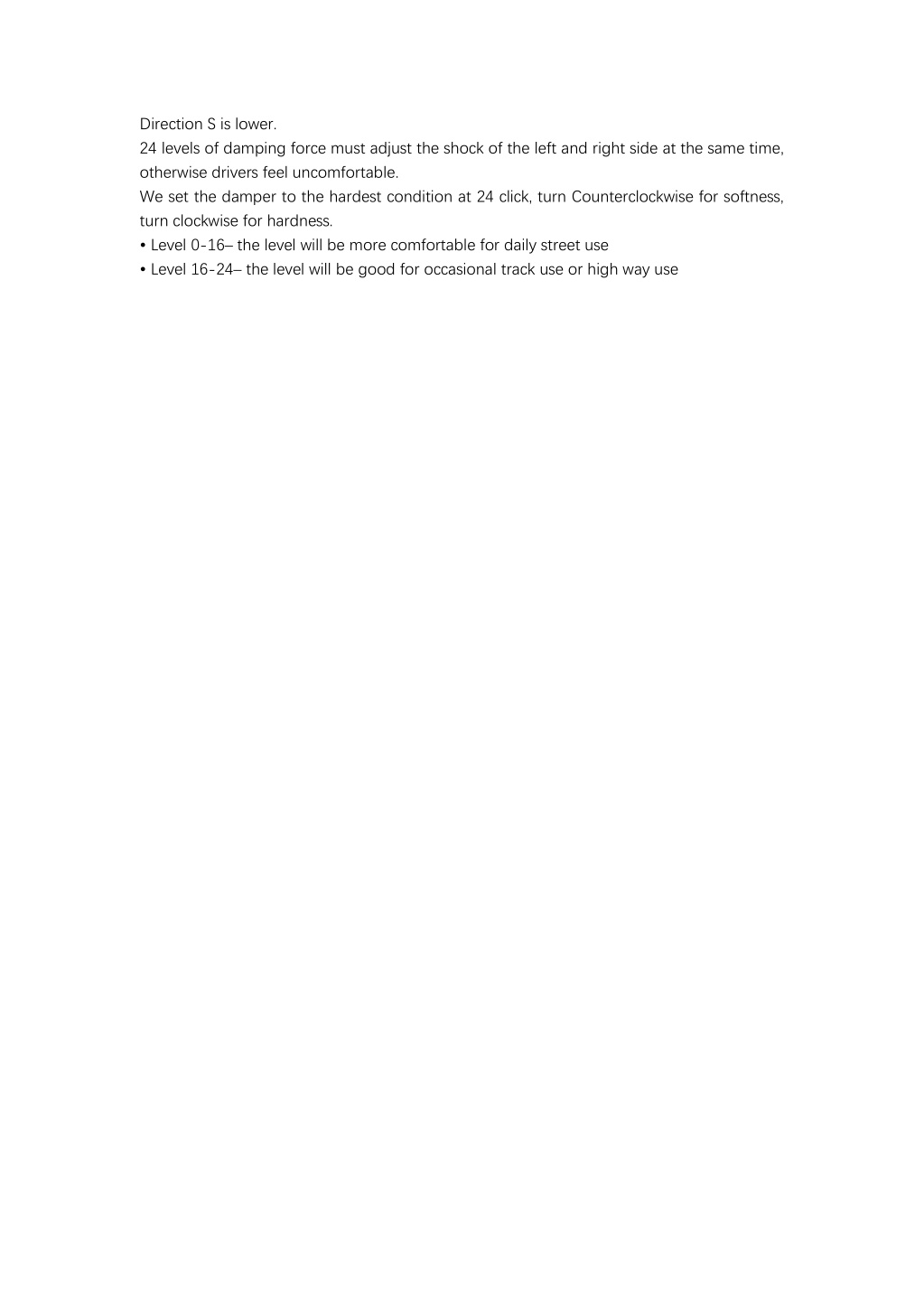

3. Direction S is lower. 24 levels of damping force must adjust the shock of the left and right side at the same time, otherwise drivers feel uncomfortable. We set the damper to the hardest condition at 24 click, turn Counterclockwise for softness, turn clockwise for hardness. • Level 0-16– the level will be more comfortable for daily street use • Level 16-24– the level will be good for occasional track use or high way use
