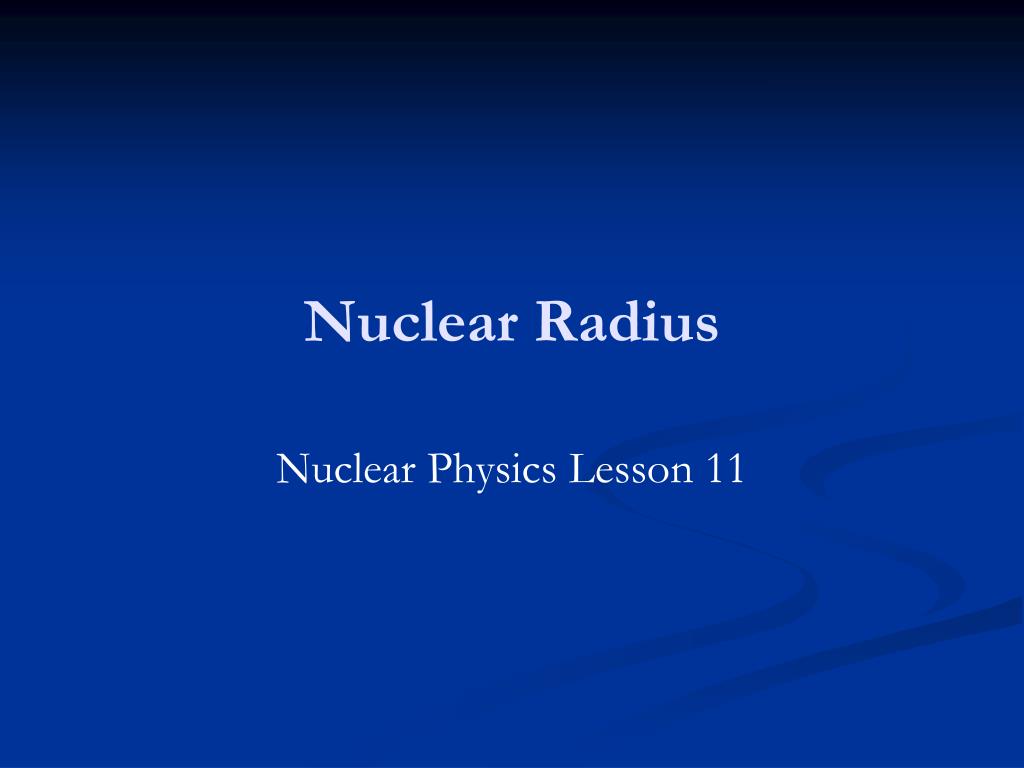

  1. Nuclear Radius Nuclear Physics Lesson 11

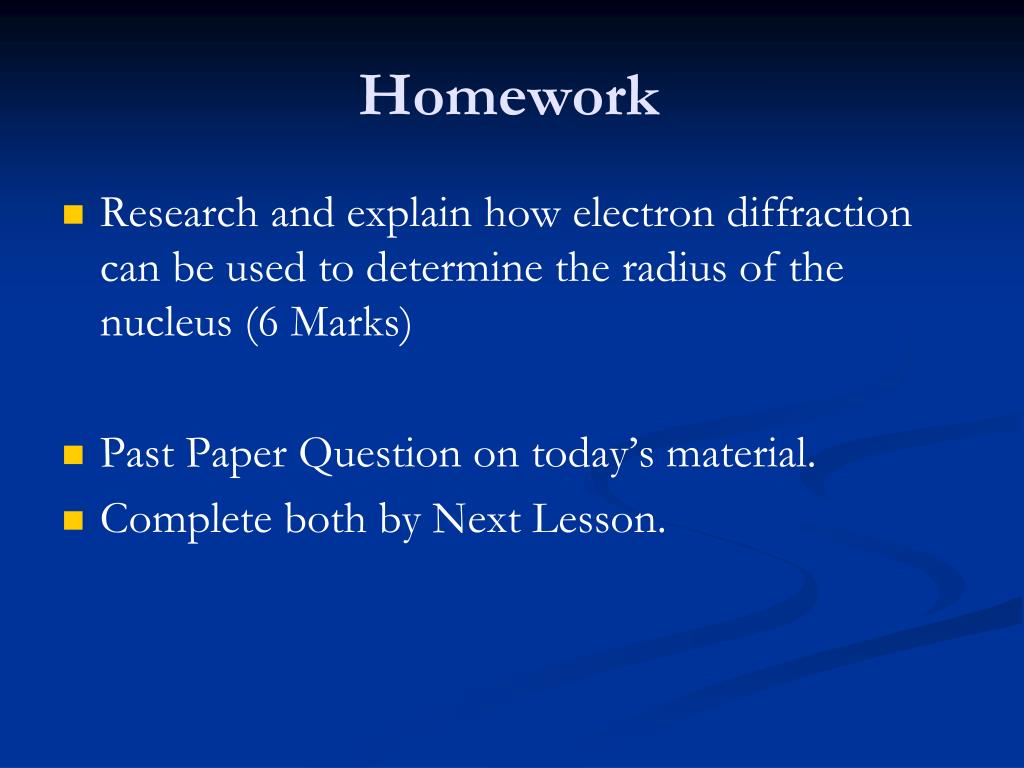

  2. Homework • Research and explain how electron diffraction can be used to determine the radius of the nucleus (6 Marks) • Past Paper Question on today’s material. • Complete both by Next Lesson.

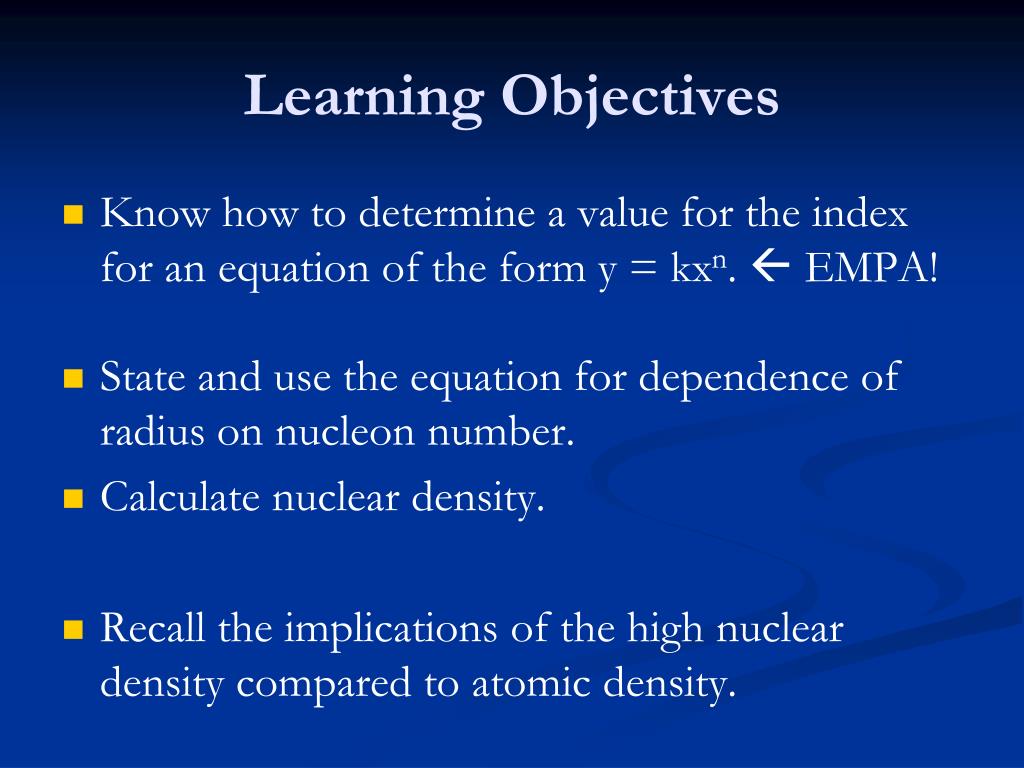

  3. Learning Objectives • Know how to determine a value for the index for an equation of the form y = kxn.  EMPA! • State and use the equation for dependence of radius on nucleon number. • Calculate nuclear density. • Recall the implications of the high nuclear density compared to atomic density.

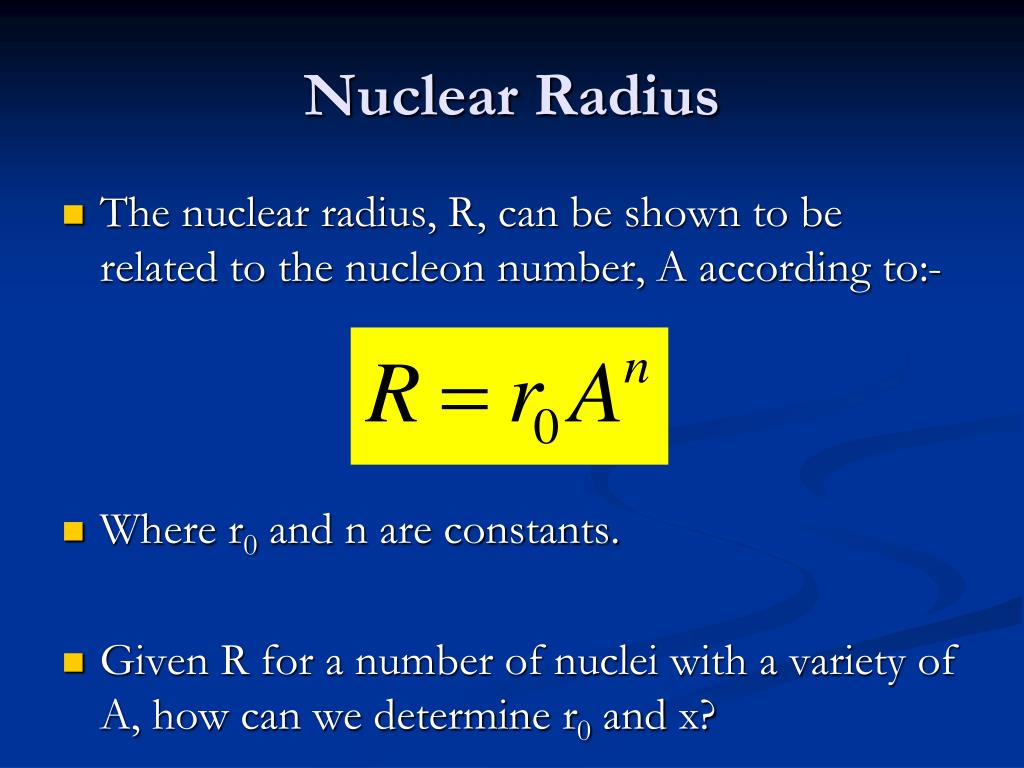

  4. Nuclear Radius The nuclear radius, R, can be shown to be related to the nucleon number, A according to:- Where r0 and n are constants. Given R for a number of nuclei with a variety of A, how can we determine r0 and x?

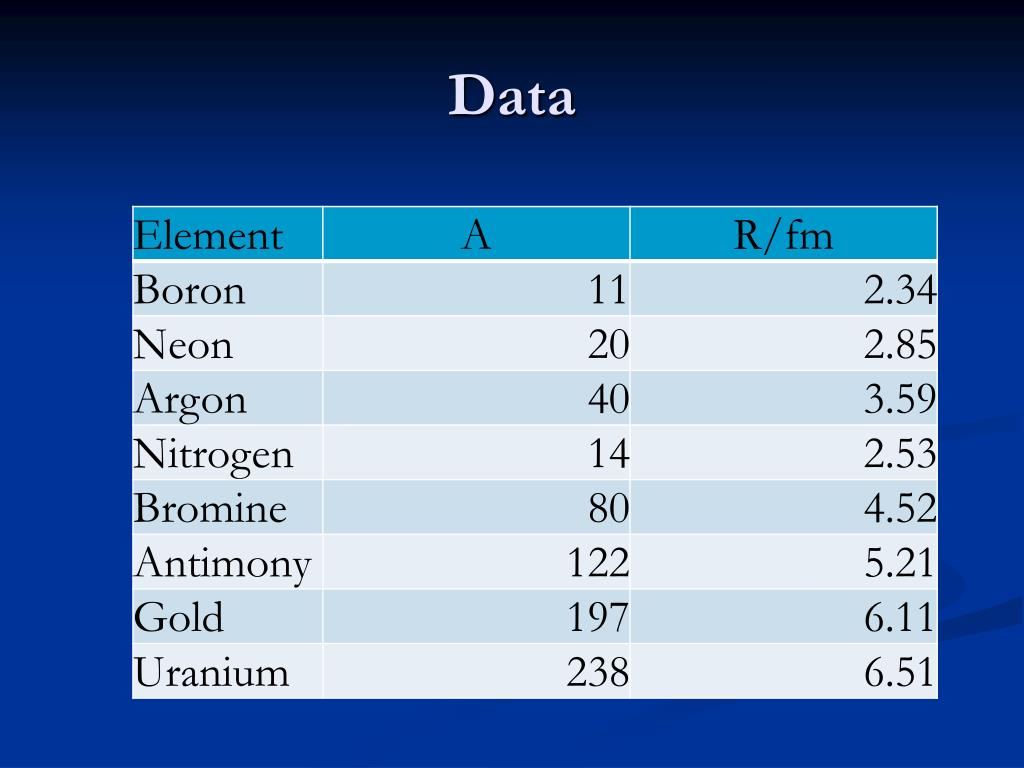

  5. Data

  6. Data (Suggestion)

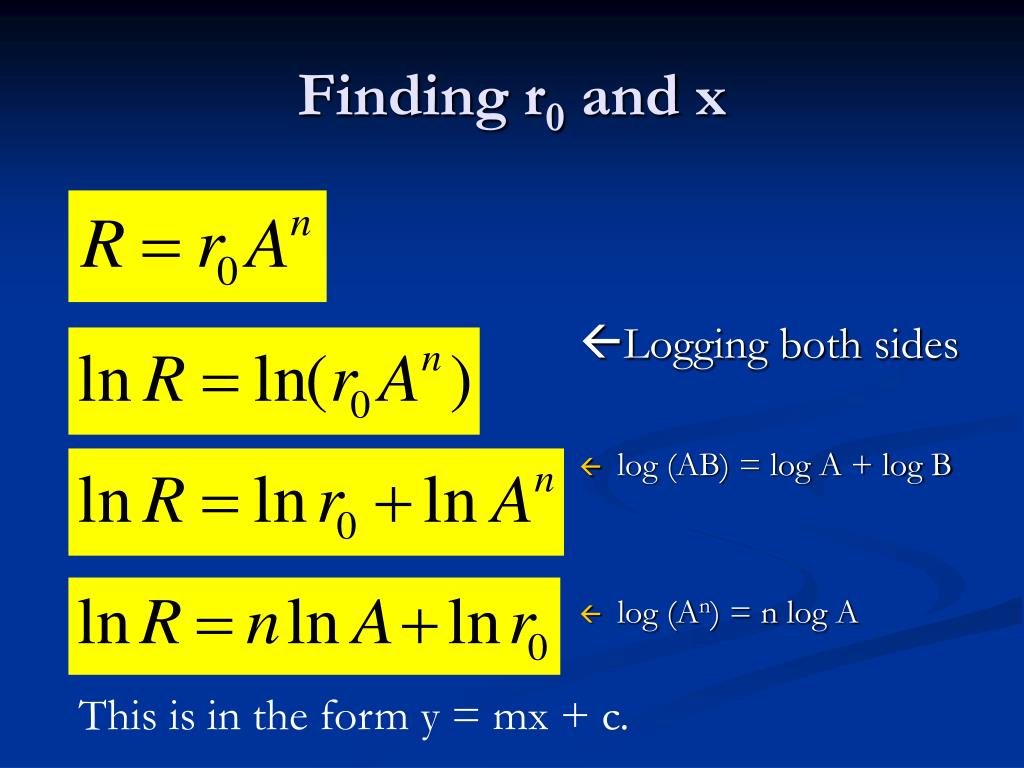

  7. Finding r0 and x This is in the form y = mx + c. Logging both sides • log (AB) = log A + log B • log (An) = n log A

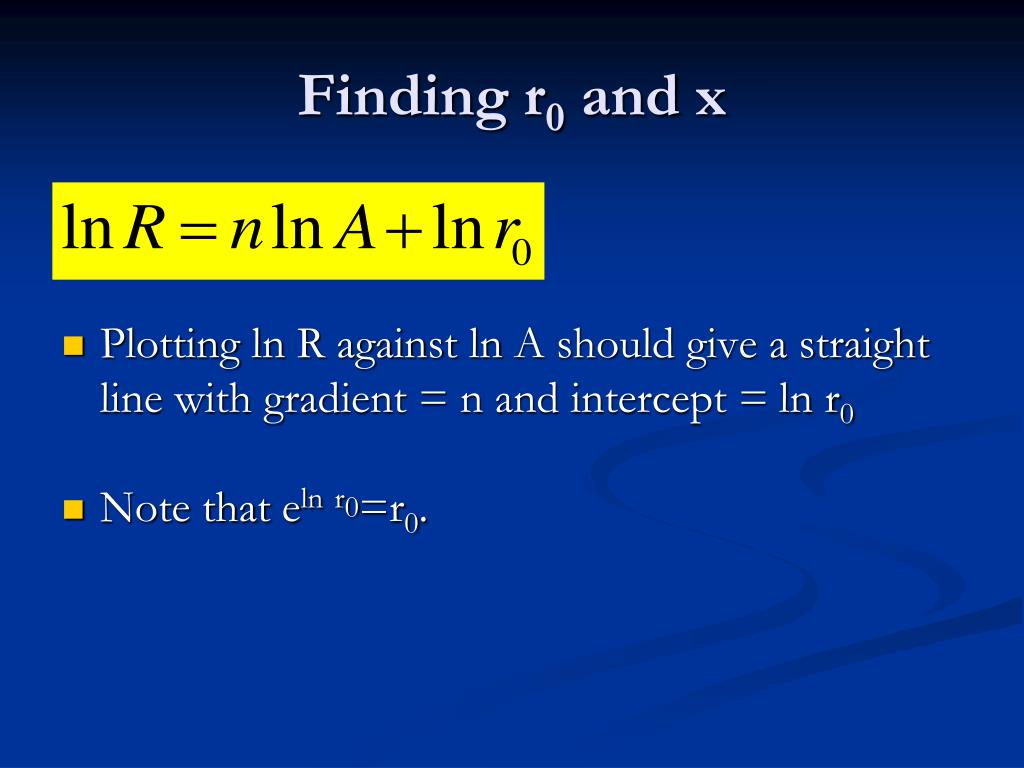

  8. Finding r0 and x Plotting ln R against ln A should give a straight line with gradient = n and intercept = ln r0 Note that elnr0=r0.

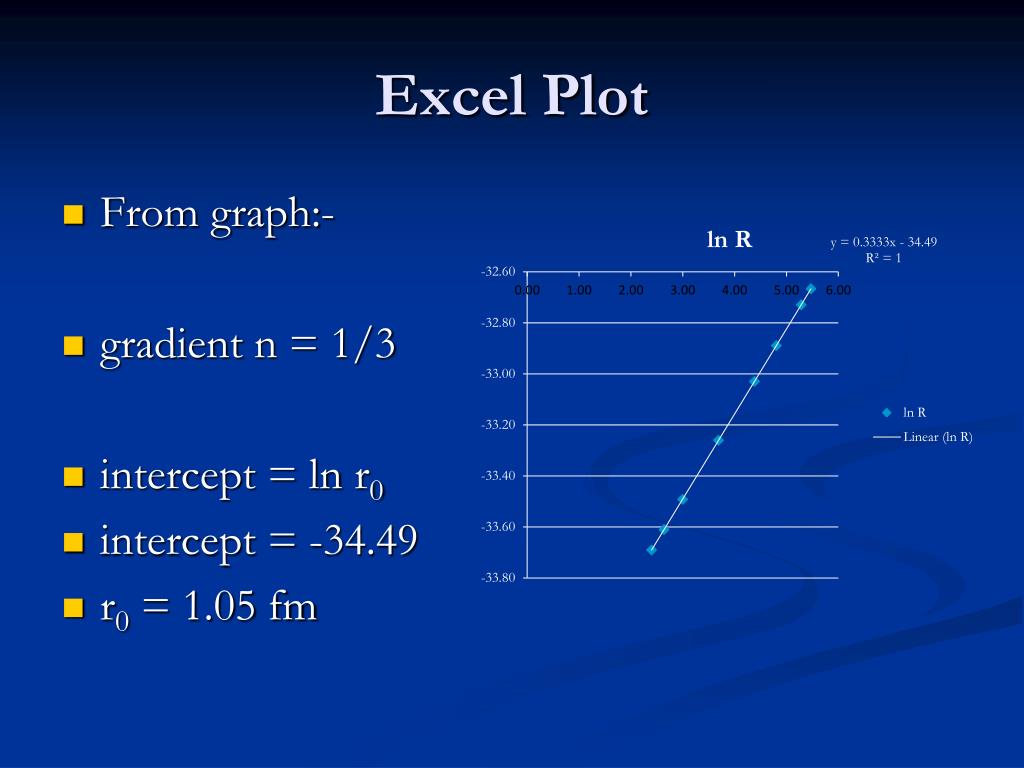

  9. Excel Plot From graph:- gradient n = 1/3 intercept = ln r0 intercept = -34.49 r0 = 1.05 fm

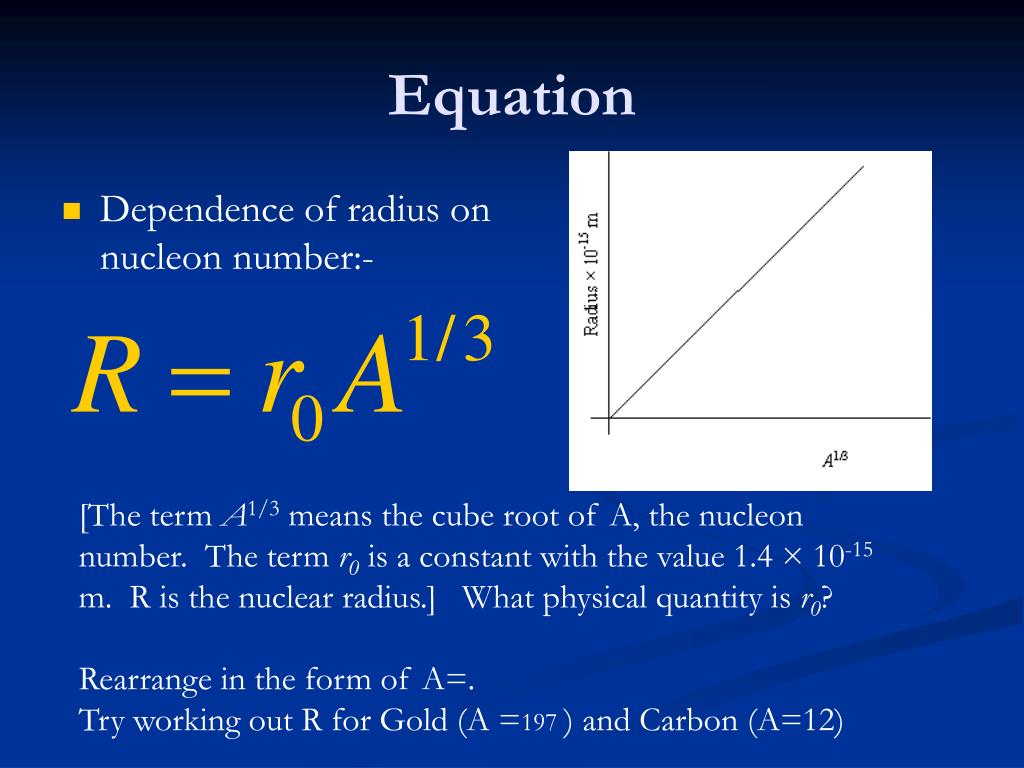

  10. Equation • Dependence of radius on nucleon number:- [The term A1/3 means the cube root of A, the nucleon number.  The term r0 is a constant with the value 1.4 × 10-15 m.  R is the nuclear radius.] What physical quantity is r0? Rearrange in the form of A=. Try working out R for Gold (A =197 ) and Carbon (A=12)

  11. Nuclear Density • Radius of a carbon nucleus ~ 3.2 × 10-15m. • Radius of a gold nucleus ~ 8.1 × 10-15m. • Mass of a carbon nucleus ~ 2.00 × 10-26kg. • Mass of a gold nucleus ~ 3.27 × 10-25kg. • What are the densities of the nuclei?

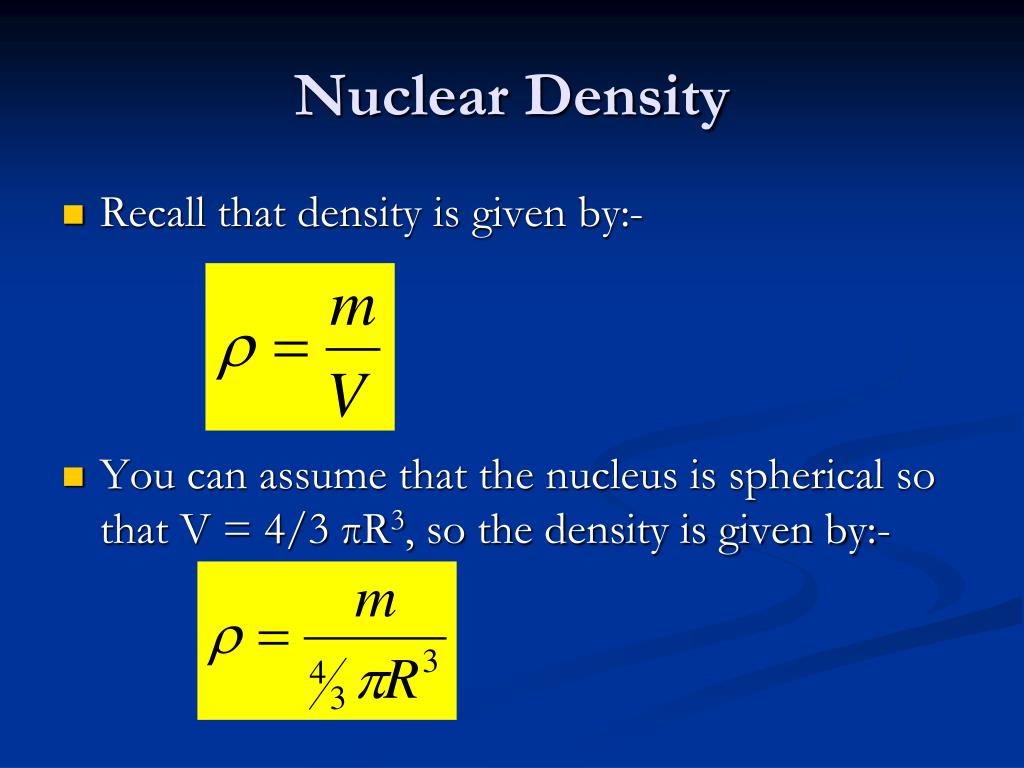

  12. Nuclear Density Recall that density is given by:- You can assume that the nucleus is spherical so that V = 4/3 πR3, so the density is given by:-

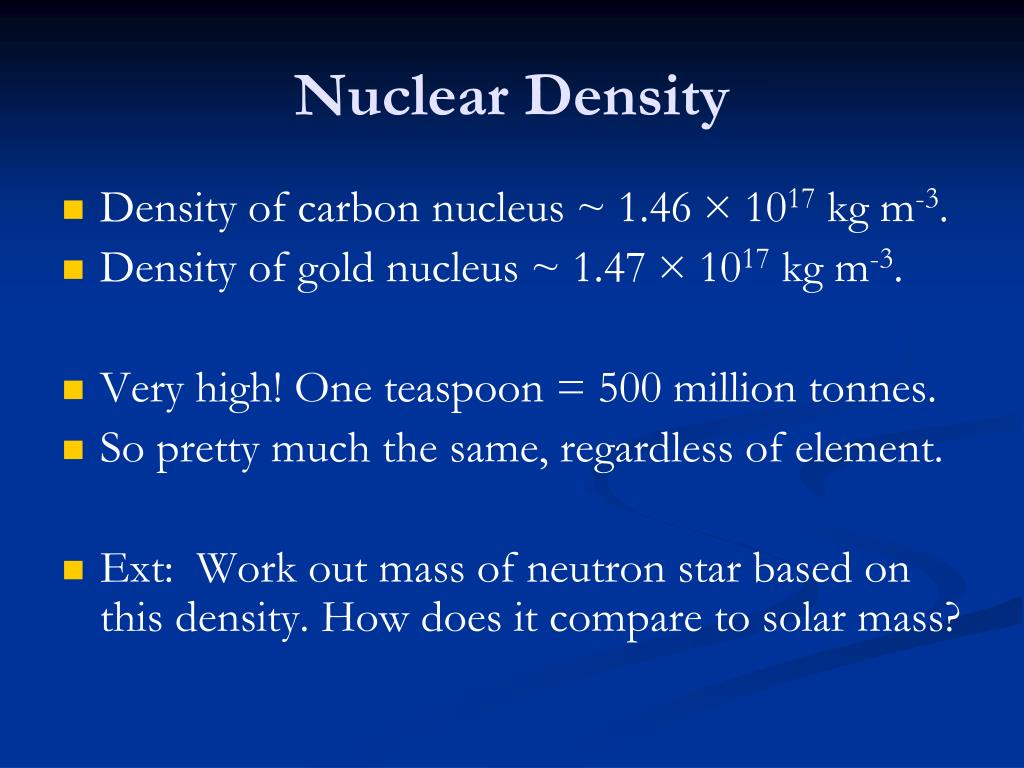

  13. Nuclear Density • Density of carbon nucleus ~ 1.46 × 1017 kg m-3. • Density of gold nucleus ~ 1.47 × 1017 kg m-3. • Very high! One teaspoon = 500 million tonnes. • So pretty much the same, regardless of element. • Ext: Work out mass of neutron star based on this density. How does it compare to solar mass?

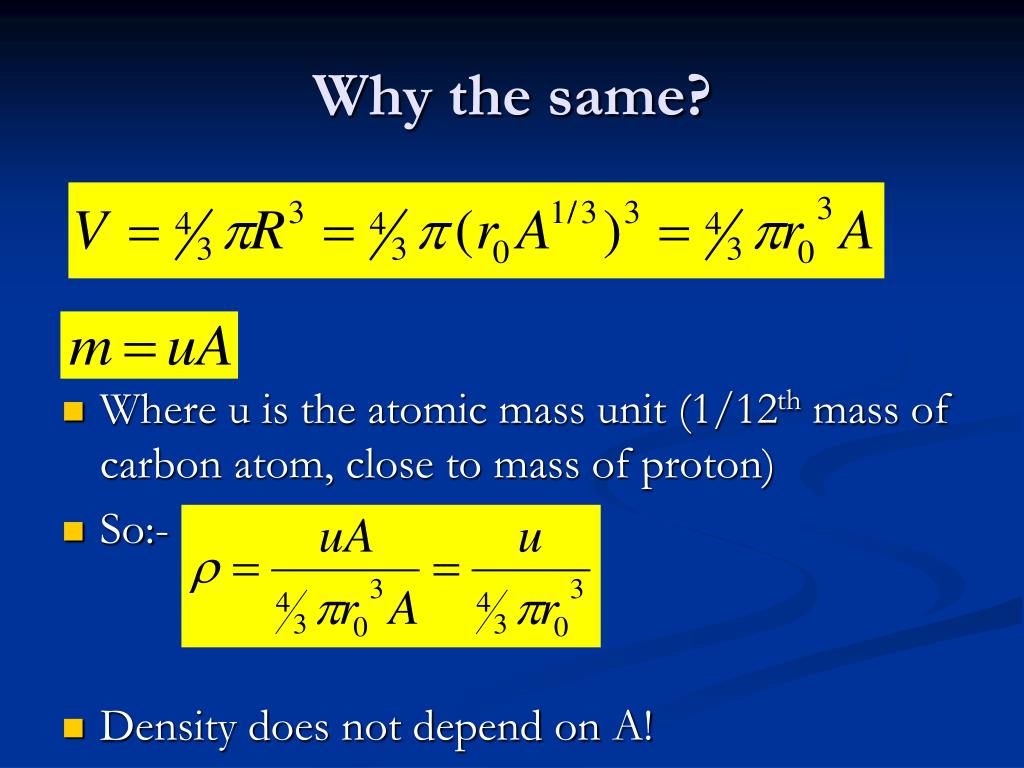

  14. Why the same? Where u is the atomic mass unit (1/12th mass of carbon atom, close to mass of proton) So:- Density does not depend on A!

  15. Nuclear Density • Nuclear density >> Atomic Density • This implies:- • Most of an atom’s mass is in its nucleus. • The nucleus is small compared to the atom. • An atom must contain a lot of empty space.

  16. Example Exam Questions • Q1: • (a)If a carbon nucleus containing 12 nucleons has a radius of 3.2 × 10-15m, what is r0? • (b) Calculate the radius of a radium nucleus containing 226 nucleons. • (c) Calculate the density of a radium nucleus if its mass is 3.75 × 10-25 kg. • Q2: A sample of pure gold has a density of 19300 kg m-3. If the density of the gold nucleus is 1.47 × 1017kg m-3 discuss what this implies about the structure of a gold atom.

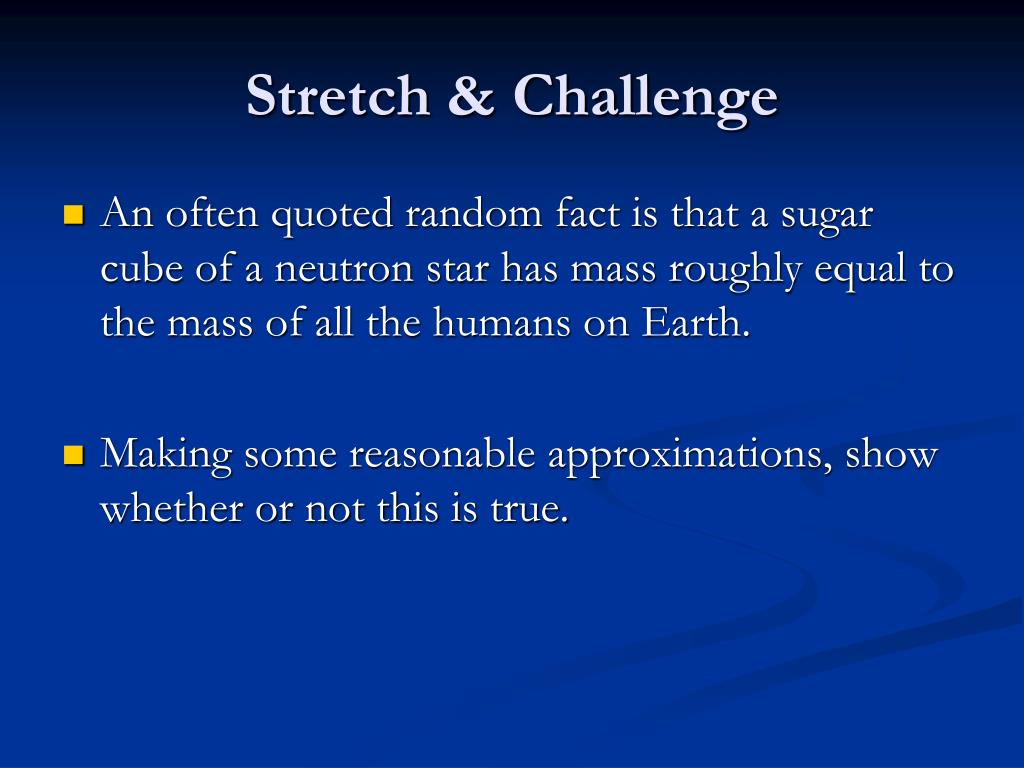

  17. Stretch & Challenge An often quoted random fact is that a sugar cube of a neutron star has mass roughly equal to the mass of all the humans on Earth. Making some reasonable approximations, show whether or not this is true.

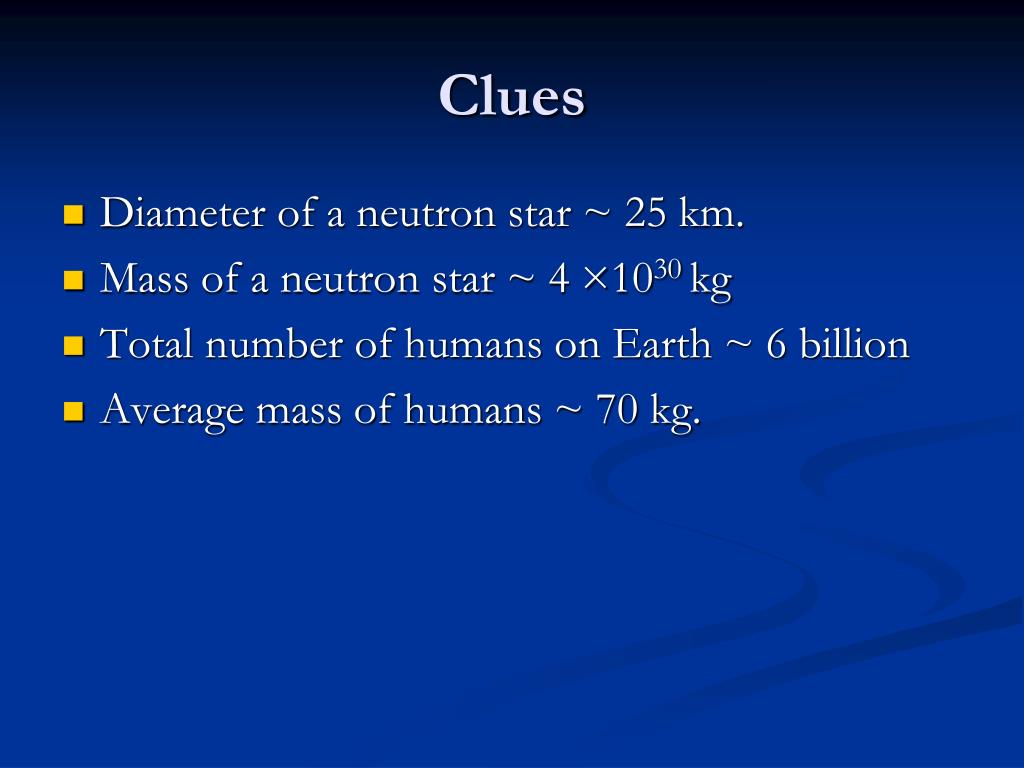

  18. Clues Diameter of a neutron star ~ 25 km. Mass of a neutron star ~ 4 ×1030 kg Total number of humans on Earth ~ 6 billion Average mass of humans ~ 70 kg.

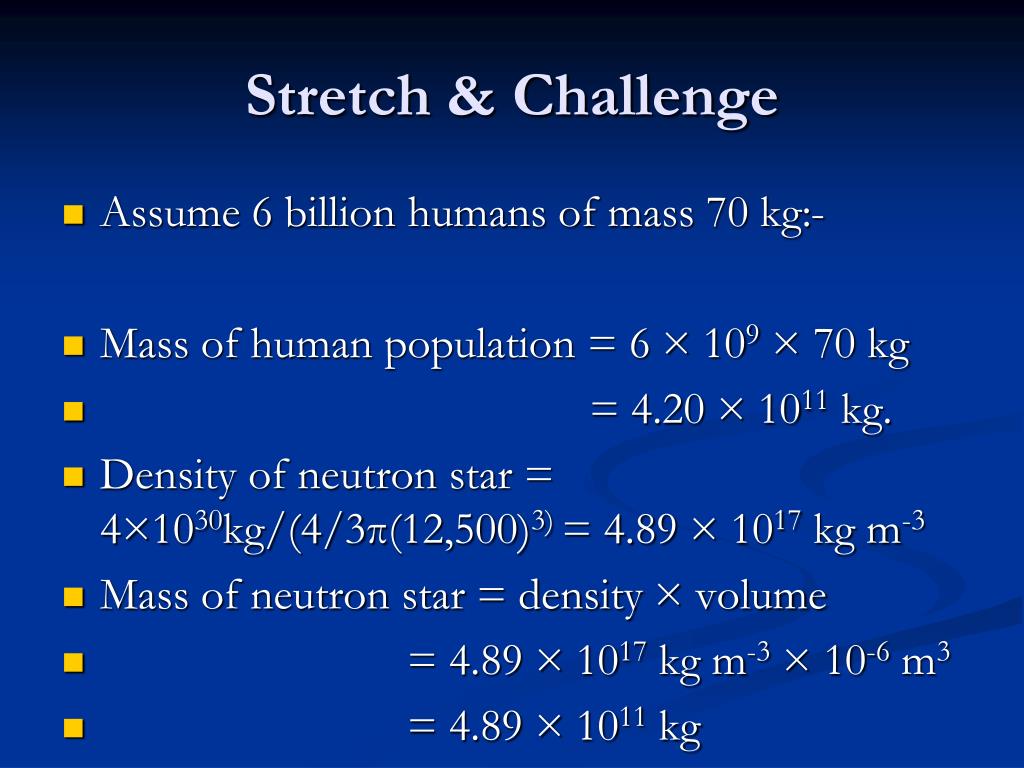

  19. Stretch & Challenge Assume 6 billion humans of mass 70 kg:- Mass of human population = 6 × 109 × 70 kg = 4.20 × 1011 kg. Density of neutron star = 4×1030kg/(4/3π(12,500)3) = 4.89 × 1017 kg m-3 Mass of neutron star = density × volume = 4.89 × 1017 kg m-3 × 10-6 m3 = 4.89 × 1011 kg

  20. Learning Objectives • Know how to determine a value for the index for an equation of the form y = kxn.  EMPA! • State and use the equation for dependence of radius on nucleon number. • Calculate nuclear density. • Recall the implications of the high nuclear density compared to atomic density.
