  1. Faculty of Mechanical Enginering – Institute of Fluid Power Your Logo Your Company name Title of the Presentation Speaker: John Smith Date: March 26 2012 Outline: 1 Introduction 2 Task 3 Objective 4 Solution 5 Conclusion / Outlook representative image

  2. Outline Title oftheslide Introduction • Task • Objective • Solution • Conclusion / Outlook • Exampletext Your Logo Date

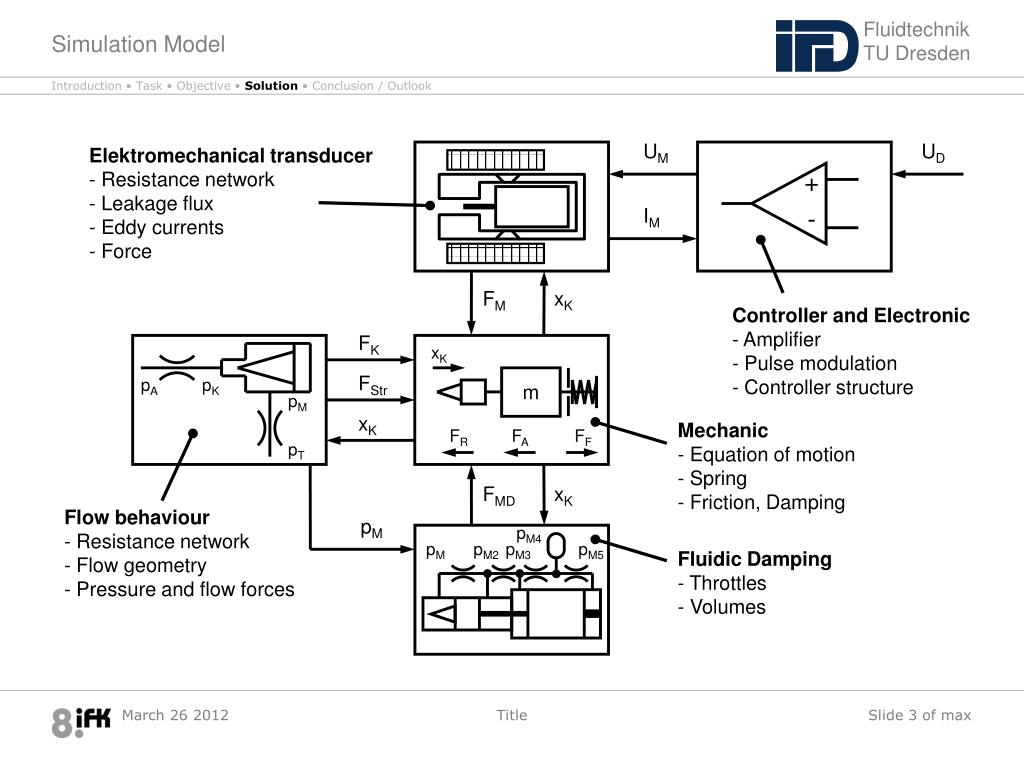

  3. + - pA pK pM pT pM4 pM pM2 pM3 pM5 Simulation Model Introduction • Task • Objective• Solution • Conclusion / Outlook UM UD Elektromechanical transducer - Resistance network - Leakage flux - Eddy currents - Force IM FM xK Controller and Electronic - Amplifier - Pulse modulation - Controller structure FK xK FStr m xK Mechanic - Equation of motion - Spring - Friction, Damping FR FA FF FMD xK Flow behaviour - Resistance network - Flow geometry - Pressure and flow forces pM Fluidic Damping - Throttles - Volumes
