HeartScreen 60G-VET

HeartScreen 60G-VET. Human and VET differences. Only limb leads and one chest lead Low frequency range VET:0.5 Hz, human:0.05 Hz VET: hardware baseline filter, human: SW digital baseline filter Species dependent QRS detector Heart rate range wider at VET.

mauritz
Download Presentation

HeartScreen 60G-VET

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HeartScreen 60G-VET Innomed-Medical Co.

  2. Human and VET differences • Only limb leads and one chest lead • Low frequency range VET:0.5 Hz, human:0.05 Hz • VET: hardware baseline filter, human: SW digital baseline filter • Species dependent QRS detector • Heart rate range wider at VET Innomed-Medical Co.

  3. HeartScreen 60G-VETPrecisious ECG with Oxymeter • Diagnostic quality ECG • Heart rate and pulse rate from 20 to 420 bpm • 3 channel store function • 1 channel rhythm curve up to 10 minutes • SaO2 measurement • Alarm limits for HR and SaO2 • PC based SW module to increase capability Innomed-Medical Co.

  4. Device monitoring features • One channel ECG or pulse curve • User can select and set the best three-channel configuration • HR and SpO2 values on display • Alarm functions on HR and SpO2 values • User can select animal species Innomed-Medical Co.

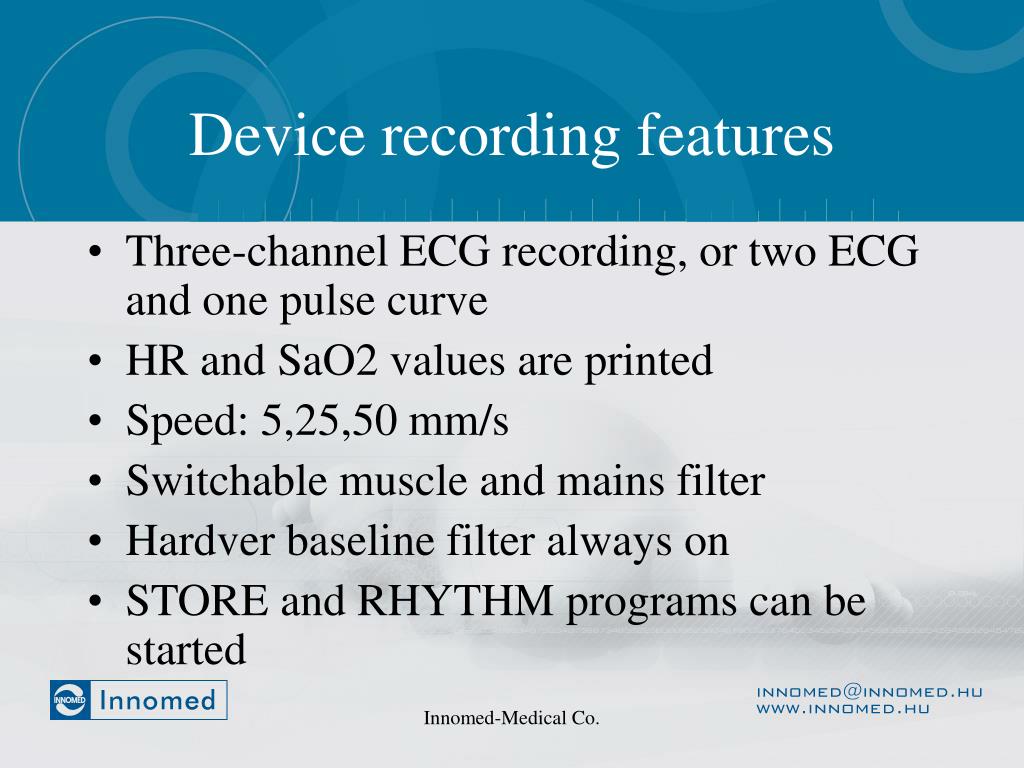

  5. Device recording features • Three-channel ECG recording, or two ECG and one pulse curve • HR and SaO2 values are printed • Speed: 5,25,50 mm/s • Switchable muscle and mains filter • Hardver baseline filter always on • STORE and RHYTHM programs can be started Innomed-Medical Co.

  6. STORE program • Stores the selected three-channel lead/pulse curve group up to 20 sec in high-resolution mode (with 250 Hz sampling) • Storage capability up to 50 patients with 4 sec or 10 patient with 20 sec ECG • Stores HR and SpO2 values Innomed-Medical Co.

  7. RHYTHM program • Stores one-channel ECG or pulse curve up to 10 minutes • Storage capability up to 30 patients with 1 minute records • Stores HR and SpO2 values in every 10 second Innomed-Medical Co.

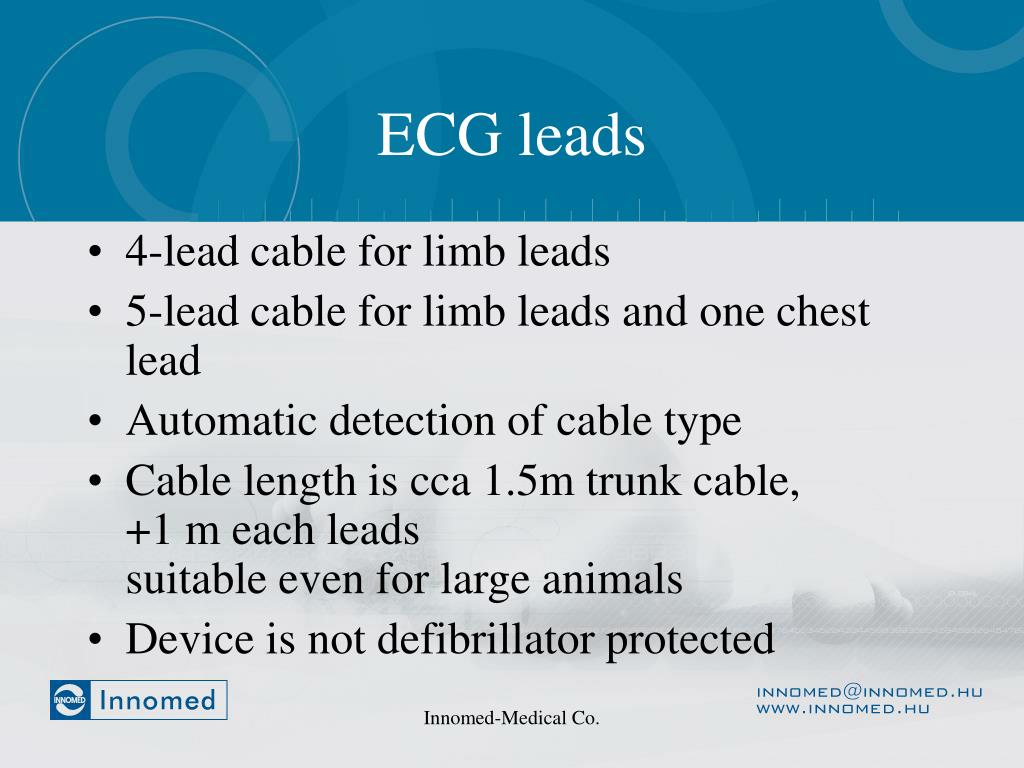

  8. ECG leads • 4-lead cable for limb leads • 5-lead cable for limb leads and one chest lead • Automatic detection of cable type • Cable length is cca 1.5m trunk cable, +1 m each leadssuitable even for large animals • Device is not defibrillator protected Innomed-Medical Co.

  9. Electrodes • Cable is assembled with standard banana plugs • Electrode can be any kind and size of alligator clips for frequent use, with ECG gel • Or Skintact disposable electrodes for longer measurements, banana plug adaptor is needed Innomed-Medical Co.

  10. Species • Dog • Cat • Small animals • Horse • Camel Innomed-Medical Co.

  11. Typical ECG parameters for different species Innomed-Medical Co.

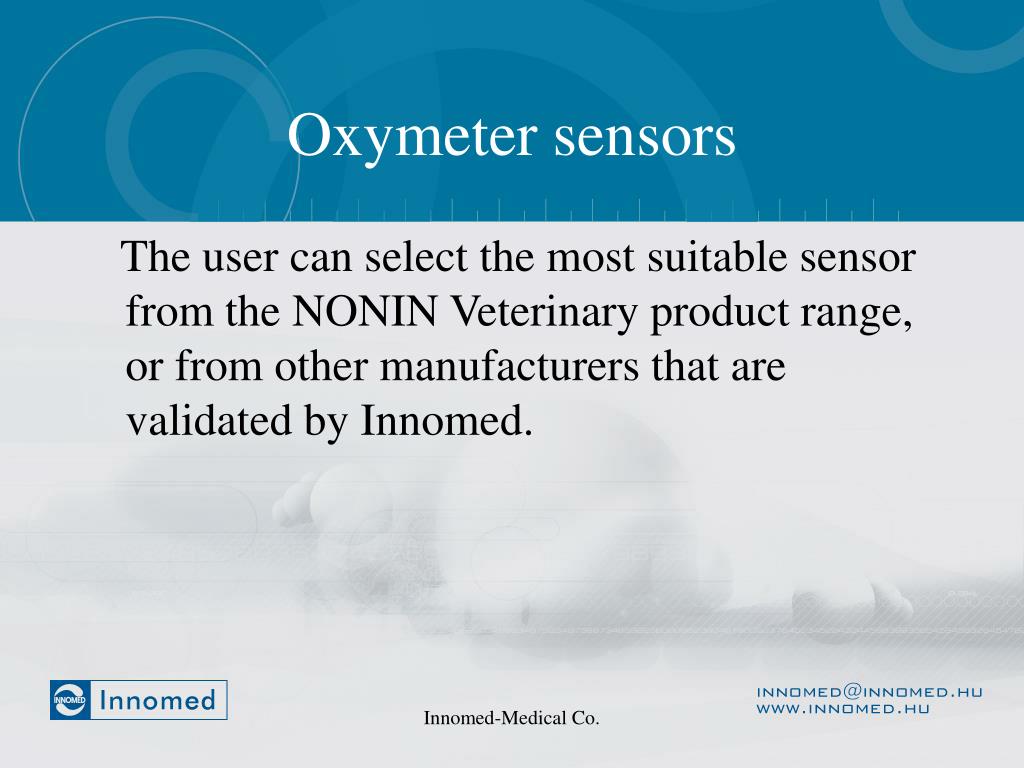

  12. Oxymeter sensors The user can select the most suitable sensor from the NONIN Veterinary product range, or from other manufacturers that are validated by Innomed. Innomed-Medical Co.

  13. NONIN 2000SL Lightweight, ultra-sensitive clip-on sensor for tongue application or paw pad, and well-vascularized areasTransmitting type sensor. Innomed-Medical Co.

  14. NONIN 2000SA Flexible wrap sensor for placement on toe (dog, large animal) or on base of the tail (small animal). Innomed-Medical Co.

  15. NONIN 2000T Convenient sensor placing on the underside, base of the tail or other well vascularized surface. Transreflective type sensor. Innomed-Medical Co.

  16. PC offers you more options • Inno-VET data archiving program • Database • You can store curves with detailed doctor/animal/owner identification • Data export/import possibilities Innomed-Medical Co.

  17. End of presentation Remember our LOGO ! Innomed-Medical Co.
