I Carbon Sequestration

II Conservation

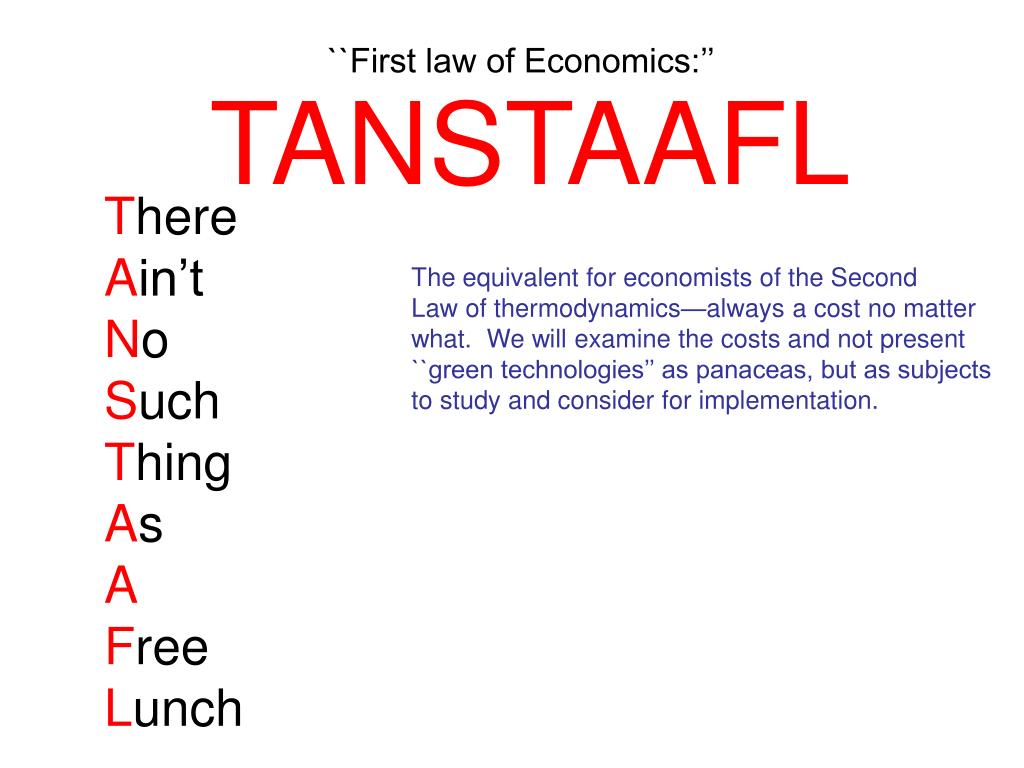

``First law of Economics:’’











The equivalent for economists of the Second

Law of thermodynamics—always a cost no matter

what. We will examine the costs and not present

``green technologies’’ as panaceas, but as subjects

to study and consider for implementation.

carbon dioxide sequestration
Carbon Dioxide Sequestration
  • Capture the CO2 from production
  • Do one of the following:
    • Bury it in the ground
    • Bury it in the deep ocean
    • Induce increased uptake by biological sources

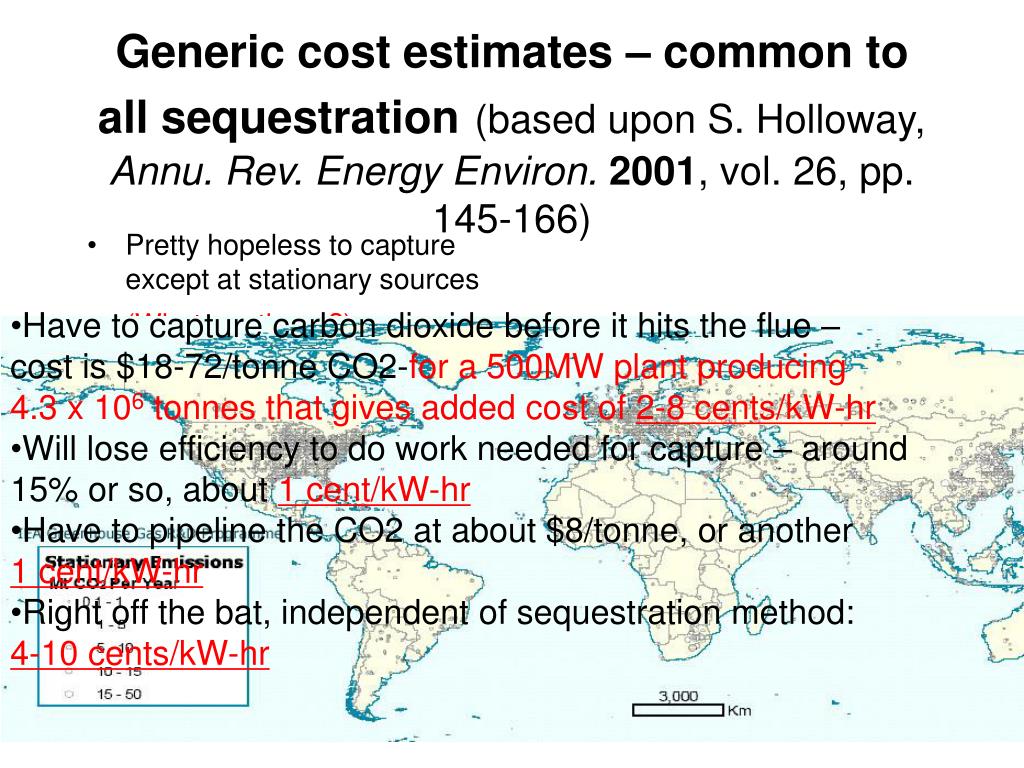

Generic cost estimates – common to all sequestration(based upon S. Holloway, Annu. Rev. Energy Environ. 2001, vol. 26, pp. 145-166)
  • Pretty hopeless to capture except at stationary sources (What are those?)
  • Have to capture carbon dioxide before it hits the flue –
  • cost is $18-72/tonne CO2-for a 500MW plant producing
  • 4.3 x 106 tonnes that gives added cost of 2-8 cents/kW-hr
  • Will lose efficiency to do work needed for capture – around
  • 15% or so, about 1 cent/kW-hr
  • Have to pipeline the CO2 at about $8/tonne, or another
  • 1 cent/kW-hr
  • Right off the bat, independent of sequestration method:
  • 4-10 cents/kW-hr
geological storage

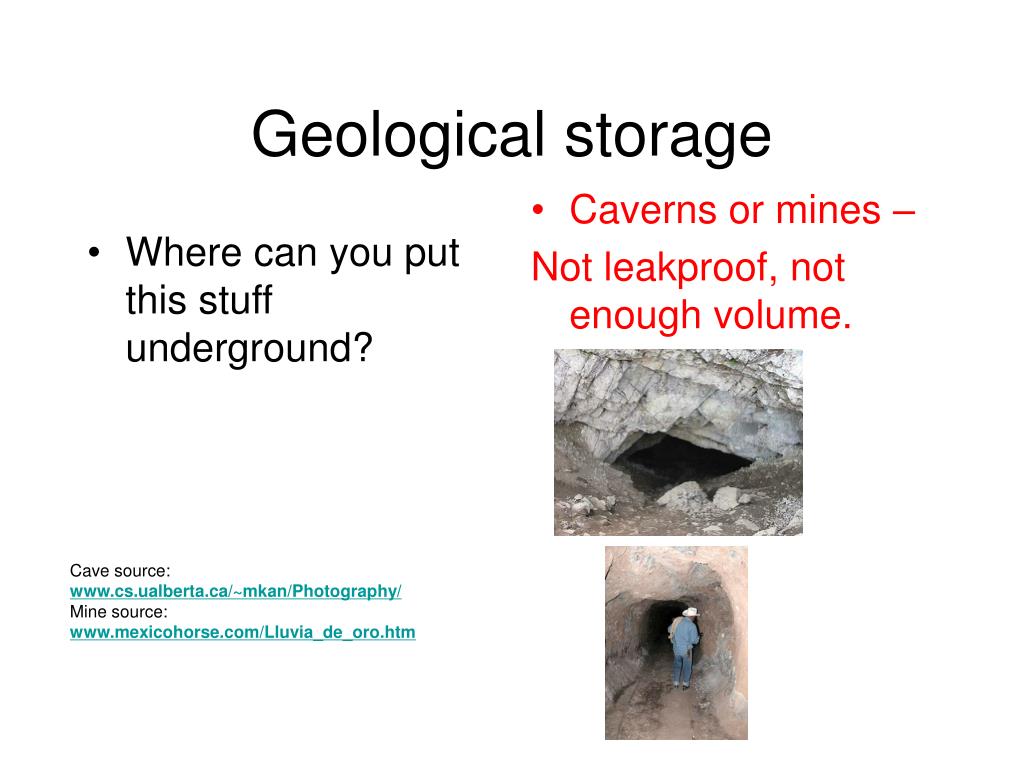

Where can you put this stuff underground?

Caverns or mines –

Not leakproof, not enough volume.

Geological storage

Cave source:


Mine source:


pore spaces
Pore spaces
  • Inject into porous rock at high pressure
  • Gas will rise to permeability cap
  • Some will dissolve into water (carbonic acid)
concerns with porous rock storage

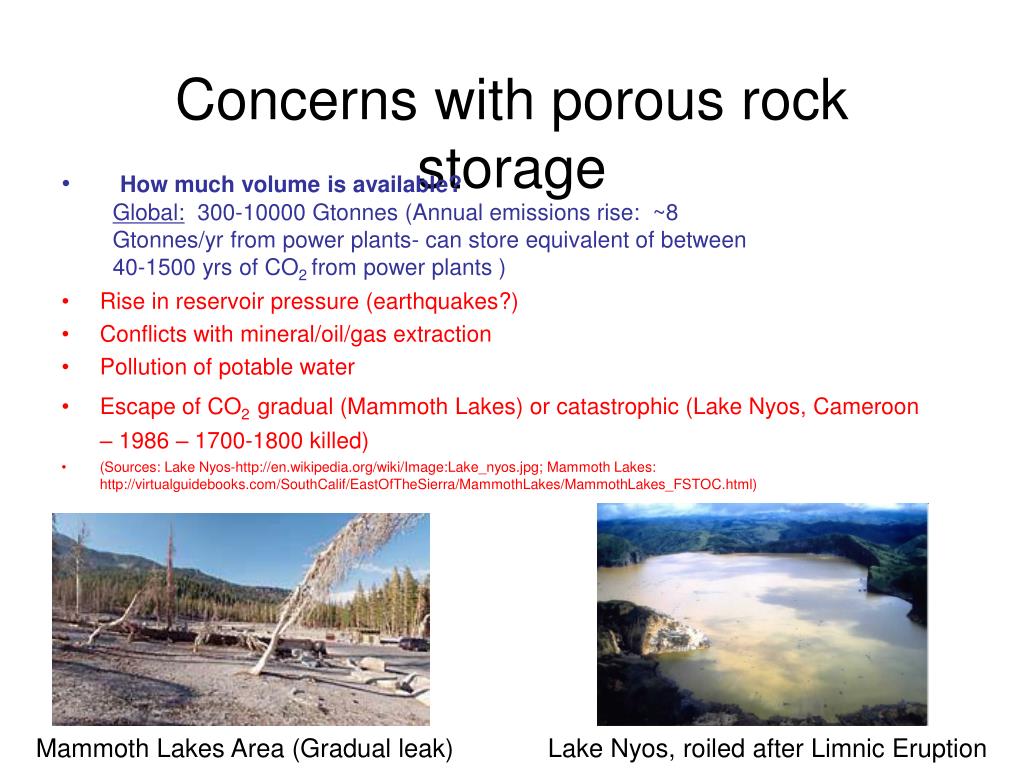

Concerns with porous rock storage
    • How much volume is available?
  • Global: 300-10000 Gtonnes (Annual emissions rise: ~8
  • Gtonnes/yr from power plants- can store equivalent of between
  • 40-1500 yrs of CO2 from power plants )
  • Rise in reservoir pressure (earthquakes?)
  • Conflicts with mineral/oil/gas extraction
  • Pollution of potable water
  • Escape of CO2gradual (Mammoth Lakes) or catastrophic (Lake Nyos, Cameroon – 1986 – 1700-1800 killed)
  • (Sources: Lake Nyos-http://en.wikipedia.org/wiki/Image:Lake_nyos.jpg; Mammoth Lakes: http://virtualguidebooks.com/SouthCalif/EastOfTheSierra/MammothLakes/MammothLakes_FSTOC.html)

Mammoth Lakes Area (Gradual leak)

Lake Nyos, roiled after Limnic Eruption

depleted oil gas fields
Depleted Oil/Gas Fields
  • Volume available: ~120 Gtonnes CO2 (about 60 years of power plant emissions)
  • Can enhance recovery of oil/gas from existing wells
  • Principal safety issue: leakage
coal beds

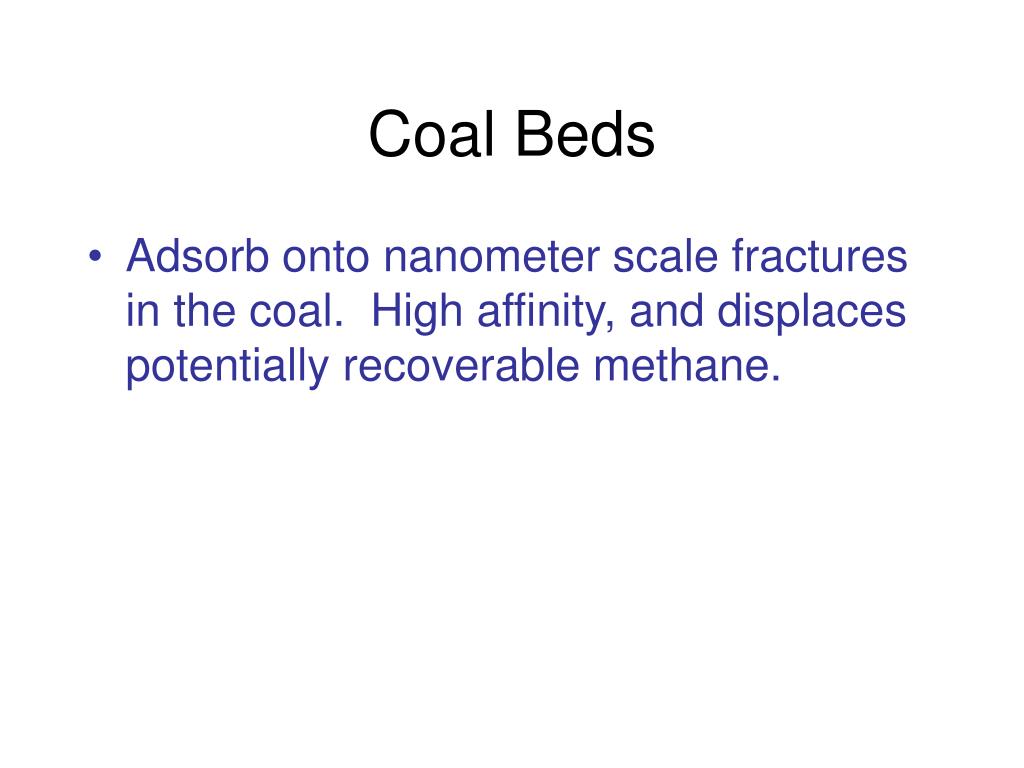

Coal Beds
  • Adsorb onto nanometer scale fractures in the coal. High affinity, and displaces potentially recoverable methane.
some food for thought

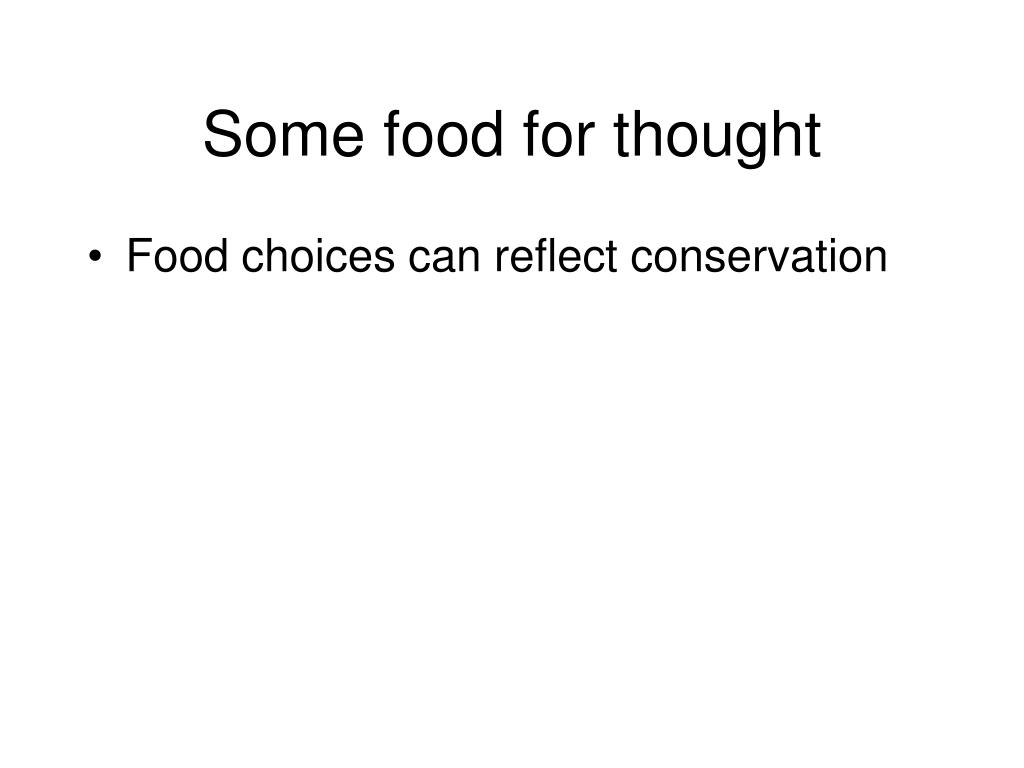

Some food for thought
  • Food choices can reflect conservation
design principles

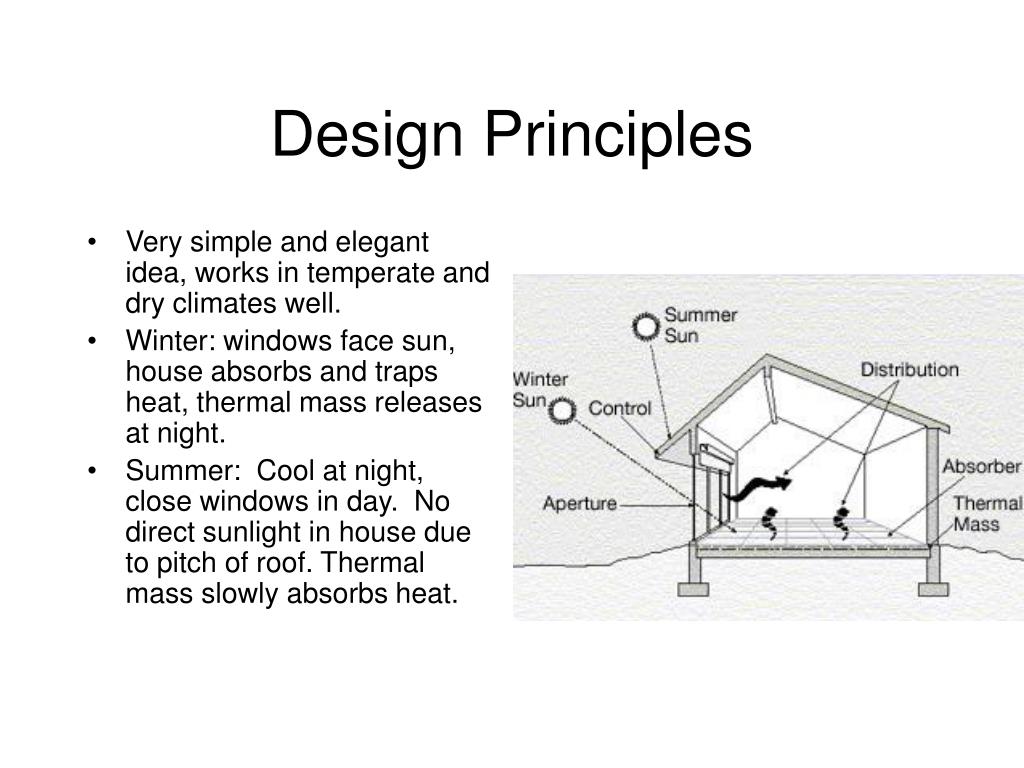

Design Principles
  • Very simple and elegant idea, works in temperate and dry climates well.
  • Winter: windows face sun, house absorbs and traps heat, thermal mass releases at night.
  • Summer: Cool at night, close windows in day. No direct sunlight in house due to pitch of roof. Thermal mass slowly absorbs heat.
Practicalities: need insulation to make it work well in winter (little heating) and summer (little cooling)
  • Figure of Merit: R values—conventional commercial insulation at right.
  • R = d/k, d = thickness of wall, k = thermal conductivity. R is a measure of thermal resistance—conventional units are ft2-oF-hour/BTU
more on the physics of r values
More on the physics of R values

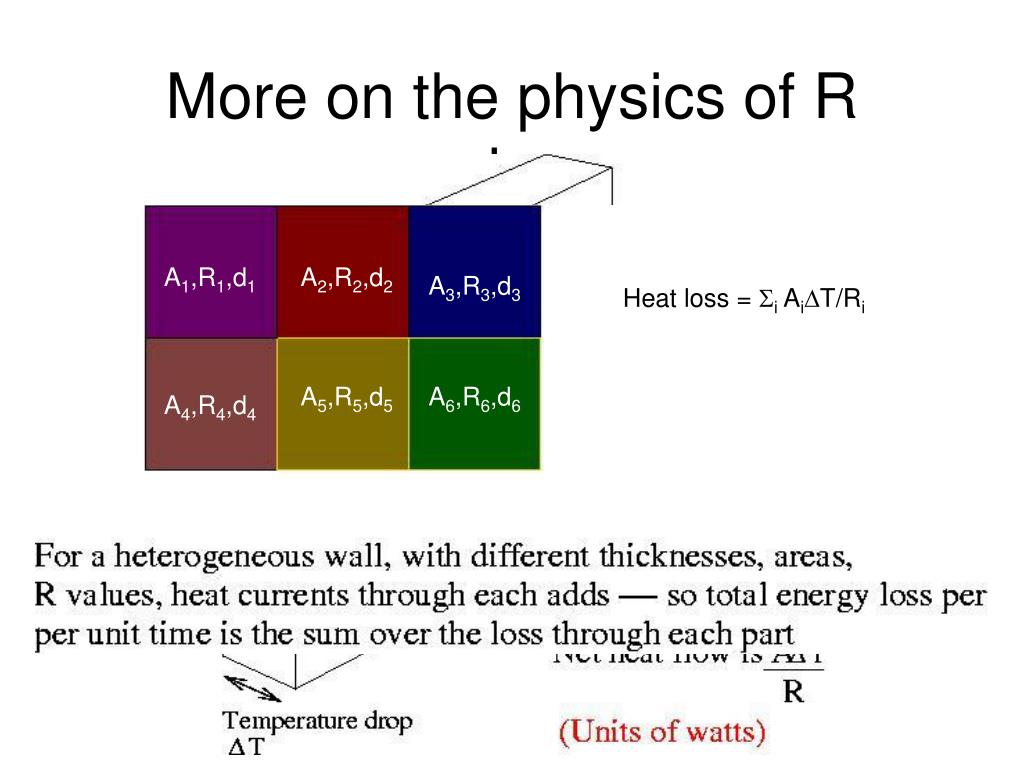

Heat loss = Si AiDT/Ri




note on polyurethane foam

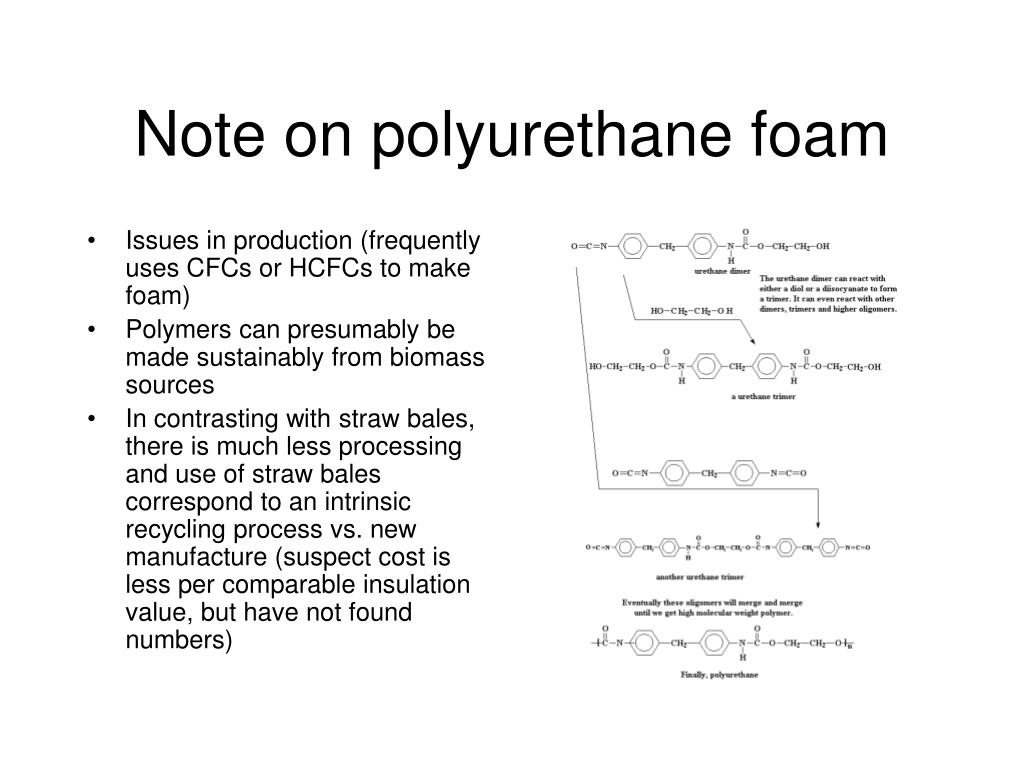

Note on polyurethane foam
  • Issues in production (frequently uses CFCs or HCFCs to make foam)
  • Polymers can presumably be made sustainably from biomass sources
  • In contrasting with straw bales, there is much less processing and use of straw bales correspond to an intrinsic recycling process vs. new manufacture (suspect cost is less per comparable insulation value, but have not found numbers)
so what is good about straw bale

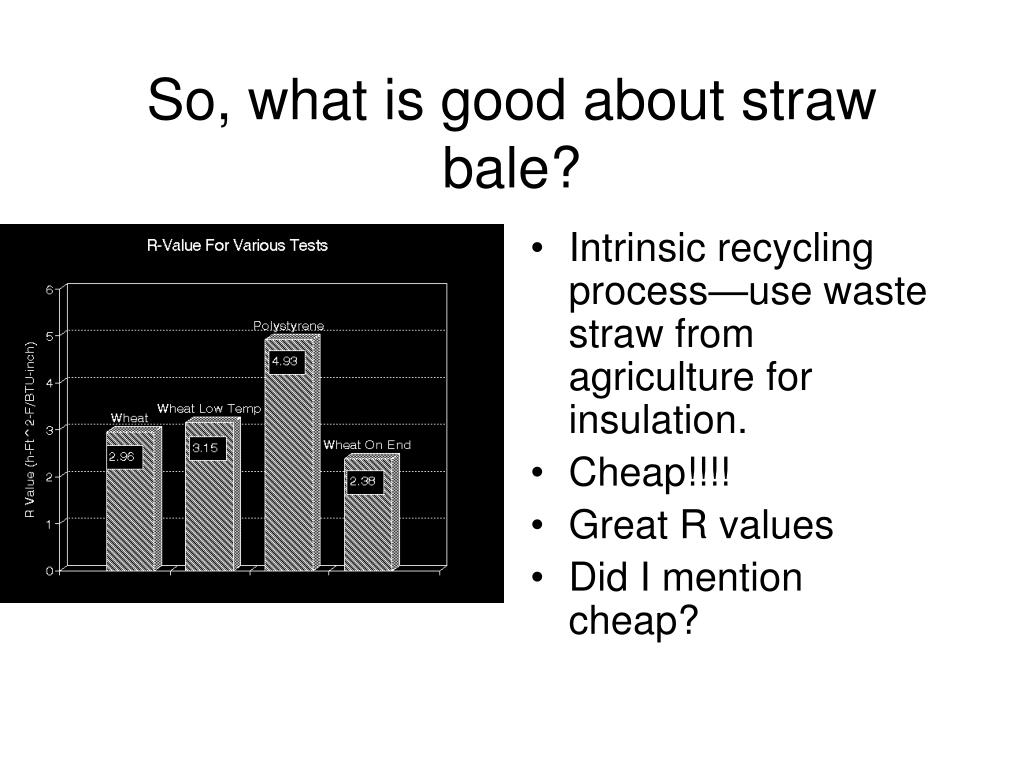

So, what is good about straw bale?
  • Intrinsic recycling process—use waste straw from agriculture for insulation.
  • Cheap!!!!
  • Great R values
  • Did I mention cheap?
straw bale housing

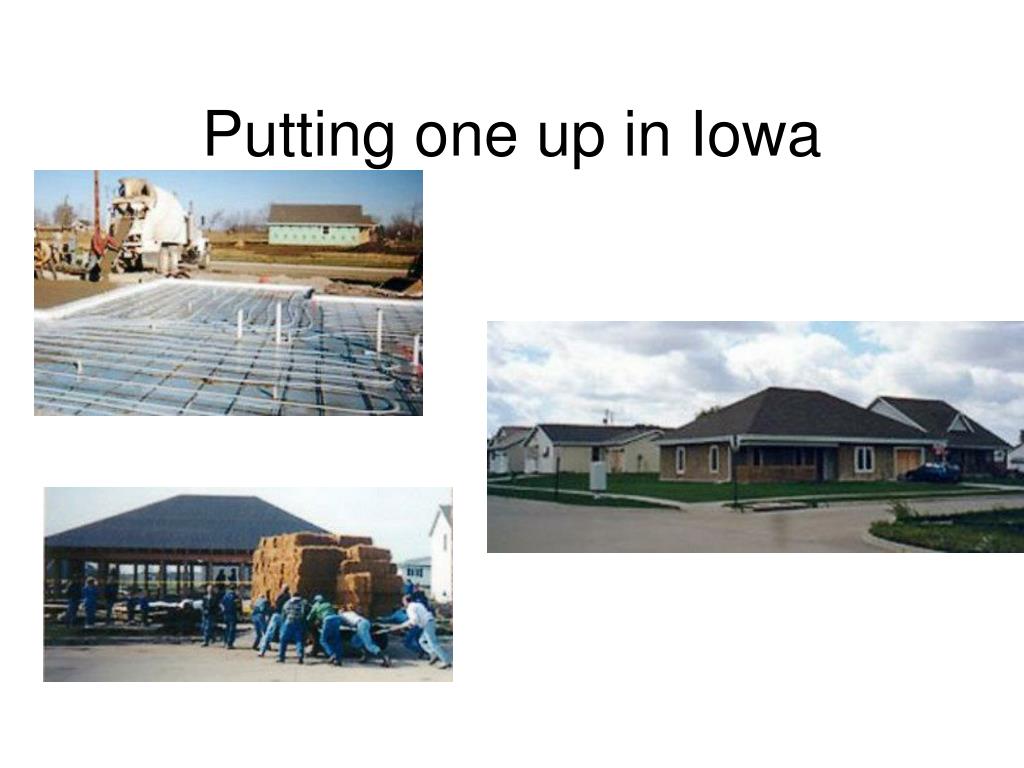

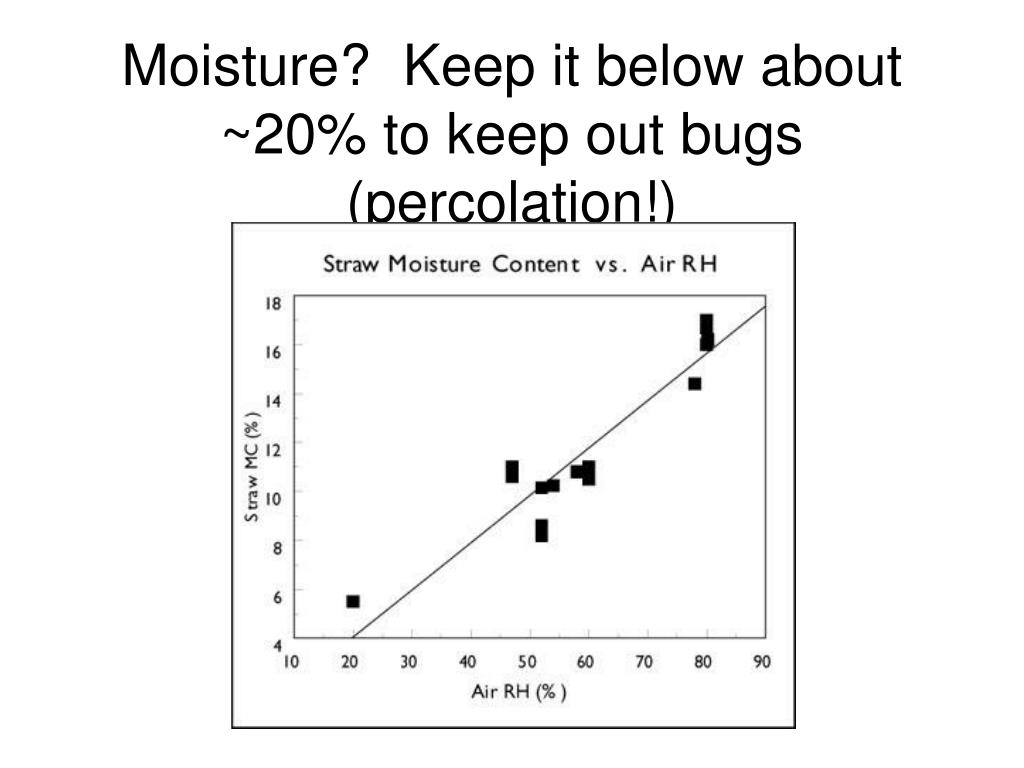

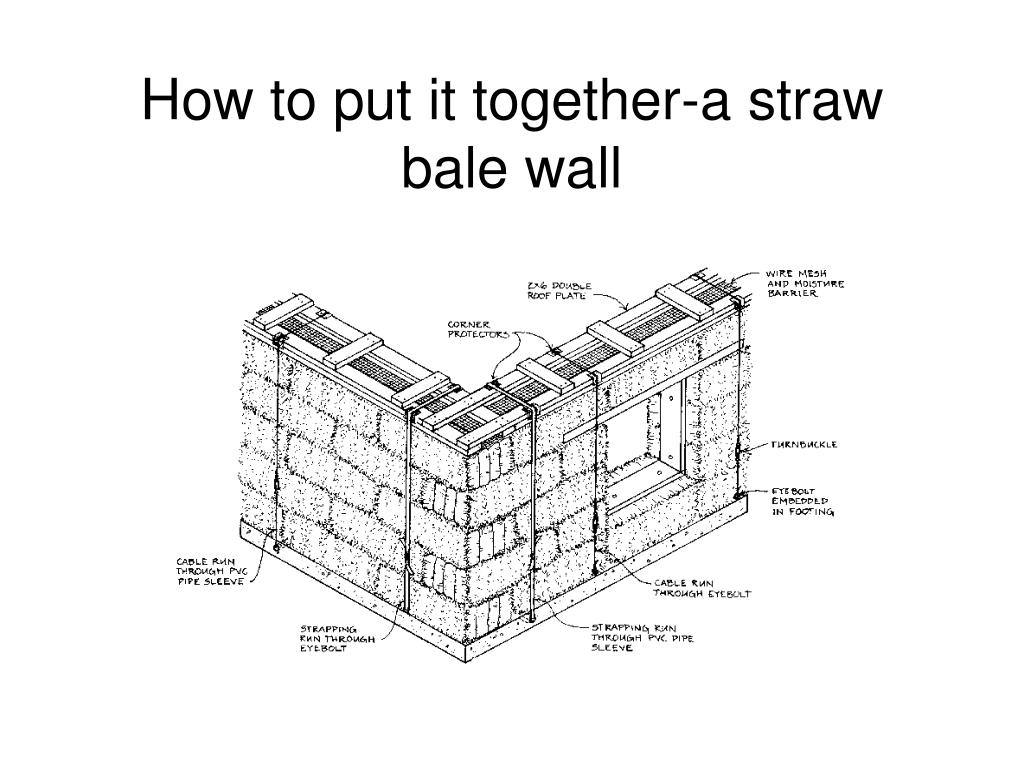

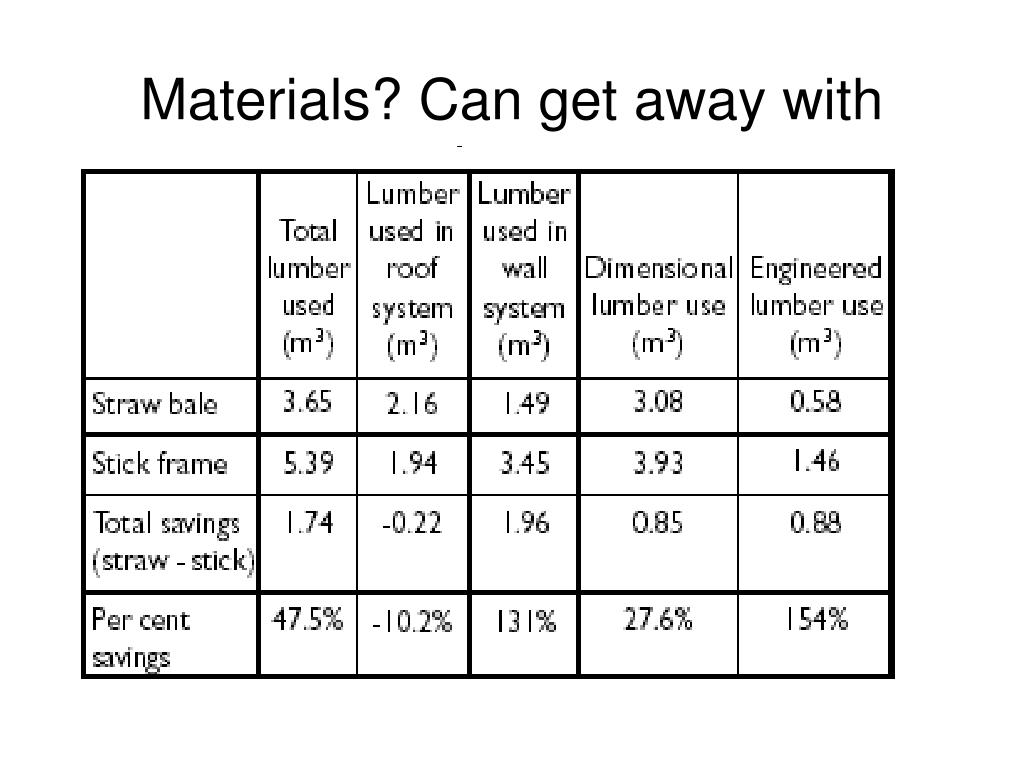

Straw Bale Housing

Straw Bale House Dining Room

Mattawa WA Library

  • Ugly and hippy-dippy right?
  • Unsuited for moist climates, right?
  • Worthless for other than houses, right?

Straw bale in British Columbia

Real Goods Store,

Hopland CA

Interior of Santa Fe Straw Bale House

additional benefits

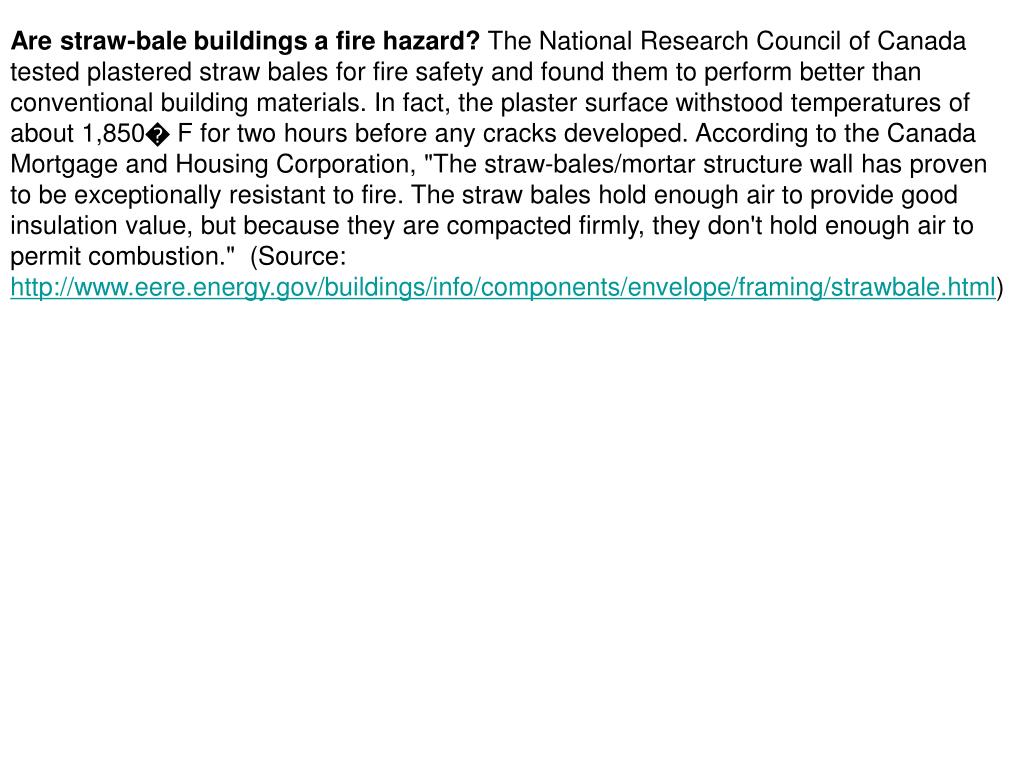

Are straw-bale buildings a fire hazard? The National Research Council of Canada

tested plastered straw bales for fire safety and found them to perform better than

conventional building materials. In fact, the plaster surface withstood temperatures of

about 1,850� F for two hours before any cracks developed. According to the Canada

Mortgage and Housing Corporation, "The straw-bales/mortar structure wall has proven

to be exceptionally resistant to fire. The straw bales hold enough air to provide good

insulation value, but because they are compacted firmly, they don't hold enough air to

permit combustion." (Source: http://www.eere.energy.gov/buildings/info/components/envelope/framing/strawbale.html)

Table 4. Life cycle cost estimate for conventional vs straw-bale houses

Conventional(Construction)$82,500   (Finance)396,000(Energy)120,000   (Total)532,500(Savings)------Straw bale(Construction)$78,375   (Finance)376,000(Energy)60,000   (Total)451,675(Savings)83,875Straw Bale* (Construction)$40,000   (Finance)192,000(Energy)60,000   (Total)260,000(Savings)272,500*owner-built walls, finishing, roofingNotes:

Life cycle = 100 years.

Finance cost = construction cost minus down payment of twenty percent at an annual interest rate of

six percent over the one hundred year life cycle (does not include closing costs when the house is sold).

Energy = the average cost for heating and cooling a conventional home for this analysis to be $100 per month.

Total = Amount of down payment plus energy and finance.

Source: Working Group Reports, Plastered Straw Bale Conference, "Roots and Revival," Arthur Nebraska, September, 1993.

Source: http://www.eere.energy.gov/buildings/info/components/envelope/framing/strawbale.html

Additional benefits
  • Cost: 2/3-full cost of construction of traditional home (depends upon how much you use contractors)
  • Great for fire safety
  • Likely good for earthquake safety (see

http://www.sfgate.com/cgi-bin/article.cgi?file=/chronicle/archive/2002/02/03/CM28488.DTL and http://www.harrisondocumentary.com/ )

what about cob from http www cobcottage com whatis
What about ``Cob’’? From http://www.cobcottage.com/whatis

What is Cob?

Earth is probably still the world's commonest building material. The word cob comes from an old English root meaning a lump or rounded mass. Cob building uses hands and feet to form lumps of earth mixed with sand and straw, a sensory and aesthetic experience similar to sculpting with clay. Cob is easy to learn and inexpensive to build. Because there are no forms, ramming, cement or rectilinear bricks, cob lends itself to organic shapes: curved walls, arches and niches. Earth homes are cool in summer, warm in winter. Cob's resistance to rain and cold makes it ideally suited to cold climates like the Pacific Northwest, and to desert conditions.

Cob has been used for millennia even in the harsh climates of coastal Britain, at the latitude of the Aleutians. Thousands of comfortable and picturesque cob homes in England have been continuously occupied for many centuries and now command very high market values. With recent rises in the price of lumber and increasing interest in natural and environmentally safe building practices, cob is enjoying a renaissance. This ancient technology doesn't contribute to deforestation, pollution or mining nor depend on manufactured materials or power tools. Earth is non-toxic and completely recyclable. In this age of environmental degradation, dwindling natural resources, and chemical toxins hidden in our homes, doesn't it make sense to return to nature's most abundant, cheap and healthy building material?

pictures of cob
Pictures of Cob

Cob House in New Zealand

Cob house in Russia

Shaping Cob by Hand

Cob Mud Pit Dance

conservation future white light diodes

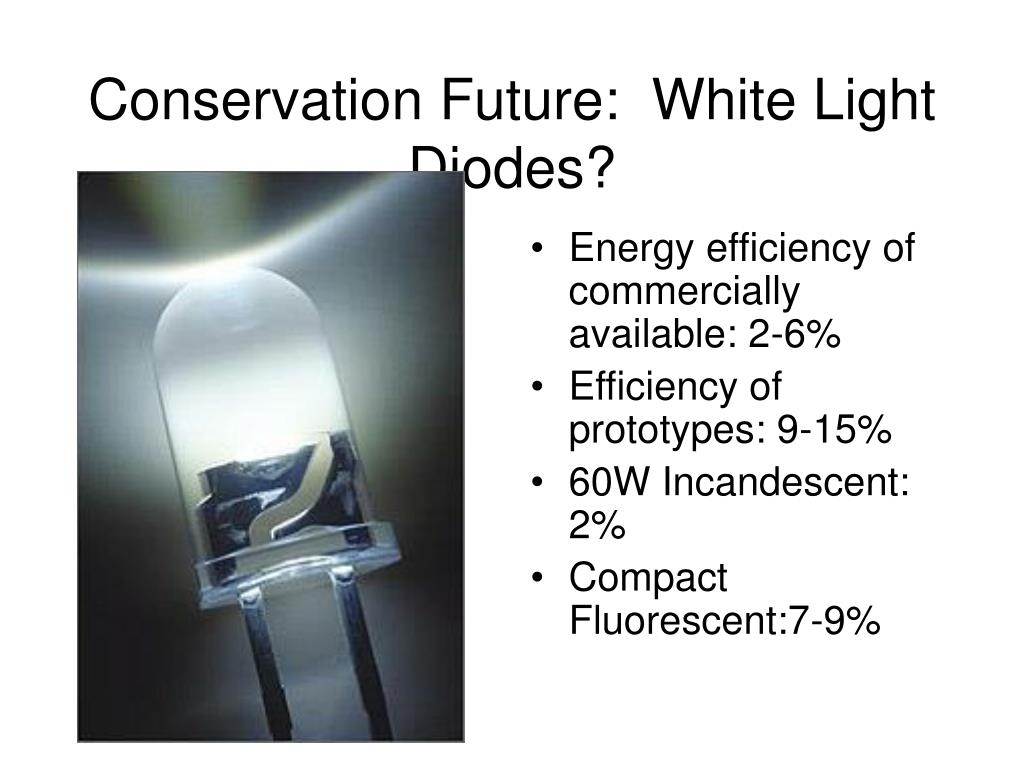

Conservation Future: White Light Diodes?
  • Energy efficiency of commercially available: 2-6%
  • Efficiency of prototypes: 9-15%
  • 60W Incandescent: 2%
  • Compact Fluorescent:7-9%
some numbers here
Some numbers here
  • At peak efficiency, a 15% efficient diode light implies  replace 60W incandescent by ~8-10 W diode (replace 60W incandescent by ~15-20 watt fluorescent) and get same lighting intensity.
  • Diodes (and fluorescents) are more durable.
  • Aesthetics are an issue (incandescents have black body spectrum more like sunlight; diodes and fluorescents don’t….).
photo credits

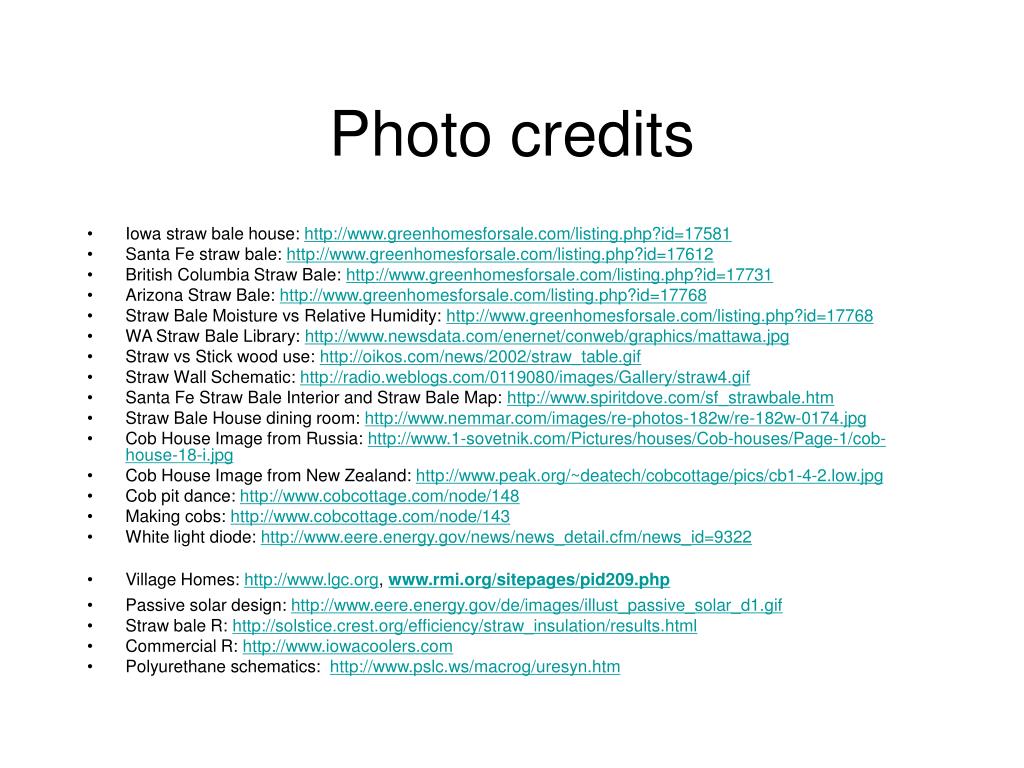

Photo credits
